Mistral MR60WSOUT User manual

OPERATION INSTRUCTIONS

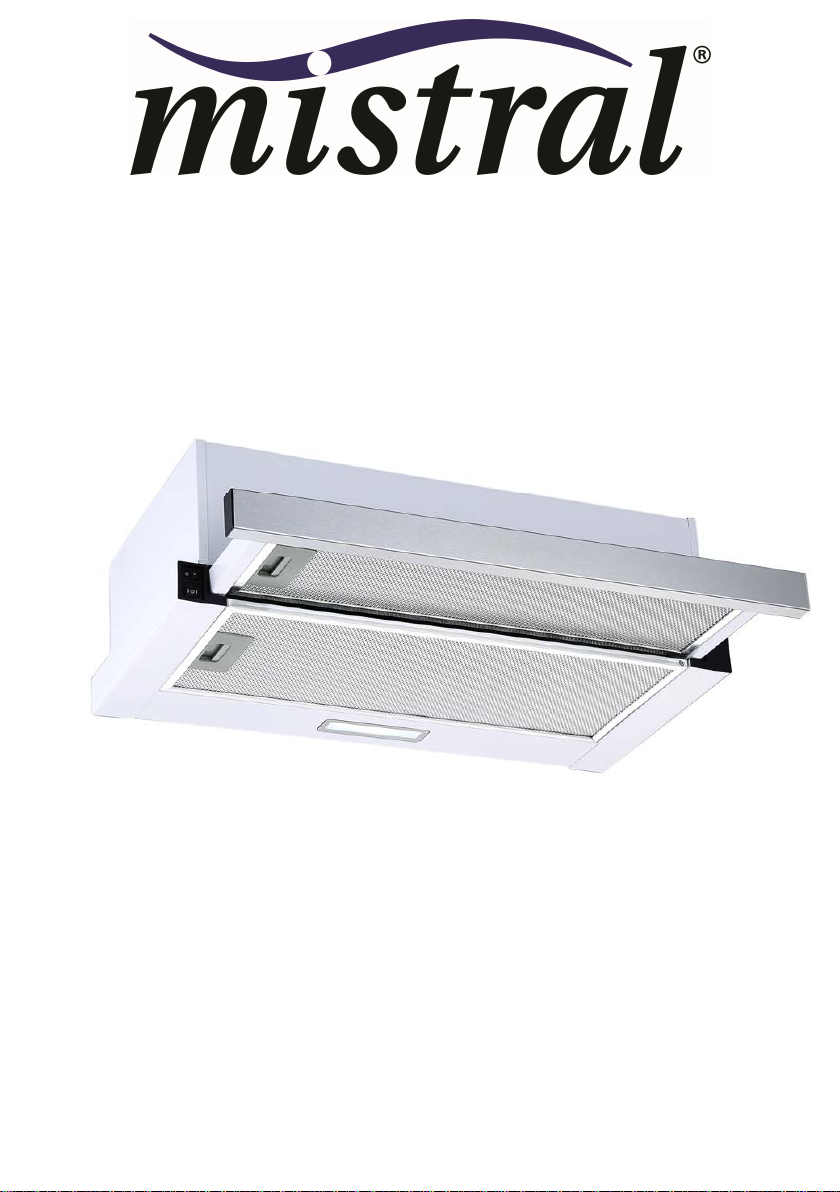

60cm White Slide Out Rangehood
Model No. MR60WSOUT
V2 July 2022
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au

Th ank you
Thank you for choosing Mistral Appliances.
All Mistral appliances carry a 2 year In Home warranty be sure to
retain your Installation and user manual and receipt.
For all warranty and technical queries please contact
Australia 1300 373 199
New Zealand 0800 764 912
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au

Contents
Safety instructions ............................................... 2
Product description ............................................ 3-4
Start using your appliance ................................. 5-6
Maintenance ...................................................... 7-8
Warranty .............................................................. 9-10
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: Australia 1300 373 199
For Warranty and technical queries: New Zealand 0800 764 912
www.mistral.com.au

Safety Instructions
This manual explains the proper installation and use of your range hood, please read
it carefully before using even if you are familiar with the product. The manual should
be kept in a safe place for future reference. In case of failure, only the Authorised
Technical Service may repair this range hood. Otherwise the guarantee will be null
and void. All Appliances are for domestic use only.

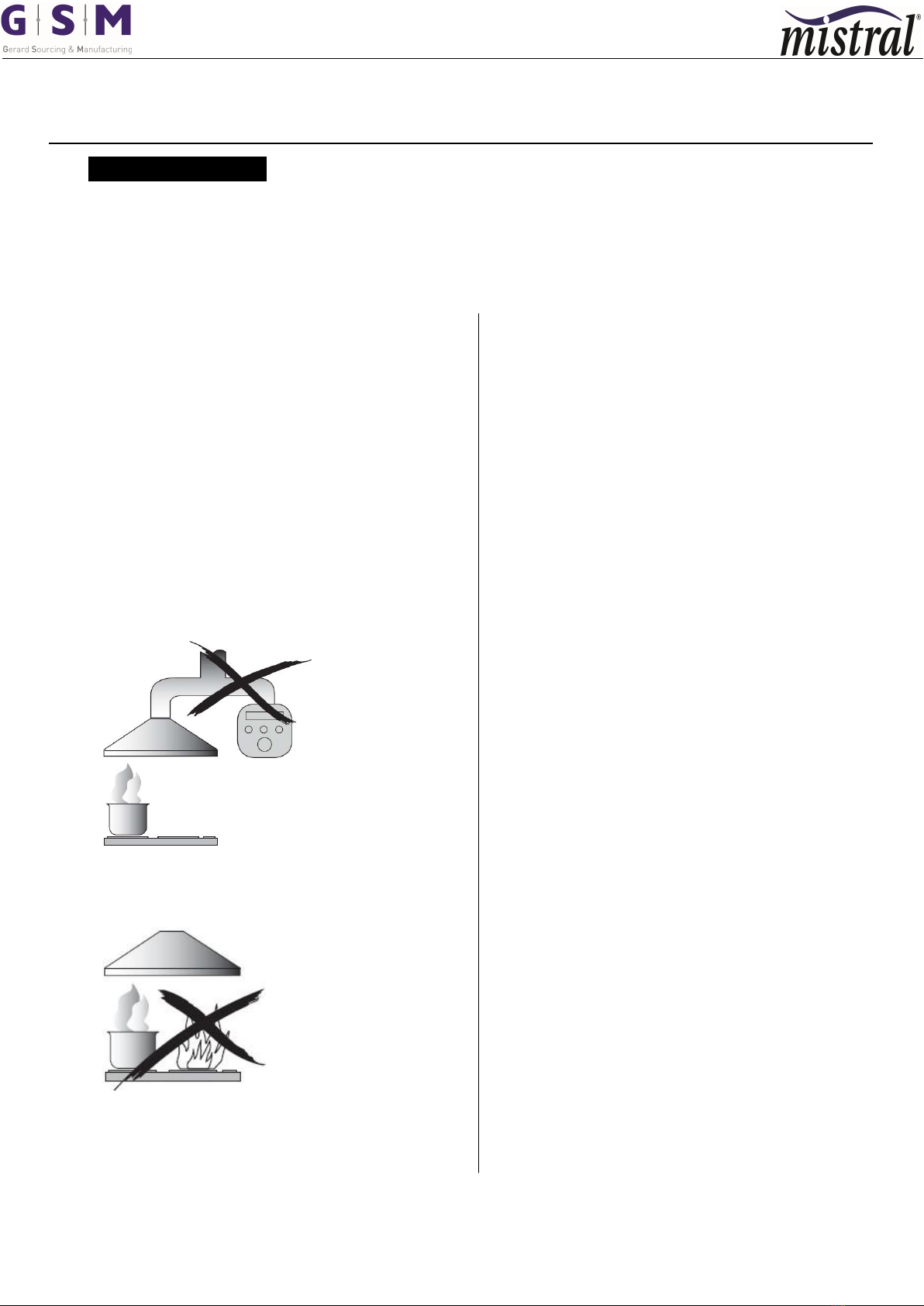

Never to do:
•
This appliance is not intended for use by
persons (including children) with reduced
physical, sensory and mental capabilities, or
lack of experience and knowledge, unless
they have been given supervision or
instruction concerning use of the appliance
by a person responsible for their safety.
•
Never carry out flamable cooking under
the appliance
•
The exhaust from the range hood must not be
discharged into any heating flue, which may
carry combustion products from other sources.
•
Do not leave lit gas burners exposed due to
the risk of fire.
•
This range hood is not recommended
for barbecues.
Always to do:
•
Packaging materials (eg; polystyrene and
plastic items) must be kept out of reach of
babies or young children at all times due to
risk of suffocation.
•
Children should be supervised to ensure that
they do not play with the appliance;
–do not flambé under the range hood.;
–CAUTION: Accessible parts may become hot
when used with cooking appliances
•
Ensure the range hood is switched off
before carrying out maintenance, to
avoid any possibility of electric shock.
•
Grease filters must be removed every
four weeks (maximum) for cleaning to
reduce the risk of fire.
•
There must be adequate ventilation of the
room when the range hood is used at the
same time as appliances burning gas or
other fuels.
•
Always cover lit gas burners with pots or
pans when range hood is in use.
•
Always switch off gas burners before
you remove pots or pans.
•
If the supply cord is damaged, the cord
must be replaced by the manufacturer, its
service agent or similarly qualified persons
in order to avoid a hazard
•
Plug must be accessible after installation.
2

Safety Instruction
Never to do:
•
This range hood cannot be installed for outdoor use.
•
It is prohibited to fit the range hood over a solid
fuel stove
•
This appliance must not be connected to a
chimney or vent flue which is in use.
•
This appliance is not to be vented into the
roof cavity, must exit into open air.
•
Exhaust air must not be discharged into a wall
cavity, unless the cavity is designed for the
purpose.
•
This appliance should not be connected to
ducting which ventilates rooms with fire
places.
Always to do:
•
Attention should be given to ensure that
any applicable regulations concerning
discharge of exhaust air are fulfilled.
•
This appliance should be installed and
maintained by a suitably qualified
and competent person in
accordance with the relevant safety
regulations.
•
Before connecting the appliance to the
mains supply, ensure that the voltage and
frequency details on the rating plate are
consistent with the source of supply.
This product must not be disposed
together with domestic waste. This product
has to be disposed at an authorised place
for recycling of electrical and electronic
appliances.
By collecting and recycling waste, you help save
natural resources, and make sure the product is
disposed in an environmental friendly and healthy
way.
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust
www.belliniappliances.com.au Model: BPI1200 Fineline Aus Portable Induction Cooker
GSM Retail Australia Pty Ltd ABN: 53 007 582 475
For Warranty and technical queries: 1300 373 199 Aust
www.belliniappliances.com.au Model: BPI1200 Fineline Aus Portable Induction Cooker
3

Product Description
Accessories bag
Description Picture QTY
Installation & User Manual 1
Metal plate 1
L bracket 2
Outlet( diameter 120mm) 1
Dry wall anchors plugs 4
Screw (M4x10mm) 2
Screw(ST4x30mm) 4
Screw (ST3x12mm)* 2
Washer* 6
Screw (M4x35mm)* 6
*Used in installation method B
Component list:
1. L bracket(used installation A method)
2. Outlet(diameter 120mm)
3. Main body
4. Metal plate(used installation B method)
5. Grease mesh filters
Technical data:
Power supply: 220 – 240v, 50Hz
Motor: 1x100W
Lights: 1x2W LED light Length
of power cord: 1.70 M Air
outlet diameter: 120mm
4

Operation Mode
Your range hood can only be operated in ducting mode (Air Extraction).
Air Extraction
For air extraction mode, a ducting kit is required, the
air is drawn in and cleaned by the grease filters and
directed outside.
Ducting must be vented to outside atmosphere.
5

Installation
Installation:
Warning:
Check that the installation complies with the standards of local building, gas and electrical
authorities. Before connecting to the mains supply ensure the mains voltage corresponds to the
voltage on the appliance rating plate inside the range hood.
When installing the range hood, make sure you adhere to the minimum and maximum distances from
the range hood base to the cooktop hob surface.
Hints for exhaust duct installation
The following rules must be strictly followed to obtain optimal air extraction

Keep exhaust duct short and straight

Do not reduce the size or restrict exhaust duct

When using flexible duct always install the duct pulled taut to minimize pressure loss

Failure to observe these basic instructions will reduce the performance and increase noise
levels of the range hood
Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.
We provide two options to install your range hood, against wall (method A) or into cabinet (method
B), choose what kind of method you want and then follow up corresponding instruction.
6

A: Install against wall
1. Using a spirit level mark a vertical centre line on the wall where the hood is to be positioned, and a
horizontal line where the hood base will be.
NOTE: The distance from the horizontal line to an electrical cooktop underneath must be minimum
of 600mm & 650mm to a gas cook top and a maximum height of 750mm.
*If the instructions of the hob specify a greater distance than the minimum above, then that shall be the minimum height for installation
2. Drill 4 holes of 8mm diameter on the wall according to below drawing.
3. Hammer dry wall anchor plugs into holes. Insert 2pcs Screw(ST4x30mm) into the two lower holes(with
distance to horizontal line 496mm) and fasten, they will be used to hang on the range hood.
Warning: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards
Vertical centre line
Where the range hood will be
Horizontal line Hood base
Minimum:
Electric 600mm
Gas 650mm
Maximum:
750mm
Top of hob
7

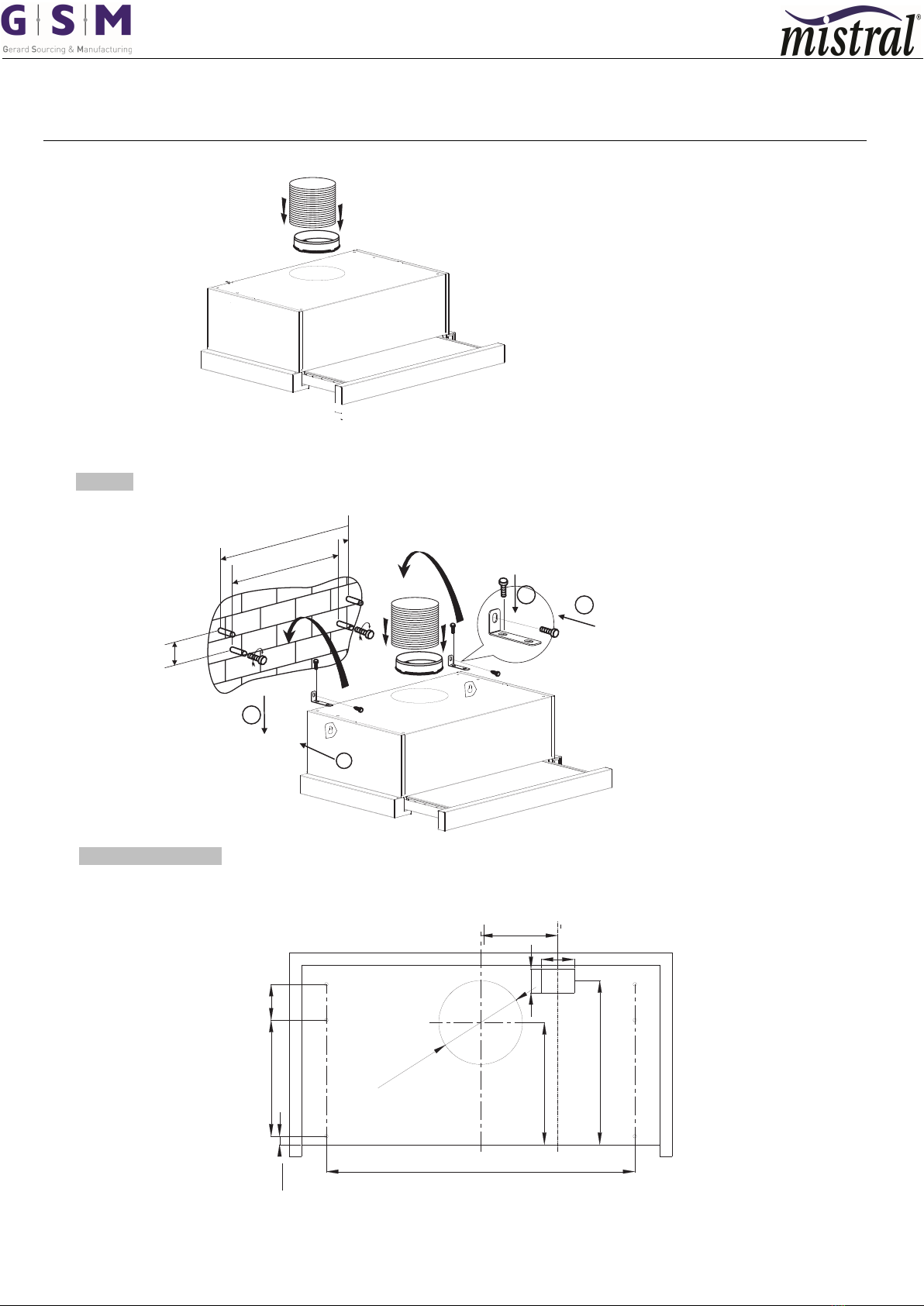

Fit the outlet and flexible exhaust pipe on top of range hood body.
4. Hang on the range hood, fasten 2pcs Screw(ST4x30mm) and L bracket onto two higher holes(with
distance to horizontal line 516mm), and then fasten 2pcs Screw (M4x10mm) and L bracket onto body.
Warning: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards
B: Install into cabinet
1. According to below drawing to determine where want to place the range hood, and drill 6
holes with 4mm diameter at the hanging board of your cabinet.
496
516
38
1
2
43
12 9
55
40
274
φ
140
60194
14
204
51 6
8

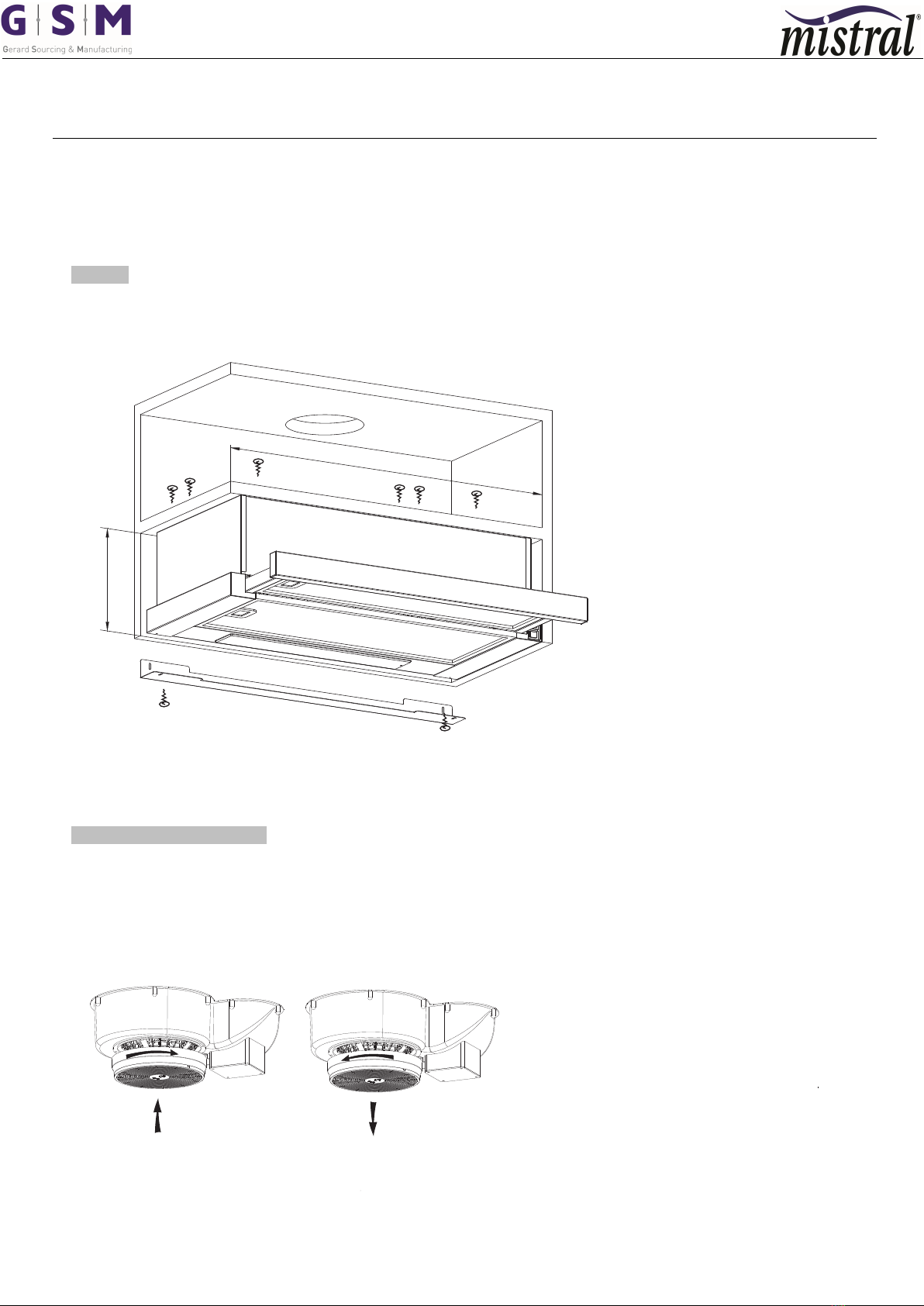

2. Fit the outlet on top of range hood body.
3. Install the range hood onto the bottom of cabinet board, fasten 6pcs Screw (M4x35mm) with
washers. If gap is there between range hood back and cabinet end, fasten 2pcs Screw
(ST3x12mm) and metal plate onto body to fill it.
Warning: Failure to install the screws or fixing device in accordance with these instructions may
result in electrical hazards

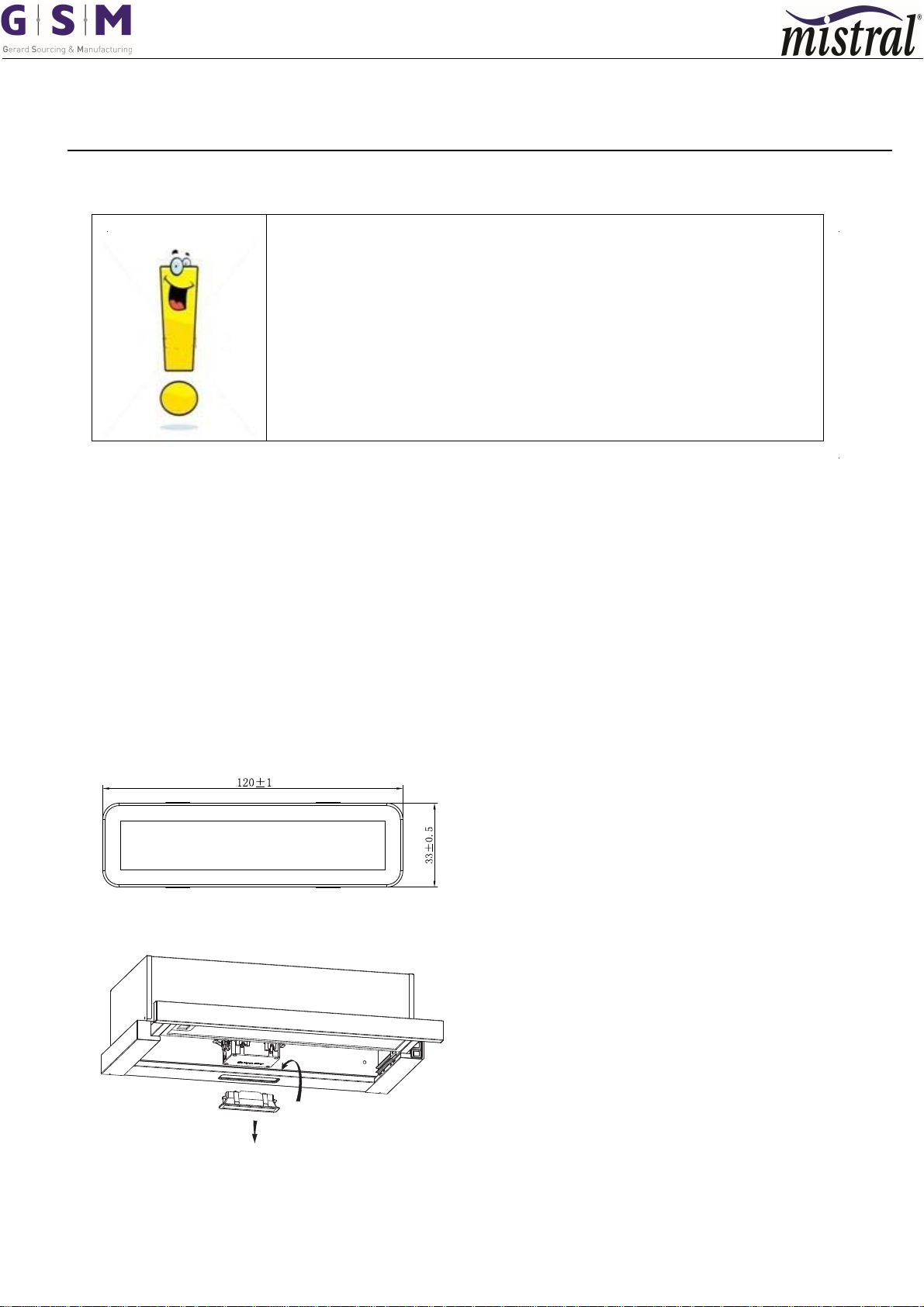

Installation of charcoal filters
Charcoal filter is optional accessory.The installation procedure of activated carbon filter is as below.
1. Remove grease mesh filters.
2. Follow up below instruction you can remove or install charcoal filters.
176
600
9

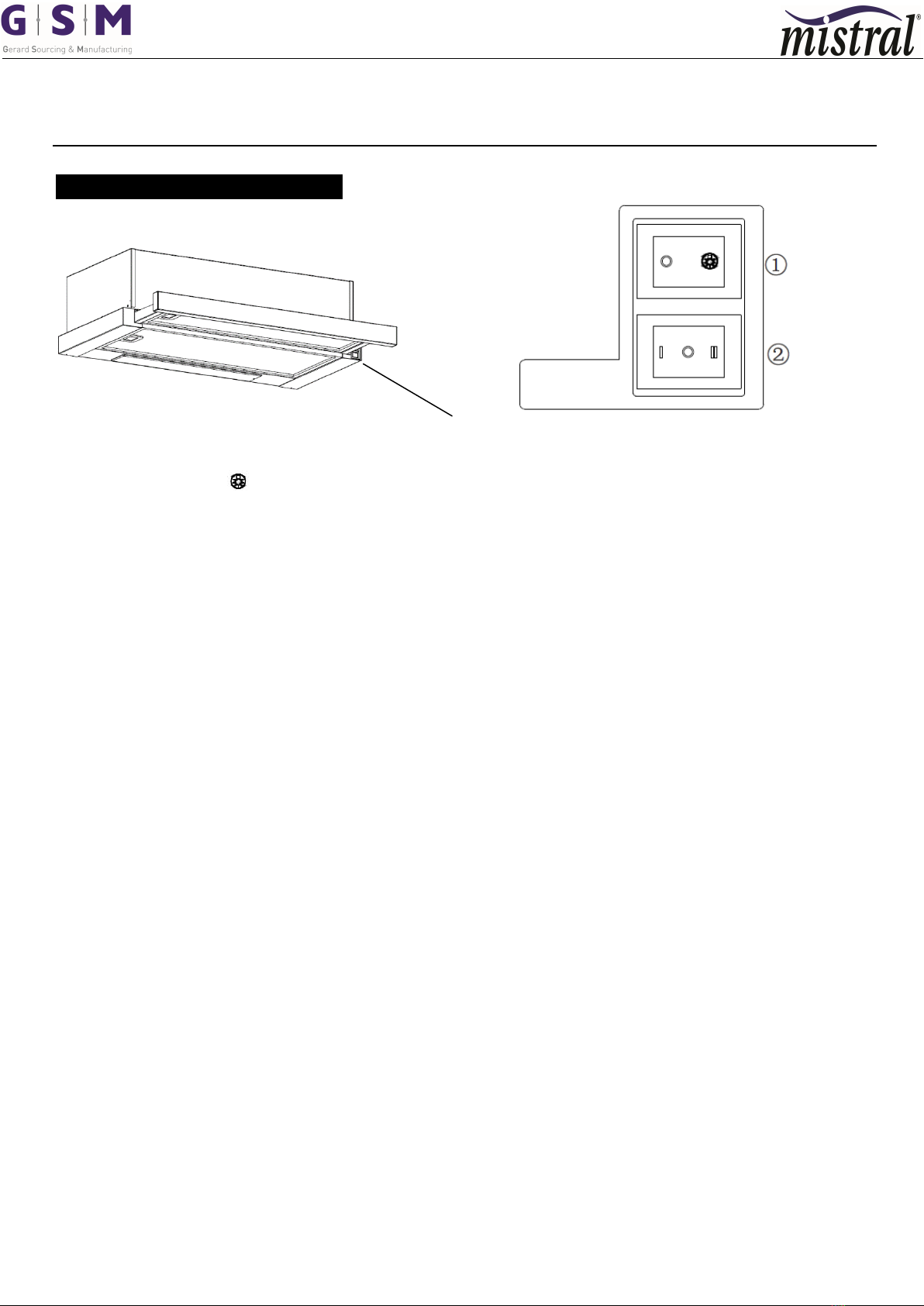

Start Using Your Range
Rocker switch
Rockerswitch
1. Insert the power plug into the socket.
2. Push switch ① to" " , the lamp will be on; push switch ① to “0”, the lamp will be off.
3. Push the switch ② into “I、II”, the motor will be on “low、high” two speeds, push
into “0”, the motor will be off.
4. The power will be connected when pull out the front panel. Conversely, the power
will be automatically disconnected.
10

Maintenance and cleaning
Caution:
•Before maintenance or cleaning is carried out,
the range hood should be disconnected from
the main power supply. Ensure that the range
hood is switched off at the wall socket and the
plug removed.
•External surfaces are susceptible to scratches
and abrasions, so please follow the cleaning
instructions to ensure the best possible result is
achieved without damage.
GENERAL
Cleaning and maintenance should be carried
out with the appliance cold especially when
cleaning Avoid leaving alkaline or acid
substances (lemon juice, vinegar etc.) on the
surfaces
STAINLESS STEEL
The stainl ess steel must be cleaned regularly
(e.g. weekly) to ensure long life expectancy.
Dry with a clean soft cloth. A specialized
stainless steel cleaning fluid may be used.
NOTE: Ensure that wiping is done along with the
grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from
appearing.
Important
Avoid using harsh cleaning chemicals, strong
household detergents or products containing
abrasives as this will affect the appliance
appearance and potentially remove any
printing of artwork on the control panel and
will void manufactures warrantee
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using
warm soapy water. Ensure the cloth is clean and
well wrung before cleaning. Use a dry soft cloth
to remove any excess moisture left after cleaning.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand.Soak them
for about 3 minute in water with a mild detergent and
then brush it gently with a soft brush. Do not apply too
much pressure so as to avoid any damage to it .
(Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and
kitchen utensils.It is advisable not to use rinse aid.
INSTALLING GREASE MESH FILTERS
11
To install filters for the following four steps;
-Angle the filter into the slots at the back of the
hood.
- Put the bustton on the handle of the filter.
- Release the handle once the filter fits into a resting
position.
- Repeat to install all filters.

LED LIGHT ASSEMBLY REPLACEMENT
Important:The light must be replaced by the manufacturer, its service
agent or similarly qualified persons.
Always switch off the electricity supply before carrying out
any operations on the appliance. When handling the light, make
sure it has completely cooled down before any direct contact to
hands.
When handling the light hold with a cloth or gloves to ensure
perspiration does not come in contact with the light as this can
reduce the life of the light.
Note:
Before changing the lights, make sure that the appliance is turned off and unplugged.
Protect against danger when changing lights, such as wearing gloves.
Changing the lights:
(1) Switch off the appliance and unplug it.
(2) Slide the front part of the cooker hood.
(3) The al filter should be detached first. Press the lock and pull it downward.(4)
Replace with same type of light.
•ILCOS D code for this lamp is: DBS-2/65-H-120/33
–LED modules –rectangle lamp
–Max wattage: 1×2 W
–Voltage range: AC 110-240V
–Dimensions:
12

WARRANTY
1.1 In this warranty:
1.1.1 Australian Consumer Law means the law as set out in Schedule 2 of the Competition and
Consumer Act 2010;
1.1.2 Company means *605HWDLO$XVWUDOLD Pty Ltd ABN 53 007 682 475 of 142-144 Fullarton Road, Rose
Park SA 5067. Telephone [phone]. Email [e-mail];
1.1.3 Consumer means a “consumer” as that term is defined in Section 3 of the Australian Consumer
Law as the original purchaser of a Mistral product;
1.1.4 Consumer Guarantees means the guarantees under the Australian Consumer Law;
1.1.5 You means the Consumer.
1.2 Nothing in this warranty affects any person’s rights under the Australian Consumer Law. The benefits to
any Consumer under this warranty are in addition to the rights and remedies available under any
Consumer Guarantees.
1.3 Subject to the other clauses of this warranty, the Company warrants to the Consumer that the Mistral
product will be free of manufacturing defects and will perform to the Company’s specifications.
1.4 The benefit of this warranty extends only to the Consumer as original purchaser of a Mistral product which
is installed in a domestic household area.
*The in Home warranty does not apply to Commercial and or industrial usage. *Please See 1.7.7 for additional
information
1.5
This warranty commences on the date of purchase of the Mistral product by the Consumer and
continues for the benefit only of the Consumer until the expiry of Two (2) year (Warranty Period)
1.6
If . f within the Warranty Period a manufacturing defect is discovered in the Mistral product or it fails to perform
to the Company’s specifications as a result of some defect in materials, components or workmanship
(Defect) then the Company will, at its option, repair the Mistral product or supply a replacement Mistral
product free of charge. A replacement Mistral product may differ from the original product purchased by the
Consumer.
1.7 This warranty will not apply to any Mistral product:
1.7.1 Installed by any person other than a qualified tradesperson;or
1.7.2 Subjected to misuse, neglect, negligence or accidental damage; or
1.7.3 Operated in any way contrary to any operating or maintenance instructions;or
1.7.4 Improperly handled, installed or maintained;or
1.7.5 Altered or modified prior to or after installation; or
1.7.6 Damaged directly or indirectly by power surges, electrical storm damage or connection to incorrect
power supply
1.7.7 Industrial and or Commercial usage is inclusive of staff areas in office/ shop environments, hotel/
motel or other similar accommodation or rental type properties including Bed and Breakfast
establishments.
The Australian Consumer Law requires the inclusion of the following
statement with this warranty:
Our goods come with guaranteed that cannot be excluded under the Australian Consumer Law. You are entitled to a
replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure.
13

1.8 You must provide proof of your purchase of the Mistral product and the date of purchase in order to obtain
the benefit of this warranty.
1.9 If you live outside the service area of the Company or one of its service agents, this warranty does not
cover the cost of transport of the Mistral product for service nor the service agent’s traveling costs to and
from your home.
1.10 If you are required to transport the Mistral product to the Company or its service agent, you must ensure it is
safely disconnected by a qualified tradesman and securely packed and insured. The Company does not
accept any responsibility for loss or damage of the Mistral product prior to it being received by the Company or
its service agent.
1.11 You will be responsible for all costs of returning a Mistral product to the Company and for redelivery of the
Mistral product by the Company (whether it is the original or a repaired and/or a replacement Mistral product)
and for any other expenses you incur in claiming under this warranty.
1.12 The Company or its service agent will examine any Mistral product and if the Company determines that it is
defective through no fault of the Owner and is otherwise undamaged, the Company will repair or replace
the Mistral product in accordance with this warranty.
DO NOT SEND IN THIS WARRANTY
Fill out the following details and file with your purchase invoice.
RETAIN & FILE WITH YOUR RECEIPT
Your Purchase Receipt/Invoice is proof of date of purchase. If you are unable to establish the date of purchase, or if
the fault is not covered by this warranty, or if the product is found to be in working order, you will be required to bear
all service call charges.
*605HWDLO$XVWUDOLD Pty Ltd reserves the right to discontinue items, modify designs and change specifications
without incurring obligation.
Whilst every effort is made to ensure that descriptions, specifications and other information in this publication is
correct, no warranty is given in respect thereof and the company shall not be liable for any errors therein.
Purchased from:
Co. Name:
Address:
Date of Purchase:
Serial number:
NOTE: Consistent with our continuing product development policy, improvements may have been made
which render the contents of this packaging slightly different to that shown.
14
For Warranty and technical queries: Australia 1300 373 199
: New Zealand 0800 764 912
