Mistral V ZUG LTD User manual

Range hood
Mistral
Operating instructions
VZUG LTD

2
Dear V-ZUG Customer
Thank you for choosing to buy one of our products.
Your appliance is made to high standards and is easy to use. Nevertheless, please
take the time to read these operating instructions in order to familiarize yourself with
the appliance and get the best use out of it.
Please follow the safety precautions.
Modifications
Text, diagrams and data correspond to the technical standard of the appliance at the
time these operating instructions went to press. The right to make technical modifica-
tions is reserved.
Symbols used
ASpecifies the steps that must be taken and the order in which they must be taken.
– Describes how the appliance reacts to the steps taken.
䡲Marks a list.
Validity
The model number corresponds to the first three digits on the identification plate. These
operating instructions apply to the following models:
Deviations depending on the model are noted in the text.
© V-ZUG LTD, CH-6301 Zug, 2006
Denotes important safety precautions. Failure to observe
said precautions can result in injury or damage to the appli
ance or fittings!
Denotes useful tips for the user.
Type Model no. Type Model no.
DW-M9 787 DI-M10 789
DW-M12 788 DI-M12 790

3
Contents
Safety precautions 5
Before using for the first time . . . . . . . . . . . . . . . . 5
Correct use . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Children in the home . . . . . . . . . . . . . . . . . . . . . 6
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Appliance description 8
Extraction model . . . . . . . . . . . . . . . . . . . . . . . . 8
Recirculation model . . . . . . . . . . . . . . . . . . . . . . 8
Construction . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating and display elements . . . . . . . . . . . . 10
Operating the appliance 11
Switching on . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching off . . . . . . . . . . . . . . . . . . . . . . . . . 11
After-running time . . . . . . . . . . . . . . . . . . . . . . 11
Illumination . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Grease filter saturation indicator . . . . . . . . . . . . . 12
Care and maintenance 13
Cleaning the housing . . . . . . . . . . . . . . . . . . . . 13
Cleaning the metal grease filter . . . . . . . . . . . . . 14
Replacing the activated charcoal filter . . . . . . . . . 15
Replacing the halogen light . . . . . . . . . . . . . . . . 16
Troubleshooting 17
What to do if … . . . . . . . . . . . . . . . . . . . . . . . 17

…Contents
4
Accessories and spare parts 18
Technical data 19
Disposal 20
Index 21
Notes 22
Repair service 23
Quick instructions 24

5
Safety precautions
Before using for the first time
䡲The appliance must be installed and connected up to the electricity supply in ac-
cordance with the separate installation instructions. The necessary work should be
done by a qualified fitter or electrician.
䡲Dispose of the packaging material in accordance with local regulations.
䡲Ensure the metal grease filters are properly installed.
Correct use
䡲The appliance is designed for use in the home for extracting fumes from above the
cooking surface.
䡲Any repairs, modifications or manipulations to the appliance, especially any elec-
trical parts, should only be carried out by the manufacturer, its Customer Services
or similarly qualified persons. Repairs if carried out incorrectly may cause serious
injury, damage to the appliance and fittings, as well as affect the functioning of
the appliance. If the appliance is not working properly or in case of a repair order,
follow the instructions given in the repair service section. Please contact Customer
Services if necessary.
䡲Use original spare parts only.
䡲Retain these operating instructions for future reference. If you sell or pass the ap-
pliance on to a third party, please ensure these operating instructions accompany
the appliance, together with the instructions on installation. In this way, the new
owner can inform themselves about how to use the appliance correctly and read
the pertinent safety precautions.
The appliance corresponds to recognised technology stan
dards and the relevant safety regulations. Proper use of the
appliance is essential to avoid damage and accidents. Please
follow the tips given in these operating instructions.

…Safety precautions
6
Children in the home
䡲Packaging material (e.g. plastic, polystyrene) can be dangerous for children. Dan-
ger of suffocation! Please keep packaging material away from children.
䡲The appliance is designed for use by adults who are familiar with these operating
instructions. Children are often unable to recognise the danger of electrical ap-
pliances. Ensure proper supervision and do not allow children to play with the ap-
pliance – there is a danger that children can hurt themselves.
Use
䡲If the appliance is visibly damaged, do not use it. Contact our Customer Services.
䡲If the appliance is not operating properly, disconnect it from the electricity supply
immediately.
䡲Do not flambé food underneath the hood, as the metal grease filters, if laden with
grease, could catch fire through this.
䡲If frying on the cooking surface, do not leave the frying appliance unattended. The
cooking oil in the frying appliance could overheat and catch fire. Constantly
monitor the temperature of the cooking oil, keeping it below the temperature at
which it can catch fire. Change the cooking oil regularly – dirty oil catches fire
easier than clean oil.
䡲Clean the filters regularly. Failure to do so, can increase the fire hazard due to the
build-up of grease in the metal grease filter.
䡲To avoid damage to the appliance or the kitchen fittings through the build-up of
heat. The individual cooking zones of the cooking surface should only be operated
provided there is a full pan, etc., on the top, so that the appliance and the kitchen
fittings. Avoid open fires with oil, gas, wood and coal fired cookers.
䡲When the extraction fan is on, always ensure there is adequate ventilation so as
to avoid low pressure conditions in the kitchen and to achieve optimal air
extraction.

…Safety precautions
7
䡲When carrying out maintenance work on the appliance, including replacing light
bulbs, cut off the electricity supply to the appliance (remove the screw fuse from the
holder or switch the circuit breaker off, or disconnect from the mains supply).
䡲When cleaning the appliance make sure no water gets inside the appliance. Use
a moderately damp cloth. Do not spray the inside or outside of the appliance with
water. Do not use a steam cleaner. If water gets inside the appliance, it can cause
damage.

8
Appliance description
The appliance is designed to extract cooking fumes and smells from the cooking area.
This particular model can be used to extract or to recirculate air.
Extraction model
The cooking fumes are extracted by a ventilator. The metal grease filters clean the ex-
tracted air, which is passed through a connecting pipe fitted with an integrated non-
return valve and through the air duct to the outside.
Recirculation model
If, for building reasons, it is impossible to vent the air outside, the appliance can be
used as a recirculation model. The cooking fumes and smells are filtered over the metal
grease filter through activated charcoal filters and the filtered air is then circulated back
into the room through the side openings.
When the appliance is in use, ensure there is a sufficient supply of fresh air to
replace the air that is being extracted.
If activated charcoal filters are not supplied with the appliance, these should
be ordered and installed before using the appliance.
Moisture is not taken out of the air.

…Appliance description
9
Construction
1Operating and display elements
2Metal grease filter
3Halogen light (4×)
4Hood
5Activated charcoal filter (for recirculating air only)
6Glass panel (fold-away)
1
6
5
2
3
4

…Appliance description
10
Operating and display elements
Power level 1 on / off
Power level 2 on / off
Power level 3 on / off
Intensive level on / off
After-running time
Illumination on / off / dimmed
Grease filter saturation indicator
Depending on the model and design, the specification of the appliance may
differ from the standard specification described herein.

11
Operating the appliance
Switching on
APress the / / or buttons to switch the appliance
on.
ASelect a different power level by pressing the corresponding button.
– The control light shows which power level is currently being used /
/ or .
Switching off
To switch the appliance off, press the power level currently being used again.
Afterrunning time
In the after-running time function, the appliance runs for 5 minutes at power level 3,
then switches automatically to power level 2 and runs for a further 5 minutes, then to
power level 1 and finally switches off.
APress the button to activate the after-running time function.
We recommend switching the appliance on several minutes before cooking
and allowing it to run for at least another 5 minutes after you have finished
cooking . Use a low power level for normal cooking smells and a higher pow-
er level for very strong cooking fumes and smells.

…Operating the appliance
12
Illumination
APress the button to switch the illumination on or off.
AHold the depressed to dim the light.
Grease filter saturation indicator
The filter saturation indicator lights up to indicate that the grease filter must be
cleaned.
AClean the metal grease filter.
AAfter cleaning, hold the button depressed for at least 5 seconds.
– The indicator light goes out.
The illumination can be used on its own.

13
Care and maintenance
Cleaning the housing
Clean the housing of the appliance using a slightly damp cloth, and detergent if
necessary, and wipe dry.
Take care that no water gets into the housing of the
appliance! If water gets into the housing, it can cause
damage.
Do not use abrasive cleaners, scouring pads, steel wool, etc., as they can
damage the surface.

…Care and maintenance
14

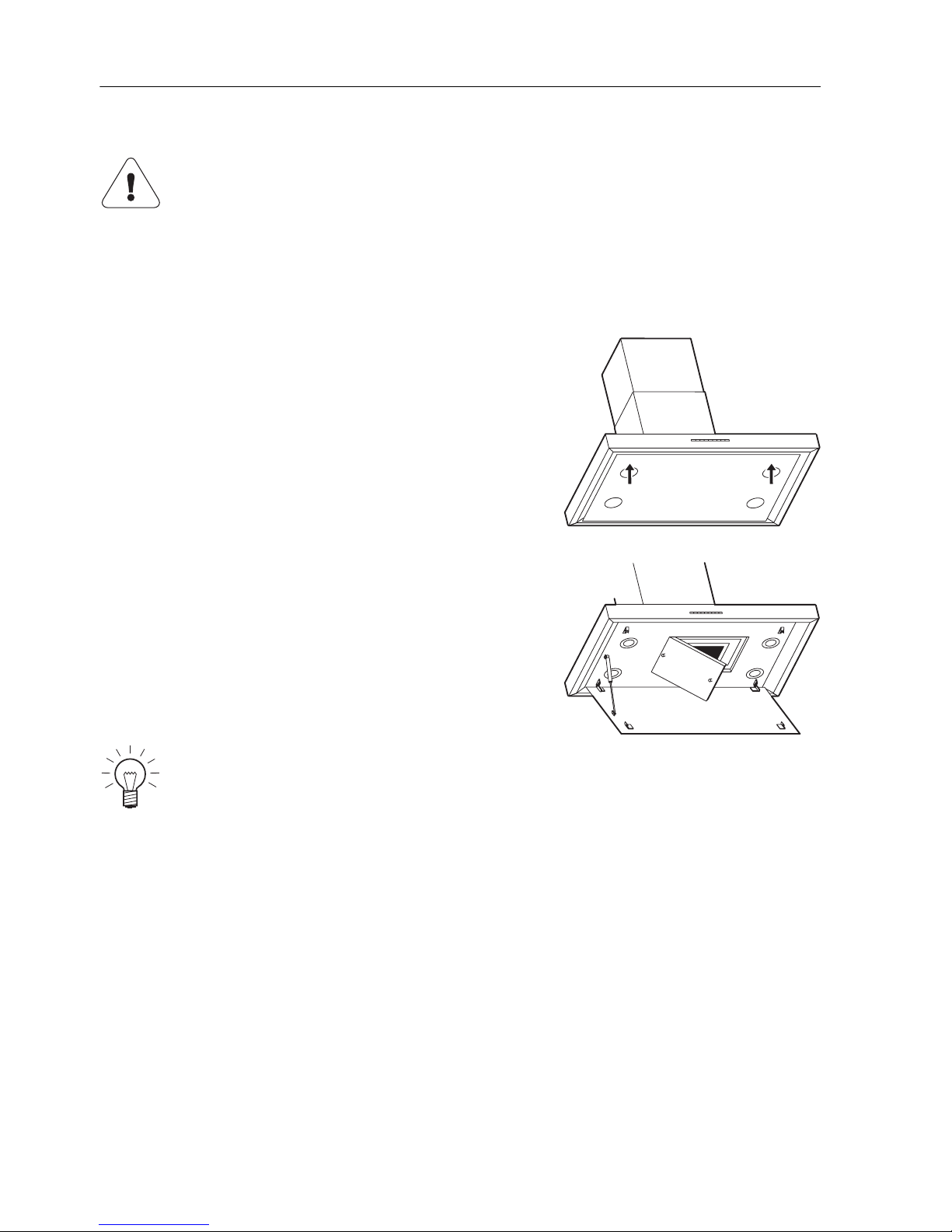

Cleaning the metal grease filter
The metal grease filter should be cleaned weekly with normal use, or once every two
weeks at a minimum. If properly cared for, a metal grease filter should provide unlim-
ited years of service.
A Using both hands press the glass panel gently
upwards.
– The glass panel opens automatically by
means of a gas pressure absorber.
APull down the metal grease filter and remove it.
AAfter cleaning, reinstall the metal grease filter.
APush glass panel upwards until it clicks into po-
sition on the left and right.
The accumulation of grease in the metal grease filter can
present a fire hazard.
For washing in a dishwasher, select an «intensive» or «heavy» wash – with a
warm pre-wash. Cleaning may cause the metal grease filter to become dis-
coloured. However, this will not affect the functioning of the filter in any way.

…Care and maintenance
15
Replacing the activated charcoal filter
Activated charcoal filters become less effective with use. With normal use, they have
to be replaced at least every four months. They cannot be washed or regenerated.
APush filter frame in direction of arrow Aand remove
in direction of arrow B.
AReplace the activated charcoal filter.
AEngage filter frame and push down.
Activated charcoal filters are only used in the recirculation model.
A
B

…Care and maintenance
16
Replacing the halogen light
AFold down the glass panel.
AUsing a small screw driver, carefully remove the
ring.
AReplace the defective halogen light with a bulb
of the same type (max. 20 watts).
AClean the ring and the glass.
AFit the ring and the glass back into the openings.
AFold the glass panel up again.
APut back screw fuse or switch on circuit breaker again.
Remove screw fuse for appliance or switch off
circuit breaker.
Avoid touching the new halogen light with
bare hands. Use a soft, dry and grease-
free cloth.

17
Troubleshooting
What to do if …
… the illumination is not working
… the appliance is not extracting enough air
Possible cause Solution
䡲Fuse or circuit breaker for
electrical installations in the
home is defect.
䡲No power.
䡲Halogen light is dead.
AChange the fuse.
AReset the circuit breaker.
ACheck mains supply.
AReplace halogen light.
Possible cause Solution
䡲Metal grease filter is dirty.
䡲The activated charcoal filter
(in the recirculaton model) is
spent.
AClean metal grease filter.
AChange the activated charcoal filter.

18
Accessories and spare parts
Please give model no. and exact description when ordering parts.
Halogen light
Metal grease filter
Activated charcoal filter

19
Technical data
Voltage / Frequency 230 V~ 50 Hz
Power consumption
䡲Ventilator
䡲Illumination
Max. 260 W
4 × 12 V / 20 W
Total connected load Max. 340 W
Mains cable with plug Length: 1.2 m

20
Disposal
Packaging
䡲All packaging materials (cardboard, plastic film (PE) and polystyrene (EPS)) are
marked accordingly and should, if possible, be collected for recycling and dis-
posed of in an environmentally friendly way.
Disconnection
䡲Disconnect the appliance from the mains. With a fixed appliance, this is to be car-
ried out by a qualified electrician!
Safety
䡲To prevent accidents caused by improper use, especially through children playing,
disable the appliance.
䡲Pull the plug out of the mains socket or have the appliance disconnected from the
mains by a qualified electrician. Then cut the mains cable.
Disposal
䡲The old appliance should not be discarded as worthless rubbish. If disposed of
correctly, the raw materials can be recovered for recycling.
䡲The symbol on the identification plate warns that the appliance may not be
disposed of in normal household waste.
䡲The appliance must be disposed of in accordance with local regulations on waste
disposal.
For more information on the handling, disposal and recycling of this product,
please contact the local authorities, the local recycling facilities for household
waste or the retailer, from whom you purchased this appliance.
