MiTAC D151 Series User manual

1
D151-11KS
User Manual (Version 1.0)

2
Introduction
D151 series are 15.6" ultra-thin and wide-screen fan-less Panel PC. D151-11KS is powered
by Intel Kabylake-U core i processor and up to 32GB DDR4 memory. The distinct aluminum
extrusion frame with matte black finish gives the system an understated luxury and elegant
look. The series also featuring a bright TFT-LCD with LED backlight display and true flat
10-point projective capacitive multi-touch front panel that's front IP65 compliant, along with
optional universal snap-in peripherals (MSR, Smart card reader, NFC/ RFID reader, barcode
scanner, camera), making it perfect for diversified self-service and interactive signage
markets including retail, hospitality, gaming, corporate, healthcare and light industrial
applications.
Front View
Rear View

3
Bottom View
Stereo Speaker
I/O Ports
VESA Mounting
Holes

Side View
Groove design for optional modules

5
Mechanical Dimension
D151-11KS dimension: 401.6 x 250.9 x 44.2 mm
VESA mounting: 100 x 100 mm

6
Product Specifications
MECHANICAL
MOUNTING
VESA 100 / Stand
DIMENSIONS (W X
D X H)
400 x 250 x 44 mm
WEIGHT
4.8kg (10.58 lb)
LCD
DISPLAY TYPE
15.6" TFT-LCD
MAX.
RESOLUTION
1366 x 768
MAX. COLORS
16.2M (8 bit / color)
LUMINANCE
(cd/m2)
500
VIEWING ANGLE
(H/V)
170°/ 160°
LED BACKLIGHT
LIFETIME (hrs)
50,000
TOUCH SCREEN
TYPE
P-CAP
TOUCH SCREEN
True-flat 10 points
SYSTEM
PROCESSOR
7th Gen Intel® Kaby Lake-U i3-7100U(Dual Core,
3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake
celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen
Skylake celeron 3955U / i3-6100U / i5-6300U /
i7-6600U
CHIPSET
Intel® SoC Integrated
SYSTEM MEMORY
DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM /
Max. 32GB (Non-ECC)
ETHERNET
Intel® I219-LM Giga LAN + Intel® I211-AT Giga
LAN

7
I/O PORT
2 x RJ45 / 1 x Audio Jack (combo Line-out + Mic-in) /
1 x RS232 / 1 x RS232 / 422 / 485 / 1 x DisplayPort
1.2 / 1 x DC Jack / 4 x USB 3.0 / 1 x HDMI 1.4
EXPANSION SLOT
M.2 2230 E key (PCIe, USB 2.0) / Mini PCIe Full size
(PCIe / USB / SATA)
STORAGE
1 x SATA 2.5” HDD / SSD bay
STEREO SPEAKER
2 x 2W
OS SUPPORT
7th Gen Kaby Lake: Windows 10 64bit, Linux (support
by request) / 6th Gen Skylake: Windows 7 32 / 64bit
WATCHDOG
TIMER
1~255 steps by software program
POWER
REQUIREMENT
POWER INPUT
DC-in 8~24V
POWER ADAPTER
AC to DC / DC19V / 3.4A / 65W adapter
ENVIRONMENTAL
OPERATING
TEMPERATURE
0~ 40°C (32 ~ 104°F)
STORAGE
TEMPERATURE
-20 ~ 60°C (-4 ~ 140°F)
STORAGE
HUMIDITY
10% ~ 95% @40°C non-condensing
VIBRATION
RESISTANCE
Operating Random vibration Test 5-500Hz, 0.3
Grms@with HDD
SHOCK
RESISTANCE
Operating 50 G peak (3 ms duration)
EMC
CE / FCC Class A
FRONT PANEL
PROTECTION
IP65 Compliant

8
Quick Installation Guide
Remove cover screws
(Torque 3.5 +/-0.5 Kgf-cm)
Open the cover
Install SODIMMs

9
Disassemble the HDD bracket
(Torque 5.5 +/-0.5 Kgf-cm)
Install HDD
(Torque 5.5 +/-0.5 Kgf-cm)
Install HDD bracket and connect
the SATA cable
(Torque 5.5 +/-0.5 Kgf-cm)

10

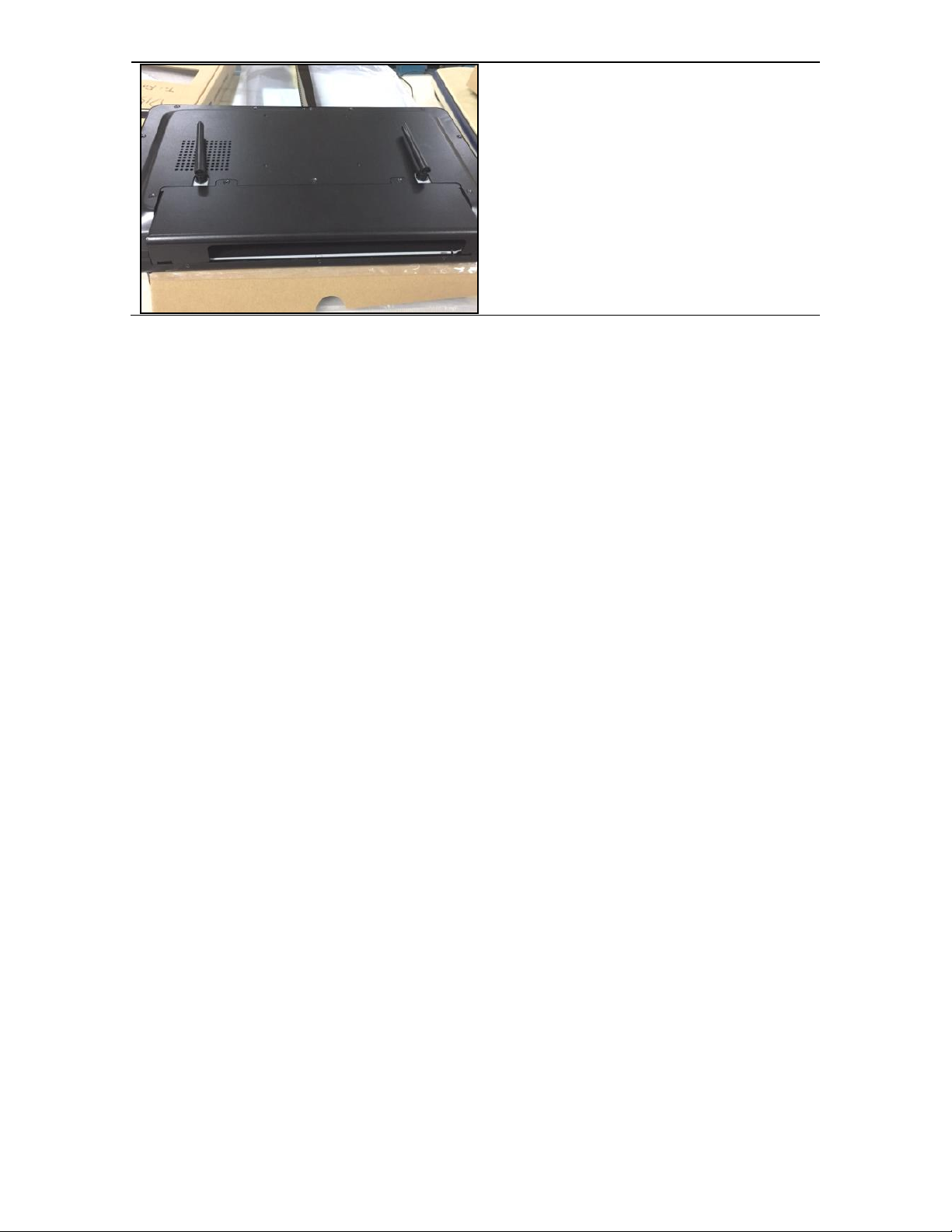

Install wifi card and connect
antennas
(Torque 2 +/- 0.2 Kgf-cm)
Remove the protection of thermal
pad release paper before the
assembly of Rear Cover
Secure cover screws
(Torque 3.5 +/-0.5 Kgf-cm)
USE HEX DRIVER TO INSTALL
PERIPHERAL MODULE
ON CHASSIS FRAME AND
CONNECT USB CABLE
