MiTAC Maestro 3070 User manual

Maestro 3070/3080
User Manual (Version 1.0)

To know Maestro 3070/3080
Front View
Please refer below picture showing and take note the real front view and function may differ
depend on what the model you purchased.
1
Webcam
The Built-in webcam is 1.0M HD pixel with digital micro phone to allow your video with
chats online.
2
LCD Display
(Touch function enabled with optional item)
This 21.5/23.6 inch LCD panel is LED type with high brightness and contrast
appearance. The optimal resolution is 1920 x 1080, feature edge-to-edge touch
function that enable ten-fingers-touch to enjoy your digital finger life.

3
Speakers
High definition sound quality brings you to enjoy great music world.

Rear View
Please refer below picture showing and take note the real rear view and function may differ
depend on what the model you purchased.
1
Stand
Adjustable stand help you to position the system upright.
2
Less screw design
Two screws allows you open system easier.
3
Power ON/OFF button
Power ON/OFF switch allow you turn on/off your PC.

System SKU Matrix
Item
Spec
M3070
M3080
Panel
16:9, 1920 x 1080, full HD support
21.5"
(for M3070)
23.6"
(for M3080)
CPU
65W Coffee lake CPU support
Main board form factor
Thin Mini-ITX
Chipset
Coffee lake H310
Memory
x2 SO-DIMM slots, DDR4, 2666, up to 32GB
Audio
High definition audio codec
SATA HDD
2.5" / 3.5", SATA3, (HDD/SDD type support)
SATA ODD
Slim 9.5mm, tray type
Mini card
M.2 E key 2230 slot x 1, support wireless card
M.2 M key 2280 slot x 1 for SSD
Lan speed
10/100/1000 Ethernet
Webcam
1.0 HD mega pixel, HD 720p 16:9 lens with
arrary digital microphone
Speaker
High quality speaker 5W x 2
Stand type
Aluminum L-stand
System I/O ports
USB3.0 x 4, HDMI, DisplayPort, RJ45 x1, Mic-in,
Head phone out, DC inlet,
Side I/O ports
USB2.0 x2, 4-in-1 card reader
System control button
Power button, Brightness control
System Antenna
Dual Band for M.2 Wireless Card (L5 default)
TPM (Hardware TPM)
Trusted Platform Module 2.0 (optional)
Power Adapter
19V 180W

MB Information
(MB: PH12FEI)

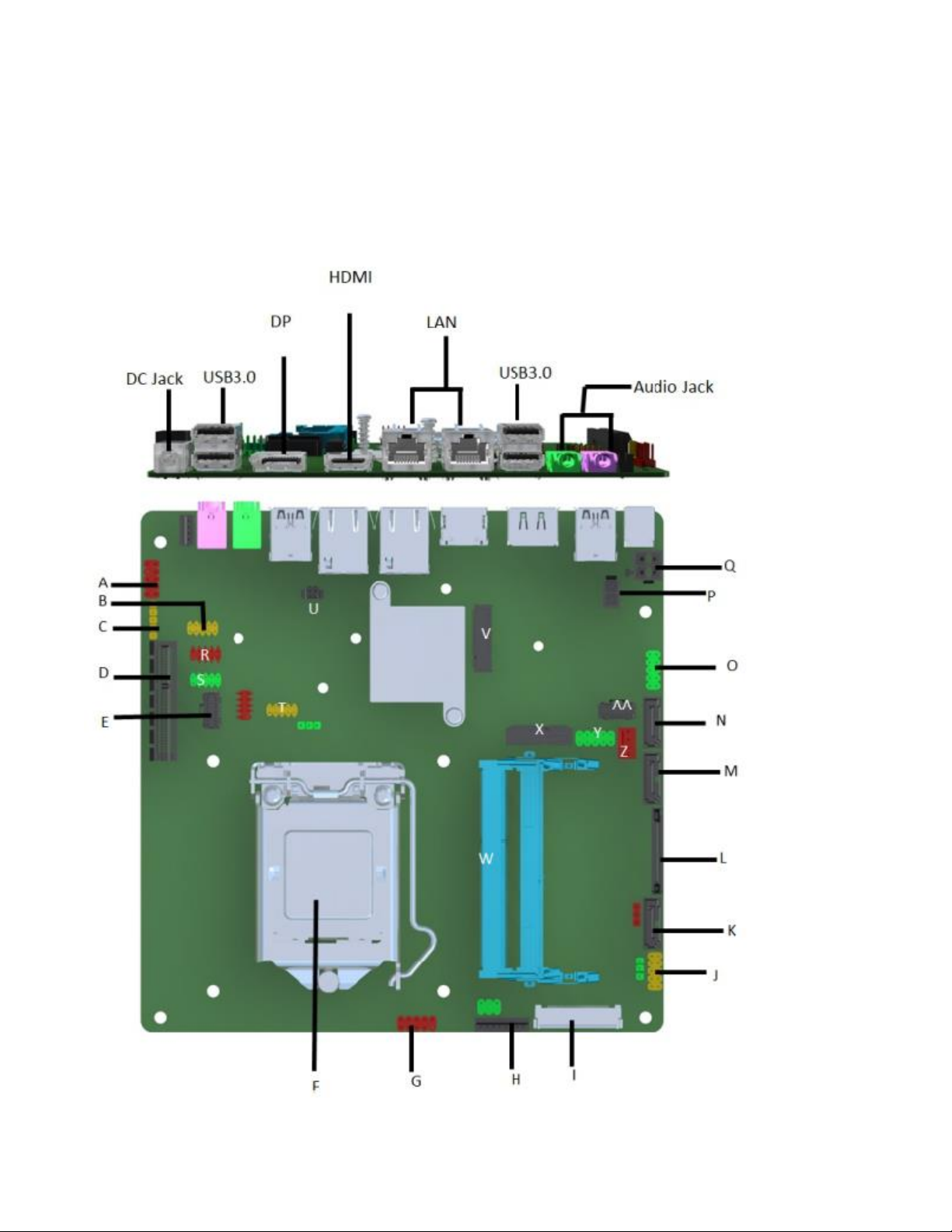

MB Placement:

A
Front Audio Header
B
COM Port Header (RS232)
C
DMIC Header
D
PCIEx4 slot
E
MiAPI header
F
LGA1151 CPU socket
G
Dual USB2.0 Header
H
LVDS Backlight Header
I
LVDS connector
J
Front I/O Header
K
SATA
L
SATA Power
M
SATA
N
SATA
O
Dual USB2.0 Header
P
ATX 2pin
Q
ATX 4pin
R
COM Port Header (RS232)
S
COM Port Header (RS232)
T
COM Port Header (RS232/422/485)
U
RTC battery header
V
M.2 M key 2280
W
DDR4 SODIMM slot
X
M.2 E key 2230
Y
Dual USB2.0 Header
Z
System FAN Header
AA
Front SW/LEDs Header

Connecting to the Internal Headers and Connectors

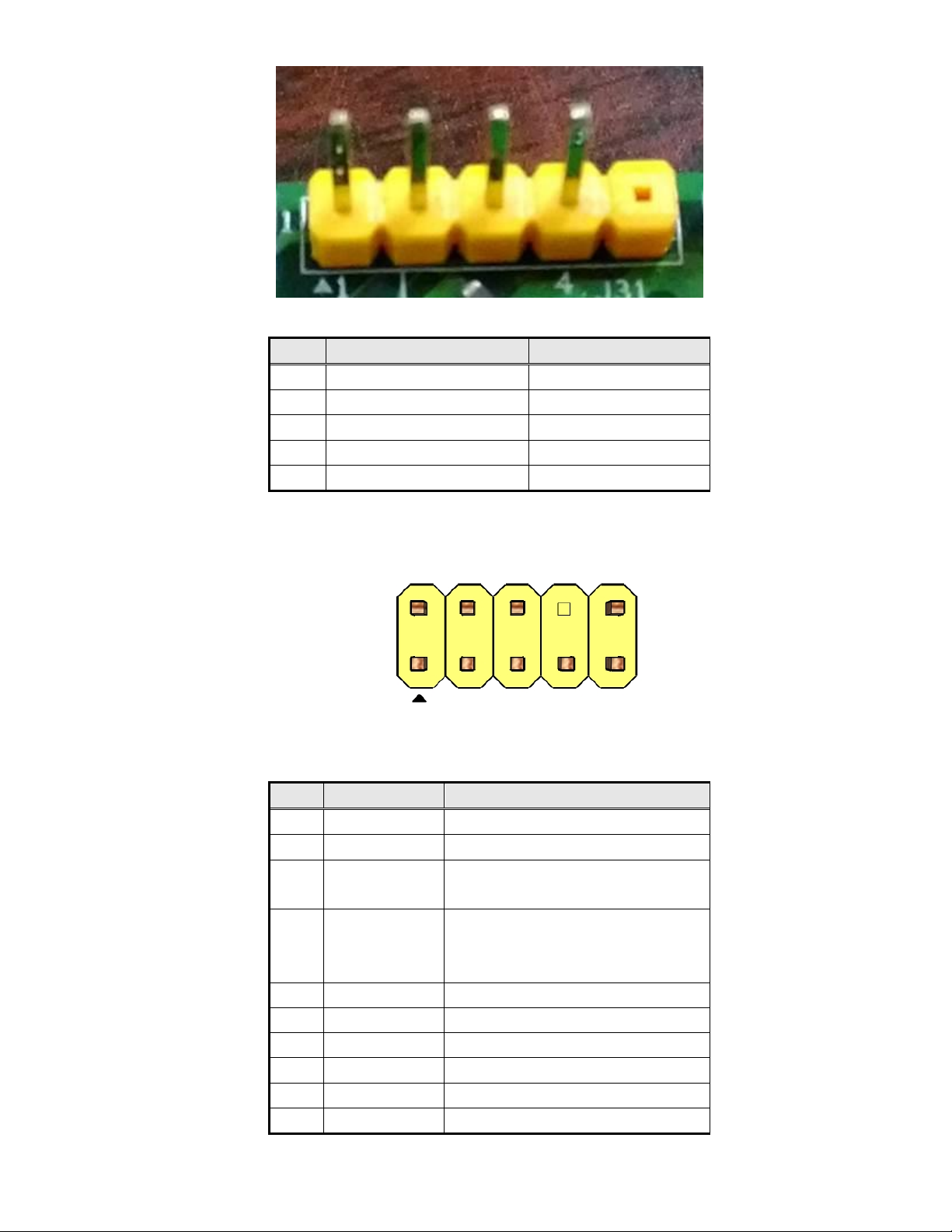

Front panel main header
Figure 1 : Front Panel Connector
Pin
Signal Name
Description
Pin
Signal Name
Description
1
HDD_POWER_LED
Pull-up resistor (750 ) to
+5V
2
POWER_LED_MAIN
[Out] Front panel LED (Green)
3
HDD_LED#
[Out] Hard disk activity LED
4
POWER_LED_ALT
[Out] Front panel LED (Yellow)
5
GROUND
Ground
6
POWER_SWITCH#
Power button
7
RESET_SWITCH#
Reset switch
8
GROUND
Ground
9
+5V_DC
Power
10
KEY
No pin
Table 1: Front Panel Connector

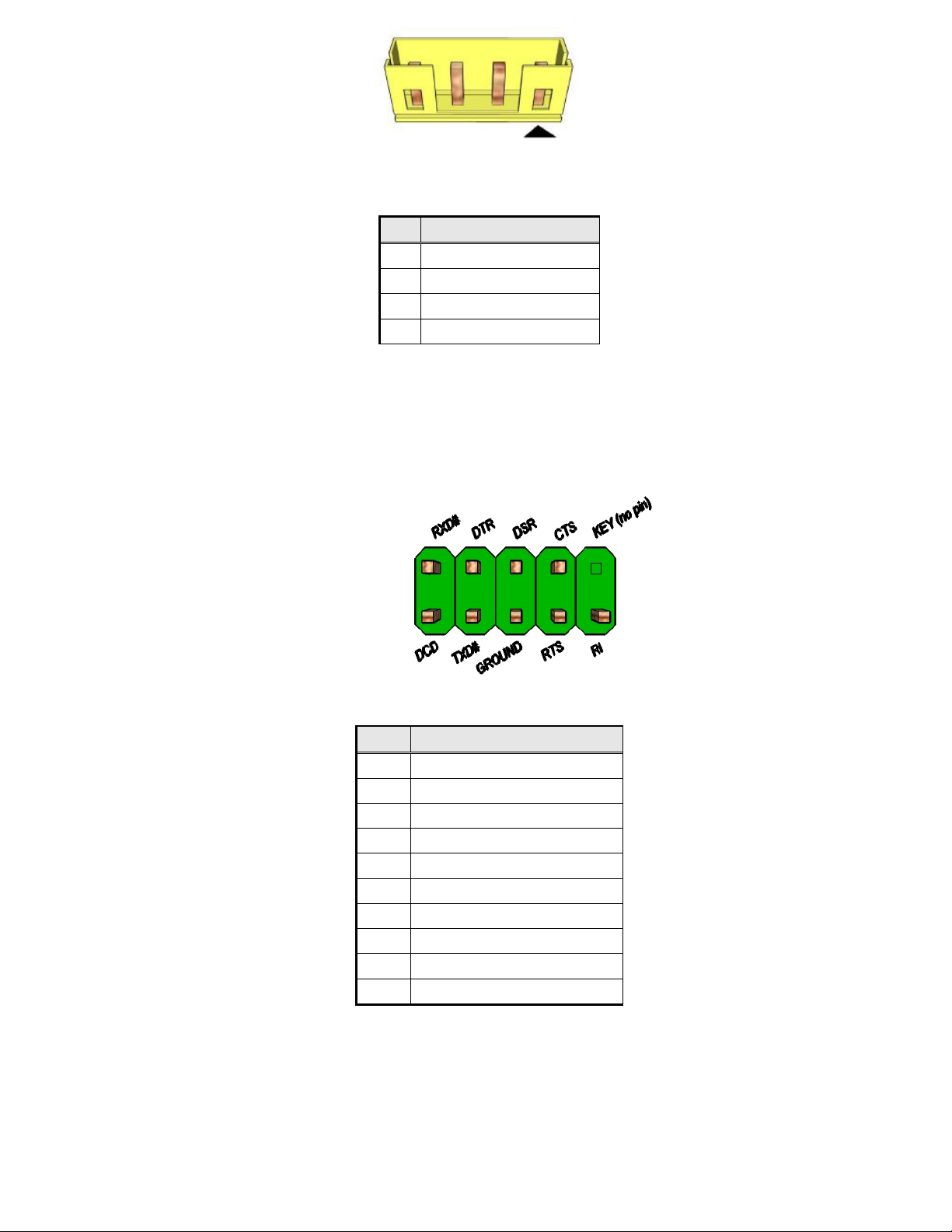

Pins 1&2: jumper position for 12V
