MiTAC E-8590 User manual

SERVICE MANUAL FOR
E
EE
E-
--
-8590
85908590
8590
SERVICE MANUAL FOR
SERVICE MANUAL FOR
E
EE
E
E
EE
E-
--
-
-
--
-8590
85908590
8590
8590
85908590
8590
TESTING TECHNOLOGY DEPARTMENT / TSSC
TESTING TECHNOLOGY DEPARTMENT / TSSC
Jan . 2003
BY: Dragon Dragon

1
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
Contents
1. Hardware Engineering Specification ----------------------------------------------------------------------------
1.1 Introduction ---------------------------------------------------------------------------------------------------------
1.2 System Hardware ---------------------------------------------------------------------------------------------------
1.3 TV/FM General Feature -------------------------------------------------------------------------------------------
1.4 Other Functions-----------------------------------------------------------------------------------------------------
1.5 Peripheral Components------------------------------------------------------------------------------------------------------------
1.6 Power Management-----------------------------------------------------------------------------------------------------------------
1.7 Appendix------------------------------------------------------------------------------------------------------------------------------
2. System View & Disassembly --------------------------------------------------------------------------------------
2.1 System View ---------------------------------------------------------------------------------------------------------
2.2 System Disassembly -------------------------------------------------------------------------------------------------
3. Definition & Location of Connectors / Switches Setting ----------------------------------------------------
4. Definition & Location of Major Component ------------------------------------------------------------------
5. Pin Description of Major Component ---------------------------------------------------------------------------
5.1 Pentium 4(Willamette/Northwood) mFC-PGA2 478 pins ---------------------------------------------------------
5.2 VIA VT8703 North Bridge with S3 Savage4 AGPX4--------------------------------------------------------------
5.3 VIA VT8235 PCI-LPC/ISA South Bridge -------------------------------------------------------------------------

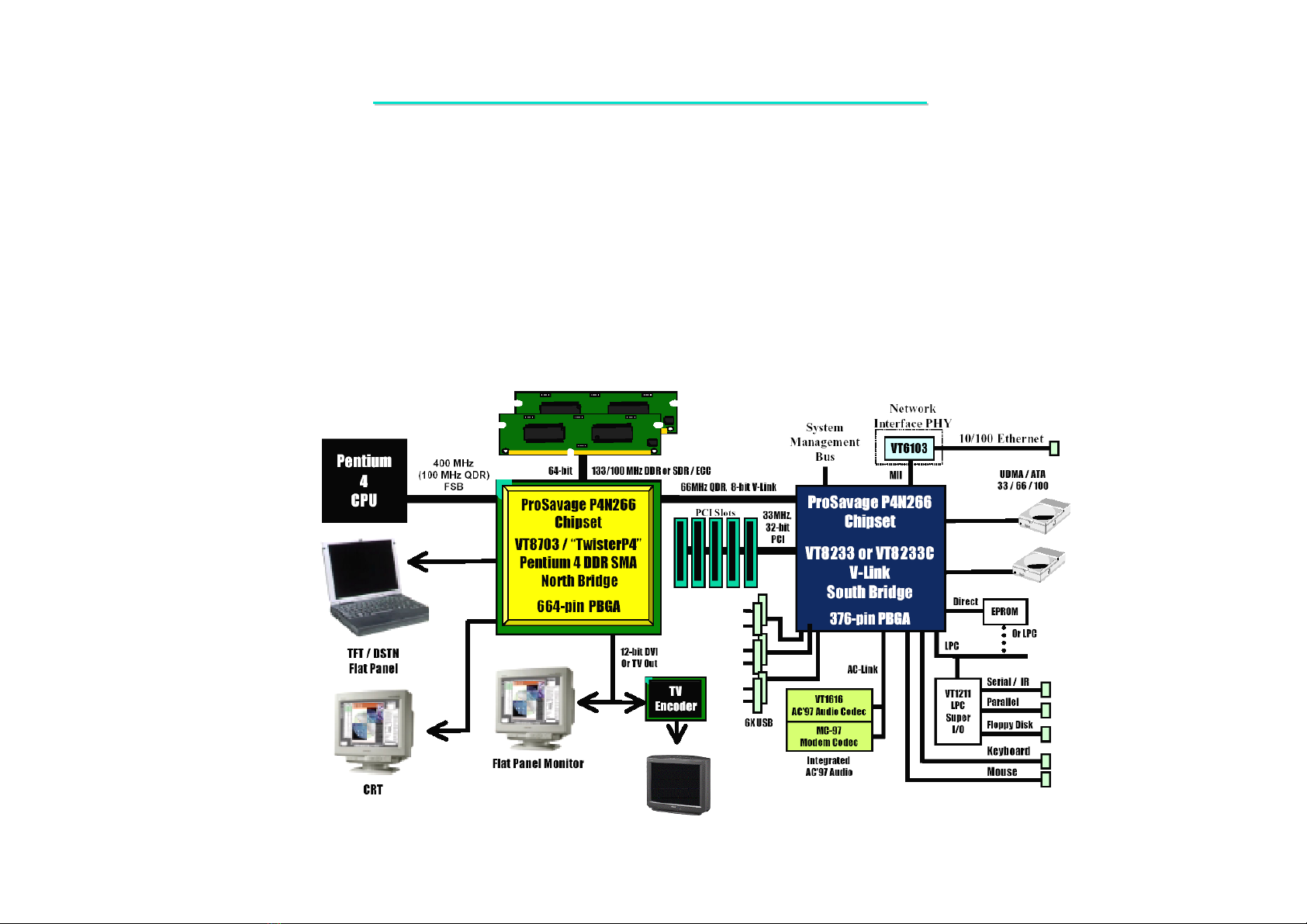

6. System Block Diagram ---------------------------------------------------------------------------------------------
7. Maintenance Diagnostics ------------------------------------------------------------------------------------------
7.1 Introduction ---------------------------------------------------------------------------------------------------------
7.2 PCI Debug Card ----------------------------------------------------------------------------------------------------
3
3
5
68
78
83
93
96
103
103
106
135
137
139
139
145
151
160
160
161
162

2
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
7.3 Error Codes ---------------------------------------------------------------------------------------------------------
8. Trouble Shooting ----------------------------------------------------------------------------------------------------
8.1 No Power ------------------------------------------------------------------------------------------------------------
8.2 No Display -----------------------------------------------------------------------------------------------------------
8.3 VGA Controller -----------------------------------------------------------------------------------------------------
8.4 TV Controller Error-------------------------------------------------------------------------------------------------
8.5 Memory Test Error--------------------------------------------------------------------------------------------------
8.6 Keyboard Test Error ------------------------------------------------------------------------------------------------
8.7 Hard Disk Test Error------------------------------------------------------------------------------------------------
8.8 CD-ROM Drive Test Error -----------------------------------------------------------------------------------------
8.9 USB Port Test Error-------------------------------------------------------------------------------------------------
8.10 PC Card Socket Test Error ----------------------------------------------------------------------------------------
8.11 Memory_Card Test Error -----------------------------------------------------------------------------------------
8.12 LAN Test Error ----------------------------------------------------------------------------------------------------
8.13 IEEE1394 Test Error ----------------------------------------------------------------------------------------------
8.14 Audio Driver Failure ----------------------------------------------------------------------------------------------
9. Spare Parts List ------------------------------------------------------------------------------------------------------
--
163
165
166
169
173
175
177
179
181
183
185
188
190
192
194
196
196
11. Circuit Diagram----------------------------------------------------------------------------------------------------- 214
12. Reference Material ------------------------------------------------------------------------------------------------- 259
Contents
10. System Exploded Views-------------------------------------------------------------------------------------------- 211

3
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
1. Hardware Engineering Specification
1.1 Introduction
The E-Note P4N266A model motherboard would support the Desktop P4 processor (Northwood) at 2.0/2.2 GHz
and the Celeron low-profile, lidless FC-PGA2 (Flip-chip Pin Grid Array)package on socket 478.
This system is based on PCI architecture and is fully compatible with IBM PC/AT specification, which has
standard hardware peripheral interface and support Intel mobile Pentium 4-M and Desktop Pentium 4 family. The
power management complies with Advanced Configuration and Power Interface (ACPI) 1.0b. System also provides
icon LEDs to display system status, such as AC Power / Battery Power indicator and Battery charging status,
CDROM, HDD, NUM LOCK, CAP LOCK, SCROLL LOCK. It also equipped with 4 USB2.0 ports and 1 swap
module (Floppy or card reader or second HDD), one IEEE1394, one PC Card slots, LAN 10/100TX, MDC modem
and AC97 3D stereo audio functions.
The memory subsystem supports two 184pin DIMM socket for upgrading up to 1GB of DDR-SDRAM with
512Mbit DDR-SDRAM technology using PC-100 DDR-SDAM SODIMM modules with SPD. The DDR-SDRAM
controller supports standard PC2100 and PC1600 Synchronous DDR-SDRAM (Double-data-rate SDRAM) .
The VIA VT8703 /P4N266 /Twister-P4 (Apollo ProSavage DDR P4N266) North Bridge Chipset integrated with
S3 Savage4 graphics accelerator and S3’s flat panel interface into a single 664 BGA package. The Twister-P4 brings
mainstream graphics performance to the Value PC with leading-edge 2D, 3D and DVD video acceleration into a
cost effective package.
The Twister-P4 SMA(share memory architecture) system controller also provides superior performance between
the CPU, DRAM, and PCI bus with pipelined, burst, and concurrent operation.

4
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
The 376-pin VT8233 BGA south bridge supports four levels (double words) of line buffers, type F DMA transfers
and delay transaction to allow efficient PCI bus utilization and PCI-2.1 compliant. The VT8233 also includes an
keyboard controller with PS2 mouse support , integrated DS12885 style real time clock with extended 256 byte
CMOS RAM, integrated bus master mode enhanced IDE controller with full scatter / gather capability and
extension to UltraDMA-33/66/100 for 33/66/100 MB/sec transfer rate, integrated six USB interface with root hub
and two function ports with built-in physical layer transceivers, Distributed DMA support, integrated AC-97 link for
basic audio and HSP based modem functions, integrated hardware monitoring and OnNow / ACPI compliant
advanced configuration and power management interface. VT8233 also integrates a 10/100 Mbit Fast Ethernet
Controller / MAC (Media Access Controller). The LAN controller uses an MII (Media Independent Interface)
connection to support an external 10/100 Mbit PHY for Ethernet.
The ENE CB710 CARDBUS controller supports one PCMCIA or CARDBUS interfaces.
The VIA 6306 controller supports three port multimedia feature.
To provide for the increasing number of multimedia applications, the AC97 CODEC VIA 1612A is integrated
onto the motherboard which contain 3D audio output.
A full set of software drivers and utilities are available to allow advanced operating systems such as Windows Me
and Windows 2000 and Windows XP to take full advantage of the hardware capabilities such as bus mastering IDE,
Windows 95-ready Plug & Play, Advanced Power Management (APM) and Advance configuration and power
interface (ACPI).
Following chapters will have more detail description for each individual sub-systems and functions.

5
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
1.2 System Hardware Parts
Item Description
CPU Intel Desktop Pentium 4 (Northwood) mPGA478
2G,2.2G,2.26G,2.4G,2.5G,2.53G,2.6G,2.66G,2.8G
Intel Desktop Celeron mPGA478 1.7G,1.8G,1.9G
Core logic VIA VT8703A support 400MHz /533Mhz FSB + VT8235
L2 Cache 512KB for Pentium 4 on Die
128KB for Celeron on Die
System BIOS 512KB Flash EPROM
Insyde -Includes System BIOS , VGA BIOS, and plug & Play capability, ACPI
Memory -Two 184 pin DDR-DIMM socket for memory expansion
-Support PC2100 / PC1600 with SPD
Video Controller Integrate S3 Savage8
Support MPEG-2 30fps, 8.5MB/s capability
1024x768 (24bit color by dithering) XGA. CMOS 18+18 bits interface
and 1600x1400 (24bit color) resolution for CRT
- Support LCD/CRT simultaneous display only
Video Memory 8/16/32MB share system SDRAM, default 8Mbyte
Clock Generator ICS 950902
REALTEK RTM360-519R
PCMCIA Cardbus Controller: ENE CB710
one type II slots CardBus / no ZV port support/ no wakeup at S3
Power switch: TI TPS221 or ENE CP-2211
Memory Card
Reader
Integrate in CB710
Support Smart Media, SD/MMC and Memory Sticker 3.3v only
USB 2.0 USB 2.0 Controller integrate in VT8235
IEEE1394 IEEE1394 OHCI Controller: VIA VT6306
No wakeup at S3
Not support bridge mode when system off
Audio System AC97 CODEC: Realtek ALC202
Power Amplifier: TI TPA1517 3W+3W
Modem ASKey 56Kbps(V.90, worldwide) MDC Modem
LAN Phy VIA VT6103 10baseT/100 baseT – Ethernet PHY

6
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
1.2.1 CPU-Intel Desktop Pentium4(Northwood) Processor In FC-PGA478 Package
The Intel Pentium 4 processor with 512-KB L2 cache on 0.13 micron process is a follow on to the Pentium 4
processor in the 478-pin package with Intel Net Burst. microarchitecture. The Pentium 4 processor with 512-KB L2
cache on 0.13 micron process utilizes Flip-Chip Pin Grid Array (FC-PGA2) package technology, and plugs into a
478-pin surface mount, Zero Insertion Force (ZIF) socket, referred to as the mPGA478B socket.
The Pentium 4 processor with 512-KB L2 cache on 0.13 micron process, like its predecessor, the Pentium 4
processor in the 478-pin package, is based on the same Intel 32-bit microarchitecture and maintains the tradition of
Compatibility with IA-32 software. In this document, the Pentium 4 processor with 512-KB L2 cache on 0.13 micron
process will be referred to as the “Pentium 4 processor with 512-KB L2 cache on 0.13 micron process,” or simply
“the processor.”
The Intel NetBurst microarchitecture features include hyper pipelined technology, a rapid execution engine, a 400-
MHz or a 533-MHz system bus, and an execution trace cache. The hyper pipelined technology doubles the pipeline
depth in the Pentium 4 processor with 512-KB L2 cache on 0.13 micron process, allowing the processor to reach
much higher core frequencies. The rapid execution engine allows the two integer ALUs in the processor to run at
twice the core frequency, which allows many integer instructions to execute in 1/2 clock tick. The 400-MHz or 533-
MHz system bus is a quad-pumped bus running off a 100-MHz or a 133-MHz system clock making 3.2 Gbytes/sec
and 4.3 Gbytes/sec data transfer rates possible. The execution trace cache is a first-level cache that stores
approximately 12-k decoded micro-operations, which removes the instruction decoding logic from the main
execution path, thereby increasing performance. Additional features within the Intel NetBurst microarchitecture
include advanced dynamic execution, advanced transfer cache, enhanced floating point and multi-media unit, and
Streaming SIMD Extensions 2 (SSE2). The advanced dynamic execution improves speculative execution and branch
prediction internal to the processor. The advanced transfer cache is a 512 KB, on-die level 2 (L2) cache.

7
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
A new floating point and multi media unit has been implemented which provides superior performance for multi-
media and mathematically intensive applications. Finally, SSE2 adds 144 new instructions for double-precision
floating point, SIMD integer, and memory management. Power management capabilities such as AutoHALT, Stop-
Grant, Sleep, and Deep Sleep have been retained. The Streaming SIMD Extensions 2 (SSE2) enable break-through
levels of performance in multimedia applications including 3-D graphics, video decoding/encoding, and speech
recognition. The new packed double-precision floating-point instructions enhance performance for applications that
require greater range and precision, including scientific and engineering applications and advanced 3-D geometry
techniques, such as ray tracing.
The Pentium 4 processor with 512-KB L2 cache on 0.13 micron process Intel Net Burst microarchitecture system
bus utilizes a split-transaction, deferred reply protocol like the Pentium 4 processor. This system bus is not
compatible with the P6 processor family bus. The Intel Net Burst microarchitecture system bus uses Source-
Synchronous Transfer (SST) of address and data to improve performance by transferring data four times per bus
clock (4X data transfer rate, as in AGP 4X). Along with the 4X data bus, the address bus can deliver addresses two
times per bus clock and is referred to as a “double-clocked” or 2X address bus. Working together, the 4X data bus
and 2X address bus provide a data bus bandwidth of up to 4.3 G byte s/second.
Intel will enable support components for the Pentium 4 processor with 512-KB L2 cache on 0.13 micron process
including heat sinks, heat sink retention mechanisms, and sockets. Manufacturability is a high priority; hence,
mechanical assembly can be completed from the top of the motherboard and should not require any special tooling.
The processor system bus uses a variant of GTL+signalling technology called Assisted Gunning Transceiver Logic
(AGTL+) signal technology.

8
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
1.2.1.1 Intel Desktop Pentium 4 Processor (Northwood) Microarchitecture Summary
The following features summarize the Intel Pentium 4 Processor microarchitecture:
Available at 2 GHz, 2.20 GHz, 2.26 GHz,2.40 GHz, and 2.53 GHz
Binary compatible with applications running on previous members of the Intel microprocessor line
Intel® Net Burst™ micro-architecture
System bus frequency at 400 MHz and 533 MHz
Rapid Execution Engine: Arithmetic Logic Units (ALUs) run at twice the processor core frequency
Hyper Pipelined Technology
Advance Dynamic Execution
----Very deep out-of-order execution
----Enhanced branch prediction
Level 1 Execution Trace Cache stores 12K micro-ops and removes decoder latency from main execution loops
8 KB Level 1 data cache
512 KB Advanced Transfer Cache (on- die, full speed Level 2 (L2) cache) with 8-way associativity and Error
Correcting Code (ECC)
144 Streaming SIMD Extensions 2 (SSE2) instructions
Enhanced floating point and multimedia unit for enhanced video, audio, encryption, and 3D performance

9
LCD PC E
LCD PC E- -8590 MAINTENANCE 8590 MAINTENANCE
Power Management capabilities
----System Management mode
----Multiple low-power states
Optimized for 32-bit applications running on advanced 32-bit operating systems
8-way cache associativity provides improved cache hit rate on load/store operations.

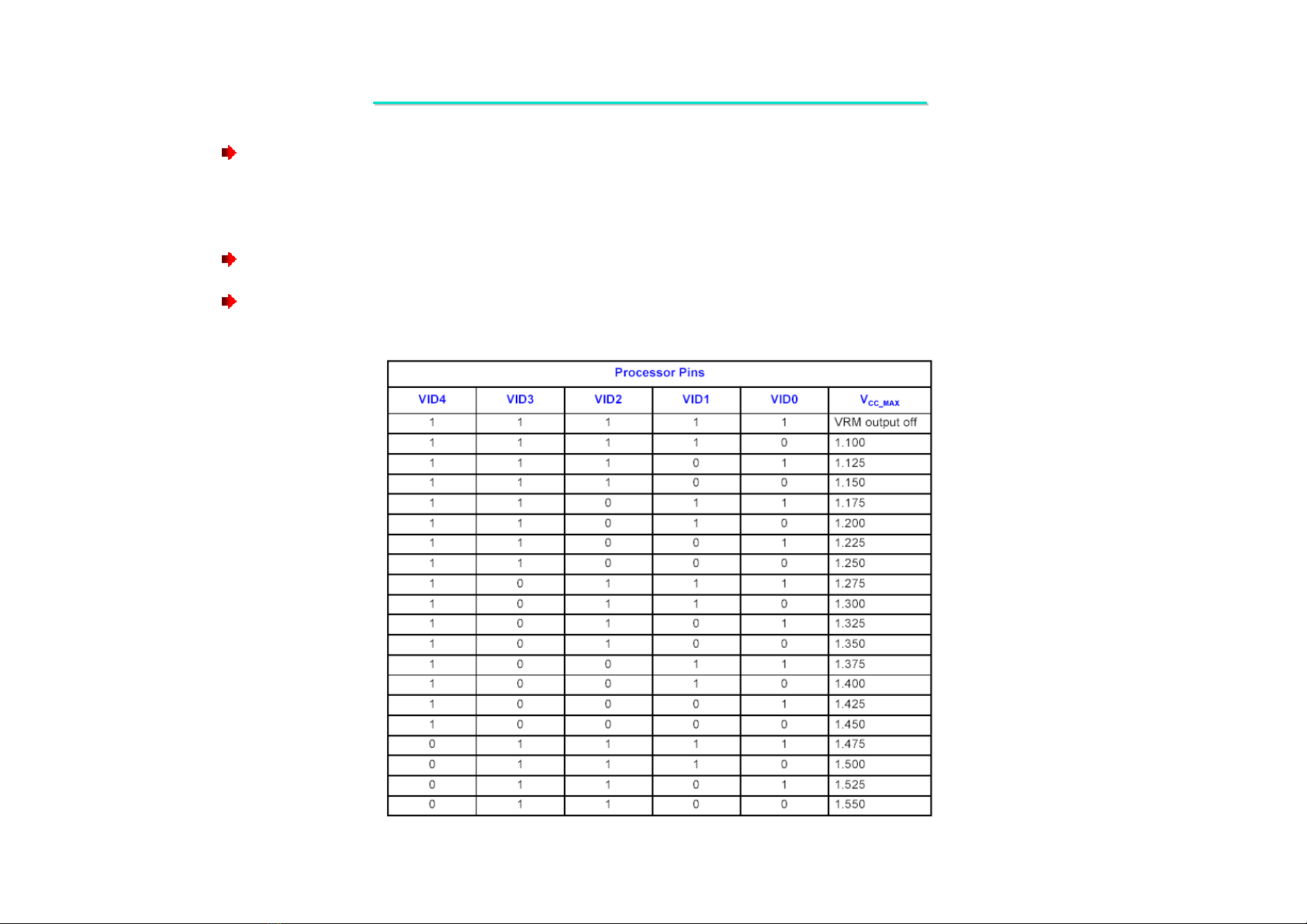

Table 1.Voltage identification Definition for Desktop Northwood
