MiTAC Pluto E220 User manual

Quick InstallationGuide
Introduction
PlutoE220isbuiltaroundthelatestgeneration ofIntel’s Bay Trail.Bay Trailhasbeen
improved3Dgraphicsperformancewithupto5xmorepower and 2xgreaterCPU
performanceoverpreviousgeneration.ThewholenewSOCstructurepacksmore
powerful capability for yourtasks orapplications.
E220 Specification
Item
Spec
Optional
Processor
Intel Bay Trail Desktop J1900
Chipset
SoC
OS support
Win 7, Win 8, WIN10
Linux by request
PCB
Mini-ITX proprietary, 4 layer, 182mm x 185mm
Memory
DDR3L 1333/1600(runs at 1333 MHz)
SO-DIMMs, (2 x So-DIMM slot, up to 8GB)
LAN
Realtek RTL8111E GLAN x2
Audio
Realtek ALC-662
Storage
SATA DOM or 2.5” SATA HDD/SSD or mSATA
Mini Card
1 Full-length for mSATA One-sided screw
1 Half-length for wireless module
WLAN Support
For 802.11 b, g, n
Wireless Card Antenna
Display interface 1 x DVI-I, 1 x HD Out
SPI Flash
16Mb
Front I/O
1 x USB3.0
1 x USB2.0
MIC-in
Headphone-out
Power button
Rear I/O
2 x PS/2
4 x USB2.0
2 x Ethernet RJ45
1 x DVI-I
1 x HD out
2 x Serial Port
1 x DC jack

1 x Kensington lock
Internal speaker
1 x Buzzer As default
Speaker is the option
Power supply
65W, 19V, Power Adapter

Support 75x75 and
100x100 VESA
Standard
VESA Bracket
Op
VESA Mount Yes (100mmx100mm)
Stand For vertical use
Fanless
System Temp: 10 Degree C~ 35 Degree C
Humidity: 20%~85% Non-Condensing
MB Temp: 0~60 Degree C
Environment

1
Power Button
2
LED Indicator
3
Earphone Jack
4
Microphone Jack
5
USB 2.0 Port
6
USB 3.0 Port
7
WiFi Antenna(Optional)
8
RJ45 (2nd is optional)
9
USB 2.0
10
Serial Ports
11
HD Out
12
DVI-I
13
Parallel Ports
14
P S / 2
15
DC-in
16
For Kensington Lock
7
8
9
1
10
2
11
3
13
12
4
5
14
6
16
15
Interface

Installation
Unscrew the side cover
Pull back touncover
RAM Istallation
TheRAMsocketsareneartoCPUheatsink
Install the RAM and push to click

HDD / S DD I n s t a ll a t i on
UsetheHDDbracketfortheHDD
installation.
Unscrew to detach the bracket
IfyouwanttoinstalltheSATADOM,just
removethebracketandinstalltheDOMto
the SATAconnector.
AlignthescrewholesforHDDandbracket
FixtheHDDwithscrewsonthebackside
of the bracket
Finish the HDD bracket assembly

Connect the HDD SATA cable
Connecttheothersideofthecabletothe
MB

E220 Jumper Location/Function
1. Location
2. COM Port2 Jumper
3. RTC Jumper
4. Mini PCIe Slot Full-Length Jumper
5. Power Saving Jumper

1.Location
E220 provides 4 groups of herder for user setting. The location show as below

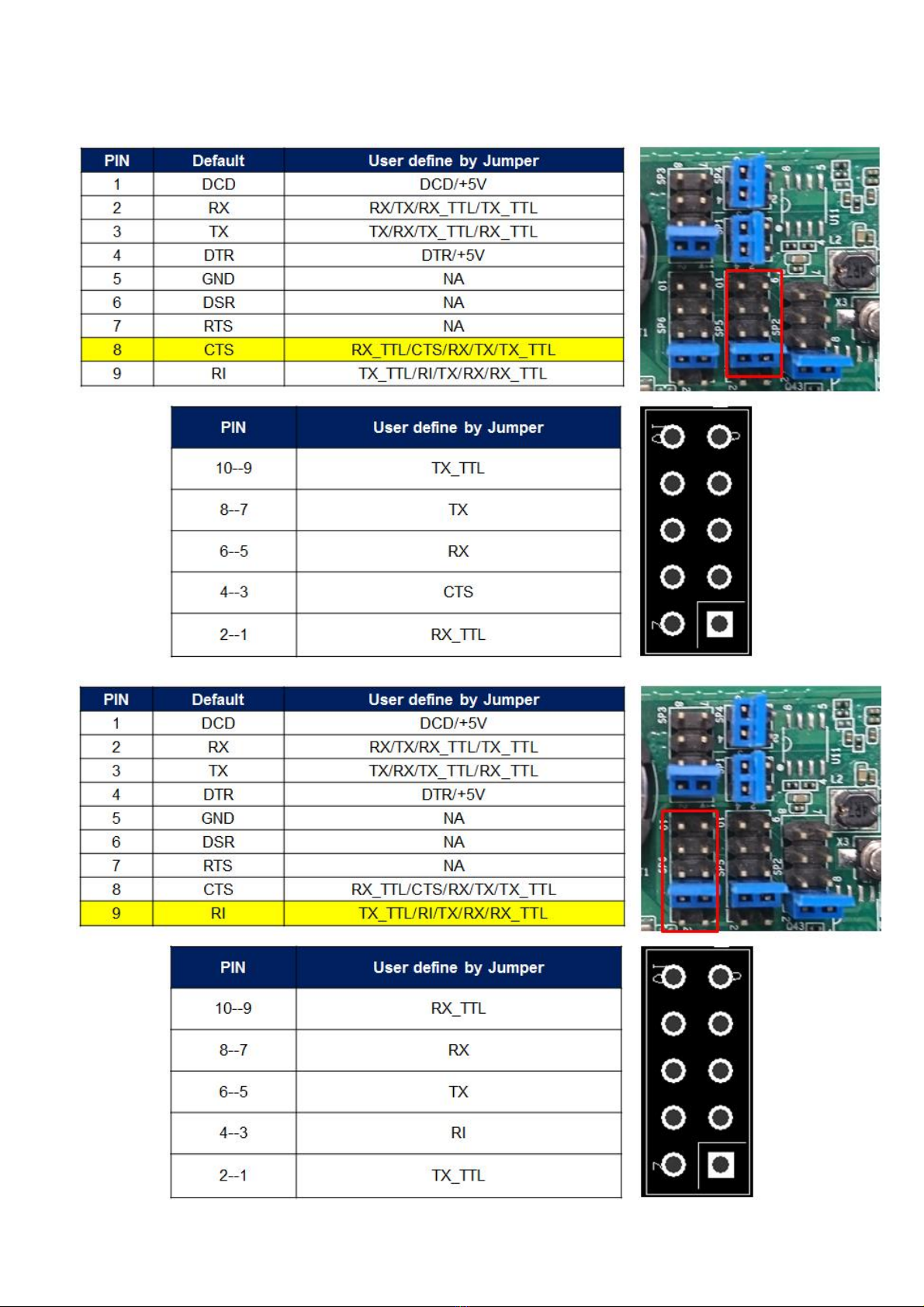

2.Powered COM Port Jumper setting
The COM2 of E220 can define the pin function by itself.
The detailed settings are as follows
2.1 COM2 location
PIN
Default
User define by Jumper
1
DCD
DCD/+5V
2
RX
RX/TX/RX_TTL/TX_TTL
3
TX
TX/RX/TX_TTL/RX_TTL
4
DTR
DTR/+5V
5
GND
NA
6
DSR
NA
7
RTS
NA
8
CTS
RX_TTL/CTS/RX/TX/TX_TTL
9
RI
TX_TTL/RI/TX/RX/RX_TTL
