Mitox 266LRH User manual

Operator’s Manual
user manual, maintenance instructions and spare parts
266LRH / 268LRH Hedgetrimmer
www.mitoxgm.co.uk
Read this manual carefully before operating the machine
Original Instructions Version June 13

266LRH / 268LRH Hedgetrimmer
2
Original Instructions Version June13

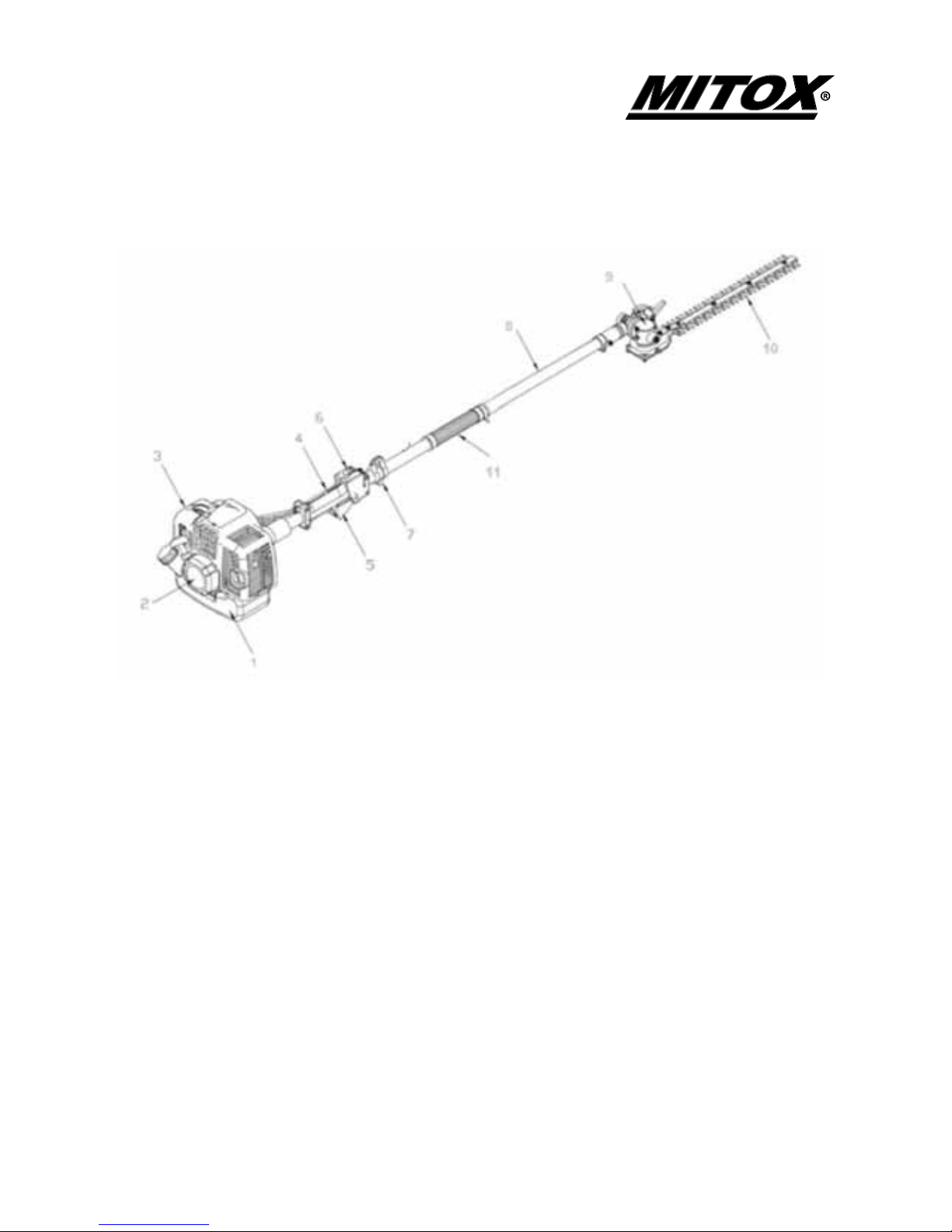

Component Location
1. Fuel tank – 2 stroke mixture
2. Engine starter.
3. Carburettor / air lter.
4. Safety lever.
5. Throttle control lever.
6. Ignition switch.
7. Harness hanger.
8. Transmission shaft.
9. Gear box.
10. Cutting blade.
11. Rubber hand grip
PRODUCT DESCRIPTION
This Hedge Trimmer is a 2 stroke fast running power tool and is designed to be used in
a domestic application for trimming new growth on hedges.

266LRH / 268LRH Hedgetrimmer
3
Original Instructions Version June13
Warnings in the Manual
This mark indicates instructions which must be followed in order to prevent accidents which could lead to
serious bodily injury or death.
This mark indicates instructions which must be followed or it leads to mechanical failure, breakdown, or
damage.
This mark indicates hints or useful directions in the use of the product.
Safety Symbols
(1) Read operator’s instruction book before operating this machine.
(2) Appropriate ear, eye, and head protection must be worn.
(3) Handling this machine improperly could result in accidents causing
serious injury or death. Read this manual carefully and practice using
the hedge trimmer until you are fully acquainted with all operations and
have learned to use it correctly.
(4) This is extremely sharp and can easily cause cuts.
IMPORTANT
!
NOTE

266LRH / 268LRH Hedgetrimmer
4
Original Instructions Version June13
(5) Directive 2000-14/CE. Guaranteed noise levels.
(6) Danger: risk of exhaust fumes intoxication.
Taking Care of Warning Labels
Always keep warning labels clean and free of scratches, which might make them illegible or
dicult to read. If the warning labels provided with your hedge trimmer become damaged, peel
o, or otherwise become illegible or dicult to read, order new labels from the authorised
servicing dealer and replace the damaged labels. When applying new labels, rst wipe away any
dirt and dry the surface before applying the new label in the same place as the original label.
Explanation of Symbols on the Machine
For safe operation and maintenance, symbols are carved in relief on the machine:•
FUEL TANK
Fuel tank 2 stroke mix
Position: Fuel cap
CHOKE OPERATION
Starting mode when the engine is hot (choke o ).
Position: Air cleaner cover.
Starting mode when the engine is cold (choke on).
Position: Air cleaner cover.

266LRH / 268LRH Hedgetrimmer
5
Original Instructions Version June13
Safety Precautions
Introduction
Read this Owner/Operator Manual carefully. Be sure you understand how to operate this hedge trimmer
properly before you use it. Failure to do so could result in serious injury.
Keep this manual handy so that you may refer to it later whenever any questions arise. Also note that you are
able to contact the dealer from whom you purchased the product for assistance.
Always include this manual when selling, lending, or otherwise transferring the ownership of this product.
This product has been designed to be used as a hedge trimmer power tool as described previously and
it should never be used for any other purpose; doing so could result in unforeseen accidents and injuries
occurring. Only approved Mitox accessories should be used with this product.
This Hedgetrimmer is equipped with extremely sharp blades, always wear sturdy gloves when handling the
blades and t the safety guards when not in use.
When using this hedge trimmer for the rst time, take the hedge trimmer to a wide, clear, open space, start
the engine, and practice handling the hedge trimmer until you are sure that you will be able to handle it
properly in actual operation.
You should never use this hedge trimmer when under the inuence of alcohol, suering from exhaustion or
lack of sleep, suering from drowsiness as a result of having taken medicine, or at any other time when your
judgment might be impaired or that you might not be able to operate the hedge trimmer properly and in a
safe manner.
Never allow children or anyone unable to fully understand the directions given in this manual to use this
hedge trimmer.
When planning your work schedule, allow plenty of time to perform the work and allow plenty of time for
rest. Limit the amount of time you continuously use the hedge trimmer to 30~40 minutes per session, and
take 10~20 minutes of rest between work sessions. Also try to keep the total amount of work performed in a
single day to 2 hours.
Avoid running the engine indoors the exhaust gases contain harmful carbon monoxide.

266LRH / 268LRH Hedgetrimmer
6
Original Instructions Version June13
Never use the Hedge Trimmer in conditions as described below:
When the ground is slippery or when other conditions exist which might make it dicult to
maintain a steady posture while using the hedge trimmer.
At night, at times of heavy fog, or at any other times when your eld of vision is limited and it
would be dicult to gain a clear view of the area where the hedge trimmer is to be used.
In heavy rain, during lightning storms, at times of strong or gale-force winds, or at any other times
when weather conditions might make it unsafe to use this product.
Lack of sleep, tiredness, or physical exhaustion results in lower attention spans, and this in turn
can lead to accidents and injury.
Work Clothing and Safety Equipment
When using the product, you should wear proper clothing and protective equipment.
• Helmet
• Protection goggles or face protector
• Ear protectors
• Thick work gloves
• Non-slip sole work boots
Safety and Operation
This hedge trimmer is equipped with very sharp blades, and when used incorrectly the blades can be
extremely dangerous.
Improper handling can cause accidents which may in turn lead to serious injury or death. For this reason, you
should always be careful to adhere to the following instructions when using your hedge trimmer

266LRH / 268LRH Hedgetrimmer
7
Original Instructions Version June13
Never hold the hedge trimmer in a way in which the blades are pointing towards someone else.
Never allow the blades to come into contact with your body.
Always turn o the engine before adjusting the hedge trimmer, removing branches which have become
stuck in the blades, or at any other time when coming into close proximity with the blades.
Always wear thick work gloves when adjusting the hedge trimmer.
Always place the blade cover provided over the blades when not in use.
Falling branches may fall onto the operator’s body or head, resulting in injuries, scratches, and cuts, and for
this reason you should always wear a helmet when operating the hedge trimmer.
Safe Handling of Fuel
The engine of the hedge trimmer is designed to run on a two-stroke oil/fuel mixture. This fuel is highly
ammable, never store cans of fuel or rell the fuel tank in any place where there is a source of heat or re
which might ignite the fuel.
Do not smoke whilst operating the hedge trimmer or relling, keep lit cigarettes away from the hedge
trimmer at all times.
When relling the fuel tank always stop the engine rst and carefully make sure that there are no sparks or
open ames anywhere nearby before refuelling.
If any fuel spillage occurs during refuelling, use a dry rag to wipe any fuel which has been spilled onto the
hedge trimmer before starting the engine.
After refuelling, screw the fuel cap back tightly onto the fuel tank and carry the hedge trimmer to a spot 5
metres or more away from where it was refuelled before starting the engine.

266LRH / 268LRH Hedgetrimmer
8
Original Instructions Version June13
Before Operating the Hedge Trimmer
Before beginning work, carefully check the work area and remove any obstacles.
Within a perimeter of 15 metres of the work area should be considered a hazardous area into which no-one
should enter while the hedge trimmer is being used, and when necessary this area should be marked with a
warning rope, warning signs, or other forms of warning.
When work is to be performed simultaneously by two or more operators, care should also be taken to
constantly look around to check the presence and locations of other operators within the work area to
maintain a safe distance between each operator.
Before beginning work, each component of the hedge trimmer should be checked to make sure that it is
in proper working order, make sure that there are no loose screws or bolts, fuel leaks, ruptures, dents, or any
other problems which might interfere with safe operation. Be especially careful to check that there is no
damage to the blades.
Keep all parts of your body away from the hedge trimmer blades when the engine is running.
Before Starting the Engine
Carefully check the work area to make sure that no obstacles exist within a perimeter of 15 metres around
the hedge trimmer before starting the engine.
To start the engine, place the hedge trimmer onto the ground in a at clear area and hold it rmly in place to
ensure that neither the blades or the throttle come into contact with any obstacles when the engine starts.
After starting the engine, make sure that the blades stop moving when the throttle trigger is released (idle).
If the blades continue to move when the engine is at idle, adjust the idle screw on the carburettor to a
point where the blades stop moving, if this cannot be achieved, take the hedge trimmer to your authorised
servicing dealer for adjustment.

266LRH / 268LRH Hedgetrimmer
9
Original Instructions Version June13
Avoid Noise Problems
Check and follow the local regulations for sound levels and hours of operation for garden machinery.
In general, operate hedge trimmers between 8 am, and 5 pm on week days and 9 am to 5 pm at weekends.
Avoid using the hedge trimmer late at night and/or early in the morning.
Safety when using the Hedge Trimmer
When using the hedge trimmer, grip the handles rmly with both hands, place your feet slightly apart so
your weight is distributed evenly across both legs, and always maintain a steady even posture while working.
Do not use on ladders or if the ground surface is slippery or uneven. Never attempt to cut directly overhead
or with one hand.
• Maintain full engine speed when cutting.
• Never allow other persons to come within the work area as doing so might expose them to danger.
• Keep work area clear of all persons, particularly small children and pets. Injury may result from ying
debris.
• If a branch or other object gets caught in the hedge trimmer during operation, always stop the engine
before removing the object.
• To protect yourself against injury from falling branches, wear the required safety equipment.
• Never touch the spark plug or plug HT cable while the engine
is in operation, doing so may result in an electrical shock.
• Never touch the exhaust, spark plug, or any metallic parts
while the engine is in operation or immediately after shutting
down the engine. These parts reach high temperatures during
operation and doing so could result in serious burns.
• When you nish cutting in one location and wish to continue work in another area, stop the engine,
place the protective cover over the blades, and turn the hedge trimmer so that the blade faces behind
your body before carrying it to the new location.
• Always remove fuel from the fuel tank before transportation to prevent fuel spillage.
• Never leave the hedge trimmer exposed to direct sunlight as this can heat the fuel tank and may cause a
discharge of fuel, and ood the engine.

266LRH / 268LRH Hedgetrimmer
10
Original Instructions Version June13
Two-Stroke Fuel
Fuel is very ammable. Do not smoke or bring any ame or sparks near fuel. Always stop the engine and
allow it cool before refuelling. Refuel outdoors on bare ground, restart the engine at least 5m away from the
refuelling stop.
The engine is lubricated by oil mixed into petrol. Prepare a mixture of unleaded petrol and semi-synthetic
two-stroke oil that meets the specications of: API TC, ISO-L-EGC, JASO FC (Low Smoke) oil.
Recommended mixing ratio is 40:1.
FUEL WITH NO OIL (RAW PETROL) will cause severe damage to the engine which is not covered by
the manufacturer’s warranty.
Use fresh, unleaded petrol (95 RON) and semi-synthetic oil specially made for high performance two-stroke
engines. Mix in a ratio of 40 parts petrol to 1 part of oil.
By using two-stroke oil specially made for two-stroke engines you will reduce the formation of ash and
carbon deposits on the spark plug, piston, exhaust muer and cylinder as well as reducing emissions of
harmful exhaust gases.
Oil FOR 4-CYCLE ENGINES should not be used as two stroke lubrication oil as it can cause fouling of the spark
plug, exhaust port blocking, piston ring sticking and other internal engine damage.

266LRH / 268LRH Hedgetrimmer
11
Original Instructions Version June13
Fuel Storage
Mixed two-stroke fuel which has been left unused for a period of one month or more may damage
the carburettor and result in the engine failing to start or operate correctly.
When storing the hedge trimmer for a period of more than one month, empty the fuel tank, and
run the engine to empty the carburettor of fuel.
Two stroke fuel can cause deterioration of rubber and/or plastic components during prolonged
storage.
It is important to only use good quality, fresh fuel mix.
Fuelling
Shake the fuel container to thoroughly mix the two-stroke oil and petrol.
Clean dirt from around the fuel cap before removing.
Pour two-stroke fuel into the fuel tank with a ltered funnel, up to 80% of the fuel tanks capacity.
Replace the fuel cap and tighten securely. Spilled fuel must be wiped away from the hedge
trimmer before starting the engine.
Move at least 5m away from the refuelling area before restarting the engine.
When relling the tank, always turn o the engine and allow it to cool down. Take a careful look around
to make sure that there are no sparks or open ames anywhere nearby before refuelling.

266LRH / 268LRH Hedgetrimmer
12
Original Instructions Version June13

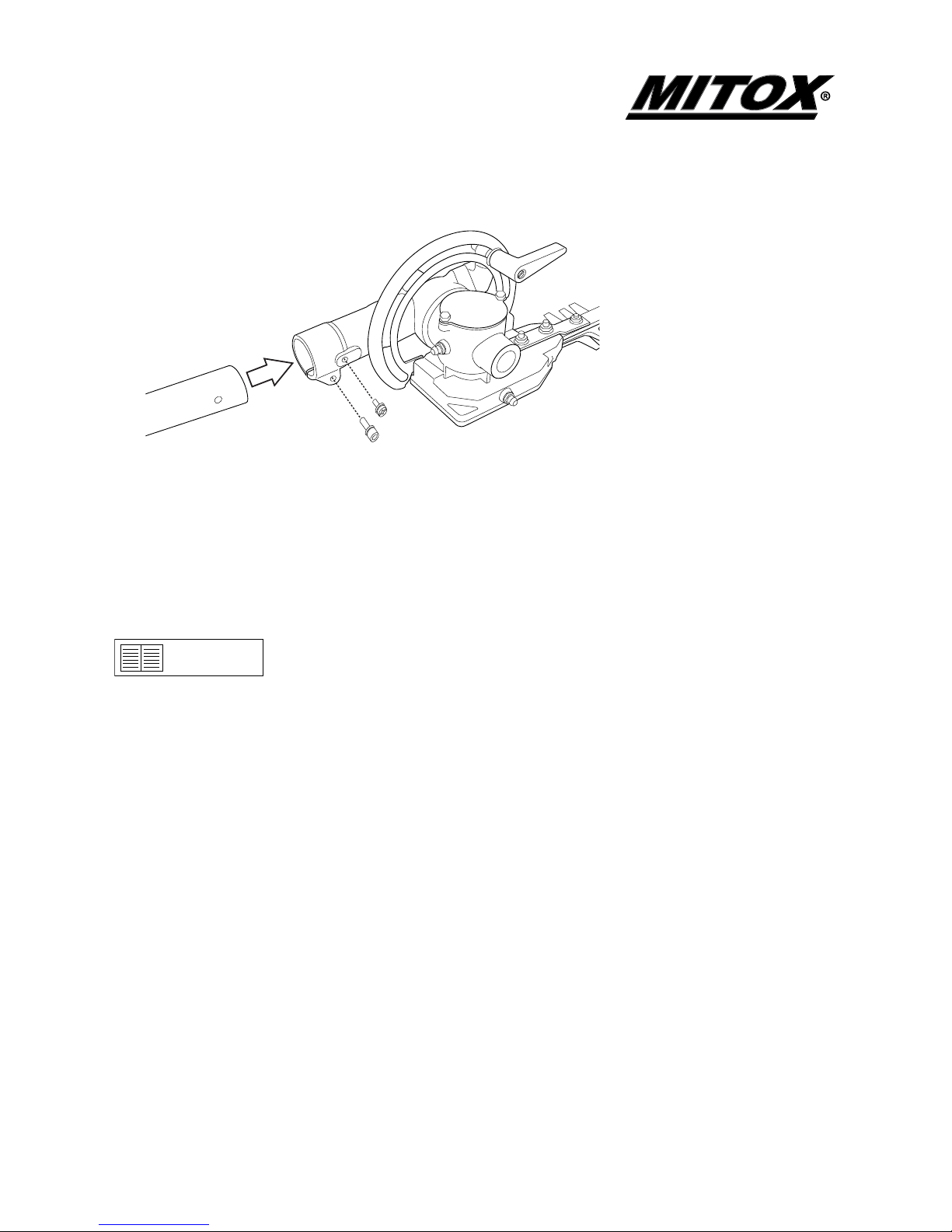

Attaching the Hedge Trimmer Head
1. Remove the locating screw (1).
2. Using a 4mm Allen key, loosen the clamping bolt (2).
3. Slide the drive shaft (3) into the hedge trimmer gearbox (4) until the locating hole (5) in
the drive shaft is visible though the locating hole (6) in the gearbox.
4. Insert the locating screw (1) into the gear box (6) and tighten.
5. Using a 4mm Allen key, tighten the clamping bolt (2).
The thickness of fresh growth (green branches), which may be cut using this hedge trimmer, is
limited to up to approximately 10mm. Never try to cut branches thicker than this, as doing so may
result in damage to the hedge trimmer.
Operation
Adjusting the angle of the cutting blades
1. Stop the engine.
2. Turn the clamp bolt located on the top of the trimming mechanism counter-clockwise to
loosen it.
3. Adjust the angle of the blades to the desired angle, and then tighten the bolt rmly
back into place.
4. Always wear gloves when adjusting the blades.
NOTE
1
2
3
4
5
6

266LRH / 268LRH Hedgetrimmer
13
Original Instructions Version June13
Fitting the Handguard
Hedgetrimmer attachments are supplied with a hand guard, which prevents the operator from acidentally
touching the hedgetrimer blades. On 281-MT models this guard also acts as a clip where the tip of the blades
can be secured when the hedgetrimmer is folded for storage.
To t the hand guard, slide it over the driveshaft and secure in place using the allen key bolt and nut
supplied. Ensure that on 281-MT models the clip side is facing towards the cutter head and is tted at the
point where it can be used to secure the tip of the blades when the hedgetrimmer is folded for storage.
Ensure that the two at feet are facing the ground to support the hedgetrimmer when it is placed at on the
oor.
Blade information
•Never cut hedges thicker than 10mm and only fresh growth.
•If wire is caught by the blades, damage can occur which is not covered by the warranty.
•When sharpening, removing, or reattaching the blades, be sure to wear thick, sturdy gloves and
use only appropriate tools and equipment to prevent injury.
•After you have nished using the hedge trimmer, clean the blades and apply clean light grade
lubricating oil to the entire length of the blades, including the blade bolts.
allen bolt
nut
to cutter head
blade clip

266LRH / 268LRH Hedgetrimmer
14
Original Instructions Version June13
Operation
Keep clear of the blades as they may start moving when engine starts.
Starting the Engine
CAUTION do not pull the starter cord all the way out and do not let go of the starter handle when the cord is
extended, this can damage the starter mechanism.
Cold Engine Starting
Rest the unit on a at, rm surface. Keep the blades o the ground and clear of surrounding
objects as they may start moving upon starting of the engine.
Fig 1 - Push the air purge bulb (a) until fuel Fig 2 - Move the choke lever (c) to the closed
is visible in the clear return fuel line (b). position.
Set the ignition switch (d) to the START
(I) position.
268LRH only, hold the safety lever (e) down
and squeeze the throttle control lever (f),
push down the fast idle control (g).
START
STOP
(a) (b) (c)
(d)
(e)
(f )
(g)

266LRH / 268LRH Hedgetrimmer
15
Original Instructions Version June13
• Release the throttle control lever rst and then release your hand.
• Slowly pull the recoil starter handle until engagement of the pawls with the ywheel is felt.
• While holding the unit, pull out the starter rope rmly until engine res (indicated by a ‘cough’
from the engine).
• Move the choke lever to the open position.
• Pull the starter rope until the engine starts.
• Pull and to release the fast idle control to return the engine to idle (268LRH).
• Allow the engine to warm up before use. When cutting, always use the machine on full throttle.
Hot Engine Starting
Set the ignition switch (b) to the start position “I”(d) Fig 3.
Pull the starter rope until the engine starts.
If the engine does not start after 5 pulls, use the cold start procedure.
Overchoking
Should the engine become ooded due to overchoking, turn the ignition switch o, unscrew the spark plug,
wipe it dry or replace.
Stopping the Engine
Set the engine to idling by releasing the throttle lever.
Set the ignition switch to the o position ‘’O’’ (STOP).
If the engine fails to stop, set the choke lever to the closed position to stall the engine; do not use the
machine until the ignition switch is repaired.
NOTE

266LRH / 268LRH Hedgetrimmer
16
Original Instructions Version June13
Running In
During the rst ten hours of work, avoid running the engine at maximum speed for a prolonged period until
all the components have bedded in, after the engine has been run in, it will reach its maximum power.
Transportation
Never transport the hedge trimmer with the engine running. An engine that is running could be
accidently accelerated causing the blade to engage.
Make sure the blade safety guards are in place when transporting the hedge trimmer.
When carrying by hand, the cutting head should be pointing backwards.
Ensure the Hedge Trimmer is secure when transporting in a vehicle and the tank is drained of fuel.
Maintenance
IMPORTANT
After every use, check that all nuts, bolts and screws are securely fastened and tighten if necessary.
In the event of an accident, breakdown or blockage, ensure the engine is turned o before any work is
carried out to rectify this.
Make sure the engine has stopped and is cool before performing any service to the machine. Contact with
moving cutting head or hot muer may result in a personal injury.
Fuel Filter
Every 15 hours of operation, using a wire hook, take the
fuel lter from the fuel tank and clean or replace with
a new fuel lter.

266LRH / 268LRH Hedgetrimmer
17
Original Instructions Version June13
Spark Plug
Poor starting or misring is often caused by a fouled or defective
spark plug, clean and reset the gap to 0.65 mm, or replace the spark
plug with NGK: BPRM7A as necessary.
Air Filter
Before using the hedge trimmer, check the air lter (a).
Being clogged, will reduce the engine performance.
Remove the air lter cover by undoing the cover screw
clean the lter element in warm, soapy water,
dry completely before installing. If the element is broken
or shrunk, replace with a new one.
Carburettor
The carburettor mixture setting has been set at the factory and will
not need adjusting.
Adjusting the idle speed.. If adjustment is necessary turn the T screw
(b) clock wise until the blades start to move, then turn the screw T
anticlockwise until the blades stop.
If the idle speed cannot be adjusted to stop the cutting head
moving at idle, contact your dealer for repair before use.
Safety Lock
The safety lock is to prevent the throttle lever from accidentally
being engaged. The throttle lever (c) can only be pressed in if the
safety lock (d) is held down. Check if the safety lock and throttle
lever returns to its original position and the engine returns to idling
when you release your hand from the handle.
Any defects contact your nearest service agent for repairs
before using the machine.
(a)
(b)
(c)
(d)

266LRH / 268LRH Hedgetrimmer
18
Original Instructions Version June13
Storage
• Remove the spark plug, pour a small amount of oil into the cylinder. Rotate the crankshaft several
times using the starting rope in order to distribute the oil. Put the spark plug back in.
• Remove the fuel from the machine.
• Check the hedge trimmer for damage or problems at the intervals shown below.
Blades
• Remove the fuel from the machine.
• After each session of operation, oil the cutting blades with light chain oil.
• If gap exists between upper and lower blades, adjust them so they are closer together, this is
achieved by loosening the top lock nut, screw the blade bolt in until a snug t and then loosen
blade bolt ½ turn.
• Hold the blade bolt from turning and tighten the lock nut.
• Ifyoufeelthatyouwillnotbeabletoadjustthebladescorrectly,youshouldtakethe
hedge trimmer to an authorised repair agent.
Gearbox Lubricant
• Always be sure to use lithium based grease.
• DO NOT force grease into the gear box, apply 2 or 3 pumps of grease every 15 hours of operation.
Grease Fittings

266LRH / 268LRH Hedgetrimmer
19
Original Instructions Version June13
Troubleshooting
Engine will not start, power loss:
• Check that the fuel tank is not empty. Fill with mixed fuel.
• The fuel does not reach the carburettor. Change the fuel lter in the fuel tank.
• There is water in the fuel. Drain and clean the fuel system.
• The air lter is dirty. Clean or replace the air lter.
• There are carbon deposits in the exhaust muer restricting the engine. Clean or change the
muer.
• Spark plug is worn. Replace spark plug.

266LRH / 268LRH Hedgetrimmer
20
Original Instructions Version June13
Component Procedure Before
Use
Every
25
Hours
Every
50
Hours
Every
100
Hours
Note
Fuel Leaks / Fuel
Spillage
Clean Up •
Fuel Tank. Fuel Filter Inspect / Clean •Replace if Neccessary
Idle Adjusting
Screw
See Adjusting
Carburettor •Adjust if Neccessary
Spark Plug Clean and
Readjust Plug Gap •
Gap 0.025in (0.6-
0.7mm) Replace if
Neccessary
Cylinder Fins, Intake
Air Cooling Vent
Clean •
Muer, Spart
Arrester, Cylinder
Exhaust Port
Clean
•
Throttle Lever,
Ignition Switch
Check Operation •
Air Filter Clean •
Screws, Nuts, Bolts Tighten/Replace Except Adjusting
Screws
Vibration Elements Check for Damage • • Replace as Necessary
Blades Clean and Oil •Check for Damage &
Replace as Necessary
Service Schedule
