Mitsubishi Electric TRIUM 110 User manual

RVA: Création L. LUCE 05/02 Rédigé par Vérifié par Approuvé par
E E Written by Checked by Approuved by
VRL. LUCE J. J. DEBEY G. LEBASTARD
IS
SI
I O
ON
NS
S
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel
[phone]
[phone]
Version A
Date: 05/02
SERVICE MANUAL
FA9M068002
TRIUM 110

Service Manual
Trium 110
Version A
Date: 05/02
1/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
CONTENTS
1General description 3
1.1 Description of the kit 3
1.2 Additional Accessories 4
2Assembly 6
2.1 Exploded diagram of M6A 6
2.2 Spare part list 6
2.3 Disassembly and Assembly Instruction 7
2.3.1Disassembly Instruction 7
2.3.2Assembly Instruction 7
3Download 7
3.1 Download of Software and settings 7
4Basic Adjustment 9
4.1 Equipment installation 9
4.2 Basic Adjustment 10
4.2.1Power Adjustment 10
4.2.2RSSI control. 10
5Block Diagram 11
6Reporting file 11
7Repair Logigrams ( to be completed ) 12

Service Manual
Trium 110
Version A
Date: 05/02
2/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
8Trouble Shooting help guide 12
9Hardware description 14
9.1 Power management 14
9.1.1Power Supply 14
9.1.2Battery management 15
9.1.3Power on/off 16
10 RF Section. 17
10.1 Frequency range. 17
10.1.1 E-GSM Frequency : 17
10.1.2 DCS Frequency : 17
10.2 Synthetiser Circuit Description. 18
10.3 RF Block Diagram. 19
10.4 Reception 19
10.4.1 Reception Block Diagram. 19
10.4.2 Description of Reception Block Diagram 20
10.5 Transmission. 20
10.5.1 Transmission Block Diagram. 20
10.5.2 Description of Transmission Block Diagram. 20
10.5.3 Power Control. 21
11 Personal Notes 22

Service Manual
Trium 110
Version A
Date: 05/02
3/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
1General description
M6A+ product is based on MARS product
1.1 Description of the kit
Commercial Name TRIUM 110
Project Development Name CUPID
MT 360
-TRIUM 110 : Standard version
-TRIUM110 m: For messaging, EMS
version
-TRIUM 110 p: For play, EXEN
version
Main features:
Hand phone working with E-GSM/DCS networks
Hand phone including a WAP Browser 1.2.1 (Wireless Application Protocol )
Tri-codec Voice Encoding: Full Rate, Enhanced Full Rate and Half Rate
Integrated Hands-free
Integrated antenna (fixed in the case)
SMS (Short Message Service) with T9 (predictive text input)
Polyphonic melodies
Currency converter
Euro character managed (TBC)
Calculator
Clock/Date and Alarm
EXEN game
EMS ( Enhanced Message Sending )
Dimension and battery feature:
Weight: 110g (including battery )
Dimension: 116mm x 44.7mm x 25.2mm
Talk Time: Up to 2h09min
Standby Time: 165h
Call management:
Up to 254 number stored in SIM card (depending on the Software and the SIM card)
100 names with 3 telephone numbers each and associated icons (VCARD)

Service Manual
Trium 110
Version A
Date: 05/02
4/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
4 items are included in the standard kit:
•Cupid main unit
•Li-Ion main battery (3.8V – 800mAh)
•AC/DC Adapter for battery rapid charging
•User manual
Difference with MARS & M6A*
Features
Cupid
M6A*
MARS
Hardware
Flash Memory
Flash 2Mbytes
4 Mbytes multi-bank
2 Mbytes
Memory
Flash 2Mbytes
None
EEPROM or Serial-Flash
Back up battery
No
No
Yes
Mechanical
Handstrap
Yes
Yes
No
LED indicator
No
No
Yes
* M6A: AURA, MYSTRAL, ODYSSEY
1.2 Additional Accessories
This is a typical list, also the “Spare Part List” delivered by Mitsubishi is the official document .
Code article
Désignation
Ref
Product
FK8A001910 AC/DC AU MA0504
FK8A001810 AC/DC EU MA0501
FK8A001710 AC/DC UK MA0502
FK8A002710 AC/DC Chine MA0503
FS2F006410 Battery M6A+ MA0632
FK8C000110 CLA M5 MA0513
To be defined simple hand-free M5 MA0638
FK8T000110 PC cable Download professional MA0524
FK8T000310 PC cable commercial Mars/Neptune MA0571
FK8E000210 Headset FM radio MA0512
FK8E000110 Standard Headset MA0509
To be defined Carrying Case MA0605

Service Manual
Trium 110
Version A
Date: 05/02
5/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
MA0604
MA0503 MA0504 MA0505 MA0502 MA0501
MA0514
Professional MA0524
MA0512
To be defined
Standard MA0509
MA0513
MA0605
COVER BATTERY
BATTERY
MA 0632
NECK STRAP
MA0606
HAND STRAP
MA0607
Enhanced MA0571
Head set
With button To be defined
Simple Hand free
MA0638
MA 0640
FRONT PANEL

Service Manual
Trium 110
Version A
Date: 05/02
6/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
2Assembly
2.1 Exploded diagram of M6A
2.2 Spare part list
Item Description Reference
1 & 2 Window Assy M6A+ ? following the colour
3Front Panel M6 MT360 FK1W00951A
4Screw PI TITE Head TPR N°02*8 ZBL FK1B002410
5Cover Assy M6A+ ? following the color
6Multiactors (3/1) M6A+ FS2F005810
7LCD Assy M6A+ FS13115410
8Keypad M6a+ FK1K002010
9Micro Assy M5 MA/NE FS2E001410
10 Connector I/O M5 MA/NE FS2E001310
11 Screw PI TITE BENTZ Head TPR N°02*6 FK1B001510
12 PCA test M6a+ (not available as spare part)
13 Motor Vibrator M5 MA/NE FS2E001710
14 Connector Battery M6A FS2F000310
15 Case M6A+ ? following the colour
16 Battery M6A+
17 Battery Cover M6A+ FK1N027910
Not Identified Cap RF M5 MA/NE FS2E003610
Not Identified Label Art (10 x 21) same as MA/NE FS2D003110
Not Identified Label IMEI same as MA/NE FA9L012210
This is a typical list, also the “Spare Part List” delivered by Mitsubishi is the official document .
1
4
3
2
5
6
7
12
15
8
9
10
11
13
14
16
17

Service Manual
Trium 110
Version A
Date: 05/02
7/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
2.3 Disassembly and Assembly Instruction
2.3.1 Disassembly Instruction
The procedure for mobile disassembly is described in the instruction GFZ13136904 – TRIUM 110
Disassembly (M6A+ Cupid).
2.3.2 Assembly Instruction
The procedure for mobile assembly is described in the instruction GFZ13136903 – TRIUM 110
Assembly (M6A+ Cupid).
3Download
The data are divided in two parts: the software and the settings.
Currently the Mitsubishi software ( .bin file ) is downloaded into the Flash and the setting ( . pso file ) is
downloaded into an EEPROM or Serial Flash.
The M6A+ mobiles does not use EEPROM but a Flash Data and the setting are not in .pso extension
but in .psb (as M6A). The main consequence of this change is that the new setting file .psb MUST
BE DOWNLOADED WITH IPL TRIUM.
In conclusion, with the M6A product, the software and the setting can be downloaded in the same time
by using IPL Trium.
3.1 Download of Software and settings
The configuration to download software is :
Launch MT ToolsV103.02 or higher, select the “Mobile Type M5-M6A” and then launch IPL Trium in
download/download software menu.
To COM 1
Professional PC cable M5
MA/NE : FK8T000410
Main unit
switched OFF
MT Tool
V103.02
or higher

Service Manual
Trium 110
Version A
Date: 05/02
8/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
When IPL Trium is launched, the software or setting download is selected by choosing “Application
File” or “Personalization File”
Select the .bin file or .psb file or both, connect the PC cable to a switched off mobile, hold the power
button and click on “Start download”, the download starts when the back light blinks.
At the end of a successful download, the mobile displays “Download success ”.
Selection File

Service Manual
Trium 110
Version A
Date: 05/02
9/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
4Basic Adjustment
For M6 family, test mode is not directly possible from the mobile, indeed relevant software is available
on PC only.
Thanks to the new generation of MT Tools (MT Tools 2000), we can either repair Level 2 or Level 3.

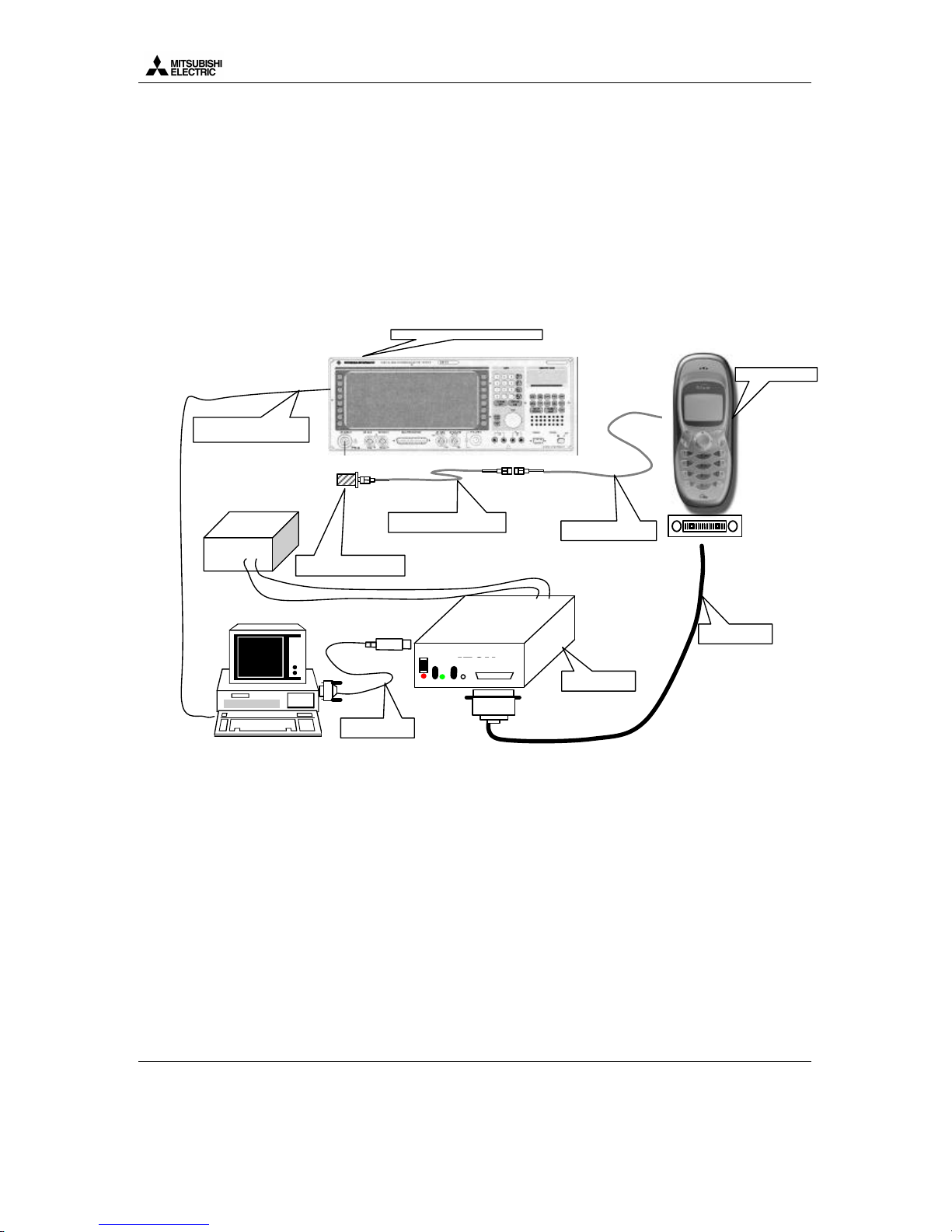

4.1 Equipment installation
The test mode is used to control or adjust mobile parameters.
You must have the following requirements :
•Radio-communication tester
•M5 RF cable
•M5 Interface cable
•M4 / M5 Interface Box
•Serial Cable
•Computer under Windows 95 minimum (PII 350 MHz 64 Mb recommended)
•An ampermeter can be installed between the external supply and the interface box to check the
mobile consumption.
NSMA ADAPTATOR MALE
(F5CN000410)
M5 RF CABLE SMA L100
(F5CN000310)
Mobile without battery
RADIOCOMMUNICATION TESTER
ITSU
External supply
4.5V
GPIB Connection for
Autotest only
(not requested for test mode)
Serial Cable
FT7Y002110
M4 /M5 Interface Box
FT7Y009410
M5 Interface Cable
F5CN000110
CORDON M5 RF SMA M/SMA M
(F5CN000210)

Service Manual
Trium 110
Version A
Date: 05/02
10/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
4.2 Basic Adjustment
Use MT Tools 2000 1(Vers.103 Ed.02 or higher) to set all the parameters.
4.2.1 Power Adjustment
Each mobile is adjusted in the factory and the TX parameters (Power Control Level values and ramping values)
are stored in the Flash Data (IC202)
About the adjustment value of TX Power, see the following table.
E-GSM DCS
Ch-62
PCL Power Level (dBm) tolerance Ch-698 PCL Power Level (dBm) tolerance
533 +/-2dB 030 +/-2dB
631 +/-3dB 128 +/-3dB
729 +/-3dB 226 +/-3dB
827 +/-3dB 324 +/-3dB
925 +/-3dB 422 +/-3dB
10 23 +/-3dB 520 +/-3dB
11 21 +/-3dB 618 +/-3dB
12 19 +/-3dB 716 +/-3dB
13 17 +/-3dB 814 +/-3dB
14 15 +/-3dB 912 +/-4dB
15 13 +/-3dB 10 10 +/-4dB
16 11 +/-5dB 11 8+/-4dB
17 9+/-5dB 12 6+/-4dB
18 7+/-5dB 13 4+/-4dB
19 5+/-5dB 14 2+/-5dB
15 0+/-5dB
4.2.2 RSSI control.
Set your radiocommunication tester at a given reference and check RSSI :
REF Gene RSSI
-83.5 dBm 27 +/- 4
-60.5 dBm 50 +/- 4
1See Manual FA9M0640

Service Manual
Trium 110
Version A
Date: 05/02
11/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]

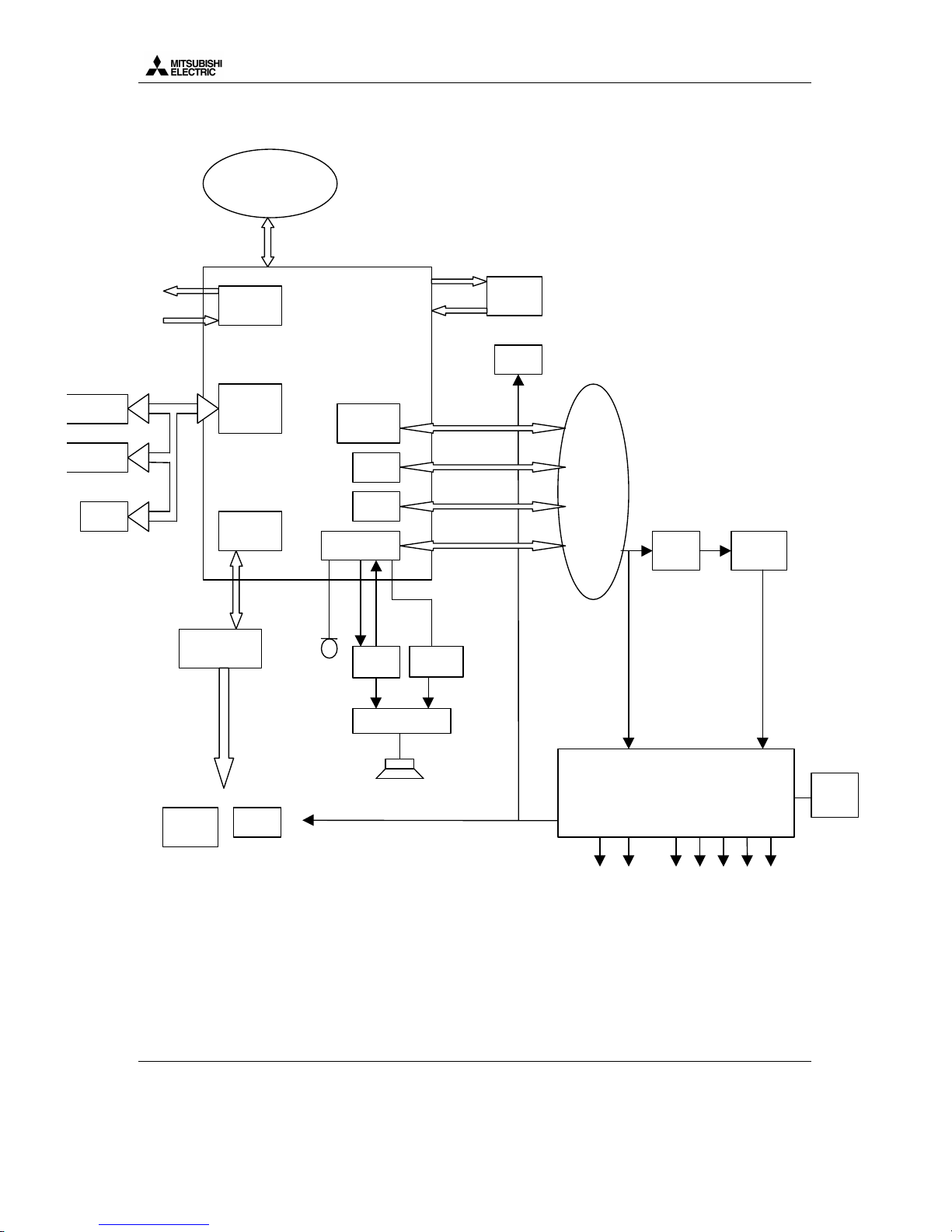

5Block Diagram
6Reporting file
The default and the results of the mobile repairing are saved in a data base using MT Tools and the
normalized codes in order to achieve quality reports ( see FA9M0640 & FA9M074410 ).
Code
Flash
IC300
ONE-C
1.2
JTAG/DAI
GPIO
UART 1
Audio
LED
Keyboard
IPD
Intergrate Power Device IC100
I/
O
C
o
n
n
e
c
t
o
r
L
i-Ion
Battery
IPD
Charge
r
Vibrator
RAM
Micro
Speaker
External
PC
cable
Flux Control
BUS
controller
SPI bus
LCD
controller
Radio
Interface
Keyboard
SIM
Connector
2.8 ANA
2.8VD
2.5 ANA
2.5VD
2.8V AUD
REG2
GSM
Radio
Module
LED
LCD
Display
3 tones
IC
Amplifier
Switches
&Filters
Data
Flash
REG80
2.8RTC

Service Manual
Trium 110
Version A
Date: 05/02
12/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
7Repair Logigrams ( to be completed )
The repair logigrams are achieved after few mobile returns to the Mitsubishi’s after sales service.
Then these logigrams are delivered in FI instructions form to the repair centers via E-mail.
8Trouble Shooting help guide
Defects observed Measure/Investigation Component no good
correctives action
CHARGING PROBLEM
Charge consumption:
Start around at 125mA, displays “Charging”, fall over between 520 to 580mA with back light, then fall around 450 to 500mA.
Same consumption Mobile consumption stay at 120mA Check J101, soft upgrade,
change TR112
Check Battery Mobile displays “Check battery”Change J103, Check J101
No charging Visual check: connector J103 broken J103
Incorrect Voltage Mobile display “incorrect Voltage”Check J103 & J101
Incorrect Voltage Mobile display “incorrect Voltage” and J103 & J101 already
changed Check R126, TR103 TR112 & D117
Mitsubishi Testmode Mobile displays “Mitsubishi testmode”Change IC300
AUDIO PROBLEM
Tone test no good Check the multiactor connection multiactor
Noisy reception During a test call on network, audio reception defect Micro, multiactor
Noisy reception In a test call network; micro, receiver and speaker already
changed IC300
Noisy reception Good in a test call network but noisy in a real call IC300
Key sound Key sound no good Soft upgrade
DISPLAY PROBLEM
Frozen LCD A wave can be seen during the display IC300
Incomplete display Informations missing during the display Change LCD or LCD
connector
Backlight Check the LEDs Change the defected LEDs
White screen Nothing displayed in normal mode and in testmode
Check J201 soldering
Change J201 if broken or
twisted
change LCD
Inconsistent display Character problems during the display Change J201
Freezing display The display stop during the On/Off process Soft updating
No display Mobile turn off when a key is pressed Soft upgrade, change
IC300
Wrong characters Wrong characters on LCD Soft upgrade
Error message Enter lock code Setting upgrade

Service Manual
Trium 110
Version A
Date: 05/02
13/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
LOCATION UPDATE
No service EGSM & DCS TX & RX good in test mode Soft updating
No service EGSM & DCS After a soft updating still no good IC300
No training sequence Check VREF3, if parasite exist Change C155, check C101
No training sequence No modulation IC401
RX level no good With a –83db signal check the RSSI (= 27 ±4),
RSSI good (10< <100) and the mobile lose the network IC300
RX level no good RSSI no good, RSSI > 100 IC300
RX level no good RSSI no good, RSSI < 10 SW700
RX Qual > 2 RX qual no good IC300
Call drop Call stop at any time Soft updating, IC300,
IC401
POWER ON PROBLEM
No power on “Checksum error” during a software download
( Keypad flashing ) Flash (IC200) defective (soldering)
No power on Check the position of the key rubber Replace the key rubber
No power on Check J101 (batt connector) broken, missing
Check the contact with the board J101
No power on Mobile turn on if the power key is pressed continuously, and
switch off when the power key is released IC300 (soldering)
Switch off itself Mobile turn off itself Soft updating, check J101
Normal consumption in TestMode : 20mA to 25mA
DOWNLOAD PROBLEM
Pb of downloading Error during a software download Retry , Change IC200,
IC300
SIM PROBLEM
Check SIM Check the J301 soldering + contacts position J301
Check SIM Check the connecting between the SIM and the connector Raise the SIM connector
BIT Error / PHASE Error
Bit error/frame error Compare RX demodulated signals (RXIN, RXIP, RXQP,
RXQN) with a good mobile, if no good change one-C IC300, IC401,SW700
Frequency error Adjust the error frequency with MT Tools (mode repair –
TCXO), still no good change IC401 IC401, 13MHz, IC300,IC600
Phase error Pb of modulation IC401, IC600, X600

Service Manual
Trium 110
Version A
Date: 05/02
14/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
9Hardware description
9.1 Power management
9.1.1 Power Supply
Initial conditions:
REG2 =2.8V
8VAUD = 2.78V
2.8VD = 2.93V
2.5VD = 2.5V
EXPS = 4.32V
3.6VB = 4.19V
2.8RTC = 3.28V
2.5RTC = 2.49V
2.8VANA = 2.49V
2.8VANA =2.81V
BBPWR = 2.49V
PWRKEY = 3.3V
C104
C108
C159
TR100
R104
TR100
D122
IC101
C150
C155
C110
TP113

Service Manual
Trium 110
Version A
Date: 05/02
15/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
9.1.2 Battery management
9.1.2.1 Block Diagram / Description
Regarding the CUPID, the battery is Li-Ion 800 mAh, 3.8 V, whereas the external power supply is 5.7 V, 600 mA nominal.
IPD
charger
Base Band
Regulator
+
NiMH
Battery
3.6 V / 800 mAh
IPD
regulators
Radio
PA
I charge
5.7 V nominal
EXPS:
AC/DC
CLA
HF kit
3.6 V nominal
SPI interface
When an external power supply is
plugged, the voltage of EXPS
2
is 5.7 V,
therefore battery does not supply
anymore the Base Band (via IPD
regulators). Indeed, the voltage from the
EXPS is always greater than the one from
battery, the diode D100 is no more
opened.
Nevertheless, some parts of the radio are
only supplied by the battery.
Battery presence is accessible in CHGM
IPD register. The battery level information
is accessible in an A/D converter in One-
C. It is also available in CHGM IPD
register, these information are given by
range only for range control.
The battery temperature information (TH) is given by thresholds in IPD CHGM register. This information are used only for
charge control.
Bypass is Activated when battery is less than 3.45 V.
The regulator IC103 is to make the power supply 2.5RTC for the One C.
9.1.2.2 Charging process
The IPD charger, supplied by EXPS achieves the charge. The charge process is done by an internal algorithm controlled by
S/W.
The 1C current charge is fixed by hardware to 420 mA, so that a complete charge duration is about 130 min at room
temperature.
Charging process follows these successive phases:
1. Pre charge:
This phase is mandatory before the rapid charge to verify that battery operation is normal (normal battery voltage and
temperature). Charge current during this phase is 52 mA ( 8
1C). If the battery voltage is higher than 3.4 Volts, the S/W
launches IPD charger in Rapid charge except if the temperature is not between 0°C and 55°C.
2. Rapid charge:
Charge current during this phase is 420mA. If battery temperature becomes abnormal IPD charger start at low current
charge
(
)
C
20
1, while temperature comes back normal (between 0°C and +55°C) during 15 min.
Full charge detection ends Rapid charge. Full charge is detected by S/W when one out of the three evens occurs:
•Battery voltage begins to decrease
(
)
V∆−
•Battery voltage stops to increase during 20 min
(
)
V∆
•Rapid charge time is expired (150 min)
2External Power Supply

Service Manual
Trium 110
Version A
Date: 05/02
16/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
3. Trickle mode:
This phase is necessary to complete the charge and to avoid battery auto discharge. Charge current during this phase is C
20
1.
Trickle charge is automatically stopped after 24 hours duration.
9.1.3 Power on/off
9.1.3.1 Power on
To switch on the mobile, three possibilities exist :
With a battery :
PWRKEY
t
BBPWR
IC300 t
MUPSU
IC100 pin49 t
During these mode TESTPS and EXPS = low voltage level.
A high voltage level on MUPSU implies regulators REG 2, REG 3, REG 4, REG 5, REG 6, REG 7 are active.
- With Interface and I/O connector (Testmode M.T.S) :
EXPS
to t
ACCPS t
MUPSU t
t0 is the time when the “mobile on” button on the interface has been pushed.
- With AC/DC Charger, Cigar Light Adapter and DeskTop Charger.
EXPS
t0
t0= connection by external power.
to

Service Manual
Trium 110
Version A
Date: 05/02
17/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
9.1.3.2 Power off.
PWRKEY
t
3s
BBPWR
MUPSU t
5s
10 RF Section.
10.1 Frequency range.
10.1.1 E-GSM Frequency :
124 Channels. 1≤N ≤124 and 48 Channels. 975 ≤N ≤1023
Receive frequency: 925.2~959.8 MHz
RX frequency = 935.0+0.2*N for (1≤N ≤124) and 935.0+0.2*(N-1024) for ( 975 ≤N ≤1023)
Transmit frequency : 880.2~914.8 MHz
TX frequency = 890.0+0.2*N for (1≤N ≤124) and 890.0+0.2*(N-1024) for ( 975≤N ≤1023)
880 TX 915Mhz 925 RX 960 Mhz
35Mhz 35Mhz
45Mhz
E-GSM BAND
1304 TX 1339Mhz
35Mhz
RF-PLL E-GSM BAND
1320Mhz1285 RX
35Mhz
RX IF is 360MHz
10.1.2 DCS Frequency :
374 Channels. 512≤N ≤885
Receive frequency: 1805.2~1879.2 MHz
RX frequency = 1805.2+0.2*(N-512).
Transmit frequency 1710.2~1784.8 MHz
TX frequency = 1710.2+0.2*(N-512).
1710 TX 1785Mhz 1805 RX 1880Mhz
75Mhz 75Mhz
95Mhz
DCS BAND
1286
TX
1361Mhz
RF-PLL DCS BAND
RX
1445 1520Mhz
75Mhz75Mhz
RX IF is 360MHz

Service Manual
Trium 110
Version A
Date: 05/02
18/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
10.2 Synthetiser Circuit Description.
Switching between GSM and DCS band is performed by programming the IC401 with the serial data in BBE from CPU.
The serial data lines are connected directly to the serial input pin of the RF IC (IC 401), and are used to program the 2 PLLs of
the IC.
The RF IC has two PLLs : one is variable frequency (RF PLL), and the other is fixed frequency (IF PLL).
RF-PLL : variable frequency PLL for RX and TX for both GSM and DCS bands.
Oscillation Frequency Ranges : - For E-GSM Band / 1150 - 1185MHz
-For DCS TX / 1575 - 1650MHz
-For DCS RX / 1580 - 1655MHz
IF-PLL : Fixed frequency 424 MHz for IF of TX for both E-GSM and DCS bands.
Fixed frequency 360 MHz for IF of RX for both E-GSM and DCS bands.
The signal BANDSW controls the E-GSM/DCS Band switching.
BANDSW RF BAND
0E-GSM
1DCS
In order to achieve the channel spacing, the reference frequency is set to 200 kHz.
IF
PLL
RF
PLL
IC401
RF
VCO
OSW
CLK
SDATA
EN
RF DUAL
BAND
TCXO
13Mhz
IC600
X600

Service Manual
Trium 110
Version A
Date: 05/02
19/22
+:
(:
FAX:
Mitsubishi Electric Telecom Europe S.A.
After Sales Services
Z.A. Pigeon Blanc, 35 370 St Germain du Pinel France
[phone]
[phone]
10.3 RF Block Diagram.
10.4 Reception
10.4.1 Reception Block Diagram.
SW
FL402
FILTER
FL403
LOW
NOISE
AMPLI
IC400
FL400
FILTER
FL401
FILTER
+
SWITCH
SW700
Z701
COUPLEUR
Z700
DEMO
IC401
MOD
LOOP
FILTER
TX
VCO
IC700
ATT9dB
ATT8dB
POWER
AMPLI.
IC701
RF VCO
TCXO-
13MHz
COMP
IC710
R/
X
T/
X
AN
Tn
J40
0
GSM RX
925-960Mhz
DCS TX
1710-
GSM TX
880-
DCS RX
1805-1880Mhz
APCCN
BS
DCS
424Mhz
GSM
424Mhz
IC401
FL402
-4dB
FL403
-5dB
SW
GSM Supply
DCS Supply
RF PLL
DEMO
/4
360Mhz
Mecha
SW
Filter
360Mhz
IF PLL
TCXO
13Mhz
RF
VCO
LNA
ANT
RXIP
RXQP
RXIN
RXQN
IC600
FL405
IC400
X600
J400
+20dB
OSW
360Mhz
FL400
-3dB
FL401
-0.5dB
-8dB
