TECHNICAL & SERVICE MANUAL
PEH-P8YE, PEH-P10YE
2000
Models
AIR-COOLED HEAT PUMPTYPE
PACKAGED AIR CONDITIONERS
<Indoor unit>
For use with the R407C

Page
Contents
11
11
1PRECAUTIONS FOR DEVICESTHAT USE R407C REFRIGERANT ....................................... 1
[1] Storage of Piping Material ...................................................................................................2
[2] Piping Machining ................................................................................................................. 3
[3] Necessary Apparatus and Materials and Notes on Their Handling ..................................... 4
[4] Brazing................................................................................................................................. 5
[5] Airtightness Test .................................................................................................................. 6
[6] Vacuuming ........................................................................................................................... 6
[7] Charging of Refrigerant ....................................................................................................... 7
22
22
2PART NAMES AND FUNCTIONS.............................................................................................. 8
33
33
3SPECIFICATIONS .................................................................................................................... 10
44
44
4PART NAMES AND FUNCTIONS............................................................................................ 12
55
55
5ELECTRICALWIRING DIAGRAM ........................................................................................... 14
66
66
6TECHNICAL DATATO MEET LVD........................................................................................... 15
[1] Capacity/Input Ratio against Changes in Room Airflow Rate............................................ 15
[2] Bypass Factor Curves........................................................................................................ 16
[3] Cooling Sensible Heating CapacityTable .......................................................................... 16
[4] Airflow Characteristic Curves............................................................................................. 17
[5] Center of Gravity (Indoor unit) ........................................................................................... 17
[6] NC Curve (Indoor unit).......................................................................................................18
77
77
7SERVICE DATA ........................................................................................................................ 19
[1] Appearance of Equipment ................................................................................................. 19
[2] Internal Construction ......................................................................................................... 19
[3] Refrigerant Circuit.............................................................................................................. 19
88
88
8FUNCTION OF SWITCH ON INDOOR CIRCUIT BOARD....................................................... 20
[1] DIP SW1 for model Selection (DIP SW1 has been set at factory)..................................... 20
[2] DIP SW2 for Capacity Setting (DIP SW2 has been set at factory) .................................... 20
[3] DIP SWE for Emergency Operation................................................................................... 20
99
99
9TEST RUN ................................................................................................................................ 21
[1] Before test run ................................................................................................................... 21
[2] Test run procedures ........................................................................................................... 21
[3] Self-diagnosis .................................................................................................................... 23
[4] Remote controller diagnosis .............................................................................................. 25

–1–
11
11
1PRECAUTIONS FOR DEVICESTHAT USE R407C REFRIGERANT
Caution
Do not use the existing refrigerant piping.
• The old refrigerant and refrigerator oil in the existing
piping contains a large amount of chlorine which may
cause the refrigerator oil of the new unit to deterio-
rate.
Use refrigerant piping made of C1220 (CU-DHP) phos-
phorus deoxidized copper as specified in the *JIS
H3300“Copper and copper alloy seamless pipes and
tubes”. In addition, be sure that the inner and outer
surfaces of the pipes are clean and free of hazard-
ous sulphur,oxides,dust/dirt,shaving particles,oils,
moisture, or any other contaminant.
• Contaminants on the inside of the refrigerant piping
may cause the refrigerant residual oil to deteriorate.
Storethepipingto be used during installation indoors
and keep both ends of the piping sealed until just
before brazing. (Store elbows and other joints in a
plastic bag.)
• If dust, dirt, or water enters the refrigerant cycle, de-
terioration of the oil and compressor trouble may re-
sult.
Use ester oil,ether oil or alkylbenzene (small amount)
as the refrigerator oil to coat flares and flange con-
nections.
• The refrigerator oil will degrade if it is mixed with a
large amount of mineral oil.
Use liquid refrigerant to seal the system.
• If gas refrigerant is used to seal the system, the com-
position of the refrigerant in the cylinder will change
and performance may drop.
Do not use a refrigerant other than R407C.
• If another refrigerant (R22, etc.) is used, the chlorine
in the refrigerant may cause the refrigerator oil to de-
teriorate.
Use a vacuum pump with a reverse flow check valve.
• The vacuum pump oil may flow back into the refriger-
ant cycle and cause the refrigerator oil to deteriorate.
Do not use the following tools that have been used
with conventional refrigerants.
(Gauge manifold, charge hose, gas leak detector, re-
verse flow check valve, refrigerant charge base,
vacuum gauge, refrigerant recovery equipment)
• If the conventional refrigerant and refrigerator oil are
mixed in the R407C, the refrigerant may deteriorated.
• If water is mixed in the R407C, the refrigerator oil may
deteriorate.
• Since R407C does not contain any chlorine, gas leak
detectors for conventional refrigerants will not react to
it.
Do not use a charging cylinder.
• Using a charging cylinder may cause the refrigerant
to deteriorate.
Be especially careful when managing the tools.
• If dust, dirt, or water gets in the refrigerant cycle, the
refrigerant may deteriorate.
If the refrigerant leaks, recover the refrigerant in the
refrigerant cycle, then recharge the cycle with the
specified amount of the liquid refrigerant indicated
on the air conditioner.
• Since R407C is a nonazeotropic refrigerant, if addi-
tionallycharged when the refrigerantleaked,the com-
position of the refrigerant in the refrigerant cycle will
change and result in a drop in performance or abnor-
mal stopping.
*JIS: Japanese Industrial Standard

–2–

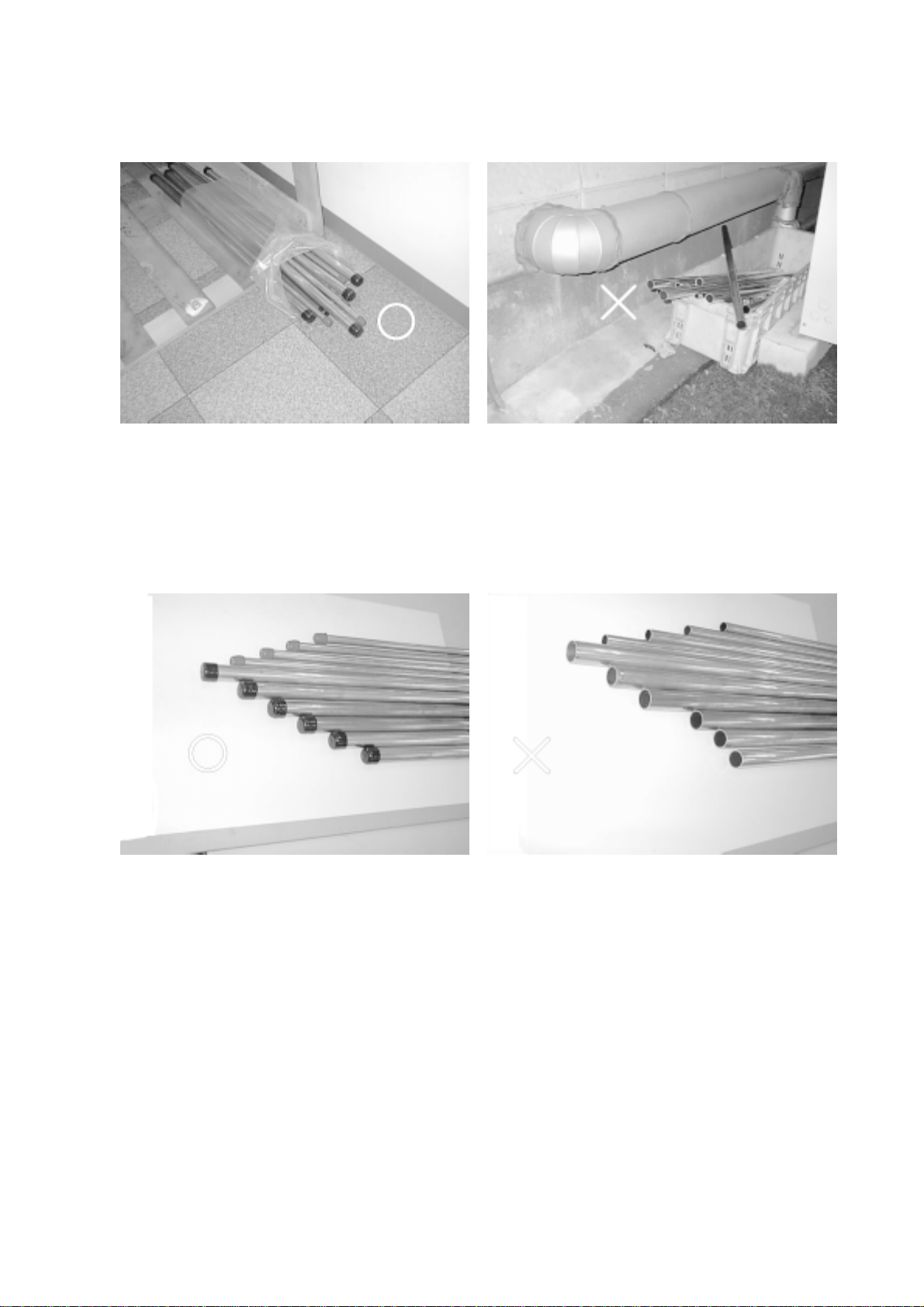

[1] Storage of Piping Material
(1) Storage location
Store the pipes to be used indoors.(Warehouse at site or owner’s warehouse)
Storing them outdoors may cause dirt, waste, or water to infiltrate.
(2) Pipe sealing before storage
Both ends of the pipes should be sealed until immediately before brazing.
Wrap elbows andT’s in plastic bags for storage.
* The new refrigerator oil is 10 times more hygroscopic than the conventional refrigerator oil (such as Suniso). Water
infiltration in the refrigerant circuit may deteriorate the oil or cause a compressor failure. Piping materials must be stored
with more care than with the conventional refrigerant pipes.

–3–

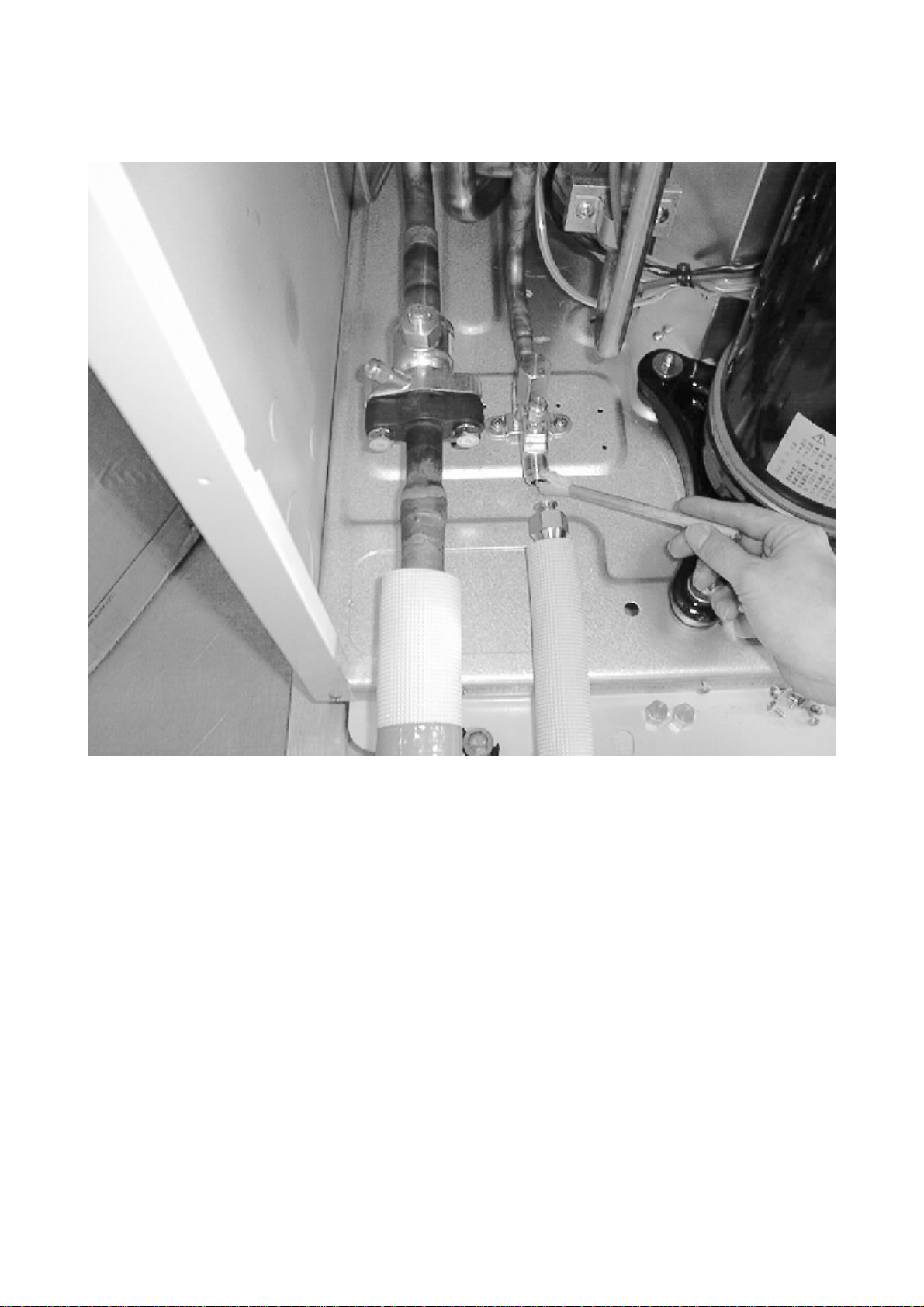

[2] Piping Machining
Use ester oil, ether oil or alkylbenzene (small amount) as the refrigerator oil to coat flares and flange connections.
Use only the necessary minimum quantity of oil !
Reason:
1. The refrigerator oil used for the equipment is highly hygroscopic and may introduce water inside.
Notes:
• Introducing a great quantity of mineral oil into the refrigerant circuit may also cause a compressor failure.
• Do not use oils other than ester oil, ether oil or alkylbenzene.

–4–
[3] Necessary Apparatus and Materials and Notes onTheir Handling
The following tools should be marked as dedicated tools for R407C.
<<Comparison of apparatus and materials used for R407C and for R22>>
Apparatus Used Use R22 R407C
Gauge manifold Evacuating, refrigerant filling Current product
Charging hose Operation check Current product
Charging cylinder Refrigerant charging Current product Do not use
Gas leakage detector Gas leakage check Current product Shared with R134a
Refrigerant collector Refrigerant collection R22 For R407C use only
Refrigerant cylinder Refrigerant filling R22 Identification of dedi-
cated use for R407C:
Record refrigerant
name and put brown
belt on upper part of
cylinder.
Vacuum pump Vacuum drying Current product Can be used by attach-
ing an adapter with a
check valve.
Vacuum pump with a check valve Current product
Flare tool Flaring of pipes Current product
Bender Bending of pipes Current product
Application oil Applied to flared parts Current product Ester oil or Ether oil or
Alkybenzene (Small
amount)
Torque wrench Tightening of flare nuts Current product
Pipe cutter Cutting of pipes Current product
Welder and nitrogen cylinder Welding of pipes Current product
Refrigerant charging meter Refrigerant charging Current product
Vacuum gauge Checking the vacuum degree Current product
Symbols: To be used for R407C only. Can also be used for conventional refrigerants.
Tools for R407C must be handled with more care than those for conventional refrigerants.They must not come into contact
with any water or dirt.

–5–

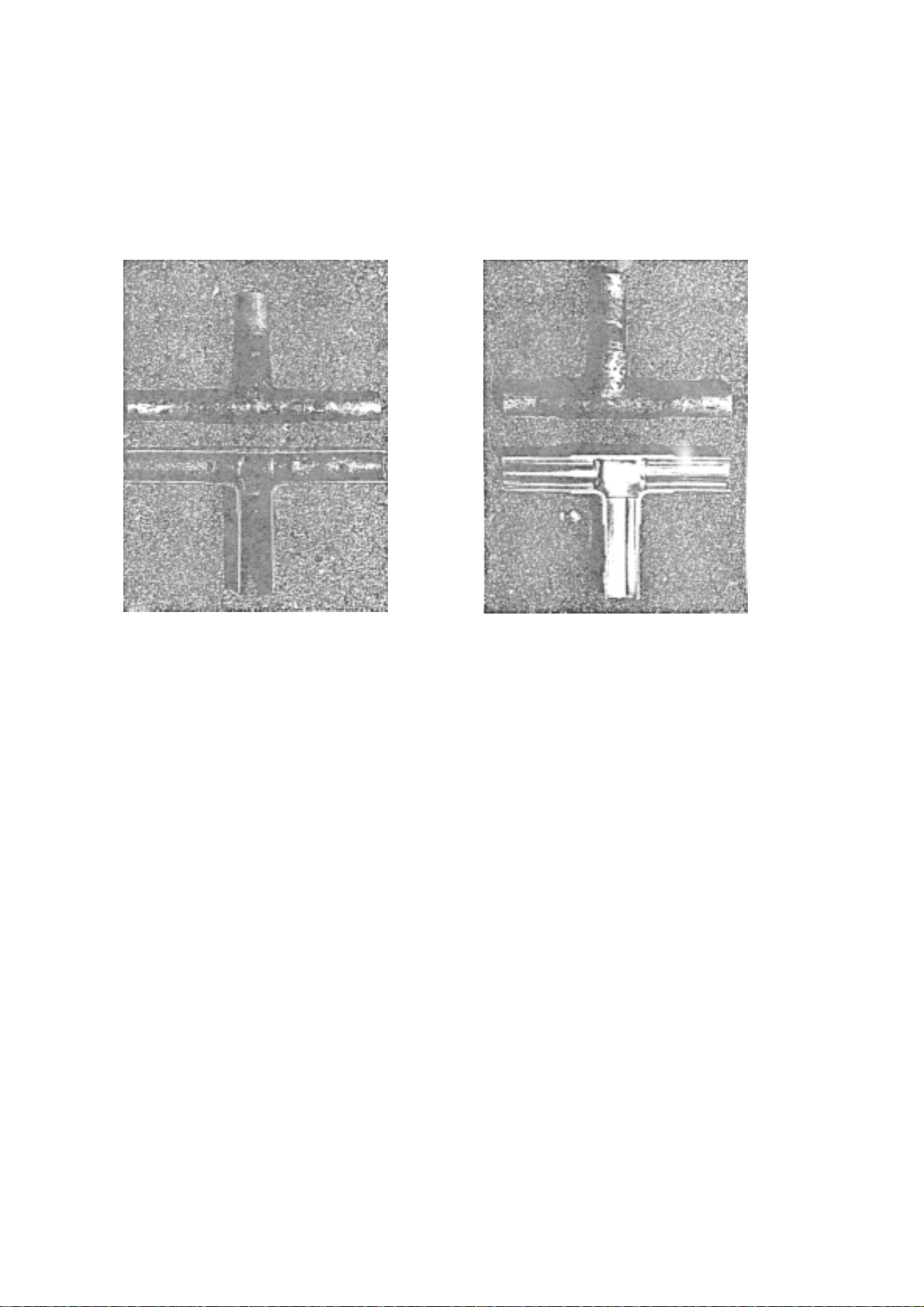

[4] Brazing
No changes from the conventional method, but special care is required so that foreign matter (ie. oxide scale, water, dirt,
etc.) does not enter the refrigerant circuit.
Example: Inner state of brazed section
When non-oxide brazing was not used When non-oxide brazing was used
Items to be strictly observed:
1. Do not conduct refrigerant piping work outdoors on a rainy day.
2. Apply non-oxide brazing.
3. Usea brazing material (Bcup-3) whichrequires no flux when brazingbetween copper pipes or between a copper pipe
and copper coupling.
4. If installed refrigerant pipes are not immediately connected to the equipment, then braze and seal both ends of them.
Reasons:
1. The new refrigerant oil is 10 times more hygroscopic than the conventional oil.The probability of a machine failure if
water infiltrates is higher than with conventional refrigerant oil.
2. A flux generally contains chlorine.A residual flux in the refrigerant circuit may generate sludge.
Note:
• Commercially available antioxidants may have adverse effects on the equipment due to its residue, etc. When
applying non-oxide brazing, use nitrogen.

–6–
[5] Airtightness Test
No changes from the conventional method. Note that a refrigerant leakage detector for R22 cannot detect R407C leakage.
Halide torch R22 leakage detector
Items to be strictly observed:
1. Pressurize the equipment with nitrogen up to the design pressure and then judge the equipment’s airtightness, taking
temperature variations into account.
2. When investigating leakage locations using a refrigerant, be sure to use R407C.
3. Ensure that R407C is in a liquid state when charging.
Reasons:
1. Use of oxygen as the pressurized gas may cause an explosion.
2. Charging with R407C gas will lead the composition of the remaining refrigerant in the cylinder to change and this
refrigerant can then not be used.
Note:
• A leakage detector for R407C is sold commercially and it should be purchased.
[6] Vacuuming
1. Vacuum pump with check valve
A vacuum pump with a check valve is required to prevent the vacuum pump oil from flowing back into the refrigerant
circuit when the vacuum pump power is turned off (power failure).
It is also possible to attach a check valve to the actual vacuum pump afterwards.
2. Standard degree of vacuum for the vacuum pump
Use a pump which reaches 0.5 Torr (500 MICRON) or below after 5 minutes of operation.
In addition, be sure to use a vacuum pump that has been properly maintained and oiled using the specified oil. If the
vacuum pump is not properly maintained, the degree of vacuum may be too low.
3. Required accuracy of the vacuum gauge
Use a vacuum gauge that can measure up to 5Torr.Do not use a general gauge manifold since it cannot measure a
vacuum of 5 Torr.
4. Evacuating time
• Evacuate the equipment for 1 hour after –755 mmHg (5 Torr) has been reached.
• After envacuating, leave the equipment for 1 hour and make sure the that vacuum is not lost.
5. Operating procedure when the vacuum pump is stopped
In order to prevent a backflow of the vacuum pump oil, open the relief valve on the vacuum pump side or loosen the
charge hose to drawn in air before stopping operation.
The same operating procedure should be used when using a vacuum pump with a check valve.

–7–

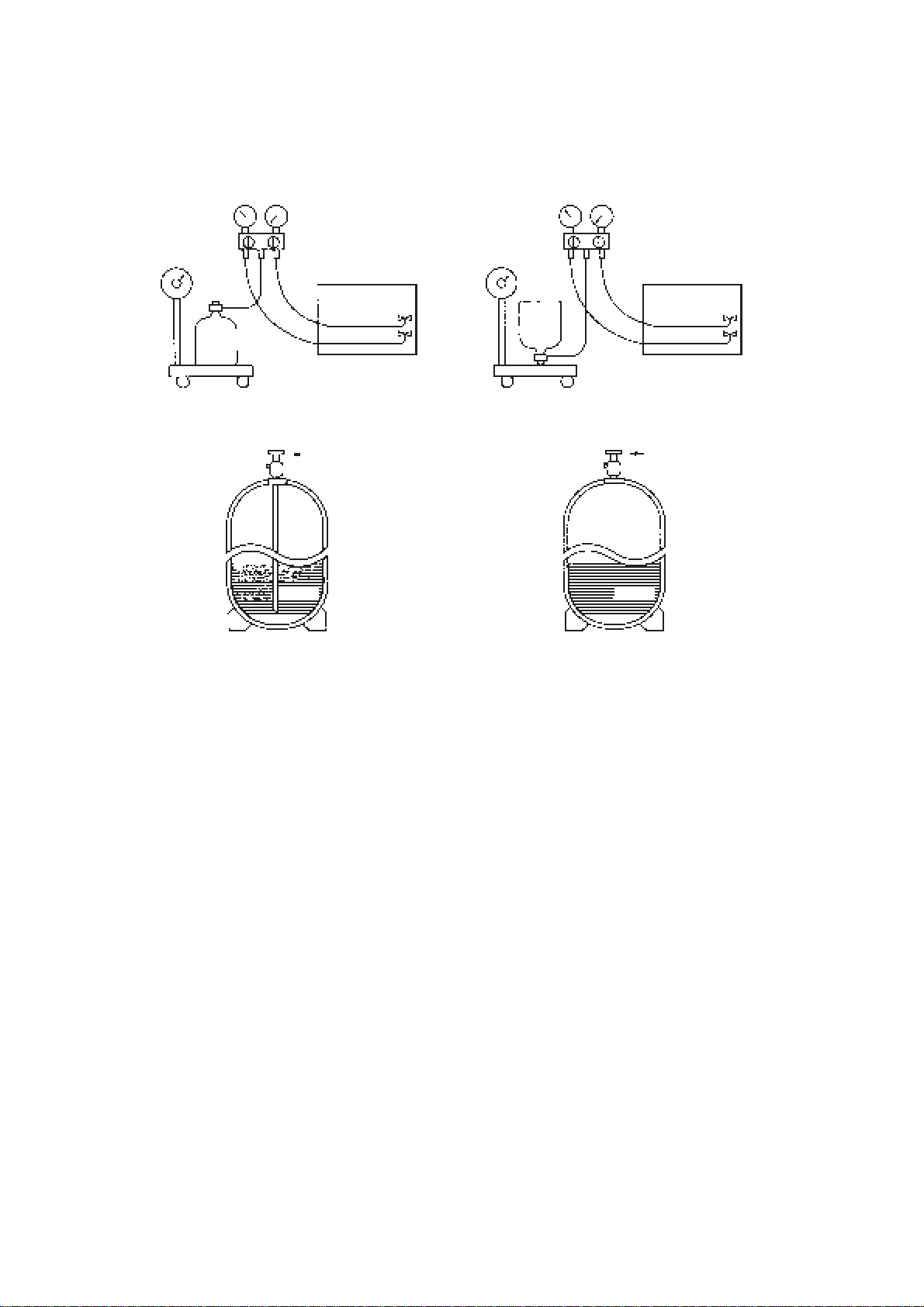

[7] Charging of Refrigerant
R407C must be in a liquid state when charging, because it is a non-azeotropic refrigerant.
For a cylinder with a syphon attached For a cylinder without a syphon attached
Cylinder color identification R407C-Gray Charged with liquid refrigerant
R410A-Pink
Reasons:
1. R407C is a mixture of 3 refrigerants, each with a different evaporation temperature. Therefore, if the equipment is
charged with R407C gas, then the refrigerant whose evaporation temperature is closest to the outside temperature is
charged first while the rest of refrigerants remain in the cylinder.
Note:
• In the case of a cylinder with a syphon, liquid R407C is charged without turning the cylinder up side down. Check the
type of cylinder before charging.
Cylin-
der
Cylin-
der
Valve Valve
Liquid Liquid

–8–
22
22
2PART NAMES AND FUNCTIONS
Indoor unit
• Air inlet : Sucks the ambient air in.
• Filter : The filter bruit into the unit as standard is a
simple filter to remove visible dust and dirt. If
airpulificationisoneoftheconditions required
for use, consult with your dealer.
• Air outlet: Blows the air back out into the room.
Remote controller (PAR-S27AA)
• Once the controls are set, the same operation mode can be repeated by simply pressing the ON/OFF button.
Operation buttons
ON/OFF
–
STAND BY
DEFROST
INDOOR UNIT
ADDRESS NO. ERROR CODE
OA UNIT ADDRESS NO.
CENTRALLY CONTROLLED
CLOCK
ON OFF
˚C
1Hr.
NOT AVAILABLE
˚C
CHECK MODE
FILTER
CHECK
TEST RUN
ON OFFCLOCK
FILTER
CHECK
TEST RUN
REMOTE CONTROLLER
PAR-S27AA
TEMP. TIMER SET
TIMER button
This switches between continuous
operation and the timer operation.
OPERATION SWITCH button
Press this button to switch the cooler elec-
tronic dry (dehumidify) automatic and heater
modes.
TIMERADJUSTMENT
button
This adjust current time, start time
and stop time.
AIR SPEED button
This sets the fan speed.
ON/OFF button
This switches between the operation
and stop modes each time it is
pressed.Thelamp on this buttonlights
during operation.
AIR DIRECTION button
Thisadjusttheverticalangleofthe ven-
tilation.
FILTER button
This resets the filter service indication
display.
TIME SETTING button
This sets of switches the current time,
start time and stop time.
CHECK-TEST RUN button
Only press this button to perform an
inspectioncheck or testoperation. Do
not use it for normal operation.
TEMPADJUSTMENTbutton
This sets the room temperature.The tempera-
ture setting can be performed in 1°C units
Setting range
Cooler 19 °C to 30 °C
Heater 17 °C to 28 °C
VENTILATION button
This set the ventilation fan speed.
LOUVER button
This switches the horizontal fan motion ON
and OFF.
(This button does not operate in this model)
Air inlet
Air outlet
Filter

–9–
ON/OFF
–
STAND BY
DEFROST
INDOOR UNIT
ADDRESS NO. ERROR CODE
OA UNIT ADDRESS NO.
CENTRALLY CONTROLLED
CLOCK
ON OFF
˚C
1Hr.
NOT AVAILABLE
˚C
CHECK MODE
FILTER
CHECK
TEST RUN
ON OFFCLOCK
FILTER
CHECK
TEST RUN
REMOTE CONTROLLER
PAR-S27AA
TEMP. TIMER SET
Display
CENTRALLY
CONTROLLED display
This indicates when the unit is controlled
by optional features such as central con-
trol type remote controller.
TIMER display
Thisindicates when thecontinuous opera-
tion and time operation modes are set.
It also display the time for the timer opera-
tion at the same time as when it is set.
DEFROST display
This indicates when the defrost operation
is performed.
OPERATION MODE display
This indicates the operation mode.
CLOCK display
This current time, start time and stop
time can be displayed in ten second
intervals by pressing the time switch
button.The start time or stop time is
always displayed during the timer
operation.
AIR DIRECTION display
The selected fan speed is displayed.
FAN SPEED display
This displays the air direction.
ROOM TEMPERATURE display
The temperature of the suction air is dis-
playedduring operation.The display range
is 8 °C to 39 °C.The display flashes 8 °C
when the actual temperature is less than
8 °C and flashes 39 °C when the actual
temperature is greater than 39 °C.
Operation lamp
This lamp lights during operation, goes off
when the unit stops and flashes when a
malfunction occurs.
display
This display lights in the check mode or
when a test operation is performed.
POWER display
This lamp lights when electricity is
supplied to the unit.
CHECK MODE
TEST RUN
FILTER
Caution:
• Only the Power display lights when the unit is stopped and power supplied to the unit.
• Whenpoweris turned ON forthe first time the (CENTRAL CTRL) displayappears to go off momentarily butthisis not
a malfunction.
• When the central control remote control unit, which is sold separately, is used the ON-OFF button, operation switch
button and TEMP adjustment button do not operate.
• “NOT AVAILABLE” is displayed when the Air speed button are pressed. This indicates that this room unit is not
equipped with the fan direction adjustment function and the louver function.
• Whenpower is turned ONfor the first time, it is normal that “H0” is displayed on the room temperature indication (For
max. 2 minutes). Please wait until this “H0” indication disappear then start the operation.
STANDBY display
This indicates when the standby mode is
setfrom the time thesleep operation starts
until the heating air is discharged.
display
This lamp lights when the filter need to be
cleaned.
SETTEMPERATUREdisplay
This displays the selected setting tempera-
ture.
In this display example on the bottom left, a
condition where all display lamps light is
shown for explanation purposes although
this differs from actual operation.
CHECK display
This indicates when a malfunction has oc-
curredinthe unit which should be checked.

–10–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P8YE Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping dimension Liquid/Gas φ mm
Drain piping dimension φ mm
Noise level dB (A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obteined by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50 Pa setting.
Cooling Heating
18,000 19,000
20.9 23.7
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/6 ˚C
3N~ 380/400/415V 50Hz
0.65/0.65/0.65 0.65/0.65/0.65
1.12/1.12/1.12 1.12/1.12/1.12
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
60
50/150
0.60
Galvanizing
455 ×1580 ×604
–
Cross fin
–
Polyethylene foam
12.7/25.4
1B External thread
53 (at 50 Pa)
74
1.6 mm
15 A
Remote controller: PAR-S27AA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition
33
33
3SPECIFICATIONS

–11–
Specifications of air-source heat pump type packaged air conditioner
(Ceiling concealed type indoor unit)
Model name PEH-P10YE Quantity Symbol
Capacity kcal/h
kW
Indoor side Dry bulb temperature/wet bulb temperature
Outdoor side Dry bulb temperature/wet bulb temperature
Power source
Power consumption kW
Operating current A
Remote controller temperature setting range °C
Airflow direction control Vertical
Type ×Quantity
Airflow rate m3/min
External static pressure Pa
Motor output kW
External finish
Unit (H ×W ×D) mm
Panel (H ×W ×D) mm
Heat exchanger type
Air filter
Insulation material
Refrigerant piping size Liquid/Gas φ mm
Drain piping size φ mm
Noise level dB (A)
Net weight kg
Minimum wire thickness
Circuit breaker
Operation control device (provided)
Decoration panel (Option)
Other mountable major options
Accessories
Special note, Non-standard specifications, etc.
1. The cooling and heating capacities are the maximum capacities that were obteined by operating in the above
air conditions and with a refrigerant pipe of about 7.5 m.
2. The actual capacity characteristics vary with the combination of indoor and outdoor units. See the technical
informaition.
3. The operating noise is the data that was obtained by measuring it 1.5 m from the unit’s bottom in an anechoic
room. (Noise meter A-scale value)
4. The figure of Electrical characteristic, Airflow rate, Noise level, indicates, at 50 Pa setting.
Cooling Heating
22,400 26,200
26.0 30.5
27 °C/19 °C 20 °C/–
35 °C/24 °C7°C/ 6 °C
3N~ 380/400/415V 50 Hz
0.94/0.94/0.94 0.94/0.94/0.94
1.64/1.64/1.64 1.64/1.64/1.64
19 ~ 30 17 ~ 28
–
Sirrocco fan ×2
80
50/150
1.23
Galvanizing
455 ×1,580 ×604
–
Cross fin
–
Polyethyene foam
12.7/28.58
1B External thread
57 (at 50 Pa)
80
1.6 mm
15 A
Remote controller: PAR-S27AA
–
–
Electrical characteristics
Fan
External dimension
External wiring
Composing parts
Notes:
Installation manual, Operation manual,
Remote controller
–
Air con-
dition

–12–
44
44
4PART NAMES AND FUNCTIONS
(1) Indoor Unit
• Models PEH-P8YE/P10YE
Note: When connecting duct to the inlet side, remove the air filter attached to the unit body, and mount
an air filter onto the inlet duct side separately.
A
A→

–13–

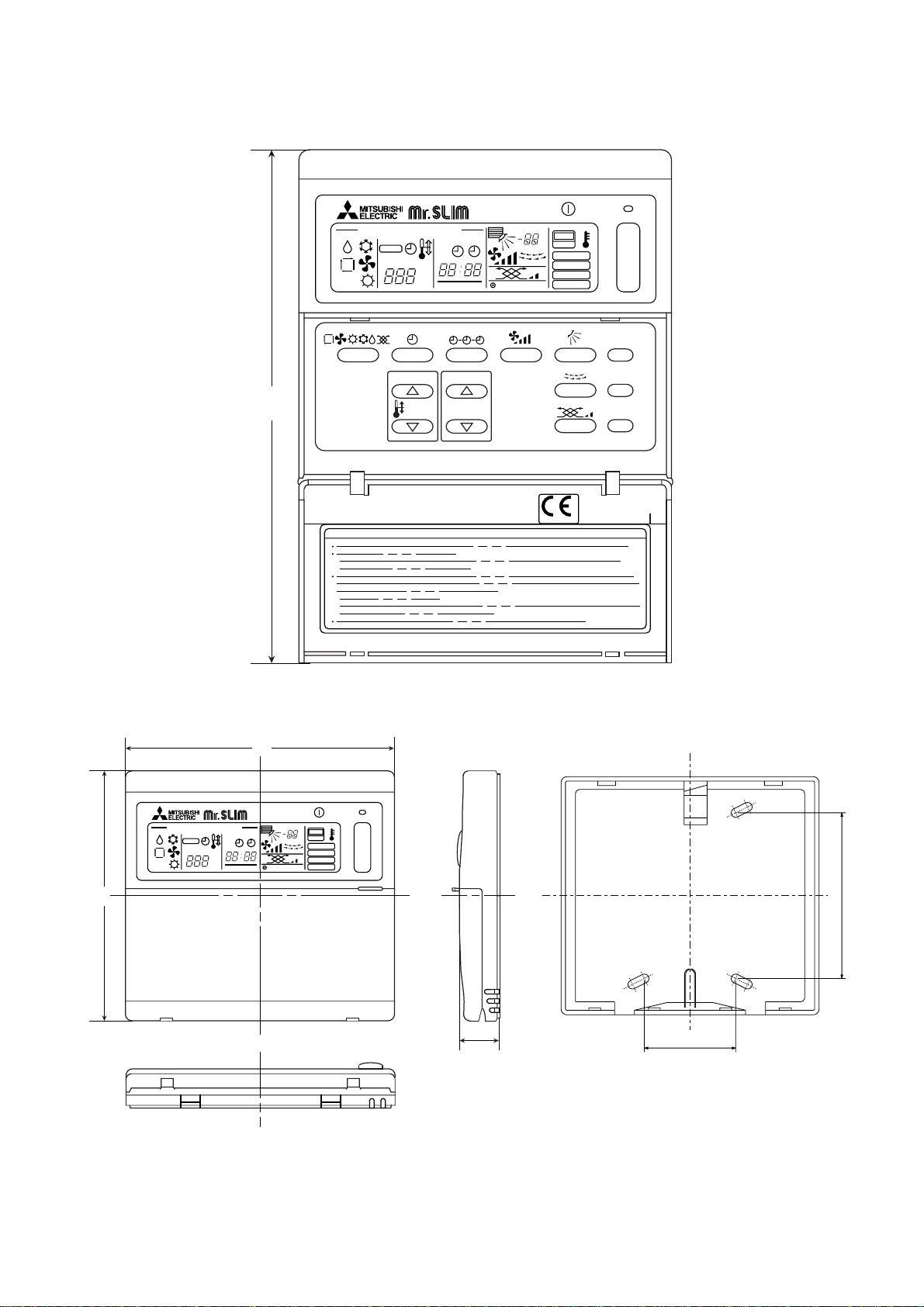

(2) Remote Controller
• Models PAR-S27AA
ON/OFF
–
STAND BY
DEFROST
ERROR CODE
CENTRALLY CONTROLLED
CLOCK
ON OFF
˚C
1Hr.
NOT AVAILABLE
˚C
CHECK MODE
FILTER
CHECK
TEST RUN
FUNCTION
ON/OFF
–
STAND BY
DEFROST
ERROR CODE
CENTRALLY CONTROLLED
CLOCK
ON OFF
˚C
1Hr.
NOT AVAILABLE
˚C
CHECK MODE
FILTER
CHECK
TEST RUN
FUNCTION
ON OFFCLOCK
TEST RUN
CHECK
FILTER
TIMER SET
TEMP.
REMOTE CONTROLLER
PAR-S27AA
130
(18.9)
ABS
NOTE
120
(177)
46
83.5
(Rear view)
Mounting pitch
Mounting pitch
(Side view)(Front view)

–14–
55
55

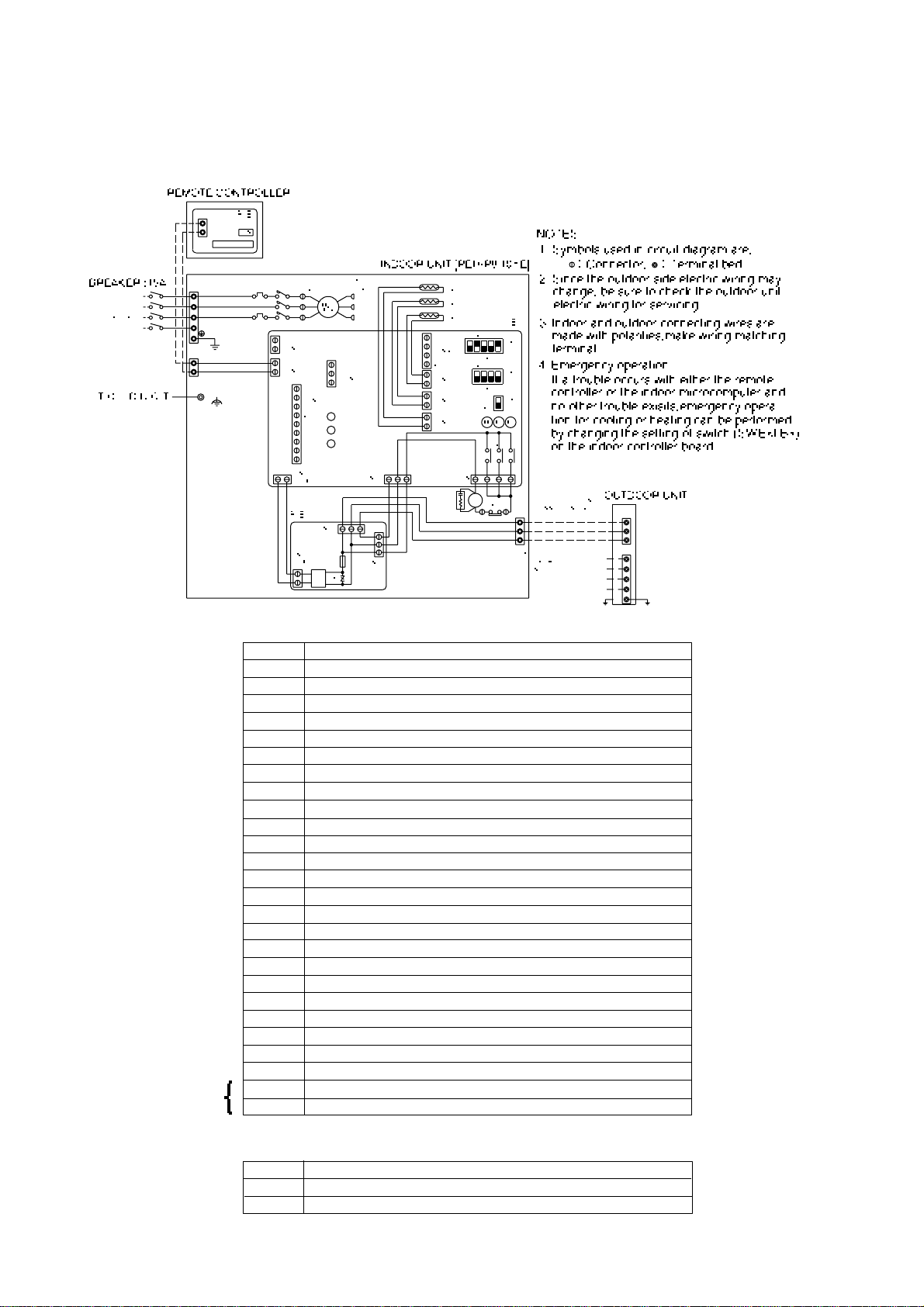

5ELECTRICALWIRING DIAGRAM
(1) Indoor Unit
• Models PEH-P8YE/P10YE
MF2
51F
52F
49F
TB2
TB4
TB5
TH1
TH2
TH5
P.B
F1
ZNR
I.B
X4-6
SW1
SW2
SWE
LED1
LED2
LED3
CN32
CN41
CR
TB1
TB3
INDOOR UNIT
NAME
Fan motor(with inner thermostat)
Over current relay (fan motor)
Magnetic contactor (fan motor)
Inner thermostat
Terminal bed (power)
Terminal bed (indoor/outdoor connecting line)
Terminal bed (remote controller transmission line)
Thermistor (room temperature sensor 0 °C/15 kΩ.25 °C/5.4 kΩ)
Thermistor (pipe temperature sensor 0 °C/15 kΩ.25 °C/5.4 kΩ)
Thermistor (COND/EVA. temperature sensor 0 °C/15 kΩ.25 °C/5.4 kΩ)
INDOOR POWER BOARD
FUSE(4A)
VARISTOR
INDOOR CONTROLLER BOARD
RELAY(FAN MOTOR)
SWITCH(MODEL SELECTION)
SWITCH(CAPACITY CORD)
SWITCH(EMERGENCY OPERATION)
POWER SUPPLY(I.B)
POWER SUPPLY (REMOTE CONTROLLER)
TRANSMISSION (INDOOR·OUTDOOR)
CONNECTOR (REMOTE SWITCH)
CONNECTOR (HA TERMINAL-A)
CR Composite unit
Terminal bed (power)
Terminal bed (indoor/outdoor)
R.B
TB6
REMOTE CONTROLLER
NAME
REMOTE CONTROLLER BOARD
TERMINAL BED(TO INDOOR UNIT)
OUT DOOR UNIT
SYMBOL
SYMBOL

–15–
66
66
6TECHNICAL DATA TO MEET LVD

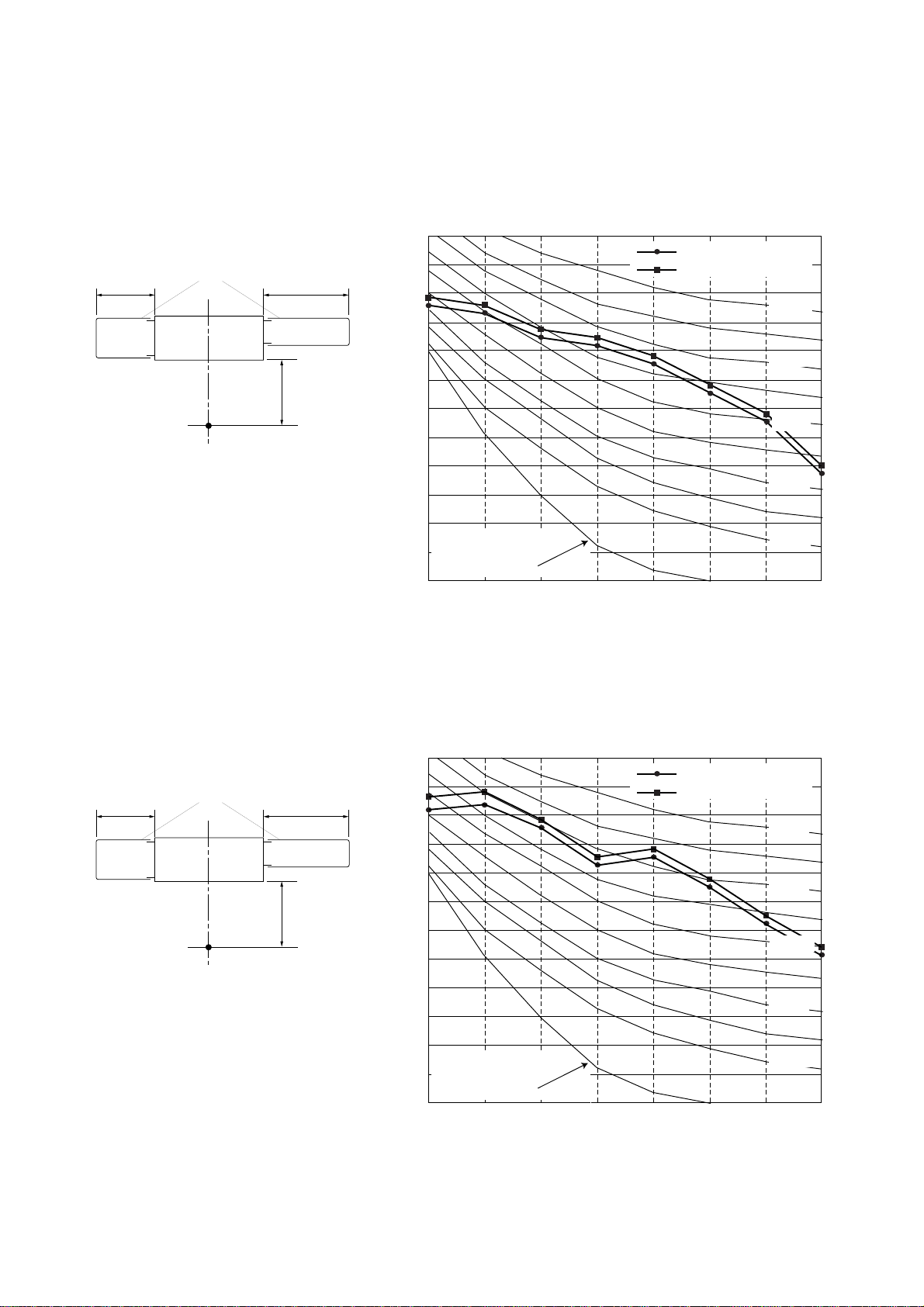

[1] Capacity/Input Ratio against Changes in Room Airflow Rate
• Models PEH-P8YE
• Models PEH-P10YE
50 55 60 65 70
Capacity/Input ratio
Airflow rate (m3/min)
1.0
1.05
0.95
Cooling
Capacity/Input ratio
Heating
Airflow rate (m3/min)
50 55 60 65 70
1.0
1.05
0.95
Input
Capacity
Capacity
Input
Capacity/Input ratio
Heating
Airflow rate (m
3
/min)
70 75 80 85 90
1.0
1.05
0.95
Capacity
Input
Capacity/Input ratio
Cooling
Airflow rate (m
3
/min)
70 75 80 85 90
1.0
1.05
0.95
Capacity
Input

–16–
[2] Bypass Factor Curves
Bypass factor
Airflow rate (m3/min)
50 55 60 65 70
0.30
0.25
0.20
0.15
0.10
PEH-P8YE PEH-P10YE
Bypass factor
Airflow rate (m3/min)
70 75 80 85 90
0.20
0.15
0.10
0.05
0.00
[3] Cooling Sensible Heating CapacityTable
(1) PEH-P8YE (Airflow rate 60m3/min)
Outdoor
temp.
(°C)
20
25
30
35
40
43
Indoor inlet air temperature (DB/WB°C)
CA
18100
17500
16900
16200
15300
14800
SHC
13700
13400
13100
12800
12500
12400
CA
19300
18700
18100
17400
16600
16000
SHC
13500
13300
13000
12700
12400
12300
CA
20000
19500
18900
18000
17400
16900
SHC
14400
13700
13500
13100
13000
12900
CA
20800
20300
19700
19000
18200
17700
SHC
14400
14200
14000
13700
13500
13400
CA
21900
21500
20900
20200
19500
19000
SHC
14200
13900
13700
13500
13300
13200
23/16 25/18 27/19 28/20 30/22
(2) PEH-P10YE (Airflow rate 80m3/min)
Outdoor
temp.
(°C)
20
25
30
35
40
43
Indoor inlet air temperature (DB/WB°C)
CA
22500
21800
21000
20100
19100
18400
SHC
18100
17800
17500
17100
16800
16600
CA
24000
23300
22500
21600
20600
20000
SHC
17900
17600
17300
16800
16600
16500
CA
24900
24300
23500
22400
21600
21000
SHC
18500
18300
17900
17400
17400
17300
CA
25800
25200
24500
23600
22700
22000
SHC
19200
18900
18600
18300
18100
18000
CA
27300
26700
26000
25200
24200
23600
SHC
18800
18600
18300
18100
17900
17800
23/16 25/18 27/19 28/20 30/22

–17–
[4] Airflow Characteristic Curves
External static pressure (pa)
40 50 60 70 80
50
0
200
Operating airflow range
Airflow rate (m
3
/min)
100
150
220
External static pressure (pa)
60 70 80 90 100
50
0
200
Operating airflow range
Airflow rate (m
3
/min)
100
150
220
PEH-P8YE PEH-P10YE
[5] Center of Gravity (Indoor unit)
• • • • • • • • • •
Top of the unit
• • • • • • • •
• • • • • • • •
•
•
•
•
XY
Z
•
•
•
Item
Model name
PEH-P8YE
PEH-P10YE
Center of gravity
X
720
720
Y
260
268
Z
225
235
unit : (mm)

–18–
OCTAVE BAND PRESSURE LEVEL< dB> 0dB = 0.0002 µbar OCTAVE BAND PRESSURE LEVEL< dB> 0dB = 0.0002 µbar
PEH-P8YE
PEH-P10YE
Measurement condition
Measurement condition
NC60
NC50
NC30
NC20
Approximate minimum
audible limit on
continuous noise
70
60
50
40
30
20
63 125 250 500 1000 2000 4000 8000
10
OCTAVE BAND CENTER FREQUENCIES <Hz>
NC60
NC50
NC40
NC30
NC20
70
60
50
40
30
20
63 125 250 500 1000 2000 4000 8000
10
OCTAVE BAND CENTER FREQUENCIES <Hz>
Approximate minimum
audible limit on
continuous noise
External static pressure: 50Pa
External static pressure: 150Pa
External static pressure: 50Pa
External static pressure: 150Pa
1m 2m
1.5m
Measured point
Aux. duct
1m 2m
1.5m
Measured point
Aux. duct
NC40
[6] NC Curve (Indoor unit)
