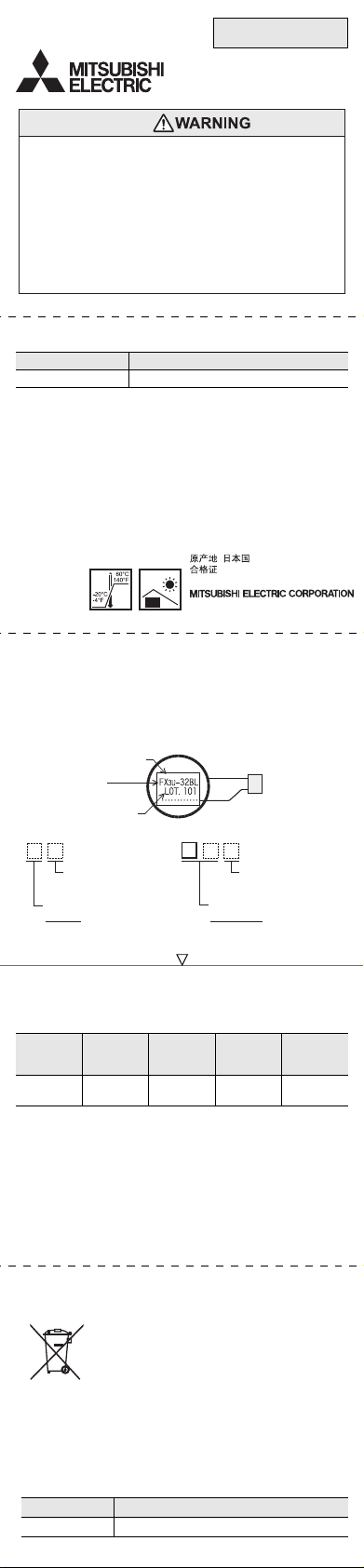

FX3U-32BL Battery
MODEL CODE : 09S312
 Use the battery for memory backup correctly in conformance to the manual of each product.
- Use the battery only for the specified purpose.
- Connect the battery correctly.
- Do not charge, disassemble, heat, put in fire, short-circuit, connect reversely,
weld, swallow or burn up the battery, or apply excessive forces (vibration,
impact, drop, etc.) on the battery.
-
Do not store or use the battery in a place at high temperature or exposed to direct sunlight.
- Do not expose to water, bring near fire or touch the contents such as liquid
leakage directly.
Incorrect handling of the battery may cause heat excessive generation, bursting,
ignition, liquid leakage or deformation, and lead to injury, fire or failures and
malfunctions of facilities and other equipment.
Power off the Devices with Built-in Batteries (all phase) before
attaching/detaching the battery.
Failure to do so may cause electric shock or damage to the product.
Please contact a certified electronic waste disposal company for the
environmentally safe recycling and disposal of your device.
STARTUP AND MAINTENANCE
PRECAUTIONS
1. Specification
2. Battery Replacement
• For the replacement procedure, refer to the User’s Manual of the
respective Devices with Built-in Batteries.
Product name Nominal voltage
FX3U-32BL 3V
February 2015
JY997D14101F
Made in Japan
3. Battery Life and Date of Manufacture
• Battery life: Approx. 5 years, when IU2-3M10(L) or IU2-1EMES is
used, it is about 3 years. (ambient temperature: 25°C)
• Replacement period: Within 4 or 5 years, when IU2-3M10(L) or
IU2-1EMES is used, it is about 2 years.
(Due to natural discharge within all batteries, please prepare a
replacement before the above-stated replacement period.)
• Example of date-of-manufacture indication:
9Z
Year (Example: 2009)
Last digit of year
<Product during December,
2009 or earlier>
101
Year (Example: 2010)
Last two digit of year
<Product from January, 2010>
Month (Example: Dec):
1 to 9 = Jan to Sept,
X = Oct, Y = Nov, Z = Dec
Month (Example: Jan):
1 to 9 = Jan to Sept,
X = Oct, Y = Nov, Z = Dec
Connector
Model name
Nameplate
LOT
4. Precautions for Battery Transportation
When transporting lithium batteries, follow the transportation
regulations.
*1 The value indicates the mass with packaging.
Comply with IATA Dangerous Goods Regulations, IMDG code and
the local transport regulations when transporting products listed
above.
Also, consult with the shipping carrier.
Product
name Battery type
Product
supply
status
Lithium
Content
(gram/unit)
Mass*1
(gram/unit)
FX3U-32BL lithium
metal battery Cell 0.15 30
5. Handling of Batteries in EU Member States
*1 This symbol to the left is for EU member states
only.
The symbol is specified in the new EU Battery
Directive (2006/66/EC) Article 20 "Information for
end-users" and Annex II.
• The symbol to the above indicates that batteries need to be
disposed of separately from other wastes.
• The new EU Battery Directive (2006/66/EC) requires the
following when marketing or exporting batteries and/or devices
with built-in batteries to EU member states.
- To print the symbol on batteries, devices, or their
packaging
- To explain the symbol in the manuals of the products
Product name Battery type
FX3U-32BL Lithium Manganese Dioxide Battery
