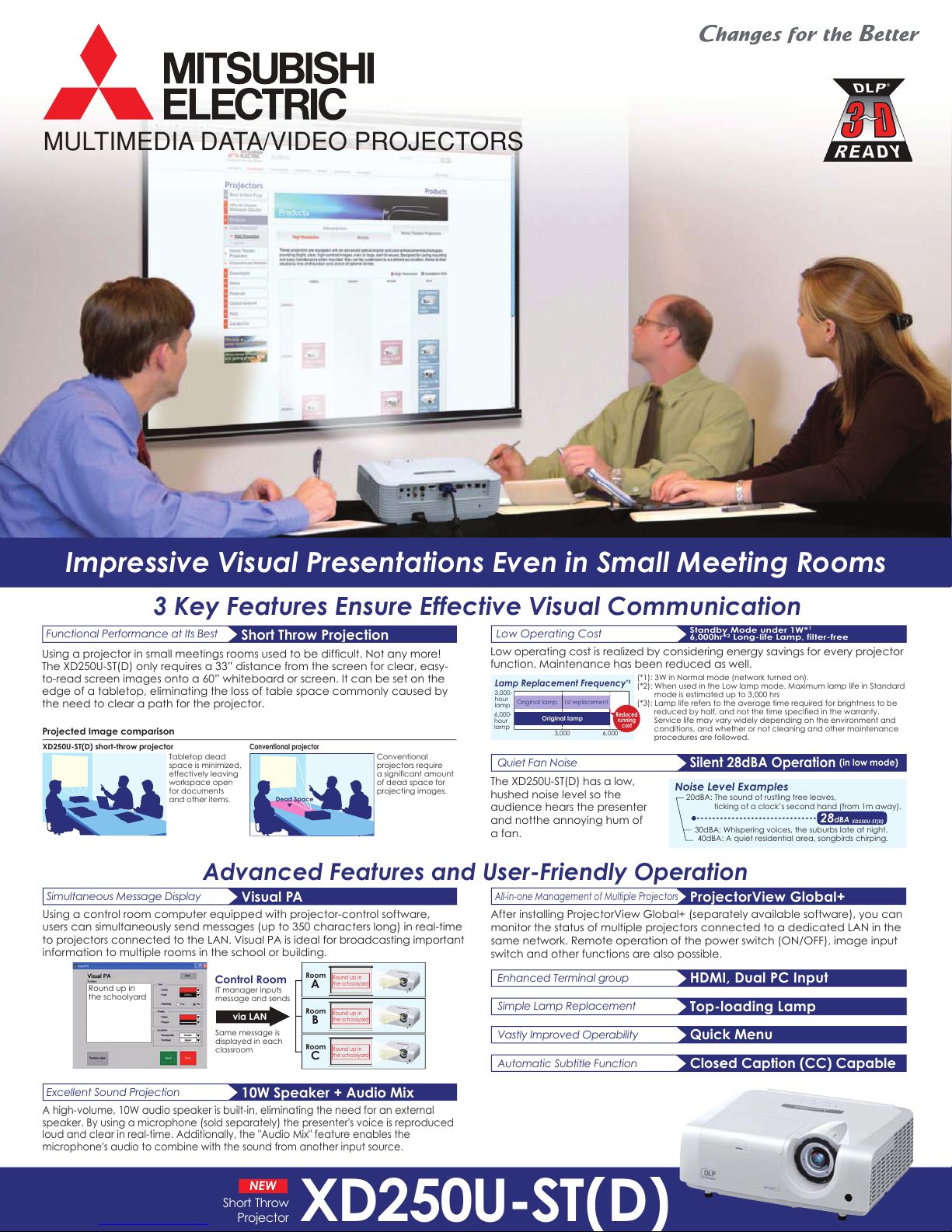

MULTIMEDIA DATA/VIDEO PROJECTORS

Screen size and Projection distance
As seen from the side
XD250U-ST`(D)
Height
Hd
Projection Distance (L)
XD250U-ST(D)
0.55" 1-Chip DMD, 12deg.LVDS, DDP2230
1024 x 768 (Total 786,432 pixels)
2600lm
2500 : 1
40" - 300" diagonal
Digital (vertical only)
0.7
6 segment Color Wheel (R/G/B/W/Y/C)
Manual focus & zoom lens
Model
Display Technology
Resolution
Brightness
Contrast Ratio
Picture Size
Keystoneadjustment
Throw Ratio
Color Wheel
Zoom & Focus
t$PmpliancewithISO21118-2005
t"MMbrand names and product names are trademarks, registered trademarks ortrade names of their respective holders.
PC CompatibilityCompressed: 640 x 480 - 1280 x 1024,
True: 1024 x 768, Sync on Green available
NTSC / NTSC 4.43 / PAL (including PAL-M, N) / SECAM / PAL-60
Component Video: 480i/p (525i/p), 576i/p (625i/pa),
720p (750p), 1080i (1125i60Hz), 1080i (1125i 50Hz)
Video Compatibility
6000 hours (Low Mode), 3000 hours (Standard Mode)
[H] 15-80kHz, [V] 50-85Hz, Dot clock: Max 110MHz
Estimated Lamp Life
Scanning Rate
RGB: mini D-sub 15pin x 2
Video: RCA x 1, S-VIDEO x 1
Digital: HDMI x 1
Audio: Stereo mini jack (ø3.5mm) x 2, RCA jack (L/R) x 1
RGB: mini D-sub 15pin x 1
Audio: Stereo mini jack (ø3.5mm) x 1
Input Terminals
Output Terminals
Audio Speaker
Dimensions (W x H x D)
Weight
Power Requirements
Included Accessories
Warranty
10W Mono
12.6” x 4.1” x 9.3”
7.5lbs
AC 100-240V, 50/60Hz
Soft carrying bag, Remote control (With2batteries), Powercable,
VGA(D-sub)cable,User-Manual x1(CD-ROM), Safety manual, Lens Cap
Optional AccessoriesReplacement lamp (VLT-XD280LP), Ceiling mount (PROJ-UCM-PRO2),
Wall mount (PROJ-WM2), Wall Mount Arm (WM2-ARM)
3-Years of Parts/Labor, 3-Years of ExpressReplacement Assistance
(ERA), 1-year or 500 hours lampwarranty (whichever comes first)
Top View Bottom View
Front View Side View
RS-232C: mini DIN 8pin x 1
LAN: RJ-45 x 1
Communication Terminal
Specifications
Unit: mm
1
2
3
4
5
6
Audio output
Audio input
S-Video/Video
HDMI
PC/Component
Video input
Monitor output
Serial RS-232C
LAN (RJ-45)
7
8
Screen
Diagonal Size Width (W) Height (H)
Distance from
screen (L)
Height projected
image (Hd)
1 2 3 7 8 654
67
104
72.2
14
116
135.5
229
228
63
63
113.9
116
34.5
325
251
!"#$%&'()*"+
