MITSUBISHI Photo Suite User Manual
CPK60 Printer
Version 1.1

2
Content
1. MITSUBISHI Photo Suite ..........................................................................................................3
2. System requirements: .............................................................................................................4
3. Printer specifications...............................................................................................................5
4. Installation...............................................................................................................................5
5. Printing of files.........................................................................................................................9
6. Advanced colour settings. .....................................................................................................11
7. Uninstalling............................................................................................................................13

3
1.MITSUBISHI Photo Suite
MITSUBISHI Photo Suite is a solution that allows you to print directly to a Mitsubishi K60
printer from your computer. Once the solution has been installed, you can print from any
application or from the operating system.
The MITSUBISHI Photo Suite solution is comprised of the “MITSUBISHI PrintModule”
and the “Advanced Settings” administration panel. When the PrintModule has been
initiated, it can be seen on the Windows toolbar. You can control all the print orders
requested from the PrintModule. In addition, you can view the printer status.
In the "Advanced Settings” module you can control the "PrintModuleService" which
deletes orders already completed. You can also define the interval in minutes during
which the completed orders will be deleted.

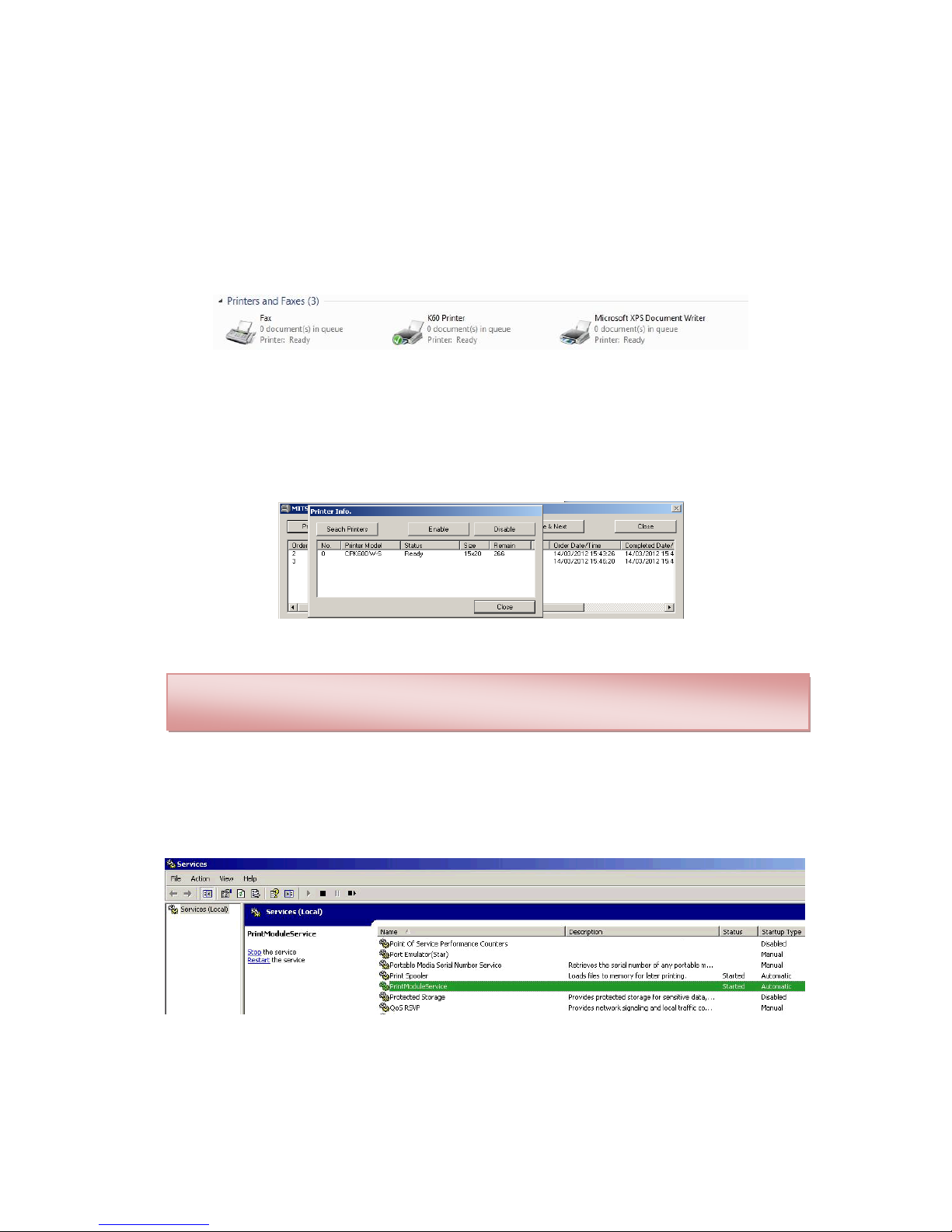

If you are unable to locate the “PrintModule” on the toolbar while printing, check that
the printer is properly installed and connected.

4

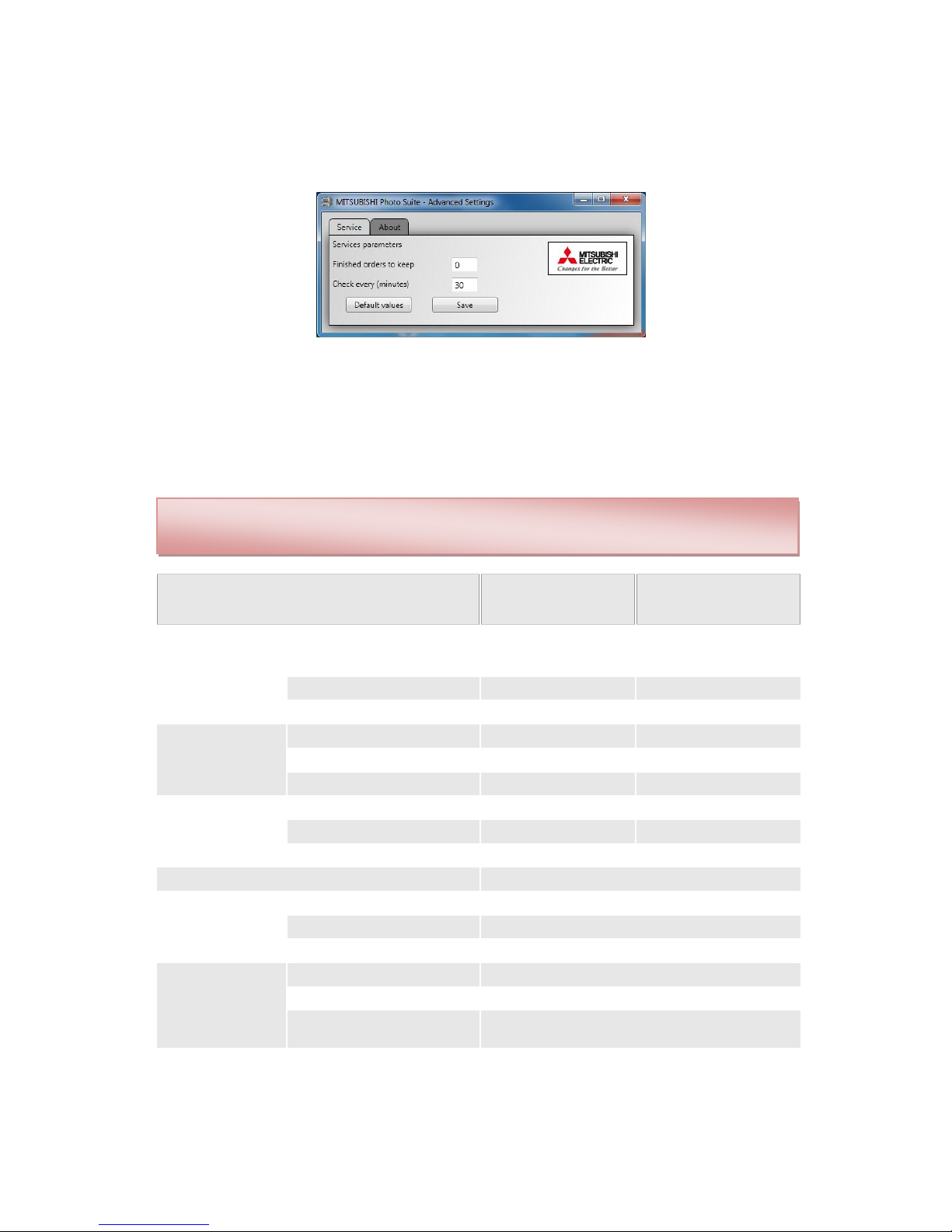

Users can request a specific number of completed orders to be kept permanently. To
prevent that number of completed orders from being deleted, change the “Finished
orders to keep” value and then press “Save” to save the changes.
2.System requirements:
MITSUBISHI Photo Suite is compatible with the following operating systems: Windows
XP Service Pack 3, Windows Vista, Windows 7.
Operating system (32-bit, 64-bit)
Minimum system
requirements
Recommended system
requirements
Processor
Windows XP Service Pack 3
Intel Pentium IV or Celeron
Processor
Intel® Core™2 Duo Processor or
a later version
Windows Vista
3 GHz processor
2 GHz processor
Windows 7
3 GHz processor
2 GHz processor
RAM
Windows XP Service Pack 3
1 GB
2 GB
Windows Vista
1 GB
4 GB
Windows 7
1 GB
4 GB
Free space on disk
Windows XP Service Pack 3
500 MB
1 GB
Windows Vista
2 GB
4 GB
Windows 7
2 GB
4 GB
CD drive
CD or DVD drive
Software
Windows XP Service Pack 3
Service Pack 3, .NET Framework 4.0
Windows Vista
.NET Framework 4.0
Windows 7
.NET Framework 4.0
Connectivity*
Network support
By sharing Microsoft Windows printers
Compatibility with USB
USB 2.0 HS
USB cable
Certified USB 2.0 cable with a length of less than 2 metres.
Other
Adobe Acrobat Reader 5.0 or later version
To install the MITSUBISHI Photo Suite software the user must be the machine
administrator or have administrator permits.

5
3.Printer specifications
Printer resolution: Up to 300 dpi.
Printing formats : 10x15cm / 4x6”, 15x20cm / 6x8” and 13x18cm (centred on a
15x20cm) / 5x7” in 6x8”.
Printing method: Sublimation.
Finishes: Glossy or Matte.
Colour control: Mitsubishi Electric® ICC profile + custom color curves
Printing speed: In copies per hour, production (cph)*
Printing mode
Glossy
Matte
10x15cm / 6x4”
Up to 316 cph
Up to 220 cph
15x20cm / 6x8”
Up to 162 cph
Up to 117 cph
4.Installation
To install MITSUBISHI Photo Suite you should install the following elements:
-Printer controller.
-Microsoft .NET Framework 4.0 (included with the installer).
-The MITSUBISHI Photo Suite application.
Follow the instructions shown below to completely install the MITSUBISHI Photo Suite
solution.
Before continuing to install the MITSUBISHI Photo Suite read the system requirements
section carefully and uninstall any previous version.
Starting with the Mitsubishi Photo Suite 1.1 version, use the same installer to uninstall
the previous versions. During the installation process, the existence of previous
versions will be verified and the uninstall process executed.
If a Windows text box appears during the installation process that says “Windows
cannot verify the editor of this controller software”, select the option “Install this
controller software anyway”.
.

6
Installing the MITSUBISHI Photo Suite’ in 32-bit operating systems.
Execute the ‘MITSUBISHI Photo Suite’ installation assistant. Follow the steps indicated
by the assistant. After completing the operation, connect the Mitsubishi K60 printer to a
2.0 USB port in your computer.
If a message appears saying a New hardware device has been detected, please cancel
it. If the printer controller is not installed, the printer will be displayed in the Windows
devices administration panel as "Other devices".

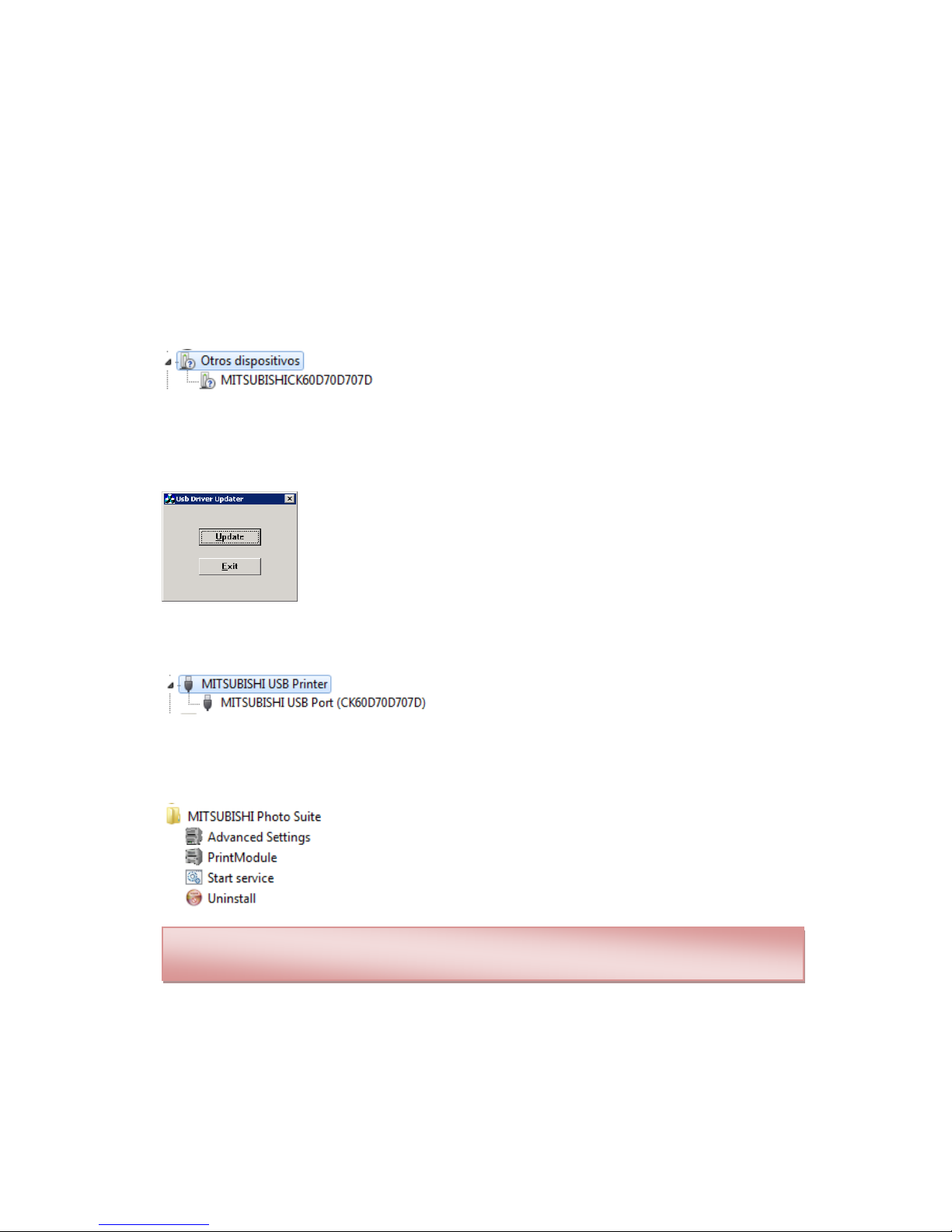

To install the controller execute the “USB Driver Updater” programme which is in the
“C:\Program Files\MITSUBISHI Photo Suite\USB Driver\” folder, and select Update.
If the controller is correctly installed, the printer will be displayed in the Windows devices
administration panel as “MITSUBISHI USB Printer “.
Once the above steps have been completed, the printer will now be installed and ready
to use. You will find the application in the Windows home menu, in:
If, once installed, you connect the printer to another 2.0 USB port in your computer,
you must reinstall the controller.

7
Installing the MITSUBISHI Photo Suite’ in 64-bit operating systems.
Execute the ‘MITSUBISHI Photo Suite’ installation assistant. Follow the steps indicated
by the assistant. After completing the operation, connect the Mitsubishi K60 printer to a
2.0 USB port in your computer.
If a message appears saying a "New hardware device" has been detected, please

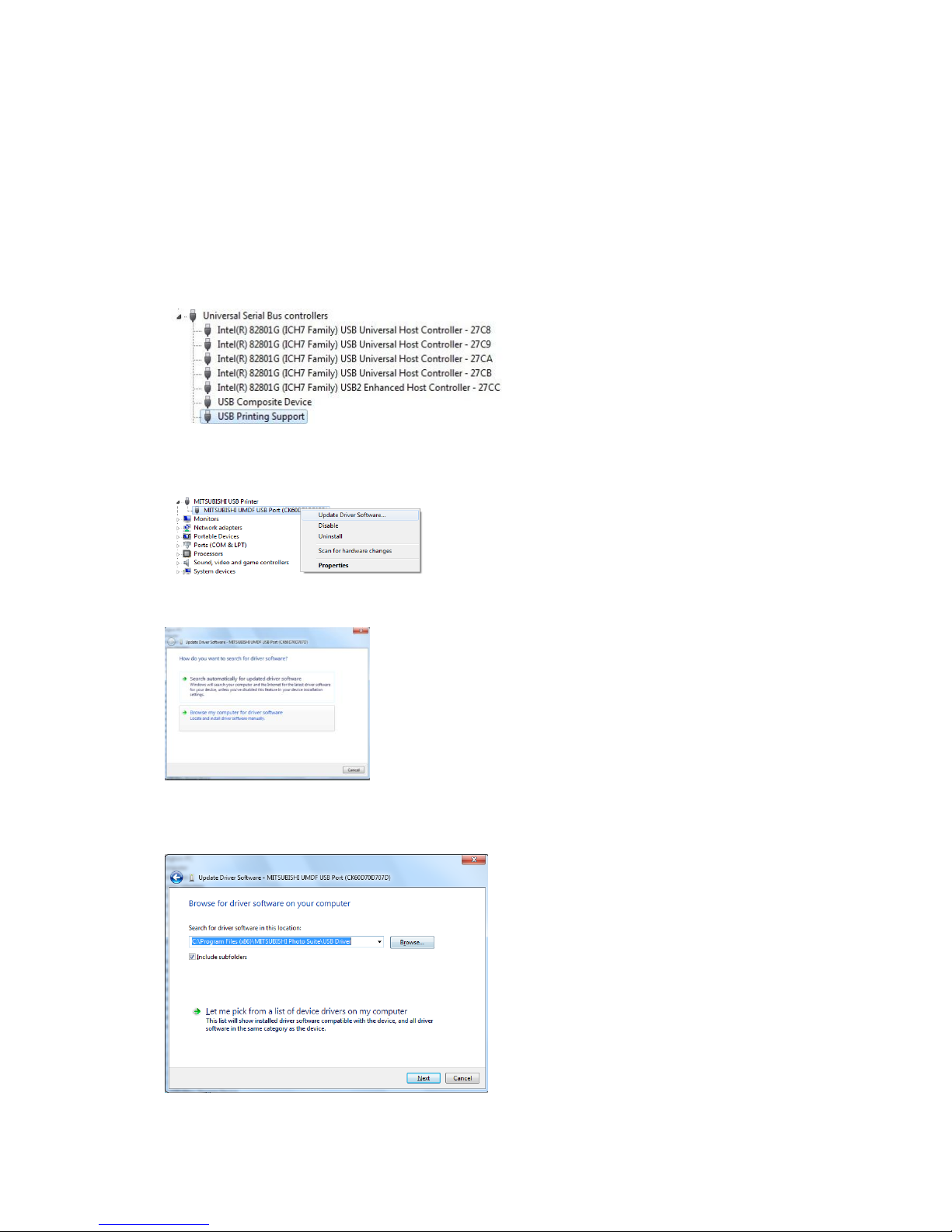

cancel it. To install the printer controller, go to the Windows devices administration panel
and locate the device as “USB Printing Support” in “Universal Serial Bus Controllers”.
To install the controller select the “USB Printing Support” device and then right-click and
select the option “Update controller software”.
Then select the option “Locate controller software in the equipment”.
The controller is located in “C:\Program Files (x86)\MITSUBISHI Photo Suite\USB
Driver\”. Follow the steps indicated by the controller installation assistant.

8
If a Windows text box appears during the installation process that says “Windows cannot
verify the editor of this controller software”, select the option “Install this controller
software anyway”.
If the controller is correctly installed, the printer will be displayed in the Windows devices
administration panel as “MITSUBISHI USB Printer “.
Once the above steps have been completed, the printer will now be installed and ready
to use. You will find the application In the Windows home menu, in:
If, once installed, you connect the printer to another 2.0 USB port in your computer,
you must reinstall the controller.

9
5.Printing of files.
Once the “MITSUBISHI Photo Suite” has been installed, you can print from any
application such as a conventional printer, selecting the “K60 Printer”. You can also print
from other programmes such as Adobe Photoshop ®. To do this, adjust the output
parameters in accordance with the printer specifications described above.

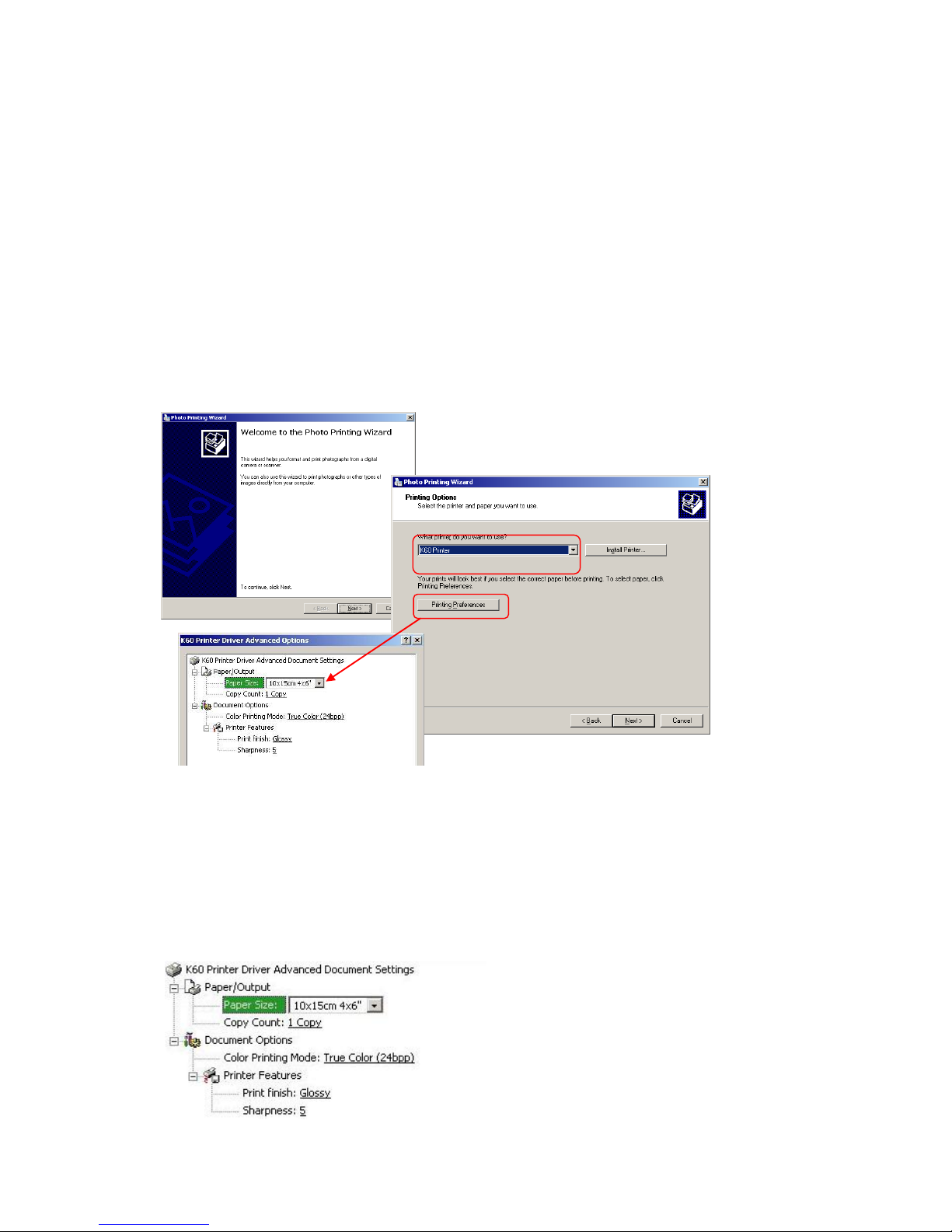

Example of printing from the Windows assistant
Go to a folder in the system, select an image or several images and then press print. A
Microsoft Windows printing assistant will appear. Follow the steps indicated by the
assistant to print it.
In the “K60 Printer” panel in the section “Advanced printing characteristics” the following
parameters can be defined.
Paper size: Your can select from among the following formats: 10x15cm / 4x6”, 15x20cm /
6x8” and 13x18cm (centred on a 15x20cm) / 5x7” in 6x8”.
Type of finish: You can select either a “Matte” or a “Glossy” finish.
Sharpness: Make your selection within a scale of 0 to 8.

10
Follow the steps indicated by the assistant to print the selected photographs.
Select the photographs to be printed

11
6.Advanced colour settings.
In the “K60 Printer” panel in the section “Advanced printing characteristics” the following
parameters can be defined.
Paper size: Your can select from among the following formats: 10x15cm / 4x6”, 15x20cm /
6x8” and 13x18cm (centred on a 15x20cm) / 5x7” in 6x8”.
Type of finish: You can select either a “Matte” or a “Glossy” finish.
Sharpness: Make your selection within a scale of 0 to 8.
Colour settings: You can choose between the following options: Automatic (pre-
determined) and Manual.
Automatic colour settings: This setting uses the predetermined colour curve but
without using an icc profile. It is recommended for printing photos taken by amateurs.
Apply associated icc: You can choose between No (predetermined) and Yes. If
checking the option Yes it allows you to apply an associated icc to the colour curve that
is predetermined. Currently no icc profile is associated with the predetermined colour
curve.

12
Manual colour settings: The manual colour settings enable the following parameters:
Gamma: You can select from among different gamma values. To use the
colour curve with the ICC provided by Mitsubishi Electric, select Gamma5.
Colour Chart: You can select one of two values, “Chart0” and “None”. To
use the colour curve with the ICC provided by Mitsubishi Electric, select
"None"
Curve: You can select different Curves. “Predetermined”, “Curve 1”
“Curve 2”... If selecting the “Predetermined” curve this setting uses the
same curve as that used in the Automatic mode. The other curves available
use different CPG files.
When the manual mode is active, you can use other ICC profiles. When using other
ICC profiles, all settings associated with the K60 printer ICC are overwritten.
To obtain the best results, combine “Chart0” and “Gamma1”
When changing automatic colour settings to manual, the predetermined values are
changed to use an ICC profile and CPG file combination.

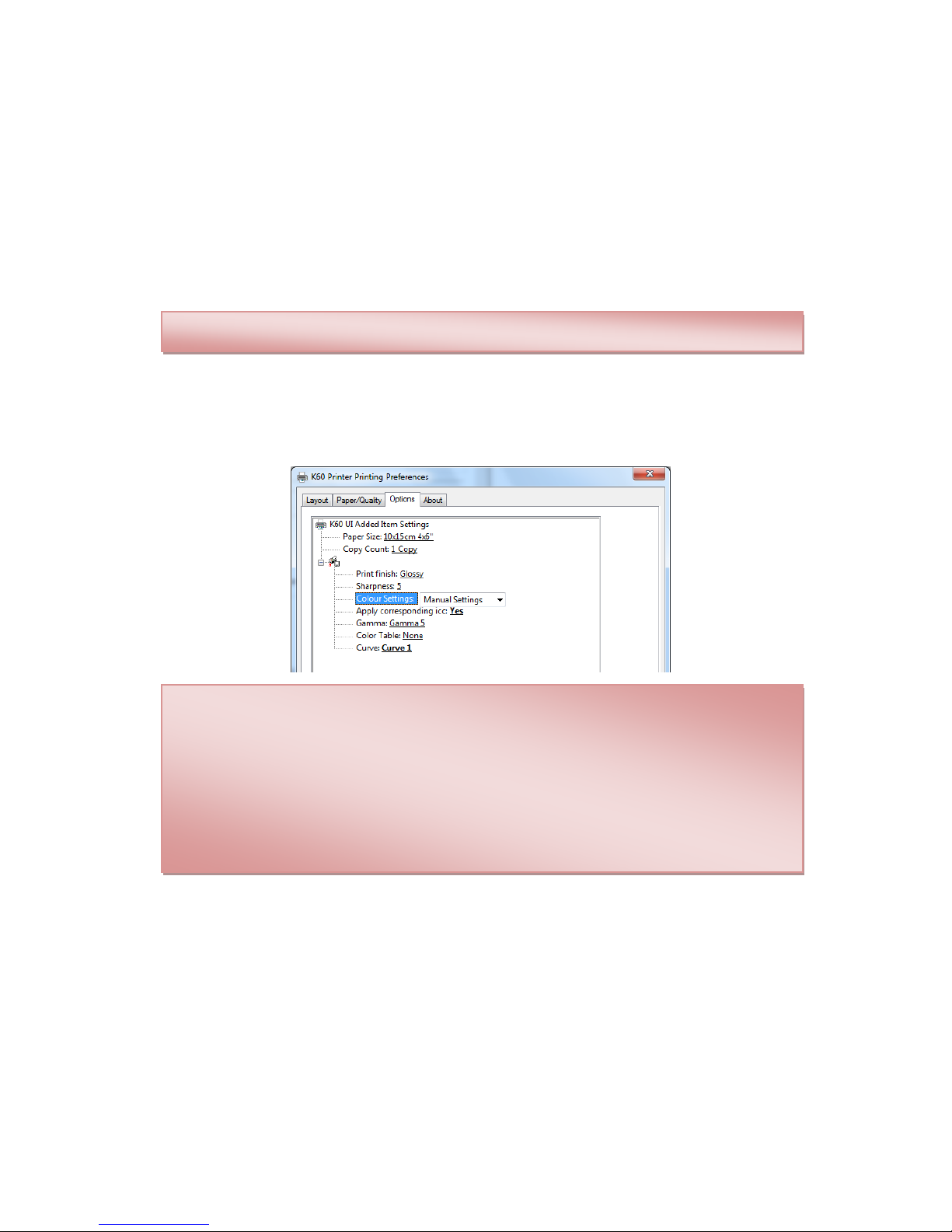

To print studio photographs it is advisable to use the following settings:
Apply associated icc: Yes
Gamma: Gamma5
Colour chart: None
Curve: Curve 1

13
7.Uninstalling.
To correctly uninstall the “MITSUBISHI Photo Suite” solution stop or cancel all printing
jobs in progress. Then go to “Home Menu”, “All programmes”, “MITSUBISHI Photo
Suite” and select “Uninstall” and then follow the uninstaller assistant instructions to
complete the process. Once the process has been completed, the “MITSUBISHI Photo
Suite” will be completely uninstalled from your computer.
Starting with the Mitsubishi Photo Suite 1.1 version, use the same installer to uninstall
the previous versions. During the installation process, the existence of previous
versions will be verified and the uninstalling process will automatically be executed.

14
