Mitsubishi Heavy Industries KXZ Series User manual

Manual No.'21・KX-T-380
TECHNICAL MANUAL
(1)Regarding the indoor unit series,refer to the TECHNICALMANUAL No.’19・KX-T-310,No.’20・KX-T-347 & No.’20・KX-T-348.
(2)Regarding the floor standing-2way type(FDFW),refer to the No.’17・KX-T-266.
(3)”Cooling only type unit” does not apply to the part related to “Heating” and “Dfrost operation”.
•Notes :
VRF INVERTER MULTI-SYSTEM AIR-CONDITIONERS
(OUTDOOR UNIT)
KXZ series (Heat pump type)
•
•
•
•
•
•
Standard series
Single use (Used also for combination)
FDC280KXZA2, 335KXZA2, 400KXZA2, 450KXZA2,475KXZA2,500KXZA2,560KXZA2
Combination use
FDC615KXZA2, 670KXZA2, 735KXZA2, 800KXZA2,850KXZA2,900KXZA2,950KXZA2,1000KXZA2,
1060KXZA2,1120KXZA2,1200KXZA2,1250KXZA2,1300KXZA2,1350KXZA2,1425KXZA2,
1450KXZA2, 1500KXZA2, 1560KXZA2,1620KXZA2,1680KXZA2
High-COP combination use
FDC560KXZXA2,850KXZXA2,900KXZXA2,950KXZXA2,1000KXZXA2,1060KXZXA2,1120KXZXA2
Corrosin protection treatment series
Single use (Used also for combination)
FDCS280KXZA2, 335KXZA2, 400KXZA2, 450KXZA2,475KXZA2,500KXZA2,560KXZA2
Combination use
FDCS615KXZA2, 670KXZA2, 735KXZA2, 800KXZA2,850KXZA2,900KXZA2,950KXZA2,1000KXZA2,
1060KXZA2,1120KXZA2,1200KXZA2,1250KXZA2,1300KXZA2,1350KXZA2,1425KXZA2,
1450KXZA2, 1500KXZA2, 1560KXZA2,1620KXZA2,1680KXZA2
High-COP combination use
FDCS560KXZXA2,850KXZXA2,900KXZXA2,950KXZXA2,1000KXZXA2,1060KXZXA2,1120KXZXA2
KXZ series (Cooling only type)
•
•
•
•
•
•
Standard series
Single use (Used also for combination)
FDC280CKXZA2, 335CKXZA2, 400CKXZA2, 450CKXZA2,475CKXZA2,500CKXZA2,560CKXZA2
Combination use
FDC615CKXZA2, 670CKXZA2, 735CKXZA2, 800CKXZA2,850CKXZA2,900CKXZA2,950CKXZA2,1000CKXZA2,
1060CKXZA2,1120CKXZA2,1200CKXZA2,1250CKXZA2,1300CKXZA2,1350CKXZA2,1425CKXZA2,
1450CKXZA2, 1500CKXZA2, 1560CKXZA2,1620CKXZA2,1680CKXZA2
High-COP combination use
FDC560CKXZXA2,850CKXZXA2,900CKXZXA2,950CKXZXA2,1000CKXZXA2,1060CKXZXA2,1120CKXZXA2
Corrosin protection treatment series
Single use (Used also for combination)
FDCS280CKXZA2, 335CKXZA2, 400CKXZA2, 450CKXZA2,475CKXZA2,500CKXZA2,560CKXZA2
Combination use
FDCS615CKXZA2, 670CKXZA2, 735CKXZA2, 800CKXZA2,850CKXZA2,900CKXZA2,950CKXZA2,1000CKXZA2,
1060CKXZA2,1120CKXZA2,1200CKXZA2,1250CKXZA2,1300CKXZA2,1350CKXZA2,1425CKXZA2,
1450CKXZA2, 1500CKXZA2, 1560CKXZA2,1620CKXZA2,1680CKXZA2
High-COP combination use
FDCS560CKXZXA2,850CKXZXA2,900CKXZXA2,950CKXZXA2,1000CKXZXA2,1060CKXZXA2,1120CKXZXA2

'21 • KX-T-380
PREFACE
Notes (1) YES: Connectable (See following table in detail), NO: Not connectable
Same series Mixed series
YES [A] 2 KXE6&KXZ (New) New (for KX6) New (for KX6)
YES [B] KXE4 series KXE6 &
KXE4 series (Previous) Previous (for KX4)
YES [C] KXE4 series KXE4 series KXE4 series Previous (for KX4)
Previous (for KX4)
Previous (for KX4)
(2) Combination with new central control, PC windows central control and BMS interface unit
SC-SL1N-E SC-SL2NA-E SC-SL4N-AE/BE SC-WGWN-A/B SC-LGWN-A
SC-BGWN-A/B
128 128 96 128
(128x1) (64x2) (48x2) (64x2)
Superlink
protocol New New New New New New
Connectable
network 1 1 1 2 2 2
144 96 96 96
(48x3) (48x2) (48x2) (48x2)
Superlink
protocol Previous Previous Previous Previous Previous Previous
Connectable
network 1 1 3 2 2 2
KXE6&KXZ
Outdoor unit
YES[B]
&
YES[C]
YES [A]
Connectable
I/U
Connectable
I/U 16 48
Central control, PC windows central control and BMS interface unit
Limitation
64
Connected Indoor unit DIP switch
setting of
outdoor unit
KXE6
Superlink
protocol
16 3
4
*5
4 4
3
3 Maximum number of AC cell is limited up to 96.
In case the number of connected indoor units are more than 96, some AC cells should hold 2 or more indoor units.
4 In case of other central control like SC-SLxN-E is connected in the same network, the connectable indoor unit is limited up to 64 (32x2).
5 In case of previous Superlink protocol, the Superlink mode of new central control should be set "Previous".
6 In case of YES[A], previous central control is available to use. But the limitation of connectable indoor unit and so on is complied with
the rule of previous Superlink.
(3) The compatibility of PFD (refrigerant flow branching control)is mentioned in following table.
(4) Compatibility of the PFD control extension cables is as per the following table.
Indoor unit
Connectable PFD control
KXE4 & KXE5 series KXE6 & KXZE1 series
PFD＊＊＊3 -E
KXRE4 series PFD-E PFD-E
PFD-ER PFD-ER PFD＊＊＊4-E
Outdoor unit
KXRE6 series PFD-E PFD＊＊＊3 -E
PFD-ER PFD
PFD＊＊＊3 -E
KXZRE1 series
KXZRE2 series PFD
2 If Outdoor unit system (YES [A]) is connected to other outdoor unit systems (YES [B] and/or YES [C]) in one
Superlink network, the dip switch of outdoor unit KXE6 of (YES [A]) should be set from (New) to (Previous).
In this case the Superlink protocol and limitation of outdoor unit system (YES [A]) are switched to Previous (for KX4).
Combination table for KX series ( ) Date of launching in the market
Indoor unit
Connectable Same or
Same series Same series Same series Mixed series Mixed series Mixed series Mixed series
remote control Mixed series Same series
RC-E1 KXE4 KXE4(A) KXE4A KXE4A KXE4A KXE4A
KXE4KXE4R
KXE4BR
KXE5R
R KXE4R KXE4R KXE4R
Category
3-wire type
RC-E1R KXE4BR KXE4BR KXE4BR KXE4BR
KXE5R KXE5R KXE5R KXE5R
RC-E3 KXE6 KXE6 KXE6 KXE6
RC-E4 KXE6A KXE6A KXE6A KXE6A
2-wire type
RC-E5 KXE6B KXE6B KXE6B KXE6B
KXE6D KXE6D KXE6D KXE6D
RC-EX1A KXE6F KXE6F KXE6F KXE6F
Outdoor unit RC-EX3 KXZE1 KXZE1 KXZE1 KXZE1
FDCA-HKXE4 5HP (2004.4-) YES [C] YES [C] YES [C] NO NO NO NO NO NO
FDCA-HKXE4 8-48HP (2004.4-) NO YES [C] YES [C] NO NO NO NO NO NO
FDCA-HKXE4A 5HP (2006.2-) 1
NO YES [C] YES [C] YES [C] NO NO YES [C] NO NO
FDCA-HKXE4R 5,6HP (2006.5-)
FDC-KXZPE1 8,10HP (2014.12-)
FDCA-HKXE4A 8-48HP
FDCA-HKXE4R 8-48HP
FDCA-HKXE4BR 8-48HP
FDCA-HKXE4D 8-48HP
(2006.2-)
Heat pump
(2-pipe)
(2006.5-) NO YES [C] YES [C] YES [C] YES [C] YES [C] YES [C] YES [C] YES [C]
systems (2007.4-)
(2008.7-)
FDC-KXE6 4,5,6HP (2008.3-) NO NO NO NO NO NO NO NO YES [A] 6
6
FDC-KXE6 8-12HP (2009.2-) NO NO NO NO NO NO YES [B] YES [B] YES [A]
FDC-KXZE1 4,5,6HP (2018.2-)
FDC-KXE6 14-48HP (2009.1-) NO NO NO NO NO NO YES [B] YES [B] YES [A]
FDC-KXZE2 10-60HP (2021.2-) NO NO NO NO NO NO NO NO YES [A]
NO NO NO NO NO NO NO NO YES [A]
FDC-KXZME1 8-12HP (2019.1-) NO N
N N
O N
N
O N
N
O NO NO N
N N N
O NO
O
YES [A]
NO NO NO NO NO NO NO NO YES [A]
FDCA-HKXRE4 8-48HP (2004.11-) NO NO YES [C] NO NO NO NO NO NO
FDCA-HKXRE4A 8-48HP
FDCA-HKXRE4R 8-48HP
FDCA-HKXRE4BR 8-48HP
FDCA-HKXRE4D 8-48HP
(2006.2-)
Heat recovery
(3-pipe)
(2006.6-) NO NO YES [C] YES [C] YES [C] YES [C] YES [C] YES [C] YES [C]
systems (2007.4-)
[ Note(3) ] (2008.7-)
FDC-KXRE6 8-48HP (2009.5-) NO NO NO NO NO NO YES [B] YES [B] YES [A]
FDC-KXZRE2 8-60HP (2021.2-) NO NO NO NO NO NO NO NO YES [A]
1 except FDKA71KXE5R
＊＊＊4-E
＊＊＊4-E
Note:
All indoor unit downstream PFD box must be
same series, KXZR,KX6 series or KX4/5 series
PFD-control series
PFD ＊＊＊ 3-E PFD ＊＊＊ 4-E
PFD-15WR-E Yes No
PFD4-15WR-E No Yes
FDC-KXZE1 10-60HP (2017.4-)
FDC-KXZEN/S1 4HP (2019.4-) O O O O O O O N YES [A]
FDC-KXZRE1 8-60HP (2017.4-) NO NO NO NO NO NO NO NO YES [A]
Note:
KXZ2 and KXZ1 cannot be mixed in the same
outdoor unit combination(Twin or triple).

'21 • KX-T-380
CONTENTS
1. GENERAL INFORMATION ............................................................................ 1
1.1 Specific features ..................................................................................... 1
1.2 How to read the model name .................................................................. 2
1.3 Table of models ...................................................................................... 2
1.4 Outdoor units combination table ............................................................. 3
2. OUTDOOR UNIT ............................................................................................ 4
2.1 Specifications .......................................................................................... 4
2.2 Exterior dimensions .............................................................................. 12
2.3 Electrical wiring ..................................................................................... 14
2.4 Noise level ............................................................................................. 17
3. RANGE OF USAGE & LIMITATIONS ......................................................... 18
4. PIPING SYSTEM .......................................................................................... 28
5. SELECTION CHART .................................................................................... 31
6. WARNINGS ON REFRIGERANT LEAKAGE .............................................. 56
7. OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER................ 57
7.1 Remote control (Option parts) ............................................................... 57
7.2 Operation control function by the wired remote control ......................... 60
7.3 Operation control function by the indoor control .................................... 65
7.4 Operation control function by the outdoor control.................................. 81
8. SYSTEM TROUBLESHOOTING PROCEDURE ........................................ 127
8.1 Basics of troubleshooting..................................................................... 127
8.2 Explanation of troubleshooting ............................................................ 128
8.3 Contents of troubleshooting................................................................. 130
8.4 Outdoor unit control PCB exchange procedure ................................... 193
8.5 Outdoor unit power PCB exchange procedure .................................... 194
8.6 Outdoor unit noise filter PCB exchange procedure ............................. 195
8.7 Outdoor unit inverter PCB exchange procedure.................................. 196
8.8 Check points of inverter outdoor unit ................................................... 200
9. APPLICATION DATA ................................................................................. 202
9.1 Installation of outdoor unit.................................................................... 202
9.2 Instructions for installing the branch pipe set....................................... 251
9.3 Procedure to attach or remove the service panel ................................ 255
9.4 Voltage check point ............................................................................. 257
APPENDIX ......................................................................................................... 260

-
1
-
'21 • KX-T-380
1.1 Specific features
Connectable indoor capacity
Capacity from 50% to 200% is possible.
Notes
・
For outdoor unit, EN61000-3-2 and EN61000-3-12 are not applicable as consent by the utility company or notica-
tion to the utility company is given before usage.
・
FDCS-series is models for corrosion protection treatment series.
Specication is shown in page 260.
Item Number of connectable units Connectable capacity
Model
FDC(S)280(C)KXZA2 1 to 24 140 －364
FDC(S)335(C)KXZA2 1 to 29 168 －435
FDC(S)400(C)KXZA2 1 to 34 200 －520
FDC(S)475(C)KXZA2 1 to 41 238 －617
FDC(S)450(C)KXZA2 1 to 39 225 －585
FDC(S)500(C)KXZA2 1 to 43 250 －650
FDC(S)560(C)KXZA2 1 to 48 280 －728
FDC(S)615(C)KXZA2 2 to 53 308 －799
FDC(S)670(C)KXZA2 2 to 58 335 －871
FDC(S)735(C)KXZA2 2 to 63 368 －955
FDC(S)800(C)KXZA2 2 to 69 400 －1040
FDC(S)850(C)KXZA2 2 to 73 425 －1105
FDC(S)900(C)KXZA2 2 to 78 450 －1170
FDC(S)950(C)KXZA2 2 to 80 475 －1235
FDC(S)1000(C)KXZA2 2 to 80 500 －1300
FDC(S)1060(C)KXZA2 2 to 80 530 －1378
FDC(S)1120(C)KXZA2 2 to 80 560 －1456
FDC(S)1200(C)KXZA2 3 to 80 600 －1560
FDC(S)1250(C)KXZA2 3 to 80 625 －1625
FDC(S)1300(C)KXZA2 3 to 80 650 －1690
FDC(S)1350(C)KXZA2 3 to 80 675 －1755
FDC(S)1425(C)KXZA2 3 to 80 713 －1852
FDC(S)1450(C)KXZA2 3 to 80 725 －1885
FDC(S)1500(C)KXZA2 3 to 80 750 －1950
FDC(S)1560(C)KXZA2 3 to 80 780 －2028
FDC(S)1620(C)KXZA2 3 to 80 810 －2106
FDC(S)1680(C)KXZA2 3 to 80 840 －2184
Item Number of connectable units Connectable capacity
Model
<High-COP combination>
FDC(S)560(C)KXZXA2 2 to 48 448 －728
FDC(S)850(C)KXZXA2 3 to 73 680 －1105
FDC(S)900(C)KXZXA2 3 to 78 720 －1170
FDC(S)1000(C)KXZXA2 3 to 80 800 －1300
FDC(S)950(C)KXZXA2 3 to 80 760 －1235
FDC(S)1060(C)KXZXA2 3 to 80 848 －1378
FDC(S)1120(C)KXZXA2 3 to 80 896 －1456
1. GENERAL INFORMATION

-
2
-
'21 • KX-T-380
Capacity 15 082061 422041211091765546382
Model
Ceiling cassette-4 way compact type
(FDTC)
Ceiling cassette-1 way type
(FDTS)
Ceiling cassette-2 way type
(FDTW)
Ceiling cassette-1 way compact type
(FDTQ)
Duct connected (thin)-Low static pressure type
(FDUT)
Wall mounted type
(FDK)
Ceiling suspended type
(FDE)
Duct connected-High static pressure type
(FDU)
Floor standing (with casing) type
(FDFL)
Floor standing (without casing) type
(FDFU)
Floor standing-2 way type
(FDFW)
Duct connected-compact and Flexible type
(FDUH)
Ceiling cassette-4 way type
(FDT)
22
Duct connected-Low/Middle static pressure type
(FDUM)
○○○○○○○○○
○○○○○○
○ ○○○○○○
○ ○
○○○
○○○○○○○○○
○○○○○○○○○○
○○○○○○○
○○○○○○○○
○
○
○
○○○○
○○○
○
○○
○○
○○
○
○○○
Outdoor air processing unit
(FDU-F)
Outdoor units to be combined
(FDC)FDC(S)280(C)KXZA2-FDC(S)1680(C)KXZA2
1.3 Table of models
(2) Indoor unit
:elpmaxE
FDT 28 KXZ E 1
Series No.
Application power source...See the specifications
Multi KXZ series
Nominal capacity (nominal cooling capacity : 2.8 kW)
Model name Indoor unit : FDT, FDTC, FDTW, FDTS,
FDTQ, FDU, FDUM,
FDUT, FDK, FDE, FDFL,
FDFU, FDFW, FDUH,
FDU-F
Note (1) Reference No. of data book : No.’19·KX-T-310, No.’20·KX-T-347, No.’20·KX-T-348
1.2 How to read the model name
(1) Outdoor unit
Example:
FDC S 735 C KXZ A 2
Series No.
Application power source...See the specications
Multi KXZ series
Cooling only type (Nothing:Heat pump type)
Nominal capacity (nominal cooling capacity : 73.5kW)
Corrosion protection treatment models (Nothing : Standard models)
Model name (Outdoor unit)

-
3
-
'21 • KX-T-380
1.4 Outdoor units combination table
Note (1) Be sure to use this when combining units.
(a) Outdoor unit side branch pipe set (Option)
(b) Branch pipe set (Option)
Item Combination Outdoor unit models Indoor unit
Models FDC(S)280
(C)KXZA2
FDC(S)335
(C)KXZA2
FDC(S)400
(C)KXZA2
FDC(S)450
(C)KXZA2
FDC(S)500
(C)KXZA2
FDC(S)560
(C)KXZA2
Connectable
capacity
Number of
connectable units
FDC(S)615(C)KXZA2 1 1 - - - - 308 799 2 to 53 units
FDC(S)670(C)KXZA2 - 2 - - - - 335 871 2 to 58 units
FDC(S)735(C)KXZA2 - 1 1 - - - 368 955 2 to 63 units
FDC(S)800(C)KXZA2 - - 2 - - - 400 1040 2 to 69 units
FDC(S)850(C)KXZA2 - - 1 1 - - 425 1105 2 to 73 units
FDC(S)900(C)KXZA2 - - - 2 - - 450 1170 2 to 78 units
FDC(S)950(C)KXZA2 - - - - - - 475 1235 2 to 80 units
FDC(S)1000(C)KXZA2 - - - - 2 - 500 1300 2 to 80 units
FDC(S)1060(C)KXZA2 - - - - 1 1 530 1378 2 to 80 units
FDC(S)1120(C)KXZA2 - - - - - 2 560 1456 2 to 80 units
FDC(S)1200(C)KXZA2 - - 3 - - - 600 1560 3 to 80 units
FDC(S)1250(C)KXZA2 - - 2 1 - - 625 1625 3 to 80 units
FDC(S)1300(C)KXZA2 - - 1 2 - - 650 1690 3 to 80 units
FDC(S)1350(C)KXZA2 - - - 3 - - 675 1755 3 to 80 units
FDC(S)1425(C)KXZA2 - - - - - - 713 1852 3 to 80 units
FDC(S)1450(C)KXZA2 - - - - 1 -
-
725 1885 3 to 80 units
FDC(S)1500(C)KXZA2 - - - - 3 750 1950 3 to 80 units
FDC(S)1560(C)KXZA2 - - - - 2 1 780 2028 3 to 80 units
FDC(S)1620(C)KXZA2
- - - - 1 2 810 2106 3 to 80 units
FDC(S)1680(C)KXZA2 - - - - -
FDC(S)475
(C)KXZA2
-
-
-
-
-
-
2
-
-
-
-
-
-
-
3
2
-
-
-
- 3 840
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
_
2184 3 to 80 units
Item Combination Outdoor unit models Indoor unit
Models
<High-COP combination>
FDC(S)280
(C)KXZA2
FDC(S)335
(C)KXZA2
FDC(S)400
(C)KXZA2
FDC(S)450
(C)KXZA2
FDC(S)500
(C)KXZA2
FDC(S)560
(C)KXZA2
Connectable
capacity
Number of
connectable units
FDC(S)560(C)KXZXA2 2 - - - - - 448 728 2 to 48 units
FDC(S)850(C)KXZXA2 3 - - - - - 680 1105 3 to 73 units
FDC(S)900(C)KXZXA2 2 1 - - - - 720 1170 3 to 78 units
FDC(S)950(C)KXZXA2 1 2 - - - - 760 1235 3 to 80 units
FDC(S)1000(C)KXZXA2 - 3 - - - - 800 1300 3 to 80 units
FDC(S)1060(C)KXZXA2 - 2 1 - - - 848 1378 3 to 80 units
FDC(S)1120(C)KXZXA2 - 1 2 - - - 896 1456 3 to 80 units
FDC(S)475
(C)KXZA2
-
-
-
-
-
-
-
_
_
_
_
_
_
_
For three units (for FDC(S)1200(C)KXZA2-1680(C)KXZA2, 850-1120(C)KXZXA2) DOS-3A-3
Outdoor unit
For two units (for FDC(S)615(C)KXZA2-1120(C)KXZA2, 560(C)KXZXA2)
Branch pipe set
DOS-2A-3
Total capacity downstream
Less than 180
180 or more but less than 371
371 or more but less than 540
540 or more
Branching pipe set
DIS-22-1G
DIS-180-1G
DIS-371-1G
DIS-540-3
Total capacity downstream
Less than 180
180 or more but less than 371
371 or more but less than 540
540 or more
Header set model type
HEAD4-22-1G
HEAD6-180-1G
HEAD8-371-2
HEAD8-540-3
Number of branches
4 branches at the most
6 branches at the most
8 branches at the most
8 branches at the most
(c) Header pipe set (Option)

-
4
-
'21 • KX-T-380
2. OUTDOOR UNIT
2.1 Specifications
Heat pump type
• Single use (Used also for combination)
Notes
（1）
The data are measured at the following conditions.
Item Indoor air temperature Outdoor air temperature Standards
Operation DB WB DB WB
Cooling 19 ℃35 ℃24 ℃
ISO5151-T1,H1
Heating 20 ℃−7 ℃6 ℃
27 ℃
Models
Nominal cooling capacity*1
kW
Nominal heating capacity*2 Power source Power consumption
Cooling kW
Heating
Running current
Cooling A
Heating
Sound pressure level
dB（A）
Exterior dimensions Height × Width × Depth
mm
Net weight
kg
Refrigerant equipment compressor type & Q'ty
Motor kW
Starting method Crankcase heater
W
Refrigerant equipment Heat exchanger Refrigerant control Refrigerant type Refrigerant amount
kg
Refrigerant oil
L
Defrost control Air handling equipment fan type & Q'ty
Motor W
Starting method Air flow
（Standard）
Shock & vibration absorber Safety equipment Installation data Refrigerant piping size
mm（in）
Connecting method
Drain
Insullation for piping Accessories Exterior dimensions Electrical wiring
FDCS335KXZA2
33.5 37.5
FDCS400KXZA2
40.0 45.0
FDCS450KXZA2
45.0 50.0
FDCS475KXZA2
47.5 53.0
FDCS500KXZA2
50.0 56.0
FDCS560KXZA2
56.0 63.0
- - - - -
Gas line
3 Phase 380／415V 50Hz ／380V 60Hz
28.0
FDCS280KXZA2
31.5
-
Power factor
Cooling %
Heating
Available external static pressure
Pa
Maximum heating capacity
COP EER
Sound power level
dB（A）
（Cooling／Heating） （Cooling／Heating）
Starting current Maximum current
A
MAX. Pressure IP number
31.5 37.5 45.0 50.0 53.0 56.0 63.0
MPa
Liquid Line mm（in）
PCB004Z522 PCB004Z540
Exterior appearance
（Munsell color）
（2）
This air-conditioner is manufactured and tested in conformity with the ISO.
（3）
Sound level indicates the value in an anechoic chamber.
During operation these values are somewhat higher due to ambient conditions.
（4）
Refrigerant piping size applicable to European installations are shown in parentheses.
（5）
This air-conditioner is adapted RoHS directive.
PCB004Z522 PCB004Z540
PCB004Z523 PCB004Z541
PCB004Z523 PCB004Z541
PCB004Z523 PCB004Z542
-
PCB004Z523 PCB004Z542
PCB004Z523 PCB004Z542
FDC335KXZA2 FDC400KXZA2 FDC450KXZA2 FDC475KXZA2 FDC500KXZA2 FDC560KXZA2FDC280KXZA2
1697×1350×720 2052×1350×720
M fin & inner grooved tubing
Electronic expansion valve
R410A
8.98 9.03
14.7／13.4 14.8／13.5
10.98 10.23
17.6／16.3 16.7／15.5
13.98 12.50
22.4／20.5 20.4／18.7
13.97 12.99
22.6／20.7 21.0／19.2
14.01 13.56
22.6／20.7 21.9／20.1
17.50
16.15
26.9／24.6
26.1／23.9
GTC5150NC47BF × 1 GUC5185ND47B × 1 GTC5150NC47BF × 2
Direct line starting
33 × 1 33×2
Compressor overheat protection ／overcurrent protection ／power transistor overheating
protection ／abnormal high pressure protection
Propeller fan × 2
386×2
Direct start
Rubber mount（for compressor）
φ9.52（3/8"）φ12.7（1/2"）
φ22.22（7/8"）φ28.58（1・1/8"）
Gas line：Brazing ／Liquid line：Flare
Hole for drain（φ20 × 10 pcs. , φ45 × 3 pcs.）
Necessary（both Liquid & Gas line）
7.25
7.41
12.0／11.0 12.2／11.2
11.5
93／93 93／93
95／94 93／92
95／95 93／93
94／94 94／94
92／92 92／92
Max.50
3.73 4.15
3.64 4.40
3.22 4.00
3.40 4.08
3.57 4.13
3.20 3.90
3.86
4.25
94／94 94／94
94／94 94／94
56／57
75／76
63／62 82／81
60／62 80／82
61／62 81／82
20.1 32.0
40 × 1
2.25（M-MA32R）4.2（M-MA32R）
2.9（M-MA32R）
Microcomputer controlled De-Icer
High 4.15 Low 2.21
IP24
φ25.4（1"）
（φ22.22（7/8"））
φ25.4（1"）
（φ28.58（1・1/8"））
294／283225／225 304／304
20.1 32.0 40.2 40.2 40.2
5 8
284 328 374
4.76 × 1 5.94 × 1 7.32 × 1 9.32 × 1
61／61 81／81
61／62 81／82
63／64
82／83
4.64 × 2 4.91 × 2 5.36 × 2
Stucco White（4.2Y7.5／1.1）& Dark Silver（0.5Y4.3／0.1）near equivalent
11.0
300／300 300／284
m3/min
PCB004Z537 A

-
5
-
'21 • KX-T-380
• Combination use
FDCS670KXZA2 FDCS735KXZA2 FDCS800KXZA2FDCS615KXZA2 FDCS850KXZA2
FDCS280KXZA2 FDCS335KXZA2
FDCS335KXZA2 FDCS335KXZA2
FDCS335KXZA2 FDCS400KXZA2
FDCS400KXZA2 FDCS400KXZA2
FDCS400KXZA2 FDCS450KXZA2
Cooling
Heating
Cooling
Heating
Cooling
Heating
FDCS950KXZA2 FDCS1000KXZA2 FDCS1060KXZA2FDCS900KXZA2 FDCS1120KXZA2
FDCS450KXZA2
FDCS475KXZA2 FDCS560KXZA2
Cooling
Heating
Cooling
Heating
Cooling
Heating
FDCS450KXZA2
FDCS475KXZA2
FDCS500KXZA2 FDCS500KXZA2 FDCS500KXZA2
FDCS560KXZA2 FDCS560KXZA2
FDC670KXZA2 FDC735KXZA2 FDC800KXZA2FDC615KXZA2 FDC850KXZA2
FDC280KXZA2 FDC335KXZA2
FDC335KXZA2 FDC335KXZA2
FDC335KXZA2 FDC400KXZA2
FDC400KXZA2 FDC400KXZA2
FDC400KXZA2 FDC450KXZA2
FDC950KXZA2 FDC1000KXZA2 FDC1060KXZA2FDC900KXZA2 FDC1120KXZA2
FDC450KXZA2
FDC475KXZA2 FDC560KXZA2FDC450KXZA2 FDC475KXZA2
FDC500KXZA2 FDC500KXZA2 FDC500KXZA2
FDC560KXZA2 FDC560KXZA2
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity*1 Nominal heating capacity*2
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm φmm
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity*1 Nominal heating capacity*2
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg
Refrigerant piping size
Liquid line Gas line Oil equalization
／
26.7 24.4
／
27.0 24.7
／
93 93
／
93 93
567
61.5
69.0
16.24 16.44
／
29.4 26.8
／
29.6 27.0
／
93 93
／
93 93
567
67.0 75.0
17.96 18.06
／
32.3 29.7
／
31.5 29.0
／
94 94
／
93 93
611
73.5 82.5
19.96 19.26
／
35.2 32.6
／
33.4 31.0
／
95 94
／
93 92
655
80.0 90.0
21.96
20.45
／
40.0 36.8
／
37.1 34.2
／
95 95
／
93 93
655
85.0 95.0
24.96
22.73
φ12.7（1/2"）
φ28.58（1・1/8"）
φ15.88（5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ9.52（3/8"）
／
44.8 41.0
／
40.8 37.4
／
95 95
／
93 93
655
90.0
100.0
27.95 25.00
／
45.2 41.4
／
42.0 38.4
／
94 94
／
94 94
747
95.0
106.0
27.94
25.98
／
45.2 41.4
／
43.8 40.2
／
94 94
／
94 94
747
100.0
112.0
28.02
27.12
／
49.5 45.3
／
48.0 44.0
／
94 94
／
94 94
747
106.0
119.0
31.51
29.71
／
53.8 49.2
／
52.2 47.8
／
94 94
／
94 94
747
112.0
126.0
35.00
32.31
φ15.88（5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））
φ9.52（3/8"）
PCB004Z537 A

-
6
-
'21 • KX-T-380
• Combination use
FDCS1250KXZA2 FDCS1300KXZA2 FDCS1350KXZA2FDCS1200KXZA2 FDCS1425KXZA2
FDCS400KXZA2 FDCS475KXZA2
Cooling Heating Cooling Heating Cooling Heating
FDCS1500KXZA2 FDCS1560KXZA2 FDCS1620KXZA2FDCS1450KXZA2 FDCS1680KXZA2
FDCS500KXZA2 FDCS560KXZA2
Cooling Heating Cooling Heating Cooling Heating
FDCS500KXZA2 FDCS500KXZA2 FDCS500KXZA2
FDCS560KXZA2 FDCS560KXZA2
FDCS450KXZA2 FDCS475KXZA2
FDCS400KXZA2 FDCS400KXZA2
FDCS400KXZA2 FDCS400KXZA2
FDCS400KXZA2 FDCS450KXZA2 FDCS450KXZA2 FDCS450KXZA2
FDCS450KXZA2 FDCS450KXZA2
FDCS475KXZA2
FDCS500KXZA2 FDCS560KXZA2 FDCS560KXZA2FDCS560KXZA2
FDCS500KXZA2
FDCS500KXZA2 FDCS475KXZA2 FDCS475KXZA2
FDC1250KXZA2 FDC1300KXZA2 FDC1350KXZA2FDC1200KXZA2 FDC1425KXZA2
FDC400KXZA2 FDC475KXZA2
FDC1500KXZA2 FDC1560KXZA2 FDC1620KXZA2FDC1450KXZA2 FDC1680KXZA2
FDC500KXZA2 FDC560KXZA2FDC500KXZA2
FDC500KXZA2 FDC500KXZA2
FDC560KXZA2 FDC560KXZA2
FDC450KXZA2 FDC475KXZA2
FDC400KXZA2 FDC400KXZA2
FDC400KXZA2 FDC400KXZA2
FDC400KXZA2 FDC450KXZA2 FDC450KXZA2 FDC450KXZA2
FDC450KXZA2 FDC450KXZA2
FDC475KXZA2
FDC500KXZA2 FDC560KXZA2 FDC560KXZA2FDC560KXZA2
FDC500KXZA2
FDC500KXZA2 FDC475KXZA2 FDC475KXZA2
52.8／48.9
50.1／46.5
57.6／53.1
53.8／49.7
62.4／57.3
57.5／52.9
67.2／61.5
61.2／56.1
67.8／62.1 63.0／57.6
95／94 93／92
95／94 93／92
95／95 93／93
95／95 93／93
94／94 94／94
67.8／62.1
63.9／58.5
67.8／62.1 65.7／60.3
72.1／66.0
69.9／64.1
76.4／69.9
74.1／67.9
80.7／73.8 78.3／71.7
94／94 94／94
94／94 94／94
94／94 94／94
94／94 94／94
94／94 94／94
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity*1 Nominal heating capacity*2
kW kW
Power consumption Running current
A
Power factor
%
Net weight
kg 982 982 982 982 1120
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity*1 Nominal heating capacity*2
kW kW
Power consumption Running current
A
Power factor
%
Net weight
kg 1120 1120 1120 1120 1120
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
120.0 135.0
125.0 140.0
130.0 145.0
135.0 150.0
142.5 159.0
32.94
30.68
35.94
32.95
38.93 35.23
41.93
37.50
41.91
38.97
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））
φ9.52（3/8"）
145.0 162.0
150.0 168.0
156.0 175.0
162.0 182.0
168.0 189.0
41.95
39.54
42.03 40.68
45.52 43.27
49.01
45.87
52.50
48.46
φ9.52（3/8"）
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））
PCB004Z537 A

-
7
-
'21 • KX-T-380
• High-COP combination use
Power source Power consumption
Cooling Heating
Running current
Cooling Heating
Net weight
Liquid line
Gas line
kW kW
A
kg
φmm（in）
Nominal cooling capacity*1 Nominal heating capacity*2 Refrigerant piping size Power factor
Cooling Heating %
φmm（in）
Power source Power consumption
Cooling Heating
Running current
Cooling Heating
Net weight
Liquid line Oil equalization
kW kW
A
kg
φmm（in）
Nominal cooling capacity*1 Nominal heating capacity*2
3 Phase 380-415V 50Hz／380V 60Hz
φ15.88 （5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ9.52（3/8"）
Refrigerant piping size Power factor
Cooling Heating %
φmm（in） φmm（in）
FDC280KXZA2
FDCS280KXZA2
FDC280KXZA2
FDCS280KXZA2
FDC280KXZA2
FDCS280KXZA2
φ38.1（1・1/2"）
（φ34.92（1・3/8"））
850 850 850 850
Oil equalization φmm（in）
3 Phase 380-415V 50Hz／380V 60Hz
FDC280KXZA2
FDCS280KXZA2
Gas line
894 938
φ19.05 （3/4"）
Combination unit
FDCS560KXZXA2
FDC280KXZA2
FDCS280KXZA2
Models
FDC560KXZXA2
Models Combination unit
FDC850KXZXA2
FDCS850KXZXA2
FDC280KXZA2
FDCS280KXZA2
FDC280KXZA2
FDCS280KXZA2
FDC335KXZA2
FDCS335KXZA2
FDC900KXZXA2
FDCS900KXZXA2
FDC280KXZA2
FDCS280KXZA2
FDC335KXZA2
FDCS335KXZA2
FDC335KXZA2
FDCS335KXZA2
FDC950KXZXA2
FDCS950KXZXA2
FDC335KXZA2
FDCS335KXZA2
FDC335KXZA2
FDCS335KXZA2
FDC335KXZA2
FDCS335KXZA2 FDC1000KXZXA2
FDCS1000KXZXA2
FDC335KXZA2
FDCS335KXZA2
FDC335KXZA2
FDCS335KXZA2
FDC400KXZA2
FDCS400KXZA2 FDC1060KXZXA2
FDCS1060KXZXA2
FDC335KXZA2
FDCS335KXZA2
FDC400KXZA2
FDCS400KXZA2
FDC400KXZA2
FDCS400KXZA2 FDC1120KXZXA2
FDCS1120KXZXA2
56.0
63.0
14.51
14.82
24.0／22.0
24.4／22.4
φ1 2.7 （1/2"）
φ28.58（1・1/8"）
92／92 92／92
567
φ9.52（3/8"）
84.0 94.5
89.5
100.5
21.76 22.23
36.0／33.0 36.6／33.6
23.49
23.85
38.7／35.4
39.2／35.9
92／92 92／92
95.0
106.5
25.22 25.47
41.4／37.8 41.8／38.2
93／93 93／93
100.5 112.5
26.94
27.09
44.1／40.2 44.4／40.5
93／93 93／93
92／92 92／92
107.0 120.0
28.94
28.29
94／93 93／93
113.5 127.5
30.94
29.48
94／94
93／92
47.0／43.1
46.3／42.5
49.9／46.0 48.2／44.5
PCB004Z537 A

-
8
-
'21 • KX-T-380
Cooling only type
• Single use (Used also for combination)
Notes
（1）
The data are measured at the following conditions.
Item Indoor air temperature Outdoor air temperature Standards
Operation DB WB DB WB Cooling 19 ℃35 ℃24 ℃ISO5151-T127 ℃
Models
Nominal cooling capacity
kW
Power source Power consumption
kW
Running current
A
Sound pressure level
dB（A）
Exterior dimensions Height × Width × Depth
mm
Net weight
kg
Refrigerant equipment compressor type & Q'ty
Motor kW
Starting method Crankcase heater
W
Refrigerant equipment Heat exchanger Refrigerant control Refrigerant type Refrigerant amount
kg
Refrigerant oil
L
Defrost control Air handling equipment fan type & Q'ty
Motor W
Starting method Air flow
（Standard）
Shock & vibration absorber Safety equipment
Installation data Refrigerant piping size
mm（in）
Connecting method
Drain
Insullation for piping Accessories Exterior dimensions Electrical wiring
FDCS335CKXZA2
33.5
FDCS400CKXZA2
40.0
FDCS450CKXZA2
45.0
FDCS475CKXZA2
47.5
FDCS500CKXZA2
50.0
FDCS560CKXZA2
56.0
- - - - - -
Gas line
3 Phase 380／415V 50Hz ／380V 60Hz
28.0
FDCS280CKXZA2
-
Power factor
%
Available external static pressure
Pa
EER
Sound power level
dB（A）
Starting current Maximum current
A
MAX. Pressure IP number
MPa
Liquid Line mm（in）
PCB004Z522 PCB004Z540
Exterior appearance
（Munsell color）
（2）
This air-conditioner is manufactured and tested in conformity with the ISO.
（3）
Sound level indicates the value in an anechoic chamber.
During operation these values are somewhat higher due to ambient conditions.
（4）
Refrigerant piping size applicable to European installations are shown in parentheses.
（5）
This air-conditioner is adapted RoHS directive.
PCB004Z522 PCB004Z540
PCB004Z523 PCB004Z541
PCB004Z523 PCB004Z541
PCB004Z523 PCB004Z542
PCB004Z523 PCB004Z542
PCB004Z523 PCB004Z542
FDC335CKXZA2 FDC400CKXZA2 FDC450CKXZA2 FDC475CKXZA2 FDC500CKXZA2 FDC560CKXZA2FDC280CKXZA2
1697×1350×720 2052×1350×720
M fin & inner grooved tubing
Electronic expansion valve
R410A
8.98
14.7／13.4
10.98
17.6／16.3
13.98
22.4／20.5
13.97
22.6／20.7
14.01
22.6／20.7
17.50
26.9／24.6
GTC5150NC47BF × 1 GUC5185ND47B × 1 GTC5150NC47BF × 2
Direct line starting
33 X 1 33×2
Compressor overheat protection ／overcurrent protection ／power transistor overheating
protection ／abnormal high pressure protection
Propeller fan × 2
386×2
Direct start
Rubber mount（for compressor）
φ9.52（3/8"）φ12.7（1/2"）
φ22.22（7/8"）φ28.58（1・1/8"）
Gas line：Brazing ／Liquid line：Flare
Hole for drain（φ20 × 10 pcs. , φ45 × 3 pcs.）
Necessary（both Liquid & Gas line）
7.25
12.0／11.0
11.5
93／93 95／94 95／95 94／9492／92
Max.50
3.73 3.64 3.22 3.40 3.57 3.203.86
94／94 94／94
56 75
63 82
60 80
61 81
20.1 32.0
40 × 1
2.25（M-MA32R）4.2（M-MA32R）
2.9（M-MA32R）
Microcomputer controlled De-Icer
High 4.15 Low 2.21
IP24
φ25.4（1"）
（φ22.22（7/8"））
φ25.4（1"）
（φ28.58（1・1/8"））
294225 304
20.1 32.0 40.2 40.2 40.2
5 8
284 328 374
4.76 × 1 5.94 × 1 7.32 × 1 9.32 × 1
61 81
61 81
63 82
4.64 × 2 4.91 × 2 5.36 × 2
Stucco White（4.2Y7.5／1.1）& Dark Silver（0.5Y4.3／0.1）near equivalent
11.0
300m3/min
PCB004Z538 A

-
9
-
'21 • KX-T-380
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg 567 567 611 655 655
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg 655 747 747 747 747
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
61.5 67.0 73.5 80.0 85.0
16.24 17.96 19.96 21.96 24.96
φ12.7（1/2"）
φ28.58（1・1/8"）
φ15.88（5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ9.52（3/8"）
90.0 95.0 100.0 106.0 112.0
27.95 27.94 28.02 31.51 35.00
φ15.88（5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））
φ9.52（3/8"）
FDCS950CKXZA2 FDCS1000CKXZA2 FDCS1060CKXZA2FDCS900CKXZA2 FDCS1120CKXZA2
FDCS450CKXZA2
FDCS475CKXZA2 FDCS560CKXZA2FDCS450CKXZA2 FDCS475CKXZA2
FDCS500CKXZA2 FDCS500CKXZA2 FDCS500CKXZA2
FDCS560CKXZA2 FDCS560CKXZA2
FDC950CKXZA2 FDC1000CKXZA2 FDC1060CKXZA2FDC900CKXZA2 FDC1120CKXZA2
FDC450CKXZA2
FDC475CKXZA2 FDC560CKXZA2FDC450CKXZA2 FDC475CKXZA2
FDC500CKXZA2 FDC500CKXZA2 FDC500CKXZA2
FDC560CKXZA2 FDC560CKXZA2
／
26.7 24.4 ／
29.4 26.8 ／
32.3 29.7 ／
35.2 32.6 ／
40.0 36.8
／
93 93 ／
93 93 ／
94 94 ／
95 94 ／
95 95
／
44.8 41.0 ／
45.2 41.4 ／
45.2 41.4 ／
49.5 45.3 ／
53.8 49.2
／
95 95 ／
94 94 ／
94 94 ／
94 94 ／
94 94
FDCS670CKXZA2 FDCS735CKXZA2 FDCS800CKXZA2FDCS615CKXZA2 FDCS850CKXZA2
FDCS280CKXZA2 FDCS335CKXZA2
FDCS335CKXZA2 FDCS335CKXZA2
FDCS335CKXZA2 FDCS400CKXZA2
FDCS400CKXZA2 FDCS400CKXZA2
FDCS400CKXZA2 FDCS450CKXZA2
FDC670CKXZA2 FDC735CKXZA2 FDC800CKXZA2FDC615CKXZA2 FDC850CKXZA2
FDC280CKXZA2 FDC335CKXZA2
FDC335CKXZA2 FDC335CKXZA2
FDC335CKXZA2 FDC400CKXZA2
FDC400CKXZA2 FDC400CKXZA2
FDC400CKXZA2 FDC450CKXZA2
PCB004Z538 A
• Combination use

-
10
-
'21 • KX-T-380
• Combination use
PCB004Z538 A
FDCS1250CKXZA2 FDCS1300CKXZA2 FDCS1350CKXZA2FDCS1200CKXZA2 FDCS1425CKXZA2
FDCS400CKXZA2 FDCS475CKXZA2
FDCS1500CKXZA2 FDCS1560CKXZA2 FDCS1620CKXZA2FDCS1450CKXZA2 FDCS1680CKXZA2
FDCS500CKXZA2 FDCS560CKXZA2FDCS500CKXZA2
FDCS500CKXZA2 FDCS500CKXZA2
FDCS560CKXZA2 FDCS560CKXZA2
FDCS450CKXZA2 FDCS475CKXZA2
FDCS400CKXZA2 FDCS400CKXZA2
FDCS400CKXZA2 FDCS400CKXZA2
FDCS400CKXZA2 FDCS450CKXZA2 FDCS450CKXZA2 FDCS450CKXZA2
FDCS450CKXZA2 FDCS450CKXZA2
FDCS475CKXZA2
FDCS500CKXZA2 FDCS560CKXZA2 FDCS560CKXZA2FDCS560CKXZA2 FDCS500CKXZA2
FDCS500CKXZA2 FDCS475CKXZA2 FDCS475CKXZA2
FDC1250CKXZA2 FDC1300CKXZA2 FDC1350CKXZA2FDC1200CKXZA2 FDC1425CKXZA2
FDC400CKXZA2 FDC475CKXZA2
FDC1500CKXZA2 FDC1560CKXZA2 FDC1620CKXZA2FDC1450CKXZA2 FDC1680CKXZA2
FDC500CKXZA2 FDC560CKXZA2FDC500CKXZA2
FDC500CKXZA2 FDC500CKXZA2
FDC560CKXZA2 FDC560CKXZA2
FDC450CKXZA2 FDC475CKXZA2
FDC400CKXZA2 FDC400CKXZA2
FDC400CKXZA2 FDC400CKXZA2
FDC400CKXZA2 FDC450CKXZA2 FDC450CKXZA2 FDC450CKXZA2
FDC450CKXZA2 FDC450CKXZA2
FDC475CKXZA2
FDC500CKXZA2 FDC560CKXZA2 FDC560CKXZA2FDC560CKXZA2 FDC500CKXZA2
FDC500CKXZA2 FDC475CKXZA2 FDC475CKXZA2
／
52.8 48.9 ／
57.6 53.1 ／
62.4 57.3 ／
67.2 61.5 ／
67.8 62.1
／
95 94 ／
95 94 ／
95 95 ／
95 95 ／
94 94
／
67.8 62.1 ／
67.8 62.1 ／
72.1 66.0 ／
76.4 69.9 ／
80.7 73.8
／
94 94 ／
94 94 ／
94 94 ／
94 94 ／
94 94
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg 982 982 982 982 1120
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
3 Phase 380-415V 50Hz／380V 60Hz
Combination unit Models Power source Nominal cooling capacity
kW
kW
Power consumption Running current
A
Power factor
%
Net weight
kg 1120 1120 1120 1120 1120
Refrigerant piping size
Liquid line Gas line Oil equalization
φmm
120.0 125.0 130.0 135.0 142.5
32.94 35.94 38.93 41.93 41.91
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））
φ9.52（3/8"）
145.0 150.0 156.0 162.0 168.0 41.95 42.03 45.52 49.01 52.50
φ9.52（3/8"）
φ19.05（3/4"）
φ38.1（1・1/2"）（φ34.92（1・3/8"））

-
11
-
'21 • KX-T-380
PCB004Z538 A
Power source Power consumption Running current Net weight
Liquid line
Gas line
kW kW
A
kg
φmm（in）
Nominal cooling capacity Refrigerant piping size Power factor
%
φmm（in）
Power source Power consumption Running current Net weight
Liquid line Oil equalization
kW kW
A
kg
φmm（in）
Nominal cooling capacity
3 Phase 380-415V 50Hz／380V 60Hz
φ15.88 （5/8"）
φ31.75（1・1/4"）（ φ34.92（1・3/8"））
φ9.52（3/8"
）
Refrigerant piping size Power factor
%
φmm（in） φmm（in）
FDC280CKXZA2
FDCS280CKXZA2
FDC280CKXZA2
FDCS280CKXZA2
FDC280CKXZA2
FDCS280CKXZA2
φ38.1（1・1/2"）
（φ34.92（1・3/8"））
850 850 850 850
Oil equalization φmm（in）
3 Phase 380-415V 50Hz／380V 60Hz
FDC280CKXZA2
FDCS280CKXZA2
Gas line
894 938
φ19.05 （3/4"）
Combination unit
FDCS560CKXZXA2
FDC280CKXZA2
FDCS280CKXZA2
Models
FDC560CKXZXA2
Models Combination unit
FDC850CKXZXA2
FDCS850CKXZXA2
FDC280CKXZA2
FDCS280CKXZA2
FDC280CKXZA2
FDCS280CKXZA2
FDC335CKXZA2
FDCS335CKXZA2
FDC900CKXZXA2
FDCS900CKXZXA2
FDC280CKXZA2
FDCS280CKXZA2
FDC335CKXZA2
FDCS335CKXZA2
FDC335CKXZA2
FDCS335CKXZA2
FDC950CKXZXA2
FDCS950CKXZXA2
FDC335CKXZA2
FDCS335CKXZA2
FDC335CKXZA2
FDCS335CKXZA2
FDC335CKXZA2
FDCS335CKXZA2 FDC1000CKXZXA2
FDCS1000CKXZXA2
FDC335CKXZA2
FDCS335CKXZA2
FDC335CKXZA2
FDCS335CKXZA2
FDC400CKXZA2
FDCS400CKXZA2 FDC1060CKXZXA2
FDCS1060CKXZXA2
FDC335CKXZA2
FDCS335CKXZA2
FDC400CKXZA2
FDCS400CKXZA2
FDC400CKXZA2
FDCS400CKXZA2 FDC1120CKXZXA2
FDCS1120CKXZXA2
56.0
14.51
24.0／22.0
φ12.7 （1/2"）
φ28.58（1・1/8"）
92／92
567
φ9.52（3/8"
）
84.0 89.5
21.76
36.0／33.0
23.49
38.7／35.4
92／92
95.0
25.22
41.4／37.8
93／93
100.5
26.94
44.1／40.2
93／9392／92
107.0
28.94
94／93
113.5
30.94
94／94
47.0／43.1 49.9／46.0
• High-COP combination use

-
12
-
'21 • KX-T-380

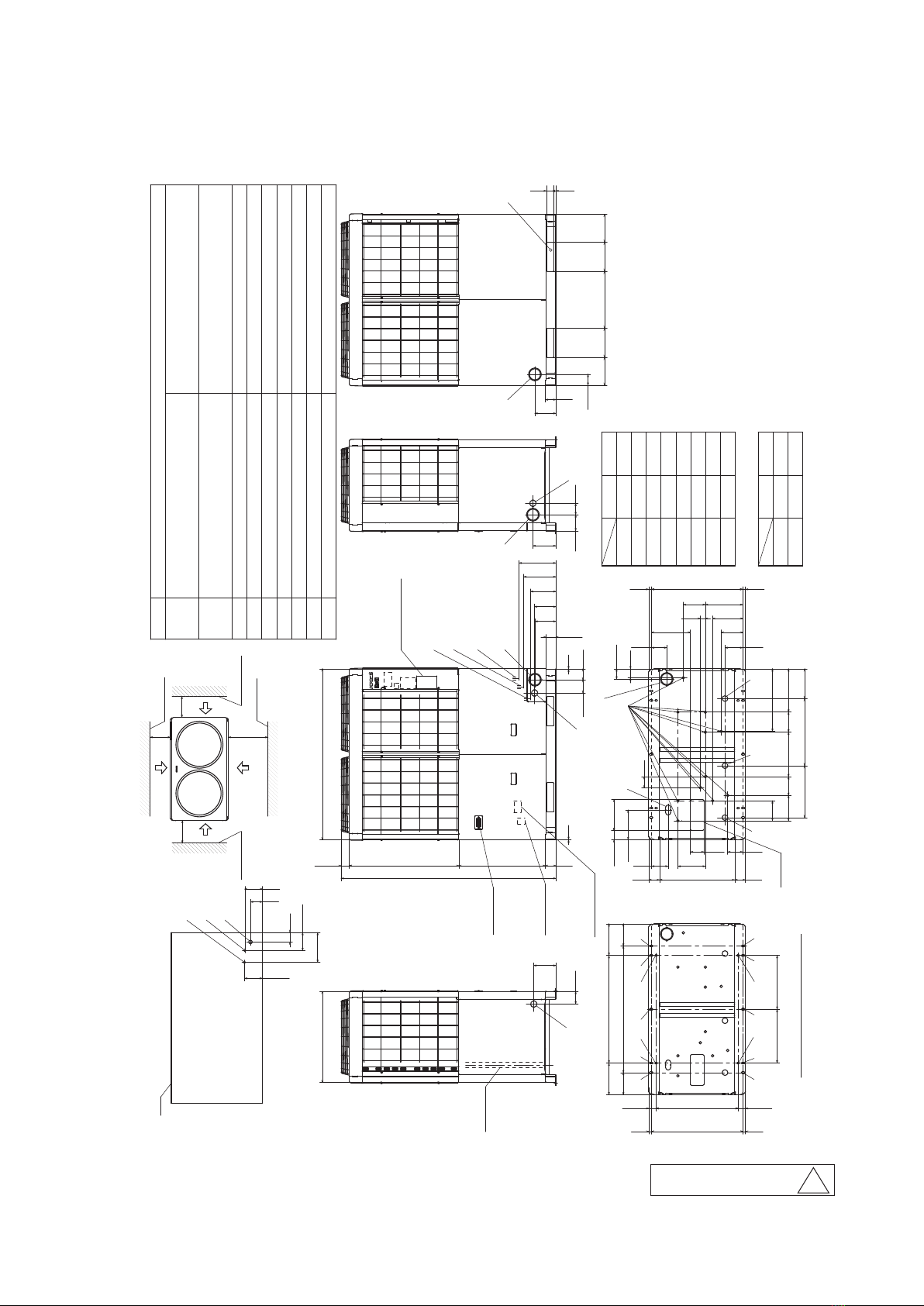

2.2 Exterior dimensions
Models FDC(S)280, 335(C)KXZA2
Back
142.5
75
AA
95
A
Wall height H2
Wall height H1
L1
H4
Wall height H4
H3 H2
L4
H1
L3
L2
Wall height H3
L4
L3
Installation
Dimensions
L1
L2
No limit
Open
100
No limit
1000 1500
10（30）
100
（Unit:mm）
10（30）
1
500
10（30）
2
For dimensions of anchor bolt hole
K B
141.7
236
Dimensions of refrigerant piping connection pipe
（ichnography）
Drain hole Drain waste water hose hole
Anchor bolt hole
Power source entry hole Refrigerant piping exit hole
H
G
D
F C
φ20,11 pcs.
φ45,3 pcs.
M10,4 pcs.
φ50（Right･Left･Front）,Long hole 40
×
80（Bottom）
φ88（or φ100）
Refrigerant gas piping connection pipe
Mark
A280:φ22.22（Brazing）
335:φ25.4（Brazing）
Content
L
KRefrigerant oil equalization piping connection pipe
Carrying in or hole for hanging 230
×
60
φ9.52（Flare）
example
No limit No limit
Open
Refrigerant liquid piping connection pipe
B280:φ9.52（Flare）
335:φ12.7（Flare）
Unit:mm
（）： In case it is the promised installation location
that the outdoor unit is used on conditions with the ambient temperature of 43℃or more.
Open Open
D（Left）100
175
Drain hose
720 1350
Power source
connection
terminal box D（Front）
291.6
AB
105
166
2
86
2
865.5
7-segment display
Signal wire connection
terminal box
64.5
B
C（Front）
A
169
Model name label
K
200.1
84
78.7
683
1697
C（Right）
128
182
D（Right）
90
166
450
86.5
230220 220230
L
C
（Back）
15 60
84
250
1000
（Position of anchor bolt of I）
647
（
Position of anchor bolt of F,J,M
）
72619
J
175
19
J
I
FIFJ
250850
I
FIF
175
J
58.5 58.5
M
M
（425） （425）Air inlet
235
131
G
246
217
107
59485
72.5
85
H
174
720
530
342
295
238
410
352
G
148 158
235
22
140
G
306.7
D（Bottom）
80.5
120
22
71
200
170
119
494
40
C（Bottom）
87
158
MODEL
AA
AB
142.5
261
335
139.5
255
Dimensions
280
Installation space
（）
Service space
Air inlet
Air inlet
Air inlet
Air inlet
PCB004Z522 B
※Use I, J, M holes for customers for renovation.

-
13
-
'21 • KX-T-380
Models FDC(S)400, 450, 475, 500, 560(C)KXZA2
H4
H3 H2
L4
H1
L3
Installation
Dimensions
L1
L2
No limit
Open
100
No limit
1000 1500
10（30）
100
（Unit:mm）
10（30）
1
500
10（30）
2
example
No limit No limit
Open
Drain hole Drain waste water hose hole
Anchor bolt hole
Power source entry hole Refrigerant piping exit hole
H
G
D
F C
φ20,11 pcs.
φ45,3 pcs.
M10,4 pcs.
φ50（Right･Left･Front）,Long hole 40
×
80（Bottom）
φ88（or φ100）
Refrigerant liquid piping connection pipe
Mark
B
φ12.7（Flare）
Content
L
K
Refrigerant oil equalization piping connection pipe
Carrying in or hole for hanging 230
×
60
φ9.52（Flare）
A
Refrigerant gas piping connection pipe 400:φ25.4（Brazing）
450,475,500,560:φ28.58（Brazing）
Unit:mm
（）： In case it is the promised installation location
that the outdoor unit is used on conditions with the ambient temperature of 43℃or more.
Open Open
Back
142.5
75
139.5
95
A
Wall height H2
Wall height H1
L1
Wall height H4
L2
Wall height H3
L4
L3
For dimensions of anchor bolt hole
K B
141.7
236
Dimensions of refrigerant piping connection pipe
（ichnography）
250
1000
（Position of anchor bolt of I）
647
（
Position of anchor bolt of F,J,M
）
72619
J
175
19
J
I
FIFJ
250850
I
FIF
175
J
58.5 58.5
M
M
（425） （425）Air inlet
235
131
G
246
217
107
59485
72.5
85
H
174
720
530
342
295
238
410
352
G
148 158
235
22
140
G
306.7
D
（Bottom）
80.5
120
22
71
200
170
119
494
40
C
（Bottom）
87
158
1350
Power source
connection
terminal box
D
（Front）
291.6
255
105
166
2
86
2
1220.9
7-segment display
Signal wire connection
terminal box
64.1
B
C
（Front）
A
169
Model name label
K
200.1
84
78.7
683
2052
D
（Left）100
175
Drain hose
720
C
（Right）
128
182
D
（Right）
90
166
450
86.5
230220 220230
L
C
（Back）
15 60
84
Installation space
（）
Service space
Air inlet
Air inlet
Air inlet
Air inlet
PCB004Z523 A
※Use I, J, M holes for customers for renovation.

-
14
-
'21 • KX-T-380

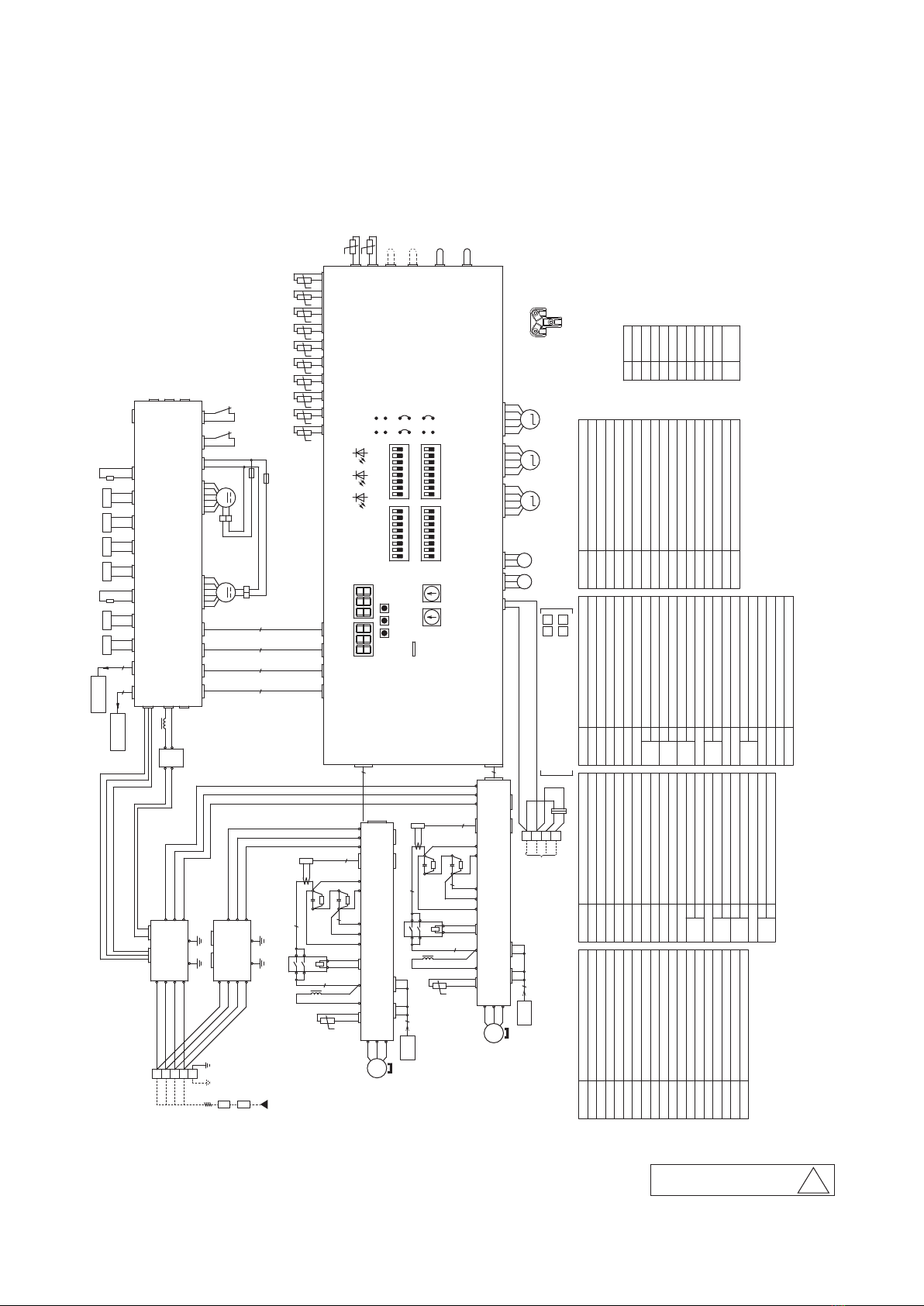

2.3 Electrical wiring
Models FDC(S)280, 335(C)KXZA2
Address setting switch（master・slave）
SW4-5 KXZE2 Model setting SW5-1 SW5-2 SW5-3 SW4-8 SW4-7 SW4-6
ON OFF ON OFF
Trial operationON
OFF
SW4-1−4 Model setting
Spare Regular operation Trial operation mode／cooling Trial operation mode／heating Pump down operation Regular operation Address setting switch（master・slave）
Fuse Compressor motor
F
Crankcase heater
EEVH1,2 EEVSC
CH1 CM1
High pressure sensor Low pressure sensor
CNA-Z
PSL
CT1
PSH SW2
Inspection LED reset Auto backup operation Regular operation
SW3-1 SW3-2
OFF ON
Address setting SW outdoor unit No.（2 digits）
SW1
Defrost recover temperature Defrost start temperature External input select level
／pulse
D.C.reactor
Printed wiring board（PCB）PWB1−4
C1-1,2
Set up model（volt） Inspection（Red）LED1
LED2 LED3
J11,12
J13 J14 J15
Address setting SW outdoor unit No.（1 digit）
Normal（Green） Service（green for service）
SV1 Solenoid valve（CM1:bypass）
J16
Spare
SV6 Solenoid valve（Oil separator CM1） SV11 Solenoid valve（Gas bypass）
Connector Current sensor
Electrolytic capacitor Expansion valve for heating Expansion valve for SC
Blower motor
FMo1,2
L1,L3
SpareSW3-3 Forced cooling／heating Check operation
SW3-7 ON
OFF
SW3-5
OFF ON
Regular operation Regular operation SpareSW3-6
KXZE2 Model settingSW5-4
SW5-5
OFF ON Superlink communication
Superlink Ⅱ communication SpareSW5-6−8 SpareSW6-1−3
SW6-4
OFF ON High Head
Standard
SW3-8 Spare
Refrigerant quantity checkSW3-4
OFF ON
Regular operation
Power transistor temperature sensor
7-segment indicate（ten's place）
Tho-P1
7-segment indicate（unit's place）
Tho-D1 Tho-H
SW8 SW9
TB1,2
4-way valve Suction pipe temperature sensor
Tho-A Tho-R3
Heat exchanger temperature sensor（inlet）
7SEG1 7SEG2 Tho-R4 Tho-S Tho-SC 20S
7-segment L.E.D.（functionindication）
7-segment L.E.D.（dataindication）
52X1-1
Solenoid for CM
Tho-R1 Heat exchanger temperature sensor（exhaust）
Terminal block External air temperature sensor
Tho-C1 Under-dome temperature sensor
Discharge pipe temperature sensor Sub-cooling coil temperature sensor 2 Heat exchanger temperature sensor（exhaust）Tho-R2 Heat exchanger temperature sensor（inlet） High pressure switch（for protection）63H1-1
Sub-cooling coil temperature sensor 1
Data clear／insertSW7
U（Red）V（White）
W（Blue）
Color marks
BK Black BL BR GN GY OR
Blue Brown Green Gray Orange
RD WH YE
Red White Yellow
PK Pink
Yellow
YE／GN
／Green
Mark Color
Meaning of marks
Parts nameMark Parts nameMark Parts nameMark Parts nameMark
t° t° t° t°t°t° t°t°t° t°
t°
M M M
MM
SpareSW6-5−8
MS
3〜
Compressor
Terminal block
L3
TB1
L1 L2
N
Power source
3Phase 380-415V ,50Hz
Circuit
breaker
A1 B1
A2 B2
380V ,60Hz
BETWEEN INDOOR UNIT AND OUTDOOR UNIT,BETWEEN
OUTDOOR UNITS ON THE SAME REFRIGERANT LINE.
BETWEEN OUTDOOR UNITS ON THE DIFFERENT REFRIGERANT LINES.
Earth leakage breaker
（Impulse
withstanding type）
YE／GN
YE
CNX1
E
CNTH1 WH
RD
CNB2
BK
CNB3
RD
CNB4 WH
CNF1
GN
CNF2
BL
CNU1
Tho-A
Tho-S
Tho-D1
Tho-R1
Tho-R2
Tho-R3
Tho-R4
Tho-SC
Tho-H
Tho-C1
PSH PSL
RD
WH
BK
CNL1 BL
RD
WH
BK
CNL2 WH
Cooling／Heating
forced input
Silent mode input
External
input
Demand
input
CNG1 BL CNG2 WH CNS1 GN CNS2 RD
TB6
N.F
PCB3-1
TB1
T4
RD
CN2 CN1
T3
TB7 TB8
TB2 TB3 T1
WH BL BK
TB2
A1 B1
A2 B2 CNSL1,2
WH
NETWORK CONNECTOR
Signal line
WH BL WH BK BK
RD WH BL
BK WH
PCB1 CONTROL SW2SW1
7SEG1 7SEG2
ON OFF 1 2 3 3654 7 8 21 54 76 8
SW3 SW5
1 2 73 4 5 6 8
SW4
1 2 73 4 5 6 8
SW6
SW7SW8SW9
LED3LED1 LED2
CNV RD
J14 J12 J11 J16
J13
PC
J15
ON OFF
Reserve
Trouble
output Operation output
CNZ1 RD CNH BK CNY WH
PCB4 POWER
CNN1 RD CNN2 YE
20S SV6
CNN6 BK
SV1
CH1
CNR1 WH
BK
63H1-1
CNQ1 WH
CNE5 WH CNA1 WH CNW BK
CNM1 WH
4
PCB2-1 CNR2,CNR3
CNZ WH
BK
CNFAN4
GY
CNK2
BK
CNE2
BK
CNK4
CNN9 BK
SV11
L3
- +
DS
~ ~
BL BL
RD
GY
14 8
4
7
BK
CNK3 BK
CNE1 GY
CNK1 BK
CNFAN3
CT1
Tho-P1
L1
WH
YE
YE
52X1-1
RD
+
C1-1
BL
1 2 3 4
5 6
2
2
2
GN GN
CNEEV1 RD
EEVSC
CNEEV2 BL
EEVH2
CNEEV3 WH
EEVH1
RD
BL
OR
YE
WH
RD
BL
OR
YE
WH
RD
BL
OR
YE
WH
RD
CNA3
CNFAN2 WH
FMo1 FMo2
CNFAN1 WH
F（4A）
BK
RD
F（4A）
RD BK
BK RD
WH
OR
YE
BL
GN
PK
WH
OR
YE
BL
GN
PK
RD BK
R1-1
+
C1-2
WH
R1-2
V
UW
CM1
RD
WH
BL
WH
CNI1
TB8 TB9 TB10
INV.
PCB2-1
TB1 TB2 TB3
WH
CNI2
CNR2 BK CNR3 BL
PCB4 CNM1
4
CNV WH CNZ WH
5
CNR1 CNC3CNIP
TB4 TB11 TB6TB5T11 T12
RDWHYE
RD
BL
BL
TB7
RD
4
BK
BK
RD BK
PCB004Z540 A

-
15
-
'21 • KX-T-380
Models FDC(S)400, 450(C)KXZA2
Address setting switch（master・slave）
SW4-5 KXZE2 Model setting SW5-1 SW5-2 SW5-3 SW4-8 SW4-7 SW4-6
ON OFF ON OFF
Trial operationON
OFF
SW4-1−4 Model setting
Spare Regular operation Trial operation mode／cooling Trial operation mode／heating Pump down operation Regular operation Address setting switch（master・slave） KXZE2 Model settingSW5-4
SW5-5
OFF ON Superlink communication
Superlink Ⅱ communication SpareSW5-6−8 SpareSW6-1−3
SW6-4
OFF ON High Head
Standard
Power transistor temperature sensor
7-segment indicate（ten's place）
Tho-P1
7-segment indicate（unit's place）
Tho-D1 Tho-H
SW8 SW9
TB1,2
4-way valve Suction pipe temperature sensor
Tho-A Tho-R3
Heat exchanger temperature sensor（inlet）
7SEG1 7SEG2 Tho-R4 Tho-S Tho-SC 20S
7-segment L.E.D.（functionindication）
7-segment L.E.D.（dataindication）
52X1-1,2
Solenoid for CM
Tho-R1 Heat exchanger temperature sensor（exhaust）
Terminal block External air temperature sensor
Tho-C1 Under-dome temperature sensor
Discharge pipe temperature sensor Sub-cooling coil temperature sensor 2 Heat exchanger temperature sensor（exhaust）Tho-R2
Heat exchanger temperature sensor（inlet）
High pressure switch（for protection）63H1-1
Sub-cooling coil temperature sensor 1
Data clear／insertSW7
U（Red）V（White）
W（Blue）
Color marks
BK Black BL BR GN GY OR
Blue Brown Green Gray Orange
RD WH YE
Red White Yellow
PK Pink
Yellow
YE／GN
／Green
Mark Color
Parts nameMark Parts nameMark
MS
3〜
t° t° t° t°t°t° t°t°t° t°
Fuse Compressor motor
F
Crankcase heater
EEVH1,2 EEVSC
CH1 CM1
High pressure sensor Low pressure sensor
CNA-Z
PSL
CT1
PSH SW2
Inspection LED reset Auto backup operation Regular operation
SW3-1 SW3-2
OFF ON
Address setting SW outdoor unit No.（2 digits）
SW1
Defrost recover temperature Defrost start temperature External input select level
／pulse
Printed wiring board（PCB）PWB1−4
C1-1,2
Set up model（volt）
J11,12
J13 J14 J15
Address setting SW outdoor unit No.（1 digit）
SV1 Solenoid valve（CM1:bypass）
J16
Spare
SV6 Solenoid valve（Oil separator CM1）
Connector Current sensor
Electrolytic capacitor Expansion valve for heating Expansion valve for SC
Blower motor
FMo1,2
SpareSW3-3 Forced cooling／heating Check operation
SW3-7 ON
OFF
SW3-5
OFF ON
Regular operation Regular operation SpareSW3-6
SW3-8 Spare
Refrigerant quantity checkSW3-4
OFF ON
Regular operation
Meaning of marks
Parts nameMark Parts nameMark
D.C.reactor Inspection（Red）LED1
LED2 LED3
Normal（Green） Service（green for service）
L1−L3
Capacity control
20UF
M M M
t°
MM
SpareSW6-5−8
Compressor
Terminal block
L3
TB1
L1 L2
N
V
UW
CM1
Power source
3Phase 380-415V ,50Hz
Circuit
breaker
A1 B1
A2 B2
380V ,60Hz
BETWEEN INDOOR UNIT AND OUTDOOR UNIT,BETWEEN
OUTDOOR UNITS ON THE SAME REFRIGERANT LINE.
BETWEEN OUTDOOR UNITS ON THE DIFFERENT REFRIGERANT LINES.
RD
WH
BL
Earth leakage breaker
（Impulse
withstanding type）
YE
WH
CNX1
CNI1
E
CNTH1 WH
RD
CNB2
BK
CNB3
RD
CNB4 WH
CNF1
GN
CNF2
BL
CNU1
Tho-A
Tho-S
Tho-D1
Tho-R1
Tho-R2
Tho-R3
Tho-R4
Tho-SC
Tho-H
Tho-C1
TB8 TB9 TB10
INV.
PCB2-1
TB1 TB2 TB3
PSH PSL
RD
WH
BK
CNL1 BL
RD
WH
BK
CNL2 WH
Cooling／Heating
forced input
Silent mode input
External
input
Demand
input
CNG1 BL CNG2 WH CNS1 GN CNS2 RD
WH
CNI2
TB6
N.F
PCB3-1
TB1
T4
RD
CN2 CN1
T3
TB7 TB8
TB2 TB3 T1
WH BL BK
TB6
N.F
PCB3-2
TB1
T4
RD
CN2
CN1
T3
TB7 TB8
TB2 TB3 T1
WH BL BK
YE／GN
PCB1 CONTROL SW2SW1
7SEG1 7SEG2
ON OFF 1 2 3 3654 7 8 21 54 76 8
SW3 SW5
1 2 73 4 5 6 8
SW4
1 2 73 4 5 6 8
SW6
SW7SW8SW9
LED3LED1 LED2
CNV RD
J14 J12 J11 J16
J13
PC
J15
ON OFF
TB2
A1 B1
A2 B2 CNSL1,2
WH
NETWORK CONNECTOR
Signal line
WH BL WH BK BK
14 8
4
7
Reserve
Trouble
output Operation output
CNZ1 RD CNH BK CNY WH
PCB4 POWER
20UF
CNE5 WH CNA1 WH CNW BK
CNM1 WH
4
BK
63H1-1
CNQ1 WH
PCB2-2 CNR2,CNR3
CNZ WH
BK
CNFAN4
GY
CNK2
BK
CNE2
BK
CNK4
CNN1 RD CNN2 YE
20S SV6
CNN7 YECNN6 BK
SV1
CH1
CNR1 WH
L3
- +
DS
~ ~
BL BL
RD
GY
BK
CNK3 BK
CNE1 GY
CNK1 BK
CNFAN3
5
CNEEV1 RD
EEVSC
CNEEV2 BL
EEVH2
CNEEV3 WH
RD
BL
OR
YE
WH
EEVH1
RD
BL
OR
YE
WH
RD
BL
OR
YE
WH
4
CNR2 BK CNR3 BL CNV WH CNZ WH
CNR1
CT1
CNC3CNIP
Tho-P1
TB4 TB11 TB7 TB12TB5T11 T12
L2 L1
WH RDYE
52X1-1
1 2 3 4
5 6
52X1-2
1 2 3 4
5 6
22
2
22
2 2
RD
BL
BL
BL
RD RD
2
4
GN GN
GNGN
RD WH BL RD WH BL
WH WH
BK BK
RD
CNA3
CNFAN2 WH
FMo1 FMo2
CNFAN1 WH
F（4A）
BK
RD
F（4A）
RD BK
BK RD
WH
OR
YE
BL
GN
PK
WH
OR
YE
BL
GN
PK
2 2 2
RD BK
+
C1-1
+
C1-2
22 2
RD
R1-2 R1-1
WH
TB13
WH
YE
YE
PCB4 CNM1
BK
BK
RD BK
PCB004Z541 A

-
16
-
'21 • KX-T-380
Models FDC(S)475, 500, 560(C)KXZA2
Address setting switch（master・slave）
SW4-5 KXZE2 Model setting SW5-1 SW5-2 SW5-3 SW4-8 SW4-7 SW4-6
ON OFF ON OFF
Trial operationON
OFF
SW4-1−4 Model setting
Spare Regular operation Trial operation mode／cooling Trial operation mode／heating Pump down operation Regular operation Address setting switch（master・slave）
Fuse Compressor motor
F
Crankcase heater
EEVH1,2 EEVSC CH1,2 CM1,2
High pressure sensor Low pressure sensor
CNA-Z
PSL
CT1,2
PSH SW2
Inspection LED reset Auto backup operation Regular operation
SW3-1 SW3-2
OFF ON
Address setting SW outdoor unit No.（2 digits）
SW1
Defrost recover temperature Defrost start temperature External input select level
／pulse
Printed wiring board（PCB）PWB1−4
C1-1,2,C2-1,2
Set up model（volt）
J11,12
J13 J14 J15
Address setting SW outdoor unit No.（1 digit）
SV1 SV2
Solenoid valve（CM1:bypass） Solenoid valve（CM2:bypass）
J16
Spare
SV7 Solenoid valve（Oil separator CM2） SV6 Solenoid valve（Oil separator CM1） SV11 Solenoid valve（Gas bypass）
Connector Current sensor
Electrolytic capacitor Expansion valve for heating Expansion valve for SC
Blower motor
FMo1,2
SpareSW3-3 Forced cooling／heating Check operation
SW3-7 ON
OFF
SW3-5
OFF ON
Regular operation Regular operation SpareSW3-6
KXZE2 Model settingSW5-4
SW5-5
OFF ON Superlink communication
Superlink Ⅱ communication SpareSW5-6−8 SpareSW6-1−3
SW6-4
OFF ON High Head
Standard
SW3-8 Spare
Refrigerant quantity checkSW3-4
OFF ON
Regular operation
Power transistor temperature sensor
7-segment indicate（ten's place）
Tho-P1,2
7-segment indicate（unit's place）
Tho-D1,2 Tho-H
SW8 SW9
TB1,2
4-way valve Suction pipe temperature sensor
Tho-A Tho-R3
Heat exchanger temperature sensor（inlet）
7SEG1 7SEG2 Tho-R4 Tho-S Tho-SC 20S
7-segment L.E.D.（functionindication）
7-segment L.E.D.（dataindication）
52X1-1,2
Solenoid for CM
Tho-R1 Heat exchanger temperature sensor（exhaust）
Terminal block External air temperature sensor
Tho-C1,2 Under-dome temperature sensor
Discharge pipe temperature sensor Sub-cooling coil temperature sensor 2 Heat exchanger temperature sensor（exhaust）Tho-R2 Heat exchanger temperature sensor（inlet） High pressure switch（for protection）
63H1-1,2
Sub-cooling coil temperature sensor 1
Data clear／insertSW7
Meaning of marks
Parts nameMark Parts nameMark Parts nameMark Parts nameMark
U（Red）V（White）
W（Blue）
Color marks
BK Black BL BR GN GY OR
Blue Brown Green Gray Orange
RD WH YE
Red White Yellow
PK Pink
Yellow
YE／GN
／Green
Mark Color
t° t° t° t°t°t° t°t°t° t°
MS
3〜
MS
3〜
D.C.reactor Inspection（Red）LED1
LED2 LED3
Normal（Green） Service（green for service）
L1−L3
M M M
t°t°
t°
t°
MM
SpareSW6-5−8
Compressor
Terminal block
L3
TB1
L1 L2
N
Power source
3Phase 380-415V ,50Hz
Circuit
breaker
A1 B1
A2 B2
380V ,60Hz
BETWEEN INDOOR UNIT AND OUTDOOR UNIT,BETWEEN
OUTDOOR UNITS ON THE SAME REFRIGERANT LINE.
BETWEEN OUTDOOR UNITS ON THE DIFFERENT REFRIGERANT LINES.
Earth leakage
breaker
（Impulse
withstanding type
）
YE／GN
YE
CNX1
E
CNTH1 WH
RD
CNB2
BK
CNB3
RD
CNB4 WH
CNF1
GN
CNF2
BL
CNU1
Tho-A
Tho-S
Tho-D1
Tho-R1
Tho-R2
Tho-R3
Tho-R4
Tho-SC
Tho-H
Tho-C1
TB8 TB9 TB10
INV.
PCB2-1
TB1 TB2 TB3
PSH PSL
RD
WH
BK
CNL1 BL
RD
WH
BK
CNL2 WH
Cooling／Heating
forced input
Silent mode input
External
input
Demand
input
CNG1 BL CNG2 WH CNS1 GN CNS2 RD
BL
CNI3
WH
CNI2
INV.
PCB2-2
TB1 TB2 TB3
WH
CNI2
V
U
W
CM1
RD WH BL
TB8 TB9 TB10
V
U
W
CM2
RD WH BL
PCB1 CONTROL SW2SW1
7SEG1 7SEG2
ON OFF 1 2 3 3654 7 8 21 54 76 8
SW3 SW5
1 2 73 4 5 6 8
SW4
1 2 73 4 5 6 8
SW6
SW7SW8SW9
LED3LED1 LED2
CNV RD
J14 J12 J11 J16
J13
PC
J15
ON OFF
TB2
A1 B1
A2 B2 CNSL1,2
WH
NETWORK CONNECTOR
Signal line
WH BL WH BK BK
CNEEV1 RD
EEVSC
CNEEV2 BL
EEVH2
CNEEV3 WH
EEVH1
RD
BL
OR
YE
WH
RD
BL
OR
YE
WH
RD
BL
OR
YE
WH
BK
CNU2 Tho-C2
GN
CNC2 Tho-D2
5
14 8
4
7
Reserve
Trouble
output Operation output
CNZ1 RD CNH BK CNY WH
PCB4 POWER
CNN1 RD CNN2 YE
20S SV6
CNN7 YECNN6 BK
SV1
CNN3 BL
SV7
CH1
CNR1 WH
BK
BK
CH2
CNR2 BL
63H1-1 63H1-2
CNQ1 WH CNQ2 WH
CNE5 WH CNA1 WH
L3
- +
DS
~ ~
CNW BK
CNM1 WH
4
CNM2 BL
4
SV2
PCB2-1 CNR2,CNR3
PCB2-2 CNR2,CNR3
BL BL
RD
GY
CNZ WH
BK
CNFAN4
GY
CNK2
BK
CNE2
BK
CNK4
CNN9 BK
SV11
BK
CNK3 BK
CNE1 GY
CNK1 BK
CNFAN3
TB6
N.F
PCB3-1
TB1
T4
RD
CN2
T3
TB7 TB8
TB2 TB3 T1
WH BL BK
CN1
BK WH
RD WH BL
GN GN
N.F
PCB3-2
TB1
RD
CN2
TB2 TB3
WH BL
CN1
BK WH
T4T3
T1
BK
TB6 TB7 TB8
RD WH BL
GN GN
CNR1
CT2
CNC3
Tho-P2
TB4 TB11
+
C2-1
+
C2-2
TB7 TB6TB5T11 T12
52X1-2
L2
CNIP RDWHYE
WH
YE
YE
RD
BL
BL
BL
RD
RD
1 2 3 4
5 6
2
2
2
CNR1
CT1
CNC3CNIP
Tho-P1
TB4 TB11 TB6TB5T11 T12
L1
RDWHYE
WH
52X1-1
RD
BK
BK
RD
+
C1-1
+
C1-2
TB7
BL
RD
1 2 3 4
5 6
2
CNR2 BK CNR3 BL CNV WH CNZ WH
PCB4 CNM1
4
CNR2 BK CNR3 BL CNV WH CNZ WH
4
RD
CNA3
CNFAN2 WH
FMo1 FMo2
CNFAN1 WH
F（4A）
BK
RD
F（4A）
RD BK
BK RD
WH
OR
YE
BL
GN
PK
WH
OR
YE
BL
GN
PK
R1-3
WH
R1-4
4
PCB4 CNM2
BK
BK
R1-3
WH
R1-4
2
4
YE
YE
2
WH
CNI1
5
RD BK
BK
BK
RD BK
PCB004Z542 A

-
17
-
'21 • KX-T-380
2.4 Noise level
Noise level 56 dB (A) at cooling
57 dB (A) at heating
Measured based on JIS B 8616
Mike position as highest noise level in position as below
Distance from front side 1m
Height 1m
Noise level 63 dB (A) at cooling
62 dB (A) at heating
Cooling Heating
Sound pressure level (dB)
(Standard 2 x 10 -
5
Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Cooling Heating
Sound pressure level
(dB)
(Standard 2 x 10
-
5Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Model FDC(S)280(C)KXZA2 Model FDC(S)335(C)KXZA2
Noise level 60 dB (A) at cooling
62 dB (A) at heating
Cooling Heating
Sound pressure level
(dB)
(Standard 2 x 10
-
5Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Model FDC(S)400(C)KXZA2
Noise level 61 dB (A) at cooling
Cooling Heating
(Standard 2 x 10
-
5Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
62 dB (A) at heating
Model FDC(S)450(C)KXZA2
Sound pressure level (dB)
Noise level
61 dB (A) at cooling
61 dB (A) at heating
Cooling Heating
(Standard 2 x 10 -
5
Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Model FDC(S)475(C)KXZA2
Sound pressure level
(dB)
Noise level
61 dB (A) at cooling
62 dB (A) at heating
Cooling Heating
(Standard 2 x 10 -
5
Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Model FDC(S)500(C)KXZA2
Sound pressure level
(dB)
Noise level
63 dB (A) at cooling
64 dB (A) at heating
Cooling Heating
(Standard 2 x 10
-
5
Pa)
Mid octave band frequency (Hz)
N40
N50
N30
N60
N70
N80
63 125 250 500 1000 2000 4000 8000
30
40
50
60
70
80
30
40
50
60
70
80
Model FDC(S)560(C)KXZA2
Sound pressure level (dB)
