Mitsubishi Heavy Industries SRK18YL-S User manual

Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES, LTD. Air Conditioner. To get the best long-lasting performance, read and follow this User’s Manual carefully before using your air- conditioner. After reading, please store the Manual in a safe place and refer to it for operational questions or in the event of any irregularities. This air-conditioner is intended for domestic use. Terima kasih Anda telah membeli MITSUBISHI HEAVY INDUSTRIES, LTD. Air Conditioner. Untuk mendapatkan kinerja unit yang terbaik dan tahan lama, silakan Anda membaca dan mengikuti Buku Pedoman Pengguna ini secara seksama sebelum menggunakan air-conditioner ini. Selesai membaca, simpan kembali Buku Pedoman ini di tempat yang aman dan jadikan buku ini sebagai bahan acuan jika ada yang belum jelas mengenai pengoperasian unit atau jika ada kelainan pada unit. Air-conditioner ini hanya diperuntukkan di dalam ruangan. Terima kasih kerana membeli alat penghawa dingin hasil keluaran daripada Industi Berat Mitsubishi, Ltd (MITSUBISHI HEAVY INDUSTRIES, LTD). Bagi mencapai prestasi penghawa dingin yang terbaik dan penggunaan yang berpanjangan, sila baca dan fahami buku panduan pengguna ini dengan sepenuhnya sebelum menggunakan alat penghawa dingin ini. Selepas membaca buku panduan ini, sila letakkan buku panduan ini di tempat yang selamat. Sila rujuk kepada buku panduan ini jika anda mempunyai apa-apa soalan tentang pengendalian alat ini ataupun semasa keadaan yang luar biasa. Alat penghawa dingin ini adalah untuk penggunaan di dalam negara sahaja.
USER’S MANUAL BUKU PANDUAN PENGGUNA
SRK10YL-S SRK13YL-S SRK18YL-S
INSTALLATION DIRECTIONS PETUNJUK PEMASANGAN
BUKU PEDOMAN
ARAHAN-ARAHAN PEMASANGAN
USER’S MANUAL
&
INSTALLATION DIRECTIONS
AIR-CONDITIONER
RMA012A031A
AIR-CONDITIONING & REFRIGERATION SYSTEMS
3-1, Asahi, Nishibiwajima-cho, Kiyosu, Aichi, 452-8561, Japan
http://www.mhi.co.jp
MITSUBISHI HEAVY INDUSTRIES - MAHAJAK AIR CONDITIONERS CO., LTD.
220 Lad Krabang Industrial Estate Free Zone 3, Soi Chalongkrung 31, Kwang Lamplatiew, Khet Lad Krabang, Bangkok 10520, Thailand Tel:[phone] Fax : [phone] http ://www.maco.co.th/
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONERS AUSTRALIA, PTY. LTD.
9C Commercial Road Kingsgrove NSW 2208 PO BOX 318 Kingsgrove NSW 1480 Tel:[phone] Fax : [phone] http://www.mhiaa.com.au

–1–
contents
Safety precautions ....................................................................................................................... 2
Choice of operations and features ...............................................................................................4

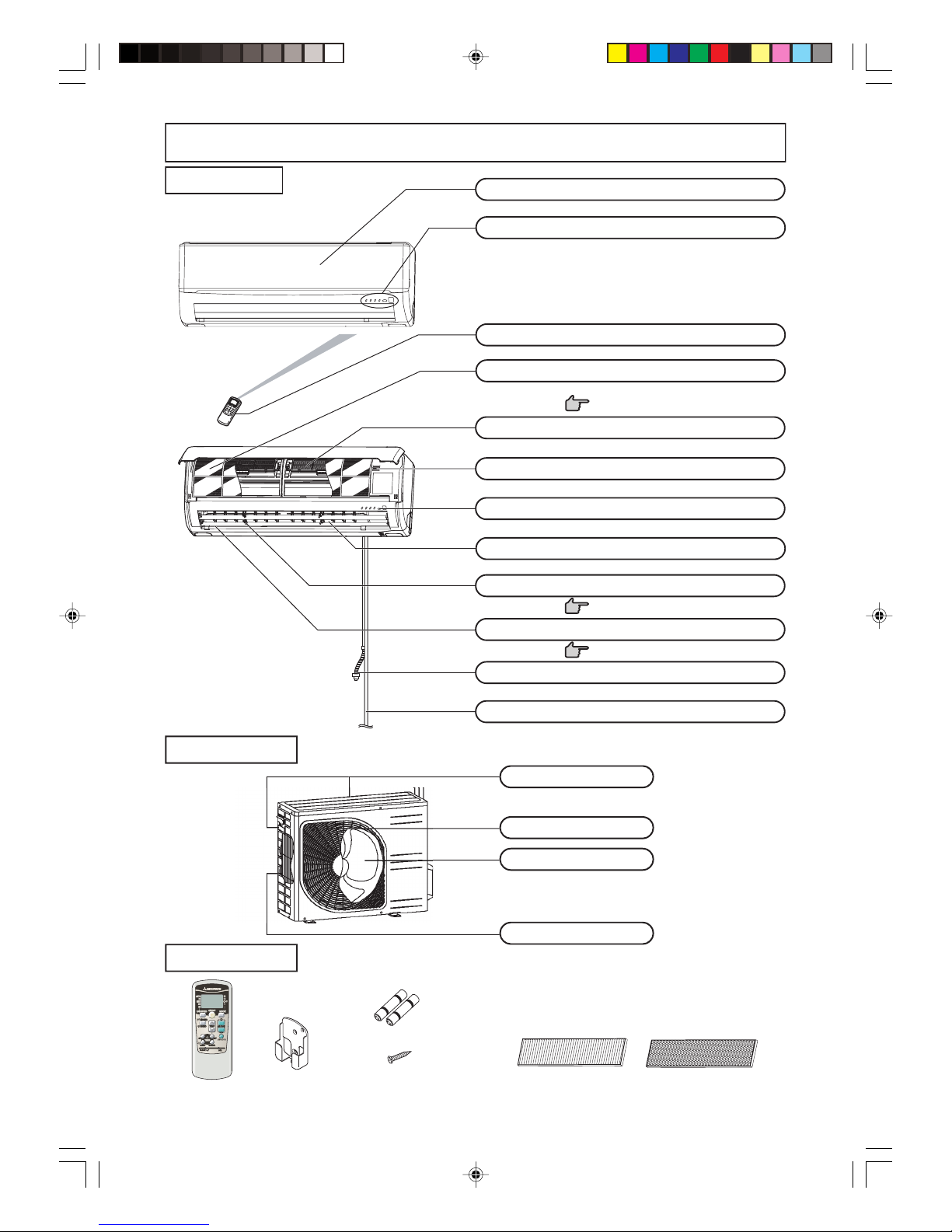

Name of each part and its function ............................................................................................. 5
Operation and indication section for remote control .................................................................. 7

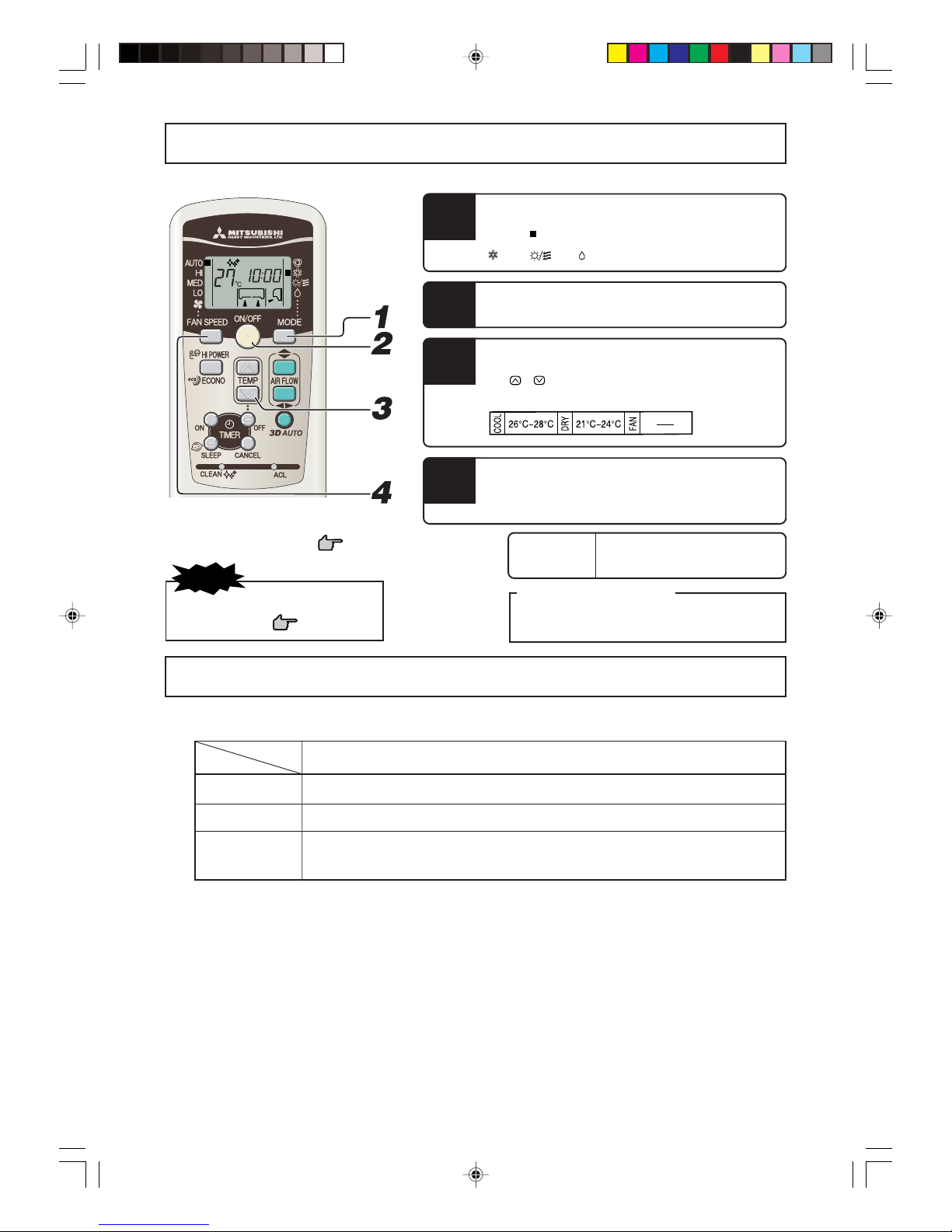

AUTO mode operation procedure .............................................................................................. 8
Temperature adjustment during AUTO ...................................................................................... 8
About FAN SPEED ..................................................................................................................... 8

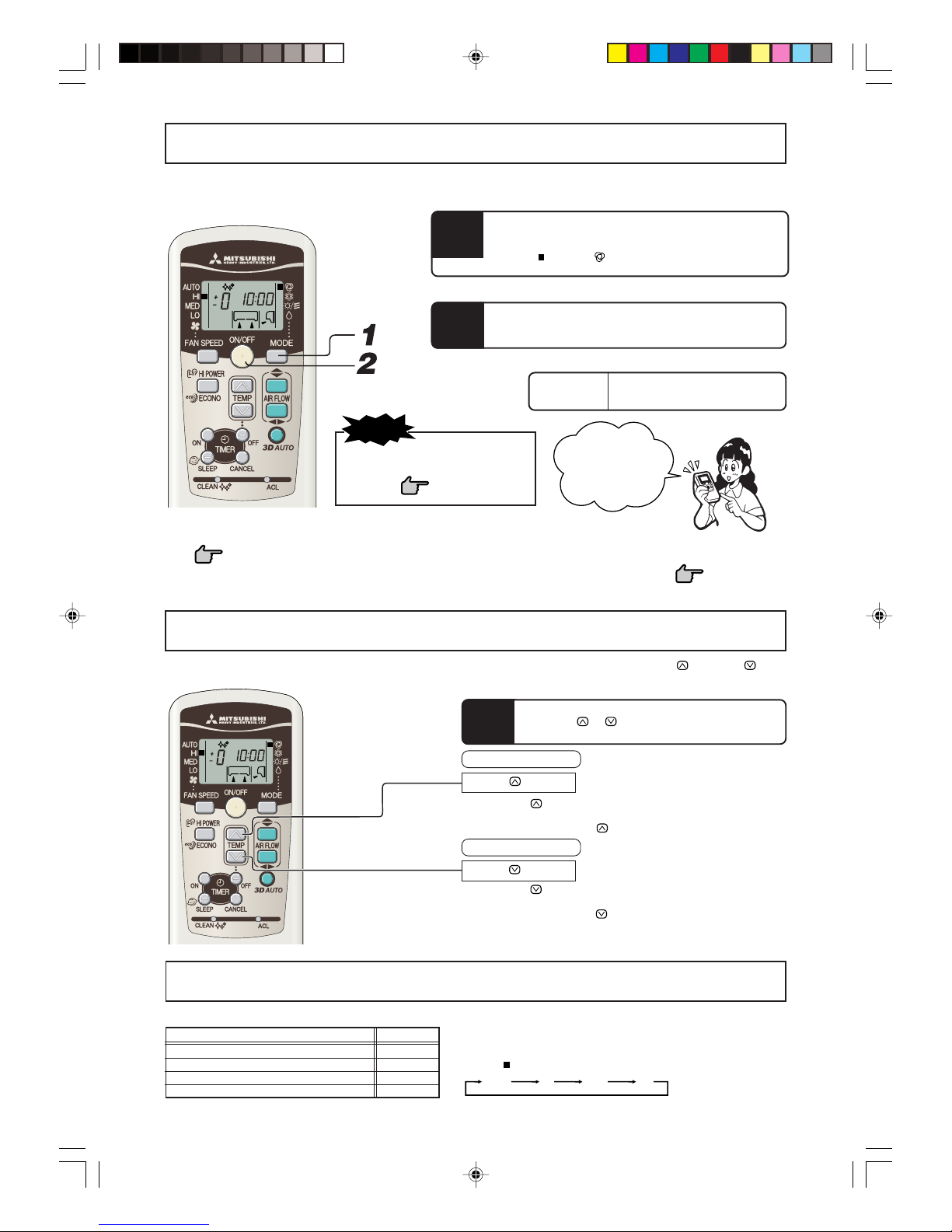

COOL/DRY/FAN mode operation procedure ............................................................................ 9
Air-conditioner operating conditions .......................................................................................... 9

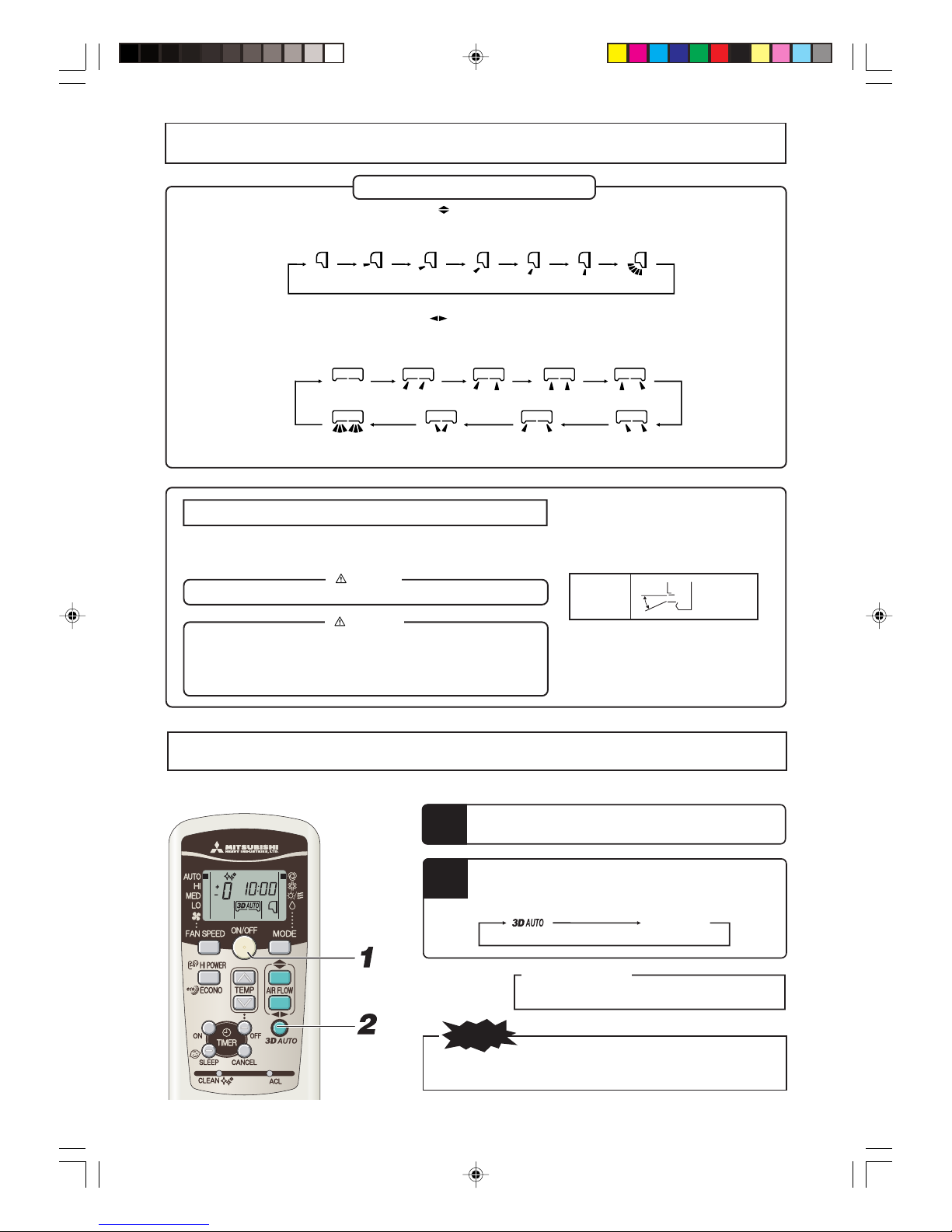

Air flow direction adjustment procedure .................................................................................. 10
3D AUTO operation procedure ................................................................................................ 10

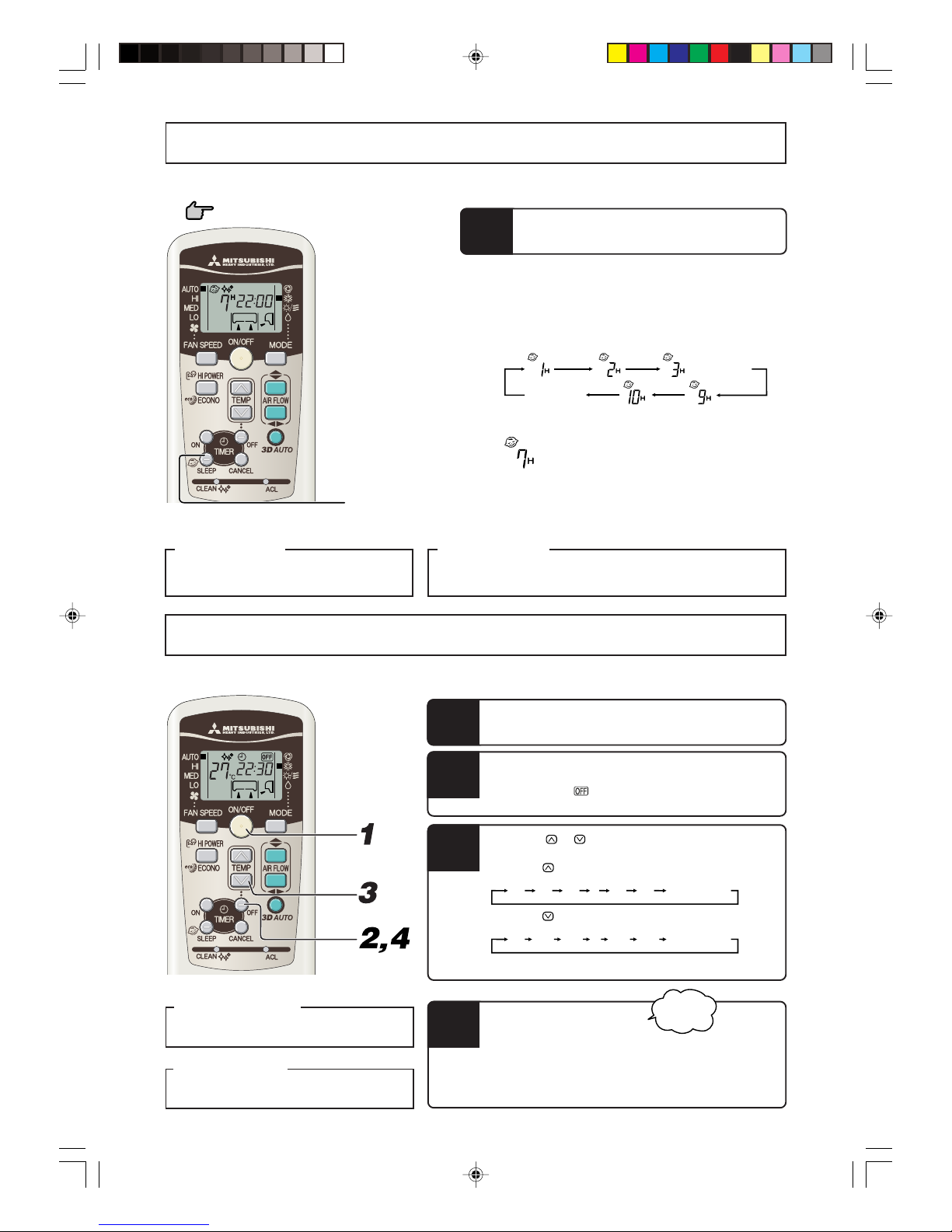

SLEEP operation procedure ...................................................................................................... 11
OFF-TIMER operation procedure ............................................................................................ 11

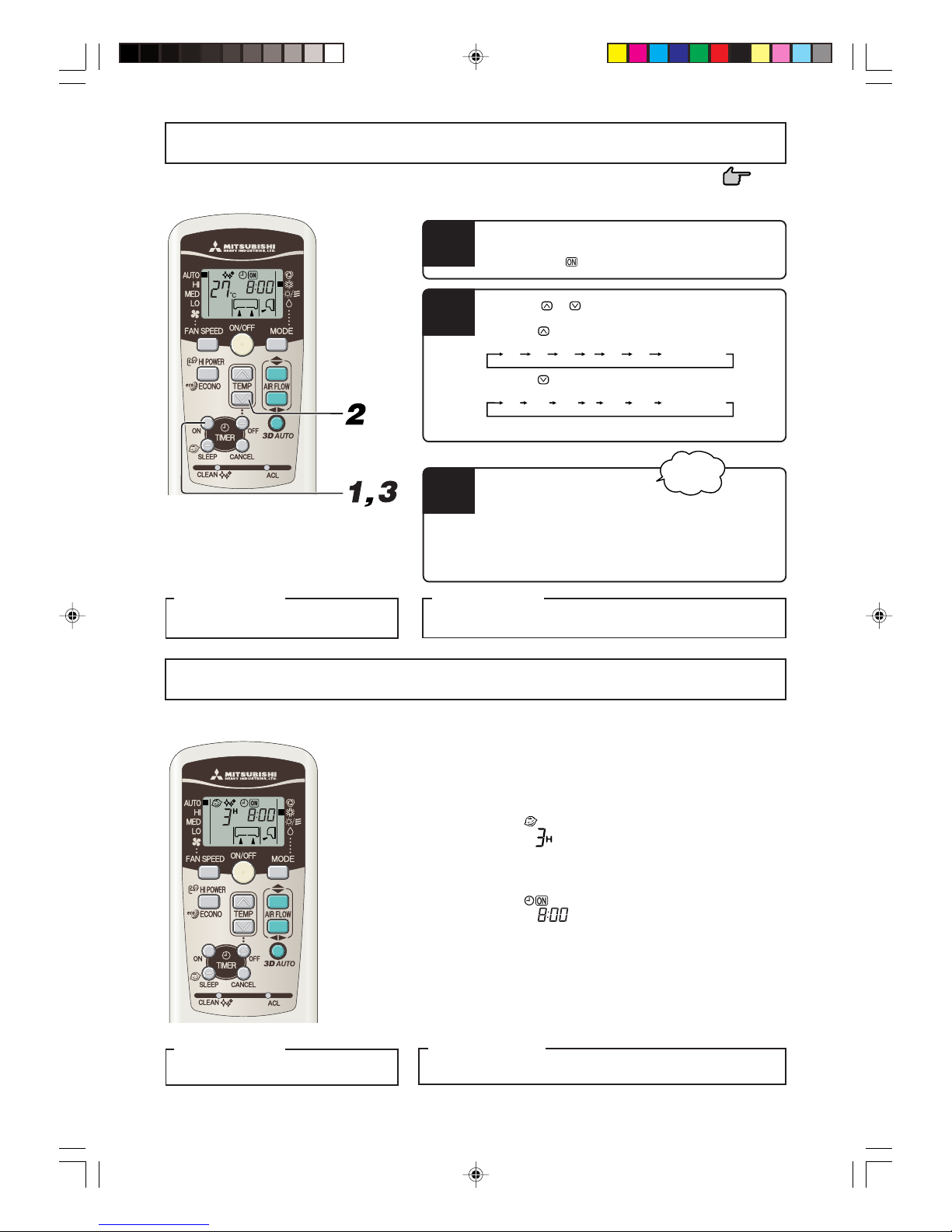

ON-TIMER operation procedure .............................................................................................. 12
SLEEP operation + ON-TIMER operation procedure ............................................................. 12
PROGRAM TIMER operation procedure ................................................................................ 13
Present time setting procedure ..................................................................................................13
HIGH POWER/ECONOMY operation procedure ................................................................... 14
Concerning CLEAN operation ................................................................................................. 15
Emergency run operation .......................................................................................................... 15
Power blackout auto restart function ........................................................................................ 15
Installation location setting ....................................................................................................... 16
Remote control handling procedure .......................................................................................... 17
When the operation fails with the remote control .................................................................... 17
Operating hints .......................................................................................................................... 18

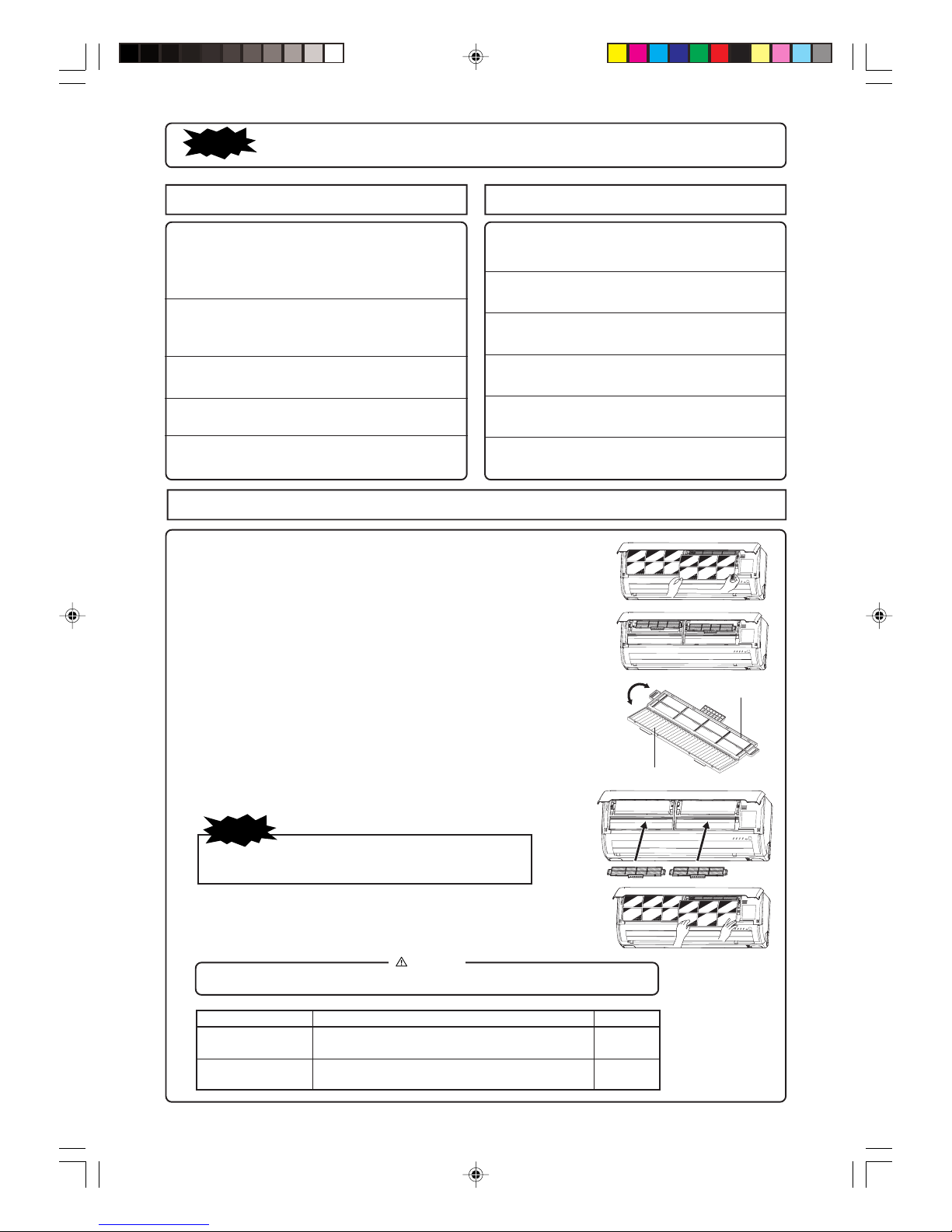

Maintenance .............................................................................................................................. 18
Has the unit been installed correctly? ....................................................................................... 20
Troubleshooting ........................................................................................................................ 20
Please remember! ...................................................................................................................... 21
When to contact your distributor without delay ....................................................................... 22
Self diagnosis function .............................................................................................................. 23
USER’S MANUAL
USER’S MANUAL

–2–
Safety precautions
•Before starting to use the system, please read these “Safety precautions” carefully to ensure proper operation of the system.
•The safety precautions are classified as “ DANGER” and “ CAUTION”. Precautions as shown in the column “ DANGER” indicate
that improper handling could lead to drastic result like death, serious injury, etc. Even precautions as shown in the column “ CAUTION”
might pose a serious problem, depending on the circumstances. Please observe these precautions with great care, since they are essential to your
safety.
•Symbols which appear frequently in the text have the following meaning:
•When you have read this instruction manual, please keep it without missing. If someone else takes over as operator, make certain that the manual
is also passed on to the new operator.
Strictly prohibited Provide proper earthing
Observe instructions with
great care
❚INSTALLATION PRECAUTIONS
Make sure that the system has been
properly earthed.
Depending on the place of installa-
tion, an earth leakage breaker may
be necessary.
Do not install it where flammable gas
may leak.
Make sure to install the drain hose
properly so that all the water is
drained out.
The system is for domestic, residential
etc. use.
The system must be installed by your
dealer or a qualified professional.
If used in severer environments,
such as an engineering workplace,
the equipment may function poorly.
It is not advisable to install the sys-
tem by yourself, as faulty handling
may cause leakage of water, electric
shock or fire.
Gas leaks may cause fire. If you do not install an earth leak-
age breaker, you may get an elec-
tric shock.
Improper installation may lead to
water drop in the room resulting
in wet furniture.
Earth cables should never be
connected to a gas pipe, water
pipe, lightning conductor or tel-
ephone earth cable. Incorrect in-
stallation of the earth cable may
produce an electric shock.
CAUTIONDANGER
❚OPERATION PRECAUTIONS
Do not expose yourself to the cooling
air for a long period.
Do not insert anything into the air inlet.
DANGER
The appliance is not intended for use by
persons (including children) with reduced
physical,sensory or mental capabilities,
or lack of experience and knowledge, un-
less they have been given supervision or
instruction concerning use of the appli-
ance by a person responsible for their
safety.
Store the remote control out of reach of
infants.
This could affect your physical
condition and cause health prob-
lems.
Do not place a flammable insecticide
or paint spray near the blower, nor
spray it directly on the system.
Do not handle the switches with wet
hands.
Only use approved fuses.
Do not swing from the indoor unit.
This may cause injury, as the in-
ternal fan rotates at high speed.
Use of steel or copper wire in-
stead of an approved fuse is
strictly prohibited, as it may
cause a breakdown or fire.
This may cause an electric
shock.
If the indoor unit falls down,
you may get injured.
This may result in a fire.
CAUTION
Do not wash the air-conditioner with
water.
You should not expose any combus-
tion appliance directly to the air
stream of the air-conditioner.
Children should be supervised to
ensure that they do not play with
the appliance.
The appliance may then work
inadequately.
This could cause an electric
shock.
Do not place anything containing wa-
ter, like vases, on top of the unit.
The system should only be used for its origi-
nal purpose and not for anything else like,
for instance, preservation of food, plants or
animals, precision devices or works of art.
Failure to observe this may re-
sult in the batteries being swal-
lowed or other accidents.
The system is only intended
for use in ordinary domestic
rooms. Any other use of the
system may damage the qual-
ity of food, etc.
Water entering the unit could
damage the insulation and there-
fore cause an electric shock.

–3–
❚Safety precautions
CAUTION
❚PRECAUTIONS FOR RELOCATION OR REPAIRS
DANGER
Do not operate the system without
the air filter.
When you clean the system, stop the
unit and turn off the power supply.
Do not install the system where the air-
flow direction is aimed directly at
plants or animals.
Do not sit on the outdoor unit nor put
anything on it.
After a long period of use, check the
unit's support structure from time to
time.
Do not place household electrical ap-
pliances or household items under
neath the indoor or outdoor units.
Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filters.
Do not touch the aluminum fins on the
air heat exchanger.
Do not place objects near the out-
door unit or allow leaves to gather
around the unit.
Contact your dealer to clean inside the
indoor unit, do not attempt to do by
yourself.
This will damage their health. If the unit falls down or things
drop off it, people could get hurt.
If you do not repair any damage
right away, the unit may fall
down and cause personal injury.
It may result in injury. Condensation falling from the
unit may stain objects and cause
accidents or electrical shock.
It can cause malfunction of the
system due to clogging of the
heat exchanger.
Failure to observe this may result
in injury through insecure objects
toppling over.
Never open the panel while the
internal fan is rotating.
If there are objects or leaves
around the outdoor unit, small
animals may enter unit and con-
tact electrical parts and may
cause a break-down, smoke or
fire.
The use of a non-approved deter-
gent or improper washing method
may damage the unit’s plastic com-
ponents and cause leaks. Damage,
smoke, or fire may also happen if
the detergent comes in contact with
electrical parts or the unit’s motor.
Consult your dealer for repairs.
If you notice anything abnormal (smell of
burning, etc.), stop the system, turn off
the power supply and consult your
dealer.
In case the air-conditioner is relo-
cated elsewhere, contact your dealer
or a professional fitter.
If the air-conditioner fails to cool or warm the room, it may have a refrigerant
leakage. Contact your dealer.
If refrigerant needs to be added, check with your dealer for proper instruc-
tions.
Wrong repairs could cause an
electric shock, fire, etc.
Faulty installation may cause wa-
ter leakage, electric shock, fire,
etc.
Continued use of the system in ab-
normal circumstances may result
in malfunctioning, electric shock,
fire, etc.
If the refrigerant comes in contact with the bare skin, it may cause cold injury.
If the refrigerant gas is inhaled excessively, it may cause deterioration of nerve function
like dizziness and headache, or deterioration of heart function like irregular heartbeat and
heart palpitation temporarily. If refrigerant unexpectedly leaks from the unit onto a fan
heater, stove, hotplate or other heat source, harmful gases could be generated.
If you operate the system together
with a combustion appliance, you
must regularly ventilate the indoor air.
Do not control the system with main
power switch.
It can cause fire or water leakage.
In addition, the fan can start un-
expectedly, which can cause per-
sonal injury.
Insufficient ventilation may
cause accidents due to oxygen
deficiency.
Do not shut off the power supply imme-
diately after stopping the operation.
Wait at least 5 minutes, otherwise
there is a risk of water leakage or
breakdown.
Do not perform any repairs or modifica-
tions by yourself. Consult the dealer if
the unit requires repair.
If you repair or modify the unit, it
can cause water leaks, electric
shocks or fire.
Stop the unit and turn off the power
if you hear thunder or there is a
danger of lightning.
It may damage the unit.

–4–
Choice of operations
Features
Page 9
Drying by extracting damp from the room.
Page 9
Cooling by extracting heat from the room.
COOL DRY
Functioning of microcomputer depends on setting and room tem-
peratures. It dehumidifies while keeping room temperature almost
constant.
Page 8
Automatic selection of operating mode.
Page 9
Fanning by circulating room air.
The Auto mode automatically
selects the operation mode
(COOL or DRY), depending
on the room temperature
when switched on.
AUTOFAN
Page 10
Page 11, 12
There are three timers, for SLEEP, ON and
OFF. They can be set as desired.
Page 13
When using the timer to switch on, the sys-
tem should become operational shortly be-
fore the set time, depending on the room
temperature so that the desired temperature
should be reached at the set time.
Amenity facility TIMER procedure
•SWING FLAP
Flap moves up and down continuously.
•SWING LOUVER
Louver moves left and right continuously.
•MEMORY FLAP (FLAP OR LOUVER STOPPED)
Once the flap or louver position has been set, the
unit will memorise it and continue in the same posi-
tion the next time.
Adjustment of
airflow
Page 14
Turning up the power operates the air-con-
ditioner in the power cooling mode.
HIGH POWER mode
Page 14
This is an economic level of operation.
ECONOMY mode
Choice of operations and features

–5–
Name of each part and its function
INDOOR UNIT
Draws in the indoor air.
Removes dust or dirt from the inlet air.
Page 18
Drains water from the dehumidified air.
Page 10
Page 10
Air blows out of here.
Accesso
r
ies
Wireless remote control
Battery (R03 ×2)
Wood screw (Quantity:2)
(for remote control holder mounting)
Wireless remote
control holder
OU
TD
OO
R
U
NI
T
Air inlet panel
Unit indication section and remote control signal receiver
Air-cleaning filter
Air filter
Wireless remote control
Drain hose
Left/right air flow adjustment louver
Up/down air flow direction adjustment flap
Air outlet
Unit operation switch
Room temperature detector
Refrigerant piping connection electric flex
Air outlet
Outdoor unit fan
Heat exchanger
Air inlet
(On side & rear surface)
Photocatalytic washable
deodorizing filter (Orange)
Natural enzyme filter
(Green)

–6–
Unit indication section
How to open the air inlet panel
Push both sides evenly and press further lightly at the center.
Place fingers at the recesses on both sides of the panel and pull up the panel
to this side so that it will be opened by about 60 degrees.
Unit ON/OFF button
Secure either the upper or lower edge of the air inlet panel by lightly pushing it
in, and then close the panel.
When removing the air inlet panel for internal cleaning or others, open the
panel by 80 degrees and then pull it to this side.
In emergencies, this button can be used for turning on/off the unit when
remote control is not available. Page 15
Removal, installation of air inlet panel
3D AUTO light (green)
Illuminates during 3D AUTO operation.
HI POWER light (green)
Illuminates during HIGH POWER operation.
RUN light (green)
Illuminates during operation
and CLEAN operation.
TIMER light (yellow)
Illuminates during TIMER operation.
Unit ON/OFF button
How to close the air inlet panel

–7–
Operation and indication section for remote control
Operation section
FAN SPEED button
Each time the button is pushed, the
indicator is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button pushed, the
indicator is switched over in turn.
ON/OFF (luminous) button
Press for starting operation, press again
for stopping.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 14 AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down) mode.
This button changes the air flow (left/right) mode.
Page 10
SLEEP button
This button changes to SLEEP operation.
Page 11
CLEAN switch
This switch changes the CLEAN mode.
Page 15
ON TIMER button
This button selects ON TIMER operation.
Page 12
AIR FLOW (LEFT/RIGHT) button
Page 10
3D AUTO button
This button sets 3D AUTO operation.
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
RESET switch
Switch for resetting microcomputer and
setting time. Page 13, 17
Indication section
SLEEP indicator
Indicates during SLEEP operation.
TEMPERATURE indicator
Indicates set temperature.
(Does not indicate temperature when operation
mode is on AUTO)
FAN SPEED indicator
Indicates set air flow rate with lamp.
CLEAN indicator
Indicates during CLEAN operation.
ON/OFF TIMER indicator
Indicates during ON/OFF TIMER operation.
AIR FLOW indicator
Shows selected flap and louver mode.
3D AUTO indicator
Indicates during 3D AUTO operation.
HI POWER/ECONO MODE indicator
Indicates during HIGH POWER/ECONOMY
mode operation.
Transmission procedure
When each button on the remote control is pressed with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
[
OPERATION MODE indicator
Indicates selected operation with lamp.
(Auto) • (Cool) • (Fan) • (Dry)]
OFF TIMER button
This button selects OFF TIMER operation.
Page 11
TEMPERATURE button
This button sets the room temperature.
(This button changes the present time and
TIMER time.)
TIME indicator
Indicates present time or timer setting time.
Page 10

–8–
■Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not change.
■Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
About FAN SPEED
■You can choose the capacity of your air-conditioner when cooling or fan.
Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button.
AUTO mode operation procedure
■Automatically selects the operation mode (COOL, DRY) depending on the room temperature when switched on.
Air flow direction adjustment proce-
dure. Page 10
1
When a change in temperature is desired.
Press the or button.
•Air is not blown out during the opera-
tion.
Page 21
•If you don’t want the AUTO mode program, change
to COOL, DRY or FAN instead of AUTO.
Page 9
AUTO mode can be oper-
ated by simply pressing
the ON/OFF button.
To stop: Press the ON/OFF button.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Aim the remote control at the air-conditioner.
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
Press the FAN SPEED button.
Move the [ mark] to the desirable fan speed position.
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
AUTO HI MED LO
NOTE

–9–
COOL/DRY/FAN mode operation procedure
Air flow direction adjustment procedure. Page 10
Program changing procedure
Set the new program.
•The operation program can also be set or changed when
the air-conditioner is not in operation.
Aim the remote control at the air-conditioner.
Press the MODE select button.
Move the [ mark] to the desirable operation position.
(Cool), (Fan), (Dry)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the desired temperature.
Standard
4
3
To stop: Press the ON/OFF button.
•Air is not blown out during the operation.
Page 21
NOTE
2
1
Air-conditioner operating conditions
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated, preventing
the unit from working.
Cooling operation
Outside temperature Approximately 21 to 43 °C
Inside temperature Approximately 21 to 32 °C
Below approximately 80%
The long-term use of the unit with a humidity level exceeding 80% may result in condensation forming on the
surface of the indoor unit, leading to water drips.
Press the FAN SPEED button
Set the fan speed as desired.
Inside humidity

–10–
Air flow direction adjustment procedure
Adjusting air flow direction
■Up/down direction can be adjusted with the AIRFLOW (UP/DOWN) button on the remote control. Each time when you press this
button the mode changes as follows:
Change to AIRFLOW (UP/DOWN) mode.
(Swing)
(Flap stopped)
■Left/right direction can be adjusted with the AIRFLOW (LEFT/RIGHT) button on the remote control. Each time when you press this
button the mode changes as follows:
Change to AIRFLOW (LEFT/RIGHT) mode.
(Louver stopped)
(Swing)
MEMORY FLAP (FLAP OR LOUVER STOPPED)
When you press the AIRFLOW (UP/DOWN or LEFT/RIGHT) button once while the flap or
louver is operating, it stops swinging at an angle.Since this angle is memorized in the microcom-
puter, the flap or louver will automatically be set at this angle when the next operation is started.
DANGER
•Avoid constant airflow to the body for hours on end.
CAUTION
•When in COOL or DRY operation, do not operate for hours on end with the
air flow blowing straight down. Otherwise, condensation may appear on the
outlet grill and drip down.
•Do not try to adjust the flaps and louvers by hand, as the control angle may
change or the flap or louver may not close properly.
(Horizontal
blowing)
COOL, DRY
•Recommended angle of the flap when stopping
3D AUTO operation procedure
2Press the 3D AUTO button.
Each time the 3D AUTO button is pressed, the indicator is switched
in the order of:
No indication
Fan speed and air flow direction are automatically controlled, allowing the entire room to be efficiently conditioned.
(3D AUTO) (Normal operation)
•3D AUTO operation is cancelled when you switch the operation program.
•The 3D AUTO light illuminates during 3D AUTO operation.
NOTE
Press the ON/OFF button.
1
Releasing procedure
Press the 3D AUTO button to turn off the 3D AUTO indicator.

–11–
No indication
(cancelled)
... (Units of one hour)
■If this is pressed while the unit is off
SLEEP operation starts with the previous operation settings, and the air con-
ditioning is turned off after the time that has been set passes.
■If this is pressed while the unit is running
Each time the button is pressed, the indication changes as follows:
Example: You wish it to stop after 7 hours.
Set to
The timer light (yellow) is on.
h
•The unit stops at the end of the set period of time.
OFF-TIMER operation procedure
2
Example: You wish it to stop 22:30.
Press the ON/OFF button.
Press the OFF TIMER button.
OFF TIMER indicator is blinking.
Press the “ or ” button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
■ The unit stops automatically at the end of the set period of time. If it is stopped, perform the operations starting with STEP 1 and if running start with STEP 2.
Changing of set time
Set to a new time by using SLEEP button.
SLEEP operation procedure
■The unit stops automatically at the end of the set period of time.
The room temperature is automatically controlled when the set time lapses, so that the room does not become too cold during cooling.
Page 13
Press the SLEEP button.
Releasing procedure
Press the CANCEL button to turn off the SLEEP indicator.
1
1
1
4
Changing of set time
Set a new time by using the OFF TIMER button. Press the OFF TIMER button.
The indication changes from blinking to steady lighting and the setting is com-
plete.
The timer light (yellow) is on.
h
•The unit stops at the end of the set period of time.
Releasing procedure
Press the CANCEL button to turn off the timer indi-
cator.
Press within
60 sec.!

–12–
ON-TIMER operation procedure
1
2
Changing of set time
Set a new time by using the ON-TIMER button.
Example: In the case you wish to bring the temperature to nearly set temperature in at 8:00.
Press the ON-TIMER button.
ON TIMER indicator is blinking.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
3
■ Operation starts 5 to 60 minutes before the time that is set so that the room temperature reaches the optimum temperature at that time. Page 13
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP operation + ON-TIMER operation procedure
■Combined timer operation of SLEEP operation and ON TIMER. 1-time event setting.
Example: When it is desired to stop after 3 hours and then start operation at 8:00, near
the set temperature.
■SLEEP operation setting
Set by the procedures on page 11.
Set to
■ON TIMER operation setting
Set by the above mentioned ON TIMER operation procedure.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
h
•After the SLEEP operation set time has elapsed, the operation stops, and it
starts from 5 to 60 minutes before the ON TIMER’s time.
•The timer light is not lit at the ON TIMER’s time.
Changing of set time
Set a new time by using the SLEEP or ON TIMER
button.
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
Press the “ or ” button.
Each time the button is pressed, the indicator is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Each time the button is pressed, the indicator is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ON TIMER button.
The indication changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
h
•Operation starts 5 to 60 minutes before the set time.
•The TIMER light goes out at the set time.
Press within
60 sec.!

–13–
PROGRAM TIMER operation procedure
■The timer operations that consist of the combination of the timer being set at both on and off. Once this has been set and operations started,
operations will commence and end at the same time every day as long as the ON/OFF button is not pressed.
Example: When it is desired to stop at 22:30, and then start operation at 8:00, near the set
temperature.
■OFF TIMER operation setting
Set by the procedures on page 11. Set to
■ON TIMER operation setting
Set by the procedures on page 12. Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
The time will be displayed on the remote control unit. The display will change
depending on the operational status.
(Stopped) (Operating)
Releasing procedure
Press the CANCEL button to turn off the timer indicator.
2
Present time setting procedure
■When inserting the batteries, the present time is automatically set to time setting mode.
Example: Set to 10:30.
Press the ACL switch.
Press with the tip of a ballpoint pen, etc.
The time indicator blinks and can be set to the current time.
Press the “ or ” button.
(Set to 10:30)
Press the ON/OFF button.
The indication changes from blinking to steady lighting and the setting is complete.
1
3
Changing of set time
Set a new time by using the OFF TIMER or ON TIMER button.
About Amenity facilities
Amenity facilities enable to start the operation a little earlier, so that the room
should approach optimum temperature at ON time when the operation is
started by ON-TIMER.
•Mechanism
The room temperature is checked
60 minutes before the timer is at
ON. Depending on the tempera-
ture at that time, the operation
starts 5 to 60 minutes before the
timer is at ON.
•The Amenity facility only func-
tions for COOL operation mode
(including AUTO). It does not
work for DRY mode.
About SLEEP operation
When SLEEP operation is selected, the room temperature is automatically
controlled after a while, ensuring that the room is not too cold during cooling
or too warm during heating.
•During COOL : the preset temperature is lowered by 1°C at the start of
SLEEP operation (when the timer is set). After that, the temperature goes
up by 1°C every an hour to become 2°C higher.
•The timer operation is set on the basis of the present time, so please set it cor-
rectly.
•The remote control data is reset when the present time is set.
NOTE
Press within
60 sec.!
In COOL operation
(Stop) Operation starts
Set time
(Operation)
▼
Set temperature
Check the room
temp. 60 mins.
in advance.
▼

–14–
HIGH POWER/ECONOMY operation procedure
2
If the air-conditioner is not operating, aim the remote control at the air-conditioner.
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode is AUTO or COOL
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
•When the operating mode is DRY or PROGRAM TIMER
Each time the HI POWER/ECONO button is pressed, the indicator is switched
in the order of:
1
( HIGH POWER )( ECONOMY )(Normal operation)
( ECONOMY )(Normal operation)
Concerning HIGH POWER operation
Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling operation for 15 minutes continuously.
The remote control indicates but the FAN SPEED indication is erased.
•During the HIGH POWER operation, the room temperature is
not controlled. When it causes an excessive cooling, press the HI
POWER/ECONO button once more to cancel the HIGH
POWER operation.
•HIGH POWER operation is not available during the DRY, the
program timer operations and 3D AUTO operation.
•During ON timer operation, HIGH POWER operation will start
when the ON time is reached.
•When the following operations are conducted HIGH POWER op-
eration will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER opera-
tion has started.
4When the 3D AUTO button is pressed.
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling. The unit
operates 1.5°C higher than the setting temperature for weak wind capacity during cooling. The remote control indicates but the FAN
SPEED indication is eraseed.
NOTE
•It will go into ECONOMY operation the next time the air-condi-
tioner runs in the following instances.
1 When the air-conditioner is stopped using the ON/OFF but-
ton.
2 When the air-conditioner is stopped in SLEEP or OFF
TIMER operation.
3When CLEAN operation ends.
•When the following operations are conducted ECONOMY opera-
tion will be canceled.
1When the HI POWER/ECONO button is pressed again.
NOTE

–15–

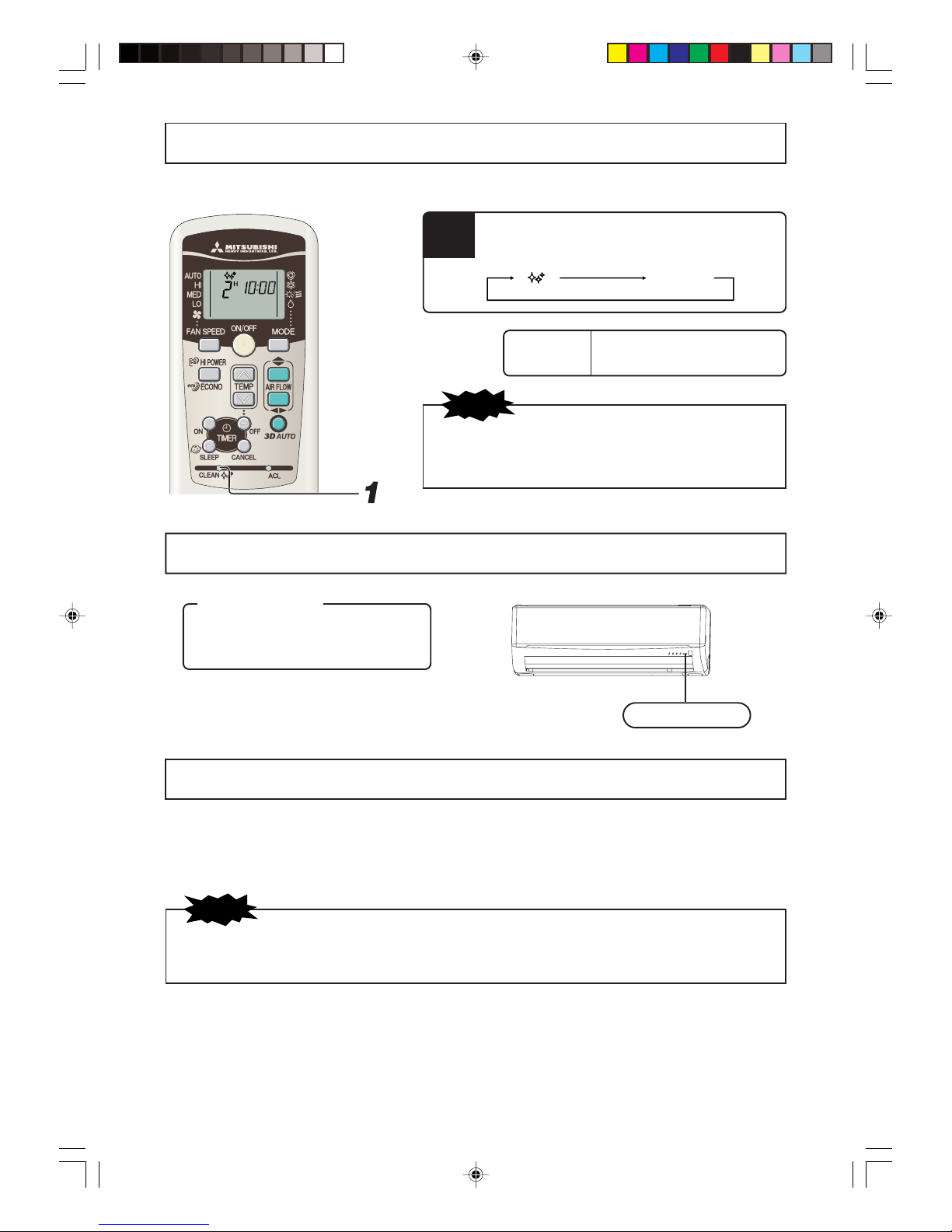

Concerning CLEAN operation
1Press the CLEAN switch with the tip of a ballpoint pen.
Each time the CLEAN switch is pressed, the indicator is
switched in the order of:
No indication
■CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control the
growth of mold and bacteria.
(CLEAN on) (CLEAN off)
To stop: Press the ON/OFF button.
•CLEAN operation is impossible after Fan, OFF-TIMER and SLEEP have
stopped.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light illuminates during CLEAN operation.
Emergency run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press
the button again.
Unit ON/OFF button
Power blackout auto restart function
■What is power blackout auto restart function?
•Power blackout auto restart function is a function that records the operational status of the air-conditioner immediately prior to it being switched
off by a power cut, and then automatically resumes operations at that point after the power has been restored.
•The following settings will be cancelled:
1Timer settings
2HIGH POWER operations
•The power blackout auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this
function needs to be switched off.
•When power failure ocurrs, the timer setting is cancelled. Once power is resumed, reset the timer.
NOTE
NOTE

–16–
Installation location setting
3
Setting the air-conditioning installation location.
Each time the AIR FLOW (LEFT/RIGHT) button is pressed, the
indicator is switched in the order of:
Press the AIR FLOW (LEFT/RIGHT) button and adjust to the
desired location.
Take the air conditioning unit’s location into account and adjust the left/right airflow range to maximize air-conditioning.
(Center Installation) (Right End Installation) (Left End Installation)
2
Press the AIR FLOW (UP/DOWN) button and the
AIRFLOW (LEFT/RIGHT) button together for 5 seconds
or more.
The installation location display illuminates.
1
If the air conditioning unit is running, press the ON/OFF
button to stop.
The installation location setting cannot be made while the unit is running.
4
Press the ON/OFF button.
The air-conditioner's installation location is set.
Press within 60 seconds of setting the installation location (while the
installation location setting display illuminates).
Press within
60 sec.!
Air conditioner installation location and airflow range
The diagram below indicates the airflow ranges corresponding to the air-conditioner's installation location. Consider your room's layout and
set the airflow range to maximize conditioning effectiveness.
Airflow range Airflow range Airflow range
(Left End Installation) (Center Installation) (Right End Installation)
General Information
• mark will be displayed on the display panel while the air conditioner is in operation, regardless of the installation location of the unit.
• When installation location of the air conditioner had been set once, installation location will be memorized into the unit even if
unplugging the power cord. Please set it with a remote control again in case of changing the installation location of the unit.
• The installation location setting can not be performed while the unit is in operation.

–17–
Remote control handling procedure
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Indicator fades away.
•On the battery is printed its expected life. This may be
shorter than that of the air-conditioner, depending on the date
of manufacture.
•However, the battery may still be in working order after ex-
piry of its nominal life.
NOTE
•Don't use old and new batteries together.
•Remove the batteries when the remote control is not used for a
long period.
•The life of a battery conforming to JIS or IEC should be 6 to 12
months with normal use. If used longer, or when an unspecified
battery is used, liquid may leak from the battery, causing the
remote control to malfunction.
Remove back lid and take out
old batteries.
Insert new batteries.
R03(AAA, Micro)x2
Close back lid.
When the indicator shows any abnormal condition, Press the reset
switch with the tip of a ballpoint pen.
1
2
3
Attention to
the ,and .
marks
Press the reset switch with the
tip of a ballpoint pen.
The time setting mode is indicated.
Page 13
4
•Don’t drop the remote control.
Handle with care.
•Don’t go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
Warning note for remote control handling
•Don’t put any obstructing obsta-
cles between the remote control
and the unit.
•Don’t spill water etc on the re-
mote control.
•Don’t leave the remote control ex-
posed to direct sunlight or other
strong lighting.
When the operation fails with the remote control
Using the remote control holder
The remote control can be attached to
a wall or pillar by using a remote con-
trol holder. Before installing the re-
mote control, check that the air-condi-
tioner receives the signals properly.
For installing or removing the remote
control, move it up or down in the
holder.
•Are the batteries running down?
"Replacing the batteries" above.
Replace the batteries with new ones and repeat the operation.
•If the operation still fails, handle as per emergency
run operation.
Contact your dealer.
Page 15

–18–
Operating hints
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively low temperatures are not good
for your health and waste electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the cur-
tains or blinds when cooling. Keep windows
and doors shut, except when ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
Clean the filters frequently.
Clogged filters may block the air flow and
cause less efficient operation.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow to
ensure a steady room temperature.
Generate little heat when cooling.
Keep heat sources out of the room as much
as possible.
suitable
temperature
Turn off the power switch.
Remove the air filter
1Pull up to this side the air inlet
panel.
2
Lightly hold the knobs at both sides
and lift a little to remove the panel
to this side.
Maintenance
Cleaning the air filter Standard interval is once every two week
Don’t use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
•Petrol, paint thinner, benzine or polishing agents,
etc.
They may deform or scratch the unit.
•Don’t spill water.
•Do not touch the aluminum fins on the
heat exchanger.
•
Stand firmly on a stepladder or other stable
object when removing the inlet panel and filter.
Cleaning
If the filter is very dirty, clean it with warm
water (approx. 30°C), and dry it thoroughly.
CAUTION
•Don’t clean the filters with boiling water.
•Don’t dry them over an open flame.
•Pull them out gently.
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
1
2
Before maintenance During the operational season
Reinstall the air filter
•Holding firmly the filter at both sides as shown at
right and insert securely.
•Operating without putting back the air filters will
make the unit dusty, and may cause damage.
Cleaning the air inlet panel
•Removal, installation of air inlet panel . Page 6
•The panel can be washed with water. After washing
with water, wipe any moisture off the panel and dry
out of direct sunlight.
Wipe the unit with a soft,
dry cloth.
There's a danger
of electric shock.
3

–19–
Item Feature Color
Stop the unit and turn off the power switch.
The unit uses appr. 2W even when the power switch has been turned
off during the off-season for safety or for saving energy.
At the beginning of the season
Ensure that nothing has snapped and that the
earthed flex is not disconnected.
Make certain that there are no obstacles blocking
the air flow around the air intake and outlet open-
ings of the indoor and outdoor units.
Cooling is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It may also use
extra electricity. Please clean the air filter at appropriate intervals.
1
2
Remove batteries from the remote control.
Clean both the indoor and outdoor units.
Clean and reinstall the air filters.
Perform the fan operation for a half day.
Dry the inside of the unit.
3
4
5
Check the installation base for corrosion or rust.
Insert batteries in the remote control.
Turn on the power switch.
Ensure that the air filters are clean.
1
2
3
4
5
6
1. Open the air inlet panel and remove the air filters.
2. Remove the filter holders, with the air-cleaning filter installed in the folders, from the air-
conditioner.
3. Remove the natural enzyme filter from filter holder and inspect the filter. Use a vacuum
cleaner to remove any dust or dirt from the natural enzyme filter. Replace the natural en-
zyme filter if it cannot be cleaned or if it has been for about 1 year.
(The natural enzyme filter should be replaced after about 1 year of use. However, the actual
replacement period may vary depending on the conditions in which the filter is used.)
Remove the photocatalytic washable deodorizing filter from the filter holder and inspect
the filter. Periodically, remove any dust or dirt from the photocatalytic washable deodoriz-
ing filter. If the photocatalytic washable deodorizing filter is particularly dirt, it may be
washed with water. However, the filter is fragile so be sure to wash it installed in the filter
holder to avoid damaging it. After washing the filter, place it in sunlight to dry. Placing the
filter in sunlight revitalizes the deodorizing effect.
(Do not dispose of the filter holders. They are reused. )
4. Install the natural enzyme filter and the photocatalytic washable deodorizing filter in the
filter holders, and then install the filter holders in the air-conditioner.
5. Install the air filters and closed the air inlet panel.
Filter
Filter holder
NOTE
The natural enzyme filter and the photocatalytic washable deodorizing fil-
ter may be installed on either the right or left side of the air-conditioner.
For replacement the air-cleaning filter, contact your dealer.
By using the work of oxygen, mold and bacteria on the filter
are destroyed and the room air is kept clean.
Natural enzyme filter Green
InstallInstall
At the end of the season
CAUTION
Do not expose natural enzyme filters to direct sunlight for an extended period. The bacteriolytic effect will be lost.
NOTE
Sources of odors on the filter are broken up, resulting in a
deodorizing effect.
Photocatalytic washable
deodorizing filter Orange
Installing, inspecting, and replacing the air-cleaning filter
