Mitsubishi Heavy Industries SKM20ZSP-S User manual

USER’S MANUAL
AIR-CONDITIONER
RLC012A012
SRK25ZMP-S
SRK35ZMP-S
SRK45ZMP-S
SKM20ZSP-S
SKM25ZSP-S
SKM35ZSP-S
MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS, LTD.
16-5 Konan 2-chome, Minato-ku, Tokyo, 108-8215, Japan
http://www.mhi.co.jp/aircon/
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONING EUROPE, LTD.
7 Roundwood Avenue, Stockley Park, Uxbridge, Middlesex, UB11 1AX, United Kingdom
Tel : [phone]
Fax: [phone]
http://www.mhiae.com
MITSUBISHI HEAVY INDUSTRIES AIR-CONDITIONERS AUSTRALIA, PTY. LTD.
9C Commercial Road Kingsgrove NSW 2208 PO BOX 318 Kingsgrove NSW 1480
Tel : [phone]
Fax: [phone]
http://www.mhiaa.com.au
ORIGINAL INSTRUCTIONS
MANUEL DE L’UTILISATEUR
CLIMATISEUR
ANWENDERHANDBUCH
KLIMAGERA
¨T
ISTRUZIONI PER L’USO
CONDIZIONATORE D’ARIA
MANUAL DEL PROPIETARIO
ACONDICIONADOR DE AIRE
GEBRUIKERSHANDLEIDING
AIRCONDITIONING
MANUAL DO UTILIZADOR
APARELHO DE AR CONDICIONADO
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
КОНДИЦИОНЕР ВОЗДУХА
ENGLISH
DEUTSCH
ITALIANO
ESPAN
˜OL
NEDERLANDS
PORTUGUÊS
РУССКИЙ
FRANÇAIS
This air-conditioner complies with EMC Directive 2014/30/EU,
LV Directive 2014/35/EU.
Ce climatiseur est conforme à la directive CEM 2014/30/UE et à
la directive basse tension 2014/35/UE.
Dieses Klimagerät erfüllt die Richtlinien zur elektromagnetischen
Verträglichkeit 2014/30/EU und die Niederspannungsrichtlinie
2014/35/EU.
Questo condizionatore d’aria è conforme alla Direttiva EMC 2014/30/
UE e alla Direttiva LV 2014/35/UE.
Deze airconditioner voldoet aan EMC-Richtlijn 2014/30/EU,
LV-Richtlijn 2014/35/EU.
Este equipo de aire acondicionado cumple con la Directiva de
Compatibilidad Electromagnética: 2014/30/EU, y con la Directiva
de Baja Tensión 2014/35/EU.
Este aparelho de ar condicionado está em conformidade com a
Directiva EMC 2014/30/UE e a Directiva LV 2014/35/UE.
Το συγκεκριμένο κλιματιστικό συμμορφώνεται προς την Οδηγία
2014/30/ΕΕ περί ηλεκτρομαγνητικής συμβατότητας και προς την
οδηγία 2014/35/ΕΕ περί χαμηλής τάσης.
ΕΛΛΗΝΙΚΑ
KULLANIM KILAVUZU
ΟΔΗΓΙΕΣ ΧΡΗΣΗΣ
ΚΛΙΜΑΤΙΣΤΙΚΟ
TÜRKÇE
RLC012A012_Cover1-4.indd 1RLC012A012_Cover1-4.indd 1 2016/07/16 8:11:022016/07/16 8:11:02

–1–
Thank you for purchasing a MITSUBISHI HEAVY INDUSTRIES THERMAL SYSTEMS,
LTD. Air-Conditioner. To get the best long-lasting performance, please read and follow
this User’s Manual carefully before using your air-conditioner. After reading, please store
the Manual in a safe place and refer to it for operational questions or in the event of any
irregularities.
This air-conditioner is intended for domestic use.
Do not vent R410A into the atmosphere: R410A is a fluorinated greenhouse gas with
a Global Warming Potential (GWP) = 2088.
Refer to a label on outdoor unit for the weight of fluorinated greenhouse gas and CO2
equivalent.
contents
ENGLISH
Your Air Conditioning product may be marked with this symbol. It means that
waste electrical and electronic equipment (WEEE as in directive 2012/19/
EU) should not be mixed with general household waste. Air conditioners
should be treated at an authorized treatment facility for re-use, recycling
and recovery and not be disposed of in the municipal waste stream. Please
contact the installer or local authority for more information.
This symbol printed in the batteries attached to your Air Conditioning
product is information for end-users according to the EU directive 2006/66/
EC article 20 annex II.
Batteries, at their end-of-life, should be disposed of separately from general
household waste. If a chemical symbol is printed beneath the symbol
shown above, this chemical symbol means that the batteries contain a
heavy metal at a certain concentration. This will be indicated as follows:
Hg:mercury(0.0005%) , Cd:cadmium(0.002%) , Pb:lead(0.004%)
Please, dispose of batteries correctly at your local community waste
collection or the recycling center.
Safety precautions..........................................2

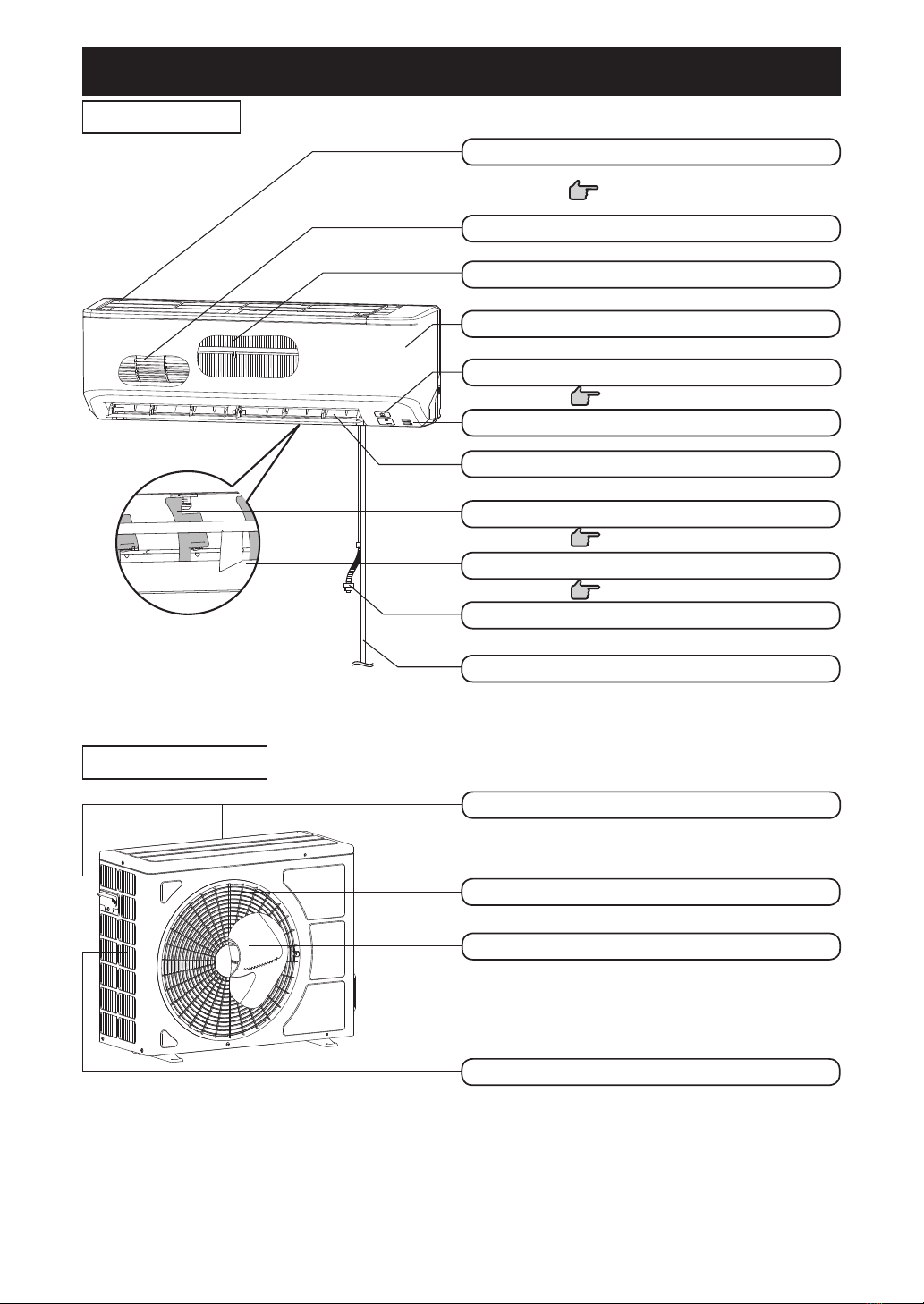

Name of each part and its function.................6
Remote control handling.................................8
Operation failure with the remote control........8
Temporary run operation ................................8
Operation and display section for remote
control.............................................................9
Current time setting .......................................9
AUTO mode operation..................................10
Temperature adjustment during AUTO.........10
FAN SPEED .................................................10
COOL/HEAT/DRY/FAN mode operation ......11
Air-conditioner operable
temperature setting.......................................11
Characteristics of HEAT mode operation .....11

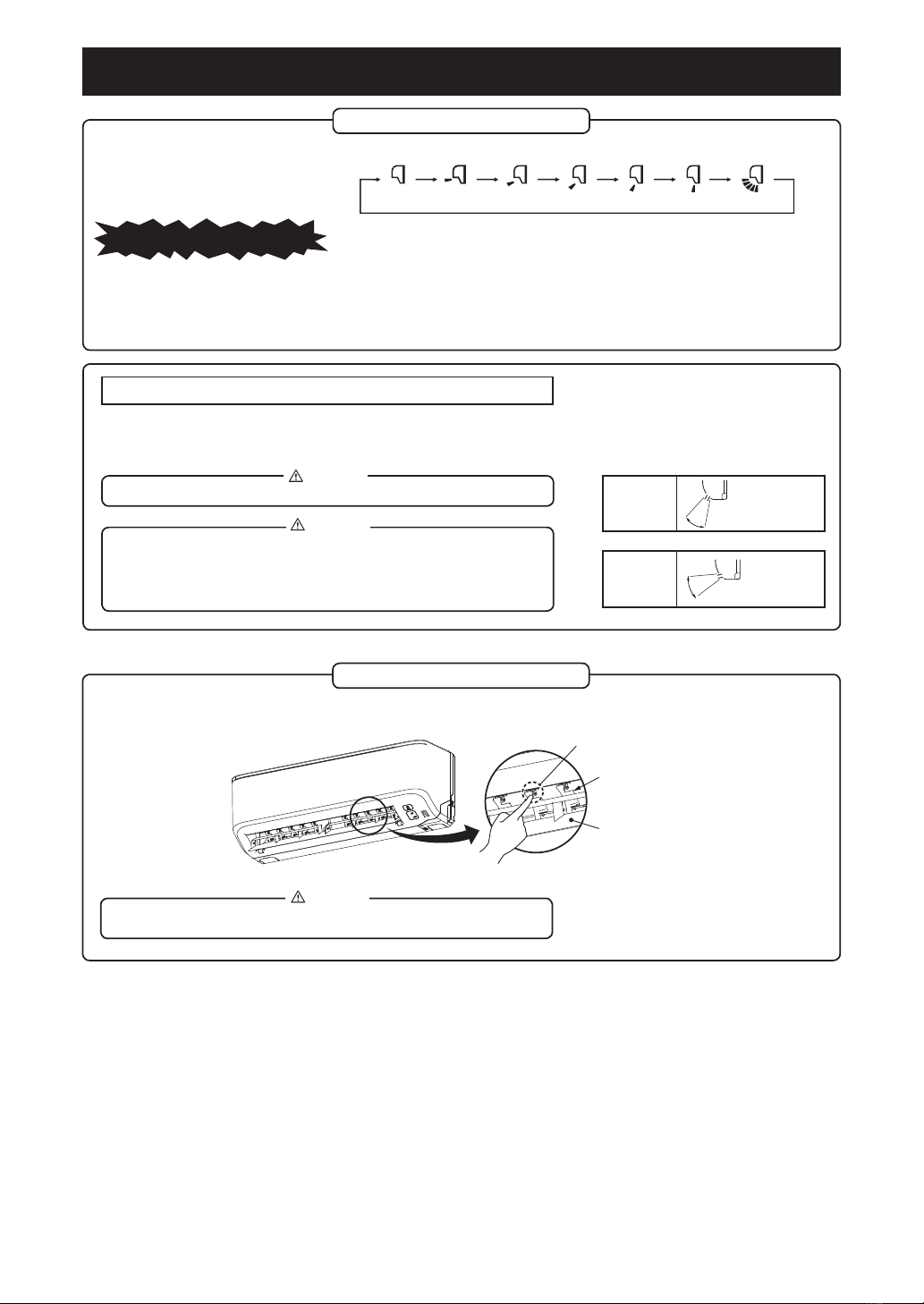

Airflow direction adjustment..........................12
SLEEP TIMER operation..............................13
OFF-TIMER operation..................................13
ON-TIMER operation....................................14
SLEEP TIMER + ON-TIMER operation........14
PROGRAM TIMER operation ......................15
HIGH POWER/ECONOMY operation ..........16
SELF CLEAN operation................................17
Auto restart function .....................................17
Tips for effective operation ...........................17
Maintenance.................................................18
Proper installation.........................................19
Troubleshooting ...........................................20
Notice ...........................................................20
Contact your dealer ......................................21
About the Multiple Air-conditioner.................21
Self diagnosis function..................................22
The emission sound pressure level from each Indoor and Outdoor unit is under 70 dB(A).
RLC012A012_EN_001-022.indd 1RLC012A012_EN_001-022.indd 1 2016/07/14 18:19:172016/07/14 18:19:17

–2–
Safety precautions
• Before starting to use the system, please read these “Safety precautions” carefully to ensure
proper operation of the system.
• When you have read this instruction manual, please keep it without missing. If someone else takes
over as operator, make certain that the manual is also passed on to the new operator.
❚INSTALLATION PRECAUTIONS
•
The system is for domestic, residential etc. use.
If used in severer environments, such as an engineering workplace, the equipment
may function poorly.
WARNING
Please observe these precautions with great care, since they are essential to your safety.
• Symbols which appear frequently in the text have the following meaning:
WARNING
CAUTION
Improper handling could lead to drastic result like death,
serious injury, etc.
Strictly prohibited Provide proper earth-
ing
Observe instructions
with great care
• The system must be installed by your dealer or a qualified professional.
It is not advisable to install the system by yourself, as faulty handling may cause leak-
age of water, electric shock or fire.
• Do not install it where flammable gas may leak.
Gas leaks may cause fire.
• Depending on the place of installa-
tion, an earth leakage breaker may be
necessary.
If you do not install an earth leakage
breaker, you may get an electric shock.
• Make sure to install the drain hose
properly so that all the water is
drained out.
Improper installation may lead to water
drop in the room resulting in wet furni-
ture.
• Make sure that the system has been properly earthed.
Earth cables should never be connected to a gas pipe, water pipe, lightning conductor
or telephone earth cable. Incorrect installation of the earth cable may produce an electric
shock.
CAUTION
Might pose a serious problem, depending on the circum-
stances.
RLC012A012_EN_001-022.indd 2RLC012A012_EN_001-022.indd 2 2016/07/14 18:19:192016/07/14 18:19:19

–3–
❚OPERATION PRECAUTIONS
WARNING
CAUTION
• Cleaning and user maintenance shall
not be made by children without su-
pervision.
• Do not insert anything into the air in-
let.
This may cause injury, as the internal fan
rotates at high speed.
• This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
• Store the remote control out of reach of infants.
Failure to observe this may result in the batteries being swallowed or other accidents.
• Only use approved fuses.
Use of steel or copper wire instead of an
approved fuse is strictly prohibited, as it
may cause a breakdown or fire.
• Do not handle the switches with wet
hands.
This may cause an electric shock.
• Do not swing from the indoor unit.
If the indoor unit falls down,you may get
injured.
• Do not place a flammable insecticide
or paint spray near the blower, nor
spray it directly on the system.
This may result in a fire.
• You should not expose any com-
bustion appliance directly to the air
stream of the air-conditioner.
The appliance may then work inade-
quately.
• Do not wash the air-conditioner with
water.
This could cause an electric shock.
• Children shall not play with the appli-
ance.
• Do not expose yourself to the cooling
air for a long period.
This could affect your physical condition
and cause health problems.
❚Safety precautions
• The system should only be used for its
original purpose and not for anything
else like, for instance, preservation
of food, plants or animals, precision
devices or works of art.
The system is only intended for use in
ordinary domestic rooms. Any other use
of the system may damage the quality of
food, etc.
• Do not place anything containing wa-
ter, like vases, on top of the unit.
Water entering the unit could damage
the insulation and therefore cause an
electric shock.
• Do not install the system where the
airflow direction is aimed directly at
plants or animals.
This will damage their health.
• Do not sit on the outdoor unit nor put
anything on it.
If the unit falls down or things drop off it,
people could get hurt.
• After a long period of use, check the
unit's support structure from time to
time.
If you do not repair any damage right
away, the unit may fall down and cause
personal injury.
RLC012A012_EN_001-022.indd 3RLC012A012_EN_001-022.indd 3 2016/07/14 18:19:202016/07/14 18:19:20

–4–
❚Safety precautions
CAUTION
• Do not touch the aluminum fins on the
air heat exchanger.
It may result in injury.
• Do not place household electrical
appliances or household items under
neath the indoor or outdoor units.
Condensation falling from the unit may
stain objects and cause accidents or
electrical shock.
• Do not operate the system without
the air filter.
It can cause malfunction of the system
due to clogging of the heat exchanger.
• Do not shut off the power source
immediately after stopping the
operation.
Wait at least 5 minutes, otherwise there
is a risk of water leakage or breakdown.
• Do not control the system with main
power switch.
It can cause fire or water leakage. In
addition, the fan can start unexpectedly,
which can cause personal injury.
• Do not pour liquid into this unit and do
not put water container on this unit.
Water entering the unit could damage
the insulation and therefore cause an
electric shock.
• If you operate the system together
with a combustion appliance, you
must regularly ventilate the indoor
air.
Insufficient ventilation may cause acci-
dents due to oxygen deficiency.
• Stand firmly on a stepladder or other
stable object when removing the inlet
panel and filters.
Failure to observe this may result in
injury through insecure objects toppling
over.
• When you clean the system, stop the
unit and turn off the power source.
Never open the panel while the internal
fan is rotating.
• Do not place objects near the out-
door unit or allow leaves to gather
around the unit.
If there are objects or leaves around the
outdoor unit, small animals may enter
unit and contact electrical parts and may
cause a break-down, smoke or fire.
• Contact your dealer to clean inside
the indoor unit, do not attempt to do
by yourself.
The use of a non-approved detergent or
improper washing method may damage
the unit’s plastic components and cause
leaks. Damage, smoke, or fire may
also happen if the detergent comes in
contact with electrical parts or the unit’s
motor.
• Stop the unit and turn off the power if
you hear thunder or there is a danger
of lightning.
It may damage the unit.
• Do not let the foreign matters enter
the indoor unit through the air out-
lets.
This may cause the dumper inoperable.
• If the power cord becomes damaged,
contact your dealer or a qualified en-
gineer.
If it is not replaced, it may cause a
breakdown or fire.
RLC012A012_EN_001-022.indd 4RLC012A012_EN_001-022.indd 4 2016/07/14 18:19:202016/07/14 18:19:20

–5–
❚PRECAUTIONS FOR RELOCATION OR REPAIRS
WARNING
• Do not perform any repairs or modifications by yourself. Consult the dealer if
the unit requires repair.
If you repair or modify the unit, it can cause water leaks, electric shocks or fire.
• Consult your dealer for repairs.
Wrong repairs could cause an electric
shock, fire, etc.
• In case the air-conditioner is relocat-
ed elsewhere, contact your dealer or
a professional fitter.
Faulty installation may cause water
leakage, electric shock, fire, etc.
• If you notice anything abnormal
(smell of burning, etc.), stop the
system, turn off the power source
and consult your dealer.
Continued use of the system in abnor-
mal circumstances may result in mal-
functioning, electric shock, fire, etc.
• If the air-conditioner fails to cool or
warm the room, it may have a refrig-
erant leakage. Contact your dealer.
If refrigerant needs to be added,
check with your dealer for proper
instructions.
If the refrigerant comes in contact with the
bare skin, it may cause cold injury.
If the refrigerant gas is inhaled exces-
sively, it may cause deterioration of nerve
function like dizziness and headache, or
deterioration of heart function like irregu-
lar heartbeat and heart palpitation tem-
porarily. If refrigerant unexpectedly leaks
from the unit onto a fan heater, stove,
hotplate or other heat source, harmful
gases could be generated.
❚Safety precautions
RLC012A012_EN_001-022.indd 5RLC012A012_EN_001-022.indd 5 2016/07/14 18:19:202016/07/14 18:19:20

–6–
INDOOR UNIT
Left/right airflow direction adjustment louver
Page 12
Up/down airflow direction adjustment flap
Page 12
Air-cleaning filter
Indoor unit fan
OUTDOOR UNIT
Air outlet
Air inlet
(On side & rear surface)
Outdoor unit fan
Heat exchanger
Name of each part and its function
Air filter
Remove dust or dirt from the inlet air.
Page 18
Air outlet
Air blows out of here.
Heat exchanger
Front panel
Room temperature sensor
Refrigerant piping connection and electric wire
Drain hose
Drains water from the indoor unit.
Unit display section
Page 7
RLC012A012_EN_001-022.indd 6RLC012A012_EN_001-022.indd 6 2016/07/14 18:19:202016/07/14 18:19:20

–7–

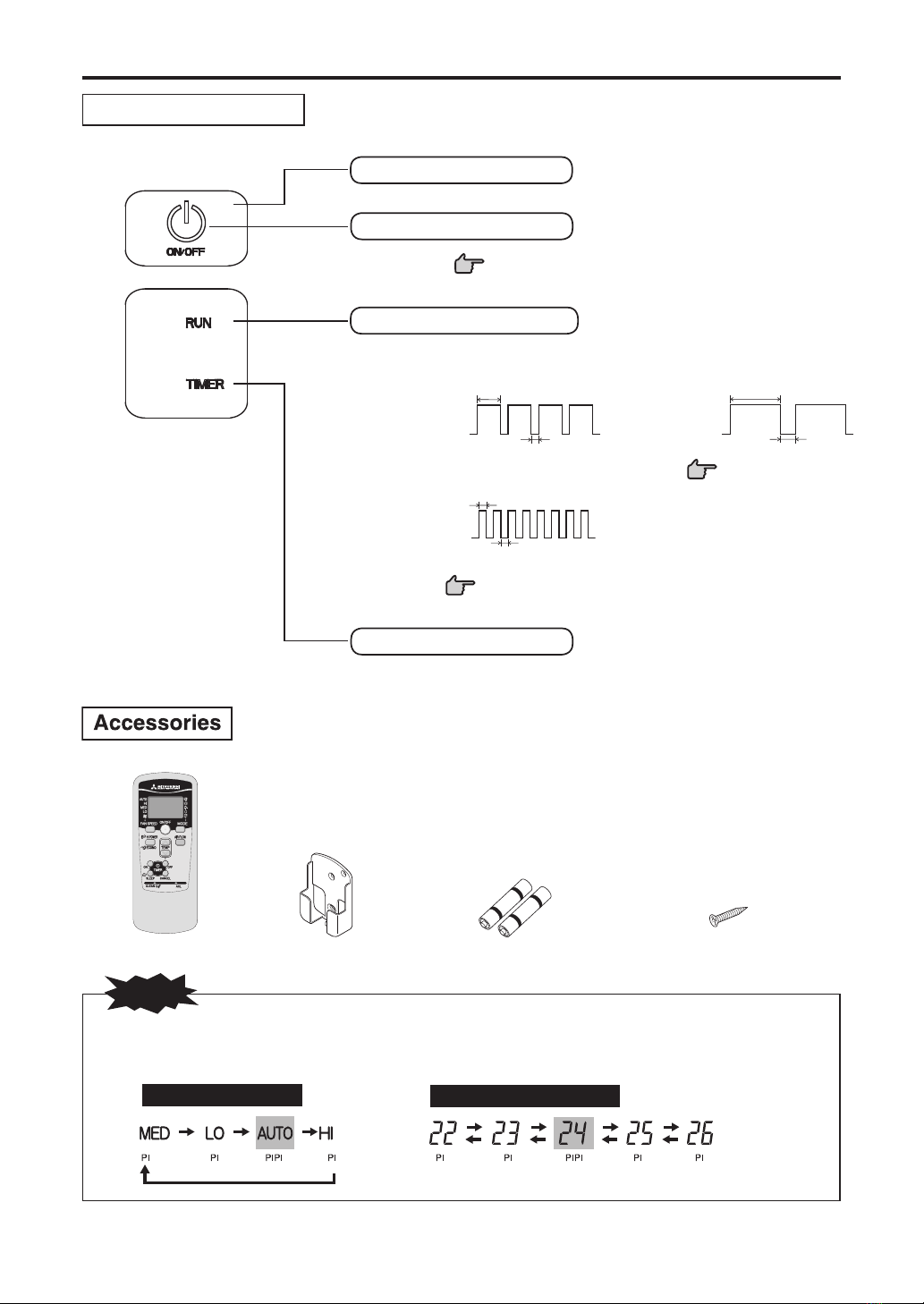

Unit display section
Name of each part and its function
•Buzzer sound for remote control
When preset temperature 24°C, automatic operation and automatic airflow are selected, the buzzer sound (PiPi) is produced.
When turning off the air-conditioner by pressing ON/OFF button (except CLEAN mode), the buzzer sound (Pi) is produced.
This function is useful for operating the air-conditioner in the darkness.
NOTE
Preset temperature
Air flow setting
Wireless remote control Wireless remote
control holder
Battery
(R03 (AAA, Micro) x2)
Wood screw (Quantity:2)
(for remote control holder mounting)
This button can be used for turning on/off the unit when remote control is not available.
Page 8
Remote control signal receiver
Unit ON/OFF button
RUN (HOT KEEP) light (green)
•Illuminates during operation.
•
Blinks when airflow stops due to the ‘HOT KEEP’, ‘CLEAN operation’and ‘operation mode invalid’.
ON
OFF
1.5 sec.
0.5 sec.
HOT KEEP
1 sec.
ON
OFF
CLEAN operation
TIMER light (yellow)
Illuminates during TIMER operation.
3 sec.
Page 17
ON
OFF
0.5 sec.
0.5 sec.
Operation
mode
invalid
Page 21
RLC012A012_EN_001-022.indd 7RLC012A012_EN_001-022.indd 7 2016/07/14 18:19:202016/07/14 18:19:20

–8–
NOTE
•Do not use old and new batteries together.
•Remove the batteries when the remote control is not used for a long period.
•
The recommended effective period of a battery conforming to JIS or IEC should
be 6 to 12 months with normal use. If used longer, or when an unspecified battery
is used, liquid may leak from the battery, causing the remote control to malfunc-
tion.
•The recommended effective period is printed on the battery. This may be
shorter due to manufacturing time to the unit. However, the battery may still
be in working order after expiry of its nominal life.
Pull out the cover and take
out old batteries.
Insert new batteries. R03
(AAA, Micro) x2
Close the cover.
■When the display shows any abnormal condition, Press the ACL switch with the
tip of a ballpoint pen.
1
2
3
Pay attention
to the and
marks
Press the ACL switch with
the tip of a ballpoint pen.
The time setting mode is displayed.
Page 9
4
Using the remote control holder
The remote control can be attached to a wall or pillar
by using a remote control holder. Before installing the
remote control, check that the air-conditioner receives
the signals properly.
For installing or removing the remote control, move it up
or down in the holder.
•Are the batteries running down?
“Replacing the batteries” above.
Replace the batteries with new ones and retry the operation.
Warning note for remote control handling
Operation failure with the remote control
•If the operation fails, operate the unit
with temporary operation function.
Contact your dealer to have the remote
control checked.
Below
Strictly prohibited
•Do not drop the remote control.
Handle with care.
•Do not go near high temperature
places, such as an electric carpet
or stove.
•Do not place heavy objects on the
remote control, or step on it.
•Do not put any obstructing obsta-
cles between the remote control
and the unit.
•Do not spill any liquid on the re-
mote control.
•Do not leave the remote control
exposed to direct sunlight or other
strong lighting.
Temporary run operation
•The unit ON/OFF button on the unit operates ON/OFF temporarily when the remote control is not used.
Operation program
•OPERATION MODE : AUTO
•FAN SPEED : AUTO
•AIR FLOW : AUTO
•Operation starts by pressing the unit ON/OFF button; it stops if you press
the button again.
•Do not hold the Unit ON/OFF button down for more than 5 seconds.
(Holding it down longer than 5 seconds sets the automatic cooling used during servicing or when relocating the air-conditioner.)
NOTE
Unit ON/OFF button
Remote control handling
Replacing the batteries
The following cases signify exhausted batteries. Replace old batteries with new ones.
•Receiving beep is not emitted when a signal is transmitted.
•Display fades away.
RLC012A012_EN_001-022.indd 8RLC012A012_EN_001-022.indd 8 2016/07/14 18:19:212016/07/14 18:19:21

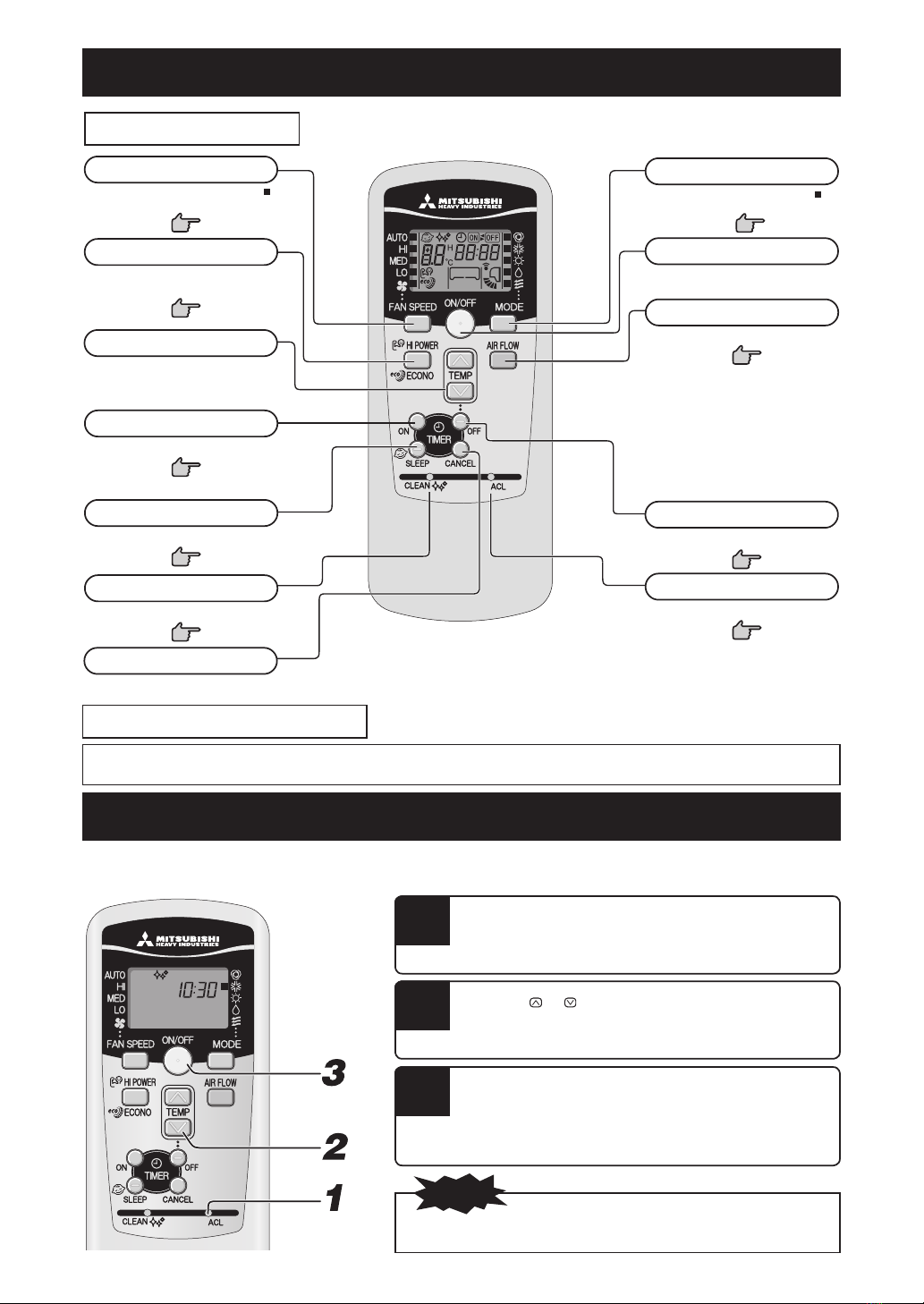

–9–
Operation section
FAN SPEED button
Each time the button is pressed, the
display is switched over in turn.
•The above illustration shows all controls, but in practice
only the relevant parts are shown.
OPERATION MODE select button
Each time the button pressed, the
display is switched over in turn.
ON/OFF (luminous) button
Press to start operation, press again to
stop.
HI POWER/ECONO button
This button changes the HIGH POWER/
ECONOMY mode.
Page 16
Page 10
AIR FLOW (UP/DOWN) button
This button changes the air flow (up/down)
direction. Page 12
SLEEP button
This button selects SLEEP operation.
Page 13

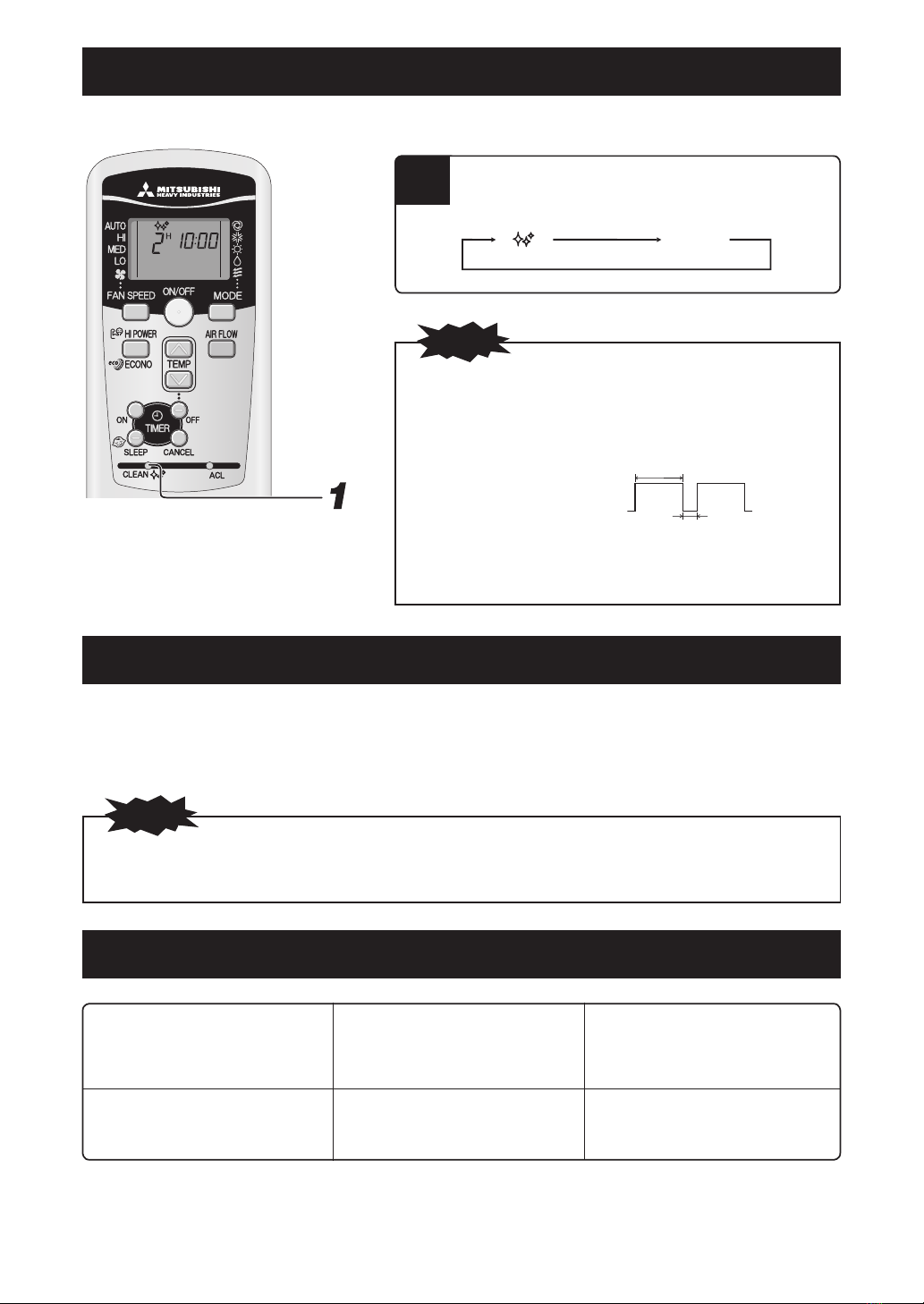

CLEAN switch
This switch selects the CLEAN mode.
Page 17

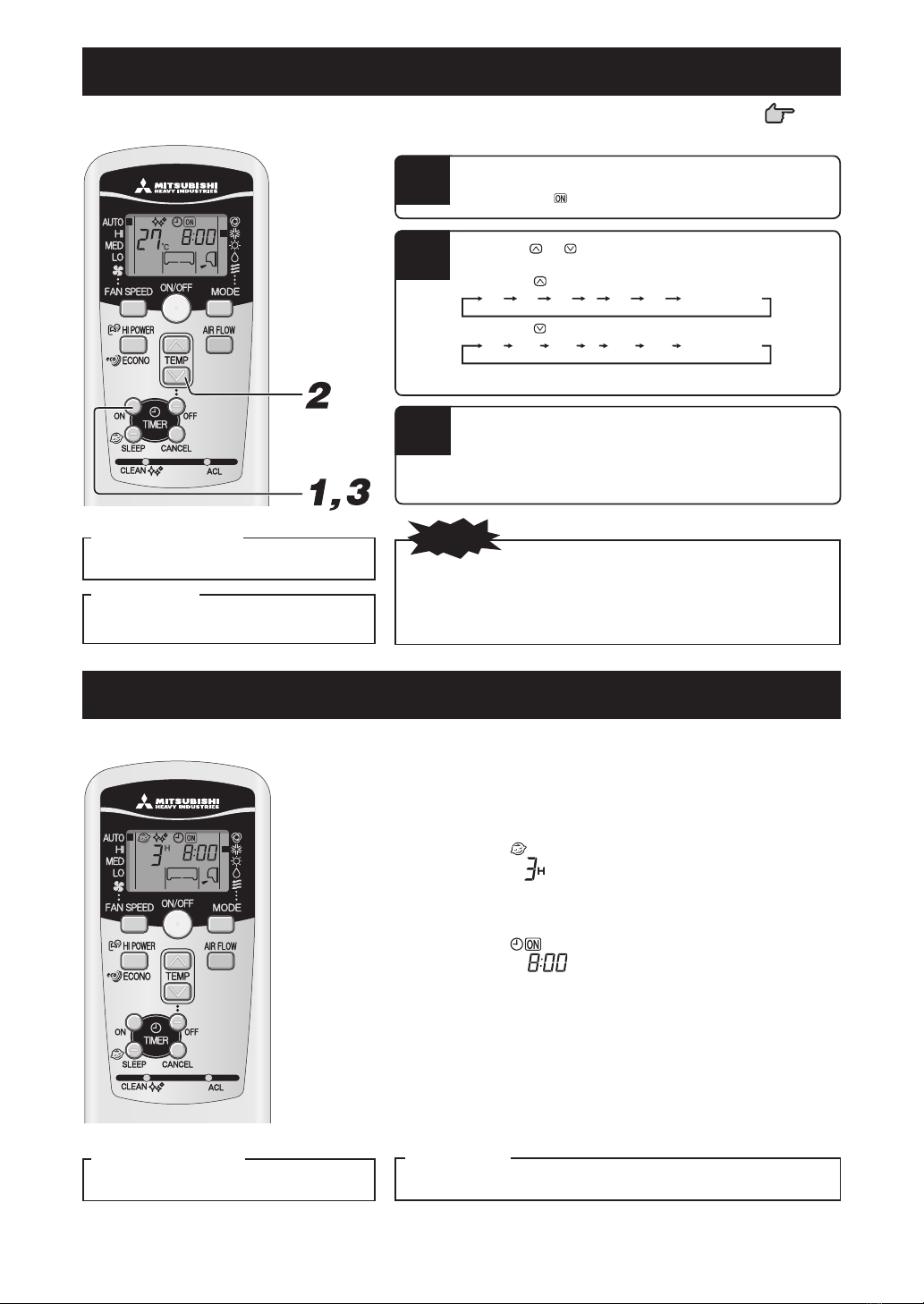

ON TIMER button
This button selects ON TIMER operation.
Page 14
ACL switch
This switch is for resetting microcomputer
and setting time. Page 8
OFF TIMER button
This button selects OFF TIMER operation.
Page 13
TEMPERATURE button
These buttons set the room temperature.
(These buttons are used for setting the
current time and timer function as well.)
This button cancels the ON timer, OFF
timer, and SLEEP operation.
CANCEL button
Page 10, 11
Transmission procedure
When each button on the remote control is pressed – with the remote control pointing towards the air-conditioner unit a signal is transmitted.
When the air-conditioner receives the signal correctly, it will beep.
NOTE
2
Current time setting
■When inserting the batteries, the current time is automatically set to time setting mode.
13:00 is displayed as the current time. Set the clock to the right time.
Example: Set to 10:30.
Press the ACL switch.
Press with the tip of a ballpoint pen, etc.
The time display blinks and can be set to the current time.
Press the or button.
(Set to 10:30)
Press the ON/OFF button.
The display changes from blinking to steady lighting and the setting is complete.
Make sure to press the button within 60 seconds from the last operation in
step 2, otherwise the time is not set.
• The timer operation works based on the time clock, so please set it correctly.
•The remote control data is reset when the present time is set.
1
3
Operation and display section for remote control
RLC012A012_EN_001-022.indd 9RLC012A012_EN_001-022.indd 9 2016/07/21 20:45:322016/07/21 20:45:32

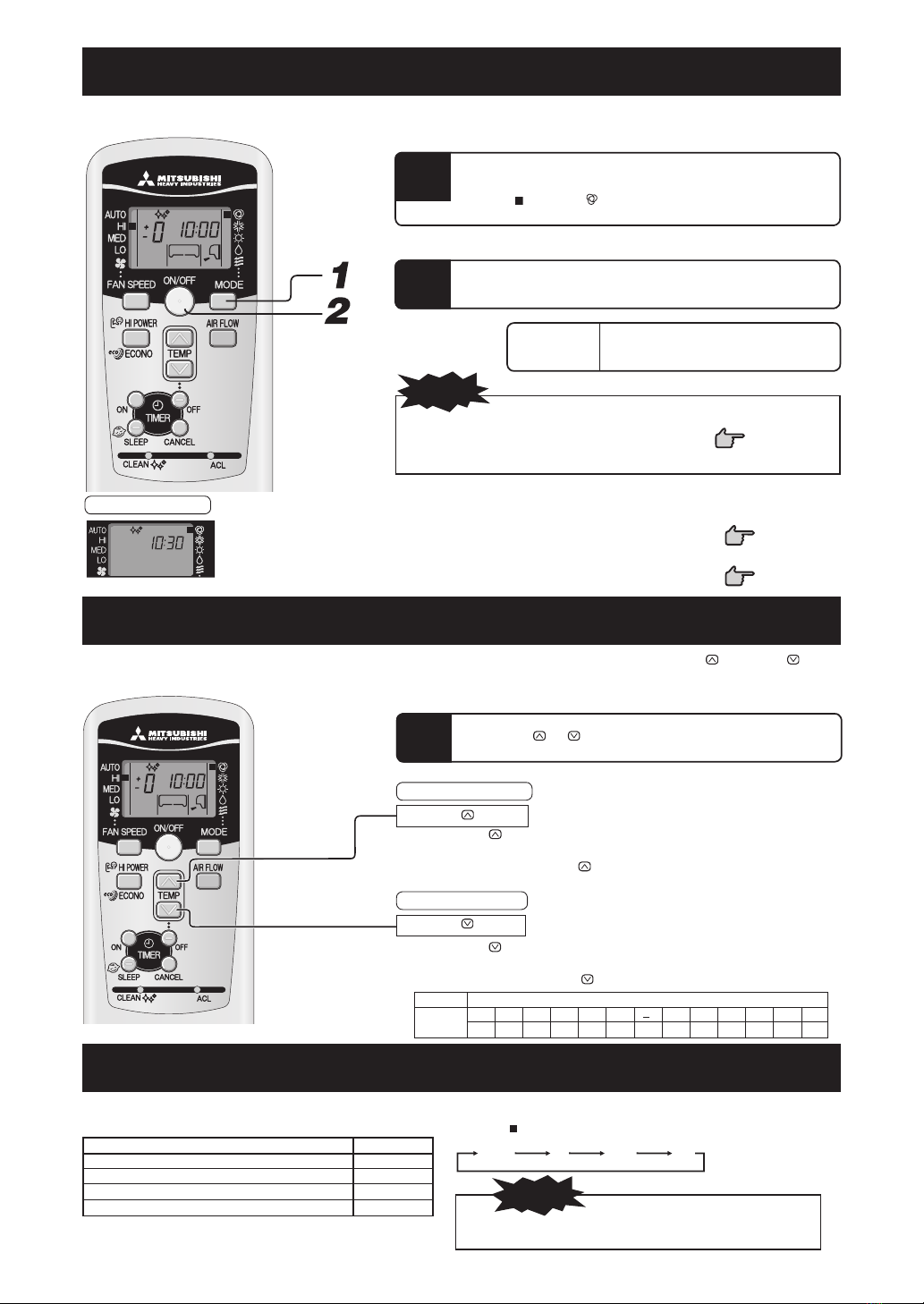

–10–
AUTO HI MED LO
NOTE
Temperature adjustment during AUTO
■ Air temperature adjustment is possible even during automatic operation. There are 6 levels of adjustment possible with the button or the button.
During automatic operation, 24°C is preset both for heating and cooling.
AUTO mode operation
■ Automatically selects the operation mode (COOL, HEAT, DRY) depending on the room temperature when switched on.
1
When a change in temperature is required.
Press the or button.
•If you do not want the AUTO mode program, change to
COOL, HEAT, DRY or FAN instead of AUTO.
Page 11
•Airflow direction adjustment procedure.
Page 12
To stop: Press the ON/OFF button.
■ Each time the button is pressed, the switch over occurs in the following order
–6 →–5 →............ –1 →±0 →+1 ............ +6.
When +6 is indicated, even if the button is pressed, the indicator does not change.
■ Each time the button is pressed, the switch over occurs in the following order
+6 →+5 →............ +1 →±0 →–1 ............ –6.
When –6 is indicated, even if the button is pressed, the indicator does not change.
When the unit is not in AUTO mode:
Press MODE button.
Move the [ mark] to the (Auto) position.
Point the remote control toward the air-conditioner, and
Press the ON/OFF button.
1
2
When it is a little cold
Press the button.
When it is a little hot
Press the button.
Operation capacity by your choice FAN SPEED
Set automatically by microcomputer AUTO
Powerful operation with high capacity HI
Standard operation MED
Energy-saving operation LO
FAN SPEED
Press the FAN SPEED button.
Move the [ mark] to the preferred fan speed position.
■You can choose the capacity of your air-conditioner
when heating mode, cooling mode or fan mode.
• In case air is not blowing out during the operation.
Page 20
Display in OFF status
• The current time and preset OPERA-
TION MODE are displayed while the
air-conditioner is turned off.
Remote Control display
-6 -5 -4 -3 -2 -1 +0 +1 +2 +3 +4 +5 +6
18 19 20 21 22 23 24 25 26 27 28 29 30
Setting
temp.(
°C )
• When changing FAN SPEED from HI to LO, the sound of
refrigerant flowing may be heard.
NOTE
RLC012A012_EN_001-022.indd 10RLC012A012_EN_001-022.indd 10 2016/07/14 18:19:232016/07/14 18:19:23

–11 –
Cooling operation Heating operation
Outside temperature Approximately -15 °C to 46 °C Approximately -15 to 24 °C
Inside temperature Approximately 18 to 32 °C Approximately 15 to 30 °C
Inside humidity
Below approximately 80%
The long-term use of the unit with a humidity level
exceeding 80% may result in condensation forming
on the surface of the indoor unit, leading to water drips.
—
COOL/HEAT/DRY/FAN mode operation
Airflow direction adjustment procedure. Page 12
Point the remote control toward the air-conditioner, and
Press the MODE select button.
Move the [ mark] to the required operation position.
(Cool), (Heat), (Dry), (Fan)
Press the ON/OFF button.
Press the TEMP button.
Press or button for the preferred temperature.
Recommendation
4
3
• In case air is not blown out, when starting the heating operation.
Page 20
•The operation program can also be set or changed when
the air-conditioner is not in operation.
NOTE
2
1
Air-conditioner operable temperature setting
■Use within the following operational range. Operating outside of this range may result in the protection devices being activated,
preventing the unit from working.
Characteristics of HEAT mode operation
Mechanism and capacity of HEAT mode operation
■Mechanism
•The unit draws heat from the cold outside air, transfers it to indoors and heats the room. As a characteristic of heat pump system, the
heating capacity reduces when the outside air temperature gets colder.
•It may take some time to supply hot air after turning on the air-conditioner.
•If the outside temperature becomes extremely low, it would be better to use an additional source of heating.
Defrosting
If the outside temperature becomes low and humidity is high, the heat exchanger in the outdoor unit may frost over, which prevents efficient heating.
If this happens, the automatic defrost function is activated and during defrosting the heating operation stops for 5 to 15 minutes
during defrosting.
•Both indoor and outdoor fans stop and the RUN light blinks slowly (1.5 sec. ON, 0.5 sec. OFF) during defrosting.
•The outdoor unit may give off some steam during defrosting. This is to help the defrosting process and is not a defect.
•The HEAT operation resumes as soon as defrosting has been completed.
Press the FAN SPEED button
Set the fan speed as preferred.
To stop: Press the ON/OFF button.
RLC012A012_EN_001-022.indd 11RLC012A012_EN_001-022.indd 11 2016/07/14 18:19:232016/07/14 18:19:23

–12–
Airflow direction adjustment
MEMORY FLAP (FLAP STOPPED)
When you press the AIRFLOW button once while the flap is operating, it stops swinging at the
position. Since this angle is memorized in the microcomputer, the flap will automatically be set at
this angle when the next operation is started.
WARNING
•Do not expose directly to airflow from the air-conditioner for a long time.
CAUTION
•When in COOL or DRY operation, do not operate for a long period with the
airflow blowing straight down. Otherwise, condensation may appear on the
outlet grill and drip down.
•Do not try to adjust the flaps by hand, as the control angle may change or
the flap may not be closed completely.
• Recommended angle of the flap when stopping
HEAT (Slant forward
blowing)
(Horizontal
blowing)
COOL, DRY
Adjusting airflow direction
■Up/down direction can be adjusted with the AIRFLOW button on the remote control. Every time you press this button the mode
changes as follows:
Change on AIRFLOW(UP/DOWN) mode.
•When operation starts, the flap direction is fixed at the horizontal position in order to avoid cold draft, and return to the set the position that was set after
the warm air supply is starting.
•The flap direction will be controlled to the horizontal position when the room temperature reaches the set temperature and compressor stops or when
defrosting is in operation.
•The airflow direction cannot be set during the period mentioned above. Change the airflow direction settings after the warm air is supplied and the flap
goes to the set position.
(Swing)
(Flap stopped)
NOTE FOR HEATING OPERATION
Adjusting left/right air flow direction
■Adjust the direction by moving the left/right louver by hand.
When you adjust the direction, touch the operation point of louver.
CAUTION
•Please stop the air conditioner when adjusting the air flow direction.
Flap
Louver
Operation point
RLC012A012_EN_001-022.indd 12RLC012A012_EN_001-022.indd 12 2016/07/14 18:19:242016/07/14 18:19:24

–13–
■If it is pressed while the unit is off
SLEEP TIMER operation starts with the previous operation settings, and the air-
conditioning is turned off after the set time elapses.
■If it is pressed while the unit is running
The air-conditioner is turned off after the set time elapses.
Every time the button is pressed, the display changes as follows:
Example: You prefer it to stop after 7 hours.
Set to
The timer light (yellow) is on.
Ø
•The unit stops after the set time lapses.
SLEEP TIMER operation
■The unit stops automatically after the set time lapses.
The set temperature is automatically adjusted according to the elapsed time in order to avoid too much cooling or heating. Page 15
Press the SLEEP button.
1
How to cancel
Press the CANCEL button to turn off the SLEEP
display.
Changing of set time
Set a new time by pressing SLEEP button.
•Cannot be set at the same time with OFF-TIMER.
NOTE
OFF-TIMER operation
■ The unit stops automatically when the set time comes.
With the air-conditioner turned off, start the operation from Step 1. With the air-conditioner running, start from Step 2.
Example: You prefer it to stop 22:30.
Press the ON/OFF button.
Press the OFF TIMER button.
OFF TIMER display is blinking.
Press the or button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 22:30.
3
1
4Press the OFF TIMER button.
The display changes from blinking to steady lighting and the setting is complete.
The timer light (yellow) is on.
2
How to cancel
Press the CANCEL button to turn off the timer
display.
•
The unit stops at the end of the set period of time.
• Make sure to press the button within 60 seconds from the last operation in
step 3, otherwise the setting is not completed.
• The current time is not displayed during OFF-TIMER operation.
• Different from SLEEP TIMER operation, automatic set temperature adjust-
ment is not done during OFF-TIMER operation.
Changing of set time
Set a new time by using the OFF TIMER button.
NOTE
No indication
(canceled)
... (Units of one hour)
RLC012A012_EN_001-022.indd 13RLC012A012_EN_001-022.indd 13 2016/07/14 18:19:242016/07/14 18:19:24

–14–
ON-TIMER operation
1
2
How to cancel
Press the CANCEL button to turn off the timer
display.
Example: In the case the preferred room temperature is required at 8:00.
Press the ON-TIMER button.
ON TIMER display is blinking.
3
■ Operation starts 5 to 60 minutes before the set time so that the room temperature reaches the optimum temperature at the set time. Page 15
ON-TIMER operation can be set regardless of whether the air-conditioner is running or not.
SLEEP TIMER + ON-TIMER operation
■Combined timer operation of SLEEP TIMER and ON TIMER.
Example: When it is required to stop after 3 hours and then start operation at 8:00,
near the set temperature.
■SLEEP TIMER setting
Set by the procedures on page 13.
Set to
■ON TIMER operation setting
Set by the above procedure mentioned in ON TIMER.
Set to
The setting of the lighting of the timer light (yellow) of this unit is complete.
Ø
•After the SLEEP TIMER set time has elapsed, the operation stops, and it
starts from 5 to 60 minutes before the ON TIMER’s set time.
•The timer light is turned off when ON TIMER set time comes.
Changing of set time
Set a new time by using the SLEEP or ON TIMER button.
How to cancel
Press the CANCEL button to turn off the timer display.
Press the or button.
Every time the button is pressed, the display is switched in the order of:
0:00 0:10 0:20
...
(Units of ten minutes) 1:00 1:10
Every time the button is pressed, the display is switched in the order of:
0:00 23:50 23:40
...
(Units of ten minutes) 23:00 22:50
Set at 8:00.
Press the ON TIMER button.
The display changes from blinking to steady lighting and the setting is com-
plete.
The timer light (yellow) is on.
The operation stops if it is set during operation.
Changing of set time
Set a new time by using the ON-TIMER button. •
Operation starts 5 to 60 minutes before the set time.
• The timer light (yellow) goes out at the set time.
• Make sure to press the button within 60 seconds from the last operation in step 2,
otherwise the setting is not completed.
• The current time is not displayed during ON-TIMER operation.
NOTE
RLC012A012_EN_001-022.indd 14RLC012A012_EN_001-022.indd 14 2016/07/14 18:19:252016/07/14 18:19:25

–15–

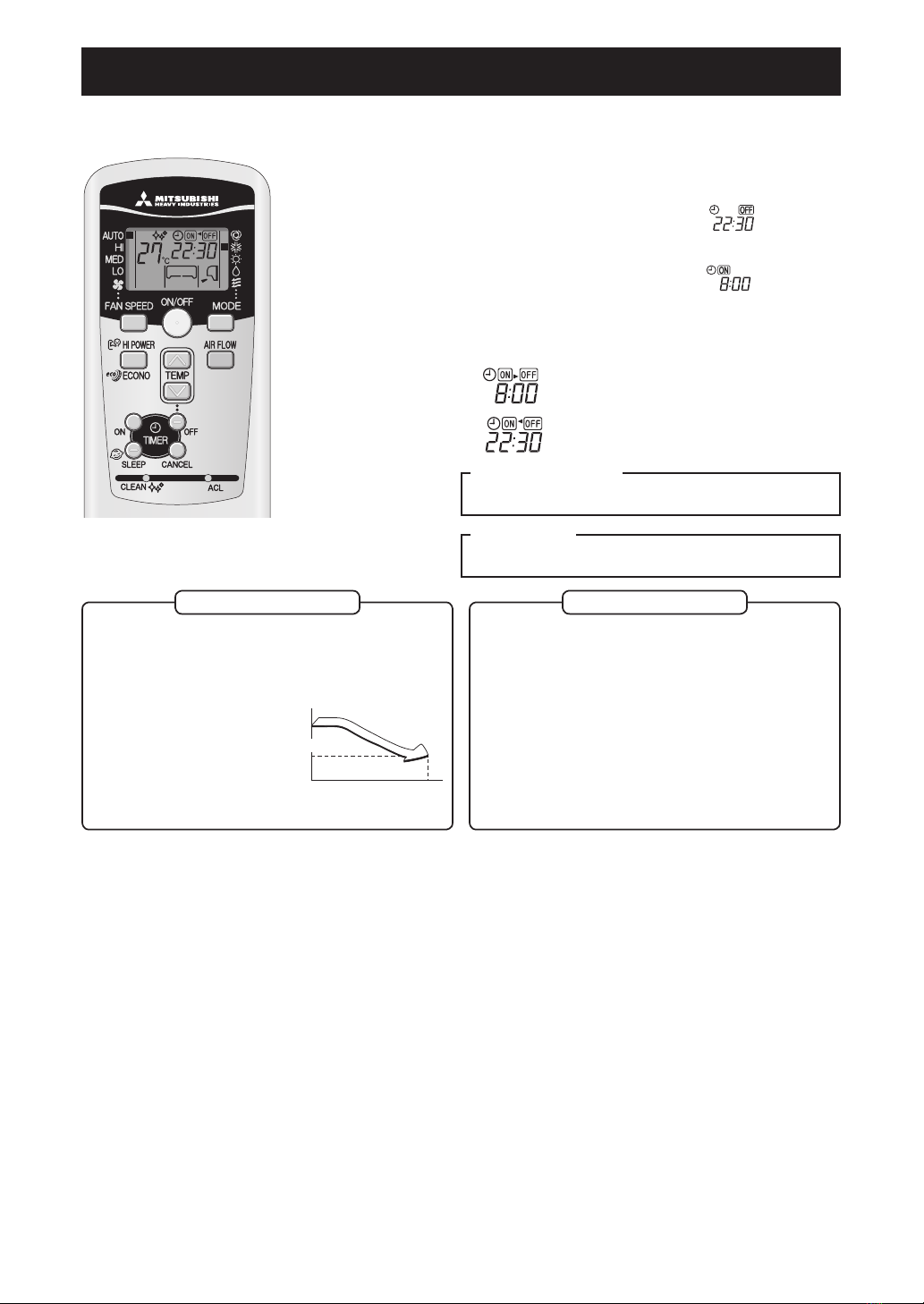

PROGRAM TIMER operation
■The timer operations of the combination of ON and OFF TIMER. Once this has been set the timer operations will be repeated at the same
time every day unless the ON/OFF button is pressed.
Example: When it is prefered to stop at 22:30, and then start operation at 8:00, near
the set temperature.
■OFF TIMER operation setting
Set by the procedures on page 13. Set to
■ON TIMER operation setting
Set by the procedures on page 14. Set to
Timer light (yellow) on the unit will light when the setting is completed.
The set time will be displayed on the remote control unit. The display will
change depending on the operational status.
How to cancel
Press the CANCEL button to turn off the timer display.
Changing of set time
Set a new time by using the OFF TIMER or ON TIMER button.
Comfort Start-up
In ON TIMER operation, the unit starts the operation a little earlier, so
that the room can approach optimum temperature at ON time. This is so
called “Comfort start-up”.
•Mechanism
The room temperature is
checked 60 minutes before the
ON time. Depending on the
temperature at that time, the
operation starts 5 to 60 minutes
before the timer is at ON.
• The function is available for
both COOL and HEAT operation
mode (including AUTO). It does
not work for DRY mode.
SLEEP TIMER
In COOL operation
(Stop) Operation starts
▼
Check the room
temp. 60 mins.
before.
Set time
▼
When SLEEP TIMER is selected, the set temperature is automatically
adjusted after a while, ensuring that the room is not too cold during
cooling or too warm during heating.
•During cooling : The preset temperature is lowered by 1°C at the start
of SLEEP operation (when the timer is set). After that, the temperature
goes up by 1°C every an hour to become 1°C higher than the present
temperature.
•During heating: The preset temperature is lowered by 1°C at the start
of SLEEP operation (when the timer is set). After that the temperature
becomes 3°C lower in an hour and 6°C lower in two hours than the
present temperature.
(Operation)
Set temperature
With ON TIMER, the air-conditioner starts running.
Then, with OFF TIMER, the air-conditioner stops running.
With OFF TIMER, the air-conditioner stops running.
Then, with ON TIMER, the air-conditioner starts running.
RLC012A012_EN_001-022.indd 15RLC012A012_EN_001-022.indd 15 2016/07/14 18:19:252016/07/14 18:19:25

–16–
HIGH POWER/ECONOMY operation
2
If the air-conditioner is not operating, point the remote control toward the air conditioner, and
Press the ON/OFF button.
Press the HI POWER/ECONO button.
•When the operating mode is AUTO, COOL or HEAT
Every time the HI POWER/ECONO button is pressed, the display is
switched in the order of:
No display
•When the operating mode is DRY or PROGRAM TIMER
Every time the HI POWER/ECONO button is pressed, the display is
switched in the order of:
No display
1
( HIGH POWER )( ECONOMY ) (Normal operation)
(
ECONOMY ) (Normal operation)
Concerning ECONOMY operation
Pressing the HI POWER/ECONO button initiates a soft operation with the power suppressed in order to avoid an excessive cooling or
heating. The unit operates 1.5°C higher than the setting temperature during cooling or 2.5°C lower than that during heating. The remote
control displays and the FAN SPEED display disappears.
NOTE
•It will go into ECONOMY operation at the next time the air-
conditioner runs in the following case.
1
When the air-conditioner is stopped by ON/OFF button
during ECONOMY operation.
2 W hen the air-conditioner is stopped in SLEEP or OFF
TIMER operation during ECONOMY operation.
3 W hen the operation is retrieved from CLEAN operation.
•When the following operations are set, ECONOMY operation
will be canceled.
1When the HI POWER/ECONO button is pressed
again.
2When the operation mode is changed from DRY to
FAN.
•Not operable while the air-conditioner is OFF.
Concerning HIGH POWER operation
Pressing the HI POWER/ECONO button intensifies the operating power and initiates powerful cooling or heating operation for 15
minutes continuously. The remote control displays and the FAN SPEED display disappears.
•
During the HIGH POWER operation, the room temperature is
not controlled. When it causes an excessive cooling or heating,
press the HI POWER/ECONO button again to cancel the HIGH
POWER operation.
•HIGH POWER operation is not available during the DRY and
the program timer operations.
• When HIGH POWER operation is set after ON TIMER operation,
HIGH POWER operation will start from the set time.
• When the following operations are set, HIGH POWER operation
will be canceled.
1When the HI POWER/ECONO button is pressed again.
2When the operation mode is changed.
3When it has been 15 min. since HIGH POWER operation
has started.
•Not operable while the air-conditioner is OFF.
NOTE
RLC012A012_EN_001-022.indd 16RLC012A012_EN_001-022.indd 16 2016/07/14 18:19:262016/07/14 18:19:26

–17–
SELF CLEAN operation
1In order to active CLEAN operation, press the CLEAN
switch with the tip of a ballpoint pen.
Every time the CLEAN switch is pressed, the display is
switched in the order of:
No display
■CLEAN operation should be run after AUTO, COOL and DRY operation to remove the moisture from inside the indoor unit and control
the growth of mold and bacteria.
(CLEAN on) (CLEAN off)
NOTE
•Two hours later, the air-conditioner stops running automatically. To stop the
air conditioner immediately, press the ON/OFF button.
•CLEAN operation is not operated after HEAT, FAN, OFF-TIMER and
SLEEP operations have finished.
•The indoor unit fan runs for about two hours in CLEAN operation.
•The RUN light illuminates during CLEAN operation.
•Pressing the SLEEP button during CLEAN operation cancels the CLEAN
operation and then the unit is set to SLEEP operation.
•This is not a function for removing mold, germs or grime that have already
adhered to the unit.
Auto restart function
■What is auto restart function?
•Auto restart function records the operational status of the air-conditioner immediately prior to be switched off by a power cut, and then
automatically resumes operations after the power has been restored.
•The following settings will be canceled:
1Timer settings
2HIGH POWER operations
•Auto restart function is set at on when the air-conditioner is shipped from the factory. Consult with your dealer if this function needs
to be switched off.
•When power failure occurs, the timer setting is canceled. Once power is resumed, set the timer again.
NOTE
Tips for effective operation
■Please observe the following for the most economic and comfortable use of your unit.
Set a suitable room temperature.
Excessively high or low temperatures
are not good for your health and waste
of electricity.
Avoid direct sunlight and draught.
Cut out direct sunlight by drawing the cur-
tains or blinds when cooling. Keep windows
and doors shut, except when ventilating.
Operate the unit only when needed.
Use the timer properly to operate the unit
only when needed.
Clean the filter frequently.
Clogged filter may block the airflow and
cause less efficient operation.
Adjust the airflow direction properly.
Adjust the up/down and left/right airflow
to ensure a steady room temperature.
Keep heat source away when cooling.
Keep heat sources out of the room as
much as possible.
3 sec.
1 sec.
ON
OFF
RLC012A012_EN_001-022.indd 17RLC012A012_EN_001-022.indd 17 2016/07/14 18:19:262016/07/14 18:19:26

–18–
Maintenance
Carefull matter during maintenance
Cleaning the air filter
Recommendation interval is once every two week
During the operational season
Turn off the power
source. Do not use the following articles:
•Hot water (40°C or more)
It may deform or discolour the unit.
• Petrol, paint thinner, benzine or cleanser, etc.
They may deform or scratch the unit.
•Do not spill any liquid.
•Do not touch the aluminum fins on the
heat exchanger.
•
Stand firmly on a stepladder or other
stable object when removing the filter.
Wipe the unit with a
soft, dry cloth.
There’s a danger
of electric shock.
1
•Hook fingers on this side of the top face of air filter.
Pull the air filter forward.
The air filter will separate from front panel.
Cleaning
•Insert the air filter’s ditch to the rail of the front
panel and push it in the back.
Remove dirt from the air filter using a vacuum cleaner.
If the filter is very dirty, clean it with warm water (approx.
30°C), and dry it thoroughly.
2
3Reinstall the air filter
Cleaning the unit
•Wipe the unit with a soft, dry cloth, or use a vacuum cleaner.
•If the unit is very dirty, wipe it with a cloth soaked in warm water.
Rail (both side)
Ditch (both side)
CAUTION
•Do not clean the filter with boiling water.
•Do not dry them over an open flame.
•Pull them out gently.
CAUTION
•Operating without putting back the air filter will
make the unit dusty, and may cause damage.
CAUTION
•When removing the air filter, pull it out gently
without tilting and with care not to shake off dirt
accumulated on the air filter.
•Be careful not to allow dirt shaken off the air filter
entering in the eyes or mouth.
RLC012A012_EN_001-022.indd 18RLC012A012_EN_001-022.indd 18 2016/07/14 18:19:272016/07/14 18:19:27

–19–
Stop the unit and turn off the power source.
The unit consumes approx. 2W even when the unit is not op-
erating. Turning off the power source will help saving energy
consumption and cost.
At the beginning of the season
Ensure that the earth wiring is not snapped nor
disconnected.
Make sure that there are no obstacles block-
ing the airflow around the air intake and outlet
openings of the indoor and outdoor units.
NOTE Cooling/heating is affected by an air filter clogged up with dust etc., and the operation noise becomes louder. It
may also use extra electricity. Please clean the air filter at recommendation intervals.
1
2
Remove batteries from the remote control.
Clean both the indoor and outdoor units.
Clean and reinstall the air filter.
Perform the fan operation for a half day.
Dry the inside of the unit.
Cooling season only.
3
4
5
Check if there is no corrosion or rust on the
base frame of the outdoor unit.
Insert batteries in the remote control.
Turn on the power source.
Ensure that the air filter are clean.
1
2
3
4
5
6
At the end of the season
Proper installation
Pay attention to operating noises!
• When you install the unit, take care to choose a place that can comfortably stand the weight of the unit and does not increase the operating noise
or vibration. If vibration is transmitted through the house, fix the unit with the aid of vibration-proof pads between the unit and the fittings.
• Select a place where cold or hot air, operation noises from the indoor and outdoor units do not cause any inconvenience to your neighbours.
• Do not leave any obstacles near the outlet and inlet of the outdoor unit. This may cause malfunctioning and increased operating noise.
• If you hear an irregular noise during operation, contact your dealer.
Inspection and maintenance
Depending on operating environment, the inside of the air-conditioner may become dirty after a few year operations. This will reduce
performance. In addition to normal cleaning, we would recommend inspection and maintenance. (This may lead the air-conditioner to
having a longer life without any trouble.)
•Contact your dealer, or any distributor, for inspection and maintenance. (There will be a charge for this service).
•We would recommend inspection and maintenance to be carried out during the off-season.
•If the supply cord of this appliance is damaged, it must only be replaced by a repair shop appointed by the manufacturer, because
special purpose tools are required.
Suitable installation position
•Do not put any obstruction in front of the indoor unit, preventing proper ventilation and functioning.
•Do not install the unit in any of the following places:
•Where there is a danger of leaking flammable gases.
•Where there is substantial splashing of oil.
•Malfunctioning due to corrosion may occur if the unit is installed in a spa where sulfide gases are generated, or in a seaside resort
exposed to sea breezes. Contact your dealer.
•The air-conditioner and remote control must be at least 1 metre away from a TV set or radio.
•Drain the dehumidified liquid from the indoor unit into a spot that drains well.
RLC012A012_EN_001-022.indd 19RLC012A012_EN_001-022.indd 19 2016/07/14 18:19:272016/07/14 18:19:27
