Mitsubishi Heavy Industries SRK06CJ User manual

RESIDENTIAL AIR-CONDITIONING
TECHNICAL MANUAL & PARTS LIST
WALL MOUNTED TYPE
RESIDENTIAL AIR-CONDITIONER
(Split system, air cooled cooling only type)
SRK06CJ, 09CJ, 12CJ
SRK06CJ-3, 09CJ-3, 12CJ-3
SRK10CJV-3, 13CJV-3
SRK10CJV-4, 13CJV-4
SRK19CK, 24CK
SRK19CK-3, 24CK-3
SRK19CKS-3, 25CKS-3
SRK19CKS-4, 25CKS-4
Manual No.'11•SRK-T-114

RESIDENTIAL AIR-CONDITIONING
TECHNICAL MANUAL & PARTS LIST
WALL MOUNTED TYPE
RESIDENTIAL AIR-CONDITIONER
(Split system, air cooled cooling only type)
SRK06CJ, 09CJ, 12CJ
SRK06CJ-3, 09CJ-3, 12CJ-3
SRK10CJV-3, 13CJV-3
SRK10CJV-4, 13CJV-4
SRK19CK, 24CK
SRK19CK-3, 24CK-3
SRK19CKS-3, 25CKS-3
SRK19CKS-4, 25CKS-4
TECHNICAL MANUAL
1. SRK06CJ, 09CJ, 12CJ
SRK06CJ-3, 09CJ-3, 12CJ-3 ...................................... 2
2. SRK10CJV-3, 13CJV-3
SRK10CJV-4, 13CJV-4 ............................................... 31
3. SRK19CK, 24CK
SRK19CK-3, 24CK-3 .................................................. 63
4. SRK19CKS-3, 25CKS-3
SRK19CKS-4, 25CKS-4 ............................................. 97

( )
1. SRK06CJ, 09CJ, 12CJ
SRK06CJ-3, 09CJ-3, 12CJ-3
WALL MOUNTED TYPE
RESIDENTIAL AIR-CONDITIONER
Split system, air cooled
cooling only type

-
1
-
'11 • SRK-T-114
CONTENTS
1.1 SPECIFICATIONS ........................................................................................ 3
(2) Outdoor units ....................................................................................... 7
(3) Wireless remote controller ................................................................... 8
............................................................................ 6
(1) Indoor units .......................................................................................... 6
1.2 EXTERIOR DIMENSIONS
1.3 ELECTRICAL WIRING ................................................................................. 9
(1) Indoor units .......................................................................................... 9
(2) Outdoor units ....................................................................................... 10
.......................................................... 12
1.5 RANGE OF USAGE & LIMITATIONS
1.4 PIPING SYSTEM ......................................................................................... 11
.................................................................................. 14
(6) Timer operation .................................................................................. 23
....................................................... 22
(1) Operation control function by remote controller
(5) Flap control .......................................................................................... 23
(4) Custom cord switching procedure
......................................................................... 22(3) Auto restart function
(2) Unit ON/OFF button ........................................................................... 22
.................................. 21
........................................................... 24
............................................................... 24
................................................................... 25
..................... 27
(4) Troubleshooting procedure (If the air conditioner runs)
(3) Troubleshooting procedure (If the air conditioner does not run at all)
........ 26
(1) Cautions ............................................................................................. 26
(2) Items to check before troubleshooting ................................................. 26
(5) Self-diagnosis table ............................................................................. 27
(6) Inspection procedures corresponding to detail of trouble .................... 28
1.6 APPLICATION DATA
1.7 OUTLINE OF OPERATION CONTROL BY MICROCOMPUTER
(8) Outline of automatic operation
(7) Outline of cooling operation
(9) Protective control function
1.8 MAINTENANCE DATA
............... 21
................................................................................ 26

-
2
-
-
2
-
'11 • SRK-T-114
(9) How to make sure of wireless remote controller .................................. 30
(7) Phenomenon observed after shortcircuit, wire breakage on sensor ......... 29
(8) Checking the indoor electrical equipment ........................................... 29
■How to read the model name
Example: SRK 06 C
Series code
Cooling only type
Product capacity
Model name SRK : Wall mounted type
SRC : Outdoor unit
J-3

-
3
-
1.1 SPECIFICATIONS
Model
Item
SRK06CJ (-3)
Indoor unit SRK06CJ (-3) Outdoor unit SRC06CJ (-3)
Cooling capacity (1) W 1500
BTU/h 5000
Power supply 1 Phase, 220 / 230V, 50Hz
Operation
data (1)
Power
consumption Cooling kW 0.385
Running
current Cooling A1.8
Inrush current 8.5
COP Cooling 3.90
Noise level Cooling Sound level dB(A) 37 48
Exterior dimensions (Height x Width x Depth) mm 268 x 790 x 213 540 x 645 (+62) x 245
Exterior appearance
(Munsell color)
Fine snow
(8.0Y 9.3/0.1) near equivalent
Stucco white
(4.2Y 7.5/1.1) near equivalent
Net weight kg 8.0 25
Refrigerant
equipment
Compressor type & Q'ty — RMC201A009 (Rotary type) x 1
Motor (Starting method) kW — 0.35 (Line starting)
Refrigerant oil 0.29 (SUNISO 4GSI or ATMOS NM56)
Refrigerant (3) kg R22 0.37 (Pre-Charged up to the piping length of 7.5m)
Heat exchanger Louver fins & inner grooved tubing Louver fins & inner grooved tubing
Refrigerant control Capillary tubes
Air handling
equipment
Fan type & Q'ty Tangential fan x 1 Propeller fan x 1
Motor W 16 22
Air flow Cooling CMM 7.8 24
Fresh air intake Not possible —
Air filter, Quality / Quantity Polypropylene net (washable) x 2 —
Shock & vibration absorber — Cushion rubber (for compressor)
Operation
control
Operation switch Wireless-Remote control —
Room temperature control Microcomputer thermostat —
Operation Display RUN : Green, TIMER : Yellow, HI POWER : Green,
ECONO : Orange
Safety devices Frost protection, Fan motor error protection,
Internal thermostat (For compressor)
Installation
data
Refrigerant piping size (O.D) mm Liquid line: φ6.35 (1/4") Gas line: φ9.52 (3/8")
connecting method Flare connecting
Attached length of piping m Liquid line : 0.4
Gas line : 0.33 —
Insulation for piping Necessary (Both sides), independent
Refrigerant line (one way) length
m
Max. 15
Vertical height difference between
outdoor unit and indoor unit
Max.5 (Outdoor unit is higher)
Max.5 (Outdoor unit is lower)
Drain hose Connectable (VP 16) —
Power cable 2.5m (3 Cores wih Earth)
Recommended breaker size A 20
Connection wiring Size x Core number 1.5mm2x 3 cores (Including earth cable)
Connecting method Terminal block (Screw fixing type)
Accessories (included) Mounting kit
Optional parts —
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO-T1, JIS C 9612
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) The operation data are applied to the 220/230V districts respectively.
(4) The refrigerant quantity to be charged includes the refrigerant in 7.5m connecting piping.
(Purging is not required even for the short piping.)
The pipe length is 7.5m.

-
4
-
Model
Item
SRK09CJ (-3)
Indoor unit SRK09CJ (-3) Outdoor unit SRC09CJ (-3)
Cooling capacity (1) W 2640
BTU/h 9000
Power supply 1 Phase, 220 / 230V, 50Hz
Operation
data (1)
Power
consumption Cooling kW 0.88
Running
current Cooling A4.1
Inrush current 18
COP Cooling 3.00
Noise level Cooling Sound level dB(A) 41 49
Exterior dimensions (Height x Width x Depth) mm 268 x 790 x 213 540 x 645 (+62) x 245
Exterior appearance
(Munsell color)
Fine snow
(8.0Y 9.3/0.1) near equivalent
Stucco white
(4.2Y 7.5/1.1) near equivalent
Net weight kg 8.0 27
Refrigerant
equipment
Compressor type & Q'ty — RSA201A034 (Rotary type) x 1
Motor (Starting method) kW — 0.68 (Line starting)
Refrigerant oil 0.28 (SUNISO 4GSI or ATMOS NM56)
Refrigerant (3) kg R22 0.41 (Pre-Charged up to the piping length of 7.5m)
Heat exchanger Louver fins & inner grooved tubing Louver fins & inner grooved tubing
Refrigerant control Capillary tubes
Air handling
equipment
Fan type & Q'ty Tangential fan x 1 Propeller fan x 1
Motor W 16 22
Air flow Cooling CMM 9.0 24
Fresh air intake Not possible —
Air filter, Quality / Quantity Polypropylene net (washable) x 2 —
Shock & vibration absorber — Cushion rubber (for compressor)
Operation
control
Operation switch Wireless-Remote control —
Room temperature control Microcomputer thermostat —
Operation Display RUN : Green, TIMER : Yellow, HI POWER : Green,
ECONO : Orange
Safety devices Frost protection, Fan motor error protection,
Internal thermostat (For compressor)
Installation
data
Refrigerant piping size (O.D) mm Liquid line :φ6.35 (1/4") Gas line :φ9.52 (3/8")
connecting method Flare connecting
Attached length of piping m Liquid line : 0.40
Gas line : 0.33 —
Insulation for piping Necessary (Both sides), independent
Refrigerant line (one way) length
m
Max. 15
Vertical height difference between
outdoor unit and indoor unit
Max.5 (Outdoor unit is higher)
Max.5 (Outdoor unit is lower)
Drain hose Connectable (VP 16) —
Power cable 2.5m (3 Cores wih Earth)
Recommended breaker size A 20
Connection wiring Size x Core number 1.5mm2x 3 cores (Including earth cable)
Connecting method Terminal block (Screw fixing type)
Accessories (included) Mounting kit
Optional parts —
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO-T1 , JIS C 9612
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) The operation data are applied to the 220/230V districts respectively.
(4) The refrigerant quantity to be charged includes the refrigerant in 7.5m connecting piping.
(Purging is not required even for the short piping.)
The pipe length is 7.5m.

-
5
-
Model
Item
SRK12CJ (-3)
Indoor unit SRK12CJ (-3) Outdoor unit SRC12CJ (-3)
Cooling capacity (1) W 3450
BTU/h 11800
Power supply 1 Phase, 220 / 230V, 50Hz
Operation
data (1)
Power
consumption Cooling kW 1.125
Running
current Cooling A5.3
Inrush current 29
COP Cooling 3.07
Noise level Cooling Sound level dB(A) 42 49
Exterior dimensions (Height x Width x Depth) mm 268 x 790 x 213 540 x 780 (+62) x 290
Exterior appearance
(Munsell color)
Fine snow
(8.0Y 9.3/0.1) near equivalent
Stucco white
(4.2Y 7.5/1.1) near equivalent
Net weight kg 8.5 29
Refrigerant
equipment
Compressor type & Q'ty — RMC201A010 (Rotary type) x 1
Motor (Starting method) kW — 0.92 (Line starting)
Refrigerant oil 0.38 (SUNISO 4GSI or ATMOS NM56)
Refrigerant (3) kg R22 0.57 (Pre-Charged up to the piping length of 7.5m)
Heat exchanger Louver fins & inner grooved tubing Louver fins & inner grooved tubing
Refrigerant control Capillary tubes
Air handling
equipment
Fan type & Q'ty Tangential fan x 1 Propeller fan x 1
Motor W 16 22
Air flow Cooling CMM 10.0 32.0
Fresh air intake Not possible —
Air filter, Quality / Quantity Polypropylene net (washable) x 2 —
Shock & vibration absorber — Cushion rubber (for compressor)
Operation
control
Operation switch Wireless-Remote control —
Room temperature control Microcomputer thermostat —
Operation Display RUN : Green, TIMER : Yellow, HI POWER : Green,
ECONO : Orange
Safety devices Frost protection, Fan motor error protection,
Internal thermostat (For compressor)
Installation
data
Refrigerant piping size (O.D) mm Liquid line :φ6.35 (1/4") Gas line :φ12.7 (1/2")
connecting method Flare connecting
Attached length of piping m Liquid line : 0.4
Gas line : 0.33 —
Insulation for piping Necessary (Both sides), independent
Refrigerant line (one way) length
m
Max. 15
Vertical height difference between
outdoor unit and indoor unit
Max. 5 (Outdoor unit is higher)
Max. 5 (Outdoor unit is lower)
Drain hose Connectable (VP 16) —
Power cable 2.5m (3 Cores wih Earth)
Recommended breaker size A 20
Connection wiring Size x Core number 1.5mm2x 3 cores (Including earth cable)
Connecting method Terminal block (Screw fixing type)
Accessories (included) Mounting kit
Optional parts —
Note (1) The data are measured at the following conditions.
Item
Operation
Indoor air temperature Outdoor air temperature Standards
DB WB DB WB
Cooling 27˚C 19˚C 35˚C 24˚C ISO-T1 , JIS C 9612
(2) This air-conditioner is manufactured and tested in conformity with the ISO.
(3) The operation data are applied to the 220/230V districts respectively.
(4) The refrigerant quantity to be charged includes the refrigerant in 7.5m connecting piping.
(Purging is not required even for the short piping.)
The pipe length is 7.5m.

-
6
-
1.2 EXTERIOR DIMENSIONS

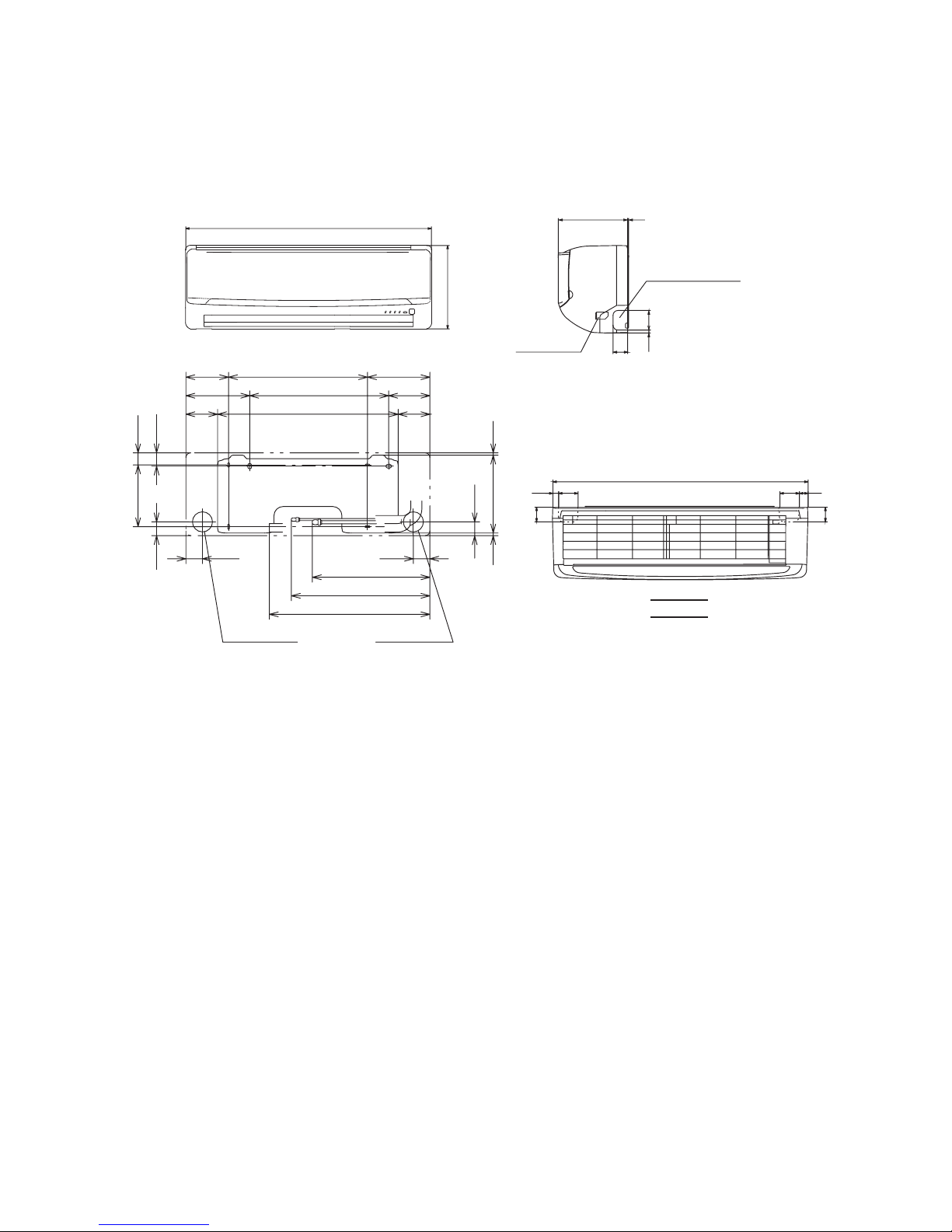

(1) Indoor units
Models SRK06CJ(-3), 09CJ(-3), 12CJ(-3)
1.2.2 Range of usage & limitations
1.2.3 Exterior dimensions
Indoor return air temperature
(Upper, lower limits)
m51.xaMhtgnel)yaweno(eniltnaregirfeR
All models
Refer to the selection chart
Power source voltage Rating ± 10%
Voltage at starting
Min. 85% of rating
Frequency of ON-OFF cycle Max. 10 times/h
ON and OFF interval
Max. 3 minutes
Outdoor air temperature
(Upper, lower limits)
Vertical height difference between
outdoor unit and indoor unit
Max. 5m (Outdoor unit is higher)
Max. 5m (Outdoor unit is lower)
Item
Models
(1) Indoor unit
Models SRK06CJ, 09CJ, 12CJ
Unit: mm
Piping hole (ø65)
( )
Piping hole (ø65)
53.5
06, 09 :ø9.52
12 :ø12.7
Piping for Gas
53.5
44.5
7.5
44.5 43.2
39.3
202450138
133.5450206.5
102.5
585
102.5
252.2
8.3
200
380.6
Piping for Liquid 448.6 (ø6.35)
Drain hose 520 (ø16)
45
45
60
17.5 60 27
788
VIEW A
268
790
A
→
Terminal block
Piping hole right (left)
9
213 3
45
60

-
7
-
192.5
372.5
82.5 480
82.5
61.5
2-ø12 Terminal
block
127.7 33.3
40˚ 40˚
645
Drain holes
Service valve (Gas)
Flare connecting ø9.52 (3/8˝)
Service valve (Liquid)
Flare connecting ø6.35 (1/4˝)
50
12
42
13.5
274.5
300
12 23
44
245
540
100.3 39.7
14.4
(2) Outdoor unit
Model SRC06CJ(-3), 09CJ(-3)
Model SRC12CJ (-3) Unit: mm
63.4
390.6
390.6
69.4
111.6 510 158.4
780 61.9
17.9
14.8 312.5 24.3
351.6
50.6
12
290
Anchor bolt hole
Drain discharge holes
Service valve (Gas)
Flare connection
ø12.7 (1/2")
15.8
540
97.7 42.5
40˚
40˚
138.4 33.5
Terminal block
Service valve (Liquid)
Flare connection
ø6.35(1/4")
Unit: mm

-
8
-
(3) Wireless remote controller
Unit: mm
60 17.3
150

-
9
-
1.3 ELECTRICAL WIRING (1) Indoor units
Models SRK06CJ(-3), 09CJ(-3), 12CJ(-3)
U
MFM
BK
Color symbol
BL
BR
LB
YE
RD
YG
WH
Red
Yellow／Green
White
Black
Blue
Brown
Light blue
Yellow
Symbol
Meaning of Marks
Parts name Symbol Parts name
Capacitor forCF I
FM I
FM
ZNR
FM I
Fuse
Fan motor
Flap motor
Varistor
Th2
T
Room temp. thermistor
Heat exchanger thermistor
Terminal block
F
Th1
Power source
220／230／240V 50Hz YG
LB
BR
Printed circuit board
T
YG
BL
BR
WH
BK
TO
OUTDOOR
UNIT
Th1
Th2
Wireless
R-Amp
Display
CNE
CNG
YE
WH
RD
M
CNW
IC15
ZNR
1
5
3
CNU
CF I
52C-4 52C-3
52C
F
250V 3.15A
CONTROL BOX
1
2
Back up Sw
CNM
N
t°
1～
FM I
t°

-
10
-

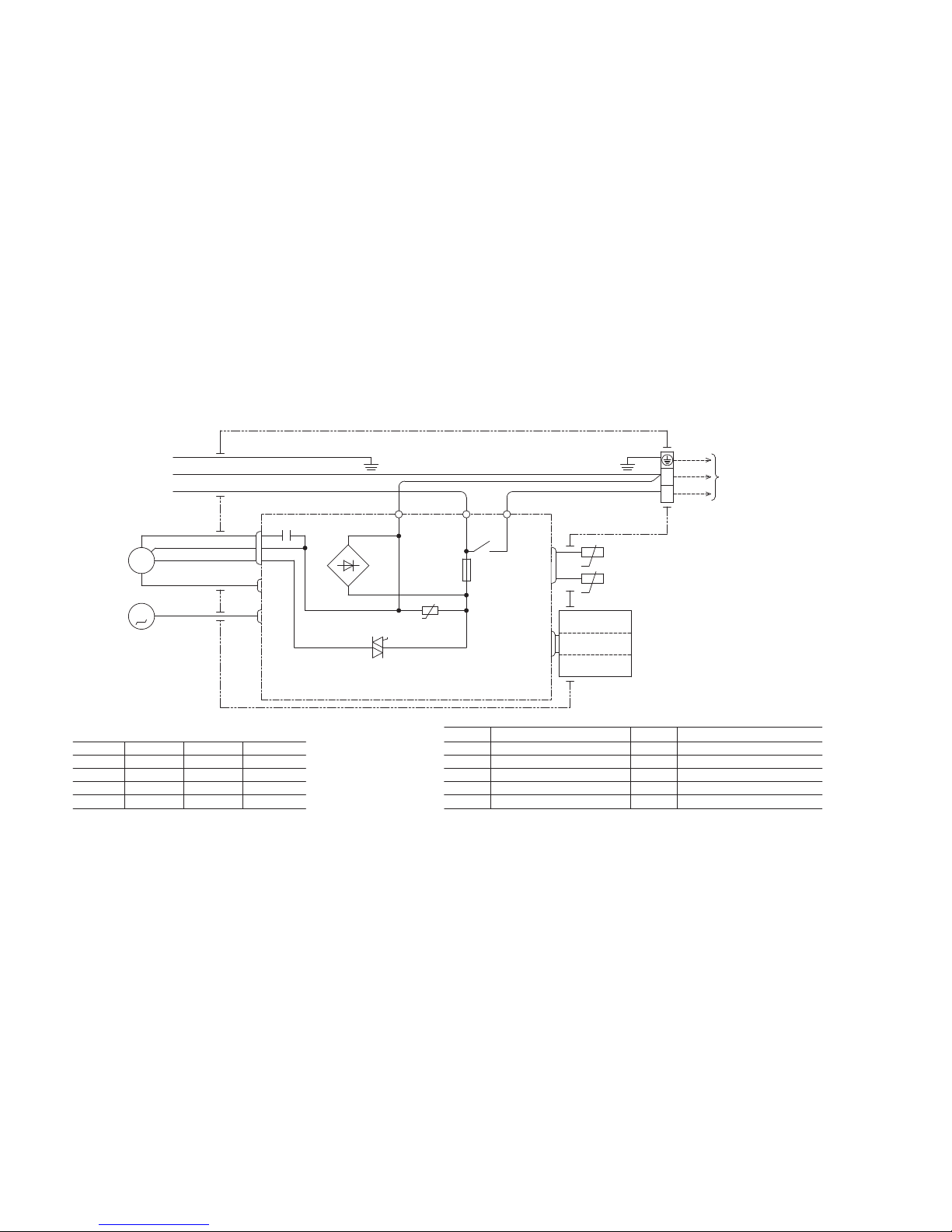

(2) Outdoor units
Models SRC06CJ(-3), 09CJ(-3), 12CJ(-3)
Symbol
Meaning of Marks
Parts name
Capacitor for CMCc
Capacitor for FMoCFo
Compressor motorCM
Fan motorFMo
Motor protector for CM51C
Terminal blockT
ConnectorSh 1
Power source
220-240V 50Hz
INDOOR
UNIT
FMo BLACK
ORANGE
WHITE
RED
WHITE
Cc
ORANGE
CFo
WHITE
ORANGE
WHITE
WHITE
BLACK
BLACK
WHITE
1 2
T
WHITE
CM
BLACK
BLACK
51C
2
31
RED
C
S
R
Sh
1
T
WHITE
1 2
CAPACITOR

-
11
-

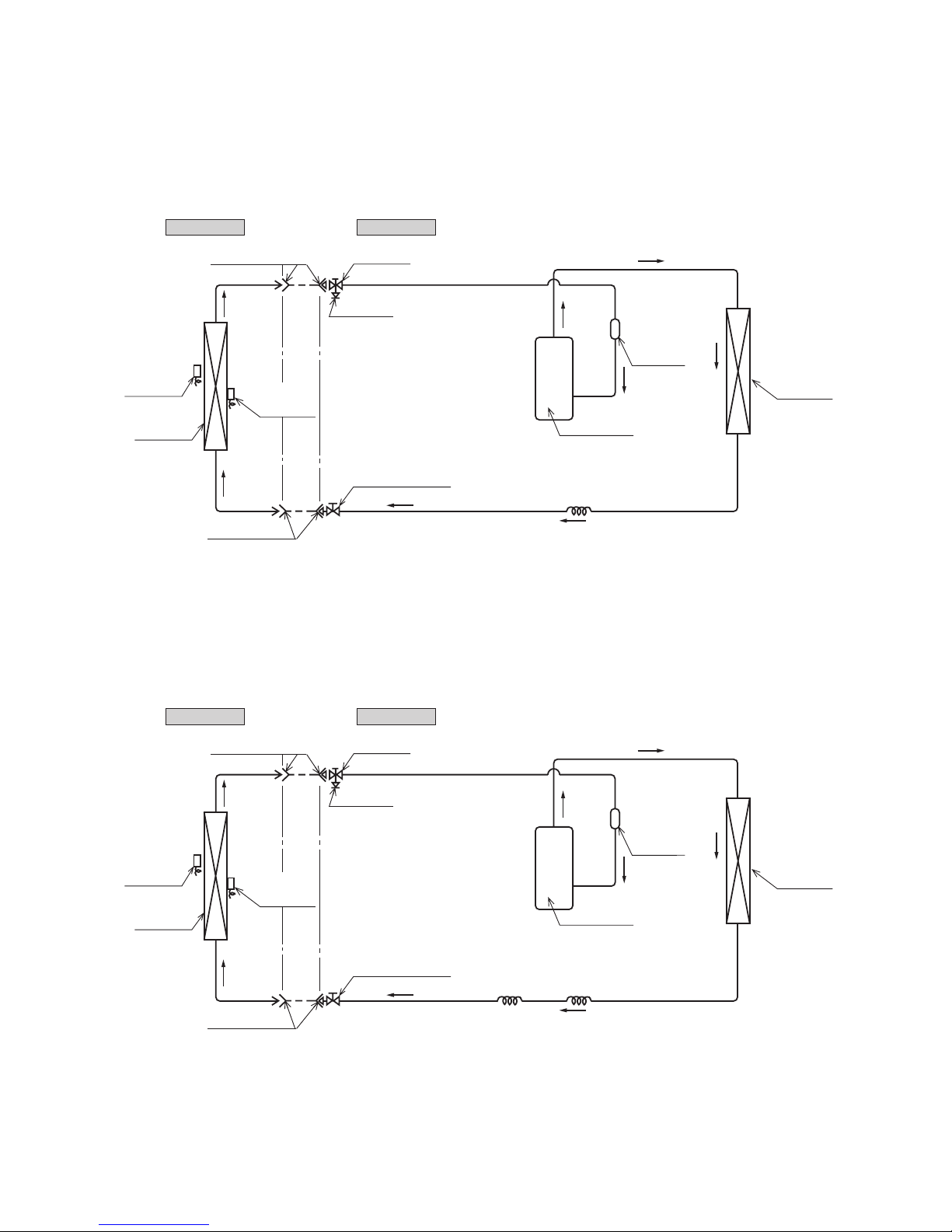

1.4 PIPING SYSTEM
Model SRK06CJ-3, 09CJ-3
Model SRK12CJ-3
Outdoor unitIndoor unit
Room temp.
sensor
Heat
exchanger
Flare connecting
Heat
exchanger
sensor
Piping
(Liquid)
ø6.35
Check joint
Service valve (Liquid)
Flare connecting
Cooling cycle
Heat
exchanger
Compressor
Accumulator
Service valve
(Gas)
Capillary tube
Piping
(Gas)
ø9.52
Outdoor unitIndoor unit
Room temp.
sensor
Heat
exchanger
Flare connecting
Heat
exchanger
sensor
Piping
(Liquid)
ø6.35
Check joint
Service valve (Liquid)
Flare connecting
Cooling cycle
Heat
exchanger
Compressor
Capillary tube
Accumulator
Service valve
(Gas)
Capillary tube
Piping
(Gas)
ø12.7
1.4 PIPING SYSTEM
Models SRK06CJ(-3), 09CJ(-3)
Model SRK12CJ (-3)

-
12
-
1.5 RANGE OF USAGE & LIMITATIONS

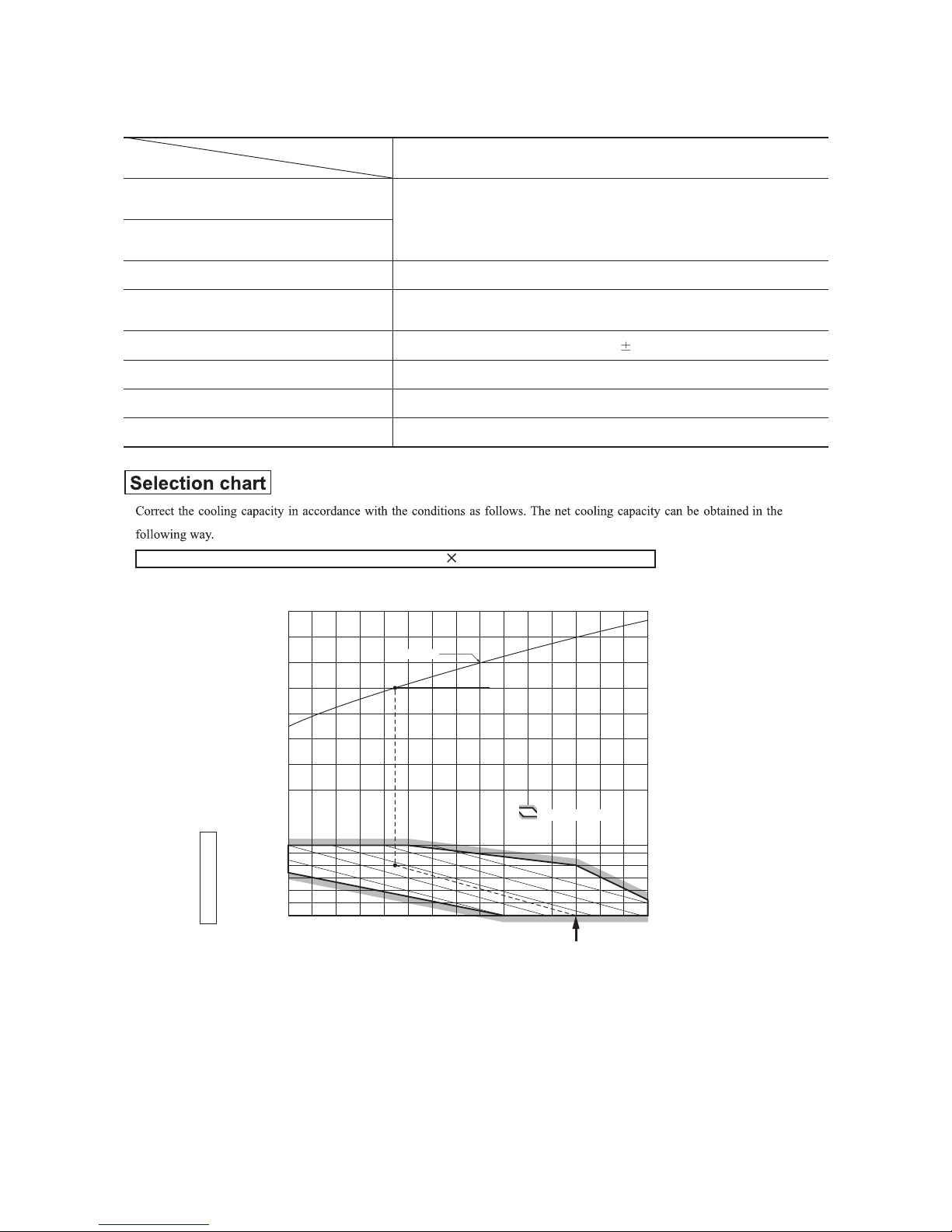

Net capacity = Capacity shown on specification Correction factors as follows.
(1) Coefficient of cooling capacity in relation to temperatures
All models
Models
Item
Indoor return air temperature
(Upper, lower limits)
Outdoor air temperature
(Upper, lower limits)
Refer to the selection chart
Refrigerant line (one way)length Max. 15m
Max. 5m (Outdoor unit is higher)
Max. 5m (Outdoor unit is lower)
Min. 3 minutes
Max. 10 times/h
Min. 85% of rating
Vertical height difference between
outdoor unit and indoor unit
Power source voltage
Voltage at starting
Frequency of ON−OFF cycle
ON and OFF interval
Rating 10%
14 16 18 20 22
15
20
25
30
35
40
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
43
24
ISO-T1 Standard ConditionIndoor air W.B. temperature °C W.B.
Cooling
Applicable range
Coefficient of cooling capacity in relation to temperature
Cooling operation
Outdoor air D.B.
temperature
°C D.B.

-
13
-
(2) Correction of cooling capacity in relation to one way length of refrigerant piping
How to obtain the cooling capacity
Piping length [m]
Cooling
7
1.0
10
0.99
15
0.975
SRK12CJ (-3)
SRK12CJ (-3)
(11500 BTU/h)
Length 15m Factor by air
temperatures
(11800 BTU/h)
3450W 0.975 1.0 3364 W
=

-
14
-
1.6 APPLICATION DATA
Safety precautions
•Please read these “Safety Precautions” first then accurately execute the installation work.
•Though the precautionary points indicated herein are divided under two headings, WARNING and CAUTION , those points which are
related to the strong possibility of an installation done in error resulting in death or serious injury are listed in the WARNING section.
However, there is also a possibility of serious consequences in relationship to the points listed in the CAUTION section as well. In either case,
important safety related information is indicated, so by all means, properly observe all that is mentioned.
•After completing the installation, along with confirming that no abnormalities were seen from the operation tests, please explain operating
methods as well as maintenance methods to the user (customer) of this equipment, based on the owner’s manual.
Moreover, ask the customer to keep this sheet together with the owner’s manual.
WARNING
•To disconnect the appliance from the mains supply this appliance must be connected to the mains by means of a circuit breaker or a switch
(use a recognized 20A) with a contact separation of at least 3mm.
•The appliance shall be installed in accordance with national wiring regulations.
•This system should be applied to places as households, residences and the like. Application to inferior environment such as engineering
shop could cause equipment malfunction.
•Please entrust installation to either the company which sold you the equipment or to a professional contractor. Defects from improper
installations can be the cause of water leakage, electric shocks and fires.
•Execute the installation accurately, based on following the installation manual. Again, improper installations can result in water leakage,
electric shocks and fires.
•For installation, confirm that the installation site can sufficiently support heavy weight. When strength is insufficient, injury can result from
a falling of the unit.
•For electrical work, please see that a licensed electrician executes the work while following the safety standards related to electrical
equipment, and local regulations as well as the installation instructions, and that only exclusive use circuits are used.
Insufficient power source circuit capacity and defective installment execution can be the cause of electric shocks and fires.
•This equipment must be installed with earth leakage circuit breaker (ELCB). Otherwise, it may cause electrical shock and fire in case of
equipment breakdown.
•Accurately connect wiring using the proper cable, and insure that the external force of the cable is not conducted to the terminal connection
part, through properly securing it improper connection or securing can result in heat generation or fire.
•Take care that wiring does not rise upward, and accurately install the lid/service panel.It’s improper installation can also result heat genera-
tion or fire.
•When setting up or moving the location of the air conditioner, do not mix air etc. or anything other than the designated refrigerant (R22)
within the refrigeration cycle.
Rupture and injury caused by abnormal high pressure can result from such mixing.
•Always use accessory parts and authorized parts for installation construction. Using parts not authorized by this company can result in
water leakage, electric shock, fire and refrigerant leakage.
•Ventilate the work area when refrigerant leaks during the operation.
Coming in contact with fire, refrigerant could generate toxic gas.
•Confirm after the foundation construction work that refrigerant does not leak.
If coming in contact with fire of a fan heater, a stove or movable cooking stove, etc., refrigerant leaking in the room could generate toxic gas.
CAUTION
•Execute proper grounding. Do not connect the ground wire to a gas pipe, water pipe, lightning rod or a telephone ground wire.
Improper placement of ground wires can result in electric shock.
•The installation of an earth leakage breaker is necessary depending on the established location of the unit.
No installing an earth leakage breaker may result in electric shock.
•Do not install the unit where there is a concern about leakage of combustible gas.
The rare even of leaked gas collecting around the unit could result in an outbreak of fire.
•For the drain pipe, follow the installation manual to insure that it allows proper drainage and thermally insulate it to prevent condensation.
Inadequate plumbing can result in water leakage and water damage to interior items.
•Install the outdoor unit so that the aluminum fins on the air heat exchanger cannot be touched. Failure to observe this may result in injury.
•Do not place objects near the outdoor unit or allow leaves to gather around the unit. If there are objects or leaves around the outdoor unit,
small animals may enter unit and contact electrical parts resulting in break down, emission of smoke or flame.
Cautions for installation
①The system should be applied to places as households, residences and the like.
②The equipment shall be installed in accordance with national wiring regulations.
③The connection to the fixed wiring of the mains supply must be made via a double pole isolating switch with a contact gap of at
least 3mm in each pole.
④When the outdoor unit has a possibility of being overturned or being displaced and fall from its original installation position, the
outdoor unit should be fixed in its position by use of anchor bolts or wires.

-
15
-
Necessary tools for the installation work
1 Plus headed driver (Phillips screwdriver)
2 Knife
3 Saw
4 Tape measure
5 Hammer
6 Spanner wrench
7 Torque wrench
8 Hole core drill (65mm in diameter)
9 Wrench key (Hexagon) [4m/m]
10 Vacuum pump
11 Vacuum pump adapter
(Anti-reverse flow type)
12 Gauge manifold
13 Change hose
14 Flaring tool set
15 Gas leak detector
( )
Standard accessories
(Installation kit) Q'ty
Accessories for indoor unit
①Installation board 1
(Attached to the rear of the indoor unit)
②Wireless remote control 1
③Remote contorol holder 1
④Tapping screws 4
(for installation board 4dia. by 25mm)
⑤Wood screw 2
(for remote contorol switch holder 3.5dia. by 16mm)
⑥ Baterry [R03 (AAA, Micro) 1.5V] 2
Option parts Q'ty
ⓐ1etalpgnilaeS
ⓑ1eveelS
ⓒ1etalpnoitanilcnI
ⓓ1yttuP
ⓔDrain hose (extention hose) 1
ⓕPiping cover (for insulation of 1
connection piping)
①A place where good air circulation can be obtained and where rain,
snow or sunshine will not directly strike the unit.
②A place where discharged hot air or unit’s operating sound will not
be a nuisance to the neighborhood.
③A place where servicing space can be secured.
④A place where vibration will not be enlarged.
*Avoid installing in the following places.
•A place near the bedroom and the like, so that the operation
noise will cause no trouble.
• A place where there is possibility of flammable gas leakage.
•A place exposed to strong wind.
⑤Blowing out port and suction port on the back side of the unit can
be installed at a distance of 10cm from walls.
In case the barrier is 1.2m or above in height, or is overhead, the
sufficient space between the unit and wall shall be secured.
⑥When the unit is installed, the space of the following dimension
and above shall be secured.
OUTDOOR UNIT
Note (1) If the wall is higher than 1.2 m or a ceiling is
present, distances larger than indicated in the
above table must be provided.
Selection of installation location
①Where there is no obstructions to the air flow and where the
cooled air can be evenly distributed.
②A solid place where the unit or the wall will not vibrate.
③A place where there will be enough space for servicing. (Where
space mentioned right can be secured)
④Where wiring and the piping work will be easy to conduct.
⑤The place where receiving part is not exposed to the direct rays
of the sun or the strong rays of the street lighting.
⑥A place where it can be easily drained.
⑦A place separated at least 1m away from the television or the
radio.
(To prevent interfence to images and sounds.)
INDOOR UNIT
6.5 cm
5 cm
10 cm
Left
side
14.0 ~ 61.0N · m
(1.4 ~ 6.1kgf · m)
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
( )
Designed specifically
for R22
60 cm MIN
Air intake 10 cm MIN
10 cm
MIN
Air outlet
Air
intake
No obstacles
(Service space
for electrical
parts)
Right
side
)(

-
16
-

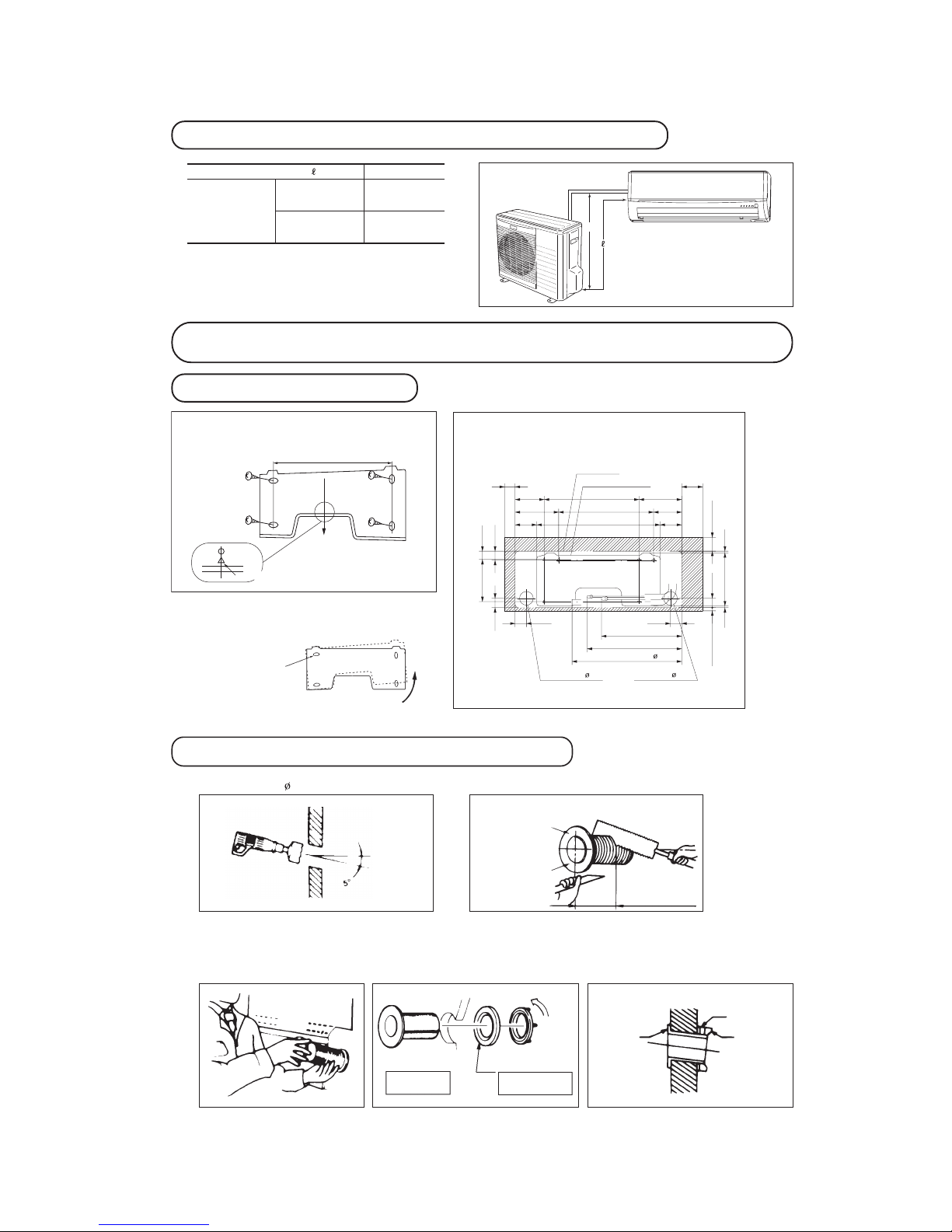

Installation of indoor unit
Installation of installation board
• Adjustment of the installation board in the horizontal
direction is to be conducted with four screws in a
temporary tightened state.
• Adjust so that board will be level by turning the board
with the standard hole as the center.
Standard hole
Look for the inside wall structures (Intersediate support or
pillar and firaly install the unit after level surface has been
checked.)
Mating mark for level surface
450
INSTALLATION SPACE (INDOOR UNIT) (FRONT VIEW)
Unit : mm
Piping hole( 65) Piping hole( 65)
Installation board
Indoor unit
53.5
Piping for Gas 380.6
Piping for Liquid 448.6
Drain hose 520( 16)
53.5
Space *
for service
Space
for service
44.5
252.2 7.5
8.3
Space for
service
50
Space for
service
100
102.5
585
102.5
133.5
450206.5
202450138
44.5 43.2
39.3
200
65
15
Limitations for one way piping length and vertical height difference
One way piping length ( ) 15 m
Outdoor
unit is lower 5 m
Outdoor unit
is higher 5 m
Vertical height
difference (h)
h
Drilling of holes and fixture sleeve (Option parts)
(Inserting sleeve)
Note (1) Drill a hole with incline of 5 degree from
indoor side to outdoor side.
Indoor side Outdoor side
Cut off the sleeve
collar in case of
drawing piping
out to rear.
Cut off the sleeve
collar that can be
seen from beneath
the unit.
Wall thickness
+ 1.5 cm
Indoor side Outdoor side
Turn to
tighten
Paste
View of sleeve when installed
Inclined
flange
Sealing
plate
Sleeve
Indoor side Outdoor side
(*Sleeve + *Inclined + *Sealing plate)
Drill a hole with 65 whole core drill Adjusting sleeve length
Install the sleeve
*Leave extra space on the right side to enable removal of the lid screw.

-
17
-
Preparation of indoor unit
Pipe
Drain hose
[Procedure for exchanging the drain hose.]
1. Remove the drain hose. 2. Remove the drain cap. 3. Insert the drain cap. 4. Connect the drain hose.
①Mounting of connecting wires
ⓐRemove the lid.
ⓑRemove the wiring clamp.
ⓒConnect the connecting wire securely to the terminal block.
Use cable for interconnection wiring to avoid loosening of the
wires.
CENELEC code for cables Required field cables.
H05RNR3G1.5 (Example) or 245IEC57
H Harmonized cable type
05 300/500 volts
R Natural-and/or synth. rubber wire insulation
N Polychloroprene rubber conductors insulation
R Standed core
4or5 Number of conductors
G One conductor of the cables is the earth conductor (yel-
low/green)
1.5 Section of copper wire (mm2)
•Connect the connection wire securely to the terminal block.
If the wire is not affixed completely, contact will be poor,
and it is dangerous as the terminal block may heat up and
catch fire.
•Take care not to confuse the terminal numbers for indoor
and outdoor connections.
•Earth lead wire shall be longer than the other lead wires for
the electrical safety in case of the slipping out of the cord
from the anchorage.
•The earth line of power cord must be properly earthed.
•Affix the connection wire using the wiring clamp.
ⓓFix the connecting wire by wiring clamp.
ⓔAttach the lid.
ⓕClose the air inlet panel.
For power supply, indoor unit
For power supply, outdoor unit
1 Brown
2 Blue
②Shaping the pipe
③Taping of the exterior
•Hold the bottom of the pipe and change its direction before
stretching it and shaping it.
•Tape only the portion that runs through the wall.
Always tape the crossover wires with the pipe.
④Cautions when piping from the left and the rear center of the unit
[ Top View ]
•Loosen and remove the
spring-type clamp.
•Remove with your hand or
a pair of pliers.
• Use a hexagonal wrench to
correctly insert the drain cap
which was removed in 2.
Caution: Be careful because
if the cap is not inserted prop-
erty, water leak may occur.
• Loosen the spring-type clamp
and securely insert the drain
hose.
Caution: Be careful because
if the cap is not inserted prop-
erly, water leak may occur.
gnipiPediSthgiRgnipiPediStfeL
Right rear pipingLeft rear piping
gnipipedisthgiRgnipipedistfeL
Lid
Screw * Clamp
Terminal block
[ Procedure for exchanging the drain hose ]
Left downward
Right
Rear
Downward Left rear Left
Piping is possible in the rear, left,
left rear, left downward, right or
downward direction.
•Do not place the power supply cords above the gutter, because the
air conditioner is structured in a way where condensation on the
back side is collected in to the drain pan before drainage.
•Do not make traps in the drain hose line.
* Leave space to allow
removal of this screw
after installation.
Terminals on the indoor unit
Colour of wires
Terminals on the outdoor unit
1
1
2
2
Wall
Gutter
Pipes storage area
Declining slope Inverted slipe Trap
