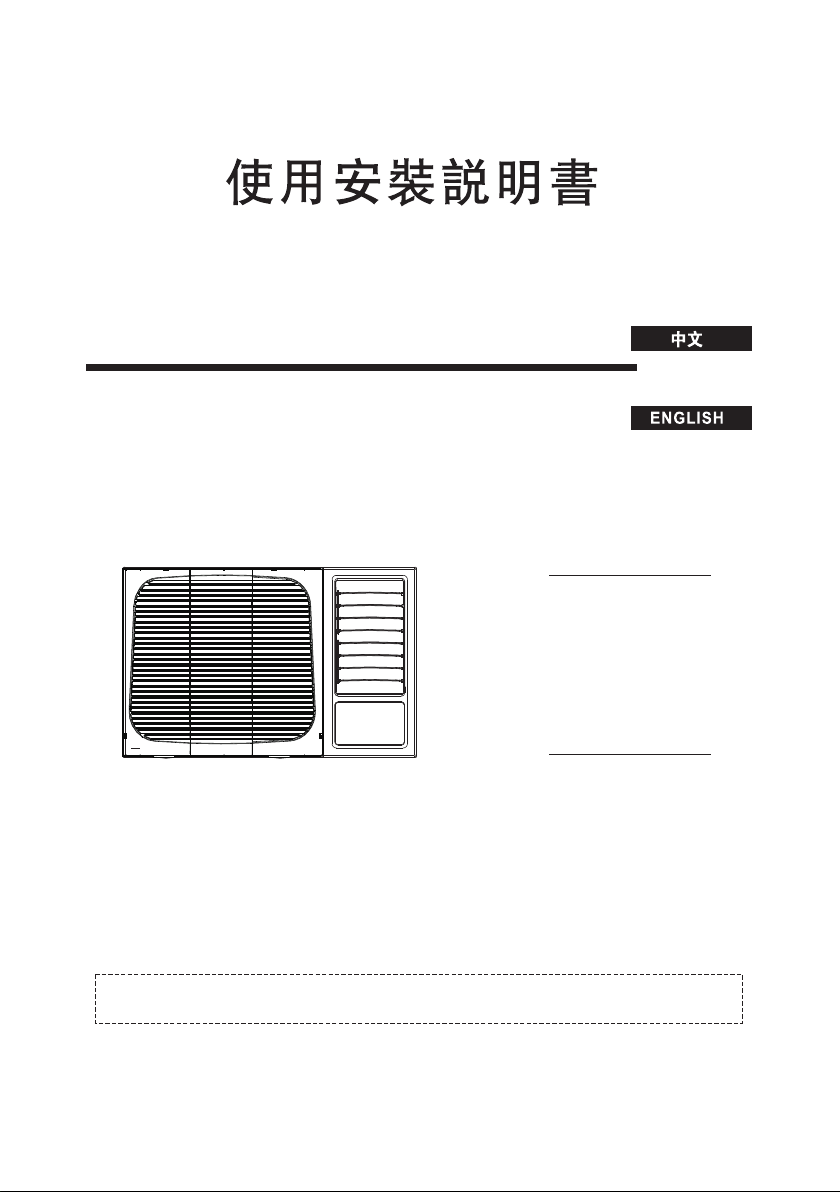

Mitsubishi Heavy Industries WRK20MA1 User manual

WRK20MA1
WRK26MA1
WRK35MA1
WRK53MA1
WRK70MA1
本空調器適用於家用。
本空調器使用新型環保冷媒(R410A),當需要獲得维修檢查以及保養時,請
對經銷商說明此情況。
承蒙選購三菱重工空調器，深表感謝！爲了使空調器長久保持其良好的運
轉性能,在您開始使用空調器之前,務請仔細閱讀本說明書。閱后應將它妥善保
管好,以備必要時查閱。
MITSUBISHI HEAVY INDUSTRIES
三菱重工
窗口式冷氣機
Window Type Air Conditioner

SOCIABLE REMARK
The following contents apply only the countries of Europe.
DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.
It is prohibited to dispose of this appliance in domestic household waste.
For disposal, there are several possibilities:
A) The municipality has established collection systems, where electronic waste can
be disposed of at least free of charge to the user.
B) When buying a new product, the retailer will take back the old product at least
free of charge.
C) The manufacture will take back the old appliance for disposal at least free of
charge to the user.
D) As old products contain valuable resources, they can be sold to scrap metal
dealers.
Wild disposal of waste in forests and landscapes endangers your health when
hazardous substances leak into the ground-water and find their way into the food
chain.

Inside you will find many helpful hints on how to use and maintain your air conditioner
properly. Just a little preventive care on your part can save you a great deal of time
and money over the life of your air conditioner. You'll find many answers to common
problems in the chart of troubleshooting tips. If you review our chart of Troubleshooting
Tips first, you may not need to call for service at all.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
the appliance. Cleaning and user maintenance shall not be made by children without
supervision. ( be applicable for the European Countries )
This appliance is not intended for use by persons (including children) with reduced
physical ,sensory or mental capabilities or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. (be applicable for other countries except the
European Countries )
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard.
The appliance shall be installed in accordance with national wiring regulations.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room.
The appliance with electric heater shall have at l east 1 m eter s pace t o t he c ombustible
materials.
Contact the authorised service technician for repair or maintenance of this unit.
Contact the authorised installer for installation of this unit.
When there are wide differences between USER S MANUAL and Remote controller
Illustration on function description, the description on USER S MANUAL shall prevail.
If the air conditioner is knocked over during use, turn off the unit and unplug it from the
main power supply immediately. Visually inspect the unit to ensure there is no damage.
If you suspect the unit has been damaged, contact a technician or customer service for
assistance.
In a thunderstorm, the power must be cut off to avoid damage to the machine due to
lightning.
To reduce the risk of fire or electric shock, do not use this fan with any solid-state speed
control device.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar
coverings. Do not route cord under furniture or appliances. Arrange cord away from
traffic area and where it will not be tripped over.
CAUTION
Read This Manual
!

CONTENTS
1. SAFETY PRECAUTIONS..................................................................2
2. UNIT PARTS IDENTIFICATION.........................................................5

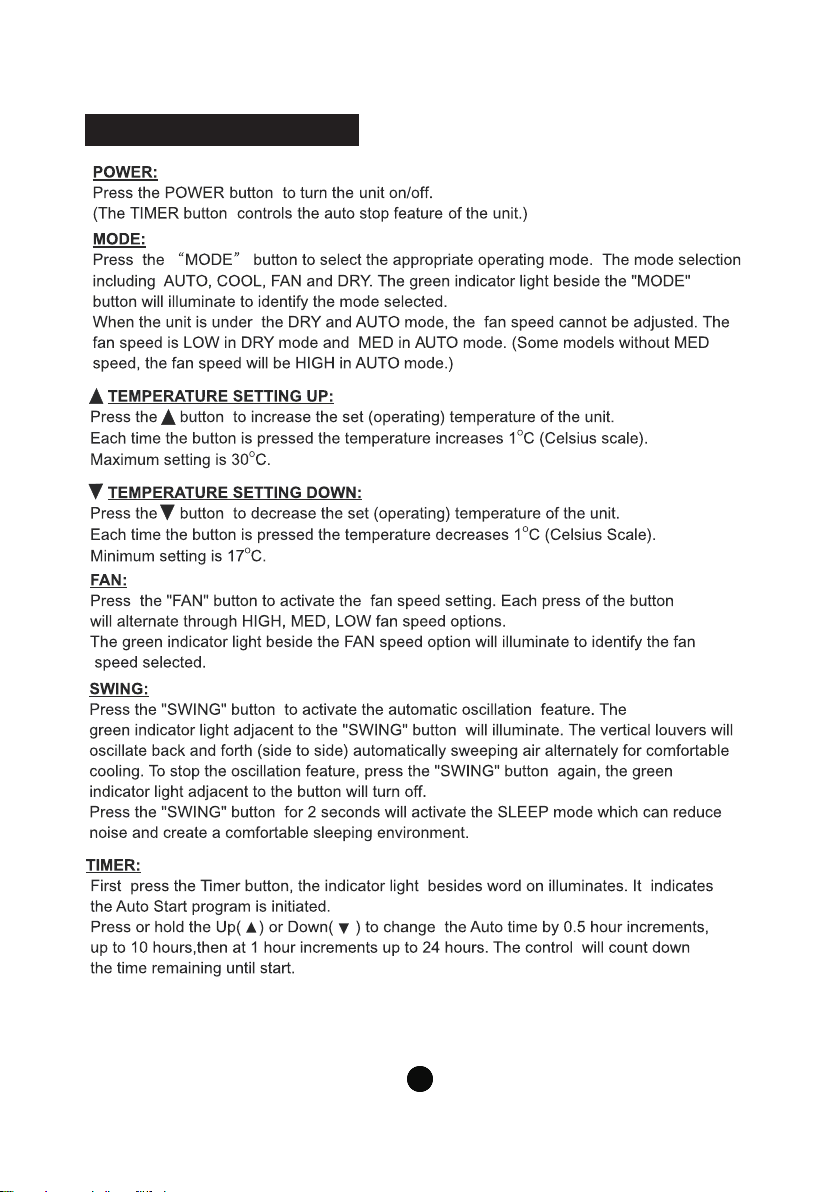

3. OPERATING INSTRUCTIONS ..........................................................6

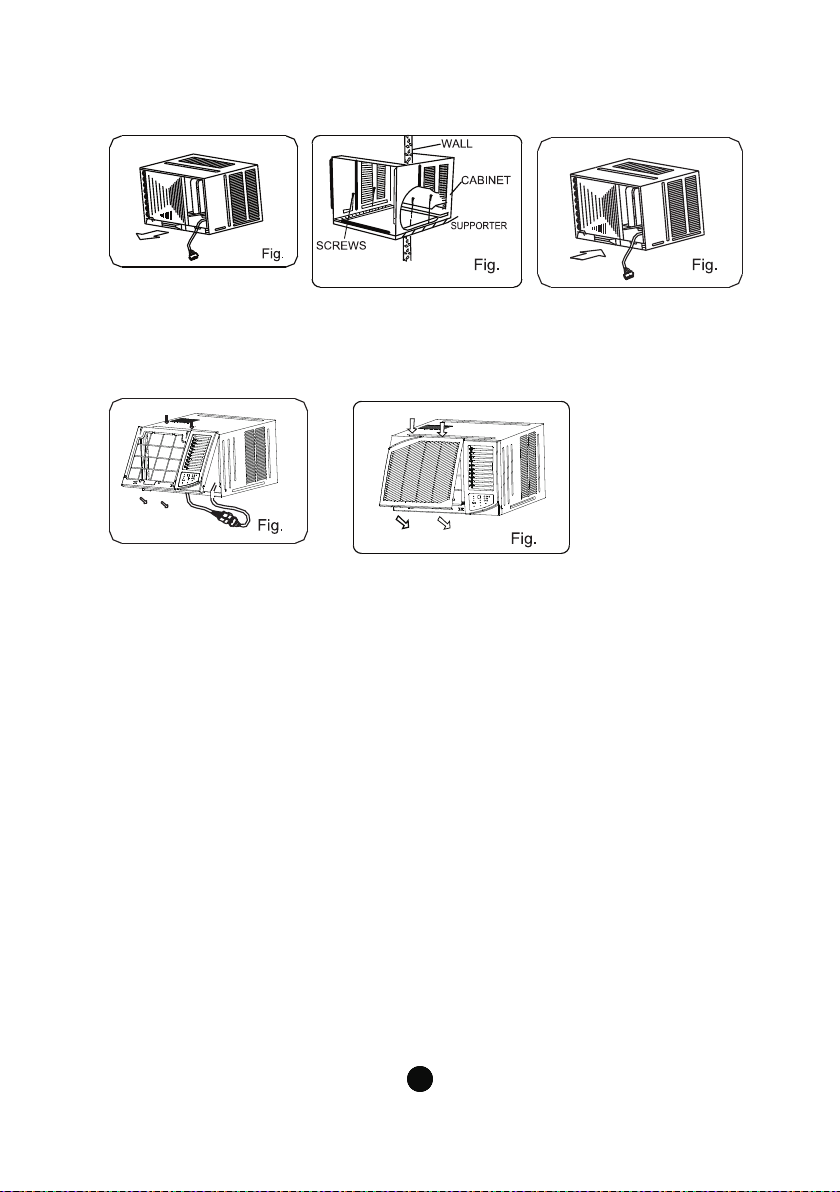

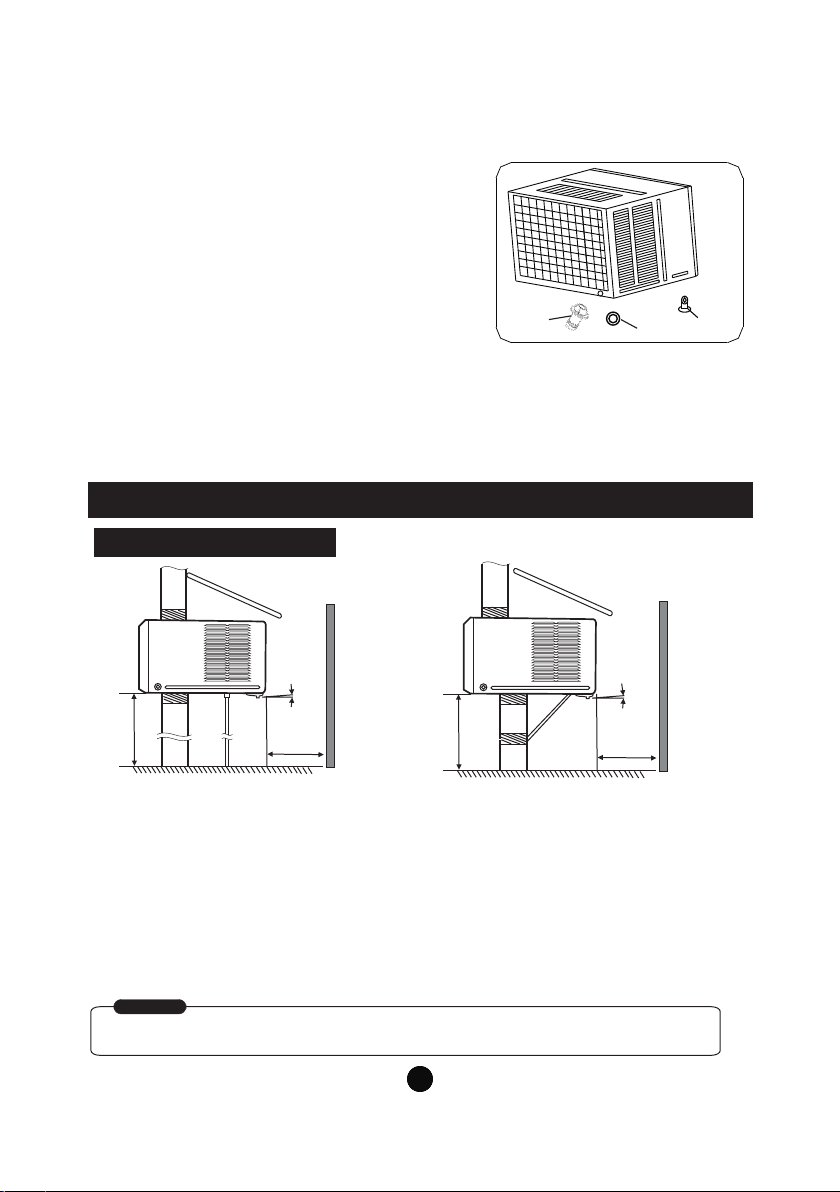

4. INSTALLATION INSTRUCTIONS......................................................11
5. TROUBLESHOOTING ......................................................................15
6. SPECIFICATIONS .............................................................................16
1

To prevent injury to the user or other people and property damage, the following instructions
must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage.
The seriousness is classified by the following indications.
This symbol indicates the possibility of death or serious injury.
Meanings of symbols used in this manual are as shown below.
!
!
WARNING
Always do this.
Never do this.
!
CAUTION
This symbol indicates the possibility of injury or damage to property.
Plug in power plug
properly.
Do not modify power cord
length or share the outlet
with other appliances.
Always ensure effective
earthing.
Unplug the unit if strange
sounds, smell, or smoke
comes from it.
Leave the door closed
while the air conditioner
is running.
Ventilate room before operating air
conditioner if there is a gas leakage from
another appliance.
Otherwise, it may cause electric
shock or fire due to excess heat
generation.
It may cause electric shock or
fire due to heat generation.
Incorrect earthing may cause
electric shock.
It may cause fire and electric
shock.
It is not designed to cool the
entire house.
It may cause explosion, fire and, burns.
It may cause electric shock or fire
due to heat generation.
It may cause electric shock.
It may cause failure of machine
or electric shock.
It may cause fire and electric
shock.
It may cause fire and electric
shock.
It may cause electric shock or fire.
If the power cord is damaged, it
must be replaced by the manufac-
turer or an authorised service
centre or a similarly qualified per-
son in order to avoid a hazard.
This could damage your health.
Incorrect installation may cause
fire and electric shock.
It may cause electric shock.
It may cause an explosion or fire.
It may cause failure and electric shock.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
Do not operate with wet
hands or in damp
environment.
Do not allow water to run
into electric parts.
Do not use the socket if it is
loose or damaged.
Do not use the power cord
close to heating appliances.
Do not damage or use an
unspecified power cord.
Do not direct airflow at
room occupants only.
Always install circuit
breaker and a dedicated
power circuit.
Do not open the unit
during operation.
Do not use the power cord near
flammable gas or combustibles, such
as gasoline, benzene, thinner, etc.
Do not disassemble or modify unit.
!
!
!
!
!
!
WARNING
!
!
SAFETY PRECAUTIONS
2

!
CAUTION
When the air filter is to be
removed, do not touch the
metal parts of the unit.
It may cause an injury.
Do not clean unit when
power is on as it may cause
fire and electric shock, it may
cause an injury.
Operation with windows
opened may cause wetting
of indoor and soaking of
household furniture.
When the unit is to be
cleaned, switch off, and turn
off the circuit breaker.
Stop operation and close
the window in storm or
hurricane.
Use caution when unpacking and
installing. Sharp edges could cause injury.
Do not clean the air
conditioner with water.
Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
This could injure the pet or
plant.
It may cause electric shock
and damage.
Do not put a pet or house
plant where it will be
exposed to direct air flow.
Hold the plug by the head
of the power plug when
taking it out.
Ventilate the room well when
used together with a stove,
etc.
An oxygen shortage may occur.
Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
It may cause failure of product
or fire.
Do not use for special
purposes.
Turn off the main power
switch when not using the
unit for a long time.
If water enters the unit, turn the unit off at the power
outlet and switch off the circuit breaker. Isolate
supply by taking the power-plug out and contact a
qualified service technician.
!
!
!
!
!
!
!
It may cause failure of
appliance or accident.
Appearance may be
deteriorated due to change
of product color or
scratching of its surface.
Do not place obstacles
around air-inlets or inside
of air-outlet.
Do not use strong deter-
gent such as wax or
thinner but use a soft cloth.
If bracket is damaged, there
is concern of damage due to
falling of unit.
There is danger of fire or
electric shock.
Ensure that the installation bracket of
the outdoor appliance is not damaged
due to prolonged exposure.
Do not place heavy object on the
power cord and ensure that the cord
is not compressed.
Operation without filters may
cause failure.
It contains contaminants and
could make you sick.
Always insert the filters
securely. Clean filter once
every two weeks.
Do not drink water drained
from air conditioner.
!
!
!
3

Preparing for operation
Usage

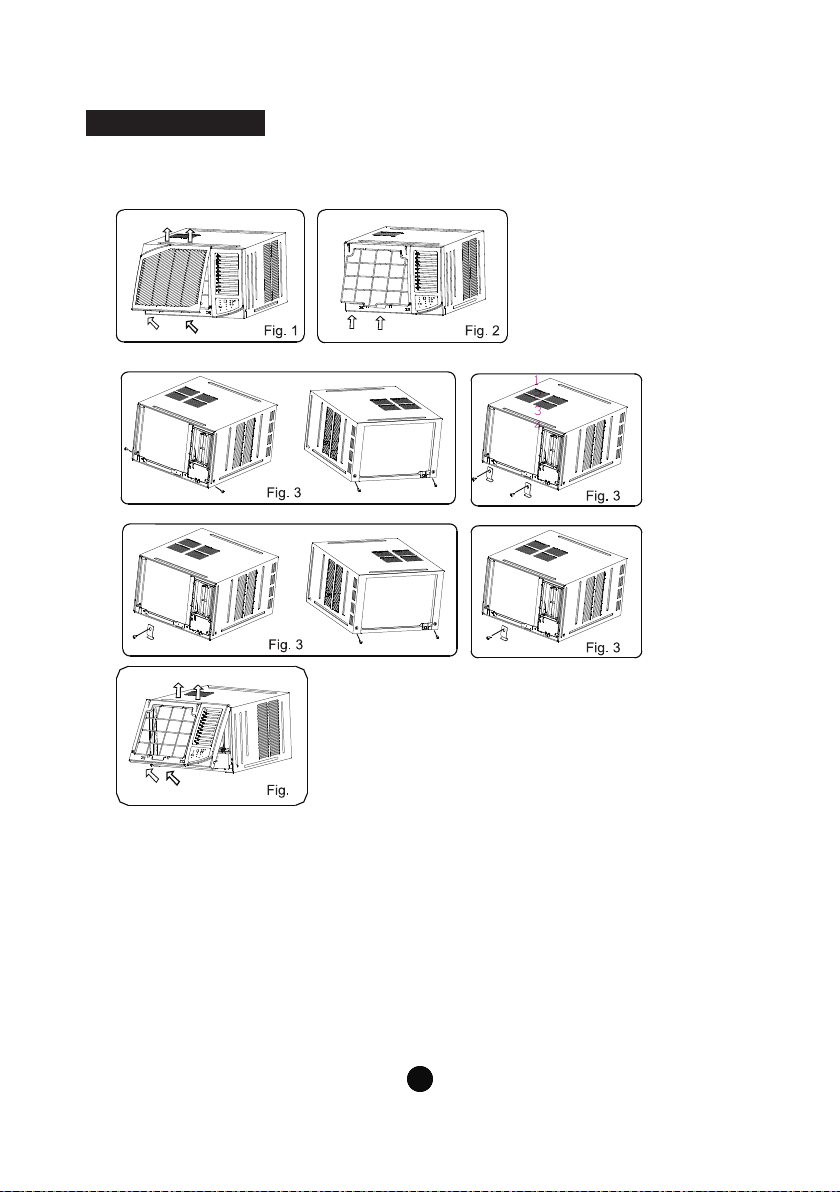

Cleaning and maintenance
Operating Temperature
1. Contact an installation specialist for installation.
2. Plug in the power plug properly.
3. Do not use a damaged or non-standard power cord.
4. Do not share the same outlet with other appliances.
5. Do not use an extension cord.
6. Do not start/stop operation by plugging/unplugging the power cord.
1. Exposure to direct airflow for an extended period of time could be hazardous to your
health. Do not expose occupants, pets, or plants to direct airflow for extended
periods of time.
2. Due to the possibility of oxygen deficiency, ventilate the room when used together
with stoves or other heating devices.
3. Do not use this air conditioner for non-specified special purposes (e.g. Preserving
precision devices, food, pets, plants, and art objects). Usage in such a manner could
harm such property.
1. Do not touch the metal parts of the unit when removing the filter. Injuries can occur
when handling sharp metal edges.
2. Do not use water to clean inside the air conditioner. Exposure to water can destroy
the insulation, leading to possible electric shock.
3. When cleaning and maintenance the unit, first make sure that the power and circuit breaker
are turned off.
SAFETY PRECAUTIONS(prior to operation)
Note: Performance may be reduced outside of these operating temperatures.
1. Power cord conductors are distinguished according to color as follows (see Fig.a)
2. For your safety and protection, this unit is earthed through the power cord (see Fig.b)
Please contact the manufacturer or its service agent or a similar qualified person if
you want to replace it.
3. Be sure that the unit being correctly grounded. The wall outlet (Air-break switch)should be
provided with reliable earth wire.
4. The unit should be provided with an individual circuit and the circuit breaker/fuse
rating should be the same as that of the power cord and wall outlet.
POWER
CORD
A
E
N
E-Earth wire, yellow/green
N-Neutral wire, blue
A-Active wire, brown
Fig.a
Wall outlet Air-break switch
4
Cooling operation
Outdoor temp:
Indoor temp:
Fig.b

UNIT PARTS IDENTIFICATION
NOTE: The front panel and cabinet may be slightly different according to the models, but the
functions are the same. The following illustration is for explanation purpose only, the actual
shape of the machine you purchased may be slightly different.
NOTE:All the illustrations in the manual are for explanation purpose only.Your air conditionar
may be slightly different.The actual shape shall prevail.
NOTE: Optional parts( ), depending on model you purchased.
Accessories
(?)
Seal
(Used on
drain joint)
1 1
Screw
2 (For >18000Btu/h models only:
Used to fasten the front panel)
2 or 4 ( Used to install the drain
tray)
Drain Joint
1 pec1pec
Drain Tray Rubber Plug
1or 2
(depend on model you purchased)
(?)(?)
or
8
Wooden screw
(optional)(?)
5
After the unit has stopped, it can not be restarted operation in the first 3
minutes. This is to protect the unit. Operation will automatically start after
3 minutes.
Wait 3 minutes before resuming operation
If the unit breaks off unexpectedly due to the power cut,it will restart with the
previous function setting automatically when the power resumes.
Auto-Restart(on some models)
1. Front panel
2. Air filter
3. Frame
4. Cabinet
5. Air inlet grille (outdoor side)
6. Air outlet grille
7. Electronic control keypad
8. Power supply cord
9. Control panel cover
10. Remote controller
9
MODE
SLEEPLED
CLOCK
CANCEL
TIMER
FAN
RESET
LOCK
CLOCK
E
ON
OFF
SET TEMP.
FAN SPEED
AUTO
F
SWING
10

OPERATING INSTRUCTIONS
Controls
Vent Control
The vent control is located above the control knobs. The operation method is different
on different models (see the following figures).
For maximum cooling efficiency, CLOSE the vent. This will allow internal air circulation.
OPEN the vent to discharge stale air.
The electronic control keypad will look like one of the following:
CLOSE VENT OPEN
To open the vent, pull the lever toward you
To close it, push it in.
To open the vent, set the lever to the right position
To close it, set the lever in the left position.
CLOSE OPEN
6
Cooling Only Model
Fan
Swing
Timer
Mode
SLEEP SWING
HIGH
MED
LOW
COOL
FAN
DRY
TEMP
AUTO
TIMER ON
TIMER OFF
NOTE: The outline of the operation panel is based on typical model, the function is
the same with your air conditioner while some difference may exist in appearance.
NOTE: Some models without MED fan speed feature and (or) swing feature.

OPERATING INSTRUCTIONS
7

8

Indicates frosting protection (Turn off the unit and restart it to return to normal operation).

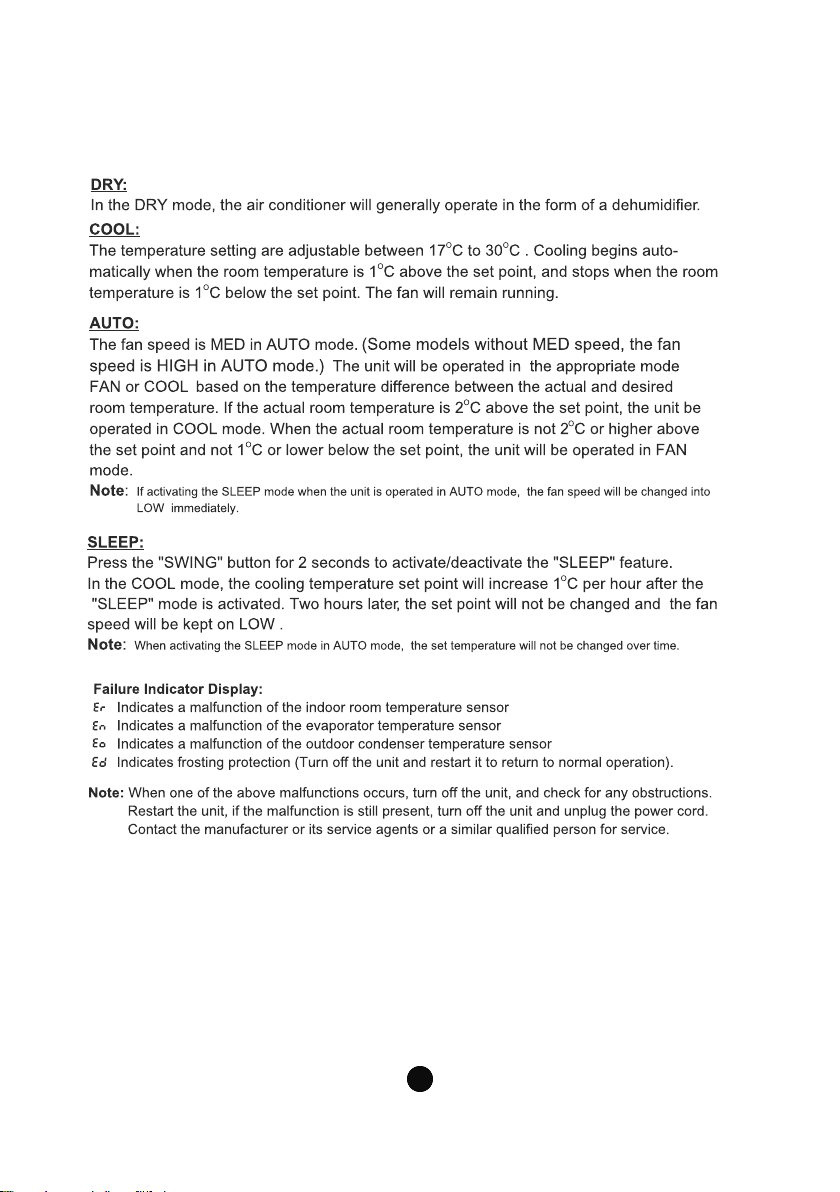

Failure Indicator Display:
Indicates a malfunction of the indoor room temperature sensor
Indicates a malfunction of the evaporator temperature sensor
Indicates a malfunction of the outdoor condenser temperature sensor
Note: When one of the above malfunctions occurs, turn off the unit, and check for any obstructions.
Restart the unit, if the malfunction is still present, turn off the unit and unplug the power cord.
Contact the manufacturer or its service agents or a similar qualified person for service.
NEVER operate the air conditioner without the air filter, as
dust/dirt particles can contribute to equipment failure.
CAUTION !
!
OPERATING INSTRUCTIONS(continued)
remote display is actual temperature at its location. The remote control will send this signal to the air
conditioner every 3 minutes interval until press the Follow Me button again.If the unit does not receive
the Follow Me signal during any 7 minutes interval, the unit will beep to indicate the Follow Me mode
has ended.
CHECK FILTER FEATURE:
After 800 hours of operation, CL will be displayed and flashed in the display area. This feature is a
reminder to clean the Air Filter for more efficient operation. After 10 seconds, the system will revert back
to the previous display again. The CL indicator will display and flash for another 10 seconds at the
next time starting the unit. To cancel the reminder feaure, press the FILTER CLEAN button on the remote
controller while the CL indicator is flashing.
, , , ,
, , , ,
, , , ,
9
Indicates the requirement of a filter check after 720 hours of fan operation. Turn off the unit,
disconnect/unplug from the power supply. Clean the filter, then restore the power, the unit will
return to normal operation(on some models)
NOTE: EI=CLEAN AIR FILTER(on some models):
A message prompt EI will automatically appear in the LED window indicating when it is time to clean the air
filter. The "EI" program is a (built-in) time device that operates based on total (air conditioner) running time.
It is very important to keep the air filter clean at all times in order to maximize cooling efficiency (See Cleaning
Air Filter). The air filter must be cleaned when the "EI" message from the LED display, the air conditioner
must be switched off and disconnected (unplugged) from the power supply and re-connected. This action
automatically resets the "EI" program internal time device.
" "
In the event of a power failure, the EI program is automatically re-set, therefore we suggest you remove and
clean the filter before re-starting the unit after any power failure.
" "
LONIZER FEATURE:
Ionizer function is activated when the compressor is in operation and is cancelled when the
compressor is out of the operation.The Ionizer can generate abundant anions to fill the room with
refreshing and natural air.

Air Freshen Filter(optional)
How to install the air freshen filter
1. Remove the air filter as the steps .
2. Install the air freshen filter to the positions
you desired as shown in the right picture.
above
1
2
3
4
The air freshen filter
at any place of the four positions.
can be installed
The air filter behind the inlet grille should be checked and
cleaned at least once every 2 weeks (or as necessary) to
maintain optimal performance of the air conditioner.
Air Filter
How to remove the air filter
1.
and remove the front panel.
2. Pinch the handle under the air filter and make the air filter
arched, remove it from the slot from underside to upside.
3. Clean the filter with warm, soapy water. The water
O
should be below 40 C to prevent distortion of the filter.
4. Rinse off and gently shake off excess water from the
filter. Allow the filter to dry before replacing it. To prevent
distortion of the filter, do not dry in direct sunlight.
Hold the tabs under the front panel, then uplift it outwards,
10
To meet different requirement of different type of air conditioner,t here a re three k inds o f m ethods
for your choice to treat the condensed water.
Drainage
1. Remove the rubber plug from the bottom of the cabinet and
attach to the back drain hole (on some models the rubber
plug provided with your air conditioner accessory). For the
units without the bottom rubber plug and the back drain hole,
just install the drain tray.
2. Take out the drain tray and screws (which provided with
your air conditioner accessory).
3. Install the drain tray at the bottom of the unit and secure with
screws provided.
4. Connect the drain hose to the outlet located at one side of the
drain tray. You can purchase the drain hose or tubing locally to
satisfy your particular needs (Drain hose is not supplied).
Suggestion: To ensure the condensed water drain off smoothly, always keep the drain oulet of the
the drain tray downward when install the drain tray.
When cooling or heating,you can choose bottom drainage ,
See the following procedures to perform bottom drainage:
RUBBER
PLUG
SCREW
DRAIN PAN
DRAIN
OUTLET
Note:When you choice bottom drainage the air conditioner will effect cooling efficiency little and
have no voice of hit water.
To adjust vertical air flow direction of the up or low horizontal
louvers, adjust any one of the up or low horizontal louver blades.
Vertical air flow adjustment (manually)
Up horizontal louver
Low horizontal louver

11
When cooling you can choose back drainage (on models
with back drain hole).
See the following procedures to perform back drainage:
1. Fit the seal onto the drain joint (which provided with
your air conditioner accessory).
2. Remove the rubber plug from the back of the unit.
(If applicable),and insert the rubber plug(which
provided with your air conditioner accessory on
some models) into the bottom drain hole of the unit.
3. Attach the drain joint to the back of the cabinet
O
where you remove the plug and rotate 90 to
securely assemble them.
SEAL
DRAIN
JOINT RUBBER
PLUG
4. Connect the drain joint with a extension drain hose
(Locally purchased)
1. To avoid vibration and noise, make sure the unit is installed securely and firmly.
2. Install the unit where the sunlight does not shine directly on the unit.
If the unit receives direct sunlight, build an awning to shade the cabinet.
3. There should be no obstacle, such as a fence or wall, within 50cm from the back of the
cabinet because it will prevent heat radiation of the condenser.
Restriction of outside air will greatly reduce the cooling and heating efficiency of the
air conditioner.
4. Install the unit a little obliquely outward not to leak the condensed water into the room
O
(about 3~4 with level).
5. Install the unit with its bottom portion 75~150cm above the floor level.
6. The power cord must be connected to an independent circuit. The yellow/green
wire must be grounded.
All side louvers of the cabinet must remain exposed to the outside of the structure.
CAUTION
Select the best location
INSTALLATION INSTRUCTIONS
75~150cm
Over 50cm
O
About 3~4
AWNING
FENCE
75~150cm
Over 50cm
O
About 3~4
AWNING
FENCE
Note:When you choice back drainage the air conditioner will make a voice of hit water.
Note:If you choose non-drainage when cooling,both the bottom and the back drain holes of the unit
should be inserted with rubber plugs.When you choice non-drainage the air conditioner will be
perfect cooling efficiency, but the unit will make a big voice of hit water. Does not recommend
to use.
Note:Cooling efficiency of the unit is tested under hit water.

Installation of the unit into the Housing
Installations of the unit into the wall
1. Slide the unit into the housing until it is firmly against the
rear of the housing. Care is required to ensure the foam
sealing strips on the housing remain in position.
2. Connect the air conditioner to the power and position
excess cord length beneath the air conditioner base.
3. Engage the chassis fixing brackets into the bottom housing
rail and secure to the base with the screw provided.
4. Remove the front panel from it's carton and plastic bag
and fit as per the Installation lnstruction.
5. Switch unit on. Check for operation of the unit and check
for vibration in the installation.
6. Fit the drain pan to the housing and run a drain line to a
suitable location if required.
Alternative method of installation if external
support cannot be provided.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME
TIMBER FRAMED
WALL OR PARTITION
SOLID TIMBER SUPPORT
STEADYING BRACKET
(ONE PER SIDE)
DRAIN PAN
ENSURE LOUVRES
ARE ENTIRELY
OUTSIDE THE WALL
AIR IN
AIR IN
AIR OUT
100mm minimum
OPTION A
AIR IN
LOUVRE
BRICK
WALL
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
FRONT
AIR OUT
AIR INAIR IN
TOP
VIEW
O
45 BRICK CUT AWAY
TO CLEAR LOUVRES
100mm
BRICK
WALL
100mm
OPTION B
Step 1
Remove the air conditioner from it's packaging, remove fixing
screws and slide the air conditioner out of it's housing (Refer
to Installation Steps).
Step 2
Prepare the hole in the wall so that the bottom of the housing
is well supported, the top has minimum clearance and the air
inlet louvers have clearance as shown below in options A and
B. Holes from the outside through to the cavity should be
sealed. The housing should slope down towards the rear by
about 5mm to allow water formed during operation to drain.
Step 3
Install the housing into the wall and secure. Ensure the foam
seals are not damaged. Flash, seal or fill gaps around the
inside and outside to provide satisfactory appearance and
protection against the weather, insects and rodents.
Installation of the Housing
NOTE: UNIT MAY BE SUPPORTED BY A
SOLID FRAME FROM BELOW OR
BY A HANGER FROM A SOLID
OVERHEAD SUPPORT.
Preferred method of installation into a timber
framed wall, partition or window.
FLASH OR SEAL AROUND EXTERNAL
WALL FRAME OR ARCHITRAVE
STURDY TIMBER
FRAME ALL ROUND
UNIT
TIMBER FRAMED
WALL OR PARTITION
EXTERNAL SUPPORT
FRAME AT BALANCE
POINT OF A/C
ALTERNATIVELY, BRACKETS
AS ILLUSTRATED BELOW
MAY BE USED.
DRAIN PAN
1212

13
Installation Steps
Step 1. Remove the front panel and the air filter
1. Hold the slot under the front panel, then uplift it outwards, and remove the front panel (See Fig.1).
2. Pinch the handle under the air filter and make the air filter arched, remove it from the slot from underside
to upside (See Fig.2).
4
A
B
C
D
Step 2. Remove the frame.
1. To meet different requrement of different type of air conditioner, there are four kinds of emoving the
frame.
-Remove the four screws located on both sides and the back of the cabinet as shown in Fig.3A.
-Remove one screw on the chassis fixing bracket, then remove the chassis fixing bracket. Remove
the two screws located on the back of the cabinet as shown in Fig.3B.
-Remove the two screw on the letf and right chassis fixing brackets, then remove the two chassis
fixing brackets as shown in Fig.3C.
-Remove one screw on the chassis fixing bracket, then remove the chassis fixing bracket as shown
in Fig.3D.
2. Grasp the left corner of the frame's underside, release the coupler plugs, then loosen the frame
(See Fig.4).

Step 3. Installation.
1. Grasp the handle on the chassis and carefully slide the air conditioner out of the cabinet (See Fig.5).
2. Remove shipping pad from around compressor before operation and make sure the discharge points
to the drain pan are aligned before the chassis is pushed into the cabinet (See Fig.6).
3. Push the unit chassis into the cabinet (See Fig.7).
Step 4. Install the frame.
1. Install the frame and connect the coupler plugs, making sure not to interfere with the temperature
sensor cable (See Fig.8).
2. Fix the screws on the frame (See Fig.3A,3B,3C,3D).
Step 5. Install the air filter and front panel.
1. Install the air filter into the frame's slot from upside to underside (See Fig.2).
2. Hang the front panel on the frame's buckle, then press the front panel into the frame's slot until you
hear a click (See Fig9).
56 7
89
14

Abnormal Operation
TROUBLESHOOTING
Normal Operation
Air conditioner
does not cool as
it should
Air conditioner
does not start
Air conditioner
freezing up
Problem Possible Causes What To Do
The air conditioner is
unplugged.
Make sure the air conditioner plug is pushed
completely into the outlet and switched on.
Troubleshooting Tips
Save time and money! Review the chart below first and you may not need to call for service.
You may hear a pinging noise caused by water being picked up and thrown against the
condenser on rainy days or when the humidity is high. This design feature helps remove
moisture and improve efficiency.
You may hear the thermostat click when the compressor cycles on and off.
Water will collect in the base pan during high humidity or on rainy days .The water may
overflow and drip from the outdoor side of the unit.
The fan may continue to operate when the compressor has cycled off.
The fuse is blown/circuit
breaker is tripped.
Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
Power failure.
If power failure occurs, switch off and disconnect
/unplug the power cord. When power is restored,
reconnect (plug in) the power cord, switch on the
power and wait 3 minutes to restart the air
conditioner to prevent tripping of the compressor
overload.
Airflow is restricted .
Make sure there are no curtains, blinds, or
furniture blocking the front of the air conditioner.
Clean the filter at least every 2 weeks.
See the operating instructions section.
When the air conditioner is first turned on you
need to allow time for the room to cool down.
Check for open furnace floor registers and cold
air returns.
Set the air conditioner's vent to the closed position.
See Air Conditioner Freezing Up below.
The air filter is dirty.
The room may have been
hot.
Cold air is escaping.
Cooling coils have iced up.
Ice blocks the air flow and
stops the air conditioner
from cooling the room.
Set the fan at MED or HIGH until the ice melts.
15

16
SPECIFICATIONS
Minimum norminal cross-sectional area of conductors:
Rated current of appliance
(A)
Nominal cross-sectional area
2
(mm )
0.75
1
1.5
2.5
Suggest Minimum Wire Size(AWG:American Wire Gage):
Appliance Amps
AWG Wire Size
10
13
18
25
18
16
14
12
30 10
Unit dimensions:
NOTE: Value of D is for reference only.
＞3 and 6
≤
＞6 and 10
≤
＞10 and 16
≤
＞16 and 25
≤
MODEL
(Btu/h) BODY DIMENSION(mm)
(W X H X D)
7000~9000 445X320X415
450X346X535
660X428X680
18000~24000
12000

The design and specifications are subject to change without prior notice for product
improvement. Consult with the sales agency or manufacturer for details.
