Foreword
Thank you for selecting a MIRAGE as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.
WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE
Gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata-
logue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
A/T: Automatic transmission
M/T: Manual Transmission
CVT: Continuously Variable Transmission
: See owner’s manual
Information for station service
Fuel
Fuel tank capacity 35 litres
Recommended fuel
Unleaded petrol octane number (EN228)
95 RON or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2018 Mitsubishi Motors Corporation 19
OA0X19E2
BLO-18-000465

Table of contents
Overview/Quick guide 1
General information 2
Locking and unlocking 3
Seat and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OA0X19E2

Instruments and controls

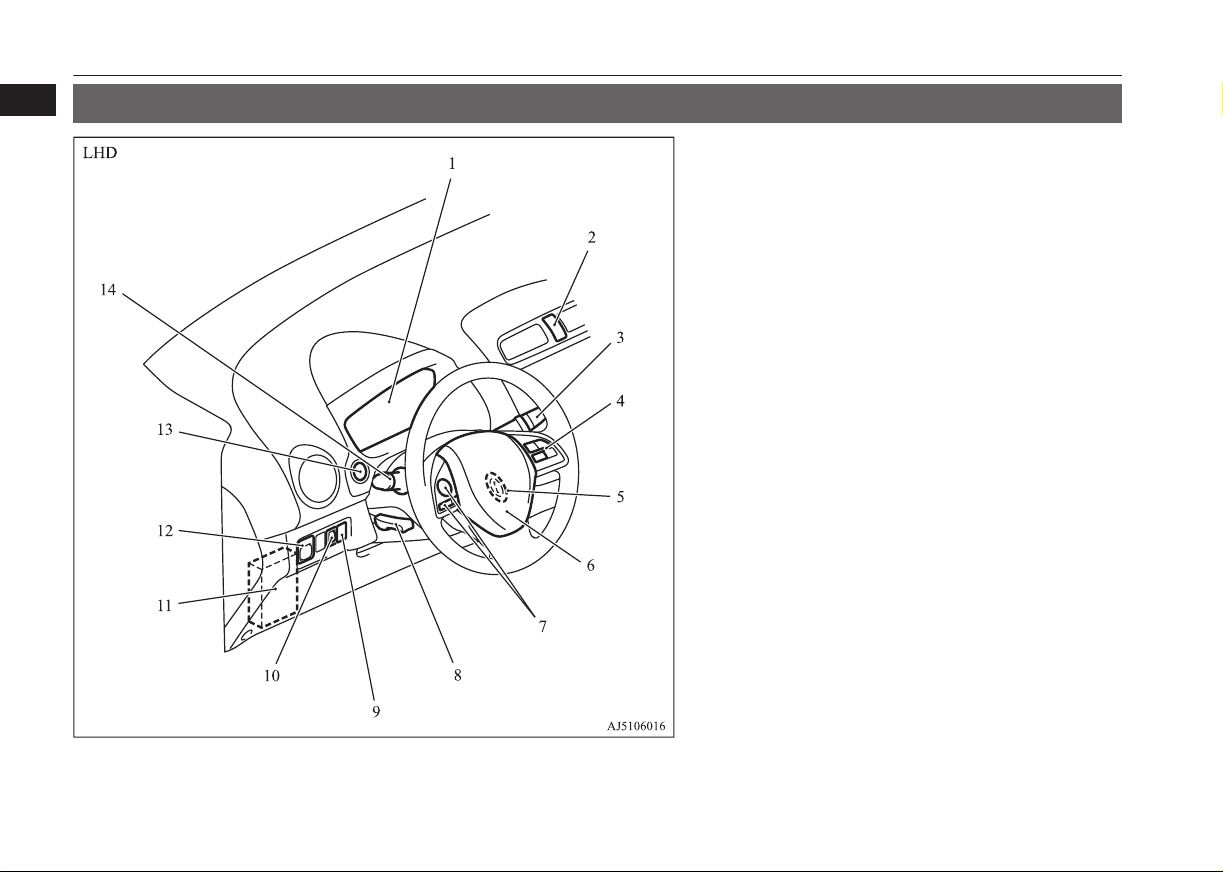

1. Instruments p. 5-02
2. Hazard warning flasher switch p. 5-19
3. Windscreen wiper and washer switch p. 5-21
Rear window wiper and washer switch p. 5-25
4. Cruise control switches* p. 6-39
5. Ignition switch* p. 6-10
6. Supplemental restraint system (SRS) -airbag (for driver) p. 4-17
Horn switch p. 5-26
7. Steering wheel remote control switches* p. 7-42, 7-48
8. Steering wheel height adjustment p. 6-06
9. Auto Stop & Go (AS&G) OFF switch* p. 6-24
10. Headlamp levelling switch p. 5-18
11. Fuses p. 10-15
12. Electric remote-controlled outside rear-view mirror switch
p. 6-07
13. Engine switch* p. 6-11
14. Combination headlamps and dipper switch p. 5-15
Turn-signal lever p. 5-19
Front fog lamp switch* p. 5-20
Rear fog lamp switch p. 5-20
Instruments and controls
1-02 OA0X19E2 Overview/Quick guide
1

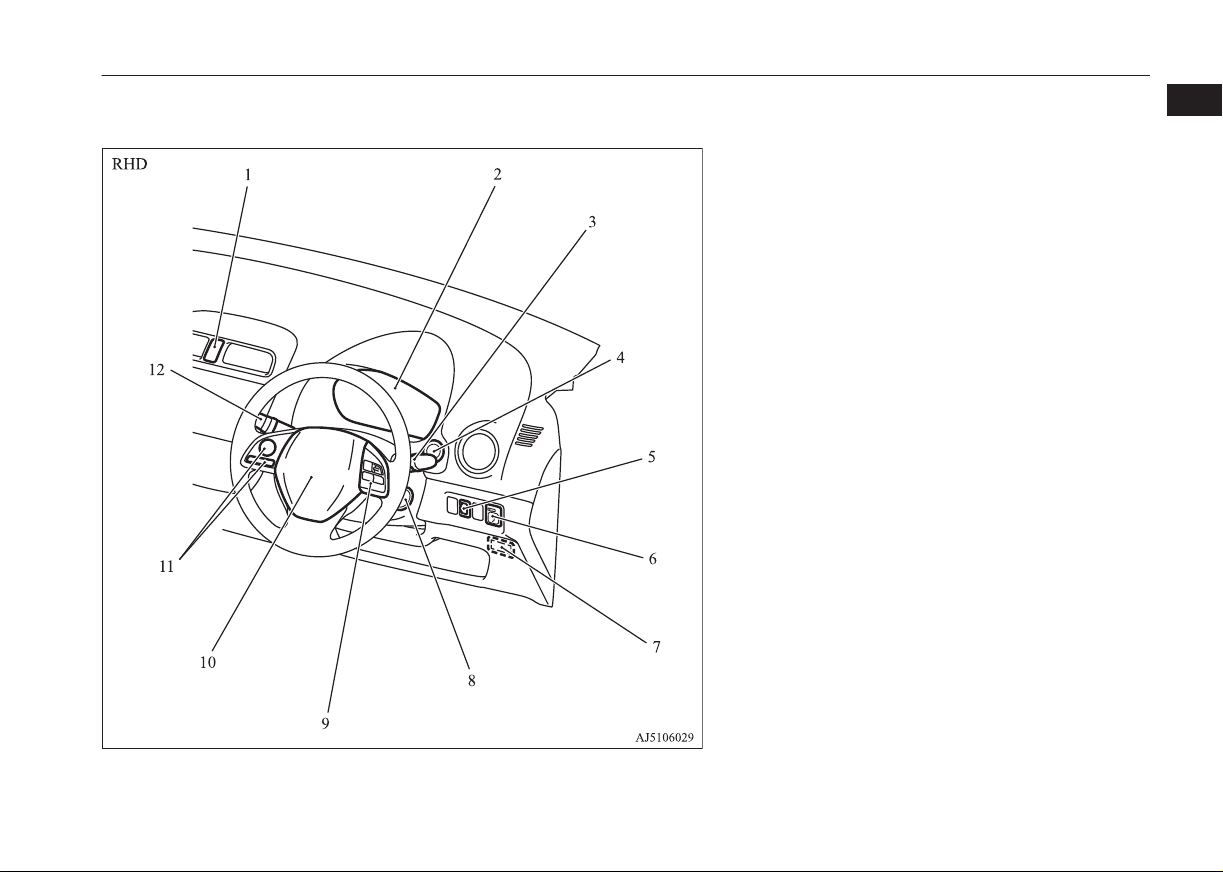

1. Hazard warning flasher switch p. 5-19
2. Instruments p. 5-02
3. Windscreen wiper and washer switch p. 5-21
Rear window wiper and washer switch p. 5-25
4. Engine switch* p. 6-11
5. Headlamp levelling switch p. 5-18
6. Electric remote-controlled outside rear-view mirror switch
p. 6-07
7. Key slot* p. 6-19
8. Ignition switch* p. 6-10
9. Cruise control switches* p. 6-39
10. Supplemental restraint system (SRS) -airbag (for driver) p. 4-17
Horn switch p. 5-26
11. Steering wheel remote control switches* p. 7-42, 7-48
12. Combination headlamps and dipper switch p. 5-15
Turn-signal lever p. 5-19
Front fog lamp switch* p. 5-20
Rear fog lamp switch p. 5-20
Instruments and controls
1-03
OA0X19E2 Overview/Quick guide
1

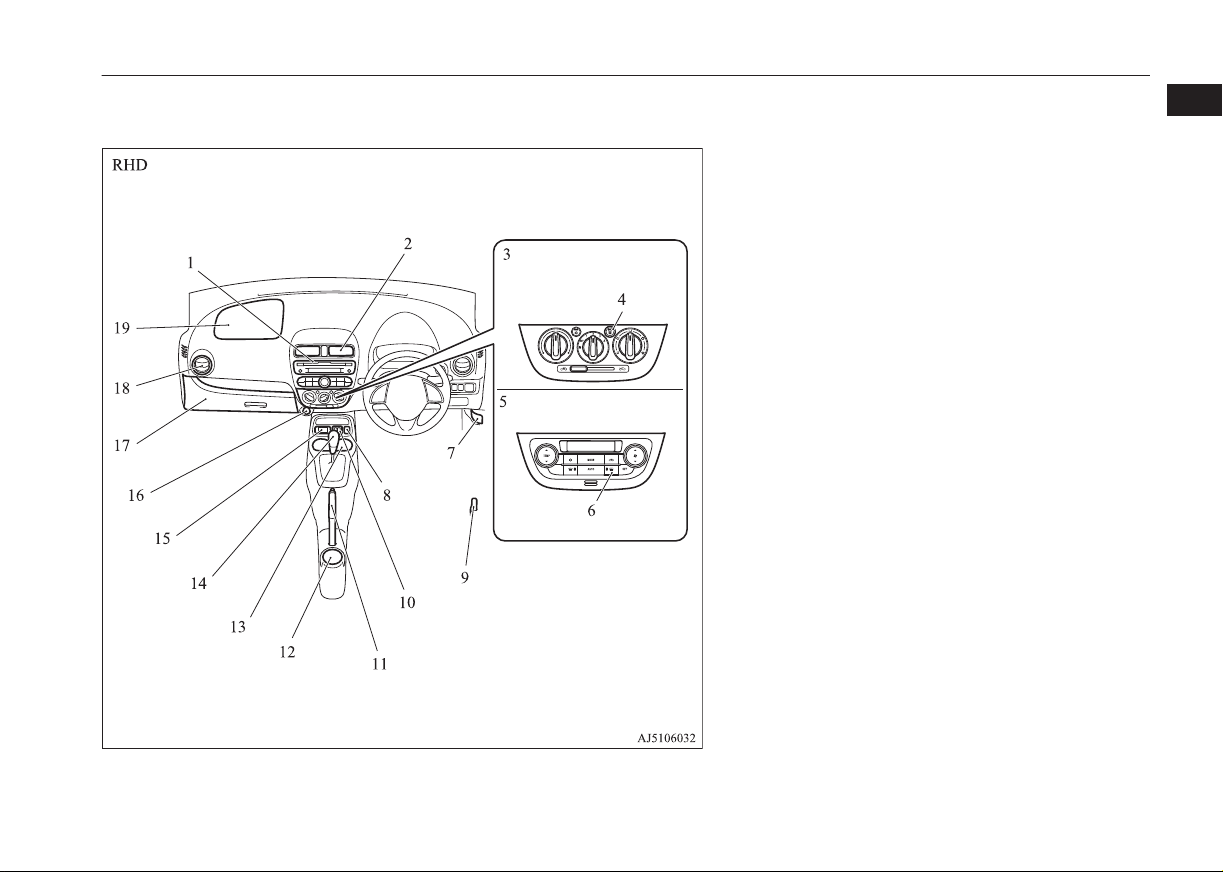

1. Centre ventilators p. 7-02
2. Supplemental restraint system (SRS)-airbag (for front passenger)
p. 4-17
3. Heater* p. 7-03
Manual air conditioning* p. 7-03
4. Rear window demister switch p. 5-26
5. Automatic air conditioning* p. 7-08
6. Rear window demister switch p. 5-26
7. Glove box p. 7-73
8. Accessory socket p. 7-71
9. USB input terminal* p. 7-67
10. Heated seat switches* p. 4-03
11. Parking brake lever p. 6-04
12. Cup holder (for the rear seat) p. 7-73
13. Gearshift lever* p. 6-25
Selector lever* p. 6-26
14. Cup holder (for the front seat) p. 7-73
15. Key slot* p. 6-19
16. Fuel tank filler door release lever p. 2-03
17. Bonnet release lever p. 10-03
18. Side ventilators p. 7-02
19. Audio* p. 7-15
Digital clock* p. 7-27
Instruments and controls
1-04 OA0X19E2 Overview/Quick guide
1

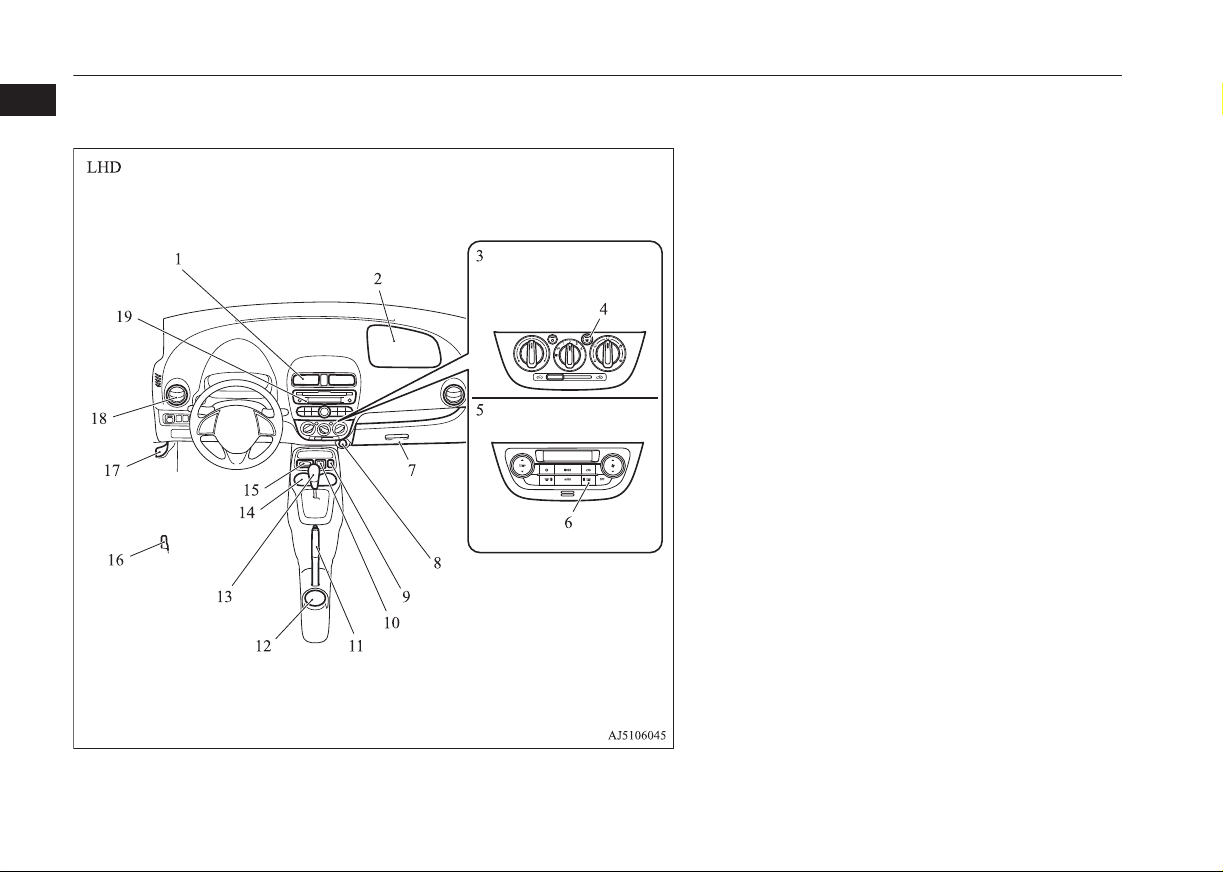

1. Audio* p. 7-15
Digital clock* p. 7-27
2. Centre ventilators p. 7-02
3. Manual air conditioning* p. 7-03
4. Rear window demister switch p. 5-26
5. Automatic air conditioning* p. 7-08
6. Rear window demister switch p. 5-26
7. Bonnet release lever p. 10-03
8. USB input terminal* p. 7-67
9. Fuel tank filler door release lever p. 2-03
10. Heated seat switches* p. 4-03
11. Parking brake lever p. 6-04
12. Cup holder (for the rear seat) p. 7-73
13. Cup holder (for the front seat) p. 7-73
14. Gearshift lever* p. 6-25
Selector lever* p. 6-26
15. Auto Stop & Go (AS&G) OFF switch p. 6-24
16. Accessory socket p. 7-71
17. Glove box p. 7-73
18. Side ventilators p. 7-02
19. Supplemental restraint system (SRS)-airbag (for front passenger)
p. 4-17
Instruments and controls
1-05
OA0X19E2 Overview/Quick guide
1

Interior
AJ5107505
LHD
8
7
6
5
3
4
2
1
19
18
17
16
15
13
12 11
14
9
10
1. Assist grip p. 7-75
2. Sun visors p. 7-70
Vanity mirror* p. 7-70
Card holder* p. 7-70
3. Bottle holder p. 7-74
4. Microphone* p. 7-48
5. Room lamp p. 7-71, 10-22
6. Inside rear-view mirror p. 6-06
7. Convenient hook p. 7-75
8. Head restraints p. 4-04
9. Front seat p. 4-02
10. Supplemental restraint system (SRS) - side airbag (for front seat)
p. 4-24
11. Jack* p. 8-06
12. Rear seat p. 4-03
13. Rear shelf panel* p. 7-74
14. Luggage room lamp* p. 7-72, 10-22
15. Manual window control* p. 3-19
16. Supplemental restraint system (SRS) - curtain airbag p. 4-24
17. Seat belts p. 4-05
Adjustable seat belt anchor* p. 4-07
18. Electric window control switch* p. 3-19
19. Electric window lock switch* p. 3-21
Interior
1-06 OA0X19E2 Overview/Quick guide
1

AJ5107518
RHD
1
2
3
6
5
4
7
8
9
10
11
13
14
15
16
17
12
18
19
20
1. Sun visors p. 7-70
Vanity mirror* p. 7-70
Card holder* p. 7-70
2. Bottle holder p. 7-74
3. Assist grip p. 7-75
4. Electric window lock switch* p. 3-21
5. Electric window control switch* p. 3-19
6. Seat belts p. 4-05
Adjustable seat belt anchor* p. 4-07
7. Supplemental restraint system (SRS) - curtain airbag p. 4-24
8. Manual window control* p. 3-19
9. Rear shelf panel* p. 7-74
10. Luggage room lamp* p. 7-72, 10-22
11. Rear seat p. 4-03
12. Convenient hook p. 7-75
13. Supplemental restraint system (SRS) - side airbag (for front seat)
p. 4-24
14. Front seat p. 4-02
15. Fuses p. 10-15
16. Head restraints p. 4-04
17. Steering wheel height adjustment p. 6-06
18. Inside rear-view mirror p. 6-06
19. Room lamp p. 7-71, 10-22
20. Microphone* p. 7-48
Interior
1-07
OA0X19E2 Overview/Quick guide
1

Luggage area
Type 1 Type 2
1. Tether anchorages for child restraint system p. 4-15
2. Tether anchorages for child restraint system p. 4-15
3. Tools p. 8-06
4. Spare wheel p. 8-13
5. Tools p. 8-06
Tyre repair kit p. 8-06
Luggage area
1-08 OA0X19E2 Overview/Quick guide
1

Outside (Front)
Halogen headlamps type Bi-xenon High Intensity Discharge (HID)
headlamps type
1. Antenna p. 7-46
2. Electric window control* p. 3-19
3. Outside rear-view mirror p. 6-07
Side turn-signal lamps* p. 5-19, 10-21
4. Fuel tank filler p. 2-03
5. Locking and unlocking the doors p. 3-15
Keyless entry system* p. 3-04
Keyless operation system* p. 3-07
6. Side turn-signal lamps* p. 5-19, 10-21
7. Headlamps p. 5-15, 10-21
8. Front turn-signal lamps p. 5-19, 10-21, 10-23
9. Position lamps p. 5-15, 10-21
10. Position lamps p. 5-15, 10-21, 10-23
11. Front turn-signal lamps p. 5-19, 10-21, 10-23
12. Headlamps p. 5-15, 10-21, 10-22
13. Front fog lamps* p. 5-20, 10-21, 10-24
Daytime running lamps p. 10-21, 10-24
14. Engine compartment p. 10-02, 11-10
Bonnet p. 10-03
15. Windscreen wiper and washer p. 5-21
Outside (Front)
1-09
OA0X19E2 Overview/Quick guide
1

Outside (Rear)
Bulb type stop and tail lamps LED type stop and tail lamps
1. Tyre p. 10-09
Tyre inflation pressures p. 10-10
Tyre pressure monitoring system (TPMS)* p. 6-43
Wheel condition p. 10-10
Tyre rotation p. 10-11
Snow traction device (Tyre chains) p. 10-12
Size of tyres and wheels p. 11-08
2. Reversing lamps p. 10-21, 10-25
3. Rear turn-signal lamps p. 5-19, 10-21, 10-25
4. Stop and tail lamps p. 10-21, 10-25
5. Rear fog lamp (driver’s side) p. 5-20, 10-21, 10-25
6. Reversing lamp (passenger’s side) p. 10-21, 10-25
Rear fog lamp (driver’s side) p. 5-20, 10-21, 10-25
7. Stop and tail lamps p. 10-21, 10-25
8. Rear turn-signal lamps p. 5-19, 10-21, 10-25
9. Licence plate lamps p. 10-21, 10-27
10. Tailgate p. 3-18
11. Rear window wiper and washer* p. 5-25
12. High-mounted stop lamp* p. 10-21, 10-26
13. Rear spoiler*
Outside (Rear)
1-10 OA0X19E2 Overview/Quick guide
1

Quick guide

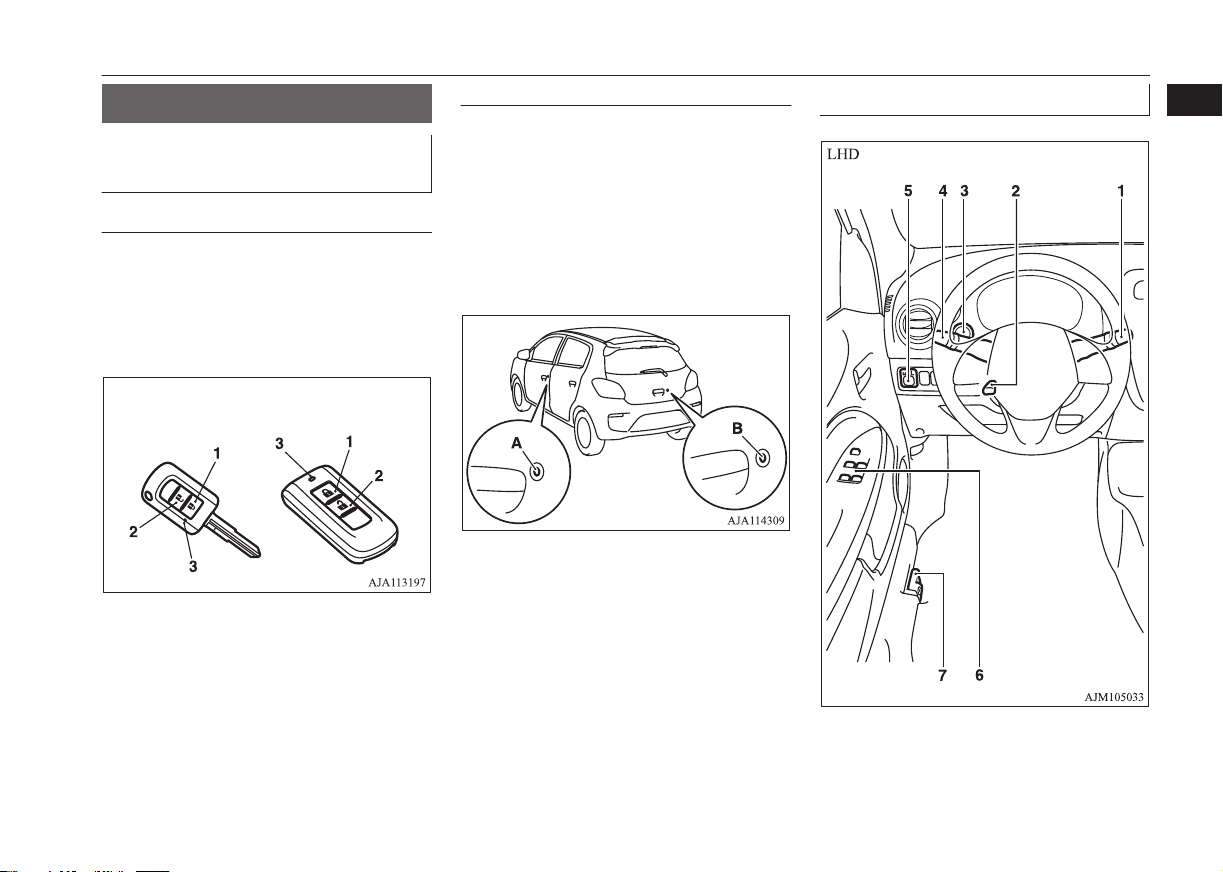

Locking and unlocking the
doors and tailgate
Keyless entry system*
Press the remote control switch, and all the
doors and the tailgate will be locked or un-
locked as desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Keyless entry key Keyless operation key
1- LOCK switch
2- UNLOCK switch
3- Indication lamp
Refer to “Keyless entry system*” on page
3-04.
Keyless operation system*
When you are carrying the keyless operation
key, if you press the driver’s door lock/
unlock switch (A), or the tailgate lock/unlock
switch (B) within the operating range, all the
doors and the tailgate are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door lock/unlock switch and
the tailgate lock/unlock switch.
Refer to “Keyless operation system*” on
page 3-07.
Around the driver’s seat
Quick guide
1-11
OA0X19E2 Overview/Quick guide
1

1-Wiper and washer switch
Except for vehicles equipped with rain
sensor
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
Vehicles with rain sensor
MIST- Misting function
The wipers will operate once.
OFF- Off
AUTO- Auto-wiper control
Rain sensor
The wipers will automatically
operate depending on the degree
of wetness on the windscreen.
LO- Slow
HI- Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on
page 5-21.
Quick guide
1-12 OA0X19E2 Overview/Quick guide
1

2-Steering wheel height adjust-
ment
A- Locked
B- Release
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
3. Securely lock the steering wheel by pull-
ing the lever fully upward.
Refer to “Steering wheel height adjust-
ment” on page 6-06.
3-Engine switch*
If you are carrying the keyless operation key,
you can start the engine. If you press the en-
gine switch without depressing the brake
pedal (CVT) or the clutch pedal (M/T), you
can change the operation mode in the order
of OFF, ACC, ON, OFF.
OFF- The indication lamp (A) on the
engine switch turns off.
ACC- The indication lamp on the en-
gine switch illuminates orange.
ON- The indication lamp on the en-
gine switch illuminates green.
Refer to “Engine switch” on page 6-11.
4-Combination headlamps
Type 1
Rotate the switch to turn on the lamps.
OFF All lamps off
Position, tail, licence plate and
instrument panel lamps on.
Headlamps and other lamps go
on.
Quick guide
1-13
OA0X19E2 Overview/Quick guide
1

Type 2
Rotate the switch to turn on the lamps.
OFF All lamps off
AUTO With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence
plate, and instrument panel
lamps turn on and off automati-
cally in accordance with outside
light level. All lamps turn off
automatically when the ignition
switch is turned to “OFF” posi-
tion or the operation mode is put
in OFF.
Position, tail, licence plate and
instrument panel lamps on.
Headlamps and other lamps go
on.
Refer to “Combination headlamps and
dipper switch” on page 5-15.
4-Turn-signal lever
The turn-signal lamps flash when the lever is
operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page
5-19.
5-Electric remote-controlled
outside rear-view mirrors
To adjust the mirror position
Except for vehicles equipped
with the mirror retractor switch
Vehicles equipped with the
mirror retractor switch
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
5- Mirror retractor switch
Refer to “To adjust the mirror position”
on page 6-07.
Quick guide
1-14 OA0X19E2 Overview/Quick guide
1

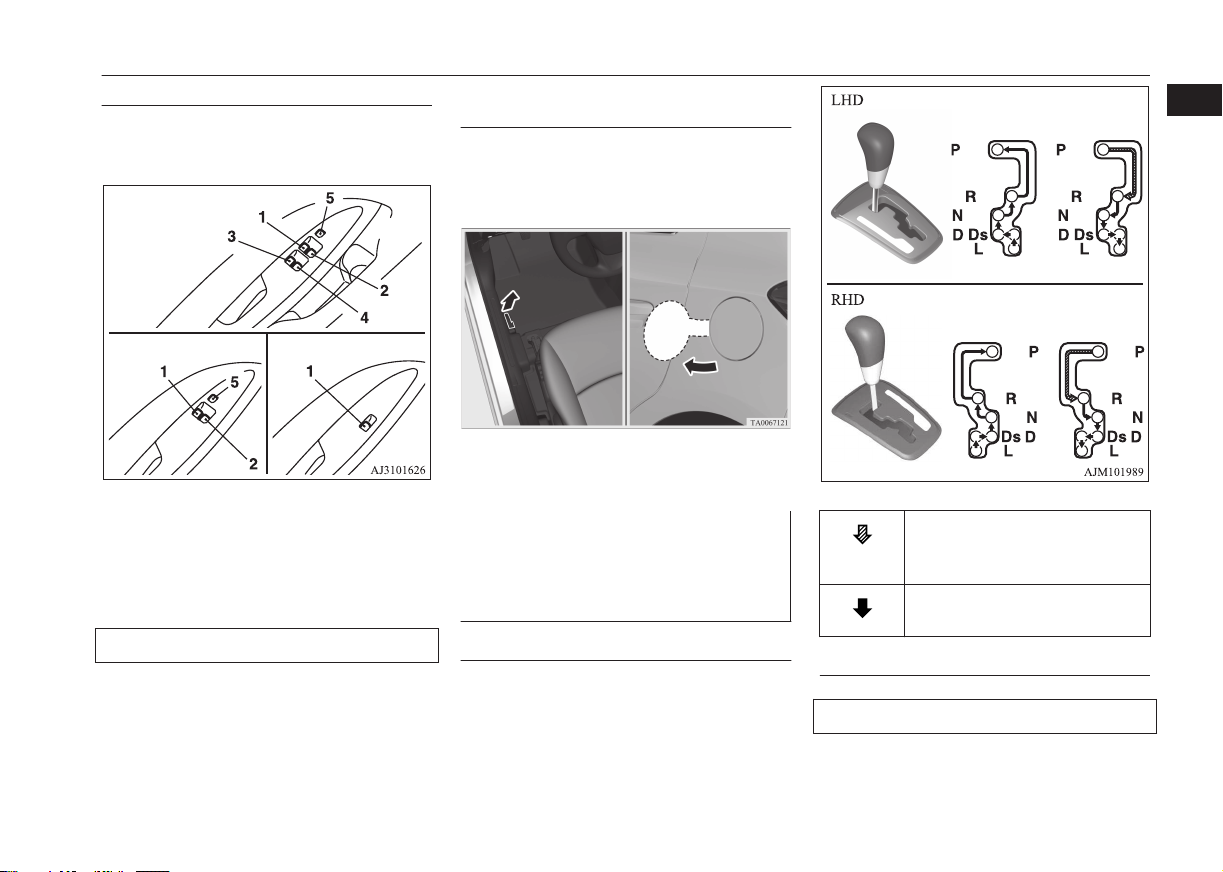

6-Electric window control*
Press the switch down for opening the win-
dow, and pull the switch for closing.
Driver’s switch (Type 1)
Driver’s switch (Type 2) Driver’s switch (Type 3)
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch (Type 1 and 2)
If you press the switch (5), the passenger’s
switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control” on
page 3-19.
7-Fuel tank filler door release
lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page
2-03.
Automatic transmission IN-
VECS-III CVT (Intelligent &
Innovative Vehicle Electronic
Control System III)*
Selector lever operation
The CVT selects an optimum gear ratio auto-
matically, depending on the speed of the ve-
hicle and the position of the accelerator ped-
al.
While depressing the brake ped-
al, move the selector lever
through the gate.
Move the selector lever through
the gate.
Selector lever positions
“P” PARK
This position locks the transmission to pre-
vent the vehicle from moving. The engine
can be started in this position.
Quick guide
1-15
OA0X19E2 Overview/Quick guide
1

“R” REVERSE
This position is to back up.
“N” NEUTRAL
At this position the transmission is disengag-
ed.
“D” DRIVE
This position is used for most city and high-
way driving.
“Ds” (DOWNSHIFT & SPORTY DRIV-
ING)
Use when engine braking is needed, or for
high-power sport drive.
“L” LOW
This position is used only for low speeds
when driving up very steep hills or driving
downhill with engine braking.
Refer to “Automatic transmission IN-
VECS-III CVT (Intelligent & Innovative
Vehicle Electronic Control System III)” on
page 6-26.

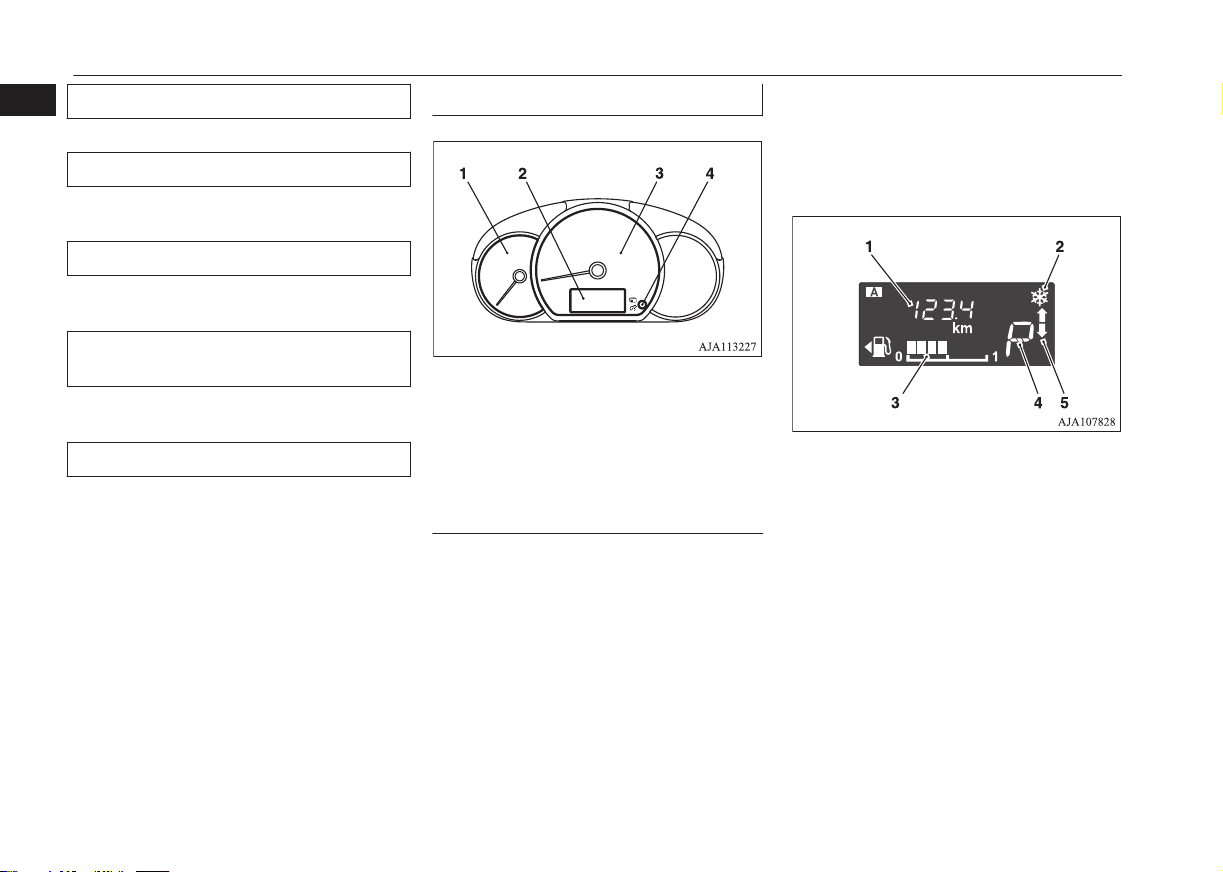

Instruments
1- Tachometer
2- Multi-information display
3- Speedometer (km/h or mph + km/h)
4- Multi-information display switch
Refer to “Instruments” on page 5-02.
Multi-information display
Always stop the vehicle in a safe place before
operating.
The following information is included on the
multi-information display: odometer, tripme-
ter, meter illumination control, service re-
minder, fuel remaining, driving range and
average fuel consumption, etc.
1- Information display
2- Frozen road warning
3- Fuel remaining display
4- Selector lever position display*
5- Gearshift indicator*
Refer to “Multi-information display” on
page 5-02.
Quick guide
1-16 OA0X19E2 Overview/Quick guide
1

Indication and warning lamps
1- High-beam indication lamp ® p. 5-12
2- Electric power steering system (EPS)
warning lamp ® p. 6-37
3- Tyre pressure monitoring system warn-
ing lamp* ® p. 6-43
4- Turn-signal indication lamps/Hazard
warning indication lamps ® p. 5-12
5- Front fog lamp indication lamp*
® p. 5-12
6- Rear fog lamp indication lamp
® p. 5-12
7- Door ajar warning lamp ® p. 5-15
8- Supplement Restraint System (SRS)
warning lamp ® p. 4-27
9- High coolant temperature warning lamp
(red) ® p. 5-15
10- Low coolant temperature indication
lamp (green) ® p. 5-12
11- Check engine warning lamp ® p. 5-14
12- Oil pressure warning lamp ® p. 5-14
13- Charge warning lamp ® p. 5-14
14- Brake warning lamp ® p. 5-13
15- Anti-lock brake system (ABS) warning
lamp ® p. 6-35
16- Multi-information display ® p. 5-02
17- Seat belt warning lamp ® p. 4-07
18- Cruise control indication lamp*
® p. 4-07
19- Active Stability Control (ASC) indica-
tion lamp ® p. 6-38
20- Active Stability Control (ASC) OFF in-
dication lamp ® p. 6-38
21- Position lamp indication lamp*
® p. 5-12
22- ECO indication lamp* ® p. 5-12
23- Auto Stop & Go (AS&G) OFF indica-
tion lamp* ® p. 6-24
24- Auto Stop & Go (AS&G) indication
lamp* ® p. 6-20
25- ECO drive assist* ® p. 5-13
26- For details, refer to Warning activator
® p. 3-12.
(if so equipped)
Quick guide
1-17
OA0X19E2 Overview/Quick guide
1

27- For details, refer to Warning activator
® p. 3-12.
(if so equipped)
Quick guide
1-18 OA0X19E2 Overview/Quick guide
1
