Foreword
E09200105695
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.
WARNING
indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300102174
Fuel
Fuel tank capacity 75 litres
Fuel requirements
Cetane number (EN590)
51 or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2014 Mitsubishi Motors Corporation 15
OKTE15E3
BLC-14-001123

Table of contents
Overview 1
General information 2
Locking and unlocking 3
Seat and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OKTE15E3

Instruments and Controls (Driver’s area)
E00100108331
1
LHD
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

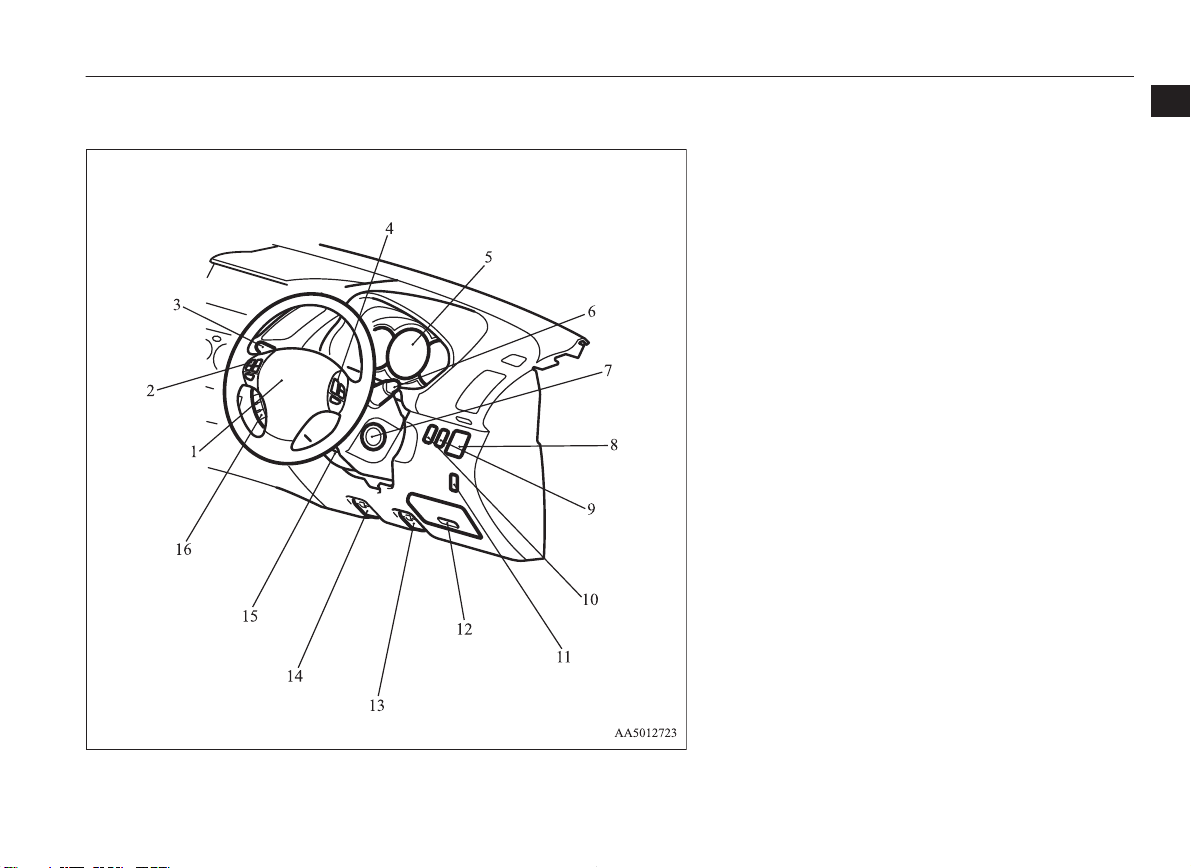

1. Combination headlamps and dipper switch p. 5-32
Turn-signals lever p. 5-36
Front fog lamp switch* p. 5-37
Rear fog lamp switch p. 5-38
Headlamp washer switch* p. 5-42
2. Instruments p. 5-02
3. Audio remote control switches* p. 7-44, 7-63
4. Wiper and washer switch p. 5-38
5. Cruise control switches* p. 6-51
6. Supplemental restraint system (SRS) - airbag (for driver’s seat)*
p. 4-28
Horn switch p. 5-44
7. Ignition switch p. 6-12
8. Hands-free & voice recognition switches* p. 7-84
9. Steering wheel height adjustment p. 6-09
10. Fuel tank filler door release lever* p. 2-02
11. Bonnet release lever p. 10-03
12. Fuses p. 10-20
13. Active stability control (ASC) OFF switch Type 2* p. 6-49
14. Headlamp levelling switch* p. 5-35
15. Active stability control (ASC) OFF switch Type 1* p. 6-49
Rear differential lock switch* p. 6-34
16. Electric remote-controlled outside rear-view mirror switch*
p. 6-10
Instruments and Controls (Driver’s area)
1-02 OKTE15E3 Overview
1

RHD
1. Supplemental restraint system (SRS) - airbag (for driver’s seat)*
p. 4-28
Horn switch p. 5-44
2. Audio remote control switches* p. 7-44, 7-63
3. Combination headlamps and dipper switch p. 5-32
Turn-signals lever p. 5-36
Front fog lamp switch* p. 5-37
Rear fog lamp switch p. 5-38
Headlamp washer switch* p. 5-42
4. Cruise control switches* p. 6-51
5. Instruments p. 5-02
6. Wiper and washer switch p. 5-38
7. Ignition switch p. 6-12
8. Electric remote-controlled outside rear-view mirror switch*
p. 6-10
9. Active stability control (ASC) OFF switch Type 1* p. 6-49
Rear differential lock switch* p. 6-34
10. Headlamp levelling switch* p. 5-35
11. Active stability control (ASC) OFF switch Type 2* p. 6-49
12. Fuses p. 10-20
13. Bonnet release lever p. 10-03
14. Fuel tank filler door release lever* p. 2-02
15. Steering wheel height adjustment p. 6-09
16. Hands-free & voice recognition switches* p. 7-84
Instruments and Controls (Driver’s area)
1-03
OKTE15E3 Overview
1

Instruments and Controls (Single cab)
E00100106148
1
2
345
6
7
8
9
10
11
12
13
14
15
LHD
1. Hazard warning flasher switch p. 5-37
2. Heater/Manual air conditioning* p. 7-04
3. Rear window demister switch p. 5-43
4. Utility box p. 7-114
5. Ventilators p. 7-02
6. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat)* p. 4-28
7. Front passenger’s airbag OFF indication lamp* p. 4-32
8. Glove box p. 7-112
Front passenger’s airbag ON-OFF switch* p. 4-31
9. Cigarette lighter p. 7-108
10. Gearshift lever p. 6-16
11. Transfer shift lever (4WD only) p. 6-25
12. Cup holder* p. 7-115
13. Parking brake lever Type 1* p. 6-07
14. Parking brake lever Type 2* p. 6-07
15. Ashtray p. 7-107
Instruments and Controls (Single cab)
1-04 OKTE15E3 Overview
1

1
2345
6
7
8
9
10
11
12
13
14
15
RHD
1. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 4-28
2. Ventilators p. 7-02
3. Utility box p. 7-114
4. Rear window demister switch p. 5-43
5. Heater/Manual air conditioning* p. 7-04
6. Hazard warning flasher switch p. 5-37
7. Cigarette lighter p. 7-108
8. Parking brake lever Type 2* p. 6-07
9. Parking brake lever Type 1* p. 6-07
10. Cup holder* p. 7-115
11. Transfer shift lever (4WD only) p. 6-25
12. Gearshift lever p. 6-16
13. Ashtray p. 7-107
14. Glove box p. 7-112
Front passenger’s airbag ON-OFF switch p. 4-31
15. Front passenger’s airbag OFF indication lamp p. 4-32
Instruments and Controls (Single cab)
1-05
OKTE15E3 Overview
1

Instruments and Controls (Club, Double cab)
E00100108302
LHD
1. Rear window demister switch (vehicle with heater/manual air con-
ditioning) p. 5-43
2. Utility box* p. 7-114
Centre information display* p. 5-10
Audio* p. 7-51
MITSUBISHI Multi-Communication System*
Refer to the separate “MITSUBISHI Multi-Communication Sys-
tem owner’s manual”
3. Centre information display* p. 5-10
4. Ventilators p. 7-02
5. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat)* p. 4-28
6. Front passenger’s airbag OFF indication lamp* p. 4-32
7. Glove box p. 7-112
Front passenger’s airbag ON-OFF switch* p. 4-31
USB input terminal* p. 7-103
8. Ashtray (fixed position)* p. 7-107
9. Cigarette lighter p. 7-108
10. Rear retractable power window switch* p. 3-09
11. Transfer shift lever (4WD only) p. 6-25, 6-30
12. Parking brake lever p. 6-07
13. Cup holder p. 7-115
14. Ashtray (moveable)* p. 7-107
15. Front console box* p. 7-113
16. Heated seat switch* p. 4-07
17. Gearshift lever* p. 6-16
Selector lever* p. 6-19
18. Audio* p. 7-15
19. Hazard warning flasher switch p. 5-37
20. Heater/Manual air conditioning* p. 7-04
Automatic air conditioning* p. 7-09
Instruments and Controls (Club, Double cab)
1-06 OKTE15E3 Overview
1

RHD
1. Centre information display* p. 5-10
2. Rear window demister switch (vehicle with heater/manual air con-
ditioning) p. 5-43
3. Heater/Manual air conditioning* p. 7-04
Automatic air conditioning* p. 7-09
4. Hazard warning flasher switch p. 5-37
5. Audio* p. 7-15
6. Transfer shift lever (4WD only) p. 6-25, 6-30
7. Heated seat switch* p. 4-07
8. Parking brake lever p. 6-07
9. Cup holder p. 7-115
10. Ashtray (moveable)* p. 7-107
11. Gearshift lever* p. 6-16
Selector lever* p. 6-19
12. Front console box* p. 7-113
13. Cigarette lighter p. 7-108
14. Rear retractable power window switch* p. 3-09
15. Glove box p. 7-112
Front passenger’s airbag ON-OFF switch* p. 4-31
USB input terminal* p. 7-103
16. Front passenger’s airbag OFF indication lamp* p. 4-32
17. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat)* p. 4-28
18. Ventilators p. 7-02
19. Utility box* p. 7-114
Centre information display* p. 5-10
Audio* p. 7-51
MITSUBISHI Multi-Communication System*
Refer to the separate “MITSUBISHI Multi-Communication Sys-
tem owner’s manual”
Instruments and Controls (Club, Double cab)
1-07
OKTE15E3 Overview
1

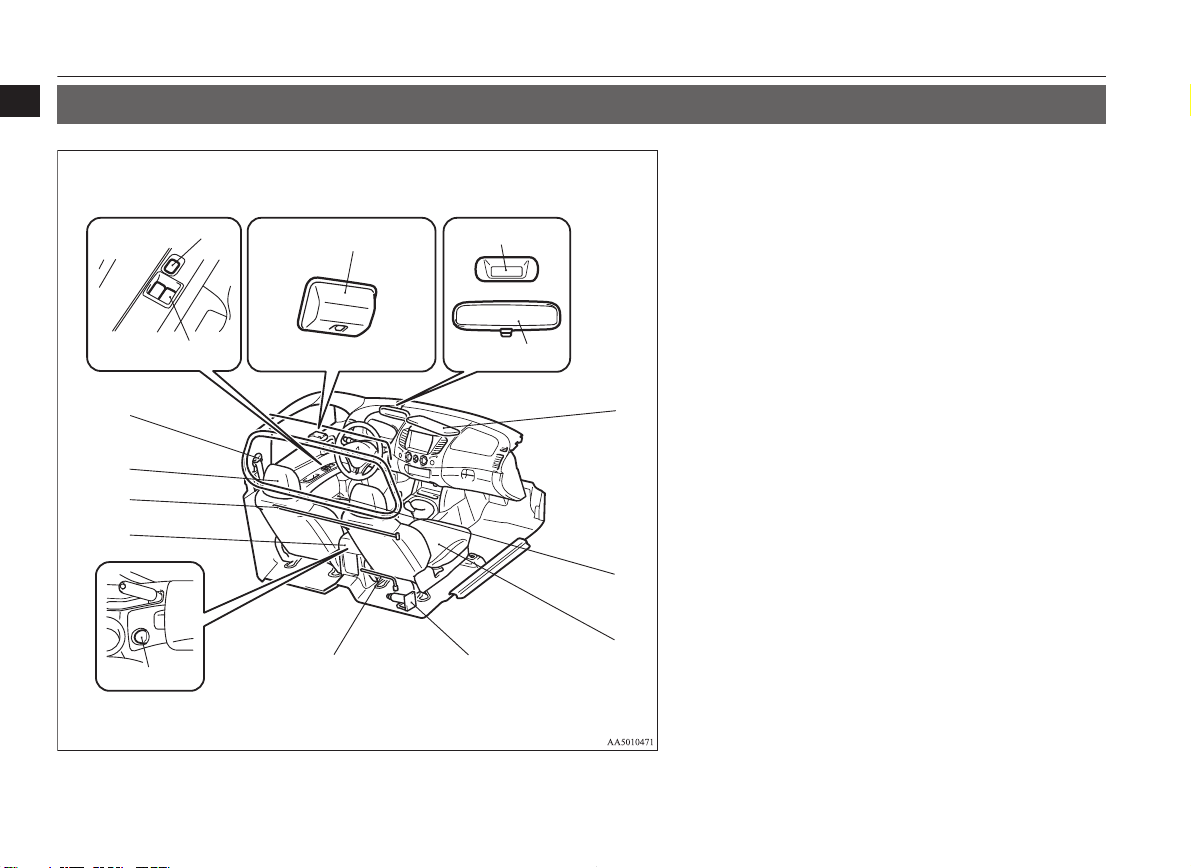

Interior (Single cab)
E00100206181
LHD
1
2
34
5
6
7
8
9
10
11
12
13
14
15
1. Lock switch* p. 3-11
2. Electric window control switch* p. 3-09
3. Room lamp p. 7-110, 10-26, 10-36
4. Digital clock p. 7-109
5. Inside rear-view mirror p. 6-09
6. Sun visors p. 7-106
7. Bottle holder p. 7-115
8. Front seats p. 4-04
9. Jack p. 8-07
10. Tools*1 p. 8-07
11. Accessory socket* p. 7-109
12. Floor console box* p. 7-113
13. Jack handle p. 8-07
14. Head restraints p. 4-08
15. Seat belts p. 4-10
NOTE:*1- Tools differ according to the vehicle model.
Interior (Single cab)
1-08 OKTE15E3 Overview
1

RHD
1
2
34
5
6
7
8
9
10
11
12
13
14
15
1. Digital clock p. 7-109
2. Inside rear-view mirror p. 6-09
3. Room lamp p. 7-110, 10-26, 10-36
4. Lock switch* p. 3-11
5. Electric window control switch* p. 3-09
6. Seat belts p. 4-10
7. Head restraints p. 4-08
8. Tools*1 p. 8-07
9. Jack p. 8-07
10. Accessory socket* p. 7-109
11. Floor console box* p. 7-113
12. Jack handle p. 8-07
13. Front seats p. 4-04
14. Bottle holder p. 7-115
15. Sun visors p. 7-106
NOTE:*1- Tools differ according to the vehicle model.
Interior (Single cab)
1-09
OKTE15E3 Overview
1

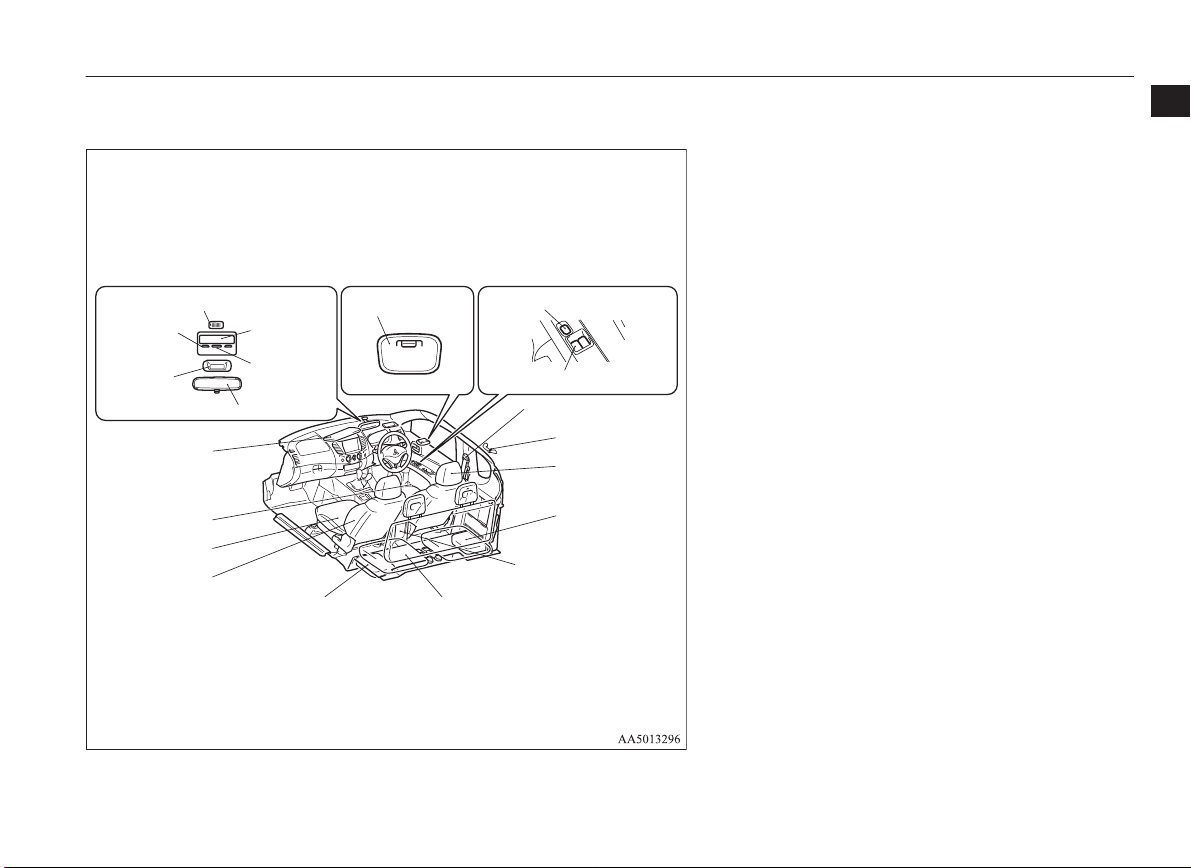

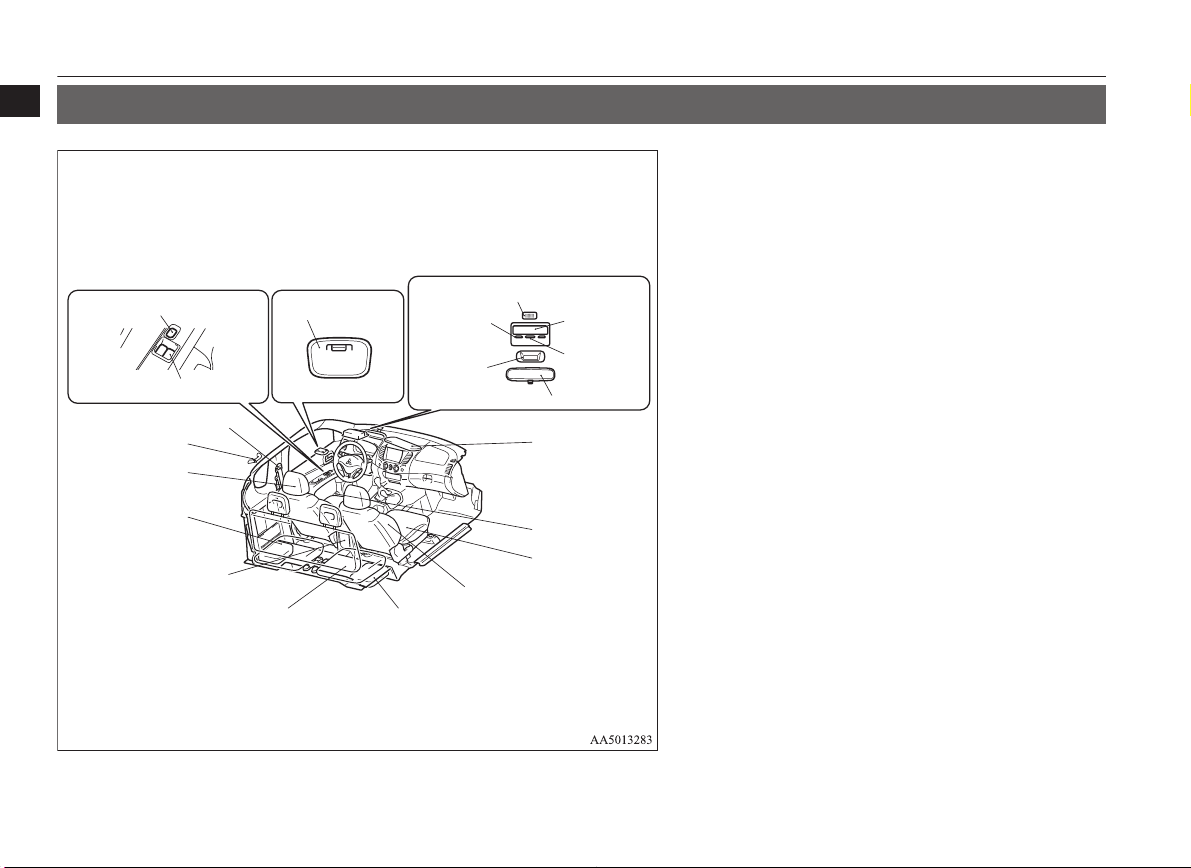

Interior (Club cab)
E00100206194
1
LHD
2
34
5
6
7
8
9
10
11
12
13
14
15
16
17
19
20
18
1. Lock switch* p. 3-11
2. Electric window control switch* p. 3-08
3. Room lamp (rear) p. 7-110, 10-26, 10-36
4. Personal lamps* p. 7-111, 10-26, 10-36
5. Microphone (for Hands-free & voice recognition)* p. 7-85
6. Sunglasses holder* p. 7-114
7. Room lamp (front)* p. 7-110, 10-26, 10-36
8. Inside rear-view mirror p. 6-09
9. Digital clock* p. 7-109
10. Sun visors p. 7-106
Card holder p. 7-106
Vanity mirror p. 7-107
11. Bottle holder p. 7-115
12. Front seats p. 4-04
13. Supplemental restraint system (SRS) - side airbag (for front seat)*
p. 4-37
14. Secret box p. 7-114
15. Rear seat* p. 4-07
16. Floor console box p. 7-113
Accessory socket p. 7-109
Auxiliary Audio connector (RCA)* p. 7-43
17. Jack p. 8-07
Jack handle p. 8-07
Tools p. 8-07
18. Head restraints p. 4-08
19. Coat hook* p. 7-116
20. Seat belts p. 4-10
Adjustable seat belt anchor p. 4-12
Interior (Club cab)
1-10 OKTE15E3 Overview
1

1
2
RHD
3
78
9
10
11
12
13
14
15
16
17
18
19
20
4
5
6
1. Personal lamps* p. 7-111, 10-26, 10-36
2. Microphone (for Hands-free & voice recognition)* p. 7-85
3. Sunglasses holder* p. 7-114
4. Room lamp (front)* p. 7-110, 10-26, 10-36
5. Inside rear-view mirror p. 6-09
6. Digital clock* p. 7-109
7. Room lamp (rear) p. 7-110, 10-26, 10-36
8. Lock switch* p. 3-11
9. Electric window control switch* p. 3-08
10. Seat belts p. 4-10
Adjustable seat belt anchor p. 4-12
11. Coat hook* p. 7-116
12. Head restraints p. 4-08
13. Secret box p. 7-114
14. Floor console box p. 7-113
Accessory socket p. 7-109
Auxiliary Audio connector (RCA)* p. 7-43
15. Rear seat* p. 4-07
16. Jack p. 8-07
Jack handle p. 8-07
Tools p. 8-07
17. Supplemental restraint system (SRS) - side airbag (for front seat)*
p. 4-37
18. Front seats p. 4-04
19. Bottle holder p. 7-115
20. Sun visors p. 7-106
Card holder p. 7-106
Vanity mirror p. 7-107
Interior (Club cab)
1-11
OKTE15E3 Overview
1

Interior - front area (Double cab)
E00100204695
1
2
9
3
4
5
6
8
7
10
11
12
13
14
15
16
17
LHD
1. Lock switch* p. 3-11
2. Electric window control switch* p. 3-09
3. Sunroof switch* p. 3-14
4. Microphone (for Hands-free & voice recognition)* p. 7-85
5. Sunglasses holder p. 7-114
6. Personal lamps p. 7-111, 10-26, 10-36
7. Digital clock* p. 7-109
8. Inside rear-view mirror p. 6-09
9. Room lamp (front) p. 7-110, 10-26, 10-36
10. Sun visors p. 7-106
Card holder p. 7-106
Vanity mirror p. 7-107
11. Front seats p. 4-04
12. Supplemental restraint system (SRS) - side airbag (for front seat)*
p. 4-37
13. Bottle holder p. 7-115
14. Floor console box p. 7-113
Accessory socket* p. 7-109
Auxiliary Audio connector (RCA)* p. 7-43
15. Supplemental restraint system (SRS) - curtain airbag* p. 4-37
16. Coat hook* p. 7-116
17. Seat belts p. 4-10
Adjustable seat belt anchor (front seats) p. 4-12
Interior - front area (Double cab)
1-12 OKTE15E3 Overview
1

RHD
1
2
3
4
8
9
10
11
12
13
14
15
16
17
5
6
7
1. Sunroof switch* p. 3-14
2. Microphone (for Hands-free & voice recognition)* p. 7-85
3. Sunglasses holder p. 7-114
4. Personal lamps p. 7-111, 10-26, 10-36
5. Digital clock* p. 7-109
6. Inside rear-view mirror p. 6-09
7. Room lamp (front) p. 7-110, 10-26, 10-36
8. Lock switch* p. 3-11
9. Electric window control switch* p. 3-09
10. Seat belts p. 4-10
Adjustable seat belt anchor (front seats) p. 4-12
11. Coat hook* p. 7-116
12. Supplemental restraint system (SRS) - curtain airbag* p. 4-37
13. Floor console box p. 7-113
Accessory socket* p. 7-109
Auxiliary Audio connector (RCA)* p. 7-43
14. Bottle holder p. 7-115
15. Supplemental restraint system (SRS) - side airbag (for front seat)*
p. 4-37
16. Front seats p. 4-04
17. Sun visors p. 7-106
Card holder p. 7-106
Vanity mirror p. 7-107
Interior - front area (Double cab)
1-13
OKTE15E3 Overview
1

Interior - rear area (Double cab)
E00100201144
LHD
1
2
3
4
5
6
7
8
9
10
1. Head restraints p. 4-08
2. Bottle holder p. 7-115
3. Room lamp (rear)* p. 7-110, 10-26, 10-36
4. Cup holder p. 7-115
5. Armrest (for rear seat) p. 4-08
6. Rear seats p. 4-07
7. Tools*1 p. 8-07
8. Jack p. 8-07
9. Jack handle*1 p. 8-07
10. Seat belts (for rear seats) p. 4-10
NOTE:*1- Tools differ according to the vehicle model.
Interior - rear area (Double cab)
1-14 OKTE15E3 Overview
1

RHD
1
2
3
4
5
6
7
8
9
10
1. Room lamp (rear)* p. 7-110, 10-26, 10-36
2. Bottle holder p. 7-115
3. Head restraints p. 4-08
4. Seat belts (for rear seats) p. 4-10
5. Jack handle*1 p. 8-07
6. Tools*1 p. 8-07
7. Jack p. 8-07
8. Rear seats p. 4-07
9. Armrest (for rear seat) p. 4-08
10. Cup holder p. 7-115
NOTE:*1- Tools differ according to the vehicle model.
Interior - rear area (Double cab)
1-15
OKTE15E3 Overview
1

Exterior - front (Single cab)
E00100503952
12
3
4
5
6
7
8
9
10
1. Wiper and washers p. 5-38
2. Antenna p. 7-83
3. Outside rear-view mirrors p. 6-10
4. Fuel tank filler door p. 2-02
5. Locking and unlocking p. 3-02
6. Side turn-signal lamps p. 5-36, 10-25, 10-30
7. Front turn-signal lamps p. 5-36, 10-25, 10-29
8. Headlamps p. 5-32, 10-25, 5-35
Position lamps p. 5-32, 10-25, 10-29
9. Headlamp washers* p. 5-42
10. Engine compartment p. 11-22
Bonnet p. 10-03
Exterior - front (Single cab)
1-16 OKTE15E3 Overview
1

Exterior - rear (Single cab)
E00100505419
1
2
3
4
5
6
7
8
9
1. High-mounted stop lamp p. 10-25, 10-34
2. Rear turn-signal lamps p. 5-36, 10-25, 10-33
3. Stop and tail lamps p. 5-32, 10-25, 10-33
4. Reversing lamps p. 10-25, 10-33
5. Tyre inflation pressures p. 10-12
Changing tyres p. 8-18
Tyre rotation p. 10-14
Tyre chains p. 10-15
6. Spare wheel p. 8-17
7. Licence plate lamps p. 5-32, 10-25, 10-35
8. Rear fog lamp (Driver’s side only) p. 5-38, 10-25, 10-33
9. Rear gate p. 3-11
Exterior - rear (Single cab)
1-17
OKTE15E3 Overview
1

Exterior - front (Club cab)
E00100506852
1. Outside rear-view mirrors p. 6-10
2. Side turn-signal lamps* p. 5-36, 10-25, 10-30
3. Fuel tank filler door p. 2-02
4. Locking and unlocking p. 3-02
Keyless entry system* p. 3-04
5. Side turn-signal lamps* p. 5-36, 10-25, 10-30
6. Front turn-signal lamps p. 5-36, 10-25, 10-30
7. Headlamps p. 5-32, 10-25, 10-27
Position lamps p. 5-32, 10-25, 10-29
8. Front fog lamps* p. 5-37, 10-25, 10-30
9. Headlamp washers* p. 5-42
10. Bonnet p. 10-03
Engine compartment p. 11-22
11. Wiper and washers p. 5-38
12. Rain sensor* p. 5-39
13. Antenna p. 7-83
Exterior - front (Club cab)
1-18 OKTE15E3 Overview
1
