Mitsubishi MOTORS L200 User manual

L200
OWNER’S MANUAL
L200 - ENGLISH - OKTE17E1
L200 - ENGLISH - OKTE17E1

Foreword
E09200106706
Thank you for selecting a MITSUBISHI L200 as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.
WARNING
indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
You will see another important symbol:
NOTE: gives helpful information.
*: indicates optional equipment.
It may differ according to the sales classification; refer
to the sales catalogue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
M/T: Manual Transmission
A/T: Automatic Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300102174
Fuel
Fuel tank capacity 75 litres
Fuel requirements
Cetane number (EN590)
51 or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2016 Mitsubishi Motors Corporation 17
OKTE17E1
BLO-16-000761

Table of contents
Overview/Quick guide 1
General information 2
Locking and unlocking 3
Seat and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OKTE17E1

Instruments and Controls (Driver’s area)
E08500101811
1. Shift paddles* p. 6-31
2. Instruments p. 5-02
3. Headlamp washer switch* p. 5-26
Wiper and washer switch p. 5-23
4. Active stability control (ASC) OFF switch p. 6-60
5. Fuel tank filler door release lever* p. 2-02
6. Bonnet release lever p. 10-04
7. Electric window control switch* p. 3-22
8. Lock switch* p. 3-22
9. Headlamp leveling switch p. 5-19
10. Lane departure warning (LDW) switch* p. 6-76
11. Outside rear-view mirrors switch* p. 6-09
12. Ignition switch* p. 6-13
Engine switch* p. 6-14
13. Combination headlamps and dipper switch p. 5-17
Turn-signals lever p. 5-20
Front fog lamp switch* p. 5-22
Rear fog lamp switch p. 5-22
Instruments and Controls (Driver’s area)
1-02 OKTE17E1 Overview/Quick guide
1

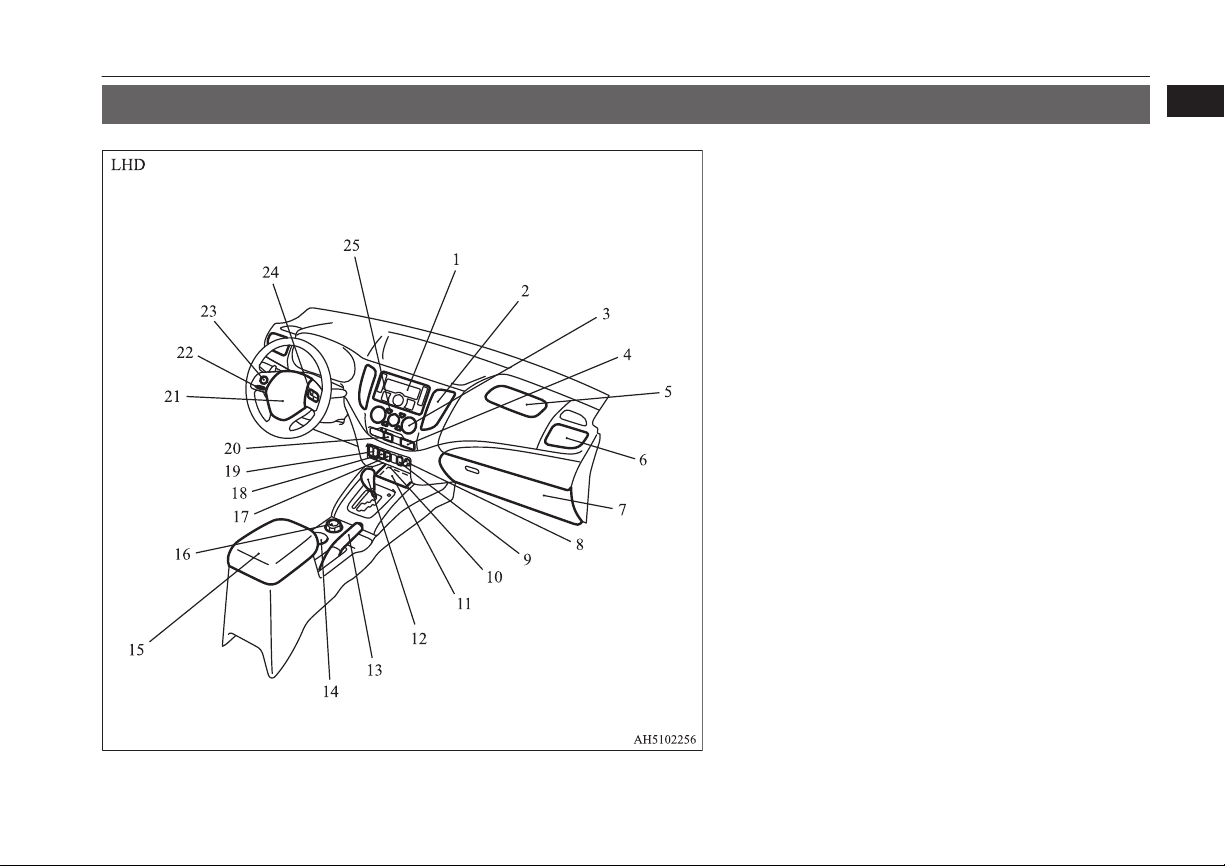

Instruments and Controls
E08500101824
1. Audio* p. 7-39
Digital clock* p. 7-102
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Heater*/Air conditioning* p. 7-04
4. Front passenger’s airbag indicator p. 4-25, 4-27
5. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 4-25, 4-28
6. Side ventilators p. 7-02
7. Glove box p. 7-105
8. Cigarette lighter p. 7-101
9. USB input terminal* p. 7-96
HDMI terminal* p. 7-99
10. Key slot* p. 6-20
11. Centre console under tray p. 7-105, 7-106
12. Gearshift lever* p. 6-27
Selector lever* p. 6-28
13. Parking brake lever p. 6-05
14. Cup holder p. 7-107
15. Floor console box p. 7-105, 7-106
Accessory socket p. 7-102
16. Easy select 4WD* p. 6-35
Super Select 4WD II* p. 6-40
17. Auto Stop & Go (AS&G) OFF switch* p. 6-23
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Hazard warning flasher switch p. 5-21
21. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-24, 4-28
Horn switch p. 5-28
22. Bluetooth® 2.0 interface* p. 7-76
23. Audio remote control switches* p. 7-28
24. Cruise control switch* p. 6-64
25. Rear window demister switch p. 5-27

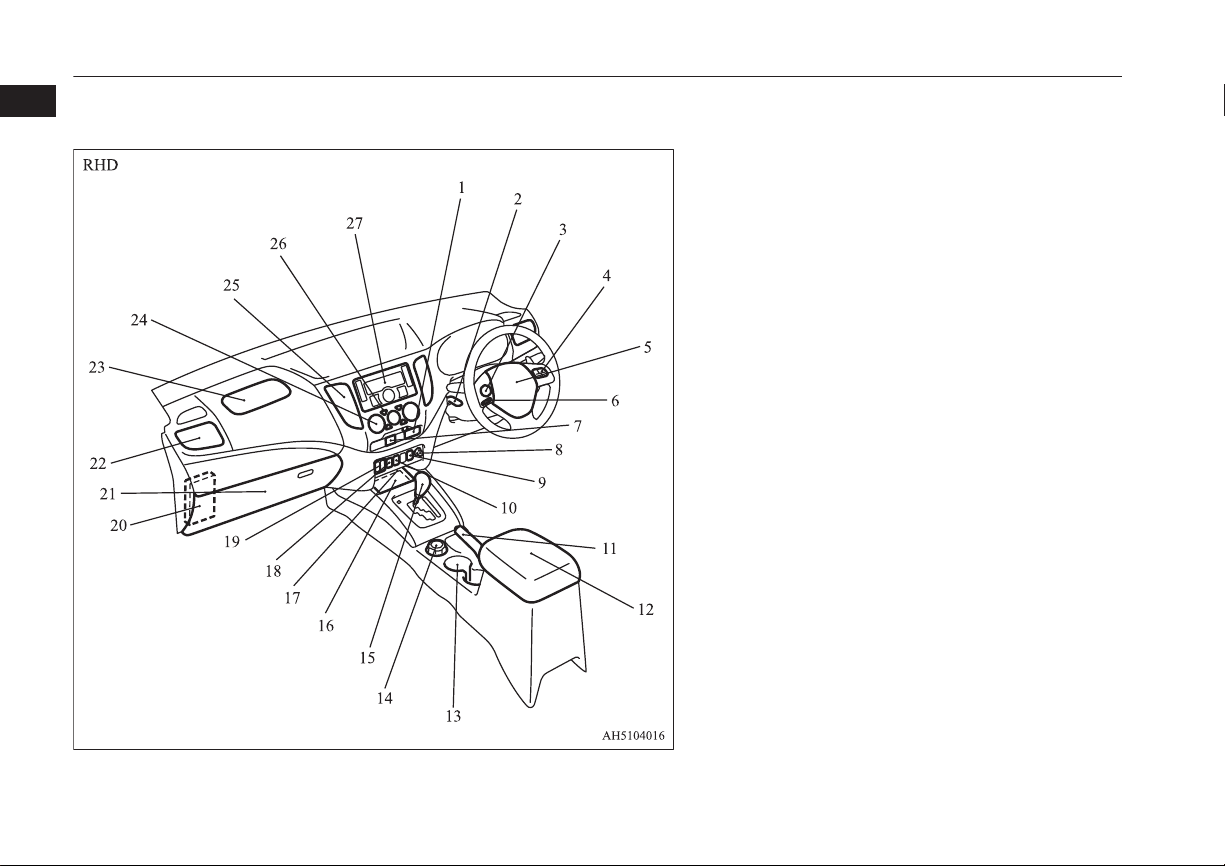

Instruments and Controls
1-03
OKTE17E1 Overview/Quick guide
1

1. Front passenger’s airbag indicator* p. 4-25, 4-27
2. Steering wheel height and reach adjustment lever p. 6-07
3. Audio remote control switches* p. 7-28, 7-51
4. Cruise control switch* p. 6-64
5. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-24, 4-28
Horn switch p. 5-28
6. Bluetooth® 2.0 interface* p. 7-76
7. Hazard warning flasher switch p. 5-21
8. Cigarette lighter p. 7-101
9. USB input terminal* p. 7-96
HDMI terminal* p. 7-99
10. Auto Stop & Go (AS&G) OFF switch* p. 6-23
11. Parking brake lever p. 6-05
12. Floor console box p. 7-105, 7-106
Accessory socket p. 7-102
13. Cup holder p. 7-107
14. Easy select 4WD* p. 6-35
Super Select 4WD II* p. 6-40
15. Gearshift lever* p. 6-27
Selector lever* p. 6-28
16. Centre console under tray p. 7-105, 7-106
17. Key slot* p. 6-20
18. Rear differential lock switch* p. 6-45
19. Heated seat switch* p. 4-03
20. Fuses p. 10-17
21. Glove box p. 7-105
22. Side ventilators p. 7-02
23. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 4-25, 4-28
24. Heater*/Air conditioning* p. 7-04
25. Centre ventilators p. 7-02
26. Rear window demister switch p. 5-27
Instruments and Controls
1-04 OKTE17E1 Overview/Quick guide
1

27. Audio* p. 7-18 7-39
Digital clock* p. 7-102
DISPLAY AUDIO*, MITSUBISHI Multi-Communication Sys-
tem*, Smartphone Link Display Audio*
Refer to the separate owner’s manual
Instruments and Controls
1-05
OKTE17E1 Overview/Quick guide
1

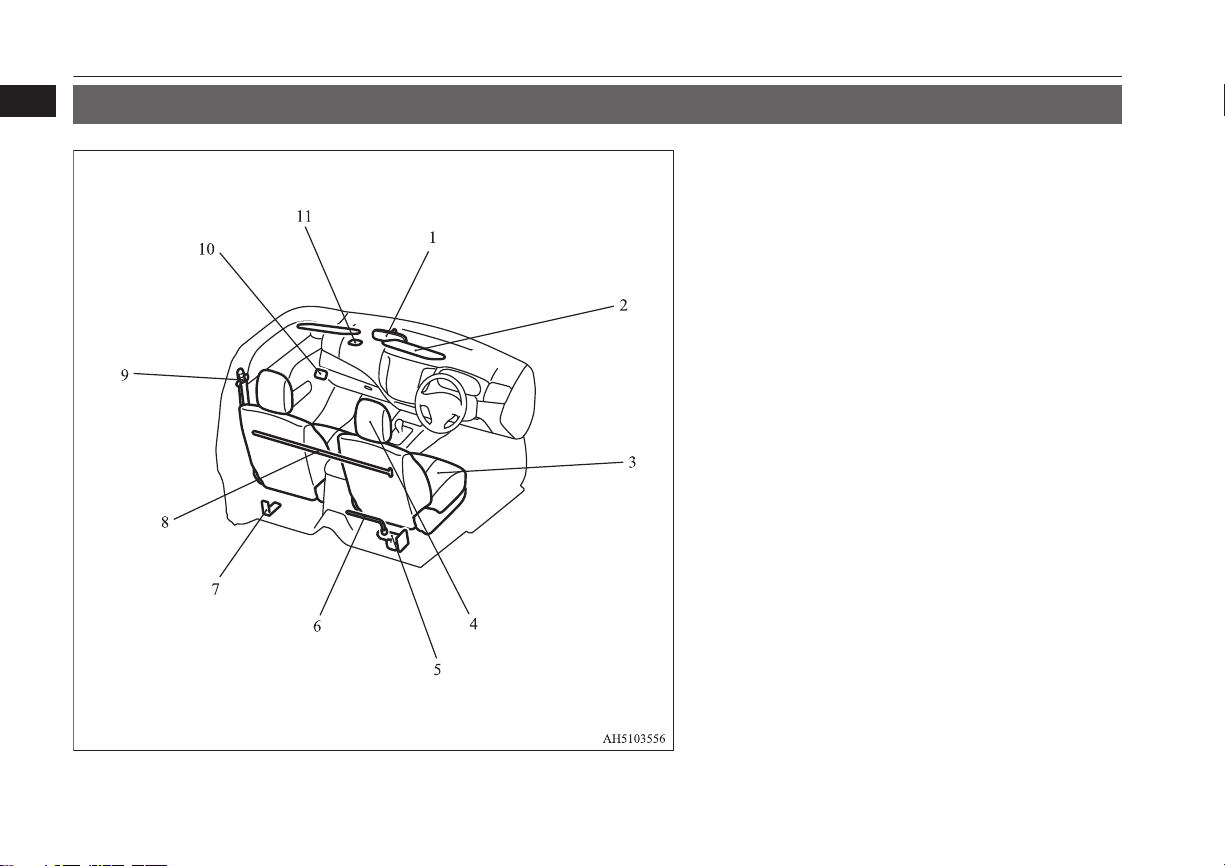

Interior
E08500201535
Single cab
1. Inside rear-view mirror p. 6-08
2. Sun visors p. 7-100
3. Front seats p. 4-02
4. Head restraints p. 4-05
5. Jack p. 8-13
6. Tools p. 8-13
7. First-aid kit and warning triangle securing bands p. 7-109
8. Jack handle p. 8-12
9. Seat belts p. 4-07
10. Room lamps p. 7-103, 10-23, 10-30
11. Microphone (for Bluetooth® 2.0 interface) p. 7-77
Interior
1-06 OKTE17E1 Overview/Quick guide
1

Club cab
1. Inside rear-view mirror p. 6-08
2. Room lamp (front)* p. 7-103, 10-23, 10-29
Map lamps* p. 7-103, 10-23, 10-29
Sunglasses holder* p. 7-105, 7-107
3. Microphone (for Bluetooth® 2.0 interface)* p. 7-77
4. Room lamp (rear) p. 7-103, 10-23, 10-30
5. Supplemental restraint system (SRS) - curtain airbag* p. 4-24,
4-32
6. Seat belts p. 4-07
Adjustable seat belt anchor p. 4-09
7. First-aid kit and warning triangle securing bands* p. 7-109
8. Jack p. 8-12
9. Jack handle p. 8-12
10. Rear seats* p. 4-04
11. Tools p. 8-13
12. First-aid kit and warning triangle securing bands* p. 7-109
13. Head restraints p. 4-05
14. Supplemental restraint system (SRS) - side airbag* p. 4-24,
4-31
15. Front seats p. 4-02
16. Supplemental restraint system (SRS) - front knee airbag (for driv-
er’s seat)* p. 4-24, 4-28
17. Fuses p. 10-17
18. Steering wheel height and reach adjustment lever p. 6-07
19. Sun visors p. 7-100
Card holder p. 7-100
Vanity mirror p. 7-101
Interior
1-07
OKTE17E1 Overview/Quick guide
1

Double cab
1. Room lamp (front) p. 7-103, 10-23, 10-29
Map lamps p. 7-103, 10-23, 10-29
Sunglasses holder p. 7-105, 7-107
2. Microphone (for Bluetooth® 2.0 interface)* p. 7-77
3. Room lamp (rear) p. 7-103, 10-23,10-30
4. Supplemental restraint system (SRS) - curtain airbag p. 4-24,
4-32
5. Seat belts p. 4-07
Adjustable seat belt anchor p. 4-09
6. Armrest p. 4-04
Cup holder p. 7-108
7. Jack p. 8-12
8. Jack handle p. 8-12
9. Tools p. 8-13
10. First-aid kit and warning triangle securing bands p. 7-109
11. Rear seats p. 4-04
12. Head restraints p. 4-05
13. Supplemental restraint system (SRS) - side airbag (for front seat)
p. 4-24, 4-31
14. Front seats p. 4-02
15. Supplemental restraint system (SRS) - driver’s knee airbag
p. 4-24, 4-28
16. Fuses p. 10-17
17. Steering wheel height and reach adjustment lever p. 6-07
18. Sun visors p. 7-100
Card holder p. 7-100
Vanity mirror p. 7-101
19. Inside rear-view mirror p. 6-08
Interior
1-08 OKTE17E1 Overview/Quick guide
1

Exterior - front
E08500402055
Single cab
1. Fuel tank filler door p. 2-02
2. Locking and unlocking p. 3-15
Keyless entry system p. 3-03
3. Outside rear-view mirrors p. 6-09
4. Side turn-signal lamps p. 5-20, 10-22
5. Headlamp washer* p. 5-26
6. Headlamps p. 5-17, 10-22, 10-24
7. Front turn-signal lamps p. 5-20, 10-22, 10-25
8. Position lamps p. 5-17, 10-22, 10-25
9. Front fog lamps* p. 5-22, 10-22, 10-25
Daytime running lamp p. 5-19, 10-22, 10-25
10. Bonnet p. 10-04
Engine compartment p. 10-02, 11-18
11. Wiper and washers p. 5-23, 10-15
12. Antenna p. 7-75
Exterior - front
1-09
OKTE17E1 Overview/Quick guide
1

Club cab
Except for high intensity discharge
headlamp type
High intensity discharge headlamp type
1. Fuel tank filler door* p. 2-02
2. Keyless entry system* p. 3-03
Keyless operation system* p. 3-07
Locking and unlocking p. 3-15
3. Side turn-signal lamps (on outside rear-view mirror)* p. 5-20,
10-22
4. Outside rear-view mirrors p. 6-09
5. Side turn-signal lamps (on fender)* p. 5-20, 10-22
6. Headlamp washer* p. 5-26
7. Headlamps p. 5-17, 10-22
8. Daytime running lamp p. 5-19, 10-21
Position lamps p. 5-17, 10-22
9. Front turn-signal lamps p. 5-20, 10-22, 10-25
10. Front fog lamps* p. 5-22, 10-22, 10-25
11. Front fog lamps* p. 5-22, 10-22, 10-25
Daytime running lamp p. 5-19, 10-22, 10-25
12. Position lamps p. 5-17, 10-22, 10-25
13. Front turn-signal lamps p. 5-20, 10-22, 10-25
14. Headlamps p. 5-17, 10-22, 10-24
15. Bonnet p. 10-04
Engine compartment p. 10-02, 11-18
16. Wiper and washers p. 5-23, 10-15
17. Antenna p. 7-75
Exterior - front
1-10 OKTE17E1 Overview/Quick guide
1

Double cab
Except for high intensity discharge
headlamp type
High intensity discharge headlamps
type
1. Fuel tank filler door* p. 2-02
2. Keyless entry system* p. 3-03
Keyless operation system* p. 3-07
Locking and unlocking p. 3-15
3. Side turn-signal lamps (on outside rear-view mirror)* p. 5-20,
10-22
4. Outside rear-view mirrors p. 6-09
5. Side turn-signal lamps (on fender)* p. 5-20, 10-22
6. Headlamp washer* p. 5-26
7. Headlamps p. 5-17, 10-22
8. Daytime running lamp p. 5-19, 10-21
Position lamps p. 5-17, 10-22
9. Front turn-signal lamps p. 5-20, 10-22, 10-25
10. Front fog lamps* p. 5-22, 10-22, 10-25
11. Front fog lamps* p. 5-22, 10-22, 10-25
Daytime running lamp p. 5-19, 10-22, 10-25
12. Position lamps p. 5-17, 10-22, 10-25
13. Front turn-signal lamps p. 5-20, 10-22, 10-25
14. Headlamps p. 5-17, 10-22, 10-24
15. Bonnet p. 10-04
Engine compartment p. 10-02, 11-18
16. Wiper and washers p. 5-23, 10-15
17. Antenna p. 7-75
Exterior - front
1-11
OKTE17E1 Overview/Quick guide
1

Exterior - rear
E08500401843
Single cab
1. Tyre inflation pressures p. 10-12
Changing tyres p. 8-17
Tyre rotation p. 10-13
Snow tyres p. 10-14
Tyre chains p. 10-14
2. Tail and stop lamps p. 5-17, 10-22, 10-28
3. Rear turn-signal lamps p. 5-20, 10-22, 10-28
4. Reversing lamps p. 10-22, 10-28
Rear fog lamp (driver’s side) p. 5-22, 10-22, 10-28
5. Spare wheel p. 8-18
6. Licence plate lamp p. 5-16, 10-22, 10-29
7. Rear gate p. 3-20
8. High-mounted stop lamp p. 10-22
Exterior - rear
1-12 OKTE17E1 Overview/Quick guide
1

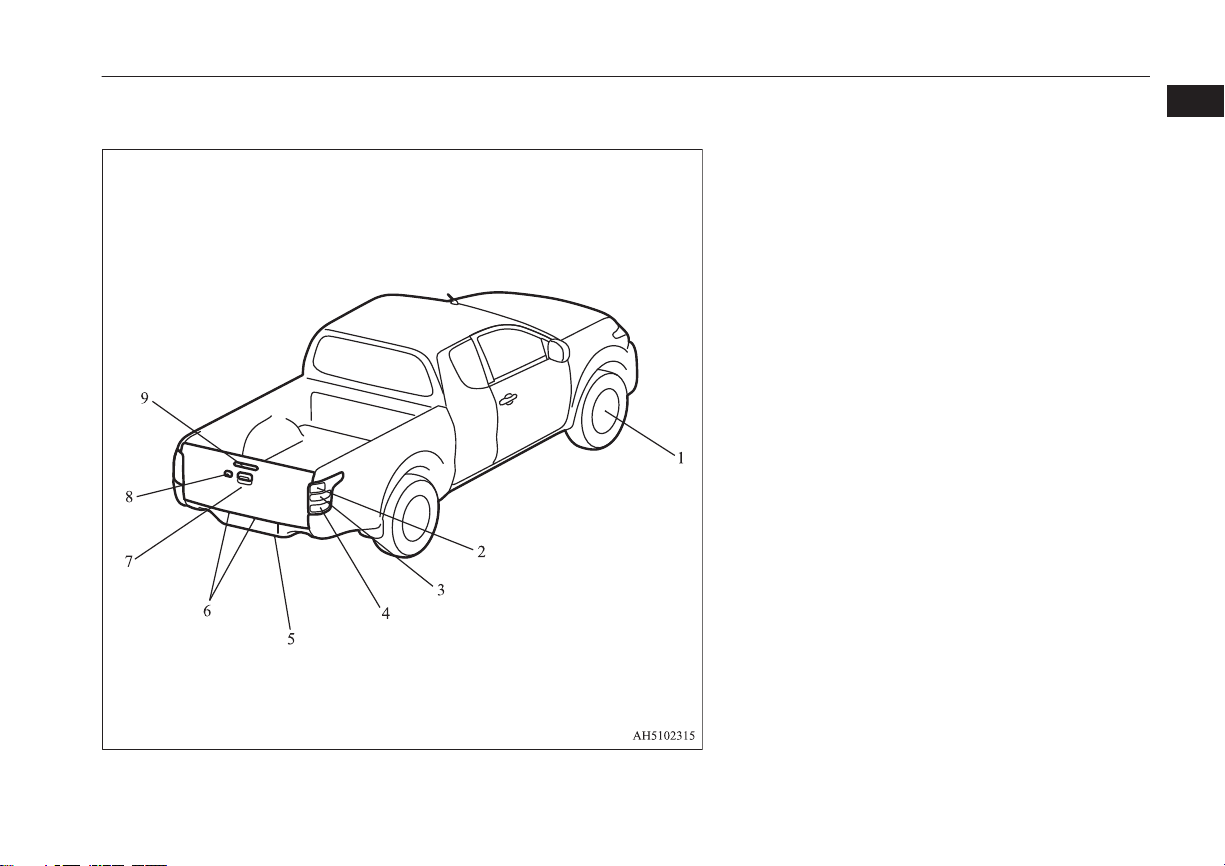

Club cab
1. Tyre inflation pressures p. 10-12
Changing tyres p. 8-17
Tyre rotation p. 10-13
Snow tyres p. 10-14
Tyre chains p. 10-14
2. Tail and stop lamps p. 5-17, 10-22, 10-28
3. Rear turn-signal lamps p. 5-20, 10-22, 10-28
4. Reversing lamps p. 10-22, 10-28
Rear fog lamp (driver’s side) p. 5-22, 10-22, 10-28
5. Spare wheel p. 8-18
6. Licence plate lamp p. 5-16, 10-22, 10-29
7. Rear gate p. 3-20
8. Rear-view camera* p. 6-79
9. High-mounted stop lamp p. 10-22
Exterior - rear
1-13
OKTE17E1 Overview/Quick guide
1

1
2
3
4
5
6
7
8
9

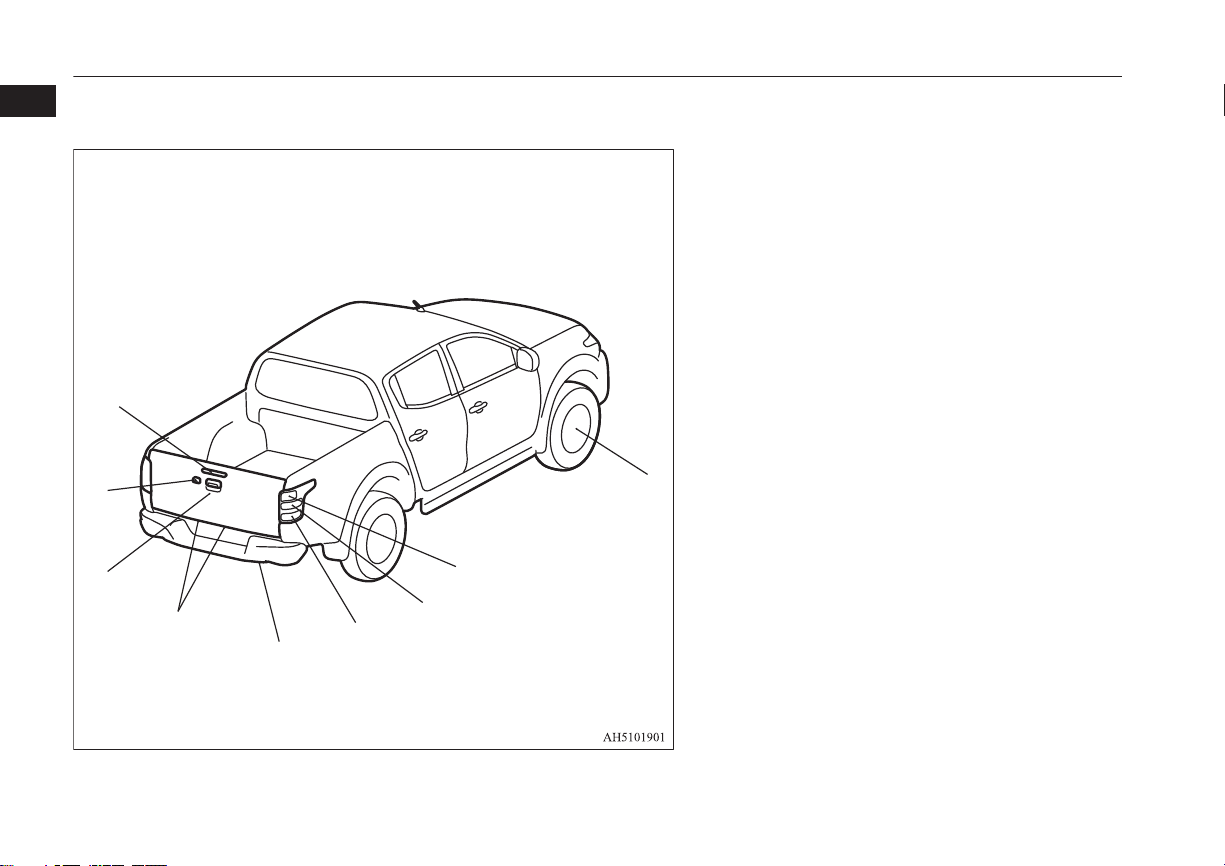

Double cab
1. Tyre inflation pressures p. 10-12
Changing tyres p. 8-17
Tyre rotation p. 10-13
Snow tyres p. 10-14
Tyre chains p. 10-14
2. Tail and stop lamps p. 5-17, 10-22, 10-28
3. Rear turn-signal lamps p. 5-20, 10-22, 10-28
4. Reversing lamps p. 10-22, 10-28
Rear fog lamp (driver’s side) p. 5-22, 10-22, 10-28
5. Spare wheel p. 8-18
6. Licence plate lamp p. 5-16, 10-22, 10-29
7. Rear gate p. 3-20
8. Rear-view camera* p. 6-79
9. High-mounted stop lamp p. 10-22
Exterior - rear
1-14 OKTE17E1 Overview/Quick guide
1

Quick guide
E08500500010
Locking and unlocking the
doors
E08500601454
Keyless entry system*
Press the key switch, and all doors will be
locked or unlocked as desired.
It is also possible to operate the outside rear-
view mirrors. (Vehicles equipped with the
mirror retractor switch)
The key switch will operate within approxi-
mately 4 m from the vehicle.
Keyless entry key Keyless operation key
1. LOCK switch
2. UNLOCK switch
3. Indication lamp
Refer to “Keyless entry system*” on page
3-03.
For vehicles equipped with the mirror retrac-
tor switch, the outside rear-view mirrors can
be folded and extended automatically if you
press the LOCK switch (1) or UNLOCK
switch (2).
Refer to “Operation of the outside rear-
view mirrors” on page 3-04.
Keyless operation system*
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door
switch (A), the doors are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s or front passenger’s door
lock/unlock switch.
Refer to “Keyless operation system*” on
page 3-07.
Around the driver’s seat
E08500801531
Quick guide
1-15
OKTE17E1 Overview/Quick guide
1

1-Electric remote-controlled
outside rear-view mirrors*
To adjust the mirror position
Except for vehicles
equipped with the mirror
retractor switch
Vehicles equipped with
the mirror retractor
switch
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
5- Mirror retractor switch*
Refer to “Outside rear-view mirrors” on
page 6-09.
2-Engine switch*
[For vehicles equipped with keyless opera-
tion system]
If you are carrying the keyless operation key,
you can start the engine. If you press the en-
gine switch without depressing the brake
pedal (A/T) or the clutch pedal (M/T), you
can change the operation mode in the order
of OFF, ACC, ON, OFF.
OFF- The indication lamp on the en-
gine switch turns off.
ACC- The indication lamp on the en-
gine switch illuminates orange.
ON- The indication lamp on the en-
gine switch illuminates green.
Refer to “Engine switch” on page 6-14.
3-Combination headlamps
Rotate the switch to turn on the lamps.
Type 1
OFF All lamps off
Position, tail, licence plate and
instrument panel lamps on
Headlamps and other lamps go
on
Quick guide
1-16 OKTE17E1 Overview/Quick guide
1

Type 2
OFF All lamps off
AUTO
With the ignition switch or the
operation mode is in ON, head-
lamps, position, tail, licence
plate and instrument panel
lamps turn on and off automati-
cally in accordance with outside
light level. All lamps turn off
automatically when the ignition
switch is turned to “OFF” posi-
tion or the operation mode is put
in OFF.
Position, tail, licence plate and
instrument panel lamps on
Headlamps and other lamps go
on
Refer to “Combination headlamps and
dipper switch” on page 5-17.
3-Turn-signal lever
The turn-signal lamps flash when the lever is
operated.
1. Turn-signals
2. Lane-change signals
Refer to “Turn-signal lever” on page
5-20.
4-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
3. Securely lock the steering wheel by pull-
ing the lever fully upward.
A- Locked
B- Release
*: Vehicles equipped with the
reach adjustment
Quick guide
1-17
OKTE17E1 Overview/Quick guide
1
*
*

Refer to “Steering wheel height and reach
adjustment” on page 6-07.
5-Wiper and washer switch
Except for vehicles equipped with rain
sensor
MIST- Misting function
The wipers will operate
once.
OFF- Off
INT- Intermittent (Speed sensi-
tive)
LO- Slow
HI- Fast
Vehicles with rain sensor
MIST- Misting function
The wipers will operate
once.
OFF- Off
AUTO- Auto-wiper control
Rain sensor
The wipers will automati-
cally operate depending on
the degree of wetness on
the windscreen.
LO- Slow
HI- Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on
page 5-23.
6-Electric window control*
Press the switch down for opening the win-
dow, and pull the switch for closing.
Driver’s switch
LHD
Driver’s switch
RHD
1. Driver’s door window
2. Front passenger’s door window
3. Rear left door window (Double cab)
4. Rear right door window (Double cab)
5. Lock switch
Lock switch
If you press the switch (5), the passenger’s
switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control*” on
page 3-21.
Quick guide
1-18 OKTE17E1 Overview/Quick guide
1
