Mitsubishi MOTORS ASX Series User manual

ASX
OWNER’S MANUAL
ASX - ENGLISH - OGAE18E1
ASX - ENGLISH - OGAE18E1

Foreword
E09200107208
Thank you for selecting an ASX as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear.
These serve as reminders to be especially careful. Failure to follow instruc-
tions could result in personal injury or damage to your vehicle.
WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
NOTE
Gives helpful information.
You will see another important symbol:
*: indicates optional equipment.
It may differ according to the sales classification; refer to the sales cata-
logue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive M/T: Manual Transmission
RHD: Right-Hand Drive A/T: Automatic Transmission
CVT: Continuously Variable
Transmission
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104660
Fuel
Capacity Petrol-powered vehicles 2WD models 58 litres*1
63 litres*2
4WD models 60 litres
Diesel-powered vehicles 60 litres
Recommended
fuel
Petrol-powered vehicles
Unleaded petrol octane number (EN228)
1600 models, 1800 models: 95 RON or higher
2000 models: 90 RON or higher
Diesel-powered vehicles
Cetane number (EN590): 51 or higher
Refer to the “General information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
*1: For vehicles with vehicle identification numbers that begin with “4”
*2: For vehicles with vehicle identification numbers that begin with “J”
CAUTION
lDiesel-powered vehicles are designed to use only diesel fuel that meets the EN 590 standard.
Use of any other type of diesel fuel can adversely affect the engine.
NOTE
lFor the location of the vehicle identification number, refer to “Vehicle identification number” on page 11-02.
© 2017 Mitsubishi Motors Corporation 18
OGAE18E1
BLO-17-000482

Table of contents
Overview 1
General information 2
Locking and unlocking 3
Seat and seat belts 4
Instruments and controls 5
Starting and driving 6
For pleasant driving 7
For emergencies 8
Vehicle care 9
Maintenance 10
Specifications 11
Alphabetical index 12
Declaration of Conformity 13
OGAE18E1

Instruments and controls
E00100109149
1. Combination headlamps and dipper switch p. 5-50
Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58
2. Instruments p. 5-02
3. Shift paddles* p. 6-36
4. Windscreen wiper and washer switch p. 5-59
Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64
5. Engine switch* p. 3-13
6. Cruise control switch* p. 6-54
7. Ignition switch* p. 6-12
8. Supplemental restraint system (SRS) - driver’s knee airbag*
p. 4-29
9. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-24, 4-29
Horn switch p. 5-65
10. Tilt & Telescopic steering lever p. 6-08
11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Sonar switch* p. 6-79
14. Lane Departure Warning (LDW)* p. 6-68
15. FCM ON/OFF switch* p. 6-63
16. Headlamp levelling switch* p. 5-55
Instruments and controls
1-02 OGAE18E1 Overview
1

1. Instruments p. 5-02
2. Windscreen wiper and washer switch p. 5-59
Rear window wiper and washer switch p. 5-63
Headlamp washer switch* p. 5-64
3. FCM ON/OFF switch* p. 6-63
4. Headlamp levelling switch* p. 5-55
5. Lane Departure Warning (LDW)* p. 6-68
6. Sonar switch* p. 6-79
7. Cruise control switch* p. 6-54
8. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 4-24, 4-29
Horn switch p. 5-65
9. Ignition switch* p. 6-12
10. Supplemental restraint system (SRS) - driver’s knee airbag*
p. 4-29
11. Bluetooth® 2.0 interface* p. 7-46
12. Steering wheel audio remote control switches* p. 7-23
13. Tilt & Telescopic steering lever p. 6-08
14. Engine switch* p. 3-13
15. Combination headlamps and dipper switch p. 5-50
Turn-signal lever p. 5-57
Front fog lamp switch* p. 5-58
Rear fog lamp switch p. 5-58
16. Shift paddles* p. 6-36
Instruments and controls
1-03
OGAE18E1 Overview
1

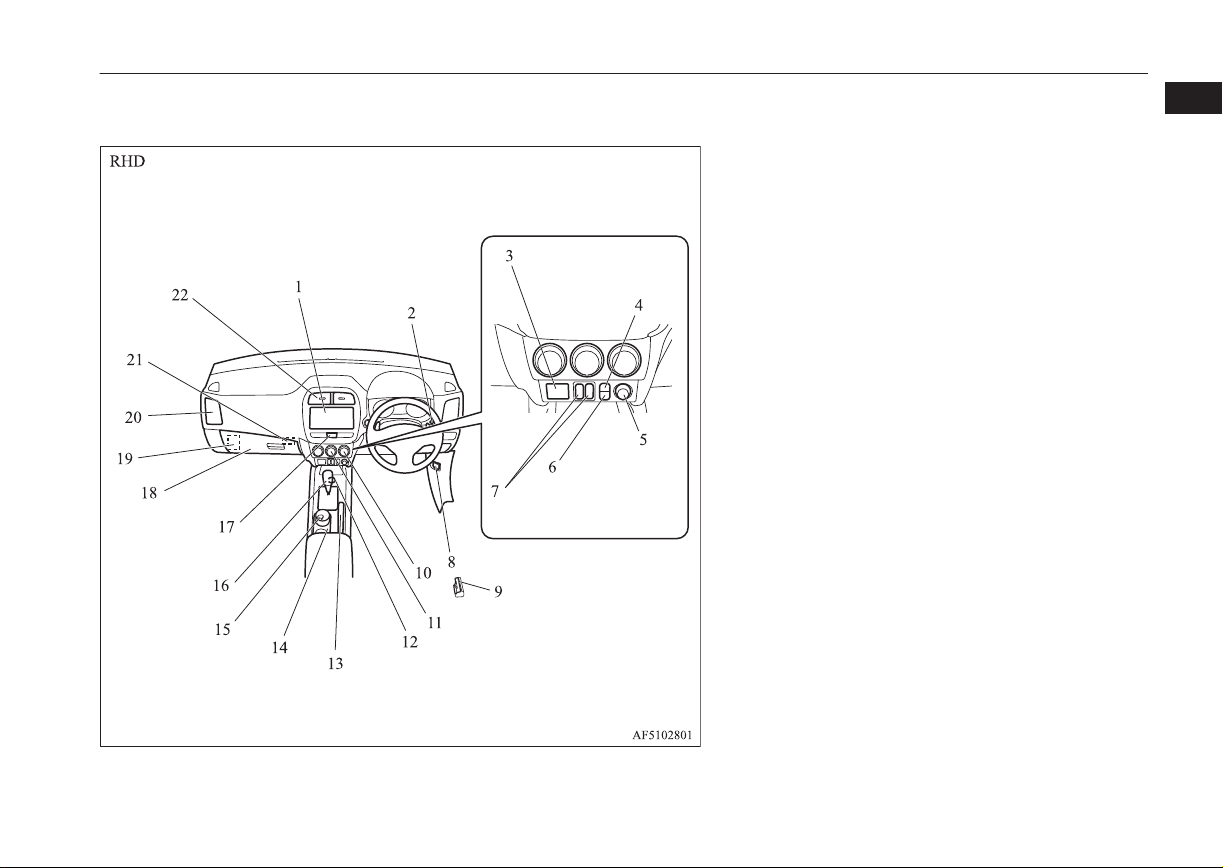

1. Audio system* p. 7-11
MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Centre ventilators p. 7-02
3. Key slot* p. 3-20
4. Side ventilators p. 7-02
5. Front passenger’s airbag ON-OFF switch p. 4-27
Glove box p. 7-76
6. Hazard warning flasher switch p. 5-57
7. Rear window demister switch p. 5-64
8. Drive mode selector* p. 6-39
9. Gearshift or selector lever p. 6-23, 6-26, 6-33
10. Parking brake lever p. 6-06
11. Cup holder p. 7-79
12. Ashtray* p. 7-71
13. Fuel tank filler door release lever p. 2-03
14. Bonnet release lever p. 10-03
15. Fuse box p. 10-19
16. Accessory Socket* p. 7-72
Cigarette lighter* p. 7-71
17. Auto Stop & Go (AS&G) OFF switch* p. 6-19
18. Heated seat switch* p. 4-06
19. USB input terminal* p. 7-67
20. Active stability control (ASC) OFF switch* p. 5-04
21. Multi-information meter switch p. 5-04
22. Air conditioning* p. 7-03
Instruments and controls
1-04 OGAE18E1 Overview
1

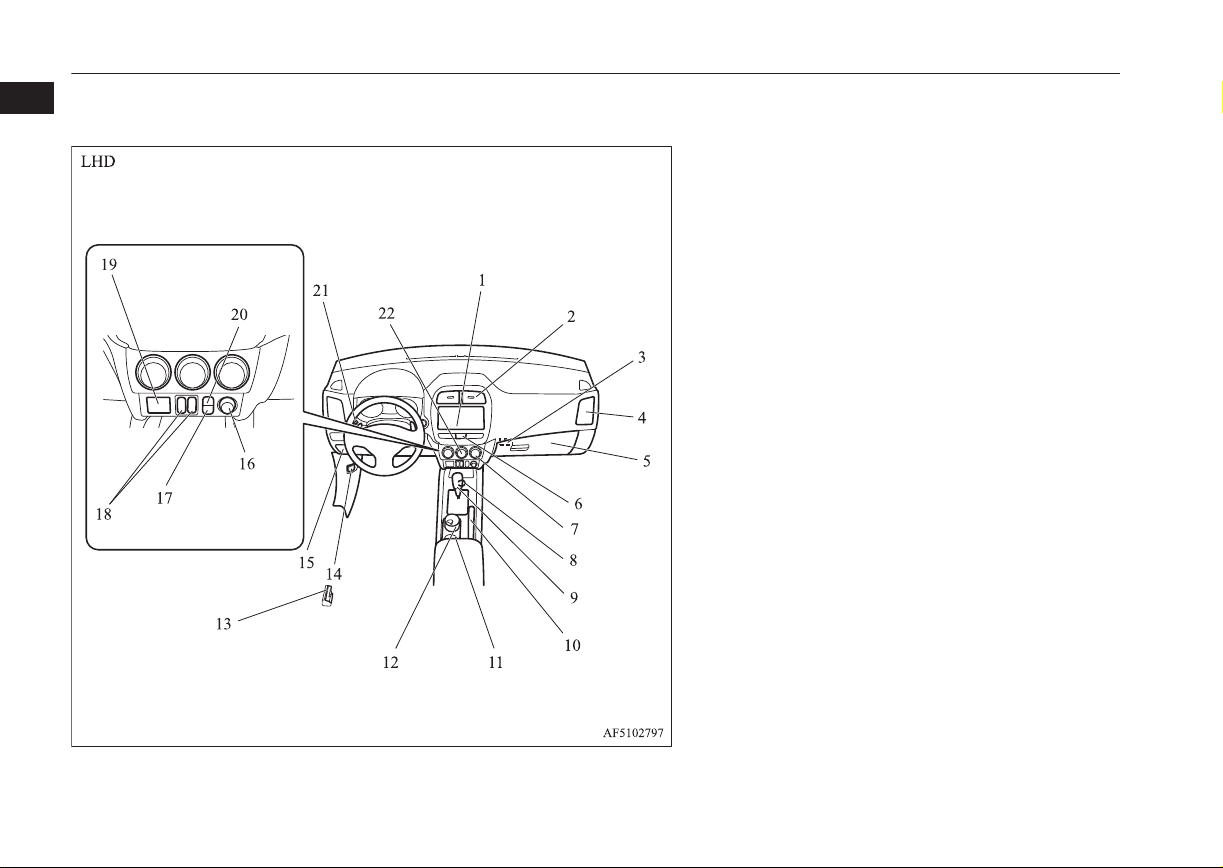

1. Audio system* p. 7-11
MITSUBISHI Multi-Communication System*
DISPLAY AUDIO*
Smartphone Link Display Audio*
Refer to the separate owner’s manual
2. Multi-information meter switch p. 5-04
3. USB input terminal* p. 7-67
4. Active stability control (ASC) OFF switch* p. 5-04
5. Accessory Socket p. 7-72
6. Auto Stop & Go (AS&G) OFF switch* p. 6-19
7. Heated seat switch* p. 4-06
8. Bonnet release lever p. 10-03
9. Fuel tank filler door release lever p. 2-03
10. Rear window demister switch p. 5-64
11. Air conditioning* p. 7-03
12. Drive mode selector* p. 6-39
13. Parking brake lever p. 6-06
14. Cup holder p. 7-79
15. Ashtray* p. 7-71
16. Gearshift or selector lever p. 6-23, 6-26, 6-33
17. Hazard warning flasher switch p. 5-57
18. Front passenger’s airbag ON-OFF switch p. 4-27
Glove box p. 7-76
19. Fuse box p. 10-19
20. Side ventilators p. 7-02
21. Key slot* p. 3-20
22. Centre ventilators p. 7-02
Instruments and controls
1-05
OGAE18E1 Overview
1

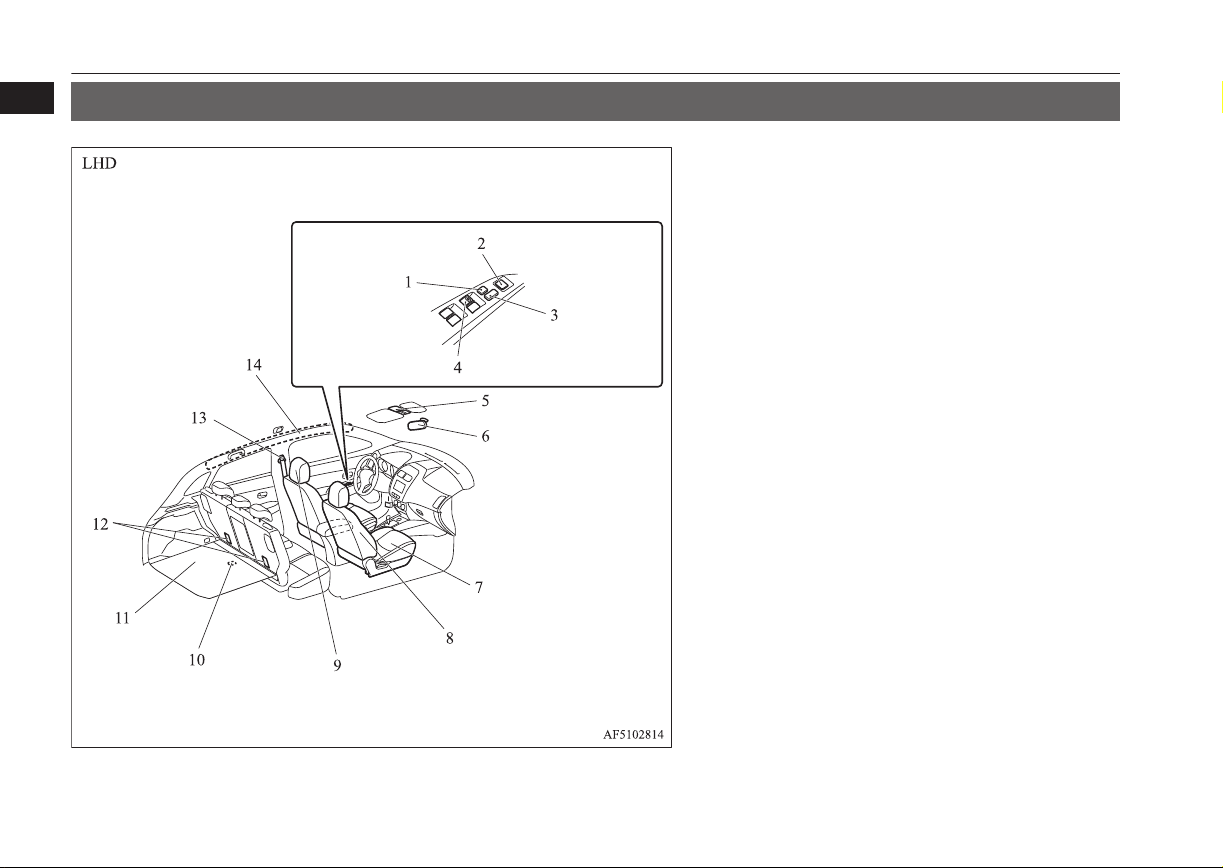

Interior
E00100206660
1. Lock switch p. 3-40
2. Electric remote-controlled outside rear-view mirrors switch
p. 6-10
3. Central door lock switch p. 3-26
4. Electric window control switch p. 3-39
5. Sunshade illumination dimming control switch* p. 7-75
6. Inside rear-view mirror p. 6-08
7. Front seat p. 4-03
Heated seat* p. 4-06
8. Supplemental restraint system (SRS) - side airbag (for front
seats)* p. 4-32
9. Head restraints p. 4-07
10. Luggage room lamp p. 7-74
11. Luggage floor box* p. 7-78
12. Tether anchorages for child restraint system p. 4-22
13. Seat belts p. 4-09
Adjustable seat belt anchor p. 4-12
14. Supplemental restraint system (SRS) - curtain airbag* p. 4-33
Interior
1-06 OGAE18E1 Overview
1

1. Rear shelf panel p. 7-80
2. Assist grip p. 7-80
Coat hook p. 7-81
3. Room lamp (rear)* p. 7-74
4. Sun visors p. 7-70
Vanity mirror p. 7-70
Card holder p. 7-70
5. Map lamp & room lamp (front) p. 7-73
Sunshade switch* p. 3-41
Microphone (for Bluetooth® 2.0 interface)* p. 7-47
6. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 4-24, 4-29
7. Bottle holder p. 7-79
8. Armrest Accessory socket p. 7-72
9. Rear seat p. 4-06
10. Armrest* p. 4-06
Cup holder* p. 7-79
Interior
1-07
OGAE18E1 Overview
1

1. Supplemental restraint system (SRS) - curtain airbag* p. 4-33
2. Seat belts p. 4-09
Adjustable seat belt anchor p. 4-12
3. Luggage room lamp p. 7-74
4. Luggage floor box* p. 7-78
5. Tether anchorages for child restraint system p. 4-22
6. Head restraints p. 4-07
7. Supplemental restraint system (SRS) - side airbag (for front
seats)* p. 4-32
8. Front seat p. 4-03
Heated seat* p. 4-06
9. Inside rear-view mirror p. 6-08
10. Sunshade illumination dimming control switch* p. 7-75
11. Electric window control switch p. 3-39
12. Lock switch p. 3-40
13. Electric remote-controlled outside rear-view mirrors switch
p. 6-10
14. Central door lock switch p. 3-26
Interior
1-08 OGAE18E1 Overview
1

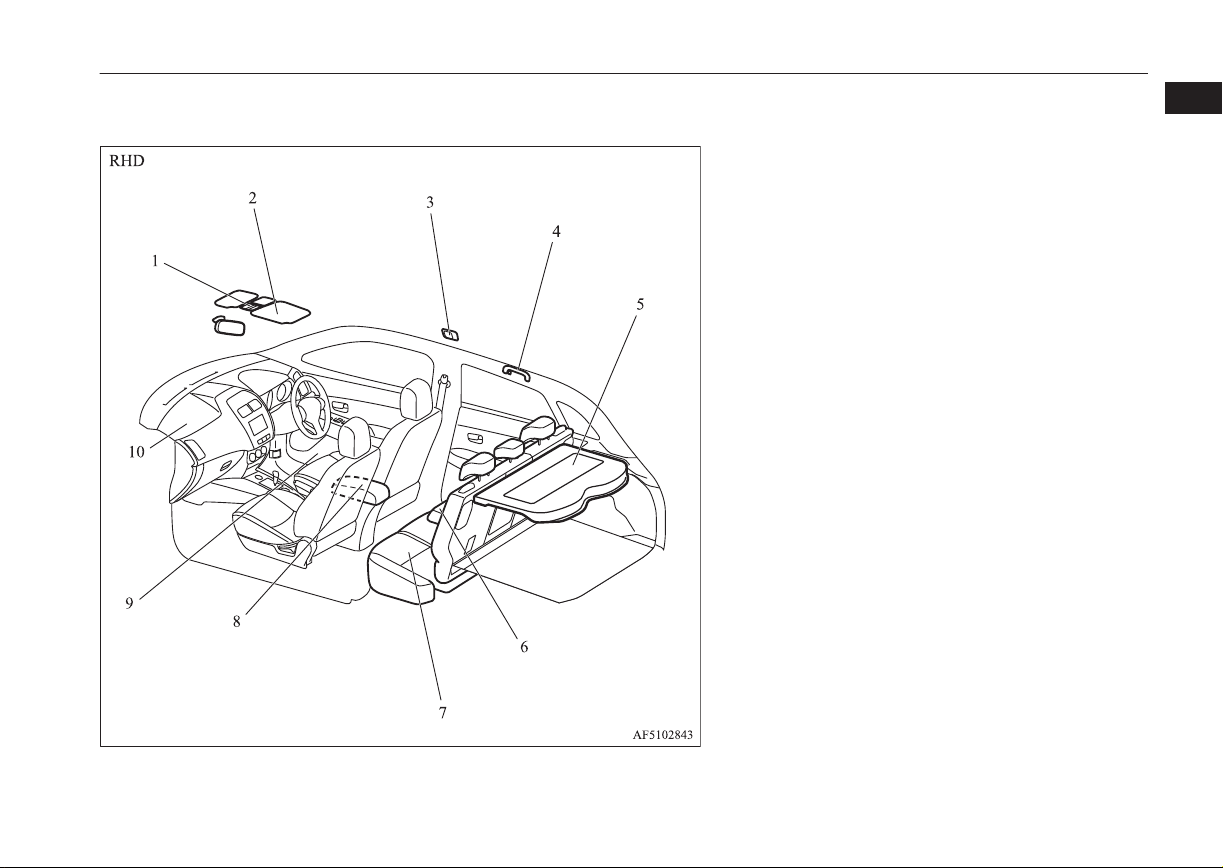

1. Map lamp & room lamp (front) p. 7-73
Sunshade switch* p. 3-41
Microphone (for Bluetooth® 2.0 interface)* p. 7-47
2. Sun visors p. 7-70
Vanity mirror p. 7-70
Card holder p. 7-70
3. Room lamp (rear)* p. 7-74
4. Assist grip p. 7-80
Coat hook p. 7-81
5. Rear shelf panel p. 7-80
6. Armrest* p. 4-06
Cup holder* p. 7-79
7. Rear seat p. 4-06
8. Armrest Accessory socket p. 7-72
9. Bottle holder p. 7-79
10. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 4-24, 4-29
Interior
1-09
OGAE18E1 Overview
1

Luggage compartment
E00100402996
Vehicle with tyre repair kit
1. Tyre repair kit p. 8-07
2. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment
1-10 OGAE18E1 Overview
1

Vehicle with the spare tyre
1. Spare wheel p. 8-14
2. Luggage hook p. 7-81
3. Jack p. 8-07
4. Tools p. 8-06
5. Luggage hook p. 7-81
6. Hook
7. Luggage hook p. 7-81
8. Tools p. 8-06
Luggage compartment
1-11
OGAE18E1 Overview
1

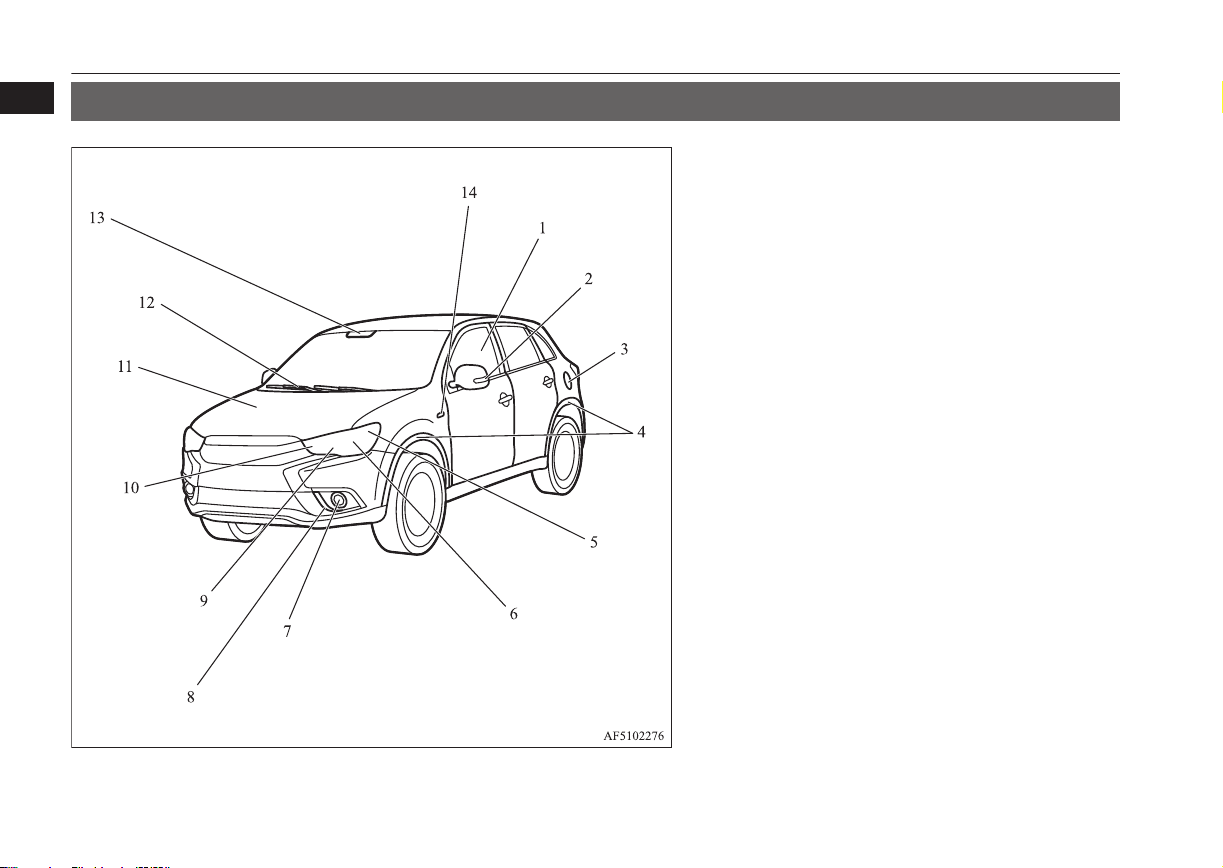

Exterior
E00100507790
1. Electric window control p. 3-39
2. Outside rear-view mirror p. 6-10
Side turn-signal lamps* p. 5-57, 10-26, 10-32
3. Fuel tank filler p. 2-03
4. Wheel lip molding*
For details, refer to Vehicle dimensions p. 11-04.
5. Position lamps (Type 1)* p. 5-50, 10-26, 10-30
6. Headlamps, low beam p. 5-50, 10-26, 10-28, 10-29
7. Front fog lamps* p. 5-58, 10-26, 10-32
8. Daytime running lamps* p. 5-53, 10-26, 10-33
Position lamps (Type 2)* p. 5-53, 10-26, 10-33
9. Headlamps, high-beam p. 5-50, 10-26, 10-29
10. Front turn-signal lamps p. 5-57, 10-26, 10-31
11. Bonnet p. 10-03
12. Windscreen wipers p. 5-59
13. Sensor* [for Forward Collision Mitigation system (FCM) and
Lane Departure Warning (LDW)] p. 6-59, 6-68
Rain sensor* p. 5-60
14. Side turn-signal lamps* p. 5-57, 10-26, 10-32
Exterior
1-12 OGAE18E1 Overview
1

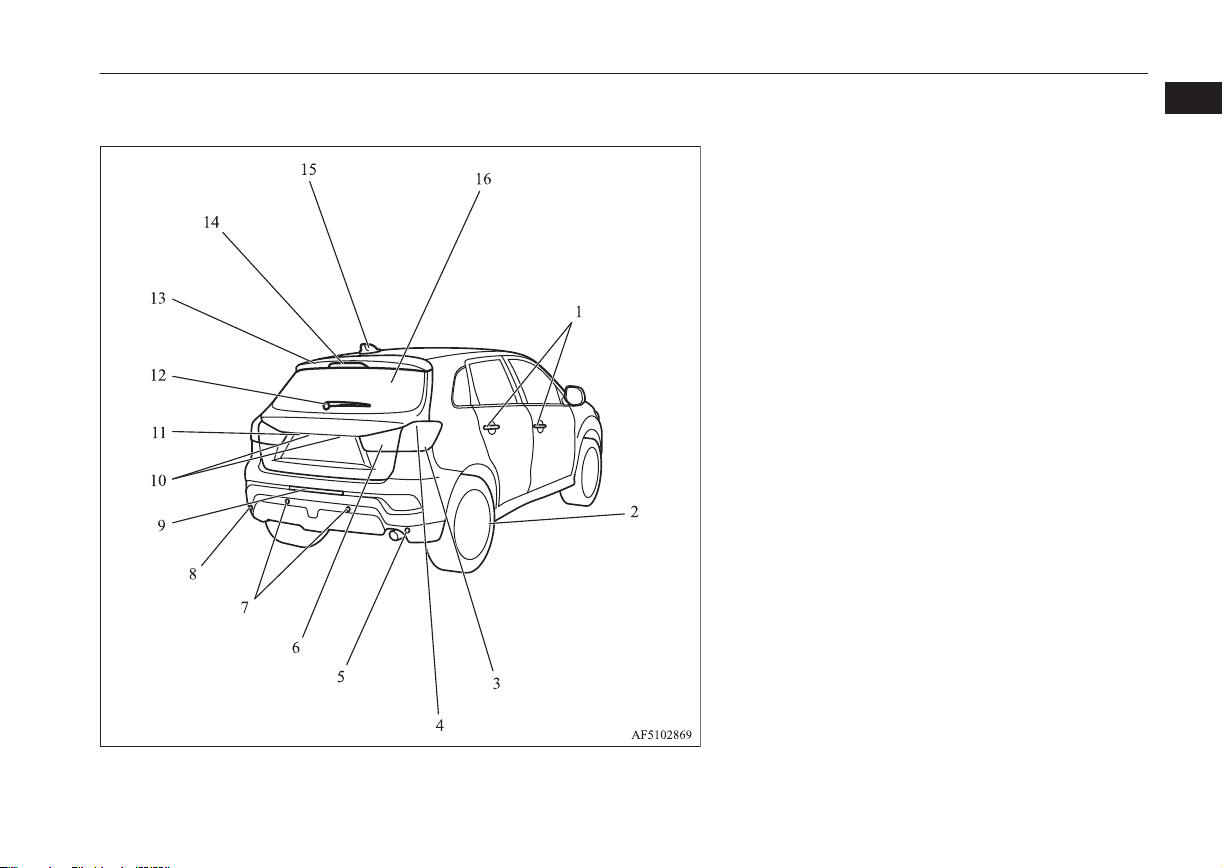

1. Keyless entry system* p. 3-04, 3-22
Keyless operation system* p. 3-07
Locking and unlocking the doors p. 3-25
2. Changing tyres p. 8-13
Tyre inflation pressures p. 10-13
Tyre rotation p. 10-15
Tyre chains p. 10-16
Size of tyres and wheels p. 11-12
Tyre pressure monitoring system* p. 6-71
3. Rear turn-signal lamps/Hazard warning lamps p. 5-57, 5-57,
10-26, 10-34
4. Stop lamps/Tail lamps p. 5-50, 10-26, 10-34
5. Corner sensors* p. 6-77
6. Reversing lamps p. 10-26, 10-34
7. Back sensors* p. 6-77
8. Corner sensors* p. 6-77
9. Rear fog lamp* p. 5-58, 10-26, 10-34
10. Licence plate lamps p. 5-50, 10-26, 10-35
11. Rear-view camera* p. 6-81
12. Rear window wiper p. 5-63
13. Rear spoiler
14. High-mounted stop lamp p. 10-26
15. Antenna
16. Tailgate p. 3-30
Exterior
1-13
OGAE18E1 Overview
1

OGAE18E1

Fuel selection...................................................................................... 2-02
Filling the fuel tank.............................................................................2-03
Installation of accessories................................................................... 2-05
Modification/alterations to the electrical or fuel systems................... 2-06
Genuine parts...................................................................................... 2-06
Safety and disposal information for used engine oil...........................2-06
Disposal information for used batteries.............................................. 2-07
Auto Stop & Go (AS&G) system*..................................................... 2-07
General information
OGAE18E1
2

Fuel selection
E00200105113
Recom-
mended
fuel
Petrol-powered vehicles
Unleaded petrol octane
number (EN228)
1600 models
95 RON or higher
2000 models
90 RON or higher
Diesel-powered vehicles
Cetane number (EN590)
51 or higher
CAUTION
lFor petrol-powered vehicles, the use of lea-
ded fuel can result in serious damage to the
engine and catalytic converter. Do not use
leaded fuel.
lDiesel-powered vehicles are designed to use
only diesel fuel that meets the EN 590 stand-
ard.
Use of any other type of diesel fuel (bio die-
sel, methyl ester, etc.) would adversely af-
fect the engine’s performance and durability.
NOTE
lPetrol-powered vehicles have the knock con-
trol system so that you can use unleaded pet-
rol 90 RON as an emergent measure in case
unleaded petrol 95 RON or higher is not
available on journey, etc.
In such a case, you don’t need to adjust the
engine specially. In case of using unleaded
petrol 90 RON, the engine performance lev-
el is reduced.
lFor diesel fuel, due to the separation of par-
affin, the fluidity of the fuel decreases con-
siderably as the temperature falls.
Because of this fact there are two kinds of
fuel: “summer” and “winter”.
This must be considered in winter use.
Select either of the two kinds of fuel in ac-
cordance with ambient temperature.
Above -5 °C: “Summer” diesel
Below -5 °C: “Winter” diesel
When travelling abroad, find out in advance
about the fuels served in local service sta-
tions.
NOTE
lRepeatedly driving short distances at low
speeds can cause deposits to form in the fuel
system and engine, resulting in poor starting
and poor acceleration. If these problems oc-
cur, you are advised to add a detergent addi-
tive to the gasoline when you refuel the ve-
hicle. The additive will remove the deposits,
thereby returning the engine to a normal
condition. Be sure to use a MITSUBISHI
MOTORS GENUINE FUEL SYSTEM
CLEANER. Using an unsuitable additive
could make the engine malfunction. For de-
tails, please contact a MITSUBISHI
MOTORS Authorized Service Point.
lPoor quality petrol can cause problems such
as difficult starting, stalling, engine noise
and hesitation. If you experience these prob-
lems, try another brand and/or grade of pet-
rol.
If the check engine warning lamp flashes,
have the system checked as soon as possible
at a MITSUBISHI MOTORS Authorized
Service Point.
Fuel selection
2-02 OGAE18E1 General information
2

Graphical expression for con-
sumer information
Identifier for petrol-type fuels
E5: Petrol fuel containing up to 2.7 % (m/m)
oxygen or up to 5.0 % (V/V) ethanol – Eg.
EN 228 compliant unleaded petrol
E10: Petrol fuel containing up to 3.7 %
(m/m) oxygen or up to 10.0 % (V/V) ethanol
– Eg. EN 228 compliant unleaded petrol
The petrol engine are compatible with E5
type petrol (containing 5 % ethanol) and E10
type petrol (containing 10 % ethanol) con-
forming to European standards EN 228.
CAUTION
Do not use more than 10 % concentration of etha-
nol (grain alcohol) by volume.
Use of more than 10 % concentration may lead to
damage to your vehicle fuel system, engine, en-
gine sensors and exhaust system.
Identifier for diesel-type fuels
B7: Diesel fuel containing up to 7.0 % (V/V)
Fatty Acid Methyl Esters – Eg. EN 590 com-
pliant diesel
The diesel engine are compatible with B7
type diesel (containing 7 % fatty acid methyl
esters) conforming to European standards
EN590.
CAUTION
Do not use more than 7 % concentration of fatty
acid methyl esters (bio diesel) by volume.
Use of more than 7 % concentration would ad-
versely affect the engine’s performance and dura-
bility.
Filling the fuel tank
E00200204289
WARNING
lWhen handling fuel, comply with the safe-
ty regulations displayed by garages and
filling stations.
WARNING
lGasoline is highly flammable and explo-
sive. You could be burned or seriously in-
jured when handling it. When refueling
your vehicle, always turn the engine off
and keep away from flames, sparks, and
smoking materials. Always handle fuel in
well-ventilated outdoor areas.
lBefore removing the fuel cap, be sure to
get rid of your body’s static electricity by
touching a metal part of the car or the
fuel pump. Any static electricity on your
body could create a spark that ignites fuel
vapour.
lPerform the whole refueling process
(opening the fuel tank filler door, remov-
ing the fuel cap, etc.) by yourself. Do not
let any other person come near the fuel
tank filler. If you allowed a person to help
you and that person was carrying static
electricity, fuel vapour could be ignited.
lDo not move away from the fuel tank fill-
er until refueling is finished. If you moved
away and did something else (for exam-
ple, sitting on a seat) part-way through
the refueling process, you could pick up a
fresh charge of static electricity.
lIf the tank cap must be replaced, use only
a MITSUBISHI MOTORS genuine part.
Fuel tank capacity
Petrol-pow-
ered vehi-
cles
2WD models 63 litres
4WD models 60 litres
Filling the fuel tank
2-03
OGAE18E1 General information
2

Diesel-powered vehicles 60 litres

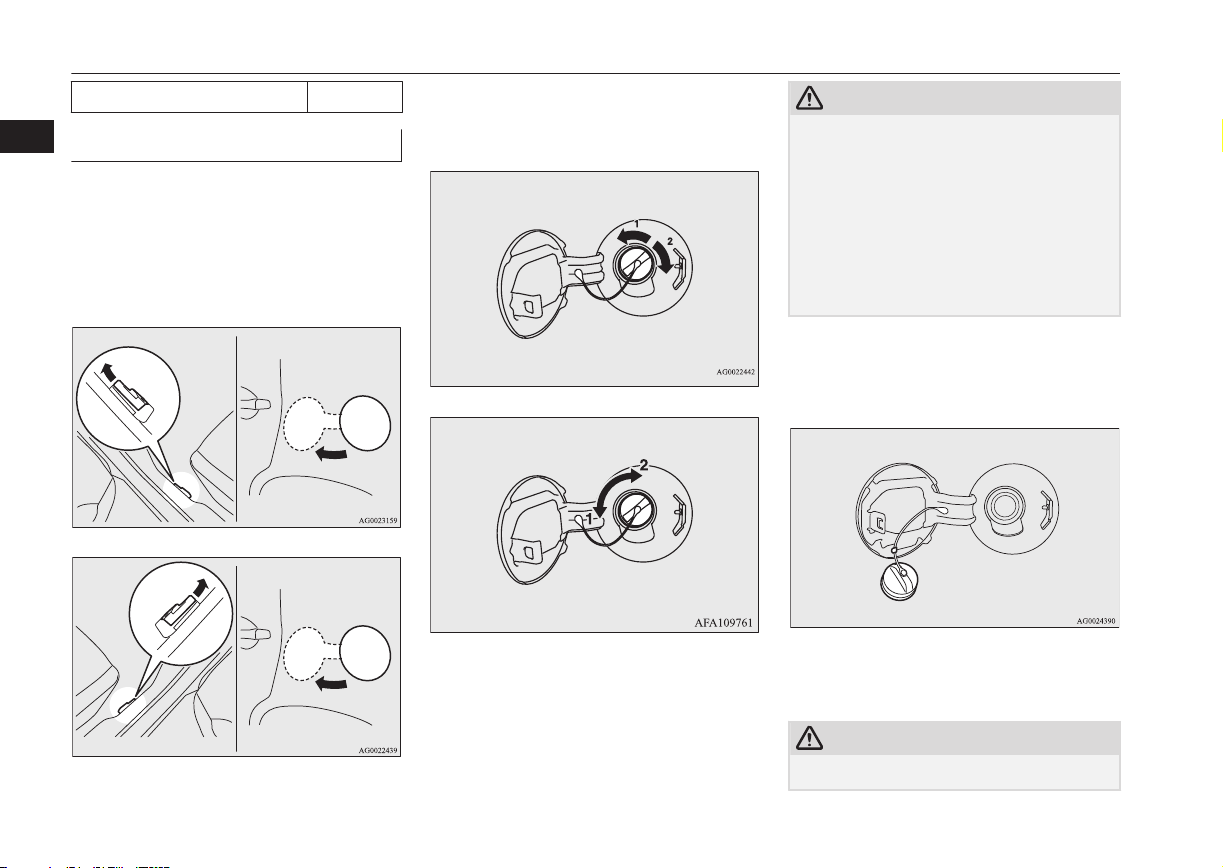

Refueling
1. Before filling with fuel, stop the engine.
2. The fuel tank filler is located on the rear
left side of your vehicle.
Open the fuel tank filler door by pulling
the release lever located on the side of
the driver’s seat.
LHD
RHD
3. Remove the fuel cap.
Open the fuel tank filler tube by slowly
turning the cap anticlockwise.
Except for diesel-powered vehicles 1600 models
Diesel-powered vehicles 1600 models
1- Remove
2- Close
CAUTION
lFor diesel-powered 1600 models, the fuel
cap does not turn more than 90 degrees.
Turning forcibly could damage the fuel cap.
lSince the fuel system may be under pressure,
remove the fuel cap slowly. This relieves
any pressure or vacuum that might have
built up in the fuel tank. If you hear a hissing
sound from the cap, wait until it stops before
removing the cap. Otherwise, fuel may spray
out, injuring you or others.
4. While filling with fuel, hang the fuel cap
cord on the hook located on the inside of
the fuel tank filler door.
5. Insert the gun in the tank port as far as it
goes.
CAUTION
lDo not tilt the gun.
Filling the fuel tank
2-04 OGAE18E1 General information
2
