Mitsubishi MOTORS OUTLANDER PHEV User manual

OUTLANDER PHEV
OWNER’S MANUAL
OUTLANDER PHEV - ENGLISH - OGGE18E1
OUTLANDER PHEV - ENGLISH - OGGE18E1

Foreword
E09200107064
Thank you for selecting an OUTLANDER PHEV as your new vehicle.
This owner’s manual will add to your understanding and full enjoyment of
the many fine features of this vehicle.
It contains information prepared to acquaint you with the proper way to oper-
ate and maintain your vehicle for the utmost in driving pleasure.
MITSUBISHI MOTORS Europe B.V. reserves the right to make changes in
design and specifications and/or to make additions to or improvements in
this product without obligation to install them on products previously manu-
factured.
It is an absolute requirement for the driver to strictly observe all laws and
regulations concerning vehicles.
This owner’s manual has been written in compliance with such laws and reg-
ulations, but some of the contents may become contradictory with later
amendment of the laws and regulations.
Please leave this owner’s manual in this vehicle at time of resale. The next
owner will appreciate having access to the information contained in this
owner’s manual.
Repairs to your vehicle:
Vehicles in the warranty period:
All warranty repairs must be carried out by a MITSUBISHI MOTORS Au-
thorized Service Point.
Vehicles outside the warranty period:
Where the vehicle is repaired is at the discretion of the owner.
Throughout this owner’s manual the words WARNING and CAUTION
appear. These serve as reminders to be especially careful. Failure to follow
instructions could result in personal injury or damage to your vehicle.
WARNING
Indicates a strong possibility of severe personal injury or death if in-
structions are not followed.
CAUTION
Means hazards or unsafe practices that could cause minor personal in-
jury or damage to your vehicle.
NOTE
Gives helpful information.
*: Gives helpful information.
It may differ according to the sales classifications; refer to the sales cata-
logue.
Abbreviations used in this owner’s manual:
LHD: Left-Hand Drive
RHD: Right-Hand Drive
The symbol used on the vehicles:
: See owner’s manual
Information for station service
E09300104543
Fuel
Fuel tank capacity 45 litres
Recommended fuel
Unleaded petrol octane number (EN228)
95 RON or higher
Refer to the “General Information” section for the fuel selection.
Engine oil Refer to the “Maintenance” section for the selection of engine oil.
Tyre inflation pressure Refer to the “Maintenance” section for the tyre inflation pressure.
© 2017 Mitsubishi Motors Corporation 18
OGGE18E1
BLO-17-000449

Table of contents
Overview 1
General information 2
Charging 3
Locking and unlocking 4
Seats and seat belts 5
Instruments and controls 6
Starting and driving 7
For pleasant driving 8
For emergencies 9
Vehicle care 10
Maintenance 11
Specifications 12
Alphabetical index 13
Declaration of Conformity 14
OGGE18E1

Instruments and controls
E08500102081

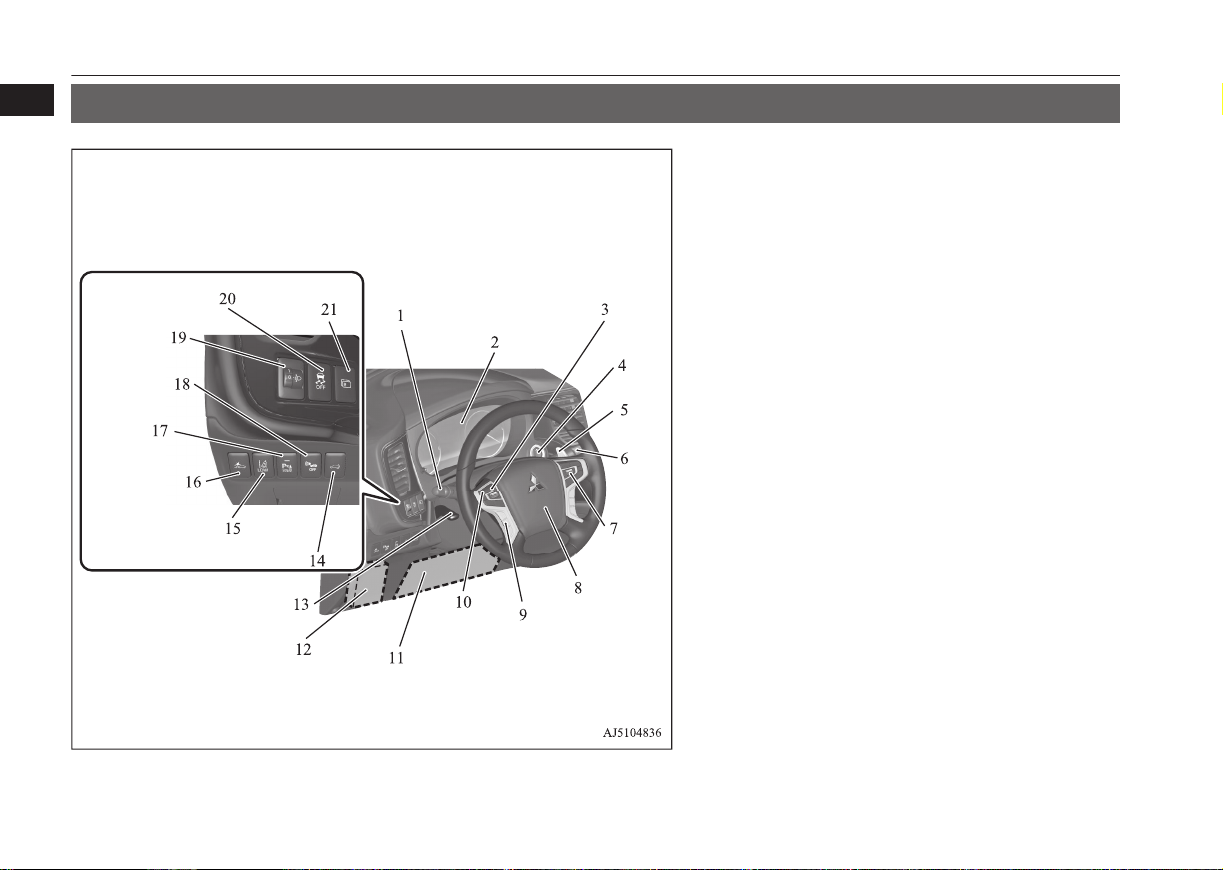

LHD
1. Combination headlamps and dipper switch p. 6-52
Automatic High-Beam (AHB) switch* p. 6-54
Turn-signal lever p. 6-60
Front fog lamp switch p. 6-61
Rear fog lamp switch p. 6-62
2. Instruments p. 6-02
3. Steering wheel audio remote control switches p. 8-26
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi Communication System (MMCS), refer to
the separate owner’s manual.]
4. Power switch p. 7-12
5. Regenerative braking level selector (paddle type)* p. 7-19
6. Windscreen wiper and washer switch p. 6-62
Rear window wiper and washer switch p. 6-65
Headlamp washer switch p. 6-66
7. Cruise control switches p. 7-42, 7-52
8. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 5-26, 5-30
Horn switch p. 6-70
9. Bluetooth® 2.0 interface* p. 8-49
10. Camera switch* p. 7-109
11. Supplemental restraint system (SRS) - front knee airbag p. 5-26,
5-30
12. Fuse box p. 11-16
13. Steering wheel height and reach adjustment lever p. 7-07
14. Driver’s side electric tailgate switch* p. 4-20
15. Lane Depature Warning (LDW) switch* p. 7-85
16. Forward Collision Mitigation System (FCM) and Ultrasonic mis-
acceleration Mitigation System (UMS) ON/OFF switch* p. 7-68
17. Sonar switch* p. 7-96, 7-100
18. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-29
19. Headlamp levelling switch* p. 6-59
20. Active stability control (ASC) OFF switch p. 7-41
21. Multi information display switch p. 6-04
Instruments and controls
1-02 OGGE18E1 Overview
1

RHD
1. Combination headlamps and dipper switch p. 6-52
Automatic High-Beam (AHB) switch* p. 6-54
Turn-signal lever p. 6-60
Front fog lamp switch p. 6-61
Rear fog lamp switch p. 6-62
2. Regenerative braking level selector (paddle type)* p. 7-19
3. Power switch p. 7-12
4. Instruments p. 6-02
5. Multi information display switch p. 6-04
6. Active stability control (ASC) OFF switch p. 7-41
7. Headlamp levelling switch* p. 6-59
8. Sonar switch* p. 7-96, 7-100
9. Forward Collision Mitigation System (FCM) and Ultrasonic mis-
acceleration Mitigation System (UMS) ON/OFF switch* p. 7-68
10. Lane Depature Warning (LDW) switch* p. 7-85
11. Acoustic Vehicle Alerting System (AVAS) OFF switch p. 7-29
12. Driver’s side electric tailgate switch* p. 4-20
13. Windscreen wiper and washer switch p. 6-62
Rear window wiper and washer switch p. 6-65
Headlamp washer switch p. 6-66
14. Supplemental restraint system (SRS) - front knee airbag (for driv-
er’s seat) p. 5-26, 5-30
15. Cruise control switch p. 7-42, 7-52
16. Supplemental restraint system (SRS) - airbag (for driver’s seat)
p. 5-26, 5-30
Horn switch p. 6-70
17. Steering wheel height and reach adjustment lever p. 7-07
18. Bluetooth® 2.0 interface* p. 8-49
19. Steering wheel audio remote control switches p. 8-26
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi Communication System (MMCS), refer to
the separate owner’s manual.]
20. Camera switch* p. 7-109
Instruments and controls
1-03
OGGE18E1 Overview
1

LHD
1. Multi Around Monitor* p. 7-106
Audio* p. 8-13
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi Communication System (MMCS), refer to
the separate owner’s manual.]
2. Hazard warning flasher switch p. 6-60
3. ECO mode switch p. 6-61
4. Front passenger’s airbag indicator p. 5-29
5. Passenger’s ventilators p. 8-02
6. Accessory socket* p. 8-74
Cigarette lighter* p. 8-73
7. Electric tailgate power switch* p. 4-20
8. Key slot p. 7-15
9. 220-240 V AC power supply switch* p. 8-75
10. Blind Spot Warning (BSW) switch* p. 7-79
11. Heated steering wheel switch* p. 6-69
12. Heated windscreen switch* p. 6-68
13. Cup holder p. 8-82
14. Selector lever (Joystick type) p. 7-16
15. 220-240 V AC power supply* p. 8-75
16. Floor console box p. 8-81
Arm rest
Accessory socket p. 8-74
USB input terminal p. 8-69
17. Fuel tank filler door release lever p. 2-14
18. Bonnet release lever p. 11-04
19. Rear window demister switch p. 6-67
Wiper de-icer switch* p. 6-67
20. Air conditioner p. 8-04
21. Seat belt reminder p. 5-11
Instruments and controls
1-04 OGGE18E1 Overview
1

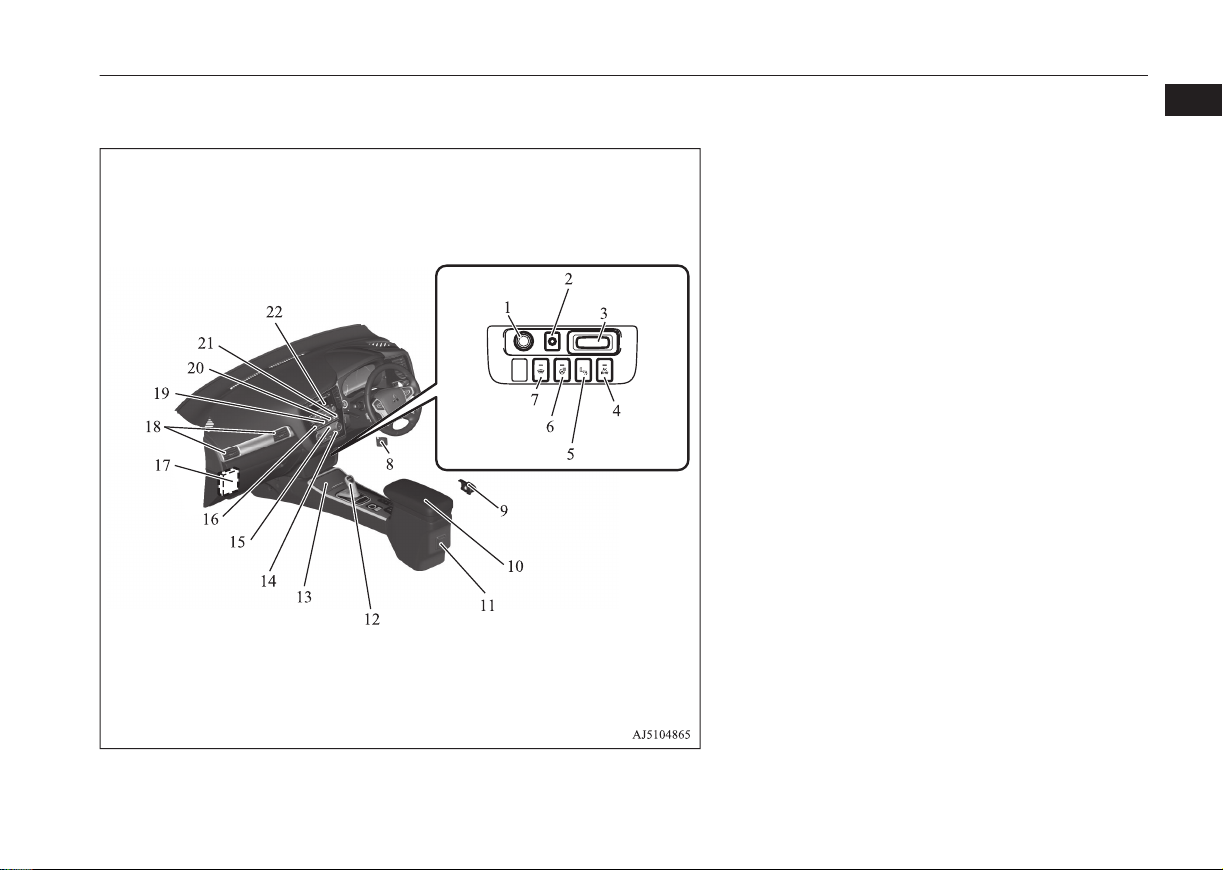

RHD
1. Accessory socket p. 8-74
2. Electric tailgate power switch* p. 4-20
3. Key slot p. 7-15
4. 220-240 V AC power supply switch* p. 8-75
5. Blind Spot Warning (BSW) switch* p. 7-79
6. Heated steering wheel switch* p. 6-69
7. Heated windscreen switch* p. 6-68
8. Bonnet release lever p. 11-04
9. Fuel tank filler door release lever p. 2-14
10. Floor console box p. 8-81
Arm rest
Accessory socket p. 8-74
USB input terminal p. 8-69
11. 220-240 V AC power supply* p. 8-75
12. Selector lever (Joystick type) p. 7-16
13. Cup holder p. 8-82
14. Rear window demister switch p. 6-67
Wiper de-icer switch* p. 6-67
15. Air conditioner p. 8-04
16. Seat belt reminder p. 5-11
17. Fuse box p. 11-16
18. Passenger’s ventilators p. 8-02
19. Hazard warning flasher switch p. 6-60
20. ECO mode switch p. 6-61
21. Front passenger’s airbag indicator p. 5-29
22. Audio* p. 8-13
Multi Around Monitor* p. 7-106
[For DISPLAY AUDIO, Smartphone Link Display Audio and
MITSUBISHI Multi Communication System (MMCS), refer to
the separate owner’s manual.]
Instruments and controls
1-05
OGGE18E1 Overview
1

LHD
1. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 5-26, 5-30
2. Glove box p. 8-80
Card holder p. 8-80
3. Battery save mode switch p. 7-27
4. Electric parking brake switch p. 7-03
5. Brake auto hold switch p. 7-32
6. Heated seat switch* p. 5-04
7. EV switch p. 7-25
8. 4WD lock switch p. 7-21
9. Battery charge mode switch p. 7-28
10. Electrical Parking switch p. 7-18
Instruments and controls
1-06 OGGE18E1 Overview
1

RHD
1. Glove box p. 8-80
Card holder p. 8-80
2. Supplemental restraint system (SRS) - airbag (for front passen-
ger’s seat) p. 5-26, 5-30
3. Electrical Parking switch p. 7-18
4. Battery save mode switch p. 7-27
5. Electric parking brake switch p. 7-03
6. Brake auto hold switch p. 7-32
7. Heated seat switch* p. 5-04
8. EV switch p. 7-25
9. 4WD lock switch p. 7-21
10. Battery charge mode switch p. 7-28
Instruments and controls
1-07
OGGE18E1 Overview
1

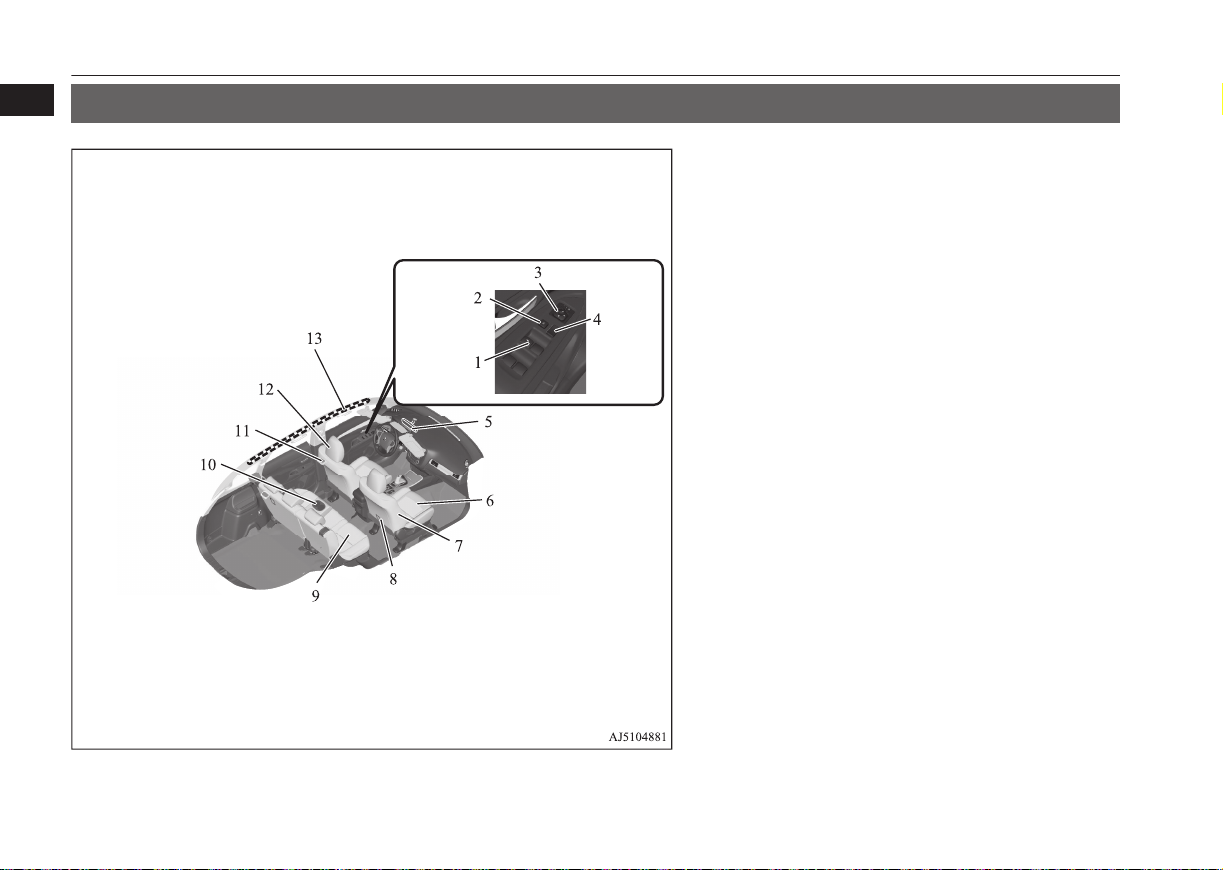

Interior
E08500201711
LHD
1. Electric window control switch p. 4-34
2. Lock switch p. 4-35
3. Electric remote-controlled outside rear-view mirrors switch
p. 7-09
4. Central door lock switch p. 4-16
5. Inside rear-view mirror p. 7-07
Multi Around Monitor* p. 7-106
6. Front seat p. 5-03
7. Supplemental restraint system (SRS) -side airbag (for front seat)
p. 5-26, 5-33
8. Tether anchorages for child restraint system (for front passenger’s
seat) p. 5-23
9. Rear seat p. 5-05
10. Armrest p. 5-05
Cup holder p. 8-82
11. Room lamp (rear) p. 8-78, 11-25
12. Head restraints p. 5-05
13. Supplemental restraint system (SRS) - curtain airbag p. 5-26,
5-33
Interior
1-08 OGGE18E1 Overview
1

RHD
1. Lock switch p. 4-35
2. Electric remote-controlled outside rear-view mirrors switch
p. 7-09
3. Central door lock switch p. 4-16
4. Electric window control switch p. 4-34
5. Head restraints p. 5-05
6. Supplemental restraint system (SRS) - curtain airbag p. 5-26,
5-33
7. Room lamp (rear) p. 8-78, 11-25
8. Armrest p. 5-05
Cup holder p. 8-82
9. Rear seat p. 5-05
10. Tether anchorages for child restraint system (for front passenger’s
seat) p. 5-23
11. Supplemental restraint system (SRS) - side airbag (for front seat)*
p. 5-26, 5-33
12. Front seat p. 5-03
13. Inside rear-view mirror p. 7-07
Multi Around Monitor* p. 7-106
Interior
1-09
OGGE18E1 Overview
1

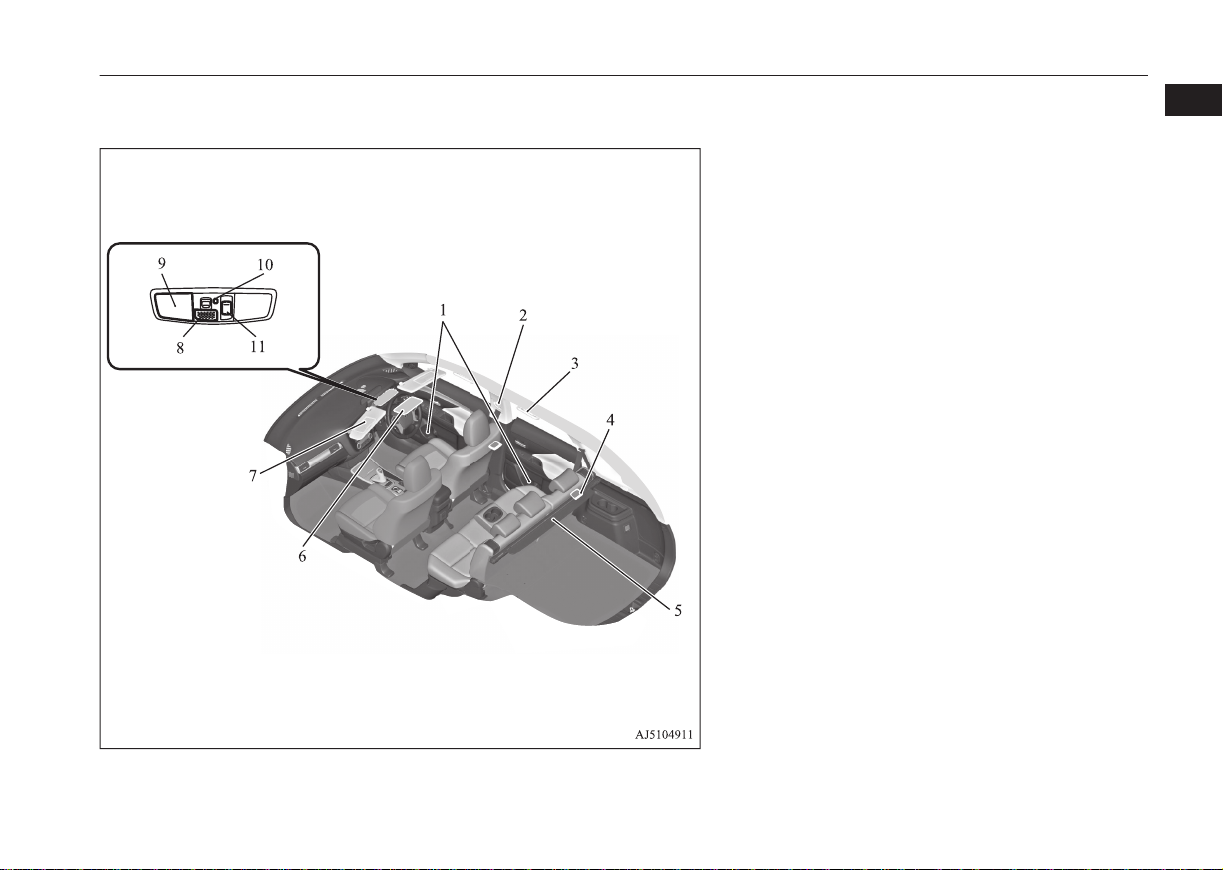

LHD
1. Bottle holder p. 8-83
2. Map & room lamps (front) p. 8-78, 8-79, 11-25
3. Downlight p. 8-78
4. Sunroof switch* p. 4-36
5. Hands-free microphone* p. 8-50
6. Sun visors p. 8-72
Vanity mirror p. 8-72
Card holder p. 8-72
7. Sunglasses holder* p. 8-82
8. Cargo area cover p. 8-83
9. Luggage room lamp p. 8-79, 11-25
10. Assist grips p. 8-85
Coat hook p. 8-85
11. Adjustable seat belt anchor p. 5-12
Seat belts p. 5-09
Interior
1-10 OGGE18E1 Overview
1

RHD
1. Bottle holder p. 8-83
2. Adjustable seat belt anchor p. 5-12
Seat belts p. 5-09
3. Assist grips p. 8-85
Coat hook p. 8-85
4. Luggage room lamp p. 8-79, 11-25
5. Cargo area cover p. 8-83
6. Sunglasses holder* p. 8-82
7. Sun visors p. 8-72
Vanity mirror p. 8-72
Card holder p. 8-72
8. Hands-free microphone* p. 8-50
9. Map & room lamps (front) p. 8-78, 8-79, 11-25
10. Downlight p. 8-78
11. Sunroof switch* p. 4-36
Interior
1-11
OGGE18E1 Overview
1

Luggage area
E08500301389
1. Tether anchorages for child restraint system p. 5-23
2. Tools p. 9-06
3. Accessory socket* p. 8-74
220-240 V AC power supply* p. 8-75
4. Luggage hook p. 8-85
5. Jack p. 9-06
6. Luggage floor box p. 8-81
7. EV charging cable* p. 3-07
8. Auxiliary battery p. 11-09
9. Tyre repair kit p. 9-07
Luggage area
1-12 OGGE18E1 Overview
1

Outside (Front)
E08500402358
Halogen headlamps type LED headlamps type
1. Front-view camera* p. 7-106
2. Bonnet p. 11-04
3. Windscreen wipers p. 6-62
4. Sensor* [for Automatic High-Beam (AHB), Forward Collision
Mitigation System (FCM) and Lane Departure Warning (LDW)]
p. 6-54, 7-64, 7-85
Rain sensor p. 6-62
5. Sunroof* p. 4-36
6. Electric window control p. 4-34
7. Fuel tank filler p. 2-14
8. Side turn-signal lamps p. 6-60, 11-24
Side view camera* p. 7-106
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74
Parking sensors* p. 7-98
10. Front fog lamps p. 6-61, 11-24, 11-27
11. Headlamps, high-beam p. 6-54, 11-24, 11-26
12. Headlamps, low beam p. 6-54, 11-24
13. Position lamps p. 6-52, 11-24
Daytime running lamps p. 11-27, 11-24
14. Front turn-signal lamps p. 6-60, 11-24, 11-27
15. Headlamps, high-beam p. 6-54, 11-24, 11-26
16. Headlamps, low beam p. 6-54, 11-24, 11-25
17. Position lamps p. 6-52, 11-24
Daytime running lamps p. 6-54, 11-24
18. Front turn-signal lamps p. 6-60, 11-24, 11-27
Outside (Front)
1-13
OGGE18E1 Overview
1

Outside (Rear)
E08500402361
1. Antenna
2. Tail lamps p. 11-24, 11-29
3. Keyless entry system p. 4-03
Keyless operation system p. 4-06
Locking and unlocking the doors p. 4-14
4. Changing tyres p. 9-13
Tyre pressure monitoring system (TPMS) p. 7-89
Tyre inflation pressures p. 11-10
Tyre rotation p. 11-11
Snow traction device (tyre chains) p. 11-13
Size of tyres and wheels p. 12-08
5. Charging lid p. 3-12
Charging port courtesy lamp p. 3-06
6. Stop lamps p. 11-24, 11-29
7. Rear turn-signal lamps p. 6-60, 11-24, 11-29
8. Reversing lamp (LHD vehicles) p. 11-24, 11-29
Rear fog lamp (RHD vehicles) p. 6-62, 11-24, 11-29
9. Ultrasonic misacceleration Mitigation System (UMS)* p. 7-74
Reversing sensor system* p. 7-94
Parking sensors* p. 7-98
10. Rear fog lamp (LHD vehicles) p. 6-62, 11-24, 11-29
Reversing lamp (RHD vehicles) p. 11-24, 11-29
11. Licence plate lamps p. 11-24, 11-30
12. Rear-view camera* p. 7-102, 7-106
13. Rear window wiper p. 6-65
14. Tailgate* p. 4-19
Electric tailgate* p. 4-20
15. High-mounted stop lamp p. 11-24
Outside (Rear)
1-14 OGGE18E1 Overview
1

Quick guide
E08500500010
Locking and unlocking the
doors and tailgate
E08500601483
Keyless entry system
Press the remote control switch, and all doors
and the tailgate will be locked or unlocked as
desired.
The remote control switch will operate within
approximately 4 m from the vehicle.
Vehicles without MITSUBISHI Remote
Control
Vehicles with MITSUBISHI Remote Con-
trol
1- LOCK switch
2- UNLOCK switch
3- Electric tailgate switch
4- Indication lamp
5- Charging timer cancel switch*
Refer to “Keyless entry system” on page
4-03.
On vehicles with the electric tailgate, the tail-
gate can be opened automatically if you press
the electric tailgate switch (3) after unlocking
the tailgate.
Refer to “Electric tailgate” on page 4-20.
On vehicles with the MITSUBISHI Remote
Control, the charging timer can be cancelled
if you press the charging timer cancel switch
(5) twice within 2 seconds.
Refer to “MITSUBISHI Remote Control”
on page 3-24
Keyless operation system
When you are carrying the keyless operation
key and within the operating range, if you
press the driver’s or front passenger’s door
switch (A), or the tailgate switch (B) (when
locking) and the tailgate open switch (C)
(when unlocking), the doors and the tailgate
are locked/unlocked.
The operating range is approximately 70 cm
from the driver’s door switch, front passen-
ger’s door switch and the tailgate switches.
Refer to “Keyless operation system” on
page 4-06.
Quick guide
1-15
OGGE18E1 Overview
1

Around the driver’s seat
E08500801687
1-Combination headlamps
Rotate the switch to turn on the lamps.
OFF All lamps off {except for day-
time running lamps}
AUTO
With the operation mode of the
power switch in the “ON” posi-
tion, head-lamps, position, tail,
licence plate, instrument panel
lamps and downlight turn on
and off automatically in accord-
ance with outside light level.
{Daytime running lamps will go
on while the tail lamps are off.}
All lamps turn off automatically
when the operation mode is put
in OFF.
Position, tail, licence plate, in-
strument panel lamps and down-
light on
Headlamps and other lamps go
on
Refer to “Combination headlamps and
dipper switch” on page 6-52.
1-Turn-signal lever
The turn-signal lamps flash when the lever is
operated
1- Turn-signals
2- Lane-change signals
Refer to “Turn-signal lever” on page
6-60.
2-Steering wheel height and
reach adjustment
1. Release the lever while holding the
steering wheel up.
2. Adjust the steering wheel to the desired
position.
Quick guide
1-16 OGGE18E1 Overview
1

3. Securely lock the steering wheel by pull-
ing the lever fully upward.
A- Locked
B- Release
Refer to “Steering wheel height and reach
adjustment” on page 7-07.
3-Power switch
If you are carrying the keyless operation key,
you can start the Plug-in Hybrid EV System.
If you press the power switch without de-
pressing the brake pedal, you can change the
operation mode in the order of OFF, ACC,
ON, OFF.
OFF- The indication lamp (A) on the
power switch turns off.
ACC- The indication lamp on the en-
gine switch illuminates orange.
ON- The indication lamp on the pow-
er switch illuminates blue.
Refer to “Power switch” on page 7-12.
4-Wiper and washer switch
MIST- Misting function
The wipers will operate
once.
OFF- Off
AUTO- Auto-wiper control
The wipers will automati-
cally operate depending on
the degree of wetness on
the windscreen.
LO- Slow
HI- Fast
The washer fluid will be sprayed onto the
windscreen by pulling the lever towards you.
Refer to “Wiper and washer switch” on
page 6-62.
Quick guide
1-17
OGGE18E1 Overview
1

5-Electric remote-controlled
outside rear-view mirrors
To adjust the mirror position
L- Left outside mirror adjustment
R- Right outside mirror adjustment
1- Up
2- Down
3- Right
4- Left
5- Mirror retractor switch
Refer to “Outside rear-view mirrors” on
page 7-09.
6-Electric window control
Press the switch down for opening the win-
dow, and pull the switch for closing.
1- Driver’s door window
2- Front passenger’s door window
3- Rear left door window
4- Rear right door window
5- Lock switch
Lock switch
If you press the switch (5), the passenger’s
switches cannot be operated. To cancel, press
it once again.
Refer to “Electric window control” on
page 4-34.
7-Fuel tank filler door release
lever
Open the fuel tank filler door.
The fuel tank filler is located on the rear left
side of your vehicle.
Refer to “Filling the fuel tank” on page
2-14.
Charging lid
E08502100023
Firmly apply the parking brake, press the
electrical parking switch to shift into the “P”
(PARK) position and put the operation mode
of the power switch in the “OFF” position.
Quick guide
1-18 OGGE18E1 Overview
1
