Mitsubishi CS-31301 User manual

,,,t MITSUBISHI

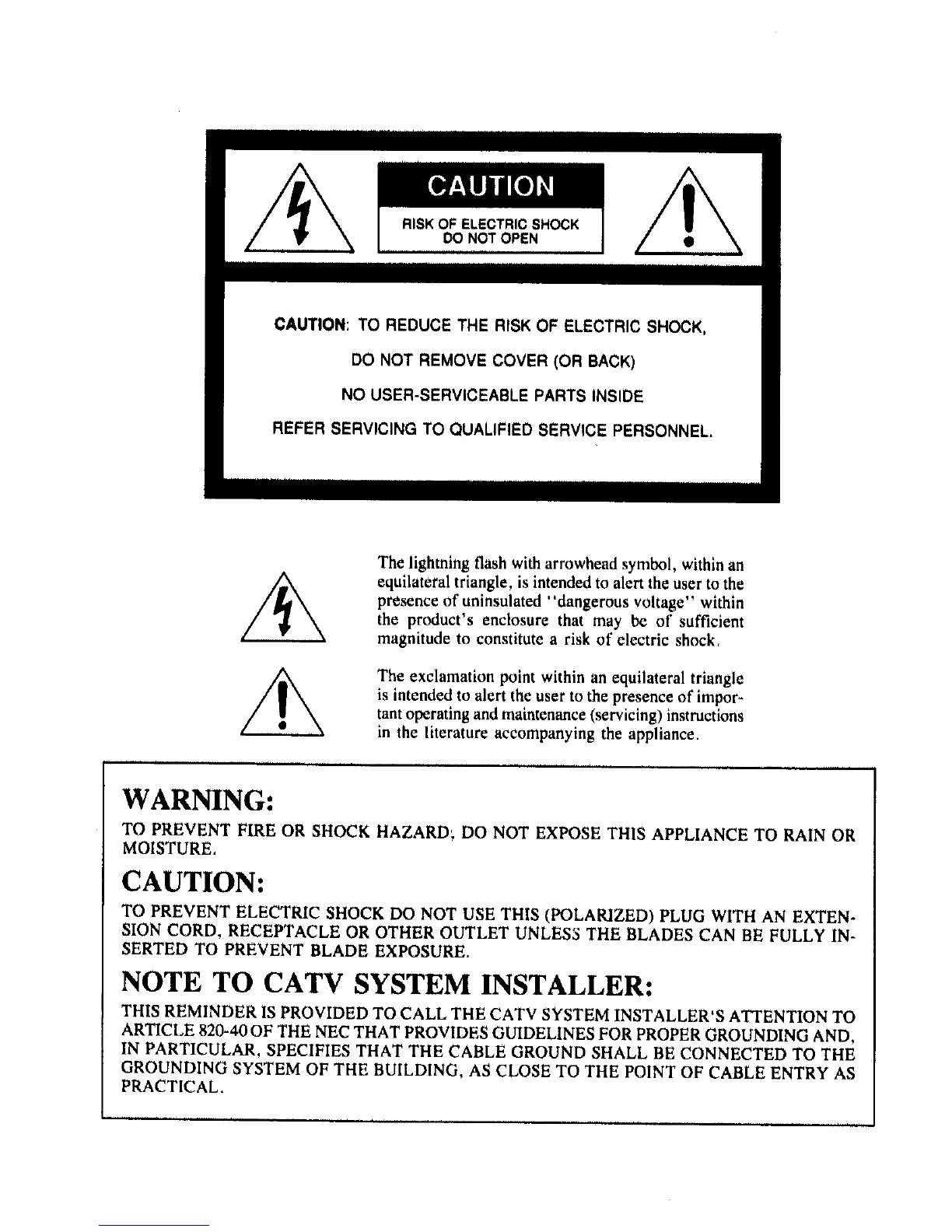

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL,
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within
the product's enclosure that may be of sufficient
magnitude to constitute a risk of electric shock,
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of impor-
tant operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD; DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK DO NOT USE THIS (POLARIZED) PLUG WITH AN EXTEN-
SION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY IN-
SERTED TO PREVENT BLADE EXPOSURE.
NOTE TO CATV SYSTEM INSTALLER:
THIS REMINDER IS PROVIDED TO CALL THE CATV SYSTEM INSTALLER'S ATTENTION TO
ARTICLE 820-40 OF THE NEC THAT PROVIDES GUIDELINES FOR PROPER GROUNDING AND,
IN PARTICULAR, SPECIFIES THAT THE CABLE GROUND SHALL BE CONNECTED TO THE
GROUNDING SYSTEM OF THE BUILDING, AS CLOSE TO THE POINT OF CABLE ENTRY AS
PRACTICAL.

MITSUBISHI OWNERIS GU1DE
Table of Contents

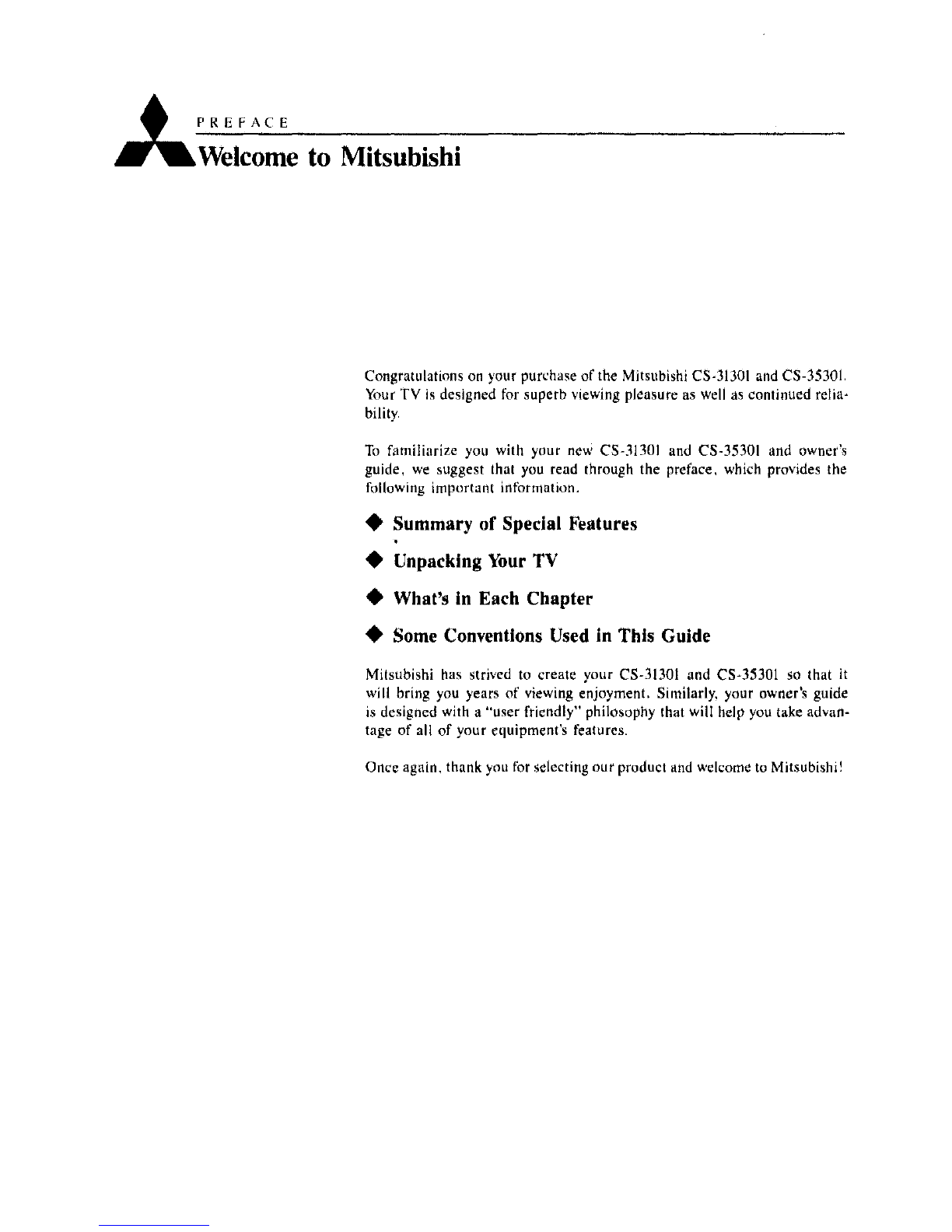

Preface: Welcome to Mitsublshi ........................................................ 9

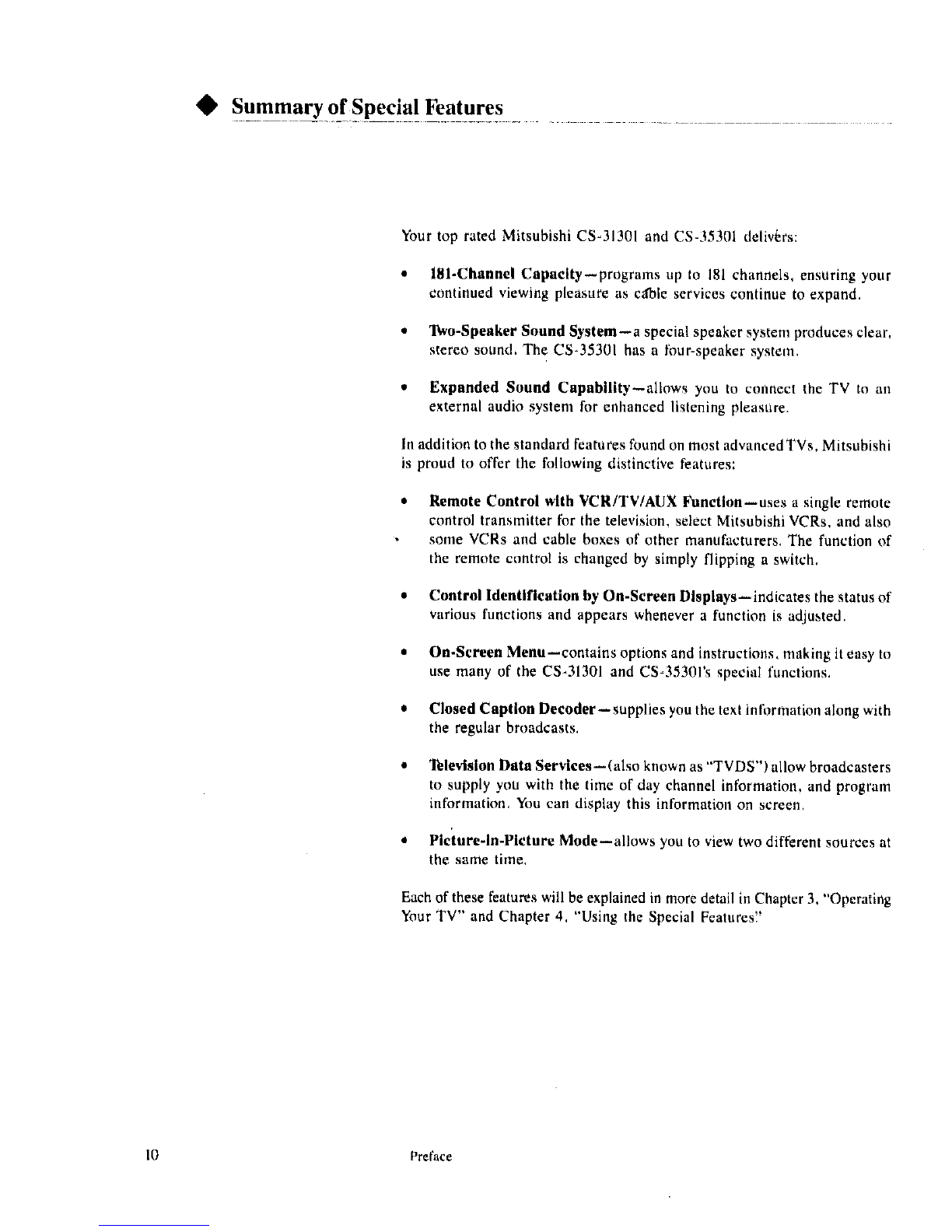

Summary of Special Features ...................................................... 10
Unpacking Your TV .............................................................. 11
What you will find ............................................................. 11
A few suggestions ............................................................. 11
What's in Each Chapter ........................................................... 12
Some Conventions Used in This Guide .............................................. 13

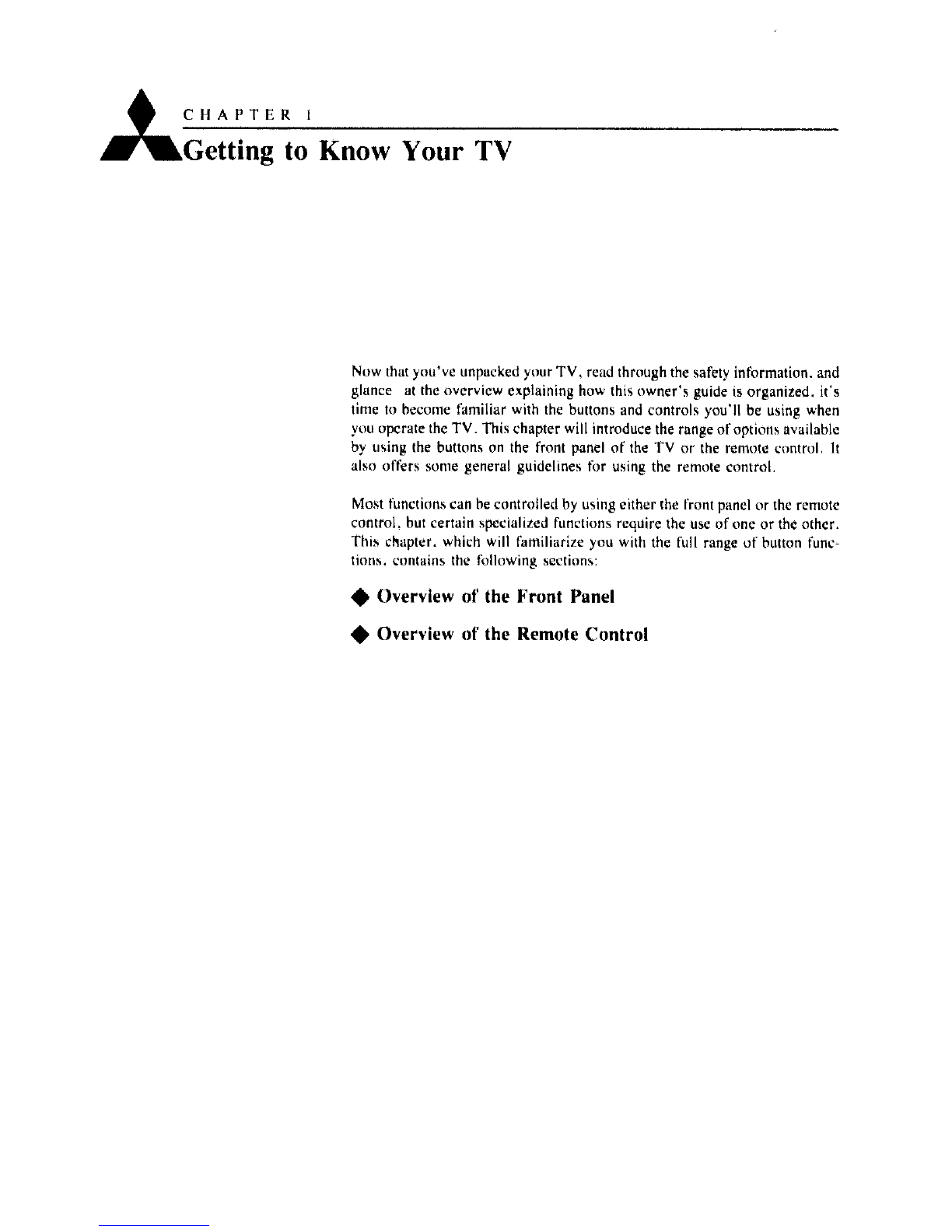

Chapter 1: Getting to Know Your TV ................................................ 15
Overview of the Front Panel .................................................... 16

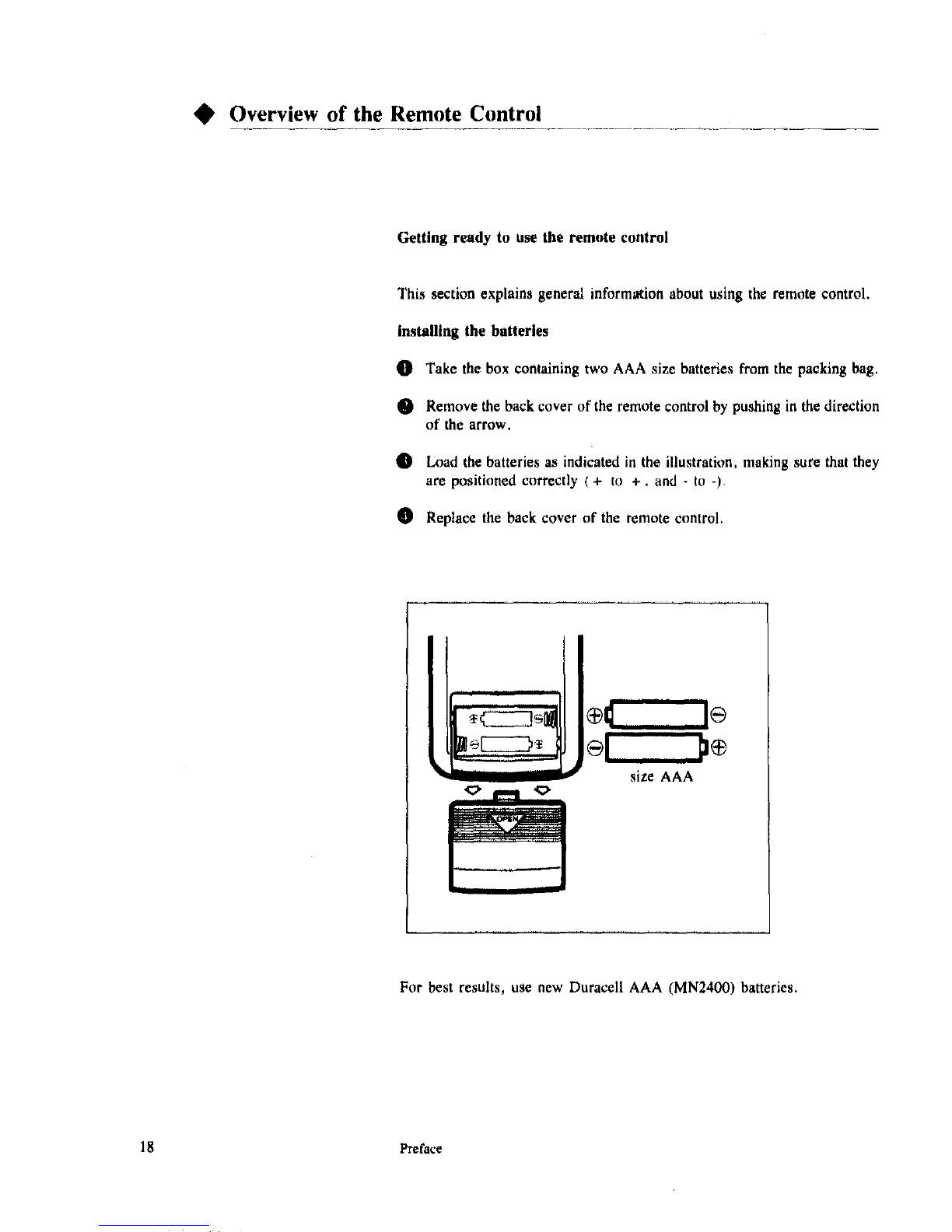

Overview of the Remote Control ................................................. 18
Getting ready to use the remote control ......................................... 18
Remote control buttons and functions .......................................... 20
Chapter 2: Connecting Your TV ....................................................... 25
Overview of the Back Panel ....................................................... 26
Basic Connections ................................................................ 27
TV + antenna or cable without ade€oder box ..................................... 28
TV + antenna or cable with adecoder box ........................................ 29
TV + separate UHF and VHF antennas ........................................... 31
TV +VCR + antenna or cable without adecoder box .............................. 32
TV +VCR + amenna or cable with adecoder box ................................. 35
TV + audio system ............................................................ 38

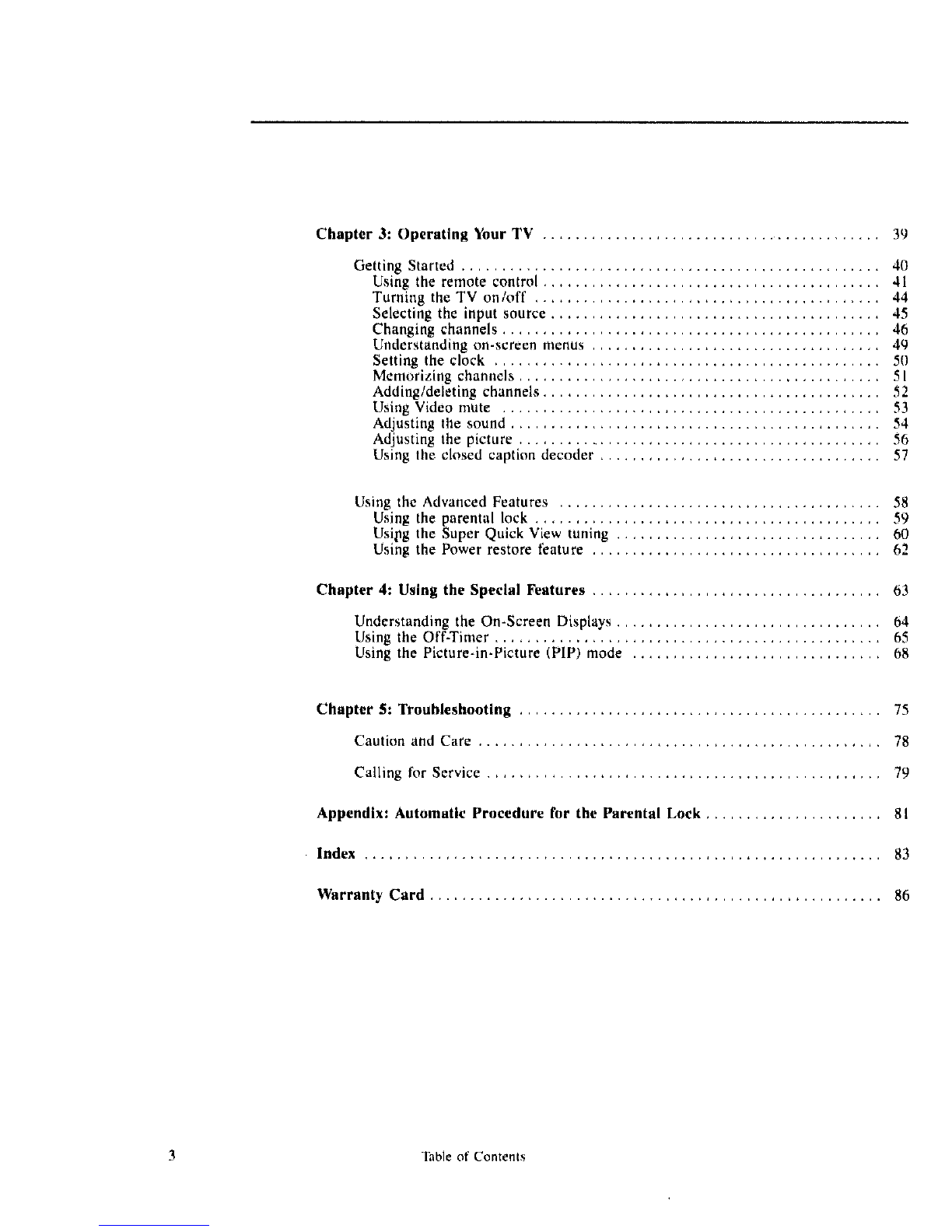

Chapter3: Operating Your TV ........................................... 39
Getting Started .................................................... 40
Using the remote control .......................................... 41
Turning the TV on/off ........................................... 44
Selecting the input source ......................................... 45
Changing channels ............................................... 46
Understanding on-screen menus .................................... 49
Setting the clock ................................................ 50
Memorizing channels ............................................. 5I
Adding/deleting channels .......................................... 52
Using Video mute ............................................... 53
Adjusting the sound .............................................. 54
Adjusting the picture .............................................. 56
Using the closed caption decoder ................................... 57
Using the Advanced Features ........................................ 58
Using the parental lock ........................................... 59
Usipg the Super Quick View tuning ................................. 60
Using the Power restore feature .................................... 62
Chapter 4: Using the Special Features .................................... 63
Understanding the On-Screen Displays ................................. 64
Using the Off-Timer ................................................ 65
Using the Picture-in-Picture (PIP) mode ............................... 68
Chapter 5: Troubleshooting ............................................. 75
Caution and Care .................................................. 78
Calling for Service ................................................. 79
Appendix: Automatic Procedure for the Parental Lock ...................... 81
Index ................................................................ 83
Warranty Card ........................................................ 86
3Table of Contents

IMPORTANT SAFEGUARDS
PLEASE READ ALL THESE INSTRUCTIONS REGARD-
ING YOUR TELEVISION SET AND RETAIN FOR
FUTURE REFERENCES. FOLLOW ALL WARNINGS AND
INSTRUCTIONS MARKED ON THE TV RECEIVER.
1. Read Instructions
All the safety andoperating instructions should be readbefore the appliance
is operated.
2, Retain Instructions
The safety and operating instructions should be retained for future
reference,
,
.
Heed Warnings
All warnings on the appliance and inthe operating instructions should be
adhered to.
Follow instructions
All operating and use instructions should be followed.
5. Cleaning
Unplug this TV receiver from the wall outlet before cleaning. Do not use
liquid or aerosol cleaners. Use adamp cloth for cleaning.
6. Attachment and Equipment
Never add any attachments and/or equipment without approval of the
manufactureras such additions may result in the risk of fire, electric shock
or other personal injury.
7, Water and Moisture
Do not use this TV receiver where contact with or immersion in water
is a possibility. Do not use near: hath tubs, wash bowls, kitchen sinks,
laundry tubs, swimming pools, etc.

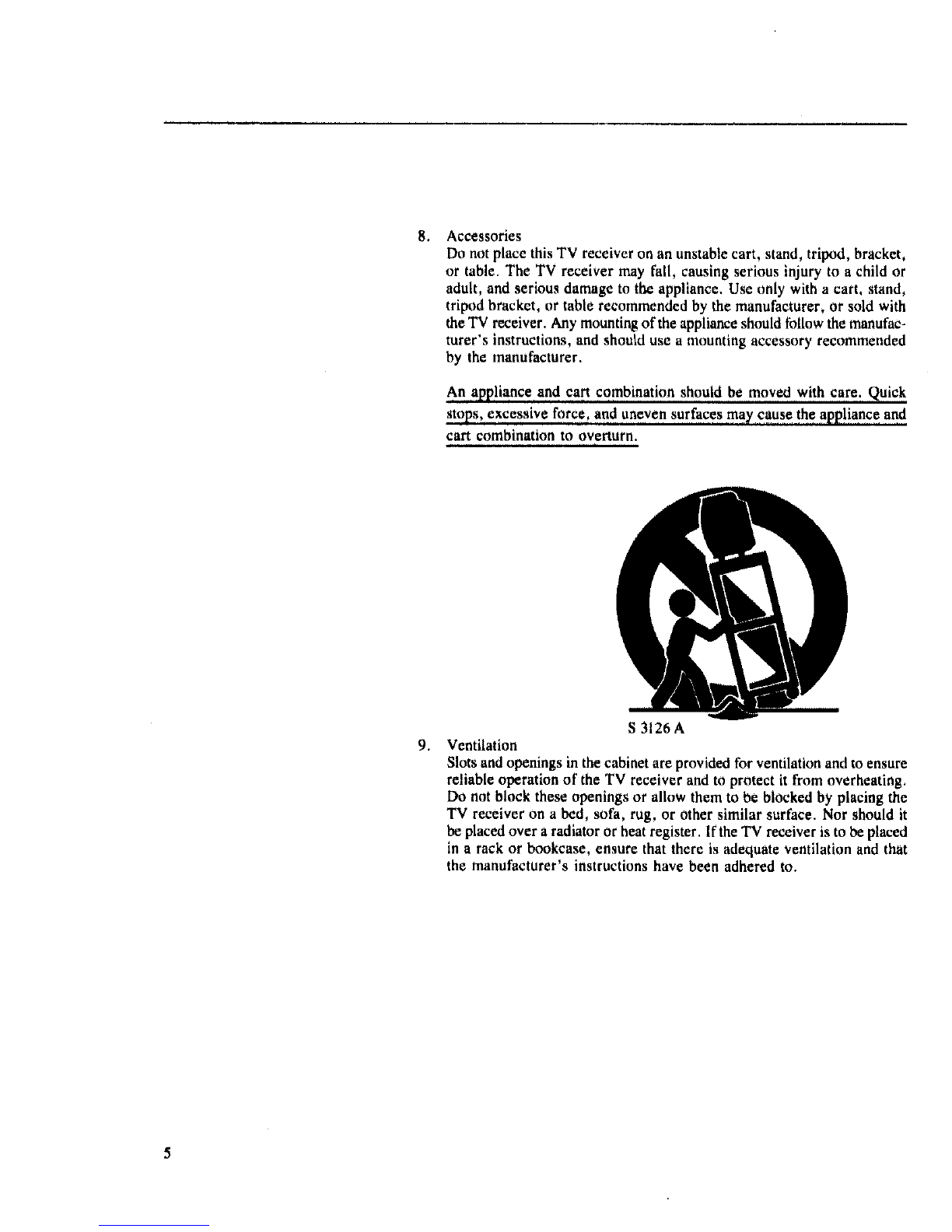

g. Accessories
Do not place this TV receiver on an unstable cart, stand, tripod, bracket,
or table. The TV receiver may fall, causing serious injury to a child or
adult, and serious damage to the appliance. Use only with a cart, stand,
tripod bracket, or table recommended by the manufacturer, or sold with
the TV receiver. Any mounting of the appliance should follow the manufac-
turer's instructions, and should use a mounting accessory recommended
by the manufacturer.
An appliance and cart combination shou!d be moved with care: ,Quick
stops, excessive force,, and uneyen surfaces ma_/rC,ause ,the app!!ance and
cart combination to overturn.
ii i ii I I II I I II II
9.
S 3126A
Ventilation
Slots and openings in the cabinet areprovided for ventilation and to ensure
reliable operation of the TV receiver and to protect it from overheating.
Do nut block these openings or allow them to be blocked by placing the
TV receiver on a bed, sofa, rug, or other similar surface. Nor should it
be placed over a radiator or heat register. If the TV receiver is to be placed
in a rack or bookcase, ensure that there is adequate ventilation and that
the manufacturer's instructions have been adhered to.
5

I0,
It.
12.
13.
14.
Power Sources
This TV receiver should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supply to your home. consult your appliance dealer or local power
company,
Grounding or Polarization
For your safety this TV receiver is equipped with apolarized alternating
current line plug having one blade wider than the other, This plug will
fit into the power outlet only one way. If you are unable to insert the plug
fully into the outlet, tryreversing the plug, If the plug should still fail
to fit, contact your electrician to replace your obsolete outlet. Do notdefeat
the safety purpose of the polarized plug.
Power-Cord Protection
Power-supply cords should be routed so that they are not likely to be walked
oR or pinched by items placed upon or against them, paying particular
attention to cords at plugs, convenience receptacles, and the point where
they exit from the appliance.
Lightning
For added protection for this TV receiver during alightning storm, or
when it is left unattended and unused for long periods of time, unplug
it from the wall outlet and disconnect the antenna or cable system. This
will prevent damage to the video product due to lightning and power-line
surges.
Power Lines
An outside antenna system should not be located in the vicinity of overhead
power lines or other electric light or power circuits, or where it can fall
into such power lines or circuits. When installing an outside antenna
system, extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal,

15.
16.
17,
Overloading
Do not overload wall outlet and extension cords as this can result in a
risk of fire or electric shock.
Object and Liquid Entry
Never push objects or pour any liquid into this TV receiver through open-
ings as they may touch dangerous voltage points or short-out parts that
could result in a fire or electric shock. Never spill liquid of any kind on
the TV receiver.
Outdoor Antenna Grounding
If an outside antenna or cable system is connected to the TV receiver be
sure the antenna or cable system is grounded so as to provide some pro-
tection against voltage surges and built-up static charges,
Section 810 of the National Electrical Code, ANSI/NFPA No,70-1984,
provides information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antennadischarge
unit, size of grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the grounding
electrode.

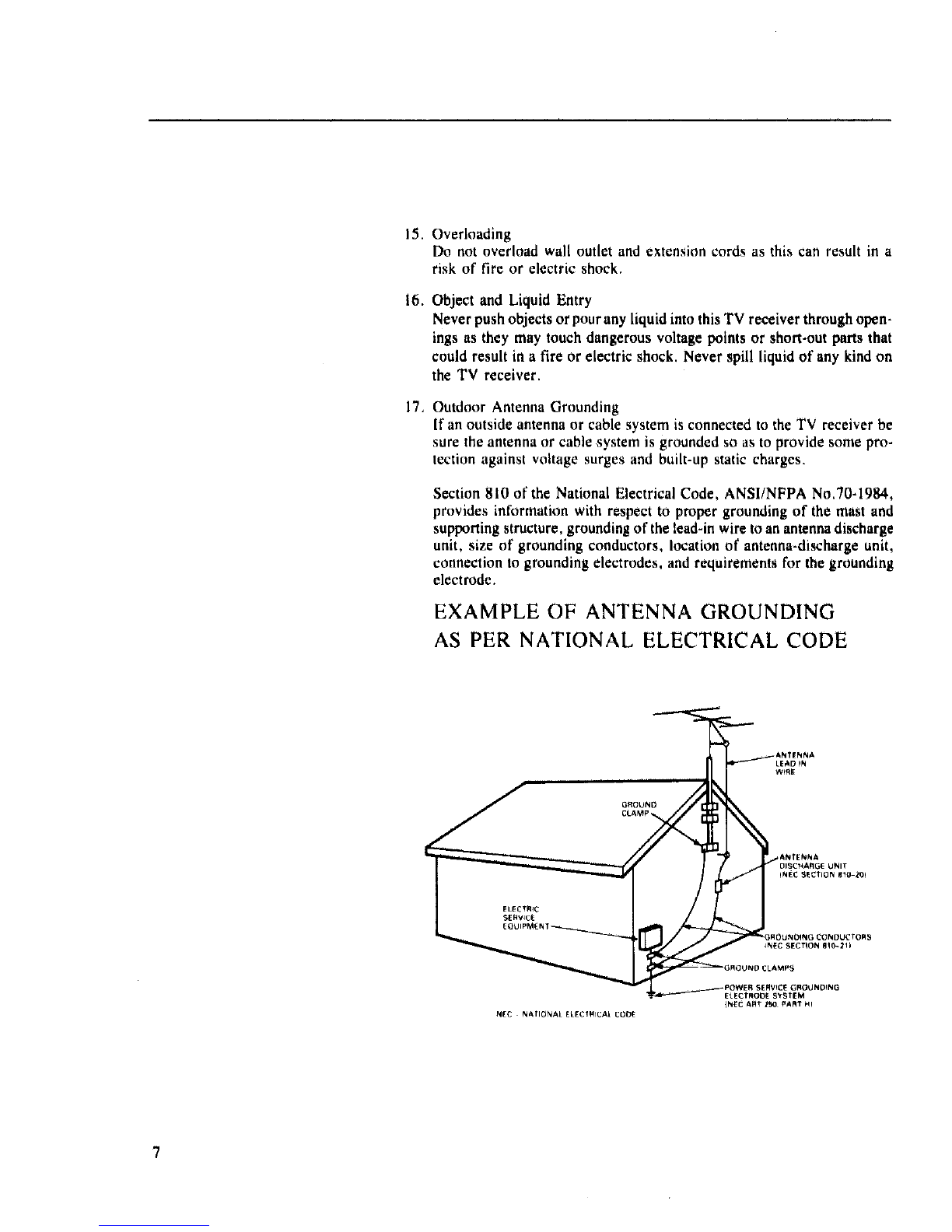

EXAMPLE OF ANTENNA GROUNDING
AS PER NATIONAL ELECTRICAL CODE
ANTENNA
LE_D PN
W_RE
ANTENNA
DISC?4ARGE UNIT
qNEC S_TION /_€0 ,_0p
GROUI_IDqNG CONDUCTORS
4N_C SECTION 8_1i
GROUND _LAMPS
C_ GROtI_IOINO
_4_'--_ U.ECtRODt SYSTEM
{_II_C ART I_ _ART _t!
N[C !_IAriONAL E£ECI81£A[ EOOE

18.
19.
20,
21,
Servicing
Do not attempt to service this TV receiver yourself as opening or removing
covers may expose you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel. "
Damage Requiring Service
Unplug this TV receiver from the wall outlet andrefer .servicing toqualified
service personnel under the following conditions:
(a) When tile power-supply cord or plug is damaged.
(b) If liquid has been spilled, or objects have fallen into the TV receiver.
(c) If the TV receiver has been exposed to rain or water.
(d) If the TV receiver does not operate normally by following the
operating instructions, Adjust only those controls that are covered
by the operating instructions as an improper adjustment of other con-
trois may result in damage and will often require extensive work by
a qualified technician to restore the TV receiver to its normal
,operation,
(e) If the TV receiver has been dropped or the cabinet has been damaged,
(fl When the TV receiver exhibits a distinct change in performance -
this indicates a need for service.
Replacement Parts
When replacement parts are required, be sure the service technician has
used replacement parts specified by the manufacturer or have the same
characteristics as the original part. Unauthorized substitutions may result
in fire, electric shock or other hazards.
Safety Check
Upon completion of any service or repairs to this TV receiver ask the
service technician to perform safety checks to determine that the TV
receiver is in a safe operating condition.
8

toMitsubishi
Congratulations on your purchase of the Mitsubishi CS-31301 and CS-35301,
Your TV is designed for superb viewing pleasure as well as continued relia-
bility.
To familiarize you with your new CS-31301 and CS-35301 and owner's
guide, we suggest that you read through the preface, which provides the
following important information,
•Summary of Special Features
•Unpacking Your TV
•What's in Each Chapter
•Some Conventions Used in This Guide
Mitsubishi has strived to create your CS-31301 and CS-35301 so that it
will bring you years of viewing enjoyment. Similarly. your owner's guide
is designed with a "user friendly" philosophy that will help you take advan-
tage of all of your equipment's features.
Once again, thank you for selecting our product and welcome to Mitsubishi!

•Summary0_f Special Features ...........
Your top rated Mitsubishi CS-31301 and CS-35301 deliv/:rs:
•181-Channel Capacity--programs up to i81 channels, ensuring your
continued viewing pleasure as cable services continue to expand,
• Two-Speaker Sound System--a special speaker system produces clear,
stereo sound, The CS-35301 has at_3ur-speaker system,
•Expanded Sound Capability--allows you to connect the TV to an
external audio system for enhanced listening pleasure,
In addition to the standard features found on most advancedTVs, Mitsubishi
is proud to offer the following distinctive features:
Remote Control with VCR/TV/AUX Function--uses a single remote
control transmitter for the television, select Mitsubishi VCRs. and also
some VCRs and cable boxes of other manufacturers. The function of
the remote control is changed by simply flipping a switch,
• Control Identification by On-Screen Displays--indicates the status of
various functions and appears whenever a function is adjusted.
• On-Screen Menu--contains options and instructions, making iteasy to
use many of the CS-31301 and CS-35301's special functions,
• Closed Caption Decoder--supplies you the text information along with
the regular broadcasts,
Television Data Services--(also known as "TVDS") allow broadcasters
to supply you with the time of day channel information, and program
information, You can display this information on screen,
Pldure-ln-Plcture Mode--allows you to view two different sources at
the same time,
Each of these features will be explained in more detail in Chapter3, "Operating
Your TV" and Chapter 4. "Using the Special Features'.'
10 Preface

• Unpacking Your TV.......................
What you will find
As you unpack your new CS-31301 and CS-35301, please check to be sure
that along with the TV, the following item_are included:
*an owner's guide and warranty card,
• a registration card,
• a remote control transmitter, and
• a set of two Duracell AAA size batteries for the remote control.
A few suggestions
Before you hook up your new CS-31301 and CS°35301, please take a few
minutes to:
O Complete the registration card. The registration card asks for the TV's
s_rial number, which you'll find on the back of the unit,
Keep the box and packing materials for future use.
File your sales receipt and warranty card.
_1 Place theTV ona stable surface with sufficient llghting to do the hook-up,
llnpacking Your TV 11

What's in Each Chapter
Here's what you will find in this owner's guide:
Chapter 1. "Getting to Know Your TV," introduces you to the location and
functions of the buttons and control's of your TV,
Chapter 2, "Connecting Your T V," explains how to connect a VCR, antenna,
and other equipment to your TV.
Chapter 3, "Operating Your TV," provides the step-by-step instructions you
need in order to use your TV,
Chapter 4, "Using the Special Features'.' explains how to use some of the
special features of the CS-31301 and CS-35301.
Chapter 5, "Troubleshooting',' summarizes the problems you may have along
with the suggestions for remedying these problems.
The appendix explains an automatic procedure for the parental lock.
12 Pret_ace

Some Conventions Used in this Guide
Mitsubishi has gone to great effort to provide users with an easy+td-follow,
useful owner's guide. Different types of information is treated in different ways.
Users should read information labelled important and information which is
boxed and labelled warning. The owner's guide uses these terms sparingly,
and all information highlighted in this manner should be read carefully,
main topic or task ]Ipreview of related topics or tasks]
HH m U m m n mnm
Procedures, the step+by-step
instructions on how to
accomplish a particular task,
are signalled by white
numbers set in ablack
background.
This cue indicates
information critical
to the operation of
your new TV.
This cue alerts you to
information describing
dangerous situations
which could ruin your
equipment or cause
electrical shock.
Some Conventions Used in this Guide 13

CHAPTER 1 ......
Getting to Know Your TV
Now that you've unpacked your TV, read through the safety in{brmation, and
glance at the overview explaining how this owner's guide is organized, it's
time to become familiar with the buttons and controls you'll be using when
you operate the TV. This chapter will introduce the range of options available
by using the buttons on the front panel of the TV or the remote control, It
also offers some general guidelines tot using the remote control.
Most functions can be controlled by using either the front panel or the remote
control, but certain specialized functions require the use of one or the other,
This chapter, which will familiarize you with the full range of button func-
tions, contains the following sections:
•Overview of the Front Panel
•Overview of the Remote Control

Overview of the Front Panel
i i i iiHH i i i
A,'V m
RESET TN_dUT _C_N& • VOL &
C) power button (POWER)
Use to turn the TV on or off,
(_) volume controls (VOL)
Press the Abutton to turn up the volume and the _button to turn down the
volume.
(_) channel controls (SCAN)
Use the Abutton to switch to achannel with ahigher number and the
Tbutton to switch to achannel with a lower number.
(_ input button (INPUT)
Use to select the input source to be viewed:
• TV or
• Ext.
16 Chapter 1: Gettingtn Kno,_,YourTV

®
®
A/V reset button (A/V reset)
Press the reset all audio and video functions except volume, reception
mode (Stereo/SAP/Mono), andTV Speaker (on!off) totheirnormal level
or setting.
degauss button
Use this button if acolor impurity is present.
Overview of the Control Panel 17

Overview of the Remote Control
Getting ready to use the remote control
This section explains general information about using the remote control.
installing the batteries
O Take the box containing two AAA size batteries from the packing bag.
Remove the back €over of the remote control by pushing in the direction
of the arrow.
Load the batteries as indicated in the illustration, making sure that they
are positioned correctly (+ to +, and - to -L
Replace the back cover of the remote control,
iii
i i lUllU i
*C:::_sl le
÷Jl'"
size AAA
For best results, use new Duracell AAA (MN2400) batteries.
18 Preface

some do's and don'ts
To ensure that your remote control will continue working properly, follow
these guidelines.
,Don't press two or more buttons at the same time.
•Don't allow the remote control to get wet or become heated,
•Avoid dropping the remote control on a hard surface.
• When cleaning the remote control, don't use any harsh chemicals,
Use only a soft, slightly moistened cloth.
general Instructions
When using the remote control to operate the TV or VCR, follow these
procedures:
O Be within 20 feet of the TV.
OPoint the top of the remote control toward the TV.
Press the appropriate button or sequence of buttons,
guidelines for using batteries
• Don't use a new battery with an old one.
• Don't heat, disassemble, or throw batteries into a fire.
The following section explains more about the range of options available by
using the remote control,
Overview of the Back Panel 19

Remote control buttons and functions
l iii I
@ I
@
Ill Ill l I
,Hu
VCR
POWER
,@® ®
,=@ENTER
AUDIO ADJUST VIDEO INPUT
IOF'F-T
/OTR DISP
,_, MITSUBISHI
I I
ri
®
®
®
®
@
,@
I I I I J
20 Chapter I: Getting to Know Your TV
