mixologiq MIXO TWO User manual

B+B MixologiK â
30 rue claude lorrain – 75016 Paris, France
[email protected]
MIXO TWO
User Guide
V1.4

1
Table of contents
INTRODUCTION .........................................................................................................................2
GENERAL INFORMATION ........................................................................................................3
CONTENT OF THE SHIPPING BOX.........................................................................................5
INSTALLATION...........................................................................................................................6
START MIXO TWO .....................................................................................................................7
SETTING MENU DESCRIPTION ...............................................................................................9
LANGUAGE SELECTION............................................................................................................9
INTERNET CONNECTION...................................................................................................... 10
POSITIONING BOTTLES IN MIXO TWO ............................................................................. 13
BOTTLES MAP .......................................................................................................................... 13
CLEANING PROCESS............................................................................................................... 15
CALIBRATION PROCESS........................................................................................................ 17
FRIDGE TEMPERATURE......................................................................................................... 19
PREPARING A COCKTAIL ..................................................................................................... 20
BACKOFFICE ACCESS: ADD AND EDIT RECIPES ............................................................ 25
TROUBLESHOOTING .............................................................................................................. 26

2
INTRODUCTION
Thank you for choosing Mixo Two cocktail machine, we want you to make the most
of your new machine.
Please read carefully this USER GUIDE before using Mixo Two, in doing so you will
avoid putting yourself at risk or damage the machine.
Important warnings have the following symbols, please observe these warnings
The manufacturer shall not be held liable for any damages resulting from failure to
read this user guide and observe the instructions of use.
Keep these instructions in a safe place.
Carefull – Danger
Ignoring this sign and
remarks may put you into
personal danger
Carefull – Warning
Ignoring this sign and
remarks may result in
damage to your product
Hint
Useful Hint to make the
best of your product

3
GENERAL INFORMATION
Safety precautions
Technical safety
- Prior to use check the plug and lead for any damage.
- Hold the plug when removing the plug from the socket.
- Check whether the power supply is suitable for this product.
- Ensure that the product is standing firmly and level.
- Always have repairs carried out by qualified service engineers.
- To avoid damage to the product, a damaged plug orlead may only be replaced by the manufacturer or
a qualified service engineer.
Refrigerant
This product contains a refrigerant, the quantity used in the product is stated on the type plate.
- R600a refrigerant gas (16 grams)
- Contact with liquid may cause frostbite or cold burns.
- Exposure to low concentrations may lead to dizziness, headache, nausea and loss of coordination.
- For liquid contact, flush with water for at least15 minutes. Obtain medical assistance.
- When exposed to fire the container can burst open or explode.
- Always ensure that there is sufficient ventilation in the room where the appliance is located.
- Never open the machine unit.
During operation
- Use this product only indoors.
- Never use the product as a step.
- Never store electrical appliances in the product.
- Ensure that ventilation grilles both in and outside the machine remain unobstructed.
- ln case of emergency the plug should be removed from the socket.
Power supply
- If this device cable is damaged it must be replaced with an original cable.
- ln case of emergency: remove the plug lead from the socket.
- The socket should be within easy reach of the machine
- Check for the correct power supply, referred to the information on the type plate.
- Ensure that the plug lead cannot be trapped or snagged.
- If necessary the plug lead can be extended by a qualified electrician.
- We do not recommend the use of an extension lead.
Fluctuations in the power supply can cause damage, which causes the machine to switch off. Supplier cannot
be held responsible for any consequential damage.

4
Climate classification
A refrigerator is produced for optimal performance within certain ambient
temperatures.
This product is suitable for the following classification: N: from +16 °C to +32°c.
Refrigeration
A hydrocarbon refrigerant (R600a) can cause frostbites and cold burns, exposure
to low concentrations may lead to dizziness, headache, nausea and loss of
coordination. When exposed to fire the container can burst open or explode.
Installation
Never install the refrigerator next to a heat source!
Operating principle
A refrigerator works by extracting heat from the space to be refrigerated and to release this in
the surrounding area. For maximum air circulation it is recommended to allow at least 10 cm
space around the machine. Be very careful never to obstruct the air inlets and outlets.
·
Type plate

5
CONTENT OF THE SHIPPING BOX
The shipping BOX of the Mixo Two contents:
Mixo Two cocktail machine
(x1)
Mobile Caps for bottles
(x10)
Inside cleaning container
(x1)
Top Middle cleaning container
(x1)
Top Left cleaning container
(x1)
Top Right cleaning container
(x1)
Calibration glass
(x1)
USB Wireless Donggle
(x1)
Power supply 220v/24V
(x1)
Power cables
(x2)

6
INSTALLATION
Location
Mixo Two must be installed on a flat horizontal smooth surface to work properly.
Legs are used for adjustment and levelling.
A minimum distance of 20 cm is required above the top of the machine to enable
the change of the bottles.
Mixo Two contains a refrigerated section with a compressor. For maximum air
circulation, allow at least 10 cm space around Mixo Two.
Be careful never to obstruct the air inlets and outlets.
Electric Installation
Before installing power cables be sure that the
power button (1) is set on OFF.
Mixo Two contains two electricals inlets for the
Fridge and the Electronic System.
- Fridge connection:
Plug a Power Cable on the outlet (2)
- Electronic System connection:
Plug the Power Supply with a Power Cable on the outlet (3)
Internet Installation
To operate properly Mixo Two must be connected on Internet for
- Add / Edit / Delete recipes
- View statistics of consumptions
- Make software update
- Remote control in the event of malfunctions
- Backoffice support
Connection:
- Connect the USB Wireless Donggle on the USB Outlet (4).
- If possible connect a cable directly using an RJ45 cable from the Internet Box
on the Inlet (5).

7
START MIXO TWO
Switch on Mixo Two
Once the Installation is complete, to start Mixo Two switch (D) to position 1.
The screen after few seconds will show the following message:
Click on and the Main screen will appear:

8
Main Screen Description
A. Preloaded Cocktails Families
B. List of cocktails in progress
C. Alerts (Empty Bottles, New software update… )
D. Preloaded Bottle Map
E. Settings Menu
F. Internet connection status
G. Horizontal scrollable list of preloaded cocktails for the family selected

9
SETTING MENU DESCRIPTION
Open the setting menu click on (E), that takes you to the screen below:
H. Launch cleaning Menu
I. Calibrate bottles
J. Connect to Internet
K. Change language
L. Use for maintenance
M. Restart machine
N. Back to main screen
Language Selection
In the setting menu click on “Lang” (K).
Then click on the selected language and
wait for few seconds for screen to
restart.

10
INTERNET CONNECTION
To work properly Mixo Two must be connected to Internet to: Add / Edit / Delete recipes
- View statistics of consumptions
- Make software update
- Remote control in the event of malfunctions
Mixo Two can work properly even if Internet connection is out of service
but will not be able to be updated & send statistics until Internet
connection is restored.
Status of Internet Connection:
The Internet connection status is shown on the right screen corner (J) :
Active Connection
Not active connection
RJ45 Connection
When Mixo Two is plugged with a RJ45 wire on a standard configuration the
connection must be automatic
If after 1 minute, the connected status is not active :
- Check if the wire is connected on the good RJ45 (left one)
- Check internet connection by connecting the wire to computer
- Connection may be not DHCP configured (usually in large companies). In this
case refer to the Advanced configuration.
Wireless Connection:
- Check the USB Wireless Dongle is plugged (delivered with Mixo Two)
- In setting menu click on “Network Config” (I)
- Click on the icon

11
- Select the correct Wireless network in the list:
- Type the Wifi password then click
(Note: Keyboard can be scrolled from top to bottom to get lowercase letters and
special characters).
- If password is correct the internet connection status will become active:
- If internet connection is after 2 minutes, check your password.

12
Advanced internet configuration
For specific configuration when DHCP is not active (usually in large companies) click
on :
- Choose “Wired” or “Wireless”
- Unselect DHCP
- Set your own IP Address, Network
Mask, Gateway, DNS
- Click

13
POSITIONING BOTTLES IN MIXO TWO
MOST IMPORTANT: Making good cocktails depends on the quality of the
ingredients and the good Mixo Two operation depends on adapted ingredients
viscosity to its pumping system for syrups, juices or thick alcohols.
An ingredient with a thick viscosity will lead to pumps and pipes obstruction.
Consult your Distributor for assistance in selection the appropriate ingredients for
Mixo Two best operation.
Bottles Map
Mixo Two has 20 available bottles slots for Alcohol, Liquors, Syrups and Juices (10
chilled and 10 at room temperature).
Each slot is represented by a number from 1 to 20, it can be viewed by clicking on
on the main screen menu:
The following screen will appear showing:
- The Bottles Map is a top view of the TOP and the INSIDE sections of Mixo
Two, showing ingredients on each slot
Affectation of each slot can be changed directly from the Backoffice (refer to
this section for more information).

14
Bottles installation on TOP section (10 bottles)
Insert the mobile cap (2) on the bottle, as shown below:.
To insert the mobile cup in a bottle, follow steps in the proper order:
- Open the bottle, if necessary remove its flow limiter.
- Insert the mobile cap fully on the top of the bottle (bottle upright)
- Press on the valve (for degassing)
Then, when this is done :
- Insert the assembly into the designated slot as shown
To remove a bottle, pull the bottle gently upwards.
Bottles installation on INSIDE section (10 bottles)
The 10 bottles for the INSIDE section are placed by putting tubes
inside each allocated bottle, then tap bottles using black caps as
shown.

15
CLEANING PROCESS
Regular cleaning is essential to make Mixo Two operates at its best
The cleaning process consists in two separate operations. In the setting menu click
on “Clean Mixo” (H) to get the following screen:
Cleaning the INSIDE section: Daily operation
Cleaning of the INSIDE section MUST be done daily after service as tubes
containing juices or syrups may deteriorate or block tubes after few hours.
Cleaning process is as follows:
- On the row “Inside” click on
- Follow the steps on the screen:
o Remove all bottles.
o Fill the Inside Container with 3 liters of hot water (approx. 60° to 70°C)
o Put all tubes inside container.
o Put Middle Container under distribution head.
o Follow cleaning steps from screen
- Click on
- Mixo Two pumps the hot water
from the Cleaning container into
Middle container.
- Once the container and tubes are
empty the cleaning process is
completed, remove the containers
and re-install bottles in their
original positions.

16
Cleaning the TOP section: Weekly or Daily operation
Cleaning the TOP can be done once a week ONLY if alcohol bottles are used
from the TOP section.
If Syrups, juices or any other liquids containing sugar are used, the TOP section
MUST be cleaned daily.
Cleaning process is as follows:
- On the row “TOP” click on
- Follow the steps on the screen:
o Remove all bottles
o Put Left Top & Right Top containers on their caps.
o Fill each container with 1.5 liter of hot water (approx 60°C to 70°C).
o Put the Middle container under distribution head.
o Follow cleaning steps from screen
- Click on
- Mixo Two is pumping the hot water from
the Cleaning containers and put it in the
Middle container.
- Once the containers and the tubes are
empty the cleaning process is completed.
- Remove the containers and re-install the
bottles in their original slots.
If cleaning process is not done correctly sugar will crystalize inside tubes and
plug them. Distributor’s maintenance will then be necessary.
-

17
CALIBRATION PROCESS
The calibration is the most important step to get accurate cocktails.
This process checks viscosity of each ingredient to set pumping time for
One milliliter (1 ML) from each bottle.
MOST IMPORTANT: Making good cocktails depends on a good calibration of the
Mixo Two as well as good quality ingredients and the good operation of Mixo Two
depends on ingredient viscosity adapted to its pumping system for syrups, juices
and thick alcohols.
A very thick ingredient will lead to pump and pipes obstructions. Consult your
Distributor for assistance in selecting the right ingredients for Mixo Two best
operation.
To get accurate cocktails, the calibration process must be done each time you
change the brand of product or of an ingredient.
(As an example, grenadine syrup viscosity differs from each brand)
Calibrate the bottles

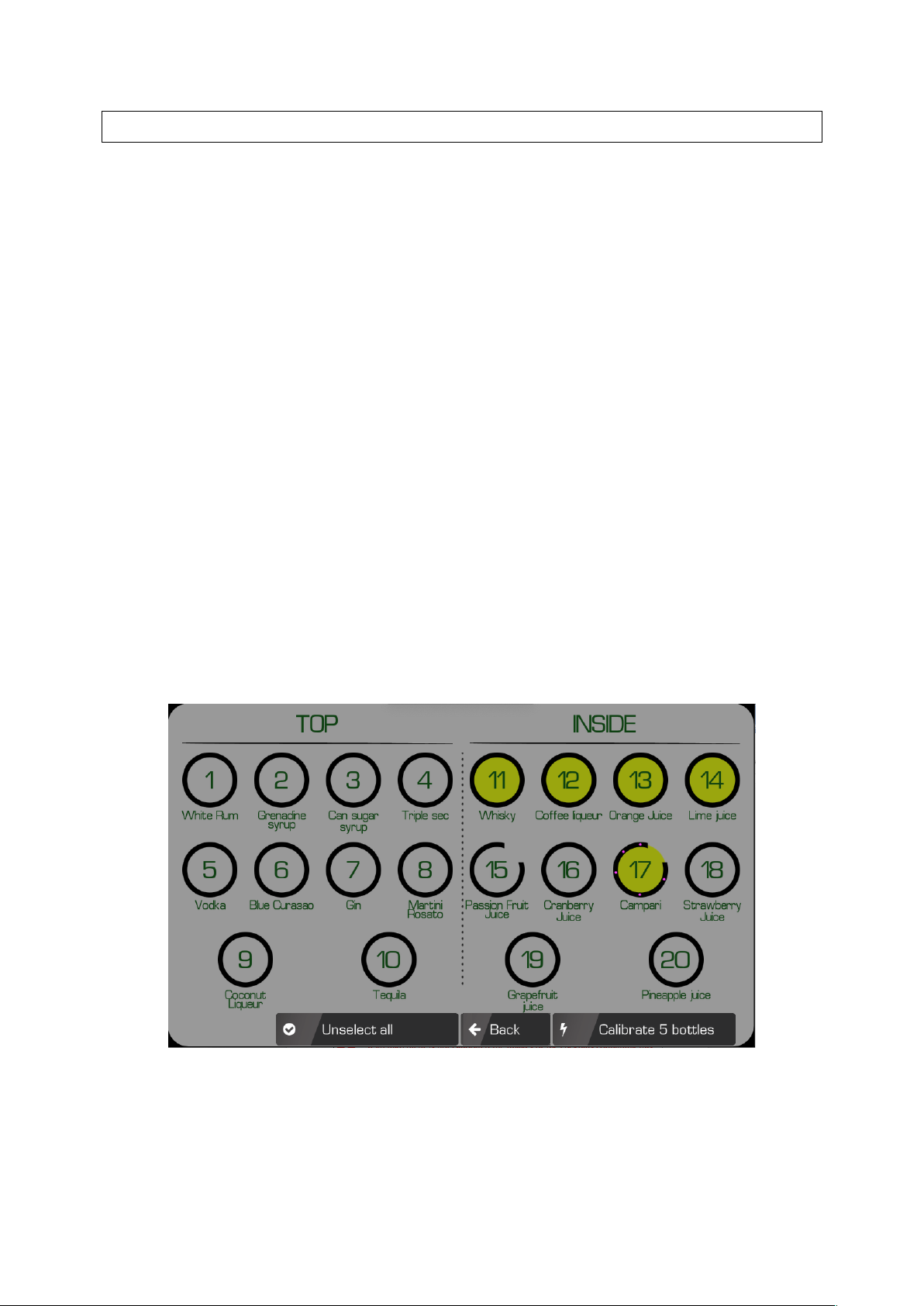

- In the setting menu click on “Calibrate” (I).
- Select the bottles you want to calibrate (by default the not calibrated bottles
are selected)
- Click “Calibrate Xbottles”
- In case Mixo Two is not clean, it will start by asking you to clean the machine:
Follow the steps on the screen or refer to the Cleaning Section.

18
- Once the Mixo Two is clean, follow the steps from screen:
o Put the selected bottles, with at less 20 cl of liquids inside, in the right
o slot and click on
o Put the Calibration Glass
under the distribution
head and click on
The Calibration Glass is supplied with Mixo Two:
Calibration glass supplied MUST be used and cannot be changed as
it needs to have this specific diameter.
- Mixo Two self operates pumping 2cl from each bottle to make its auto-
calibration:
o When calibration glass is full, screen will ask to empty it.
o If an error occurs during calibration process on one or more bottles
Mixo Two will inform at the end of process ( or during process) to
correct it.
Once the calibration process has started: DON’T TOUCH MIXO TWO.

19
If an ingredient is not calibrated the images of the cocktails containing this
ingredient are “grayed” out until the calibration is done.
Cleaning the calibration sensor
Calibration process Mixo Two uses a sensor which is
integrated in the distribution head.
Mixo Two may ask to clean it if dirty by showing you this
image.
In this case clean sensor using a dry tissue to remove traces of
liquid.
Fridge temperature
The Fridge is designed to work with an ambient temperature up to 32°C.
Fridge temperature may be adjusted with the thermostat inside the fridge.
