Mjx r/c X200 User manual

ITEM NO.X200/X6200

Thank you for purchasing this product. Please read this manual carefully

before use and retain it for future reference.

Technical parameter of the Quad-copter

Introduction

Quad-rotor design insure more stable and powerful performance and

make all kinds of 3D action more easier.

New designed structure makes assembly and maintainance easier.

Adopting 2.4G auto connection technology, scores of quad-copters can

be played at the same time.

Equipped with the newest 3-Axis Gyro control system, this quad-copter

has the characteristics of stable flight and easy operation.

Full charged battery can support 13 minutes steady flight.

Safety Guidelines

This product is not a toy. It is not applicable for children who are under

14 years old.

Please read this instruction manual carefully before playing and operate

the product according to the manual.

The users are in full charge of proper operating the quad-copter. The

manufacturer and dealers disclaim all responsibility for the damage

caused by misuse.

Keep the small accessories away from the kids to avoid accident.

Keep batteries away from fire or high temperature environment.

When flying the quad-copter, keep it 1~2 meters away from user or others

to avoid injury due to collision.

Not to decompose or modify the product which may cause malfunction

or accident.

Fly the quad-copter within your eye vision for easy and safety control.

Need adult supervision when this quad-copter is being played by children.

Only batteries of the same or equivalent type as recommended are to be

used.

Insert batteries with correct polarity.

Non rechargeable batteries are not to be charged; the transmitter need

3XAA batteries for work.

Do not mix old and new batteries.

Gross Weight: about 90g

Motor: Coreless Motor

Battery : Li-polymer 3.7V 600mAh

Fuselage Length:300MM

Overall height: 55MM

Charging Time: about 1.5hours

Main Rotor Diameter: 135MM

The LCD Remote controller

Remote Controller

(Transmitter)

Control the function of upward,downward,forward,backward, leftward,

rightward,turn left, turn right 3D flips & roll of the copter.

Throttle control stick can be freely switched according to player's habit.

Product/spare parts included in this packaging

Description

Left stick

Right stick

3Trimmer A

In stick Mod 2 and 4, this button is null.

In stick Mod 1and 3, it helps to tune the quad-copter's

forward and backward flight.

Quad-copter 1

Remote controller

Rotor blade

Manual

Charger

3.7V 600mAh li-polymer battery

Qty(pc) Description Qty(pc)

1. Left stick

12. Throttle changing

button (Left)

13. Throttle changing

button (Right)

7. Power switch

8. Antenna

9. Power indicator

10. Function/Camera

2. Right stick

3. Trimmer A

4. Trimmer B

5. Trimmer C

11.Throttle limit knob

14.flight mode

changing button

15.aileron/rudder

changing button

6. Trimmer D

No. Function switch Function description

Main features of the remote controller

Sketch and function switches of the remote controller

POWER

STICK MOD2:upward/downward,turn left/turn right;

STICK MOD4:upward/downward,leftward/rightward.

STICK MOD1:forward/backward,turn left/turn right;

STICK MOD3:forward/backward,leftward/rightward.

STICK MOD1: upward/downward,leftward/rightward;

STICK MOD3: upward/downward, turn left/turn right;

STICK MOD2: forward/backward,leftward/rightward;

STICK MOD4: forward/backward,turn left/turn right.

Adopt microcomputer control remote controller system and 2.4G auto

connection technology, scores of cotpers can be played at the same

time without any interference.

In stick Mod 3 and 4, it helps to tune the quad-copter's

sideward flight.

In stick Mod 1 and 2,it helps to tune the quad-copter's left

and right direction turning speed.

In stick Mod 3 and 4, it helps to tune the quad-copter's

left and right direction turning speed.

In stick Mod 1 and 2,it helps to tune the quad-copter's

sideward flight.

In stick Mod 1 and 3, this button is null.

In stick Mod 2 and 4, it helps to tune the quad-copter's

forward and backward flight.

It controls the power source of the transmitter.Slide

the power switch to the “ON” position, the transmitter

is powered on; slide the power switch to the “OFF”

position, the transmitter is powered off.

No. Function switch Function description

Trimmer B

5 Trimmer C

6 Trimmer D

Power switch

Antenna

9Power

indicator

Transmits wireless signal.

The indicator light keeps blinking slowly: the transmitter

is not activated.

The indicator light keeps flashing rapidly: the transmitter

is sending out connectional signal to the quad-copter.

The indicator light keeps on without blinking: the transmitter

is ready for controlling the flight.

Throttle limit

knob

The throttle of the quad-copter can be adjuted by this button,

player can use this button to increase or decrease the

quad-copter’s upward/downward speed.

12/13

Throttle

changing button

Slide down or slide up the 2 buttons at the same time

to select the throttle control stick

There are 3 flight modes of the quad-copter: low speed,

medium speed and maximum speed.

aileron/rudder

changing button

Also named Stick Mode changing button.Press this button

to change the control stick mode.

Press the function button to achieve 3D roll action when the

quad-copter is flying under Roll mode.

When the quad-copter build a camera, this button is used for

shooting or taking photo.

flight mode

changing button

Remote controller’s setting

Select the throttle control stick

There is 1 throttle button on either side of the remote controller.

Slide both of the 2 buttons to "R", the right stick is the throttle control stick.

Slide both of the 2 buttons to "L", the left stick is the throttle control stick.

Tip: both of the 2 buttons should be either on the position of "R" or "L",

otherwise, the remote controller can not be activated.

3D roll button/

Camera button

STICK MOD:1 STICK MOD:2

POWER

键键

POWER

键键

POWER

键键

POWER

键键

Pic.3 Pic.4

Forward /

Backward

control

Forward /

Backward

control

Forward /

Backward

control

Forward /

Backward

control

Throttle

control

Throttle

control

Throttle

control

Throttle

control

Left/Right

turning

control

Left/Right

turning

control

Left/Right

turning

control

Left/Right

turning

control

Leftward/

Rightward

control

Leftward/

Rightward

control

Leftward/

Rightward

control

Leftward/

Rightward

control

STICK MOD:3 STICK MOD:4

Pic.5 Pic.6

When the left stick controls the throttle, press the AILE/RUDD button to

select the Mode( Mode 4 or Mode 2).

There are 3 flight modes available: low speed, medium speed and maximum

speed.Player can select the flight speed by pressing the flight mode button.

When the right stick controls the throttle, press the AILE/RUDD button to

select the Mode( Mode 1 or Mode 3).

Stick Mode Selection

Flight mode selection

PUSH

EXIT/

LIGHT

MENU/

PUSH

EXIT/

LIGHT

MENU/

Pic.1 Pic.2

Activate the LCD remote controller

Slide the power switch to "ON" position after throttle control stick

selection is done.To activate the remote controller, slowly push up the

throttle control stick to the top and then push it down to the bottom. The

remote controller is activated once a beep sound is heard. Then, the

indicator light keeps flashing while the remote controller is sending out

connectional signal. It takes about 10 seconds to finish the signal

transmission process. After signal transmission is completed, the indicator

light keeps constant "on”. User can turn either the left stick or the right stick

to skip the signal transmission process and enter into the start-up interface

directly.

There are 4 stick modes available for selection: Stick Mod 1 (Pic.3)

Stick Mod 2 (Pic.4) Stick Mod 3 (Pic.5) Stick Mod 4 (Pic.6)

This is the low speed icon. This is the medium speed icon. This is the maximum speed icon .

Pic.7 Pic.8 Pic.9

How to charge the Quad-copter

PUSH

EXIT/

LIGHT

MENU/

PUSH

EXIT/

LIGHT

MENU/

PUSH

EXIT/

LIGHT

MENU/

STICK MOD

The Quad-copter

Connect the charger to the Power socket,the green indicator light will

turn on.

Insert the charging plug into the jack of the battery wire to start

charging.(Pic.10)

Once charging is proceeding, the Green light on charger is ON. When

charging is finished, the light will turn Red.

Full charge takes about 1.5 hours.

Preparation for flight

Motor

Rotor blade

battery compartment Landing gear

Light

Pic.10

NOTE:Battery should be full charged before storing.

Put the battery into the battery compartment of the quad-copter;install 3 X AA

batteires into the battery compartment of the remote controller.

Connect the battery wire plug with power plug of the quad-copter.The LED light

on the tail of quad-copter will keep constand "on" and the LED light on the head

of the quad-copter will keep flashing Then, set the quad-copter to the platform.

Slide the power switch of the remote controller to " ON" postion.To

activate the remote controller,slowly push up the throttle stick to the top

PUSH

EXIT/

LIGHT

MENU/

STICK MOD

Pic.12

Pic.11

and then push it down to the bottom. The remote controller is activated

once you hear a beep sound.Then, the indicator light flashes slowly while

the remote controller is sending out connectional signal.

Counterclockwise

Head of the

quad-copter

Tail of the

quad-copter

Left

Clockwise

Right

(A1 Rotor blade)

(A3 Rotor blade)(B2 Rotor blade)

(B4 Rotor blade)

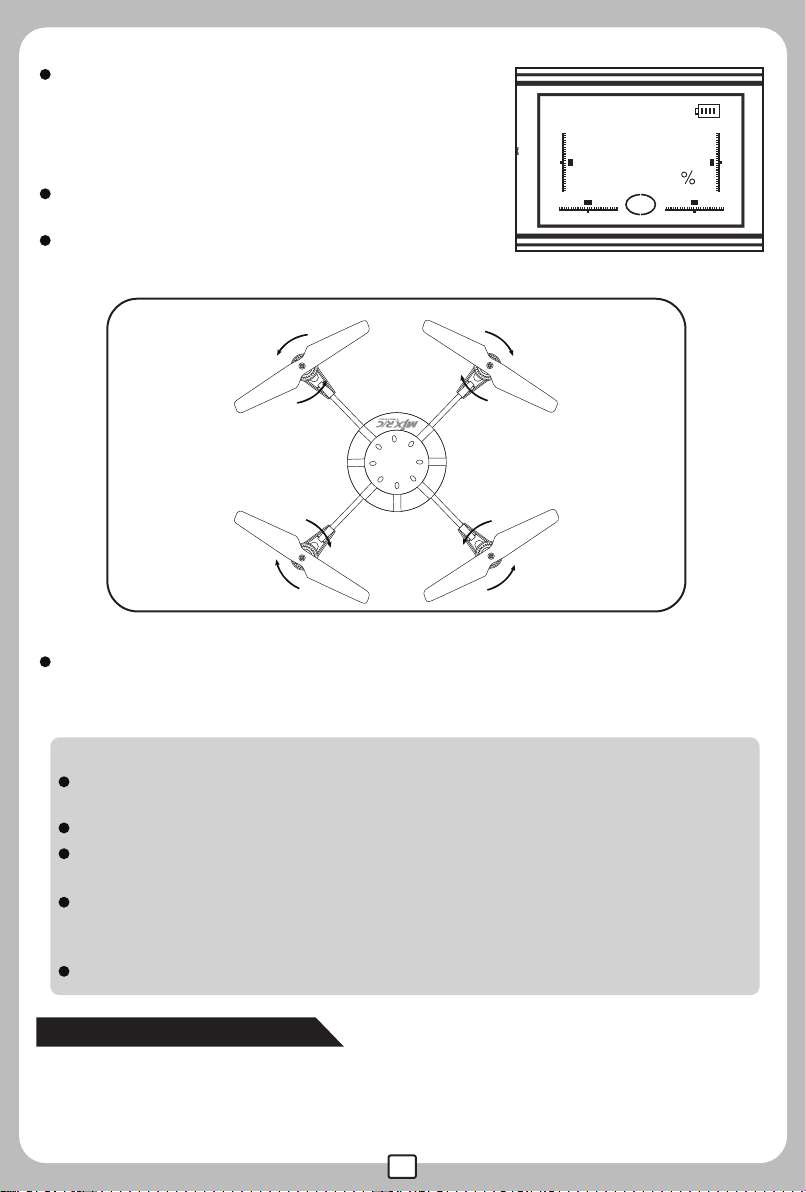

Remark: The left-front and the right-back rotor blades rotate in Counter-

clockwise direction, the right-front and left-back rotor blades rotate in

clockwise direction when the copter is flying.

The indicator light on quad-copter will flashing rapidly when it received

the signal. It will takes about 5 seconds to check out the gyro before the

whole auto signal connection process is finished.

To ensure steady flight, please set the value

of the Trimmer to the midpoint.(Pic.11)

Push up the throttle stick slowly and the

quad-copter takes off.

Operational Tips

User may push either of the control sticks to skip the auto signal

connection process once the quad-copter finished signal connection.

Set the connection one by one. Otherwise, it may not be connected.

Once the transmitter is turned off, the connection procedure must be

repeated to operate the quad-copter.

If the quad-copter keeps moving sidward even no control signal is

given, players may adjust trimmer button to keep the quad-copter

balanced.

Please pull out the battery plug from the quad-copter battery socket.

1.If the quad-copter keeps moving forward/backward even there is no

control signal given, users may adjust the trimmer button to keep the

quad-copter balanced.

Trimmer Functions

ITEM NO.X200/X6200

Thank you for purchasing this product. Please read this manual carefully

before use and retain it for future reference.

Technical parameter of the Quad-copter

Introduction

Quad-rotor design insure more stable and powerful performance and

make all kinds of 3D action more easier.

New designed structure makes assembly and maintainance easier.

Adopting 2.4G auto connection technology, scores of quad-copters can

be played at the same time.

Equipped with the newest 3-Axis Gyro control system, this quad-copter

has the characteristics of stable flight and easy operation.

Full charged battery can support 13 minutes steady flight.

Safety Guidelines

This product is not a toy. It is not applicable for children who are under

14 years old.

Please read this instruction manual carefully before playing and operate

the product according to the manual.

The users are in full charge of proper operating the quad-copter. The

manufacturer and dealers disclaim all responsibility for the damage

caused by misuse.

Keep the small accessories away from the kids to avoid accident.

Keep batteries away from fire or high temperature environment.

When flying the quad-copter, keep it 1~2 meters away from user or others

to avoid injury due to collision.

Not to decompose or modify the product which may cause malfunction

or accident.

Fly the quad-copter within your eye vision for easy and safety control.

Need adult supervision when this quad-copter is being played by children.

Only batteries of the same or equivalent type as recommended are to be

used.

Insert batteries with correct polarity.

Non rechargeable batteries are not to be charged; the transmitter need

3XAA batteries for work.

Do not mix old and new batteries.

Gross Weight: about 90g

Motor: Coreless Motor

Battery : Li-polymer 3.7V 600mAh

Fuselage Length:300MM

Overall height: 55MM

Charging Time: about 1.5hours

Main Rotor Diameter: 135MM

The LCD Remote controller

Remote Controller

(Transmitter)

Control the function of upward,downward,forward,backward, leftward,

rightward,turn left, turn right 3D flips & roll of the copter.

Throttle control stick can be freely switched according to player's habit.

Product/spare parts included in this packaging

Description

Left stick

Right stick

3Trimmer A

In stick Mod 2 and 4, this button is null.

In stick Mod 1and 3, it helps to tune the quad-copter's

forward and backward flight.

Quad-copter 1

Remote controller

Rotor blade

Manual

3.7V 600mAh li-polymer battery

Qty(pc) Description Qty(pc)

1. Left stick

12. Throttle changing

button (Left)

13. Throttle changing

button (Right)

7. Power switch

8. Antenna

9. Power indicator

10. Function/Camera

2. Right stick

3. Trimmer A

4. Trimmer B

5. Trimmer C

11.Throttle limit knob

14.flight mode

changing button

15.aileron/rudder

changing button

6. Trimmer D

No. Function switch Function description

Main features of the remote controller

Sketch and function switches of the remote controller

Tail Rotor 1

POWER

STICK MOD2:upward/downward,turn left/turn right;

STICK MOD4:upward/downward,leftward/rightward.

STICK MOD1:forward/backward,turn left/turn right;

STICK MOD3:forward/backward,leftward/rightward.

STICK MOD1: upward/downward,leftward/rightward;

STICK MOD3: upward/downward, turn left/turn right;

STICK MOD2: forward/backward,leftward/rightward;

STICK MOD4: forward/backward,turn left/turn right.

Adopt microcomputer control remote controller system and 2.4G auto

connection technology, scores of cotpers can be played at the same

time without any interference.

In stick Mod 3 and 4, it helps to tune the quad-copter's

sideward flight.

In stick Mod 1 and 2,it helps to tune the quad-copter's left

and right direction turning speed.

In stick Mod 3 and 4, it helps to tune the quad-copter's

left and right direction turning speed.

In stick Mod 1 and 2,it helps to tune the quad-copter's

sideward flight.

In stick Mod 1 and 3, this button is null.

In stick Mod 2 and 4, it helps to tune the quad-copter's

forward and backward flight.

It controls the power source of the transmitter.Slide

the power switch to the “ON” position, the transmitter

is powered on; slide the power switch to the “OFF”

position, the transmitter is powered off.

No. Function switch Function description

Trimmer B

5 Trimmer C

6 Trimmer D

Power switch

Antenna

9Power

indicator

Transmits wireless signal.

The indicator light keeps blinking slowly: the transmitter

is not activated.

The indicator light keeps flashing rapidly: the transmitter

is sending out connectional signal to the quad-copter.

The indicator light keeps on without blinking: the transmitter

is ready for controlling the flight.

Throttle limit

knob

The throttle of the quad-copter can be adjuted by this button,

player can use this button to increase or decrease the

quad-copter’s upward/downward speed.

12/13

Throttle

changing button

Slide down or slide up the 2 buttons at the same time

to select the throttle control stick

There are 3 flight modes of the quad-copter: low speed,

medium speed and maximum speed.

aileron/rudder

changing button

Also named Stick Mode changing button.Press this button

to change the control stick mode.

Press the function button to achieve 3D roll action when the

quad-copter is flying under Roll mode.

When the quad-copter build a camera, this button is used for

shooting or taking photo.

flight mode

changing button

Remote controller’s setting

Select the throttle control stick

There is 1 throttle button on either side of the remote controller.

Slide both of the 2 buttons to "R", the right stick is the throttle control stick.

Slide both of the 2 buttons to "L", the left stick is the throttle control stick.

Tip: both of the 2 buttons should be either on the position of "R" or "L",

otherwise, the remote controller can not be activated.

3D roll button/

Camera button
