Mo-vis Multi Swing 2G Arm User manual

moving forward together
Multi Swing 2G Arm
P031-61 Multi Swing 2G Arm - P031-62 Multi Swing 2G Arm Bundle Q2M
- P031-63 Multi Swing 2G Arm Bundle Rail
Installation Manual
Edition 2, March 2023

Contents
Contents About this manual ................................................................................................... 3
Installation manual .......................................................................................... 3
mo-vis bv ......................................................................................................... 3
Important information ............................................................................................. 4
Warranty ................................................................................................................. 5
Repair and replacement .................................................................................. 5
Amendments ................................................................................................... 5
Disclaimer and limitations of remedies ........................................................... 5
Voiding of warranties ...................................................................................... 5
Technical support ..................................................................................................... 6
Warning labels ......................................................................................................... 7
Limited liability ........................................................................................................ 9
Parts and accessories ............................................................................................. 10
P031-61 Multi Swing 2G Arm ........................................................................ 10
P031-62 Multi Swing 2G Arm Bundle Q2M ................................................... 14
P031-63 Multi Swing 2G Arm Bundle Rail ..................................................... 15
Accessories .................................................................................................... 17
Spare parts .................................................................................................... 20
Combination with P001-50 ............................................................................ 20
Preparation ............................................................................................................ 22
Qualified service engineer ............................................................................. 22
Tools .............................................................................................................. 22
Installation plan ..................................................................................................... 23
Before you begin ........................................................................................... 23
Step 1: motor unit ......................................................................................... 23
Step 2: Multi Swing Adapter Set .................................................................... 26
Step 3: Arm Assembly .................................................................................... 26
Step 4: Preliminary fitting .............................................................................. 28
Installation ............................................................................................................. 29
Multi Swing Arm Bundle Q2M ....................................................................... 29
Multi Swing Arm Bundle Rail ......................................................................... 34
Installing a device on the Multi Swing 2G ...................................................... 37
Finetuning ...................................................................................................... 37
1

Configuration ......................................................................................................... 38
Software download ....................................................................................... 38
Defining parameter settings .......................................................................... 38
Parameter settings ........................................................................................ 39
Twister Pro ..................................................................................................... 52
Testing ................................................................................................................... 53
First time use ......................................................................................................... 54
Error codes ............................................................................................................. 55
Warnings ........................................................................................................ 55
Errors ............................................................................................................. 56
Maintenance .......................................................................................................... 58
Monthly inspection ....................................................................................... 58
Yearly inspection ........................................................................................... 58
Technical data ........................................................................................................ 59
Product description & code ........................................................................... 59
Power supply ................................................................................................. 59
Interface connectors ...................................................................................... 59
Other conditions ............................................................................................ 59
Size & weight ................................................................................................. 59
2

About this manual
Installation manual
This manual contains useful and important information about your device. Please read it
carefully before use and store safely for future reference.
Our team will be happy to answer your questions.
mo-vis bv
Biebuyckstraat 15D . 9850 Deinze . Belgium
http://www.mo-vis.com . cont[email protected] . [phone]
3
Multi Swing 2G Arm Installation Manual 3

Important information
CAUTION: Incorrect use or installation may lead to risk of injury to the user and
damage to the wheelchair or other property. In order to reduce these risks,
you should carefully read this manual, paying particular attention to the safety
instructions and warning texts.
NOTICE: Only install this product on a wheelchair where the wheelchair
manufacturer allows the installation of third party parts.
4
4 Multi Swing 2G Arm Installation Manual

Warranty
mo-vis bv warrants the product to be free from defects in material and workmanship for a
period of 2 years under proper use, care and service. The dealer should never keep mo-vis
products in stock for a period more than 6 months prior to delivery to the end-user. mo-vis'
warranty will never exceed a period of 2 years and 6 months after shipment.
All warranties do not extend beyond the initial purchaser from an authorized mo-vis dealer
or mo-vis itself.
Repair and replacement
For warranty service, contact your dealer (or us if bought directly). In the event of a defect
in material or workmanship, the dealer or customer must obtain a Return Merchandise
Authorization (RMA) number from us. The product must be shipped to a service centre
designated by mo-vis. mo-vis will repair or, at mo-vis’ option, replace any product covered
by the warranty.
Amendments
No person is authorized to alter, extend or waive the warranties of mo-vis.
Disclaimer and limitations of remedies
The express warranties set forth in this agreement are in lieu of all other warranties of
merchantability or fitness of purpose. In no event shall mo-vis be liable for any direct,
indirect, incidental or consequential damages resulting from any defect in this product.
Warranty of parts subject to “normal wear and tear” (e.g. joystick handles, pads, …) are not
covered in the warranty except as it applies to defects in material or construction.
Voiding of warranties
The foregoing warranties are contingent upon the proper installation, use, maintenance
and care of the product. The warranty will be void if the product has been installed or used
improperly, or if it has been repaired or any part replaced by persons other than mo-vis or
an authorized dealer. This product is considered as a non-serviceable part.
The addition of equipment or features that are not manufactured or recommended by
mo-vis could affect the intended function of the mo-vis product and may invalidate the
warranty.
5
Multi Swing 2G Arm Installation Manual 5

Technical support
TROUBLE:
In case of technical problems:
1 Contact mo-vis at [email protected]om or [phone].
2 Always state the device serial number when contacting us. This ensures you are
provided with the correct information.
6
6 Multi Swing 2G Arm Installation Manual

Warning labels
Please read this manual, the safety instructions and warning texts carefully, in order
to reduce the risks associated to the device. Our products are safe under normal and
reasonably foreseeable operating conditions.
NOTE: This symbol indicates general notes and information.
CAUTION: This symbol indicates caution for a hazardous situation that, if not
avoided, could result in minor or moderate injury.
WARNING: This symbol indicates a warning for a hazardous situation that, if not
avoided, could result in death or serious injury.
Other labels:
Catalogue number: indicates the
manufacturer's catalogue number so that
the medical device can be identified.
Batch code: indicates the manufacturer's
batch code so that the batch or lot can be
identified.
Medical device: indicates that the item is a
medical device.
Date of manufacture: indicates the date
when the medical device was manufac-
tured.
Serial number: indicates the
manufacturer's serial number so that a spe-
cific medical device can be identified.
Consult instructions for use or consult elec-
tronic instructions for use: indicates the
need for the user to consult the instruc-
tions for use.
Keep dry: indicates a medical device that
needs to be protected from moisture.
7
Multi Swing 2G Arm Installation Manual 7

Do not use if package is damaged and con-
sult instructions for use: indicates that a
medical device should not be used if the
package has been damaged or opened and
that the user should consult the instruc-
tions for use for additional information.
CE label: indicates that the manufacturer
or importer affirms the good's conformity
with European health, safety, and environ-
mental protection standards.
WEEE: indicates that the product should
not be discarded as unsorted waste but
must be sent to separate collection facili-
ties for recovery and recycling.
Manufacturer: indicates the medical device
manufacturer.
8
8 Multi Swing 2G Arm Installation Manual

Limited liability
mo-vis accepts no liability for personal injury or damage to property that may arise from
the failure of the user or other persons to follow the recommendations, warnings and
instructions in this manual.
CAUTION: Carry out only the service and maintenance activities specified in this
manual, as long as you comply with the demands stated in this manual for a specific
action. In case of doubt, contact mo-vis.
WARNING: The device should always be tested without any person sitting in the
wheelchair after every alteration of the physical installation or adjustment of the
parameters.
9
Multi Swing 2G Arm Installation Manual 9

Parts and accessories
P031-61 Multi Swing 2G Arm
A P031-50 Multi Swing 2G Motor Unit
B M031-66 Q2M Joint Arm Assembly
C M031-74 Q2M Joint Multi Swing 2G Adapter Set
Figure 1: P031-61
10
10 Multi Swing 2G Arm Installation Manual

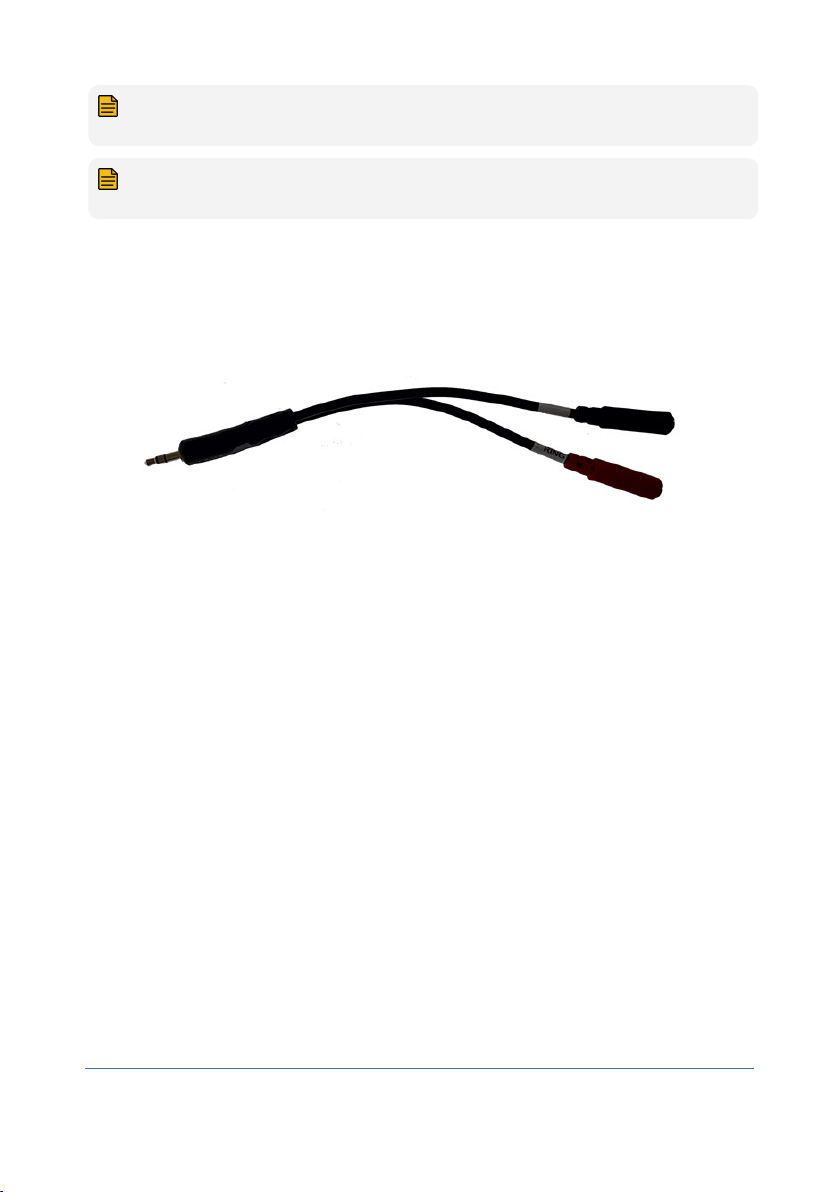

A1 P012-40 mo-vis Power Cable
Figure 2: A = P031-50
11
Multi Swing 2G Arm Installation Manual 11

B1 Long part with joint (400 mm)
B2 Short part with joints (150 mm)
B3 M031-53 End Cap
B4 M004-71 Q2M Rod D6 100 mm
B5 M001-02 Swing C-rod
B6 M800-75 Hex Key 4 25x105 mm + M031-58 Hex Key Tube
Figure 3: B = M031-66
12
12 Multi Swing 2G Arm Installation Manual

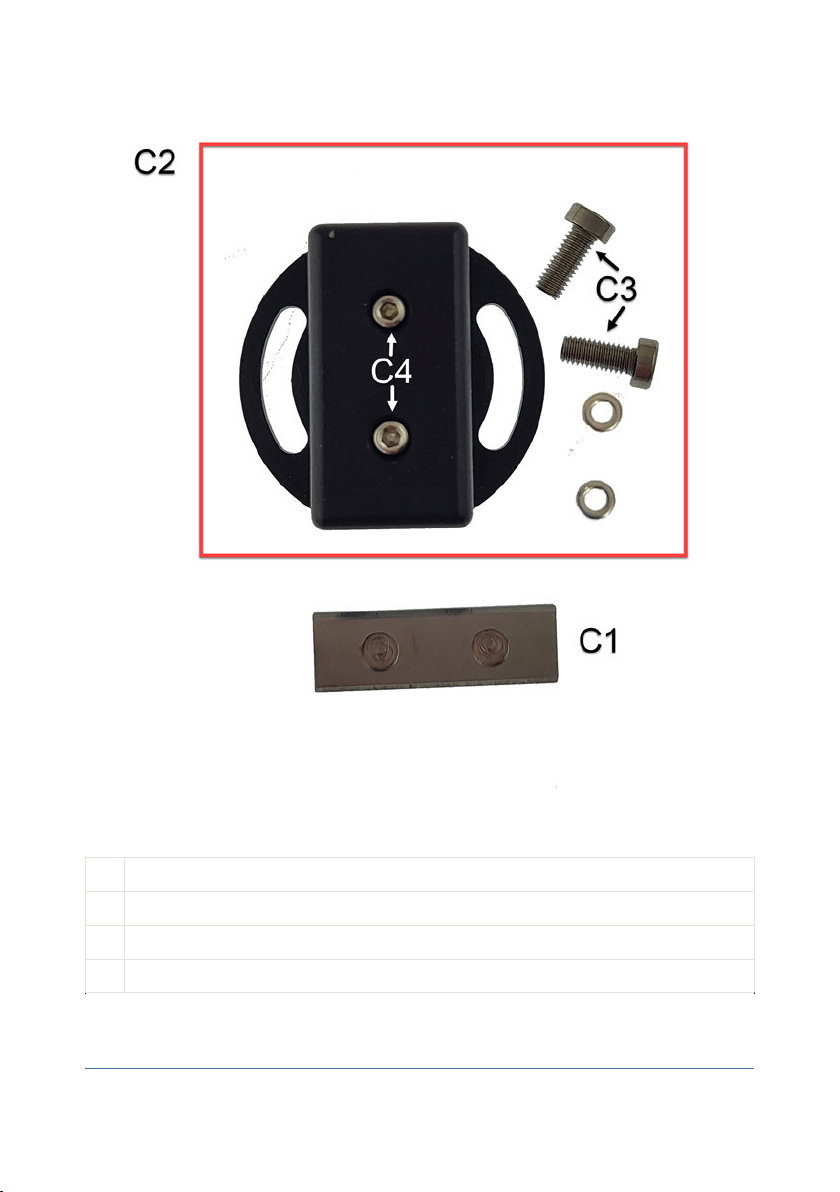

Figure 4: C = M031-74
C1 M031-52 Q2M Joint Push Plate
C2 M031-56 Q2M Joint Multi Swing 2G Adapter
C3 2 x PMBCH-00034 M5x10 D7984 A2 SS
C4 2 x PMSCS-00023 M5x6 Flat DIN913-A2 SS
13
Multi Swing 2G Arm Installation Manual 13

The different parts of the Multi Swing 2G can be installed in different ways, allowing a
flexible placement for the user. By default, we assume that the Multi Swing 2G will be
placed on the right side of the wheelchair for a horizontal movement. However, it can be
mounted for vertical movement and/or on the left side of the wheelchair. You will have to
adjust the parameters in the Configurator Software then (see Parameter settings on page
39 ).
P031-62 Multi Swing 2G Arm Bundle Q2M
For installation on a wheelchair where a round tube is available on the backside of the
wheelchair, we suggest using the P031-62 Multi Swing Arm Bundle Q2M.
In the P031-62 the P031-61 Multi Swing 2G is included, as well as the M031-99 Multi Swing
2G Mounting Set Q2M.
Figure 5: D = M031-99
D1 M007-01 Q2M Universal Clamp
14
14 Multi Swing 2G Arm Installation Manual

D2 M031-23 Multi Swing 2G Dogbone Adapter
D3 M004-11 Q2M Dogbone Slide In (200 mm)
D4 M004-12 Q2M Dogbone Extension Straight (incl. mounting screws)
D5 3 x PMBCH00015 M6x12 DIN912 A2 Stainless Steel
D6 2 x PMBCS00012 M6x22
P031-63 Multi Swing 2G Arm Bundle Rail
For installation on a wheelchair where a rail system is available on the backside of the
wheelchair, we suggest using the P031-63 Multi Swing Arm Bundle Rail.
In the P031-63 the P031-61 Multi Swing 2G Arm is included, as well as the M031-93 Multi
Swing 2G Bracket Set Rail.
15
Multi Swing 2G Arm Installation Manual 15

E1 M031-95 Multi Swing 2G Bracket Axle
E2 M031-96 Multi Swing 2G Bracket Base Plate
E3 M031-97 Multi Swing 2G Bracket Vertical
E4 M031-98 Multi Swing 2G Bracket Horizontal
E5 Set 1 of 4 x Mounting bolts M6x10 + nuts 10x10x5
E6 Set 2 of 4 x Mounting bolts M6x8 + nuts 10x10x4
Figure 6: E = M031-93
16
16 Multi Swing 2G Arm Installation Manual

NOTE: Part E includes E3 and E4 for horizontal OR vertical installation. See Multi
Swing Arm Bundle Rail on page 34 for more information.
NOTE: Two sets of bolts and nuts are included to be compatible with different types
of rails provided by the wheelchair manufacturer.
Accessories
The input jack is of the stereo type, allowing dual channel use. To use both channels, a
splitter cable is needed (e.g. PMCAB-00027 Stereo to Mono Splitter 3.5 mm, see picture).
There are also several accessories available to facilitate mounting of the mo-vis joystick on
the Multi Swing 2G Arm.
17
Multi Swing 2G Arm Installation Manual 17

Figure 7: F1 = M004-40 Multi Joint for Micro Joystick
18
18 Multi Swing 2G Arm Installation Manual

F1 M004-40 Multi Joint
F2 M004-94 Angled Rod
Figure 8: M004-51 Q2M Multi Joystick Chin Control Adapter Set
19
Multi Swing 2G Arm Installation Manual 19
