Mobi Technologies Bell 1S User manual

Quick Start Guide
REV. 210504-01TY
Smart Wireless Video Doorbell

www.getmobi.com (877)-662-4462 .
Welcome to the MOBI Family
Thank you for Purchasing our MOBI Doorbell! You are now part of a
growing Family of Smart Homes.
Your New MOBI Smart wireless Video Doorbell, is part of our Smart
Home Collection, which allows you to pair to our Smart Home HD
Camera and many More Smart home products like our sensors and
smart lights.
We welcome you to the,
Smart Home, Smart Family, Smart Life.

www.getmobi.com (877)-662-4462 .
Product Warning: MOBI VIDEO DOORBELL
FCC Warning:
Any Change or Modification not expressly approved by the party
responsible for the compliance could void the user's authority to
operate the equipment. This device complies with part 15 of the
FCC rules. Operations is subject to the following two conditions: 1)
this device may not cause harmful interface, and 2) this device must
accept any interface received , including interface that may cause
undesired operations.
FCC RADIATION EXPOSURE STATEMENT:
This equipment complies with the FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 7-8 inches between
the radiator and your body. This transmitter must not be co-located
or operating in conjunction with any other antenna or transmitter.
ISEDEC RSS WARNING:
This device complies with the ISEDC license- exempt RSS standard
(s) operation is subject to the following two conditions 1) this may
not cause interference , and 2) this device must accept any
interference including interference that may cause undesired
operations of the device.
ISEDC RADIATION EXPOSURE STATEMENT:
This equipment complies with the ISEDC RF radiation exposure
limits set forth for an uncontrolled environment. This transmitter
must not be co-located or operating in conjunction with any other
antenna or transmitter.
We welcome you to the,
Smart Home, Smart Family, Smart Life.

DOWNLOAD MOBI SMART APP
www.getmobi.com (877)-662-4462 .
1. Make sure you have access to your E-mail to verify your
MOBI Smart Account (You can also register with your mobile
number).
2. Have your 2.4GHz Wi-Fi Network Name and Password ready.
Network passwords are case, space, and number sensitive.
3. Check your Wi-Fi Connection –MOBI Smart Wireless Video
Doorbell is designed to utilize a 2.4GHz (2G) Wi-Fi Frequency.
During setup, please confirm your device is connected to the
2G Wi-Fi frequency. When the MOBI Smart App requests
your WiFi information, please ensure that you are also
entering the credentials for the 2.4GHz connection. If
unaware of how to connect to your 2G Network, your Wi-Fi
router provider can assist with steps to connect.
BEFORE GETTING STARTED

USB cable Rechargeable
Battery Pack
Doorbell Camera
z
Wall Screws (3 kinds)
Manual
Reset Pin
Ax 4h B x4
C x2 Hard wiring
connection screwa
Double-sided tape
Parts & Components
Adhesive table
Power Adaptor
Mechanical
Chime Adaptor

Doorbell Camera Section
Back ofdoorbell
Microphone
Doorbell button Statuslight
Speaker
microSD
memory
cardslot
Reset1
External
powerport
Power Port AC12~24V –for connection to existing wired doorbell
Doorbell button Press the button to activate the doorbell
Statuslight Solid Red light = camera is turning on or malfunctioning
Slow Blinking Red light = awaiting Wi-Fi connection
Fast Blinking Red light = connecting to Wi-Fi
Blinking Blue light = Pairing process has begun
Solid Blue light = Device is running properly.
Microphone Captures sound for yourvideos & two-way talk
SD card slot Supports local microSD Card storage (Up to 128G)
Reset 1 Using Reset pin, press and hold for 5 seconds or until confirmation
beep is heard to reset the doorbell
Night Vision
LEDs
HD Camera
Lens

Rechargeable Battery Pack
Charging
indicator
MiniUSB
Reset2
Bayonet
lock
Mini USB DC 5V±10%, USB Charging Port
Chargingindicator
Reset#2
Bayonet lock Controlled via the MOBI App., prevents
unauthorized removal. Unlock from within
App, Settings to separate from Camera
Solid red light = battery is charging
Solid blue light = a Fully Charged Device
Press and hold for5 seconds with pin to reset
the doorbell
Battery capacity 6700mAh(2 x 18650 lithium-ionbatteries)

Double-sided Adhesive
Step 1: Attach the double-sided adhesive tape to both sides of the
bracket
Step 2: Make sure you areattaching Adhesive tape to a flat clean surface.
Note: Multiple pieces of adhesive will be provided for best placement.
tape
Installation Options
Side
view
Note: The Smart Doorbell wall mount can be attached to awall using
either the double-sided adhesive, or by drilling and installing
the mount onto the wall using the provided screws.

Wall Screws
Step 1: Place the bracket against the designated wall space, and using a pencil,
mark where the screws will be drilled into.
Installation Options
Step 2: Drill the fourholes into yourwall and screw the 4 expansion screws
into the newly marked position.
Step 3: Fix the mounting bracket intothe wall and attach using the provided
screws.
Note: The Smart Doorbell wall mount can be attached to awall using
either the double-sided adhesive, or by drilling and installing
the mount onto the wall using the provided screws.

NOTE: Beforeproceeding to attach the Battery Pack section, please insert your
optional micorSD memory card if you plan on using the recording and
playback features on your MOBI Smart App.
Rechargeable Battery Power Mode
Installation - Battery Mode
Step 1: Slide outmounting bracket
from camera section
Step 2: Mount bracket on the wall
using the included screws or
double-sided tape, then slide
Camera section into the bracket
Side
view
Bracket
Step 3: Firmly hold onto the Camera Section while inserting Battery Pack
onto the Camera portion and both parts lock into each other

OFF ON
First, turn off the power breaker on the fuse box for your existing
doorbell and mechanical chime. Then, ring the doorbell again to
confirm it is now off.
Find your existing door chime. This is the rectangular box that
produces a ring or a sound when your doorbell is pressed. In
some instances, it may be already mounted inside your FRONT
door. Now remove the cover.

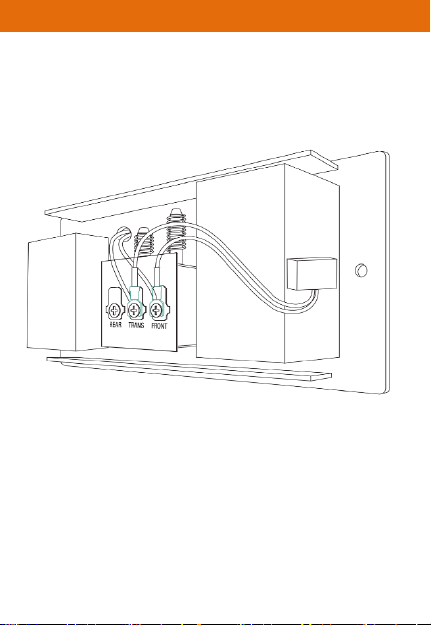

Optional: Mechanical Chime Adaptor Installation
For added flexibility and safety the MOBI Mechanical Chime
Adaptor Kit allows you to utilize an existing mechanical type
doorbell for additional notification sounds within the house
without use of your phone.

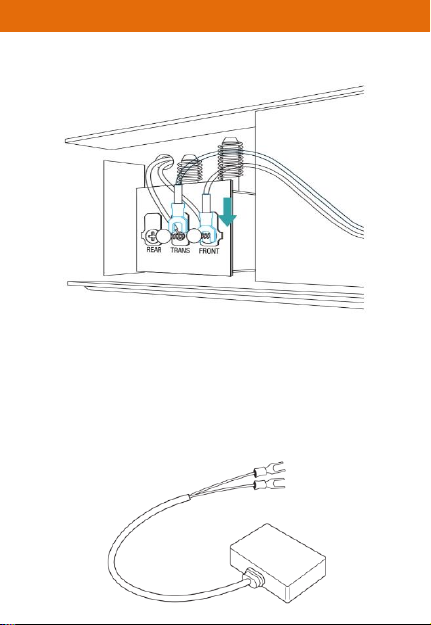

Connect one of the Mechanical Chime Adaptor Kit's prongs to the
transformer terminal inside your existing chime (usually labeled
TRANS, T, AC, or 0). Connect the other prong to the chime's front
terminal (usually labeled FRONT, F, 1, or C1).
Any one of the prongs on the Chime Kit adaptor can be
connected to either of the terminals on the chime box.
Slightly unscrew both screw terminals to make space for the
Mechanical Chime Kit setup.
Mechanical Chime Kit Installation

Once you have completed the above connection your must
enable this feature under “Chime Type”in your MOBI Smart
App under Settings, then pressing Bell Settings, then
pressing Chime Type, and selecting “Mechanical”
You can now turn ON the power breaker on the fuse box for
your existing doorbell and proceed to Setup process on your
phone.
Using the included double-sided tape, attach the Mechanical
Chime Adaptor Kit to your chime-box, wherever there may be
space, or outside of the chime box if there is not enough room
on the inside. Ensure that the wires DO NOT interfere with the
mechanical parts.
Mechanical Chime Installation

Wired Connection Mode (Continuous Power from Existing Doorbell)
Installation - Hardwiring Mode
Step 2: Attach wires from your
existing doorbell wiring to
your camera unit. (powered
connection)
12~24V AC
Step 1: Slide outmounting bracket
from camera section
Step 3: Mount bracket on the wall using
the included screws or double-
sided tape, then slide Camera
section into thebracket
NOTE: Before proceeding to attach the Battery Pack section, please insert your
microSD memory card if you plan on using the recording and playback
features on your MOBI App.
Step 4: Firmly hold ontothe Camera
Section while inserting Battery
Pack onto the Camera portion
and both parts lock into each
other

www.getmobi.com (877)-662-4462 .
1. Open MOBI Smart App to
register.
2. Agree to the privacy policy.
Enter your email address,
then tap “Get Verification
Code”.
3. Check your E-mail for the
verification code.
4. Confirm the verification code
and then create your
password.
REGISTER
ADD DEVICE
Select “Add Device”, then select
your MOBI Doorbell from the list
under CAMERA tab or ALL
DEVICES tab.
Video
Doorbe
ll

www.getmobi.com (877)-662-4462 .

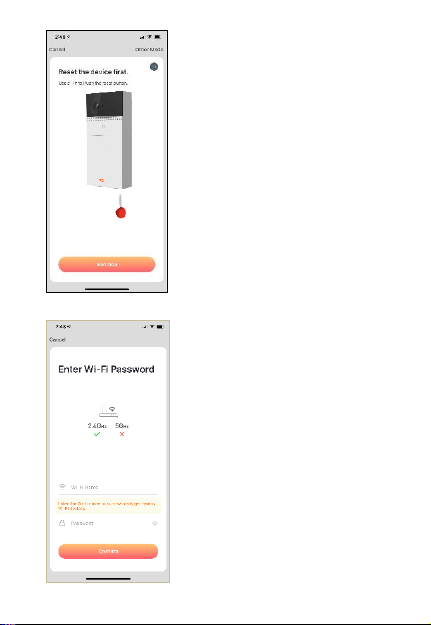

Enter your 2.4GHz Wi-Fi name and
password. Your Wi-Fi name and
password are case, space, and
number sensitive. Then tap
“Confirm”.
ENTER WI-FI
Plug in your MOBI Doorbell to the
battery and reset your device, You
will see instructions in the app. Tap
“Next Step” once the reset is
completed.
RESET DEVICE

www.getmobi.com (877)-662-4462 .

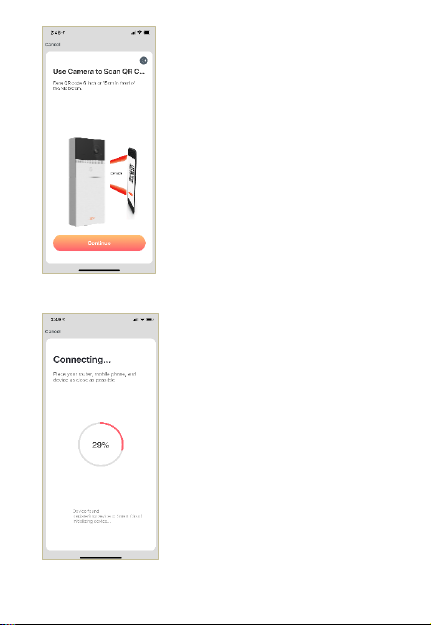

The app will show a brief “how to
Scan QR Code” tutorial. Click
“Continue” to access the QR code
to scan.
You will hear confirmation beep
once QR Code is recognized.
SCAN QR CODE
CONNECTING
You will be taken to a progress
display screen. On-Screen will show
the remaining percentage before
the Doorbell connects. The Doorbell
will provide two voice prompts:
“Connecting to WiFi”
&
“Set up Complete”
On-Screen will then display 100%
and redirect to the next screen.

www.getmobi.com (877)-662-4462 .
SUCCESS
You have now successfully
connected your MOBI Smart
Video Doorbells. Your device
should display-in-app. Here you
can rename your device if
desired by taping the edit button
and entering a friendly name for
easy identification of
notifications. Tap “Done” to
begin viewing your device’s live
feed.
LIVE VIEWING
From here you can view your
MOBI Doorbell live feed.
Two-Way Audio: Hold the
microphone icon to talk through
your device
Record/Screenshot: Tap Record
once to begin recording. Tap
screenshot to take a quick picture.
Video and images will save to your
phone.
Night Vision: Night vision can be
turned on, off or set to auto. Tap
the 3 dots on top right corner to
open device settings.
Tap IR Night Vision icon to change
setting.

Step 1: Click top right "..." to access menu, enter the "Settings" page and select .
."Basic Feature Settings".
Step 2: Select "Unlock Battery" please allow 5-10 seconds for camera to unlock
itself. You may hear the release motor unlocking. While holding Camera
section firmly, pull to separate the battery pack from the camera section
to charge.
Removing Rechargeable Battery Pack

Key Features and Benefits:
•Answer from anywhere
•Flexible installation options - Long lasting rechargeable
battery or existing wiring for continuous power
•Use Indoors or Outdoors
•Clear HD Video Day or Night
•Two-Way Audio
•Instant Motion Alerts with Human Filtering
•Includes FREE Adaptor to Continue Using Your Preexisting
Mechanical Doorbell for added convenience if your phone is
not handy, powered off, etc.
•Recording for Playback & Sharing directly to your phone, an
internal microSD memory Card (Sold Separately) or optional
Cloud storage
•Automatic or manual recording of events
•No Subscription required
•Allow & share access with other family members or friends
•Expandable with additional Cameras, Sensors & Devices
•Alexa and Google Assistant Compatible
•100% U.S. Based Customer Service
•Optional Wireless Chime (sold separately)
