Model No. 2009
POWER 600
Multipurpose 7 in ONE Power Supply
Instruction Manual

POWER 600

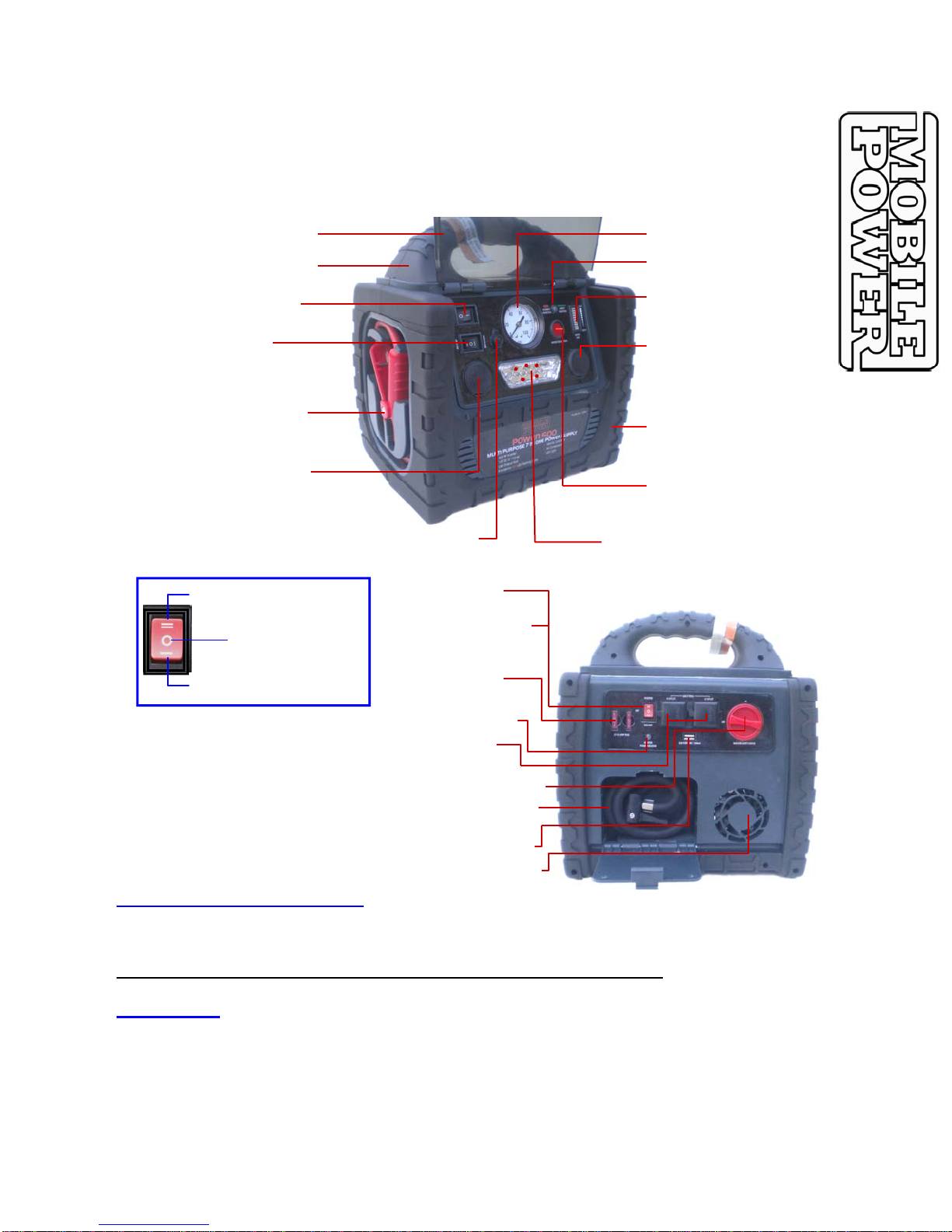

7 in ONE POWER SUPPLY
with 600W inverter
600W Power Inverter
100 PSI Air Pressure Gauge
Polarity Indicator LED
Internal Battery Charging Jack/Port
Air Compressor ON/OFF Switch Internal Battery Charge Level
Status Indicator LED Bars
Double Injection Rubberized handle
Dual Function
Wide Angle LED Area light and
Emergency RED Flashing LED
Warning light
12 VDC - 10 A Socket / Vehicle
Jumpstart System Through
Cigarette Lighter Socket with
Protective Dust Cover
12 VDC - 10A Socket / Vehicle
Jumpstart System Through Cigarette
Lighter Socket with Protective Dust Cover
USB / Inverter Power Switch
USB power ON position —
Inverter Power LED Indicator
Double Injection Rubberized
Protective Padding
12 Volt Vehicle Jumpstart System
with Heavy Duty Cable and Clamps
Main Booster Power Switch
Inverter Blade Fuse
2 X 35 A rated fuse
Compressor Air Hose and
accessories compartment
Model No. 2009
Packaging includes
the following accessories:
• 110 VAC Charging adaptor
• 12 VDC Charging adaptor
• Compressor Air Valve Accessories
• Operating Instruction Manual
• Dual 12 Volt DC Booster Cable USB Port 500mA
Inverter Power Switch
Inverter power ON position =
USB power ON position —
Inverter power ON position =
Power OFF position
Battery Charge Status
Indicator Push Button
Inverter Thermal Cooling Fan
Sheet 2 of 12
IMPORTANT INFORMATION
READ AND UNDERSTAND ALL WARNINGS AND ADVISORY NOTES INCLUDED IN THIS
MANUAL. FOLLOW INSTRUCTIONS PROVIDED BY YOUR VEHICLE MANUFACTURER AND
MANUFACTURER OF THE DEVICES INTENDED TO BE USED WITH THIS POWER SUPPLY.
MAKE CERTAIN THIS DEVICE IS FULLY CHARGED PRIOR TO FIRST USE.
WARNINGS
THIS PRODUCT CONTAINS A SEALED LEAD-ACID BATTERY AND MUST BE DISPOSED OF
PROPERLY. YOU MAY CONTACT YOUR LOCAL GOVERNMENT RECYCLING AUTHORITY FOR
APPROPRIATE DISPOSAL. FAILURE TO FOLLOW THE INSTRUCTIONS MAY CAUSE DAMAGE
TO THE PRODUCT AND OR PERSONAL INJURY.
LED Area light and
Emergency RED Flashing LED
ON/OFF Toggle Switch
Inverter Power ON/OFF Switch
Front Panel Protective Hinge Cover

IMPORTANT ADVISORY NOTES
• Do not use with dry cell batteries. These batteries may burst and cause injury to person or damage
personal property.
• Do not attempt to face the battery being jumped. Stay away as far as possible from the battery when
making the final connection.
• DO NOT CONNECT TO or jump start a 6 or 24 Volt battery.
• If battery acid comes in contact with skin or eyes, rinse immediately with water for 20 minutes. Seek
medical attention if redness, irritation or pain is present.
• DO NOT smoke, use matches, lighters or an open flame near batteries.
• This products contains chemical substances including lead. Wash hands thoroughly after handling
Lead Acid Batteries.
• Never allow red (Positive) and black (Negative) clamps to come in contact with each other or
contact with metal object at the same time.
• To protect against electrical hazards, do not immerse charger, adapters, or unit in water or other
liquid.
• Close supervision is necessary when working near children.
• Do not use unit for applications other than its intended use.
• Always connect the red (+) clamp to the positive battery terminal first. Connect black (-) clamp to the
negative battery terminal as final connection.
• Jumpstart vehicles in a well ventilated area only.
• Do not expose Power 600 to moisture or use it in extremely hot conditions.
• Monitor the pressure gauge during use. Be careful not to over-inflate objects.
• Never work alone with this product. Make sure that someone is available to give assistance if
needed.
• Wear complete eye and clothing protection. Do not touch eyes while working near battery.
• Do not attempt to remove or replace the battery used in this device. When the battery has reached
the end of its useful lifetime, take the entire unit to a battery recycling facility.
• For proper and safe operation of the 12 Volt DC power accessory outlets, do not place anything into
it except the plug of the accessory to be used.
• Remove metal and personal jewelry such as: rings, bracelets, necklaces and watches, while working
with a lead acid battery. This can produce a short-circuit that may cause severe burns.
• Never charge or jump-start a frozen battery.
• Do not operate this device while wearing vinyl clothing. Static electricity may be generated when
vinyl clothing is rubbed.
• This product is not intended for use in the rain or temperatures above 150ºF.
• Use only the provided chargers, cables and clamps. Unauthorized parts may damage the unit.
• This product has no consumer serviceable parts except the replaceable fuses.
• Keep out of the reach of children.
• Keep battery terminals clean. Be careful to keep corrosion from coming in contact with eyes.
• Do not let the cords of the Power 600 or jumper clamps get wet.
• Prevent water to get into Power 600 housing. Water will damage the internal electronics board.
• This unit has a built-in lead acid battery. Although Power 600 arrives partially charged from the
factory, it MUST be fully charged before the first use.
• Recharge Power 600 after each use or every 3 months to prevent the battery voltage to become
extremely low.
Sheet 3 of 12
Model No. 2009

FEATURES:
Compact 7 in 1 multipurpose AC and DC power supply with vehicle jumpstart boosting system. The unit
provides: two 12 VDC covered output ports, 600 Watt continuous power inverter with 120 VAC covered
outlet, 100 PSI rated Air Compressor, Booster Cables with Insulated Clamps, Booster Cables Power
Switch, Nozzle Adaptors for most Inflatables, LED working light, Reverse Polarity Protection, Battery
Status Needle Dial Gauge, Dual 12 Volt DC Accessory plugs Charge/Booster Cable through vehicle 12
Volt DC cigarette lighter socket, USB power port with vehicle instant battery jump starter.
SPECIFICATIONS:
• BUILT-IN 12V 18AH RECHARGEABLE LEAD ACID BATTERY.
• INSTANT BATTERY JUMP STARTER.
• DUAL 12 VDC OUTPUT PORTS WITH PROTECTIVE DUST COVERS.
• USB POWER SUPPLY OUTPUT PORT WITH PROTECTIVE DUST COVER.
• HIGH POWER 600 WATT CONTINUOUS/1200 WATT PEAK POWER INVERTER
WITH 2 x 120 VAC COVERED OUTLETS.
• AIR COMPRESSOR WITH 100 PSI NEEDLE DIAL GAUGE.
• REVERSE BATTERY POLARITY DETECTION CIRCUITRY.
• ULTRA BRIGHT WHITE LED CONVENIENCE LIGHT.
• COMPACT AND PORTABLE SIZE WITH RUBBERIZED HANDLE.
• NOZZLE ADAPTORS FOR INFLATABLES.
• AC & DC CHARGERS ARE INCLUDED.
CHARGING POWER 600 INSTRUCTIONS:
CAUTIONS
• Prior to charging this device read and understand all the related instruction indicated below.
Fully charge the Power 600 unit when the Battery Status Needle Dial reads below 12 VDC.
This product may arrive partially charged from the factory. It is highly recommended to fully
charge the Power 600 unit after purchase and before initial use.
• Make certain that all ON/OFF Power Switches are set in the OFF position.
• Do not charge the Power 600 near flammable material, open flames or any location which
may accumulate flammable fumes.
• Make certain the electrical outlet located in a potentially wet or moist area that is to be used
to charge this device, is protected by a Ground Fault Circuit Interrupter (GFCI).
• Make sure that both booster clamps are securely placed in their designated storage
compartments when not in use and during the charging period.
A. AC Charging At Home with 110 Volt Charger
1. Keep the Main Booster Power Switch in OFF position while charging.
2. Insert the AC charger round plug into the Power 600 Charging Port.
3. Connect the 110 Volt AC Charger into the 110 Volt AC home receptacle.
4. Fully charge the Power 600 according to the following schedules:
First time charge: 24 hours
Recharge and subsequent charge: 8 hours
5. Unplug the AC charger from the 110 Volt receptacle first and then remove the round plug from the
Power 600 Charging Port.
B. DC Charging In Your Vehicle with 12 Volt Charger
1. Keep the Main Booster Power Switch in OFF position while charging.
2. Insert the 12 Volt DC Charger round Plug into the Power 600 Charging Port.
3. Connect the 12 Volt DC Charger Plug into the vehicle cigarette lighter or 12 Volt accessory port.
4. Fully charge the Power 600 internal battery for 8 hours while the vehicle engine is running.
5. Unplug the DC charger from the vehicle cigarette lighter or 12 Volt accessory port first and then
remove the round plug from the Power 600 Charging Port.
Model No. 2009
Sheet 4 of 12

INTERNAL BATTERY CHARGE LEVEL:
Battery Charge
Level
Battery Charge Level
Status Push Button
FULL
Charge
• Press and hold the Battery Charge Level Status
Push Button to determine the unit internal battery
charge level prior to each use.
• The battery Charge Level bars illuminate
indicating the Status of the battery Charge.
Sheet 5 of 12
Model No. 2009
FULL
100%
Charge
Level
75%
Charge
Level
50%
Charge
Level
Low
Charge
Level
LED Flashing Light
LED Area Light
LED Flashing Light
LED Area Light
LED Area Light - RED Flashing light:
LED Area Light: Press the end of
the toggle switch marked II to turn
on the Area Light.
LED RED Flashing Light: Press the
end of the toggle switch marked I to
turn on the Flashing light during
emergencies.
ON
OFF
Main Booster Power Switch
Main Booster Power Switch:
To turn ON Power to the Clamps: Turn the Main
Booster Power Switch quarter turn clockwise to turn
ON power to the Booster Clamps.
To turn OFF Power to the Clamps: Turn the Main
Booster Power Switch quarter turn counter-clockwise
to turn OFF power to the Booster Clamps.

AIR COMPRESSOR OPERATING INSTRUCTIONS:
CAUTIONS
• Do not operate the Air Compressor more than 10 Minutes continuously. Allow the
compressor to cool down for 10 to 15 minutes between each continuous operation.
• Review the products to be inflated for manufacturer’s recommended maximum inflation
pressure. Most tires are recommended to be inflated between 27 to 38 PSI.
• Always check the air inflation pressure with a separate and reliable pressure gauge during
and after inflation.
A. TO INFLATE TIRES:
1. Open the Compressor Air Hose Compartment access door at the back side of the Power 600 and
pull out the air hose. Make sure that the Nozzle Locking Lever is in the UP position.
2. Remove the valve cap from the tire valve stem.
3. Attach the compressor air valve nozzle onto the tire air valve stem and push down the air valve
nozzle as far as it travels. Make certain it is seated properly.
4. Press down the Nozzle Locking Lever all the way down to securely lock the tire air valve stem.
IMPORTANT: If the tire is completely deflated, raise the vehicle by utilizing a recommended
rated lifting device and jack stand before inflating the tire.
5. Turn the compressor switch located on the front panel of Power 600 to ON position.
6. Monitor the pressure on the compressor air pressure gauge while inflating.
7. Turn OFF the compressor when the desired tire air pressure is reached.
8. Disconnect the air hose nozzle from the tire air valve stem by lifting Nozzle Locking Lever to the UP
position.
9. Replace the tire valve cap onto the tire valve stem.
10. Stow the air hose into the Compressor Air Hose Compartment.
B. TO INFLATE BALLS/AIR MATTRESSES/RUBBER RAFTS:
1. Open the Compressor Air Hose Compartment access door at the back side of the Power 600 an
Pull out the air hose. Make sure that the Nozzle Locking Lever is in the UP position.
2. Remove the valve cap from the inflatable valve stem.
3. Attach the appropriate valve stem adaptor to the Air Hose Nozzle.
4. Press down the Nozzle Locking Lever all the way down to securely lock the valve stem adaptor.
5. Attach the compressor air valve nozzle with the valve stem adaptor onto the air valve stem of the
inflatable and push down the air valve Nozzle as far as it travels. Make certain it is seated properly.
6. Turn the compressor switch located on the front panel of Power 600 to ON position.
7. Monitor the pressure on the compressor air pressure gauge while inflating.
8. Turn OFF the compressor when the desired air pressure is reached.
9. Disconnect the air hose nozzle from the air valve stem.
6. Replace the valve cap onto the valve stem.
7. Stow the air hose into the Compressor Air Hose Compartment.
12 VOLT DC POWER PORT OPERATING INSTRUCTIONS:
IMPORTANT: The Internal auto-reset Circuit Breaker will automatically interrupt the power if the current
drawn exceeds 10Amp.This feature prevents damage to the Power 600 internal circuits. Internal Circuit
Breaker will automatically reset after cooling period (Approximately 10-25 minutes).
1. Remove the 12 Volt DC protective cover or covers.
2. Insert the device 12 Volt accessory plug that can be powered by the Power Supply into the 12 Volt
power port of Power 600.
3. Turn on the power of the 12 Volt DC device being powered by the Power 600 unit.
Model No. 2009
Sheet 6 of 12

600 WATT AC INVERTER OPERATING INSTRUCTIONS:
SYSTEM NORMAL OPERATION ————————- GREEN LED
OVERLOAD ——————————————————— RED LED
LOW BATTERY OR LOW INPUT POWER ———— RED LED
1. Prior to connecting the device to be powered by the inverter, make sure the inverter power switch is
in the OFF position.
2. Prior to plugging in the device, make sure the device power switch is in the OFF position and ensure
the current drawn by this device does not exceed 600W maximum power consumption.
3. Remove the plastic protective covers from the inverter receptacles.
4. Connect the device 110 Volt AC electrical plug into the inverter receptacle.
5. Turn on the inverter power switch to (II) position. If the inverter is operating properly, the green LED
indicator will illuminate. Now turn ON the device. If the green indicator remains on, the system is operat-
ing properly. If the inverter green LED light turns to RED, turn off the device then turn the power switch
to (O) position to turn OFF the inverter immediately. See the trouble shooting guide. The inverter may
have been over loaded or the input voltage may be too low.
CAUTION:
Some rechargeable devices are equipped with a separate charger which can be connected into this in-
verter AC receptacle. However certain rechargeable devices are manufactured with built-in chargers
(see device owner’s manual). This category of devices may cause internal damage to inverters and
should not be used with this inverter. The temperature of the device must be monitored for the first 15
minutes of operation. Abnormally elevated temperature of the device is an indication that it should not be
used with this inverter.
VEHICLE BOOST START USING THE DUAL 12VDC PLUG BOOSTER CABLE:
WARNINGS: Vehicles equipped with on-board computers may be damaged if the vehicle is jump
started. Read and understand your vehicle owner’s manual instructions before attempting to
jump-start your vehicle. Failure to follow these advisory instructions my result in explosion.
1. Turn off the vehicle ignition and all the accessories (Such as radios, lights, and air conditioners, etc).
2. Apply the emergency brake and put those vehicles with automatic transmission in park position.
3. Place the Power 600 unit in the vehicle front passenger side floor board.
4. Connect the Booster Cable 12 Volt DC plug with LED power indicator into the vehicle cigarette
lighter or 12Volt DC socket.
5. Connect the other end of the Booster Cable into the Power 600 unit 12 Volt DC port. Make certain a
good connection is made.
6. Allow a minimum of 20 minutes for the vehicle depleted battery to boost charge.
7. Disconnect the dual 12 Volt dc plug Booster Cable from the vehicle and from the Power 600 12 Volt
DC port.
8. Start the vehicle engine.
NOTE: If the vehicle fails to start, reconnect the dual 12 Volt DC plug Booster Cable to the
vehicle and the Power 600 12 Volt DC port. Allow an additional 20 minutes for boost charge
before attempting to restart vehicle again.
Model No. 2009
Sheet 7 of 12

110 Volt AC Household Electronic Devices
Powered by Power 600 built-in 600 Watt inverter
Electronics Device Power Consumption Approximate Operating time
Small Utility light 2 Watt 35 Hours and 40 Minutes
iPhone/iPod/MP3 4 Watt 17 Hours and 50 Minutes
Cell Phone Chargers 5 Watt 17 Hours and 30 Minutes
Radios 8 Watt 9 Hours
Fans 20 Watt 3 Hours and 30 Minutes
Power tool chargers 25 Watt 3 Hours
Up to 10Volt
Digital/Video Camera 30 Watt 2 Hours and 30 Minutes
9” portable TV 50 Watt 1 Hours and 50 Minutes
IMPORTANT NOTE: The above listing is prepared for reference purposes ONLY. Certain electronic de-
vices exceed the power consumption wattage listed. Prior to powering the intended electronic devices,
refer to and review the Instruction Manual for actual wattage requirement.
USB OUTPUT PORT:
1. Prior to connecting the device to be powered to the USB port, make sure the USB power switch is
in the OFF position. The power switch must be positioned in the middle.
2. Prior to plugging in the device to the USB port, make sure the device power switch is in the OFF
position.
3. Using the USB cable included with your electronic device to be powered or charged, connect the
USB plug into the USB port of Power 600.
4. Connect the other end of the cable into the electronic device.
5. Press the USB port Power Switch to ON (—) position. The device with built in rechargeable battery
will start charging automatically. Turn ON the electronic device and use as normal after charging.
6. After using the USB port, the USB Power Switch must be turned to OFF (O) position, otherwise the
internal battery of Power 600 will be slowly depleted although there is no electronic device attached
to the USB port.
7. Turn OFF the electronic device and disconnect the cable from the USB port.
VEHICLE JUMP START INSTRUCTIONS:
WARNINGS: Vehicles equipped with on-board computers may be damaged if the vehicle is jump
started. Review and understand your vehicle owner’s manual before attempting to jump-start
your vehicle. Failure to follow these advisory instructions my result in personal injury and prop-
erty damage. Use Safety Glasses to protect your eyes while working near battery during jump-
staring a vehicle. Jump start a vehicle in an open area without any type of obstructions.
CAUTIONS: Make certain that the Power 600 Main Booster Power Switch is in the OFF position
before commencing to jump start a vehicle.
1. Turn off the vehicle ignition and all the accessories (Such as radios, lights, and air conditioners, etc).
2. Apply the emergency brake and put those vehicles with automatic transmission in park position.
3. Determine the polarity of the vehicle battery terminals. The positive (+) battery terminal normally
is larger in diameter than the negative (-) terminal. If you are unsure, you must refer to the
vehicle owner’s manual.
4. Determine whether your vehicle is designed with a negative or positive grounded system: In the
Negative Ground System, the negative battery terminal is grounded to chassis of the vehicle. Most
vehicles use this type of system. Positive Grounded battery terminal is grounded to chassis or any
other part of the vehicle. If you are not certain of this important information, YOU MUST REFER TO
YOUR VEHICLE OWNER’S MANUAL.
5. Remove clamps from the holders. Never allow clamps (positive & negative terminals) to touch
together or contact the same piece of metal to prevent short-circuits.
Model No. 2009
Sheet 8 of 12

6. Follow the instructions for a Negative Grounded System or Positive Grounded System as indicated
below:
Negative Grounded System
I. Connect the RED CLAMP (positive +) to the positive terminal of the vehicle battery or the
remote positive terminal if available.
II. Connect the BLACK CLAMP (negative -) to the vehicle engine block, or a metal part of the
vehicle which is connected to the vehicle main ground system. Do not clamp directly to nega-
tive battery terminal, main fuel distribution module or sheet metal parts.
III. The Polarity Protection System GREEN LED is illuminated if the proper connections
have been made. WARNING: If RED LED is illuminated DISCONNECT the booster
clamps from battery terminals. Reconnect the booster clamps by reversing the
connections to the proper battery polarity.
Positive Grounded System:
I. Connect the BLACK CLAMP (negative -) to the negative terminal of the vehicle battery.
II. Connect the RED CLAMP (positive +) to the vehicle engine block, or a metal part of the
vehicle which is connected to the vehicle ground system. Do not clamp directly to positive
battery terminal, main fuel distribution module or sheet metal parts.
III. The Polarity Protection System GREEN LED is illuminated if the proper connections
have been made. WARNING: If RED LED is illuminated STOP and disconnect the
booster clamps from battery terminals. Reconnect the booster clamps by reversing the
connections to the proper battery polarity.
7. Turn on the Main Power Switch by rotating the switch to the ON position.
8. Allow 3 to 5 minutes of charge time. It is highly recommended having a second person to assist
holding the unit securely in place during the next steps.
9. Start the engine. Stop if the vehicle does not start after 2 to 3 seconds of engine cranking. Wait 2 to
3 minutes then try again. Repeat the above steps several times until the vehicle starts.
10. If the vehicle starts, turn off the Main Power Switch by turning the switch to the OFF position.
11. Disconnect the clamps as far away from the vehicle battery as possible.
For Negative Grounded System disconnect the BLACK CLAMP Negative first and then the RED
CLAMP Positive.
For Positive Grounded System disconnect the RED CLAMP Positive first and then the BLACK
CLAMP Negative.
12. Stow the booster clamps into their storage compartment.
12 VOLT DC CHARGER ADAPTOR FUSE REPLACEMENT:
1. Unscrew the retainer ring at the tip of the 12 Volt DC charger plug.
2. Replace the internal glass fuse with the same grade Fuse rated at 2 AMP.
Model No. 2009
Sheet 9 of 12

TROUBLESHOOTING GUIDE:
TROUBLE RECOMMENDED SOLUTION
Vehicle does not start Make sure the Polarity Protection Green LED is illuminated. Turn the Main
Power Switch to ON Position to allow power into the booster clamps.
DO NOT turn the Main Power Switch to ON position if the Polarity
Protection RED LED is illuminated. Disconnect both booster clamps and
reconnect the Booster Clamps to the proper polarity.
Allow the Power 600 to stay connected to the vehicle battery for a longer
period of time. Wait 6 to 8 minutes before attempting to start the vehicle
again.
Recharge the Power 600 Power Supply to FULL charge status.
Replace the vehicle battery or visit workshop/garage for further
assistance.
110 V electronic device Recharge the Power 600 Power Supply to FULL charge status.
does not operate with the
600 Watt inverter Check for proper rated power required to turn on the electronic device. If
the electronic device wattage is rated above 600 Watt, remove the
Device since the operating wattage is above the maximum output power
of the inverter.
Check the connection of the electric device to the inverter receptacle.
Check the inverter fuse. To replace the inverter fuse use a needle nose
pair of pliers or fuse puller to remove the old fuse(s) and replace with
35A blade type fuse
12 Volt DC devices Recharge the Power 600 Power Supply to FULL charge status.
connected to the 12 Volt
output port of Power 600 Insert the device 12 Volt plug properly into the Power 400 DC output port
does not operate.
Internal Circuit Breaker is OFF. Remove the 12 Volt Accessory plug from
The Power 600 12VDC output port. Wait 15 - 25 minutes for automatic
Reset to regain power.
Compressor does not Recharge the Power 600 Power Supply internal battery to Full charge.
turn on.
Compressor does not inflate Make sure the hose nozzle is properly seated and the locking lever is in
down position.
Repair air hose if possible.
Allow 10 - 15 minutes for compressor to cool down before re-use.
USB powered device Press the USB output port SWITCH to ON position (—)
connected to the USB of
Power600 does not function Insert the device USB plug properly into the Power 600 USB port.
Model No. 2009
Sheet 10 of 12
