Mobilogix BAT-SUR User manual

BAT-SUR (ATD530)
USER GUIDE
V2021-11-16

V2021-11-16 ATD530 USER GUIDE PG 2 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
1 CONTENTS
2 Introduction ....................................................................................................................................................................................... 3
2.1 Unpacking/Installation ............................................................................................................................................................. 3
3 Function ............................................................................................................................................................................................. 5
3.1 Periodic Sensor Scanning – Sensor Report ............................................................................................................................... 5
3.2 Button ....................................................................................................................................................................................... 6
3.3 LED Indicators ........................................................................................................................................................................... 7
4 Contacts ............................................................................................................................................................................................. 8
5 Disclaimers ......................................................................................................................................................................................... 8
5.1 FCC Interference Statement (Part 15.105 (b)) .......................................................................................................................... 8
5.2 FCC Part 15 Clause 15.21 .......................................................................................................................................................... 9
5.3 FCC Part 15.19(a) [interference compliance statement] .......................................................................................................... 9
5.4 ISED RSS-Gen Notice ............................................................................................................................................................... 10
5.5 FCC RF Exposure Guidance Statement ................................................................................................................................... 10
5.6 ISED RF Exposure Guidance Statement .................................................................................................................................. 10
6 Version History ................................................................................................................................................................................. 10

V2021-11-16 ATD530 USER GUIDE PG 3 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
2 INTRODUCTION
The BAT-SUR (ATD530) is a battery-operated low power LTE CAT-M1 Tracker optimized for one-way destination tracking of premium
cargo.
BAT-SUR employs a 3-axis accelerometer and NIST traceable sensors for precise temperature monitoring. Equipped with LED
indicators and operator button provide visibility and control to the user. Power is supplied by 2 AA field replaceable Alkaline
batteries. When turned on will BAT-SUR periodically reports sensor data and location to a cloud platform.
2.1 UNPACKIN G/INSTALLATION
On very first use, verify that the device’s serial number or IMEI listed on the box’s label matches what is printed on the device.

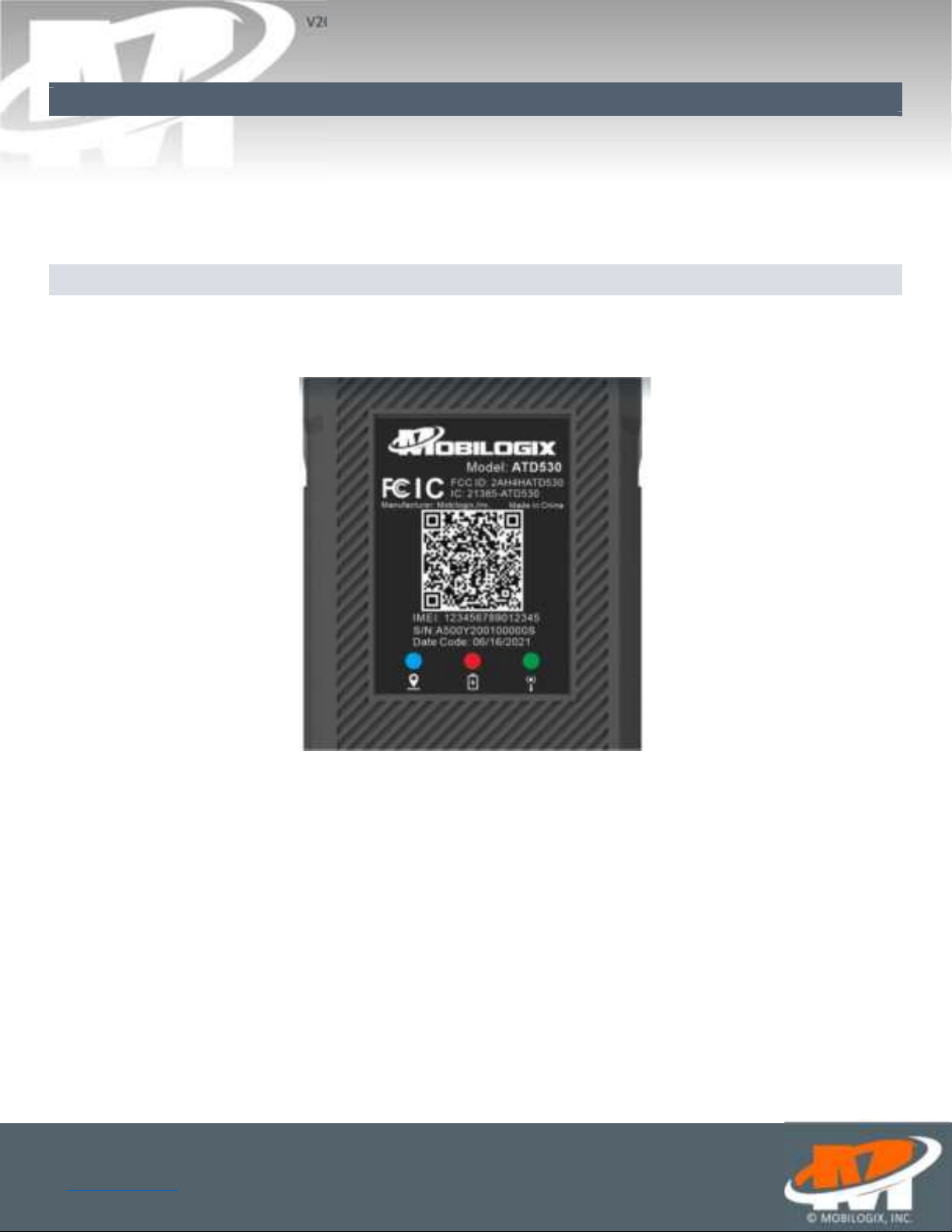

Figure 2.1 - Device Label

V2021-11-16 ATD530 USER GUIDE PG 4 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
2.1.1 IN THE BOX
Inside the BAT-SUR package will be included:
1. BAT-SUR tracker
2. 2x AA batteries
Figure 2.2 Device and accessories
2.1.2 INSTALLING THE BATTERIES
The back panel can be removed with a T6 torx driver. After removing the back panel, the 2 AA batteries can be installed. Once the
batteries are installed the mode of the device may be checked with the button.
Figure 2.3 Multi-angle model with battery location

V2021-11-16 ATD530 USER GUIDE PG 5 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
2.1.3 POWERING ON THE DEVICE
From the factory, device is powered down, radios are off. To check if the device is turned on the button can be pressed quickly one
time to check the state. If the red LED blinks once the device is turned on. If the red LED blinks twice, the device is turned off.
To turn on/off the tracker the button must be held for 3 seconds or longer.
NOTE: All LEDs may flash when turning on/off
Figure 2.4 Button
3 FUNCTION
3.1 PERIODIC SENSOR SCANNING – SENSOR REPORT
While the device is turned on, it will periodically wake up according to its settings, to generate a sensor report containing the sensor
and location data then send to the cloud. If network connectivity is not available, it shall store the data for transmitting later when
connectivity is available.
3.1.1 SENSORS
1. Temperature
2. Humidity
3. 3-axis accelerometer
4. 3-axis tilt angle
3.1.2 GNSS/GPS LOCA TION AND WIFI SCANNIN G
GNSS/GPS is scanned with each sensor report to get the device’s location. If a GNSS/GPS fix cannot be achieved, WIFI is scanned (RX
only, TX is disabled) for access point data for use with WIFI LAAS.

V2021-11-16 ATD530 USER GUIDE PG 6 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
3.1.2.1 GPS/GNSS DATA
1. Latitude
2. Longitude
3. Speed
4. Bearing (Heading)
5. Altitude
6. Accuracy
3.1.3 COARSE LOCATION DATA
1. Serving cell
a. CID
b. LAC/TAC
c. MCC
d. MNC
e. Short Network Name (Operator ID)
f. Signal Strength
g. RAT
2. Neighbor cells (up to 8)
a. CID
b. LAC/TAC
c. MCC
d. MNC
e. Signal Strength
f. RAT
3. WIFI Access Points (up to 8)
a. MAC
b. Signal Strength
3.2 BUTTON
Button press has three features:
1. Quickly double press = on-demand periodic report
2. Hold the button for >3sec = turn on/off (Long Press)
3. Quickly press once = check the mode
3.2.1 QUICK DOUBLE PRESS
Pressing the button twice quickly results in a dedicated (“btn”) sensor report published to the cloud. Note that the device will not
recognize more than one double-button press every 3 minutes.
When the double-button is pressed, the LEDs will illuminate and when the Green LED stops flashing and illuminates solid, the device
has published the message to the cloud.

V2021-11-16 ATD530 USER GUIDE PG 7 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
3.2.2 LONG BUTTON PRESS FOR TURN ON/OFF
Pressing the button continuously for 3 seconds or longer results in the device turn on or off.
3.2.3 QUICK SINGLE PRESS
Press the button once quickly to check the current tracker status on or off.
1. If the red LED blinks once the device is turned on
2. If the red LED blinks twice, the device is turned off
3.3 LED INDICATORS
3.3.1 ACTIVE MODE (TURNED ON)
While turned on, the LEDs are normally off, and will illuminate for about 30 seconds when the button is pressed.
Table 3.1
LED OFF 1 flash/sec 2 flashes/sec ON
Blue:
GPS status
indicator
Sleep mode Acquiring GPS
location fix
N/A GPS location acquired
Green:
Network status
indicator
Sleep mode
or
Normal
Disconnect
Searching for
cellular network
or Connecting to
Cellular Network
Connected to
cellular network
(No MQTT
Connection)
Connected to cellular
network
(MQTT connected)
Red:
Power status
indicator
Sleep mode Blink once to
indicate Turned
On
Low Battery

V2021-11-16 ATD530 USER GUIDE PG 8 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
3.3.2 WHILE DEACTIV ATED (TURNED OFF)
Table 3.2
LED Turning off Short Button Press
Blue:
GPS status indicator
Off Off
Green:
Network status indicator
Off Off
Red:
Power status indicator
Blink Twice Blink Twice
3.3.3 TEST MODE LED INDICATORS
While in test mode the device will blink only the green LED at a rate of 1x/sec if turned on.
4 CONTACTS
 [e-mail]
 https://mobilogix.com/contact/
5 DISCLAIMERS
5.1 FCC INTERFE RENCE STATEMENT (PART 15.105 (B))
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.

V2021-11-16 ATD530 USER GUIDE PG 9 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an
experienced radio/TV technician for help.
5.2 FCC PART 15 CLAUSE 15.21
Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate
the equipment.
5.3 FCC PART 15 .19(A) [INTERFERENCE COMPLIANCE STATEMENT]
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

V2021-11-16 ATD530 USER GUIDE PG 10 OF 10
5500 TRABUCCO ROAD SUITE 150, IRVINE, CALIFORNIA 92620
P: [phone]
E: [e-mail]
© MOBILOGIX, INC.
5.4 ISED RSS-GEN NOTICE
This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes:
(1) l’appareil ne doit pas produire de brouillage;
(2) l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’encompromettre le
fonctionnement.
5.5 FCC RF E XPOSURE GUIDANCE STATEMENT
In order to comply with FCC/ISED RF Exposure requirements, this device must be installed to provide at least 20 cm separation from
the human body at all times.
5.6 ISED RF E XPOSURE GUI DANCE STATEMENT
In order to comply with FCC/ISED RF Exposure requirements, this device must be installed to provide at least 20 cm separation from
the human body at all times.
Afin de se conformer aux exigences d'exposition RF FCC / ISED, cet appareil doit être installé pour fournir au moins 20 cm de
séparation du corps humain en tout temps.
6 VERSION HISTORY
Date Description
2021-11-16 Document release.
