Mx2wire+ User Manual
EN
Security-Vision-Systems
Latest PDF file:
www.mobotix.com > Support > Manuals
e.g., bell wire
up to 300 m
e.g., coaxial cable
up to 500 m
e.g., power cable
up to 300 m
e.g., Cat7 cable
up to 500 m
Supplies End Devices With Up To
PoE Class 3 (Max. 13 Watts)
Ethernet Network With PoE.
Via Two-Wire Cable.
Mx2wire+ turns an existing two-wire cable into a modern multimedia
cable – simply, quickly and cost-eciently

Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security Vision Systems • Made in Germany
www.mobotix.com • [email protected]
2/44
MADE IN GERMANY
MOBOTIX Seminars
MOBOTIX oers inexpensive seminars that include workshops and practical exer-
cises.
For more information, visit www.mobotix.com > Seminars.
Copyright Information
All rights reserved. MOBOTIX , the MX logo, MxControlCenter , MxEasy and MxPEG
are trademarks of MOBOTIX AG registered in the European Union, the U.S.A., and
other countries.
Microsoft , Windows and Windows Server are registered trademarks
of Microsoft Corporation.
Apple , the Apple logo, Macintosh , OSX , iOS , Bonjour , the
Bonjour logo, the Bonjour icon, iPod and iTunes are trademarks of Apple Inc. registered
in the U.S.A. and other countries. iPhone , iPad , iPad mini and iPod touch are Apple
Inc. trademarks.
Linux is a trademark of Linus Torvalds. All other marks and names
mentioned herein are trademarks or registered trademarks of the respective owners.
Copyright © 1999-2014 MOBOTIX AG, Langmeil, Germany. Information subject to
change without notice!
Download the latest version of this and other manuals as PDF files from
www.mobotix.com> Support > Manuals.

Contents
© MOBOTIX AG • Security Vision Systems • Made in Germany
www.mobotix.com • [email protected]
3/44
1 Introduction 6
1.1 Two-Wire Cables 7
1.2 Automatic Device Configuration 8
1.3 Application Examples 9
1.4 Overview: Performance Data 15
2 Installation 20
2.1 Delivered Parts and Components 20
2.2 Housing and Connectors 21
2.3 Mounting Instructions 22
2.4 Preparing the Installation 23
2.5 Set the PoE Class of the Power Supply 27
2.6 Installation Using Cavity or In-Wall Socket 28
2.7 Installation with On-Wall Socket 30
3 Operation 32
3.1 Transfer of Data and Power 32
3.2 Connection Options (Positioning of PoE Power Supply) 35
3.3 LED Signaling: Operating Statuses and Error Messages 38
3.4 Additional Notes 40
Manufacturer 43
Mx2wire+ transfers data as well as power according to the PoE standard!
Mx2wire+ uses an ecient encryption method (128-bit AES), unlike a standard network cable!
Mx2wire+ does not require a separate power connection!
Mx2wire+ uses existing telephone, power or antenna cables and therefore eliminates
the enormous amount of time and eort normally required for cabling!
Mx2wire+ turns an existing two-wire cable into a modern multimedia cable –
simply, quickly and cost-eectively!
Mx2wire+ is a quality MOBOTIX product made in Germany: 100 percent guaranteed!

Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security Vision Systems • Made in Germany
www.mobotix.com • [email protected]
4/44
FOREWORD
Dear MOBOTIX customer,
Congratulations on your decision to select an innovative quality product ‘Made in Germany’!
The 2nd-generation Mx2wire+ media converter (available as of 11/2011) allows you to
transform a two-wire cable into a network cable including PoE power supply with a maxi-
mum power output of 13 watts (PoE class 3) in just a few minutes.
Minimal installation eort is required to replace an analog telephone with an IP tele-
phone, for instance. Or you can use the existing coaxial cable of an old analog camera
to replace this camera with a modern MOBOTIX HiRes camera with up to a thirty times
higher image resolution.
Please make sure that all components are included as listed in the overview in
Section 2.1 .
The manual then gives you a brief overview of the innovative product concept and presents
you with practical ways to use the Mx2wire+ media converter. This is followed by all the
information you need to install and operate the device.
If you have any questions, you can contact our support sta at [email protected]
from Monday to Friday, 8 a.m. to 6 p.m. (German time). Support is free of charge (not
including your connection costs).
We would like to thank you for your trust and wish you all the best with your MOBOTIX product!
Your MOBOTIX Team
Important Notes
Never Disconnect the Mx2wire+ Sets
The two identical Mx2wire+ units can only be used together in a prepackaged set. The
units are paired to one another with the same seven-digit network ID. The network ID
can be found on the white sticker in the upper left corner on the front side of the circuit
board (behind the front panel with the RJ45 port). If one Mx2wire+ unit is replaced with
a unit from another set, a software tool (available soon from MOBOTIX) needs to be
used to change the network ID manually.
Electrical Installation
Electrical systems and equipment may only be set up, changed and maintained by a
qualified electrician (or under the management and supervision of a qualified electri-
cian) in accordance with electrotechnical regulations.
Data Transfer Rates and Cable Lengths
We have tested the product very carefully and, instead of specifying non-recurrent peak
values, we only provide the important net data rate, which was measured over a long period
of time. However, we can provide no guarantee of possible cable lengths, data rates and
power transmission, as various physical factors are not within the area of responsibility
of MOBOTIX (sources of interference such as machines or power cables, the condition
and quality of the cables used, etc.). The nominal data rate, connection length and power
transmission can only be individually tested and determined at the place of installation.

Contents
© MOBOTIX AG • Security Vision Systems • Made in Germany
www.mobotix.com • [email protected]
5/44

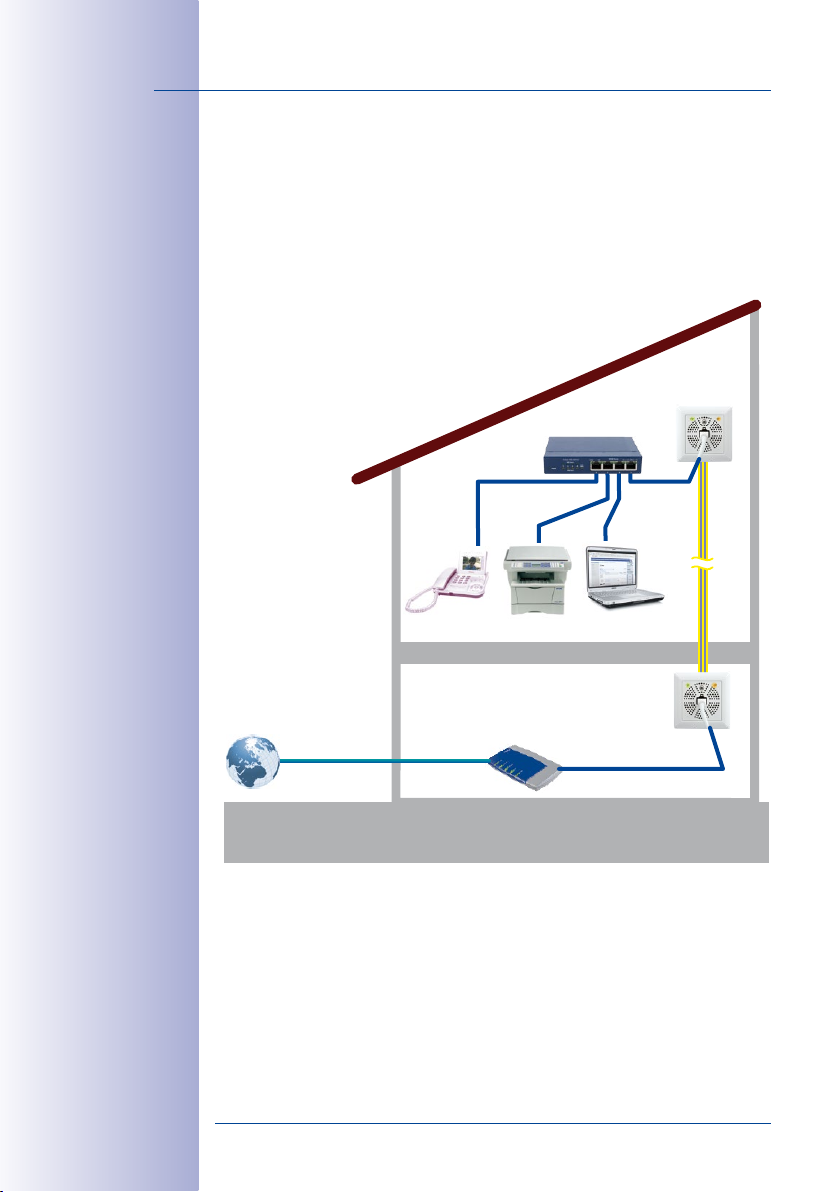

Enjoy the Unique Advantages Oered by Mx2wire+
In many houses television, telephone and other distribution networks based on two-wire
cables are already installed, but no longer used. For example, a previously cable-bound
telephone system may have been replaced by a wireless one. Existing, unused cables
can now be quickly connected to Mx2wire+ and transformed into network connections
throughout an entire building. An old analog camera can also be instantly exchanged for
a digital, high-resolution MOBOTIX network camera without the need for any recabling
and with all the associated benefits.
New Possibilities, More Convenience:
• Ethernet and PoE data transfer using a two-wire cable
• Simple connection of 10/100Mbps Ethernet end devices (e.g., IP camera, IP telephone)
• Power supply for Mx2wire+ and end device via PoE/PoE+ or 48–57VDC, 600mA
• Connected end devices are supplied with up to 13 watts via PoE (PoE class 3)
• Maximum data transfer range of 500 m and data rate of up to 50 Mbps (depending on
distance)
• No need for expensive and time-consuming installation of network cables
• Perfect for wireless communication is not possible (due to distance to sender, thickness
of walls, etc.)
• Network extension, including PoE, by connecting a Cat7 cable of up to 500m in length
as a two-wire cable
• Simple installation in standard sockets (surface- or flush-mounted)
• Two LEDs display current connection and supply statuses
• Developed, produced and patented by MOBOTIX Germany
Oce with several
PoE end devices Home with network connection

6/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
1 INTRODUCTION
Using the Mx2wire+ system from MOBOTIX, an Ethernet network with PoE can be estab-
lished using existing cables up to 500 m. This means that you can utilize a two-wire cable
that is no longer in use (analog telephone line, antenna cable or bell wire, for instance)
to connect a 10/100Mbps Ethernet device such as a PC, Wi-Fi, IP camera, IP telephone or
IP door station without having to lay any new cables or implement any other construc-
tional measures. An (identical) Mx2wire+ unit is required at both ends of the cable, and
it automatically configures itself as either the sender or the receiver (MOBOTIX patent).
Two-wire cable
max. 500 m
Mx2wire+ Mx2wire+
TCP/IP
PoE
PoE out
max. 13 W
PoE switch/injector
IEEE 802.3af/at
Data & power
max. 10 m
The significant benefit of Mx2wire+ is that, in addition to data, the power to operate PoE
end devices (Power-over-Ethernet according to the IEEE 802.3af standard, a MOBOTIX
network camera, for example) can also be transferred via the two-wire cable.
Mx2wire+ is delivered via PoE from a network cable that feeds in. The connected end
devices are supplied with up to 13 watts via PoE. Mx2wire+ does not therefore require
its own power supply, as the network distributor (switch) typically supplies power over
the data cables (PoE) so that the two Mx2wire+ units as well as the standard PoE end
device are supplied.
Mx2wire+ is delivered in the standard wall outlet frame in dierent designs, however, it
can also be used with the available on-wall socket that is included.
Note
Mx2wire+ takes over the cable function for network and PoE, therefore, the cable
cannot be simultaneously used for power, analog telephone or antenna connection
anymore!
Mx2wire+ requires a PoE
power supply via a stan-
dard PoE switch (class 0,
IEEE 802.3af or class 4,
IEEE 802.3at) for
operation
If no PoE switch is used,
power can also be sup-
plied using the NPA-PoE
set from MOBOTIX
or a DC power supply
unit (
Section 3.2 )

7/44
Two-Wire Cables
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]

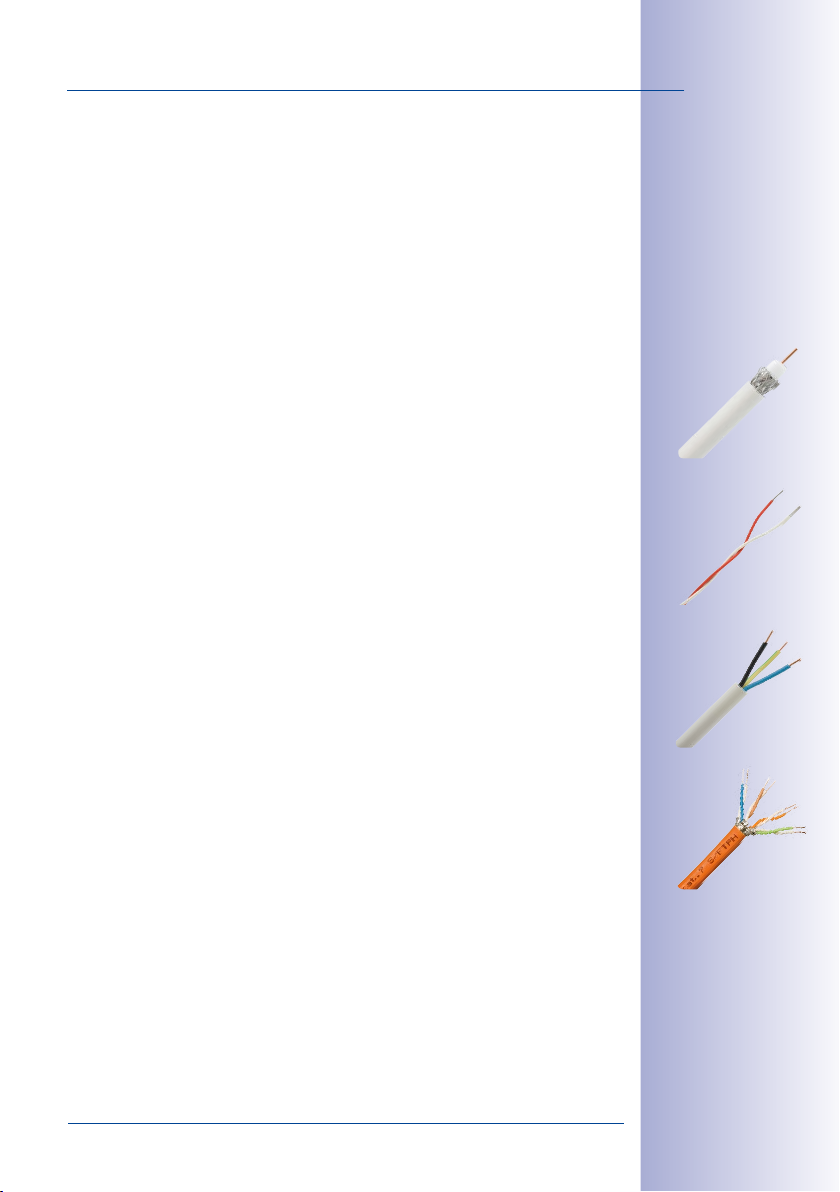

1.1 Two-Wire Cables
A two-wire cable is usually a two-wire copper cable whose two wires are twisted together
(twisted pair). A classic two-wire cable is an analog telephone wire with a wire diameter
of 0.8 mm, which, in terms of quality (according to the ISO/IEC 11801 standard), corre-
sponds to a category 1 cable for voice transmission. MX2wire+ can also be operated using
untwisted cables that have at least two wires forming a physical connection between the
two Mx2wire+ units. Please note that the quality, length and diameter of the two-wire cable
used all have an influence on the transfer of data and the PoE output (see Section 1.4 ).
Antenna or Coaxial Cable (e.g., for an Analog Camera)
• Cable type: RG according to MIL-C-17 (coaxial cable)
• An analog camera can be easily exchanged for an IP camera
• Interference-free thanks to closed systems and cable shielding
• Range (at 40Mbps): 500 m
Analog Telephone Line or Bell Wire (e.g., for an IP Telephone)
• Cable type: JY, A2Y and YR (telephone and low-voltage cable)
• Very good availability in buildings
• Core diameter 0.6 to 0.8mm
• Range (at 40Mbps): 300 m
Power Line (Should No Longer Be Live)
• Cable type: NY (installation cable)
• Widespread availability of cables
• Cables must be disconnected from the power supply!
• Wire cross-section max. 2.5 mm
2
• Range (at 40Mbps): 300 m
Ethernet Installation Cable (for Extending the Network)
• Cable type: Cat7 (S/FTP, 4x2xAWG 23, 1000MHz)
• Long range data and power transmission
• Range (at 40Mbps): 500 m
By correctly combining
or twisting additionally
available wires to form
two wires or cables, the
transmission line for
data and power can be
considerably increased

8/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
1.2 Automatic Device Configuration
When data and power are sent via the two-wire cable, a (feeding) Mx2wire+ unit func-
tions as the sender while the other unit functions as the (data) receiver. The sender is the
Mx2wire+ unit that is supplied directly from the PoE switch. Communication between the
units is possible in both directions, as the ‘sender’ and ‘receiver’ roles always configure
themselves automatically.
Two-wire cable
max. 500 m • PoE out: max. 13 Watt
Mx2wire+ Mx2wire+
Sender/Receiver
Sender/Receiver Sender/Receiver
Note
Greater data security: The Mx2wire+ media converter uses an ecient encryption
method (128-bit AES), unlike a standard network cable.
Transmitting and receiv-
ing in both directions
Power can be sup-
plied from both sides,
even simultaneously

9/44
Application Examples
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
1.3 Application Examples
A) Exchanging an Analog Camera for an IP Camera
Anyone who would like to benefit from the numerous cost and technological advantages
of a high-resolution MOBOTIX IP camera, but has an analog camera already installed, can
continue to conveniently use the camera's coaxial cable as a two-wire cable. A standard
power supply (48VDC, 600mA) whose voltage outputs are connected to an Mx2wire+
unit is used for the PoE power supply for the IP camera. The existing Wi-Fi DSL router con-
nected to the second Mx2wire+ unit is used for remote camera access via the Internet
and the Dynamic Domain Name System (DynDNS) entry.
Wi-Fi router
Old coaxial cable
Data and power
Remote
camera access
via the Internet
Power sup-
ply unit
48-57 V DC
Coaxial cables are
ideally suited for longer
distances (up to 500 m)
Only the analog camera
needs to be replaced
with a HiRes camera.
The coaxial cable and
potentially even the
analog camera's power
supply unit can still be
used

10/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
B) Connecting a PC to the Internet in a Separate Apartment
An Internet connection exists on the ground floor of a house and a PC in a separate
apartment within the house is supposed to be added. The concrete walls and/or distance
make a network extension via WLAN impossible. In this example, Mx2wire+ is simply
connected to the two wires of the analog telephone line that is no longer being used. All
that Mx2wire+ requires to supply power to the end device (PC) and for its own consump-
tion is a PoE switch or injector.
Separate apartment
Home
Old telephone line
DSL, data and power
DSL router
PoE switch/injector
IEEE 802.3af/at
Mx2wire+ eliminates
the enormous amount of
time and cost normally
required for cabling
simply by reusing the
old telephone line as
a network cable

11/44
Application Examples
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
C) Connecting a Wi-Fi Router to a Remote DSL Connection
The DSL connection is on the ground floor. Several PCs located two floors higher are to
be connected to this. WLAN cannot be used over the entire distance. The distance from
the router on the ground floor to the second floor can be bridged by Mx2wire+ and an
analog telephone line, for example. By connecting a Wi-Fi router to the Mx2wire+ unit on
the second floor, the PCs there can now access the Internet via Wi-Fi.
DSL router
Old telephone line
DSL, data and power
Wi-Fi router
PoE switch/injector
IEEE 802.3af
Power is supplied
to the Wi-Fi router
via the Mx2wire+
devices (max. 13 W)
The concrete ceiling
makes it impossible to
set up a WLAN connec-
tion to the top oor

12/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]

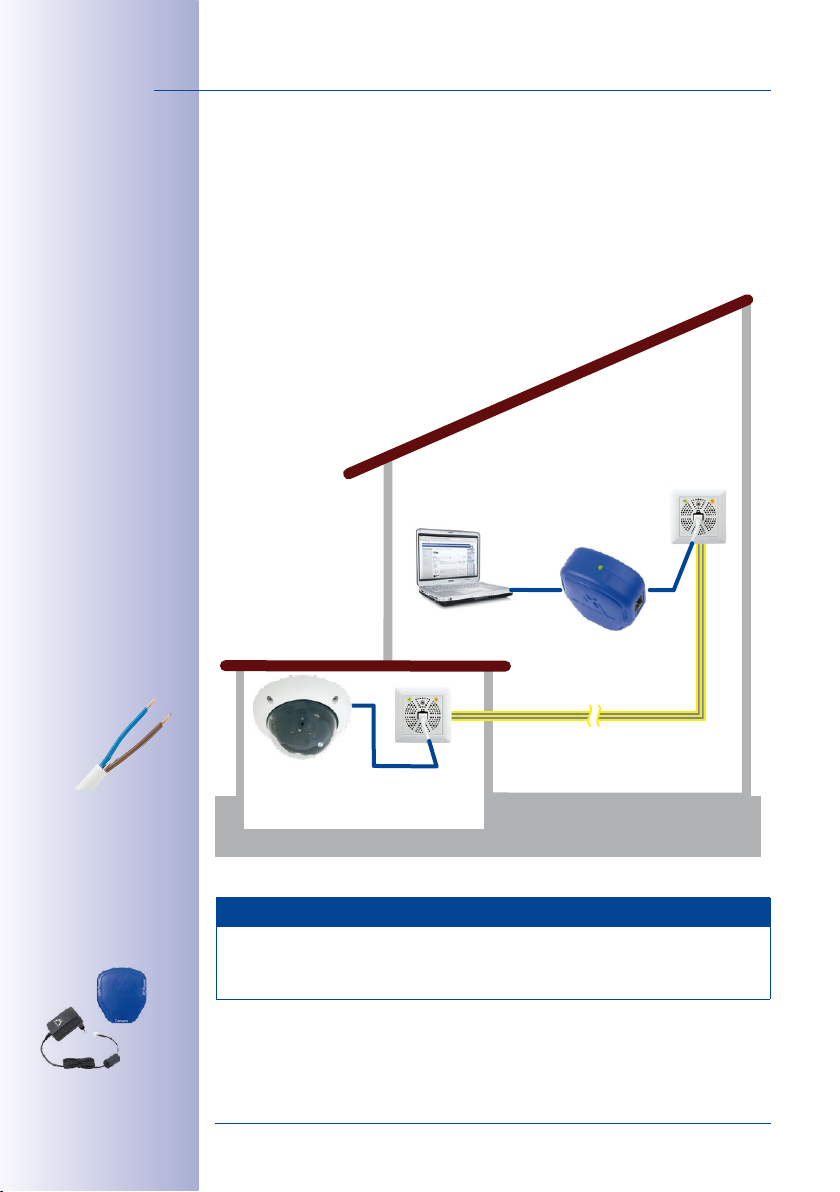

D) Connecting an IP Camera to a PC
Mx2wire+ allows an old power line to be used to connect a modern, PoE-supplied IP
camera including audio/video and switch functions. A standard PoE switch/router or the
compact MX-NPA-PoE set including crossover function (as shown here in the example)
is used for the PoE power supply. A patch cable (at least Cat5) is used to connect the PC,
which serves to control the camera, directly to the PoE switch.
Garage
Home
Old power line
Data and power
MX-NPA-PoE set
MOBOTIX Injector for the PoE Power Supply (According to IEEE 802.3af)
Mx2wire+ requires the correct power supply for all installations. Here, you can choose
between a standard PoE/PoE+ switch/router, a power supply unit and the MX-NPA-PoE
set that is available from MOBOTIX as an accessory.
Here, a two-wire cable,
formerly used as a power
connection, serves to
connect an IP camera
in a garage while keep-
ing costs to a minimum
No power supply is
necessary for the
camera in the garage
The MOBOTIX PoE
injector is available
as an accessory
(MX-NPA-PoE set)

13/44
Application Examples
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
E) Replacing an Analog Telephone with an IP Video Phone
A DSL connection and a PC can be found on the ground floor. An analog telephone line
extends upstairs from the ground floor. Mx2wire+ is used to transform the telephone line
into a network cable that can transport data as well as power. The old telephones can
easily be replaced with IP video phones that are also supplied with power from the PoE
switch via Mx2wire+.
Old telephone line
DSL, data and power
DSL router
IP video telephone
(PoE supply)
IP video phone (PoE supply)
PoE switch/injector
IEEE 802.3af/at
No power connection
is required for the
Mx2wire+ device and
IP telephone as up to
13 watts of power can
be supplied via PoE

14/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
F) Connecting Several Network End Devices Via Mx2wire+
An Internet connection exists on the ground floor. An oce with various network devices
(PCs, printers and IP video phones) is to be set up on the first floor. Mx2wire+ is connected
to the two wires of the analog telephone line that is no longer used. All that Mx2wire+
requires to supply power to the IP telephone and for its own consumption is a PoE switch,
to which the remaining network devices can also be directly connected.
Old telephone line
DSL, data and power
DSL router
PoE switch/injector
IEEE 802.3af/at
The PoE switch on
the rst oor serves
to supply power to
the Mx2wire+ device
in the basement
Mx2wire+ turns the for-
mer telephone line into a
network cable for several
end devices in the ofce

15/44
Overview: Performance Data
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
1.4 Overview: Performance Data
The data rates shown in the tables are net data rates, also referred to as the payload,
which are given in Mbps. In contrast to the gross data rates (including the data load for
the operation of the system) that are usually provided when the performance data of DSL
connections is specified, for instance, the amount of data shown here is the actual amount
of data that is fully available to the end device operated on the Mx2wire+ receiver unit.
As an example, a MOBOTIX network camera only requires a data rate of approximately
2.5Mbps.
Notes
When long cables are used, voltage drops may make it impossible to supply end devices
with power, so a separate power supply must be provided. In other words, the data range
is generally greater than the maximum power transmission line. A separate voltage
source (48–57VDC, 600mA) can be connected to both Mx2wire+ units. The maximum
PoE power consumption for the end device is 13 watts (corresponding to PoE class 3).
Only a network patch cable with a maximum length of typically ten meters should be
connected directly to an Mx2wire+ unit in order to bridge the path to the next device
(switch, router, PC, PoE injector or IP camera, for example).
No provision is made by MOBOTIX for any further extension of the network, for example,
by connecting a longer network cable to Mx2wire+.
It is not possible to link more than two Mx2wire+ units.
Overview: PoE Power Level Classes (IEEE 802.3af and 802.3at Standards)
Class Max. Power Consumption
0 0.44W–12.95W for Mx2wire+
1 0.44W–3.84W
2 3.84W–6.49W for end device (max.) with power supply via PoE
3 6.49W–12.95W
for end device (max.) with power supply via PoE or power supply
unit (48–57VDC)
4 12.95W–25.5W
Class 4: IEEE 802.3at (PoE+)
This brief overview contains sample power output data that was obtained by MOBOTIX
under real conditions and using standard benchmark test procedures. Refer to the follow-
ing pages for more detailed information on power output. You will find tables with the net
data rates and power output values depending on the type and length of the two-wire
cable and the type of power supply (PoE class 3, class 4 or via the MOBOTIX NPA-PoE set,
a particularly powerful class 3 PoE injector).
By correctly combining
or twisting addition-
ally available wires
to form two wires or
cables, the maximum
transmission line for
data and power can be
considerably increased
Mx2wire+ supplies end
devices with up to 13 W
of power (up to class 3)

16/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]

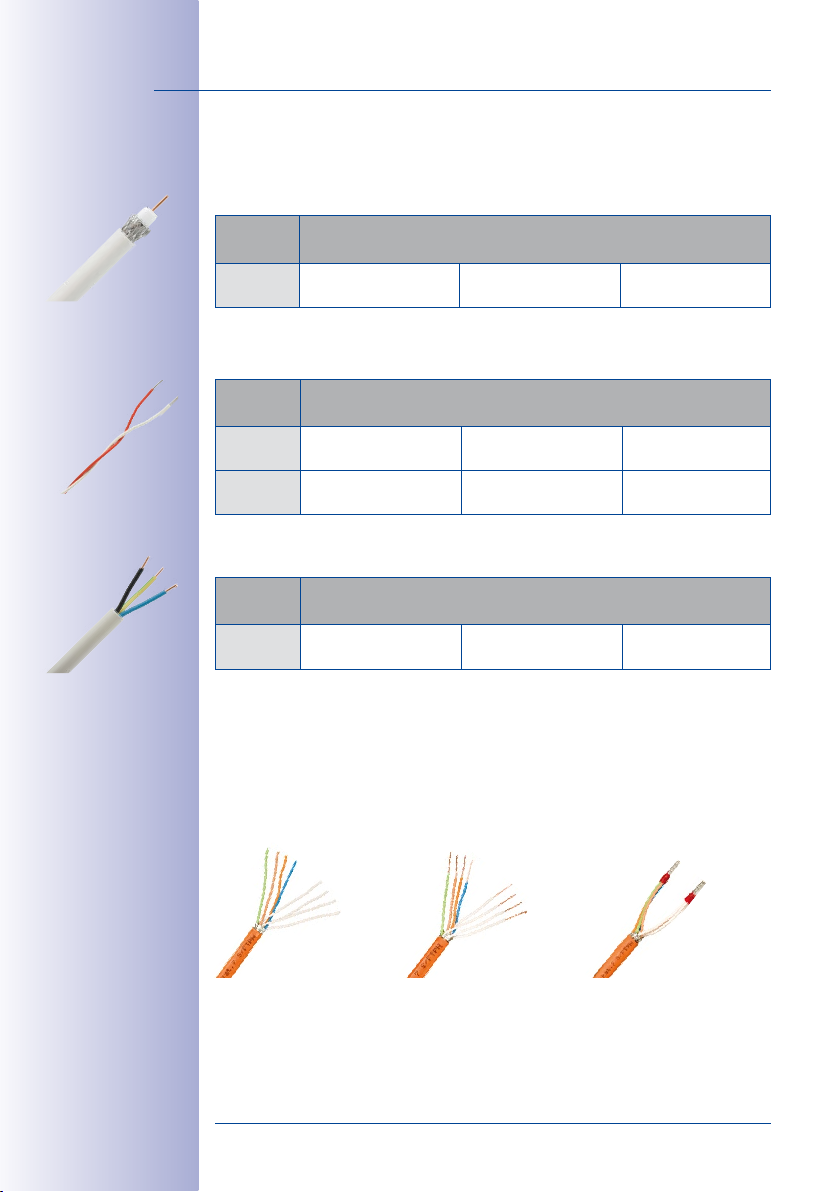

Overview: Maximum power levels for Mx2wire+
(power supplied via: PoE+, IEEE 802.3at)
Antenna or Coaxial Cable
Thickness
Length of coaxial cable
50 m 100 m 500 m
0.6mm
inner core
Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 11W
Data: 45Mbps
Power: none
Telephone Line and Bell Wire
Thickness
Length of telephone line/bell wire
50 m 100 m 200 m
0.6 mm Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 8W
0.8 mm Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Installation Cable
Thickness
Length of installation cable
50 m 100 m 200 m
1.5 mm2Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Extending the Range with Network Installation Cables
Mx2wire+ can also be used to extend the range of an Ethernet connection that is limited
to just 100m in length (between the PoE switch and end device). For this purpose, a Cat7
installation cable is converted to a two-wire cable as follows: Open the four twisted wire
pairs and remove approx. 7mm of insulation from the ends. Then connect the four white
wires and the four colored wires to one cable respectively and attach wire-end sleeves.
Open the four
twisted wire pairs
Remove
insulation from the
ends of all eight wires
Combine 4x white
and 4x colored
Use two wire-end sleeves
to connect to the two
Mx2wire+ connectors

17/44
Overview: Performance Data
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
In conjunction with Mx2wire+, PoE class 3 power can be transmitted over a distance of
500m at a data rate of approx. 45Mbps.
Type
Length of network installation cable (use of all four wire pairs)
200 m 300 m 500 m
Cat7 Data: 50Mbps
Power: 13W
Data: 50Mbps
Power: 13W
Data: 45Mbps
Power: 12W
Due to physical constraints, cables exceeding a certain length can still transfer data but
not power. When installations have no PoE-supplied end devices (PCs, for example), the
range of the two-wire cable may increase significantly, provided that low data rates are
sucient for the application.
Note on Data Transfer Rates and Cable Lengths
We have tested the product very carefully and, instead of specifying non-recurrent peak
values, we only provide the important net data rate, which was measured over a long
period of time. However, we can provide
NO guarantee of possible cable lengths, data rates and power transmission,
since various physical factors are not within the area of responsibility of MOBOTIX
(sources of interference such as machines or power cables, the condition and quality of
the cables used, etc.). The nominal data rate, connection length and power transmission
can only be individually tested and determined at the place of installation.

18/44 Mx2wire+ User Manual: Introduction
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
Table of Net Data Rates and Power Output
Cable Length (in Meters) 50 100 200 300 400 500
Coaxial Data (inMbps) 50 50 50 50 50 45
Power in W (PoE) 6.5 4.5 1.5 0 0 0
Power in W (NPA) 7 6.5 5.5 5 3 2
Power in W (PoE+) 13 11 6 3 1.5 0
Bell wire
0.6mm
Data (inMbps) 50 50 50 40 0 0
Power in W (PoE) 7 6.5 3 1 0 0
Power in W (NPA) 7 7 6 5.5 0 0
Power in W (PoE+) 13 13 8 5 0 0
Bell wire
0.8 mm
Data (inMbps) 50 50 50 40 0 0
Power in W (PoE) 7 7 6 3.5 0 0
Power in W (NPA) 7 7 7 6.5 0 0
Power in W (PoE+) 13 13 13 10 0 0
0
NYM
1.5mm2
Data (inMbps) 50 50 50 40 0 0
Power in W (PoE) 7 7 7 7 0 0
Power in W (NPA) 7.5 7.5 7 7 0 0
Power in W (PoE+) 13 13 13 13 0 0
Cat7
(4 pairs)
Data (inMbps) 50 50 50 50 50 45
Power in W (PoE) 7 7 7 6.5 6 6
Power in W (NPA) 7.5 7.5 7 7 7 6.5
Power in W (PoE+) 13 13 13 13 13 12
Reader’s guide to the table:
When upgrading a 1coaxial cable to a two-wire cable with the 2MOBOTIX NPA-PoE
set to supply power using a cable length of 3300 meters, you can achive a net data
rate of 450 Mbps. The connected PoE end device (for example, a MOBOTIX IP camera)
is continuously supplied with 5five watts of power.
PoE power level classes:
class 0: 0.44–12.95 W
class 1: 0.44–3.84 W
class 2: 3.84–6.49 W
class 3: 6.49–12.95 W
1
2 5
4
3

19/44
Overview: Performance Data
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
Net Data Rates (in Mbps)
Coaxial
Bell wire 0.6mm
Bell wire 0.8mm
NYM 1.5mm2
Cat7 (four pairs)
Mbps
60
50
40
30
20
10
0
50 100 200 300 400 500 m
Power Output with PoE Power Supply (in Watts)
Coaxial
Bell wire 0.6 mm
Bell wire 0.8 mm
NYM 1.5mm2
Cat7 (four pairs)
Watts
12
10
8
6
4
2
0
50 100 200 300 400 500 m
Power Output with NPA-PoE Power Supply (in Watts)
Coaxial
Bell wire 0.6 mm
Bell wire 0.8 mm
NYM 1.5mm2
Cat7 (four pairs)
Watts
12
10
8
6
4
2
0
50 100 200 300 400 500 m
Power Output with PoE+ Power Supply (in Watts)
Coaxial
Bell wire 0.6 mm
Bell wire 0.8 mm
NYM 1.5mm2
Cat7 (four pairs)
Watts
12
10
8
6
4
2
0
50 100 200 300 400 500 m
Net data rate (that
can be effectively used
by the end device)
Power supply: PoE accord-
ing to IEEE 802.3af
Power supply:
MOBOTIX NPA-PoE set
Power supply:
PoE+ according to
IEEE 802.3at or
DC power supply unit
(48–57 V, 600 mA)

20/44 Mx2wire+ User Manual: Installation
© MOBOTIX AG • Security-Vision-Systems • Made in Germany
www.mobotix.com • [email protected]
2 INSTALLATION
2.1 Delivered Parts and Components
1.7
1.8
1.9
1.1
1.2
1.3
1.4
1.5
1.6
Item Number Part Name
1.1 2 Mx2wire+ housing and circuit board including stainless steel
screw (2x11mm)
1.2 2 Front panel including stainless steel screw (M3x12mm)
1.3 6 White frames: 2 concave, 2 convex, and 2 flat
1.4 8 Self-tapping stainless steel screws (3x10mm)
1.5 2 Torx wrench for Torx screws
1.6 8 Torx screws (M3, 5x40mm), washers (3.5mm), screw anchors
1.7 2 White on-wall socket, height of 35mm, including 8-wire plug
1.8 4 Two plugs for 3-5mm cables and two plugs for 5-7 mm cables
(alternative to 8-wire plug)
1.9 2 Cavity socket
Components of an
Mx2wire+ unit (each
set contains two units)
Items 1.1, 1.2 and 1.3 are
joined together when
delivered and must be
separated before the
installation
