Modena Purificare Series Owner's manual

User
Manual Book
Sterilizer & Dryer
Purificare Series
SD 0630 U

2
TABLE OF CONTENT
Part 1: Safety Information 3
Safety Precaution 3
Environmental Notice 5
Part 2: Name of Parts 6
Part 3: Quick Start Guide 7
Water Collection Box 7
Storing Tableware 7
Front Cover 7
Setting The Timer 8
Operating Mode 8
Panel Control 8
Initial Use 8
Function Mode 8
Other Display 10
Child Lock Button 10
Part 4: Maintenance 10
Cleaning 10
Part 5: Troubleshooting 11
Part 6: Specification 12
This guide book explains everything you need to know about your new
product. Please contact our Customer Care should you need further
assistance trhough www.modena.com

3
Safety Precaution
Read this manual book carefully!
This precautions shown to ensure the safe and proper use of the
product and to prevent injury and damage to user or other. The
level of the harm, the damage, the urgency and the safety
precaution caused by improper handling are divided into two:
“Warning” and “Caution”. Make sure to follow all of them for it is
important to ensure the safety.
Cases where improper handling of the appliance could lead to death
or serious injury are listed under the WARNING.
Cases that could also lead to serious result is listed under the
CAUTION.
Description of Illustration
This symbol shows a prohibited action. More specific details are
shown inside or near it. (In this case, do not disassemble).
This symbol shows a direct action. More specific detailsare
showon inside or near it. (In this case, disconnect the power plug
from the outlet).
After reading this manual book, make sure to keep it where the
user can find it anytime.
ATTENTION!
Clean the power plug.
Wipe off any dust on the power cord’s head and branch surface.
Connecting dirty cord may lead to a short circuit or fire.
Insert the power plug into the outlet properly.
Failure to do so may cause an electric shock, short circuit, fire or smoke.
PART 1: SAFETY INFORMATION

4
Use the power outlet with no other device connected. Do not use an extension
cord.
If the appliance is used with other device, the branch of the outlet lead. Jika
peranti digunakan bersamaan dengan perangkat lain, cabang dari steker daya
dapat menghasilkan panas yang tidak wajar yang dapat menyebabkan
kebakaran.
Keep the power plug away from children
Failure to do so may cause an electric shock or injury.
Do not damage, break, modify, forcibly bend, pull, twist, use springs, place
heavy objects, pinch nor bring the power cord near the hot area.
Failure to do so may cause a fire or electric shock.
Do not use if the power cord or plug is damaged or loose when inserted into
the outlet.
Failure to do so may cause electric shock, short circuit or fire.
Do not use near flammable materials such as curtain.
There is a risk of fire.
Do not let childern use the appliance without the adults’ supervision and do not
use within the reach of children.
There are a risk of burns, electric shock and injury.
CAUTION!
Clean after the appliance has cooled down.
Touching the hot parts may cause burn.
When disconnecting the power cord, hold and pull it from the head without
pulling the cord.
Failure to do so may cause an electric shock, short circuit and fire.
Unplug the power cord from the outlet when it’s not used.
Failure to do so can cause injury, burn, electric shock caused by the
insulation’s deterioration and fire as well caused by the short circuit.
Do not place the appliance where there is a gas stove or hot air.
Failure to do so may cause a fire and deformation.
Do not touch the tableware during the operation or immediately after used.
Failure to do so may cause burns.

5
Place the appliance on the horizontal surface.
Do not use near the flame of gas stove, a place where there is
gas container and a sprayer can.
Wipe the dust that stuck in between of the power plug.
Do not cover the exhaust hole on the top.
Do not put the plastic tableware near the heat and plastic bag
into the appliance.
Environmental Notice
The packaging material used is recyclable. We recommend
that you separate plastic, paper and cardboard and give
them to recycling agents. According to WEEE (Waste of
Electrical and Electronic Equipment) guidelines, waste from
electrical and electronic devices should be collected
separately. If you need to remove of this appliance in the
future, do not throw it away with the rest of your domestic garbage.
Instead, please take the appliance to the nearest WEEE collecting
agents, where available.

6

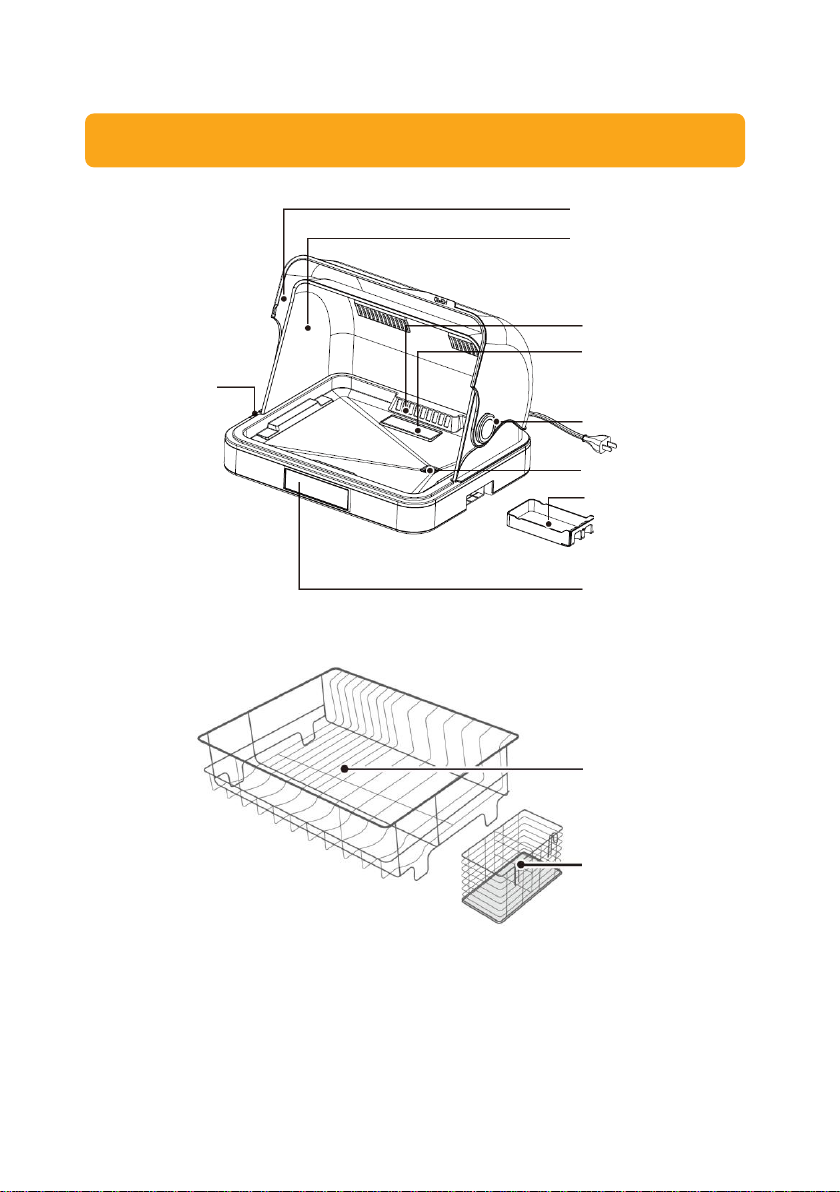

PART 2: NAME OF PARTS
Chopstick basket
Tabbleware
rack
Front cover
Back cover
Hot air outlet
UV Lamp
Hinge cover
Drain hole
Water
collection
box
Touchscreen
panel
Micro switch
*Operation
stops when
the front
cover is open

7
Water Collection Box
Check the water collection box when the pipe hose is not used.
Discard the water before use.
Set the water collection box back to the body.
Check the water collection box when using the drain hose.
Attach the drain hose to the water.
Set the water collection box back to the body.
Install the appliance near the sink so the water will flow out of the
drain hose.
Storing Tableware
Drain the excessive water from the washed dishes before putting
them inside the dryer. (Water may overflow from the water
collection box).
Use the appliance as its function and purpose for tableware rack
only. (Using the appliance for other purpose may lead to
malfunction and void the warranty).
Front Cover
Pastikan penutup depan tertutup.
Plug the power plug into the outlet.
CAUTION!
Do not put knives inside the appliance. This can cause injury.
PART 3: QUICK START GUIDE

8
Setting The Timer
Operating Mode
Panel Control
Initial Use
During the appliance is turning on, all the indicator lights and the
LED screen will be on. After one second, the LED screen will be off
and enter the standby mode.
Function Mode
Press the power button to enter the start up mode. Function button,
timer button is on. Press the function button to select the desired
mode. Mode: automatic, sterilize, drying, storage. If there is no button
pressed for 5 seconds, it will enter the automatic mode.
Power Switch
Feature selction
Time setting
Automatic turn off
Feature selection

9
Automatic mode
Press the “auto” button and the indicator light will be on. The screen
will display three different time options: 41, 51 and 60 minutes. Press
the time button to select the desired time. If there is no button pressed
for 5 seconds, the appliance will run and the countdown will begin.
After finished, it will enter the standby mode. (Fan, heating function
and UV lamp are running simultaneously).
Sterilize mode
Press the “sterilize” button and the indicator light will be on. The screen
will display three different time options: 11, 16 and 21 minutes. Press
the timer button to select the desired time. If there is no button
pressed for 5 seconds, the appliance will run and the countdown will
begin. After finished, it will enter the standby mode. The UV lamp is on.
Drying mode
Press the “drying” button and the indicator light will be on. The screen
will display three different time options: 31, 41 and 51 minutes. Press
the timer button to select the desired time. After 5 seconds if there is
no button pressed, the appliance will run and the countdown will begin.
After finished, it will enter the standby mode. Fan and the heating
function are on.
Storage mode
Press the “maintain” button and the indicator light will be on. The
screen will display time option. In the first 2 hours, all the function will
run for 30 minutes. The UV and fan will be on for 5 minutes every 2
hours with the total of 72 hours. After finished, it will enter the standby
mode.

10
Other Display
During the operation, the light bar will be on one by one from the
middle to the both side. The cycle will continue until the operation
is finished. When it is finished, the buzzer will ring 5 times.
When the fan is running, the fan indicator light will be on until the
operation is finished.
Child Lock Button
Press the function button and timer button at the same time to activate
the child lock button. The child lock button indicator light will be on.
During this mode, each button is not acitve. To cancel the child lock
button, press again the function button and timer button at the same
time.
Cleaning
Please disconnect the power plug from the power socket and let the
appliance cool down before cleaning.
1. Wipe off the appliance with a soft cloth soaked in soap water.
2. Wipe with dry towel to dry it.
3. Do not wash the appliance directly with water.
4. Please keep the tableware and chopstick basket clean regularly.
CAUTION!
Do not use alkaline and abrasive detergent, benzene, thinner and
alcohol to prevent deterioration and discoloration.
PART 4: MAINTENANCE

11
Sebelum menghubungi perwakilan layanan Anda, periksa hal-hal
berikut:
Masalah
Kemungkinan Penyebab
Tindakan Yang
Direkomendasikan
Appliance won’t work
Is the front cover
closed properly?
Is the switch is
pressed?
Close the front cover
properly
Is there a power
failure?
Is the power cord is
connected properly?
When the power is on,
plug it properly
The appliance won’t dry
Is there any failure
with the machine?
Is there an
overheating?
Repair or change
UV Lamp won’t turn on
Is there any failures
with the machine?
Is there an
overheating?
Repair or change
If the problems still occur after checking the table above, disconnect
the power plug from the outlet immediately. Contact the dealer where
you purchased the appliance.
PART 5: TROUBLESHOOTING

12
Model
SD 0630 U
Color
Blue
Type
Sterilizer & Dryer
Sterilization
UV & Ozone
Drying temperature (°C)
75±5
Rack material
SUS 201
Drying time (minutes)
10-60
Rated power input (Watt)
260
Rated voltage
220V/50Hz
Product dimension (W×D×H)(mm)
495×409×362
Product weight (kg)
5
S = Stainless, R = Red, C = Cream, O = Orange, N = Green, U = Blue, W = White, V =
Silver, G = Grey, L = Black
Design and specification can change without prior notice to improve the quality of the
product. The illustration in this manual is schematic and can be different with your actual
product. The values on label or in other documents are according to laboratory test and
relevant standards. Values can vary depending on the actual operational and
environmental condition of the product.
PART 6: SPECIFICATION
