Modena Vicino Series Owner's manual

1
User
Manual Book
Built –In Wine Cellar
Vicino Series
BW 6435
BW 3435

2
TABLE OFCONTENT
Part 1 : Safety Warnings 3
Part 2 : Name of Parts 3
BW 3435 3
BW 6435 3
Part 3 : Installation 4
Part 4 : How to Use 5
Part 5 : Maintenance 9
Part 6 : Troubleshooting 10
Part 7 : Precaution Action 11
Part 8 : Specification 13
This guide book explains everything you need to know about your new product. Please contact our Customer
Care should you need further assistance through www.modena.com.

3
• Please independently use sockets with rated current above 25A. Reliable grounding must be guaranteed.
Please do not use loose or poor contact power sockets, or it easily leads to electric shock, short circuit and
fire;iftheequipmentshareonesocketwithotherelectricappliances,firemaybecausedforabnormalheating.
• When unplugging socket, hold the plug end with a hand to pull it out; do not unplug with the hand holding power cord,
otherwise electric shock, short circuit, fire and other dangers will be caused.
• Only professional repair technicians can disassemble, repair and transform the equipment.
• If the equipment is idle for a long time, please unplug the power plug or turn off the power supply of the
product.
• WARNING: Accessible parts may become hot during use. Young children should be kept away.
• This applianceisnotintendedforusebypersons(including children)withreducedphysical,sensoryormental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.Children should be supervised to
ensure that they do not play with theappliance.
• Ifthe supply cord is damaged, it must be replaced bythe manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard

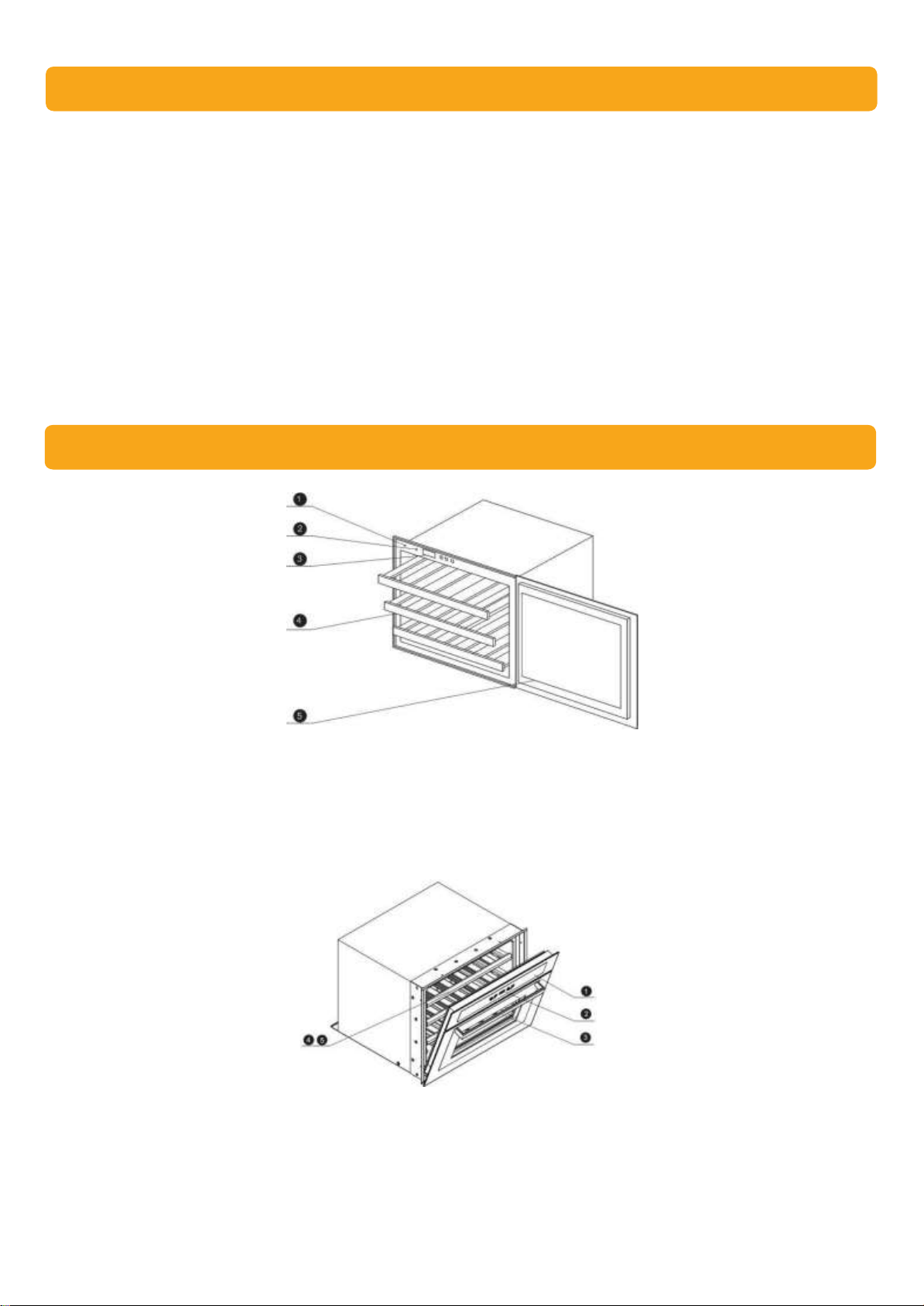

BW 3435
Noted :
1. Light Indicator
2. Power indicator
3. Temperature Display
4. Rack
5. Door
BW 6435
Noted :
1. Door Body
2. Display Screen
3. Door Handle
4. Shelf
5. Guide Rail
PART 1 : SAFETY WARNINGS
PART 2 : NAME OF PARTS

4
Before placing the appliance, follow the instructions below for the correct and safe placement.
Install the wine cellar on even and sturdy surface.
Uneven surface may cause objects in it to fall.
Provide adequate space for air circulation between the
wine cellar and the wall to minimize the operational costs
and to maximize the compressor’s age.
Do not put the wine cellar near the heat source such as
stove, hot plates etc. And avoid placing wine cellar
under direct sunlight which may interfere with the
cooling process.
Do not expose the wine cellar to rain or splashed
water. Using wine cellar that has been exposed to
rainwater will result in electricity leakage. Splashing
water and dirt should be wiped clean with a soft cloth
to prevent rust.
Make sure the voltage is set to 220 volt and the
frequency to 50 Hz and the power outlet is grounded.
Do not use cord extension or branched outlet since it
possess risks of short circuit, overheating and fire.
If the appliance must be installed in a humid
environment, make sure to install a circuit breaker to
avoid short circuit
Installation Method
• Placeinthecabinetposition,thehole shouldbetheappropriatesizeofthecoolerbodysoitcanbeembedded
smoothly in the cabinet.
Product installation size table
Model
Hole Size
BW 3435
W564*H450*D550(The buckle 5mm, Under the buckle 3mm)
BW 6435
• Wine cooler which is installed in the cabinet must be a reliable installation that requires screw holes in the
frame around the sides
PART 3 : INSTALLATION

5
.

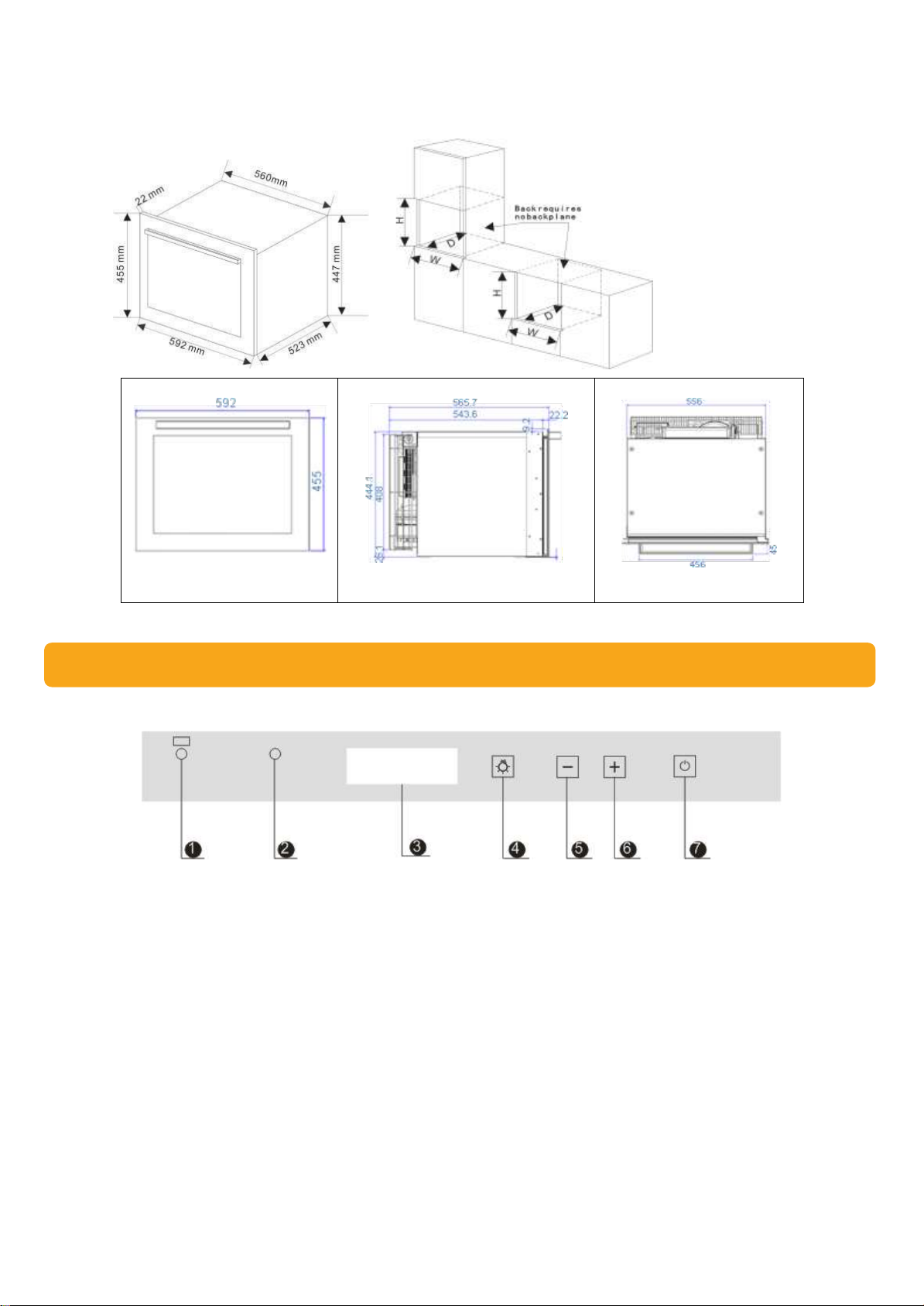

Cabinet hole size chart:
Front View
Side View
Top View
BW 3435
Noted :
1. Lighting Indicator
Indicator when interior light is turned on.
2. Power Indicator
Indicator when device is turned on.
3. Temperature Display
Indicator of temperature in the compartment
4. Lighting Key
To turn on / turn off the interior lights.
5. “-“Key
Button to decrease temperature in the compartment.
6. “+” Key
Button to increase temperature in the compartment.
7. Power Button
To turn on / turn off the device.
PART 4 : HOW TO USE

6

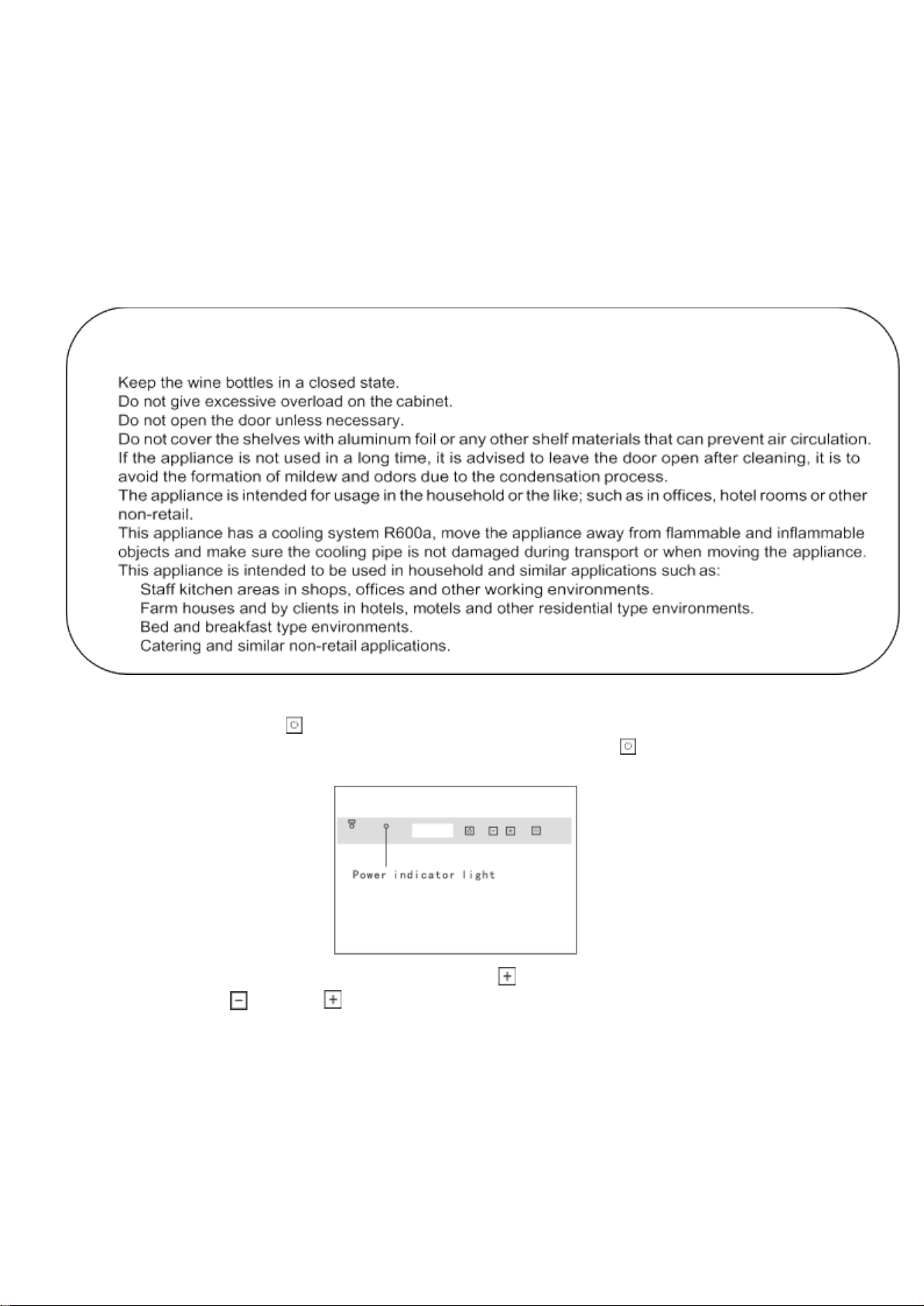

Preparation BeforeUse
• Open the carton box cover, remove and place the Wine Cellar on a flat surface.
• Clean the inside of the appliance.
• Openthe door a while in orderto getair circulation then close itand insert the plug into power socket, the wine
cellar will start.
• This appliance is designed to be for the built-instand.
• The appliance is designed specifically for winestorage.
• Place your wine cooler in the cabinet that is strong enough.
• Thistooluses aflammable refrigerant. Sodonot ever damage thecooling pipesduringtransport ormovingthe
appliance.
• Avoid locating the appliance in humid areas.
Operating Instruction
1. To start the device : Press " power key,"the wine display will appear and power indicator will turn on, after
that the device will be on working state; To turn off the device, press the "
"power key then display will turn
off which indicate the device is turnedoff.
2.
For temperature settings: In working condition, press the" " key for 1.5 seconds, then the digital display will
blink, then press the " " key or " " to set the desired temperature (Mostly, ideal wine storage temperature
is 12
o
C, see the ideal temperature table). After 5 seconds, the display will stop blinking and startchanging
ATTENTION !
•
•
•
•
•
•
•
•
•
•
•
•

7
into the desired temperature.
3.
For lighting function: When theappliance isturned on,press the" " key lights to turn on the interior light, and
click " " key again to turn it off. The interior light is controlled manually, so please turn it offwhen not in use
to reduce power consumption.

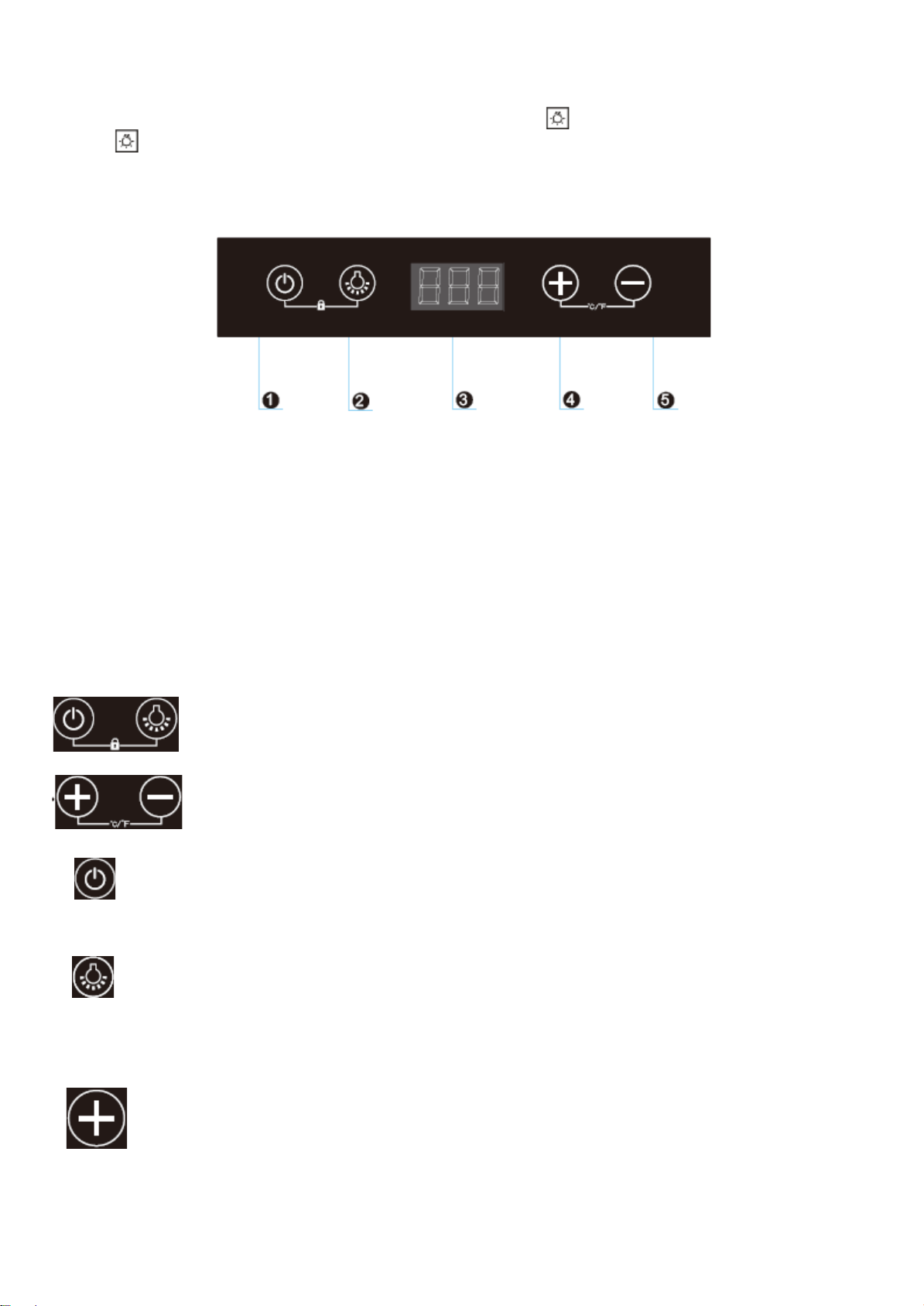

BW 6435
1. Power Button
To turn on / turn off thedevice.
2. Lighting Indicator
Indicator when interior light is turned on.
3. Temperature Display
Indicator of temperature in the compartment
4. “ + “ Key
Button to increase temperature in the compartment.
5. “ - “Key
Button to decrease temperature in the compartment.
Quick start
1.
Child lock key (combined key)
Lock: The key will be locked automatically after power-on or several seconds if no key is
operated, or the key will be locked when the key is pressed for long.
Unlock: To unlock the key, press both keys at the same time for 5s.
2.
Celsius degree/ Fahrenheit degree switchover key (combined key)
Press both keys atthe same time, and then you can switch overbetween the Celsius degree
and Fahrenheit degree for display. Each time the key is pressed, a switchoverwill be made.
When setting the system temperature, it is not allowed to switch over between the Celsius
degree and Fahrenheit degree.
3.
Power on/off key:
1. Press this key for 5S, and then all external power sources will be disconnected and all
external equipment will be turned off, with the cooler in readymode.
2. When the cooler is in the ready mode, press this key, and then the cooler will restore its
normal operation and work under real-time conditions.
4.
Lamp control key and door control switch
The lamp control key is a cycling key: Normally on → Normally off → Normally on. In the
normally-on mode, the lamp will remain lit (at 50% of brightness) when the door is closed,
and at 100% of brightness when the door is open; in the normally-off mode, the lamp will
remain lit at 100% of brightness when the door is open, and will go off when the door is
closed.
Temperature “+” key
1. Functions of temperature “+” key: When the action of this key is detected for the first time,
the LCD screen will indicate the current set temperature in a flashing way and at a certain
interval;atthismoment,thiskey canbe operatedto increase thesettemperatureby 1℃each
time the key is pressed. The LCD screen will indicate the current settemperature
in a flashing way and at a certain interval, and 5s later, if no further action of thiskey is

8
detected, the setting after adjustment will be memorized, and the screen will exit from the
flashing mode and restore the indication of the set temperature.
2. Rules of temperature adjustment: For example: 5℃(current set temperature)
→6℃→7℃→8℃→. . . . . . →2 0℃.
Temperature “-” key:
1. Functions of temperature “-” key: When the action of this key is detected for the first time,
the LCD screen will indicate the current set temperature in a flashing way and at a certain
interval; at this moment, this key can be operated to decrease the set temperature by 1℃
each time the key is pressed. The LCD screen will indicate the current set temperature in a
flashing way and at a certain interval, and 5s later, if no further action of this key is detected,
the setting after adjustment will be memorized, and the screen will exit from the flashing
mode and restore the indication of the settemperature.
2. Rules of temperature adjustment: For example: 2 0℃(current set temperature) →1
9℃→1 8℃→1 7℃→. 5℃.
Bottle Storage
Themain function of wine cooler is to make surethe wine storage under optimal conditions. At the factory setting,
temperature has been set up into 12
o
C which is a most suitable for the storage temperature. Wine has a complex
characteristic which has a long process in order to express its optimal characteristics, which require specific
environment. All the wines are produced at the same temperature, but according to their different qualities and
taste, it must bestored at different temperatures (View thetable "Ideal wine temperature"). Therefore the absolute
temperature value is not important for the preservation of wine butthe stable temperature that must be concerned
in a certain time. Wine storage at any temperature is ideal, as long as there is notemperaturechanging.
Placing WineBottles
This wine cooler is recommended to store until 24 bottles (standard, hybrid and Rhenish wine bottles) so it can be visible
and easy to move. Each shelf can contain 6 wine bottles and also it can put 6 larger bottles in the bottom of wine cooler.
Placing ChampagneBottles
Champagne bottles has larger size than others so it must be placed in the bottom of wine cooler, so it can be stacked 5
bottles inside the wine cooler. To put more than five bottles of champagne, please remove all the shelves, and then place
the bottle into two piles, so it can fit into 9 bottles inside the wine cooler
Ideal Wine Temperature
This following table tells the ideal temperatures for manytype of liquor storage as areference to set the wine
cooler temperature.
Wine Type
Ideal Temperature
Armagh Ronnie classic red
17oC
Barbaresco wines
17oC
Barolo wine
17oC
Bo Nuolai red wine
13oC
Bordeaux white wine
6
o
C
Dry white wine
8
o
C
Bordeaux
17oC
White Burgundy wines
11oC
Red Burgundy wines
18oC
Brunello wine
17oC
Champagne
6
o
C

9
Classic Chianti
16oC
Languedoc and Roussillon
13oC
Passito di Pantelleria wine
6
o
C
Provence rose
12oC
Dried sweet sparkling wine
6
o
C
Trentino white wine
11oC
Wine Type
Ideal Temperature
Fa Lanqia wide Jorda white wine
11oC
Aromatic dry white wine
10oC
Small dry fruity white wine
8
o
C
Buddha Friuli Venice Julia white wine
11oC
Luo Danuo wine
15oC
Loire dry white wine
10oC
Hurley mouth Loire wines
10oC
Loire red wine
14oC
Pasaituoli port wine
8-18
o
C
Rose wine, new wine
12oC
Accompanied malt tannins light red wine
14oC
Red, somewhat tannic wine
16oC
Do not pull on the cable from the wine cellar’s power cord from the outlet.
• Please clean the condenser once every two years (cooler back surface of the metal mesh) and the interior once a year.
Please pull out the power plug and empty wine cooler when cleaning process, then scrub gently with a damp cloth.
• Wine cooler surface condensationmay occur especiallyonglass door surface inmoistureenvironmentorinthe
rain. If this happens, please use a dry cloth to dry the surface.
• In order to ensure the long-term normal usage of wine cooler, please check the function regularly and if there is any
abnormal usage, please notify the MODENA Call Center.
First timeusage
• Clean the wine cooler interior.
• After cleaning and placing the wine cooler, let stand for 30 minutes then power on the device.
During a power outage
• Unplug the power cord.
• Re-plug the power cord 10-15 minutes after the power is back on.
Left unused for a long period of time
• Unplug the power cord.
• Remove all objects in the compartment
• Clean the inside of the compartment
• Leave the door open to completely dry the compartment and prevent fungi or bad smell
PART 5 : MAINTENANCE
NOTE
For optimum performance and prolong the lifetime, it should always pay attention for product maintenance. Please
turn off the power and unplug the power cord before maintenance

10
Relocation
• Unplug the power cord.
• When moving the wine cellar, make sure not to damage the power cord.
• Avoid hitting the stairs, doorways, etc.
• Make sure that the content in the wine cellar bulkhead vacated or given on an empty space with foam.
Please inspect the following tables before contacting the MODENA Call Center in the event of operational
disturbance:
Appliance is not working
•Is the power cord unplugged?
•Is there a problem with the power source / fuse box?
• Is the circuit breakeractivated?
Appliance is not cold
• Is the temperature properlyregulated?
• Are there any objects blocking the way out for cold air?
•Are too many objects stored in the appliance?
• Is the door of appliance opened toofrequently?
• Are the condenser obstructed?
•Is the appliance installed in a hot environment?
The drinks is frozen
• Is the thermostat on very coldposition?
• Does the appliance have poorventilation?
Noise
•Is the appliance placed on a flat surface?
• Is the back of the appliance attached to the wall or other object?
• Is the appliance attached to other objects?
Cabinet door surface
condensation
• Is the door of appliance opened toofrequently?
• Is the appliance installed in a hot / humid environment?
• Is the thermostat on very lowposition?
The light does not work
•Is the power cord pulled out?
• Is there a power source / fusedisconnected?
•Does the light bulb broken?
• Is the light switch is off?
If you are still having problems after following the suggestions above, please contact MODENA Call Center
immediately
PART 6 : TROUBLESHOOTING

11
Read these safety instructions carefully. Save this manual book for easy use if necessary.
This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made
by children without supervision.
Do not let the power cord pinched / compressed by the appliance itself or by heavy objects.
Do not bend the power cord excessively. If the cable is damaged or flaking, it may cause fire and electric
shock.
Do not plug the power cord into the other one with T junction. This can be a cause of overheating and fire.
Use an outlet with a grounding path specifically for this wine cellar and easily accessible.
Never hold the power cord with wet hands. There is a possibility of electric shock.
Never use a power cord that is damaged or loose outlet. There is risk of fire, electric shock or serious injury.
Make sure your appliance has been grounded. Check if you are using a grounded outlet or not. There is a risk of
electric shock if your outlet is not grounded.
Never unplug the power cord by pulling the cord. Always unplug the plug head.
Let wires dangling down from the wall socket. If directed upward, at the end of the plug wires to be bent and
broken, which may result in electric shock.
Do not use the appliance in a room with a wet floor or in a place with high humidity levels. The things above
can weaken the electrical insulation and can result in electrical shock hazard.
Do not let the power cord near, pass or touch the heat source. This can cause damage to the power cord or
electrical shock hazard.
Check the plug, if the plug is loose when mounted directly on the outlet, it may weaken electrical insulation,
which can result in electrical shock hazard.
Do not spray or pour water into the interior or exterior of the appliance. It can weaken electrical insulation and
produce electrical shock hazard.
Do not put glass or container of water on the appliance. Water spill can cause electric shock or damage.
Do not let children hang from the door of the appliance. The appliance may fall and harm the children.
Do not move the pockets / shelf compartment while occupied with bottles. Heavy object (objects of glass or
metal) can fall and can cause damage to the shelf / rack and the other interior parts.
Do not attempt to repair, remove or modify your appliance. This can result in the risk of injury or damage to your
appliance. Only experienced technicians are allowed to fix this cooling appliance.
PART 7 : PRECAUTION ACTION

12
Never store gas or flammable liquids inside the appliance.
Do not use flammable gas, gasoline, paint thinner, kerosene, or spray near the appliance. The things above
may result in the risk of fire, explosion, accident or damage to the appliance.
Do not store the medicine or academic research samples which require precise and stable temperature in the
appliance.
Never let your hand / finger touch the back / bottom of the appliance. This can cause injury by sharp metal
edge of the appliance sharp or electric shock.
Do not try to replace power cord, fuse or bulb by yourself. Please contact the MODENA Call Center or your
nearest service agent to replace it immediately.
When you find that the appliance power cord is damaged or broken, contact MODENA Call Center or your
nearest service agent to replace it immediately.
When you dispose the appliance, make sure to remove the door first. Children can get stuck inside and can
suffocate in a appliance that still has a door
Make sure that when the conditions are built in, the appliance has sufficient ventilation and unobstructed.
Do not use mechanical devices or other equipment to speed up the process of melting / defrost.
Do not use / insert electronic equipment into a beverage or other accessories that are inside the
appliance.
Do not use cleaning tools with flammable liquids.
Do not use flammable materials, explosive or corrosive materials such as paint thinner, gas or acid to clean
the refrigerator or keep them in the wine cellar.

13
• Specifications of this appliance may change without Notice to improve the quality of theproduct.
MODEL
BW 3435
BW 6435
Color
Stainless
Black
Number of doors
1
1
Total of compartment
1
1
Number of Shelves can be removed
3
3
Shelves material
Wooden without stainless trim
Wooden without stainless trim
Capacity
24 bottles
24 bottles
Temperature (oC)
5~22
5~22
CFC-free compressor
Yes
Yes
Lamps in the refrigerating
compartment
Yes
Yes
Fan Cooling System
Yes
Yes
Refrigerant
600a
600a
Power (W)
100
80
Voltage (V)
220
220
Frequency (Hz)
50
50
Product dimension (LxWxH) mm
592 x 610 x 455
592 x 610 x 455
Specifications of this appliance may change without notice to improve the quality of the product. Pictures in this
manual are schematic and may not match your product exactly. Values stated on the machine labels or in the
documentation accompanying it are obtained in laboratory in accordance with the relevant standards. Depending
on operational and environmental conditions of the appliance, values may vary.

Jatiuwung, Tangerang15135
06/21
PT MODENA INDONESIA
Jl. Industri Raya I Blok D-8,
