Modern Forms VOX FLUSH FH-W1802-26L User manual

INSTALLATION INSTRUCTIONS
DC
MOTOR
WET SMART
s

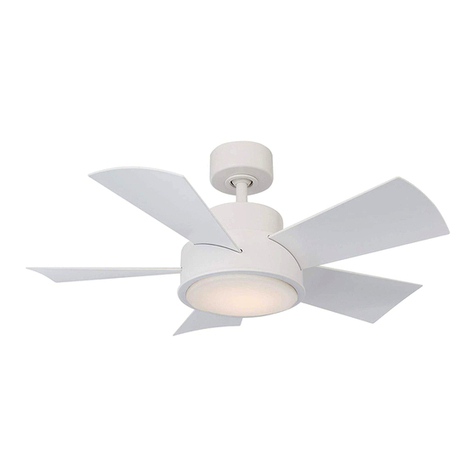

VOX FLUSH 26” & 38”
FH-W1802-26L; FH-W1802-38L
works with the
Google Assistant modernforms.com

2FH-W1802
All Modern Forms Smart Fans are:
Durably  nished and Rated for
interior and exterior use
WET SMART
Able to coordinate with smart
devices for voice-activated and
thermostat control
Quiet, reliable, and up to 70%
more e cient than AC fans
Wi-Fi and RF enabled for
unlimited control
DC
MOTOR
RF WALL CONTROL
F-WC-WT
Included with each fan
6 Fan speeds
Dims light to 1%
ON/OFF
WIFI TOUCH PANEL
WALL CONTROL
F-TS-BK Black
F-TS-WT White
Sold separately
Full app control
FREE APP DOWNLOAD
Sync with our exclusive Modern Forms
app to control fan speed, use smart
features like Adaptive Learning, create
groups and reduce energy costs
APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION
modernforms.com/mfappins
Wet location-listed to the strictest
ETL/cETL safety regulations

3FH-W1802
4.
5.
5.
6.
7.
8.
9.
13.
14.
15.
15.
16.
17.
19.
20.
21.
1 SAFETY RULES..........................................................................................................................................
2 FTC ENERGY GUIDE & SPECIFICATIONS................................................................................................
3 TOOLS AND MATERIALS REQUIRED......................................................................................................
4 PACKAGE CONTENTS..............................................................................................................................
5 MOUNTING OPTIONS.............................................................................................................................
6 HANGING THE FAN..................................................................................................................................
7 MAKING THE ELECTRICAL CONNECTIONS............................................................................................
8 INSTALLING THE WALL CONTROL .........................................................................................................
9 FINISHING THE INSTALLATION...............................................................................................................
10 ATTACHING THE FAN BLADES...............................................................................................................
11 INSTALLING THE ADAPTER PLATE ........................................................................................................
12 INSTALLING THE LED LUMINAIRE MODULE.........................................................................................
13 WALL CONTROL OPERATING INSTRUCTIONS......................................................................................
14 APPLICATION...........................................................................................................................................
15 TROUBLESHOOTING...............................................................................................................................
16 ACCESSORIES...........................................................................................................................................
TABLE OF CONTENTS

4FH-W1802
1. SAFETY RULES
For operation, maintenance, and troubleshooting information,
visit modernforms.com/help.
1. To reduce the risk of electric shock, ensure electricity has been
turned o at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code
“ANSI/NFPA 70” and local electrical codes. Electrical installation
should be performed by a qualied licensed and insured
electrician.
3. The outlet box and support structure must be securely mounted
and capable of reliably supporting a minimum of 35 lbs (15.9 kg).
Use only UL-listed outlet boxes marked “FOR FAN SUPPORT.”
4. The fan must be mounted with a minimum of 7 ft. (2.1m)
clearance from the trailing edge of the blades to the oor.
5. Avoid placing objects in the path of the blades.
6. To avoid personal injury or damage to the fan and other items,
be cautious when working around or cleaning the fan.
7. Do not use chemicals when cleaning the fan or fan blades.
A dry dust cloth or lightly dampened cloth will be suitable for
most cleaning.
8. After making electrical connections, spliced conductors should be
turned upward and pushed carefully up into the outlet box. The
wires should be spread apart with the grounded conductor and
the equipment-grounding conductor on one side of the outlet
box and ungrounded conductor on the other side of the outlet box.
9. All set screws must be checked and re-tightened where necessary
before installation.
WARNING: To reduce the risk of electric shock, this fan must be
installed with the supplied wall control, or controlled from the Modern
Forms app or wall panel.
WARNING: To reduce the risk of personal injury, do not bend the blade
arms (also referred to as anges), when installing the brackets,
balancing the blades or cleaning the fan.
WARNING: Do not insert foreign objects between rotating fan blades.
WARNING: To reduce the risk of re, electric shock or personal injury,
mount the fan to the outlet box marked acceptable for fan support with
the screws provided with the outlet box.
NOTE: For use only with light kits marked “Suitable for use in wet
locations.” Maximum of 12 fans can operate on a circuit through an
on/o switch or breaker when utilizing the app for the fan control
(without the wall control in the circuit).
NOTE: Maximum of 2 fans can operate on a circuit through the wall
control.

5FH-W1802
3. TOOLS AND MATERIALS REQUIRED
• Phillips screwdriver
• Step ladder
• Wire cutters
• Electrical tape
2. FTC ENERGY GUIDE & SPECIFICATION
*Estimated annual energy cost based on $0.12 per kWh and 6.4 hours use per day.
FAN FAN SIZE VOLTS N.W
(lbs)
G.W
(lbs)
STANDARD ELECTRICITY AIR FLOW ENERGY COSTS* FAN EFFICACY
Vox 26” 120 15.32 19.62
High Speed 11W 2145 CFM $3/yr 195 CFM/W
Weighted Average 8W 1189 CFM $2/yr 159 CFM/W
FAN FAN SIZE VOLTS N.W
(lbs)
G.W
(lbs)
STANDARD ELECTRICITY AIR FLOW ENERGY COSTS* FAN EFFICACY
Vox 38” 120 17.57 20.77
High Speed 38W 5084 CFM $11/yr 133.8 CFM/W
Weighted Average 29W 2895 CFM $8/yr 101 CFM/W

6FH-W1802
4. PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items:
NOTE: ** denotes  nish code of fan
REF. DESCRIPTION PART NO.
ABlade Set of 5 (26”) RPL-F1802-26-BD-**
Blade Set of 5 (38”) RPL-F1802-38-BD-**
BMounting Plate RPL-F1802-HGR
CTrim Ring Decorative RPL-F1802-TRIM-**
DMotor Assembly ---
EAdapter Plate ---
FLED Module F6IN-120V-R1-30
GGlass Shade RPL-F1802-GLA
HControl Receiver W/Hardware (26”) RPL-F1802-26-REC
Control Receiver W/Hardware (38”) RPL-F1802-38-REC
IWall Control W/ Hardware F-WC-WT
JHardware Bag
RPL-VOXFLUSH-PARTS
W/Mounting Hardware
wood screws (2), screws (2)
5/32” lock washers (2),  at washers (2)
5.4mm lock washers (2),  at washers (2)
W/ Blade Attachment Hardware
screws with rubber washers (16)
A
B
C
D
E
F
G
H
I
J

7FH-W1802
5. MOUNTING OPTIONS
If there isn’t an existing UL/cUL listed mounting box, then read the
following instructions. Disconnect the power by removing fuses or
turning o circuit breakers.
Secure the outlet box directly to the building structure. Use appropri-
ate fasteners and building materials. The outlet box and its support
must be able to fully support the moving weight of the fan (at least 35
lbs). Do not use plastic outlet boxes.
Figures 1 and 2 are examples of dierent ways to mount the outlet
box.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown in Figure 3.
FIGURE 1
Outlet box
Outlet box
FIGURE 2
FIGURE 3
Outlet box
Joist
Support
Brace

8FH-W1802
6. HANGING THE FAN
REMEMBER to turn o power at the breaker.
Follow the steps below to hang your fan properly:
Motor Assembly
FIGURE 6
FIGURE 5
FIGURE 4
Screws
120V Wires
UL/cUL Listed
electrical box
Mounting Plate
Mounting screws
(supplied with
outlet box
1. Disconnect power at the breaker to the fan location. A licensed
electrician must install the fan. (Fig. 4)
2. Remove 2 of 4 screws from the bottom of mounting bracket and
save for use in section 9. Loosen the other two screws. (Fig. 5)
3. Pass the 120-volt supply wires through the center hole in the
ceiling mounting bracket as shown in (Fig. 5)
4. Secure the mounting bracket to the ceiling outlet box with the
screws and washers provided with your outlet box. (Fig. 6)

9FH-W1802
7. MAKING THE ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure electricity is
turned o at the main fuse box before wiring.
WARNING: Installation of this fan requires that a three-conductor
cable (including ground wire) which should run between ceiling and
wall outlet box.
WARNING: Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire nuts, except for the
ground wire.
Place trim ring onto the canopy. Opening of 4 clips facing up (Fig. 7)
The at side of the receiver should face the ceiling.
Follow the steps below to connect the fan to your household wiring.
Use the plastic wire nuts with your fan. Secure the plastic wire nuts
with electrical tape. Make sure there are no loose strands or
connections.
FIGURE 7
Trim Ring

10FH-W1802
7. MAKING THE ELECTRICAL CONNECTIONS (cont.)
Red (motor)
Motor to receiver electrical connections: (Fig. 8)
Place motor on at surface before connecting receiver wires.
FIGURE 8
Gray (motor)
Yellow (motor)
Yellow (to motor)
Gray (to motor)
Red (to motor)
Receiver
Blue (for light)
White (for light)
Blue (for light)
White (for light)
1. Connect the red wire from the fan to the red wire marked “TO
MOTOR” from the receiver.
2. Connect the gray wire from the fan to the gray wire marked “TO
MOTOR” from the receiver.
3. Connect the yellow wire from the fan to the yellow wire marked
“TO MOTOR” from the receiver.
4. Connect the white wire from the fan to the white wire marked
“For Light” from the receiver.
5. Connect the blue wire from the fan to the blue wire marked “For
Light” from the receiver.
6. Drop the receiver into the motor assembly, at side up.

11FH-W1802
7. MAKING THE ELECTRICAL CONNECTIONS (cont.)
FIGURE 10
Receiver to house supply wires electrical connections: (Fig. 9 &10)
1. Lift motor assembly and hang it on the hook of mounting bracket
using one of the screw holes. (Fig. 9)
2. Secure the safety cable to the building structure using a wood
screw (not included). (Fig. 9)
3. Connect the fan assembly ground wire, mounting bracket ground
wire and receiver ground wire to the ground wire in outlet box.
(Fig. 10)
WARNING: Failure to connect ground wires could result in poor
fan control functionality .
4. Connect the black (hot) wire from the ceiling to the black wire
marked “AC in L” from the receiver. (Fig. 10)
5. Connect the white (neutral) from the ceiling to the white wire
marked “AC in N” from the receiver. (Fig. 10)
Receiver
FIGURE 9
White (“AC IN N”)
Black (“AC IN L”)
Black (hot)
Outlet Box
White (neutral)
Green (Ground)
Green (Ground) from
hanger ball
Green (Ground) from
receiver
Green (Ground) from
hanger bracket
Motor
Trim Ring
Safety Cable
Wood Screw

12FH-W1802
1. Connect ground wires - Important for proper control function.
2. Connect the black wire marked “LINE IN” from the control to the black LINE VOLTAGE wire from the outlet box that
feeds back to the breaker.
3. Connect the red wire from the control to the black wire from the wall outlet box that feeds up to the fan.
4. Connect the white wire from the control to the white (neutral) wire from the wall outlet box.
Wall control to wall outlet box electrical connections: (Fig. 14)
FIGURE 14
White White
Red
Black
Green (Ground)
Black (to fan)
Copper
Ground
White
(Neutral) Black (from Breaker)
Wall control
Wall outlet box
8. INSTALLING THE WALL CONTROL
WARNING: Remember to shut the power o at the circuit breaker or fuse box.

13FH-W1802
8. INSTALLING THE WALL CONTROL
Wall mounting
plate
Wall outlet box
Wall control
Wall plate
Mounting screws
Mounting screws
FIGURE 12
1. Carefully tuck the wire connections inside the junction box.
Secure the wall control with the two wall control mounting screws
provided. (Fig. 15)
2. Attach the wall mounting plate over the wall control and secure
with the two wall mounting plate screws provided.
3. Fasten the wall plate to the wall mounting plate.
NOTE: Maximum of 2 fans can operate on a circuit through the wall
control.
Maximum of 12 fans can operate on a circuit through an on/o switch
or breaker when utilizing the app for the fan control (without the wall
control in the circuit).

14FH-W1802
9. FINISHING THE INSTALLATION
1. Secure all wire connections with supplied wire ties to assist in fan
installation.
2. Tuck connections neatly into ceiling outlet box.
3. Remove the motor from the hook on the mounting bracket. Slide
the motor up to the mounting bracket and place the key hole on
the motor over the screw on the mounting bracket. Turn motor
until it locks in place at the narrow section of the key holes.
(Fig. 13)
Note: Make sure the receiver sits at and does not interfere with
the hook.
4. Align the circular hole on canopy with the remaining hole on the
mounting bracket. Secure by tightening the two screws previously
loosened and the two screws previously removed.
5. Raise up trim ring and line up the 4 tabs with the 4 grooves on the
mounting bracket. Once lined up, slide the trim ring and secure it
to the canopy until snug.
Motor
Trim Ring
Mounting Bracket
Screws
FIGURE 13

15FH-W1802
10. ATTACHING THE FAN BLADES
1. Insert the blade through the slot in the housing. Align the holes
in the blade with the fan motor assembly holes and secure with a
blade attachment screw with rubber washers. (Fig. 14)
2. Repeat this procedure with the remaining blades.
Adapter Plate
Screws
Mounting Ring
Screws with rubber washers
Blade
Slot
11. INSTALLING THE ADAPTER PLATE
1. Remove one of the three screws from the mounting ring and
loosen the other two screws. (Do not remove.)
2. Place the key holes in the adapter plate over the two screws pre-
viously loosened from the mounting ring. Turn the adapter plate
until the adapter plate locks in place at the narrow section of the
key holes. (Fig. 15)
3. Tighten the two mounting ring screws previously loosened and
the one previously removed to secure the adapter plate.
FIGURE 14
FIGURE 15

16FH-W1802
12. INSTALLING THE LED LUMINAIRE MODULE
FIGURE 16
LED Luminaire Module
Screws
Glass Shade
Connection plugs Adapter Plate
WARNING: Before starting installation, disconnect the power by turning
o the circuit breaker or removing the fuse at fuse box. Turning power o
using the fan switch is not sucient to prevent electric shock.
NOTE: If you do not plan to install the luminaire module with
your fan at this time, skip to step 5.
1. Remove 1 of the 3 screws from the outer perimeter of the adapter
plate and keep it for future use. Loosen the other 2 screws (Do not
remove)
2. Raise and hold the LED luminaire module close to the adapter plate
and proceed to secure the wire connections. Connect the white wire
connectors from the luminaire module to the white wire of the fan.
Follow the same procedure with the black wire connectors. (Fig. 16)
3. Tuck connections neatly into mounting plate, Place the luminaire
module key holes over the 2 screws previously loosened from the
mounting ring, turn luminaire module until it locks in place at the
narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed. (Fig. 16)
4. Raise glass shade up against the luminaire module, and secure it to
fan by turning glass shade clockwise until snug. Do not over-tighten.

17FH-W1802
13. WALL CONTROL OPERATING INSTRUCTIONS
Your DC brushless motor is equipped with an intuitive wall control.
Restore power to ceiling fan and test the wall control as below for proper operation.
Button: turn the light ON or OFF
Press/Hold to increase the desired light level.
Press/Hold to decrease the desired light level.
Button: turn the fan ON or OFF
Press/Hold the button to increase the fan speed through
the speed settings.
Press/Hold the button to decrease the fan speed through
the speed settings.
Button: Switch between summer mode and winter mode.
Pairing the Wall Control to Your Fan
Your fan is pre-paired at the factory, NO pairing is necessary.
Wall Control Button Denitions
These seven buttons are used to set the fan speed as follows:
ON-OFF Switch: Pull switch tab to power o in case of emergency. Not necessary for normal fan operation.
FIGURE 18
ON-OFF
switch

18FH-W1802
13. WALL CONTROL OPERATING INSTRUCTIONS (cont.)
NOTE: Maximum of 2 fans can operate on a circuit through the wall
transmitter.
Maximum of 12 fans can operate on a circuit through an on/o switch
or breaker when utilizing the app for the fan control (without the
wall transmitter in the circuit).
Summer mode - (Counter-clockwise) A downward airow creates a cooling
eect as shown in Fig. 19. This allows you to set your air conditioner on a
warmer setting without aecting your comfort.
Winter mode - (Clockwise) An upward airow moves warm air o the
ceiling area and redistributes the warm air that hovers around the ceiling to
the living space as shown in Fig. 20. This should allow for savings on heating
costs.
NOTE: To operate the reverse function on this fan, press the reverse button
while the fan is running.
NOTE: Fans do not change the temperature in the room, they change the
comfort level allowing you to save energy.
FIGURE 18
FIGURE 19

19FH-W1802
14. APPLICATION
In addition to the included wall control, you can control the fan through the
Modern Forms app.
1. To use the app, download it for free from the App Store or Google Play.
2. Open the app to create your account. You can also log in with your
Facebook or Google account.
3. Next, set up a WiFi connection. You’ll need the SSID and WiFi password
for the network you want to connect to.
4. You’ll receive a prompt to name your fan device and upload a picture
of it if you choose.
5. The app will walk you through the main screen and show you how to
create schedules, change fan speeds, dim the light, switch between
Summer/Winter mode, invite users, create groups and much more.
Refer to app instructions for more details.
NOTE: Maximum of 2 fans can operate on a circuit through the
wall control.
Maximum of 12 fans can operate on a circuit through an on/o switch
or breaker when utilizing the app for the fan control
(without the wall control in the circuit).
FIGURE 20 FIGURE 21
APP INSTRUCTIONS AND SMART HOME DEVICE INTEGRATION
modernforms.com/mfappins

20FH-W1802
15. TROUBLESHOOTING
Problem Solution
Fan will not start. 1. Check circuit fuses or breakers.
2. Check wall control LED indicator light. If LED is not illuminated when pushing a button, it is not
transmitting a signal. Please check power to wall control and all electrical connections.
3. Assure that there are no more than 2 fans operating on a circuit through the wall control. Assure that
there are no more than 12 fans operating on a circuit through an on/o wall switch or a breaker (not
through a wall control).
4. Assure that the fan is within range of the Wi (150 ft.) or wall control (30 ft.).
Fan sounds noisy. 1. Allow a 24-hour “breaking-in” period. Most noise associated with a new fan will disappear
during this time.
2. Make sure all motor housing screws are securely fastened.
3. Make sure the screws that attach the fan blade to the fan are tight.
4. Make sure your ceiling box is secure and rubber isolator pads are used between the mounting bracket
and outlet box.
Fan wobbles. 1. Check that all blade and blade arm screws are secure.
2. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can redistribute
the weight and possibly result in smoother operation.
