Kichler Lighting Ample User manual

Product images may vary slightly from actual product.
54" Ample
INSTRUCTION MANUAL
Model# 310354READ AND SAVE THESE INSTRUCTIONS

KICHLER.COM

54" Ample | 3
TABLE OF CONTENTS
INSTALLING THE MOUNTING PLATE...................................18
INSTALLING THE LIGHT KIT AND GLASS SHADE
(IF NOT USING THE DECORATIVE COVER) ......................................19
INSTALLING THE DECORATIVE COVER
(IF NOT USING THE LIGHT KIT AND GLASS SHADE) .......................20
INSTALLING THE COOLTOUCH WALL PLATE....................21
INSTALLING THE TRANSMITTER..........................................21
OPERATING INSTRUCTIONS.................................................22
TROUBLESHOOTING...............................................................26
FCC INFORMATION ..................................................................28
SAFETY RULES............................................................................ 4
TOOLS AND MATERIALS REQUIRED..................................... 6
PACKAGE CONTENTS ............................................................... 6
MOUNTING OPTIONS.................................................................7
HANGING THE FAN .................................................................... 8
INSTALLATION OF SAFETY CABLE.......................................12
ELECTRICAL CONNECTIONS.................................................13
FINISHING THE INSTALLATION .............................................16
ATTACHING THE FAN BLADES...............................................18

4 | KICHLER.COM
fan support and may need to be replaced. Due to the
complexity of the installation of this fan, a qualified
licensed electrician is strongly recommended.
6. The outlet box and support structure must be
securely mounted and capable of reliably supporting
a minimum of 15.9 kg (35 pounds). Use only cULus
Listed outlet boxes marked “Acceptable for Fan
Support of 15.9 kg (35 lbs) or less”.
7. The fan must be mounted with a minimum of 2.1 m
(7 feet) clearance from the trailing edge of the blades
to the floor.
8. To operate the reverse function on this fan, press
the “Reverse” Button on the transmitter while fan is
running.
9. Avoid placing objects in the path of the blades.
10. WARNING: make sure the power is disconnected
before cleaning your fan.
READ AND SAVE THESE INSTRUCTIONS
SAFETY RULES
WARNING: FOR CANADA, THIS FAN MUST BE SECURED DIRECTLY TO THE BUILDING STRUCTURE / CEILING JOIST.
DON’T SECURE THIS FAN TO AN OUTLET BOX.
1. CAUTION – RISK OF SHOCK: Disconnect Power at
the main circuit breaker panel or main fusebox before
starting and during the installation.
2. WARNING: All wiring must be in accordance with the
National Electrical Code “ANSI/NFPA 70” and local
electrical codes. Electrical installation should be
performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electric shock, this
fan must be installed with a general-use, isolating wall
control/switch.
4. WARNING: Not suitable for use with solid-state speed
controls.
5. WARNING: To reduce the risk of fire, electric shock,
or personal injury, mount to outlet box marked
“acceptable for fan support of 15.9 kg (35 lbs.) or
less” and use mounting screws provided with the
outlet box. Most outlet boxes commonly used for
the support of light fixtures are not acceptable for

54" Ample | 5
16. N.W. 9.0 KGS (19.84 LBS) / G.W. 10.34 KGS (22.8 LBS)11. To avoid personal injury or damage to the fan and
other items, be cautious when working around or
cleaning the fan.
12. Do not use water or detergents when cleaning the fan
or fan blades. A dry dust cloth or lightly dampened
cloth will be suitable for most cleaning.
13. After making electrical connections, spliced
conductors should be turned upward and pushed
carefully up into outlet box. The wires should be
spread apart with the grounded conductor and the
equipment-grounding conductor on one side of the
outlet box and the ungrounded conductor on the
other side of the outlet box.
14. Electrical diagrams are reference only. Light kits that
are not packed with the fan must be cULus Listed
and marked suitable for use with the model fan you
are installing. Switches must be cULus General Use
Switches. Refer to the Instructions packaged with the
light kits and switches for proper assembly.
15. All set screws must be checked, and retightened
where necessary, before installation.
SAFETY RULES (continued)
WARNING
TO REDUCE THE RISK OF PERSONAL INJURY,
DO NOT BEND THE BLADE BRACKETS DURING
ASSEMBLY OR AFTER INSTALLATION. DO NOT
INSERT OBJECTS IN THE PATH OF THE BLADES.

6 | KICHLER.COM
TOOLS AND MATERIALS REQUIRED
PACKAGE CONTENTS
• Phillips Screwdriver
• Blade Screwdriver
• 11 mm Wrench
• Step Ladder
• Wire Cutters
Unpack your fan and check the contents. You should have the following items:
A. Fan Blades (3)
B. Decorative Ring
C. Canopy & Ceiling Mounting Bracket
D. Hanger Ball/Downrod Assembly
E. Coupling Cover
F. Fan Motor Assembly
G. Mounting Plate
H. LED light kit
I. Glass Shade
J. Decorative Cover
K. Transmitter (TR250B) and Wall Plate
A
L. Package hardware
1) Safety Cable Hardware:
Wood Screw ( 1 ), Flat Washer ( 1 )
2) Blade attachment hardware:
Blade Mounting Screws (11), Fiber
Washers (11)
3) Balance kit
4) Mounting hardware: Wood Screws (2),
Flat Washers (2), Star Washers (2),
Wire Nuts (3), Screws (2)
1 2 3 4
B
C
D
E
F
G
H
I
J
K
L

54" Ample | 7
Fig. 1
Outlet box
Outlet box
Fig. 2
Fig. 3
Recessed
outlet box ceiling Ceiling
Mounting
plane
Provide strong
support
ANGLED CEILING
MAXIMUM 15° ANGLE
Fig. 4
Outlet box
MOUNTING OPTIONS
If there is not an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect
the power by removing fuses or turning o circuit breakers.
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and
its support must be able to fully support the full weight of the fan
(up to 15.9kg (35 pounds)). Do not use plastic outlet boxes.
Figures 1, 2 and 3 are examples of dierent ways to mount the
outlet box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
clearance between the tip of the blade and the ceiling. A
minimum clearance of 12" is suggested for optimal operation.
NOTE: Depending on the location you have selected for
installation, you may need to purchase and install a “Joist
Hanger” for the support of the outlet box. Make sure the joist
hanger you purchase has been designed for use with ceiling
fans. (Fig. 4)

8 | KICHLER.COM
HANGING THE FAN
CAUTION: To avoid possible electrical shock, be sure you have
turned o the power at the main circuit panel.
WARNING: All set screws must be checked, and retightened where
necessary, before installation.
NOTE: This ceiling fan is supplied with two types of hanging assemblies; the
standard ceiling installation using the downrod with ball and socket mounting
and the “close-to-ceiling” installation. The “close-to-ceiling” installation
is recommended in rooms with less than 8-foot ceilings or in areas where
additional space is desired from the floor to the fan blades.
Fig. 5
Hook
Check Tab
120V Wires
Washer
(Supplied with Electrical Box)
Mounting Screw
(Supplied with Electrical Box)
Ceiling Mounting
Bracket
cULus
Electrical
Box

54" Ample | 9
Standard Ceiling Installation
WARNING: All set screws must be checked, and retightened where necessary,
before installation.

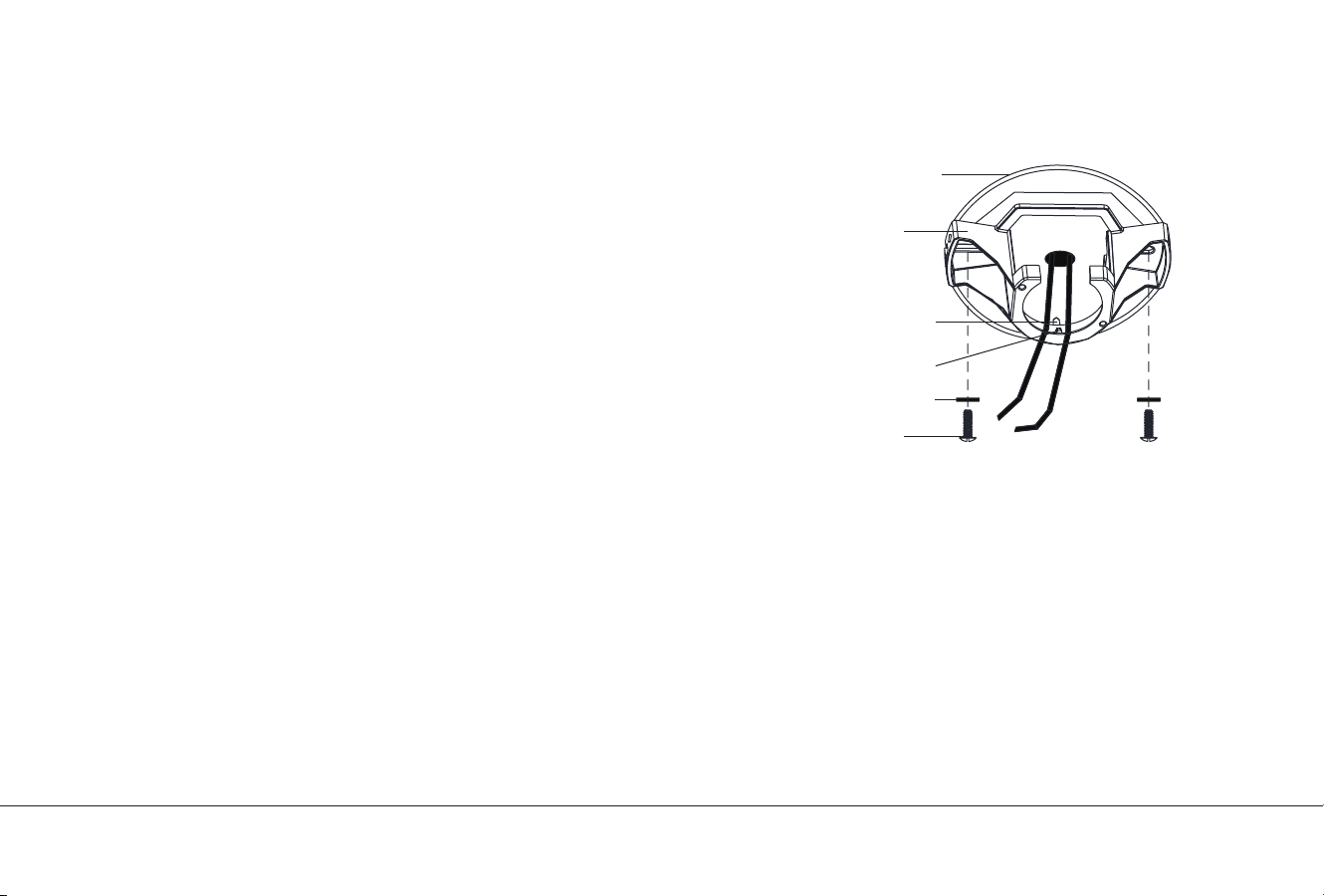

Step 1. Pass the 120-volt supply wires through the center hole in the ceiling mounting bracket as
shown in (Fig. 5).
Step 2. Secure the ceiling mounting bracket to the ceiling outlet box with the screws
and washers provided with your outlet box.
Step 3. Remove the retaining clip and the hitch pin from the hanger ball/downrod assembly.
Remove the hanger ball from the hanger ball/downrod assembly by loosening the set screw
(do not remove) on the hanger ball, unscrewing and removing the cross pin, and unscrewing the
hanger ball from the downrod. (Fig. 6)
Step 4. Loosen the two set screws (do not remove) in the coupling on top of the motor
assembly. (Fig. 7)
Step 5. Carefully feed the electrical lead wires and safety cable from the coupling on top of the
motor assembly up through the downrod. Thread the downrod into the coupling on top of the
motor assembly until the hitch pin holes in the downrod and the hitch pin holes in the coupling
are aligned. (Fig. 7)
Step 6. Carefully insert the hitch pin through the holes in the coupling and the downrod. (Fig. 7)
NOTE: Be careful not to jam the hitch pin against the wiring inside of the downrod.
Insert the retaining clip through the hole near the end of the hitch pin until it snaps into its locked
position. (Fig. 7)
Step 7. Tighten the two set screws in the coupling on top of the motor assembly firmly. (Fig. 7)
HANGING THE FAN (continued)
Cross Pin
Hanger Ball
Set Screw
Downrod
Retaining
Clip
Hitch Pin
Fig. 6
Fig. 7
Downrod
Supply
Wires
Coupling
Set ScrewSet Screw
Hitch
Pin
Retaining
Clip
Motor
Assembly

10 | KICHLER.COM
HANGING THE FAN (continued)
Step 8. Slip the coupling cover, decorative ring (finished side facing motor), and canopy
onto the downrod. (Fig. 8B).
Step 9. Carefully reinstall the hanger ball onto the downrod. Carefully reinstall the cross
pin through the hanger ball and downrod. (Fig. 8A)
NOTE: Be careful not to jam the cross pin against the wiring inside of the downrod.
Make sure the cross pin is in the correct position. Tighten the cross pin. Tighten the set
screw on the hanger ball. Make sure that the wires are not twisted. (Fig. 8A)
Step 10. Lift the motor assembly into position and place the hanger ball into the ceiling
mounting bracket socket. Rotate the entire assembly until the “Check Tab” has dropped
into the “Registration Slot”and seats firmly. (Fig. 9)
The entire motor assembly should not rotate (left or right) when seated properly.
WARNING: Failure to reattach the cross pin and seat the “Check Tab” can
cause the fan to fall from the ceiling during operation. Take special care to
make sure this pin is reattached.
Fig. 8A
Fig. 8B
Fig. 9
Cross Pin Set
Screw
Canopy
Downrod
Decorative
Ring
Coupling
Cover
Set Screw Set Screw
Retaining Clip
Hitch Pin
Ceiling
Mounting
Bracket
Check Tab
Registration
Slot

54" Ample | 11
Close-To-Ceiling Installation
Step 1. Pass the 120-volt supply wires through the center hole in
the ceiling mounting bracket as shown in Fig. 5.
Step 3. Secure the ceiling mounting bracket to the ceiling outlet
box with the screws and washers provided with your outlet box.

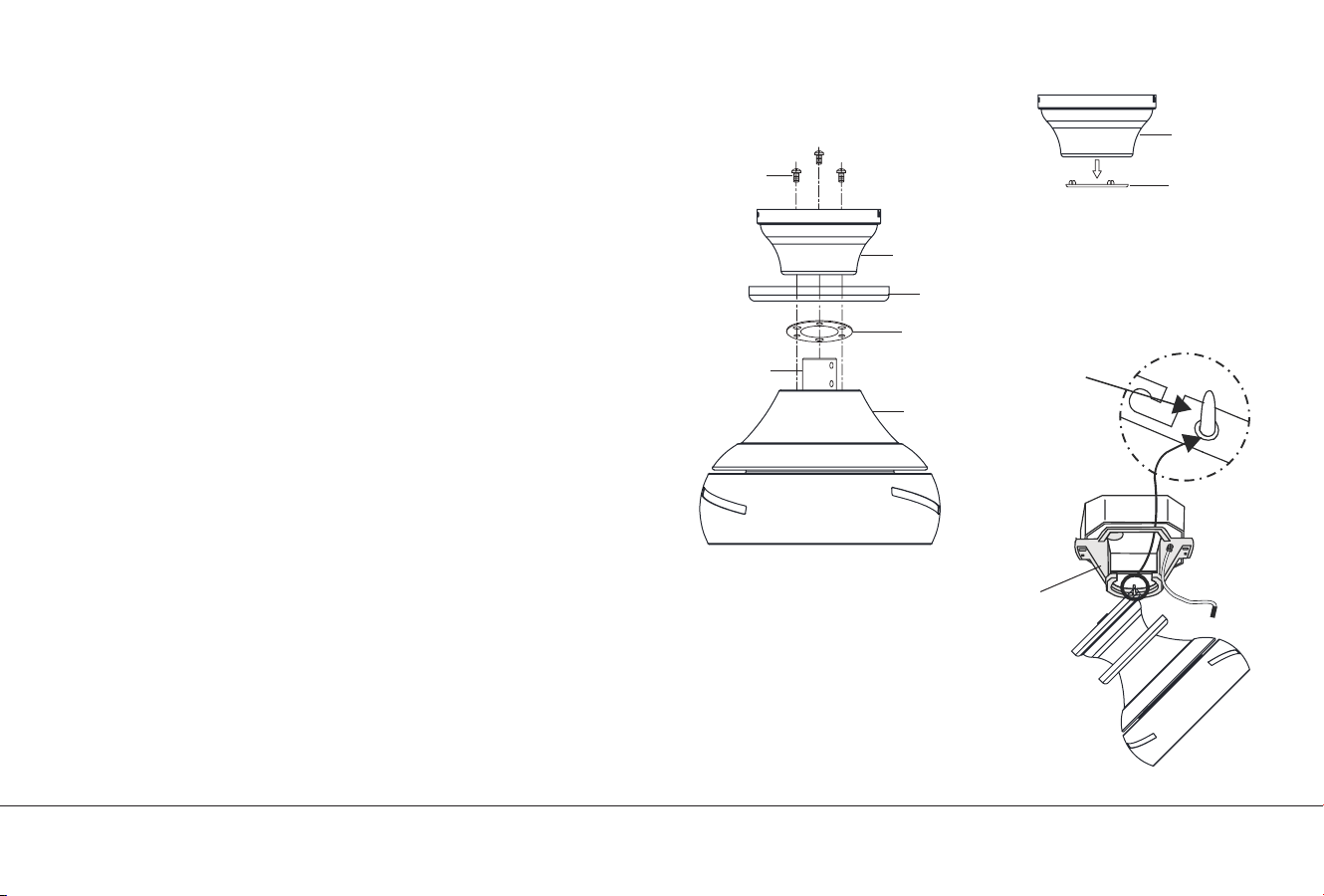

Step 2. Remove the canopy cover from the canopy by pushing
out (Fig. 10A).
Step 4. Remove three of the six screws and lock washers (every
other one) from the top of the motor assembly (Fig. 10B). Retain
screws and lock washers.
Step 5. Place the gasket, then the decorative ring, then the
canopy over the coupling at the top of the motor assembly. Align
the holes in the canopy and gasket with the holes in the top of
the motor assembly and fasten the gasket and the canopy to the
motor assembly using the screws and lock washers that were
removed in Step 4. (Fig. 10B).
Step 6. Tighten the screws securely (Fig. 10B).
WARNING: Failure to completely tighten the three
screws in Step 6 could result in fan loosening and
possibly falling.
Step 7. Hang the fan on the hook of the ceiling mounting bracket.
Be certain that the canopy is fully locked into hook as shown in
Fig. 11. This will allow you to make the electrical connections.
HANGING THE FAN (continued)
Fig. 10A
Fig. 11
Fig. 10B
Hook
Canopy
Canopy Cover
Motor
Assembly
Canopy
Gasket
Screws and Lock
Washers
(3 of 6 places)
Decorative
Ring
Coupling
Ceiling Mounting Bracket

12 | KICHLER.COM

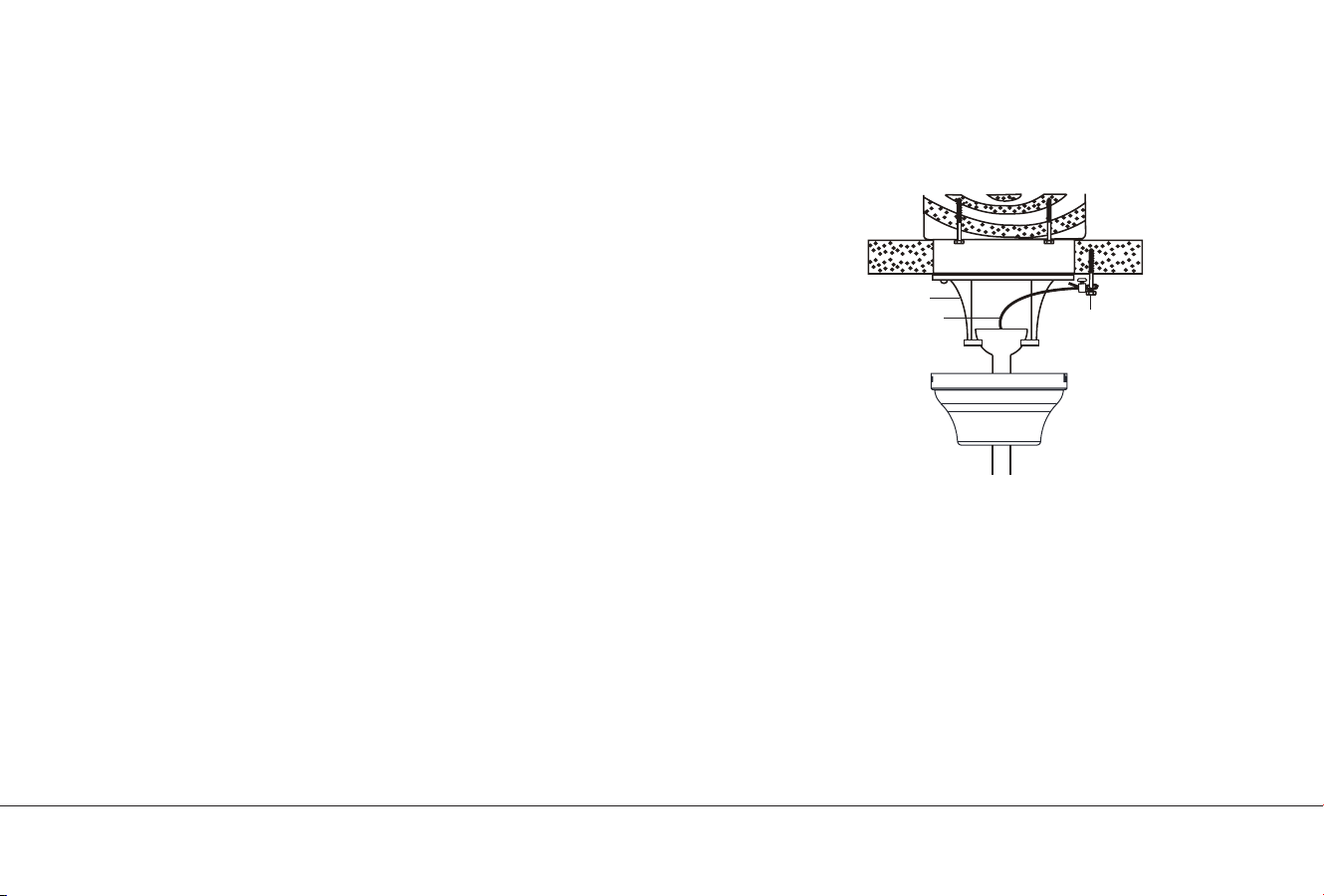

INSTALLATION OF SAFETY Cable
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from
falling, please install it as follows.
Step 1. Attach the provided wood screw and washer to the ceiling joist next
to the mounting bracket but do not tighten. (Fig. 12)
Step 2. Adjust the length of the safety cable to reach the wood screw and
washer by pulling the extra cable through the cable clamp until the overall
length is correct. Put the end of the cable back through the cable clamp,
forming a loop at the end of the cable. Tighten the cable clamp securely.
Put the loop in the end of the safety cable over the wood screw and under
the washer. Tighten the wood screw securely.
NOTE: Although the safety support cable is required for Canadian
installations only, it is a good idea to make the attachment with any
installation.
Fig. 12
Ceiling Mounting Bracket
Safety Support Cable Attach Safety Cable to
Ceiling Joist with Wood
Screws and Washer

54" Ample | 13
WARNING: To avoid possible electric shock, be sure you
have turned o the power at the main circuit panel.
Step 1. Insert the receiver into the ceiling mounting bracket with
the flat side of the receiver facing the ceiling. (Fig.13) For best
performance, make sure the black antenna wire (on the end of the
receiver) remains extended, and does not become tangled with the
electrical wires.
ELECTRICAL CONNECTIONS
Receiver
Ceiling Mounting Bracket
Fig. 13

14 | KICHLER.COM
WARNING: Carefully read and retain this Instruction Manual for future
reference.
WARNING: To avoid possible electrical shock, be sure you have turned o the
power at the main circuit panel.
Follow the steps below to connect the fan to your household wiring. Use the
wire connecting nuts supplied with your fan. Secure the connectors with
electrical tape. Make sure there are no loose wire strands or connections.
WARNING: All wiring must conform to national and local electrical codes.
If you feel you do not have enough electrical knowledge, have a licensed
electrician install the control.
WARNING: If your house wires are dierent colors than referenced in this
manual, stop immediately. A professional electrician is recommended to
determine proper wiring.
ELECTRICAL CONNECTIONS (continued)
Fig. 14
Outlet Box
Black (Hot) White (Neutral)
Green or Bare
Copper (Ground)
Black (“AC IN L”) White (“AC IN N”)
Receiver
Black (“TO MOTOR L”)
White (“TO MOTOR N”)
White (Neutral)
Black (MOTOR)
Blue (FOR LIGHT) Ground
(green)
Blue (FOR LIGHT)
(Connect to ground
wire on hanger
bracket if no house
ground wire exists.)

54" Ample | 15
ELECTRICAL CONNECTIONS (continued)
WARNING: Check to see that all connections are tight, including ground, and that
no bare wire is visible at the wire connections.
WIRING INSTRUCTIONS
Step 2. Motor to Receiver Electrical Connections: (Fig. 14)
Connect the black wire from the fan to the black wire marked “TO MOTOR L” on the receiver.
Connect the white wire from the fan to the white wire marked “TO MOTOR N” on the receiver.
Connect the blue wire from the fan to the blue wire marked “FOR LIGHT” on the receiver.
Secure all the wire connections with the plastic wire nuts provided.
Step 3. Receiver to Supply Wires Electrical Connections: (Fig. 14)
Connect the black (load) wire from the ceiling outlet box to the black wire marked “AC in L” from
the receiver.
Connect the white (neutral) wire from the ceiling outlet box to the white wire marked “AC in N”
from the receiver.
Secure the wire connections with the plastic wire nuts provided.
Step 4. Connect the ground wire (green or bare copper) from the ceiling outlet box to the
ground wire on the ceiling mounting bracket and the ground wire from the ceiling fan with a
plastic wire nut provided in the parts bag. (Fig. 14)
Step 5. After connecting the wires, turn the wire connecting nuts upward, and push the wiring
into the outlet box. Spread them apart so that the green (ground) and white (neutral) wires are
on one side of the outlet box and the black (hot) wires are on the other side.
NOTE: Fan must be installed at a maximum distance of 30 feet from the hand held transmitter
for optimal signal transmission between the transmitter and the fan’s receiver.
Fig. 14
Outlet Box
Black (Hot) White (Neutral)
Green or Bare
Copper (Ground)
Black (“AC IN L”) White (“AC IN N”)
Receiver
Black (“TO MOTOR L”)
White (“TO MOTOR N”)
White (Neutral)
Black (MOTOR)
Blue (FOR LIGHT) Ground
(green)
Blue (FOR LIGHT)
(Connect to ground
wire on hanger
bracket if no house
ground wire exists.)

16 | KICHLER.COM
FINISHING THE INSTALLATION
CAUTION: To avoid possible electrical shock, be sure you have turned o the
power at the main circuit panel.
STANDARD CEILING INSTALLATION
Step 1. Tuck all the wire connections neatly into the ceiling outlet box.
Step 2. At the top of the ceiling mounting bracket, there are 4 preinstalled screws (2 on
each side). On each side of the ceiling mounting bracket, loosen the first (left) screw just
enough so that the screw will be able to lock into a “keyhole” slot in the canopy. Remove
the second (right) screw. (Fig. 15)
Step 3. Raise the canopy up to the ceiling mounting bracket, passing the loosened
screws in the ceiling mounting bracket through the “keyhole” slots in the canopy. Rotate
the canopy (counterclockwise) until it locks in place against the screws at the rounded
end of the “keyhole” slots.
WARNING: Make sure the “Check Tab” at the bottom of the ceiling
mounting bracket is properly seated in the “Registration Slot” on the side of
the hanger ball before attaching the canopy to the ceiling mounting bracket.
Step 4. Reinstall the 2 screws that were removed into the aligned holes in the canopy
and the ceiling mounting bracket. Tighten all 4 screws to secure. (Fig. 15)
Step 5. Carefully raise the decorative ring up to the top of the canopy. (Fig. 16)
NOTE: The decorative ring will slide up into position when aligned with the screw heads
on the ceiling mounting bracket. Align the openings in the top of the screw locks (2
on each side of the decorative ring) with the 2 screw heads on each side of the ceiling
mounting bracket. (Fig. 16)
Carefully turn the decorative ring (clockwise) until it locks into position on the screw
heads. (Fig. 16).
Fig. 15
Fig. 16
Outlet Box
Ceiling
Mounting
Bracket
Screw
(Removed)
Screw
(Loosened)
Screw
(Removed)
Screw
(Loosened)
Keyhole
Slot
Canopy
Decorative
Ring
Receiver
Receiver
Screw
(Tightened)
Screw
(Tightened)
Screw
(Tightened)
Screw
(Tightened)
Screw Lock
(Opening)
Screw Lock
(Opening)
Screw Lock
(Opening)
Screw Lock
(Opening)
Decorative
Ring
Canopy

54" Ample | 17

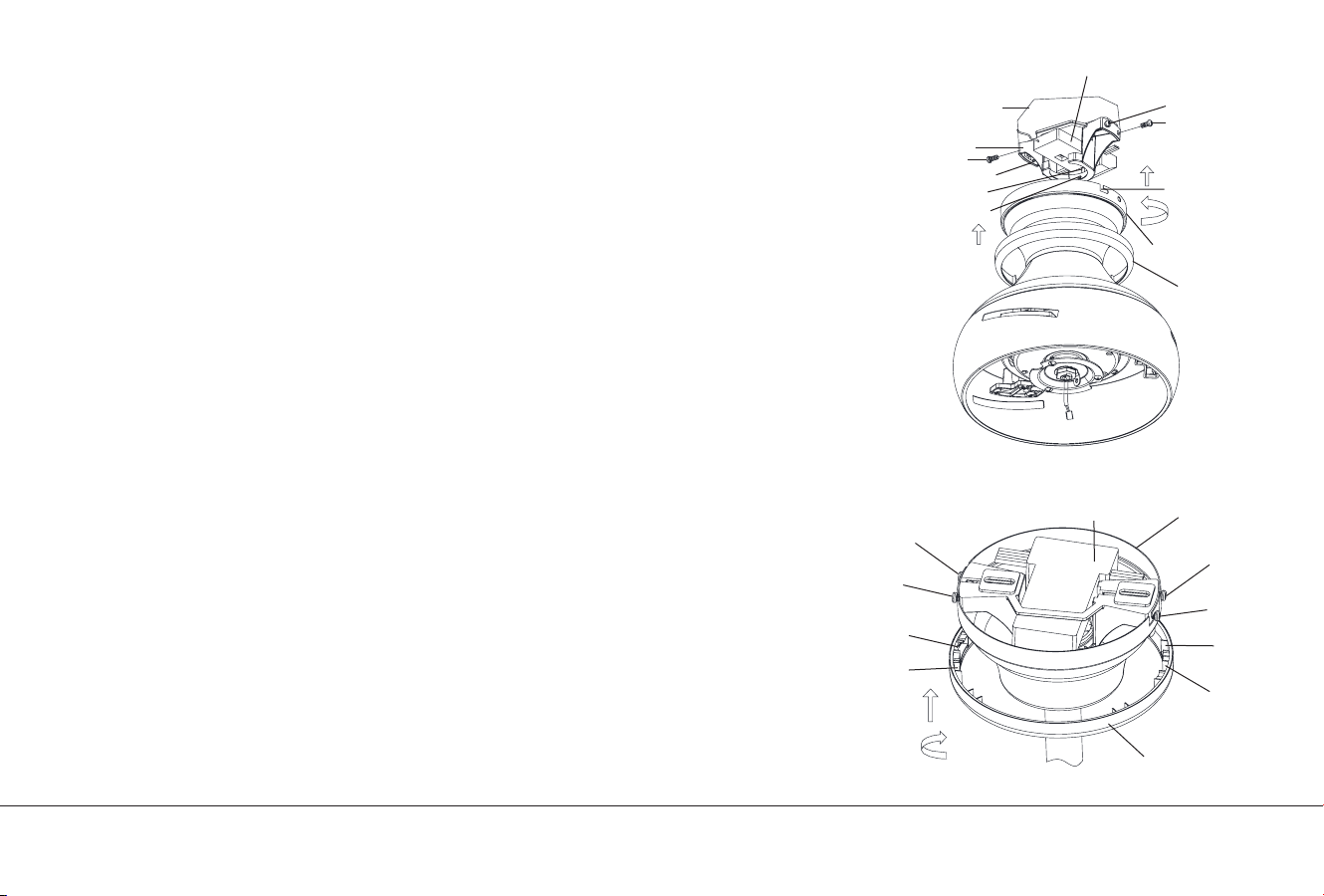

CLOSE-TO-CEILING INSTALLATION
Step 1. Tuck all the wire connections neatly into the ceiling outlet box.
Step 2. At the top of the ceiling mounting bracket, there are 4 preinstalled screws
(2 on each side). On each side of the ceiling mounting bracket, loosen the first (left)
screw just enough so that the screw will be able to lock into a “keyhole” slot in the
canopy. Remove the second (right) screw. (Fig. 17)
Step 3. Remove the fan from the hook on the ceiling mounting bracket. Raise
the fan up to the ceiling mounting bracket, passing the loosened screws in the
ceiling mounting bracket through the “keyhole” slots in the canopy. Rotate the fan
(counterclockwise) until the canopy locks in place against the screws at the rounded
end of the “keyhole” slots.
Step 4. Reinstall the 2 screws that were removed into the aligned holes in the
canopy and the ceiling mounting bracket. Tighten all 4 screws to secure. (Fig. 17)
WARNING: Reinstall the 2 ceiling mounting bracket screws that were
removed immediately after the canopy is locked in place against the 2
loosened screws. All 4 ceiling mounting bracket screws must be installed
and tightened to ensure the safe mounting and operation of this fan.
Step 5. Carefully raise the decorative ring up to the top of the canopy. (Fig. 16)
NOTE: The decorative ring will slide up into position when aligned with the screw
heads on the ceiling mounting bracket. Align the openings in the top of the screw
locks (2 on each side of the decorative ring) with the 2 screw heads on each side of the
ceiling mounting bracket. (Fig. 16)
Carefully turn the decorative ring (clockwise) until it locks into position on the screw
heads. (Fig. 16).
Outlet Box
Ceiling Mounting
Bracket
Screw (Removed)
Screw (Loosened)
Hook
Check Tab
Screw
(Loosened)
Screw
(Removed)
Keyhole Slot
Canopy
Receiver
Decorative
Ring
Fig. 17
Fig. 16
Receiver
Screw
(Tightened)
Screw
(Tightened)
Screw
(Tightened)
Screw
(Tightened)
Screw Lock
(Opening)
Screw Lock
(Opening)
Screw Lock
(Opening)
Screw Lock
(Opening)
Decorative
Ring
Canopy

18 | KICHLER.COM

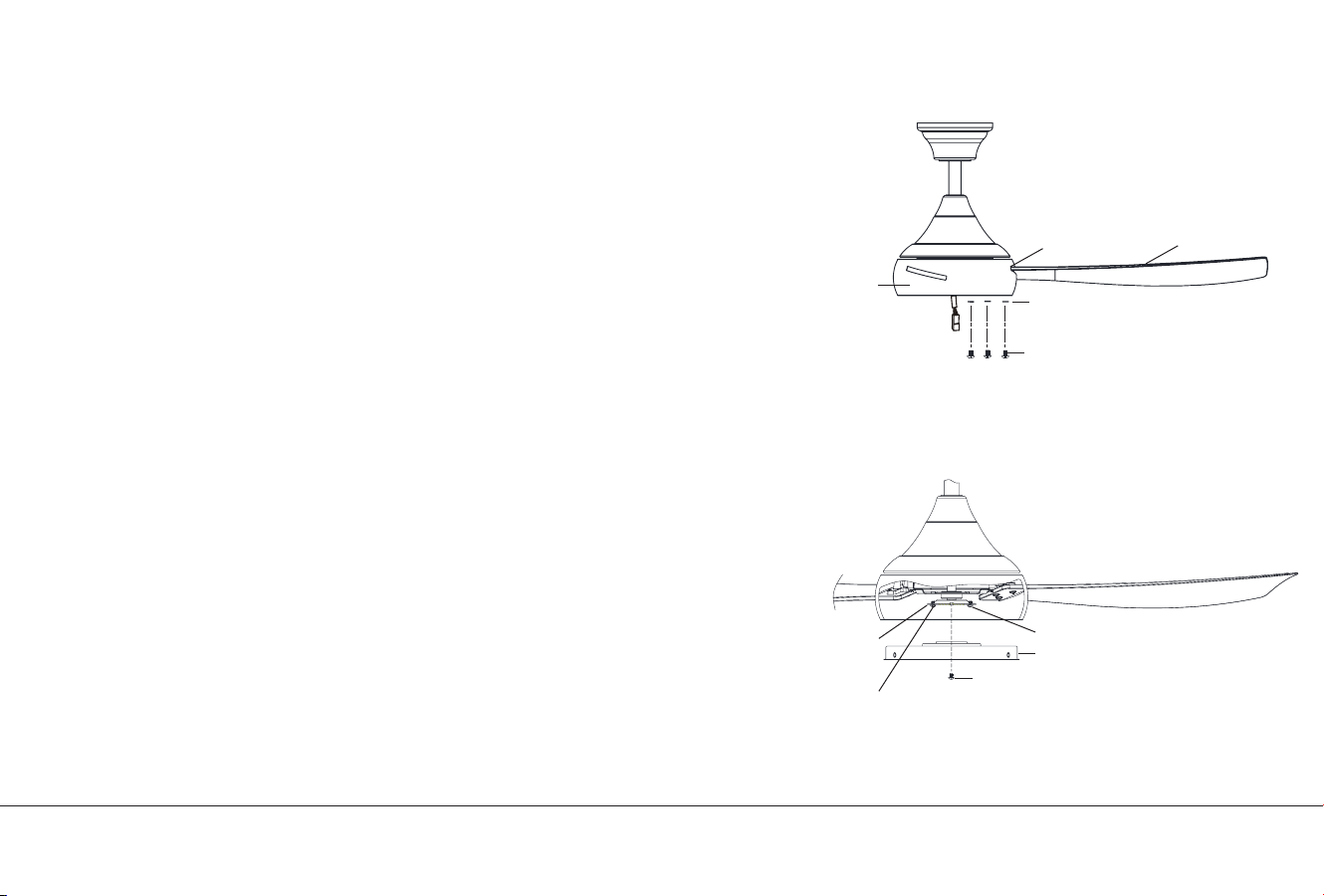

ATTACHING THE FAN BLADES
CAUTION: To reduce the risk of electric shock, disconnect the electri-
cal supply circuit to the fan before installing the fan blades.
Step 1. Insert fan blade through a slot in the flywheel. (Fig. 18)
Align the holes in the fan blade with the holes in the flywheel and attach the fan
blade to the flywheel with three fiber washers and three blade mounting screws.
Tighten blade mounting screws to secure.
Step 2. Repeat for the remaining fan blades. (Fig. 18)
INSTALLING THE MOUNTING PLATE
CAUTION: To reduce the risk of electric shock, disconnect the
electrical supply circuit to the fan before installing the mounting plate.
Step 1. Loosen two of the mounting ring screws on the mounting ring attached
to the motor shaft, and remove and save the third mounting ring screw. (Fig. 19)
Step 2. Place the key holes in the mounting plate over the 2 mounting ring
screws that were loosened on the mounting ring, and turn mounting plate
(clockwise) until it locks in place against the mounting ring screws at the narrow
sections of the key holes. (Fig. 19)
Replace the third mounting ring screw that was previously removed, and tighten
all 3 mounting ring screws to secure. (Fig. 19)
Flywheel
Slot Fan Blade
Fiber Washers
Blade Mounting Screws
Fig. 18
Fig. 19
Mounting Ring Screw
(Loosened)
Mounting Plate
Mounting Ring Screw (Removed)
Mounting Ring Screw (Loosened)
Mounting Ring

54" Ample | 19
Fig. 20
LED Light Kit
Wire Connectors
Mounting Plate Screw
Glass Shade
INSTALLING THE LIGHT KIT AND GLASS SHADE
(IF NOT USING THE DECORATIVE COVER)
CAUTION: To reduce the risk of electric shock, disconnect the electrical supply
circuit to the fan before installing the light kit and glass shade.
Step 1. Loosen two of the mounting plate screws on the mounting plate, and remove and save
the third mounting plate screw. (Fig. 20)
Step 2. While holding the light kit under your ceiling fan, push the square wire connectors
together. One from the fan and one from the light kit. (Fig. 20)
NOTE: The connectors will ONLY engage when the shapes of the connectors are matched.
(aligned)
Step 3. Tuck the connections neatly into the mounting plate. Place the key holes in the light
kit over the 2 mounting plate screws that were loosened from the mounting plate, and turn
the light kit (clockwise) until it locks in place against the mounting plate screws at the narrow
sections of the key holes.
Replace the third mounting plate screw that was previously removed, and tighten all 3
mounting plate screws to secure. (Fig. 20)
Step 4. Raise the glass shade up to the fan, seat against the mounting plate, and turn
clockwise into the mounting plate until snug, DO NOT OVER TIGHTEN. (Fig. 20)

20 | KICHLER.COM
INSTALLING THE DECORATIVE COVER
(IF NOT USING THE LIGHT KIT AND GLASS SHADE)
CAUTION: To reduce the risk of electric shock, disconnect the electrical supply
circuit to the fan before installing the decorative cover.
Step 1. Raise the decorative cover up to the fan, seat against the mounting plate, and turn
clockwise into the mounting plate until snug, DO NOT OVER TIGHTEN. (Fig. 21)
Fig. 21
Decorative Cover
