Moen 4600 Series User manual

LAVATORY FAUCETS
FOUR-INCH CENTERSET
4600, 8400 SERIES MT169A
INSTALLATION INSTRUCTIONS
CAUTION:
Before turning water on during either rough-in or trim-out, make sure that cartridge retainer clip is in place. The cartridge and
retainer clip were properly installed and tested before leaving the factory. Although it is unlikely, it is nevertheless possible
that through the handling of the valve by any number of persons the retainer clip may not be properly installed. This should
be carefully checked at time of rough-in and trim out. If the retainer clip is not properly installed, water pressure could force
the cartridge out of the casting. Personal injury or water damage to the premises could result.
Always turn water off before disassembling the valve. Open valve handle to relieve water
pressure and to insure that complete water shut-off has been accomplished.
5" NOMINAL
OPEN
POSITION
1-3/4"
3-5/8" CC
MEASUREMENTS
Fits 4" centers and through a 1" minimum
diameter hole.
ALL MODELS EQUIPPED WITH A MOEN
FLOW-RATOR™.

®
6" X 2" WIDE
1/2" IPS
THREADED
CONNECTIONS
LIFT ROD
POSITION
USE SPACER TO INSTALL
ON THINNER LAVATORY
BOWLS OR COUNTERS
1-3/4"
MAX.
4-3/4"
CLIP
EAR
Complies with ASME A112.18.1M and CSA B125

Flushing
IMPORTANT:
Pipe chips, sand, stones and other solids found in new and renovated plumbing can damage the sealing surfaces of the cartridge and cause a leak. to
avoid damage, DO NOT OPERATE THE VALVE until you have followed these instructions.
1. After installing and connecting your new faucet turn the valve on in the full cold position (handle pointing to the
right) and turn on the cold supply for 15 seconds.
2. Without closing the valve turn to the full hot position (handle pointing to the left) and turn on the hot supply for
15 seconds.
3. Close the valve, unscrew aerator from the end of the spout and clean the cone screen.
4. Replace aerator. Check for leaks.
Lift Rod & Waste Assembly
1. Thoroughly clean around drain opening in lavatory basin. Apply 1/4 inch bead of
plumber's putty (not furnished) around the underside of seat (as shown).
2. Apply pipe joint compound or Teflon tape (not furnished) to top threaded end of the
drain body. Slip drain body up through the drain opening and screw seat on the
drain body.
3. Position the drain body (with pivot rod opening extending rearward) and tighten
mounting nut until the drain body is snug. Wipe excess plumber's putty from the
seat area. Apply pipe joint compound (not furnished) to top threaded end of
tailpiece and screw into the drain body. Tighten firmly by hand.
4. Position the drain plug in either of the following ways:
A. VANDALPROOF-This design is to prevent unauthorized removal ofthe drain
plug. Unscrew the pivot nut and remove the pivot rod. Inside the drain body
position the pivot rod through the drain plug hole as shown in the illustration below.
Screw the pivot nut back on the drain body. DO NOT OVERTIGHTEN.
B. EASY REMOVAL-This design is for quick removal of drain plug for cleaning. Just
drop in the drain plug as shown in the illustration below.
5. Hook up lift rod and knob, lift rod strap, and spring clip as shown.
6. With the drain plug in full open position, adjust lift rod and knob to clear faucet and
tighten lift rod strap screw.
DRAIN
PLUG
VANDALPROOF
HOLE
LIFT ROD
AND KNOB
LIFT
ROD STRAP
SCREW
SPRING
CLIP
LIFT
ROD
STRAP
PIVOT ROD
BOTTOM GASKET
FLAT WASHER
PIVOT NUT
PIVOT ROD
SEAT
2-1/8"
1-1/2"
PIPE
JOINT
COMPOUND
OR TEFLON
TAPE
(NOT FUNISHED)
SEAT
PLUMBER'S
PUTTY
(NOT FURNISHED
MAX 2-1/2"
MIN 1-1/2"
MOUNTING
NUT
DRAIN
BODY
PIPE
JOINT
COMPOUND
(NOT FURNISHED)
1-1/4"
TAILPIPE
BASIN
8"
PIVOT
ROD VANDALPROOF
POSITION
POSITION FOR
EASY REMOVAL
PIVOT
ROD
MT169A

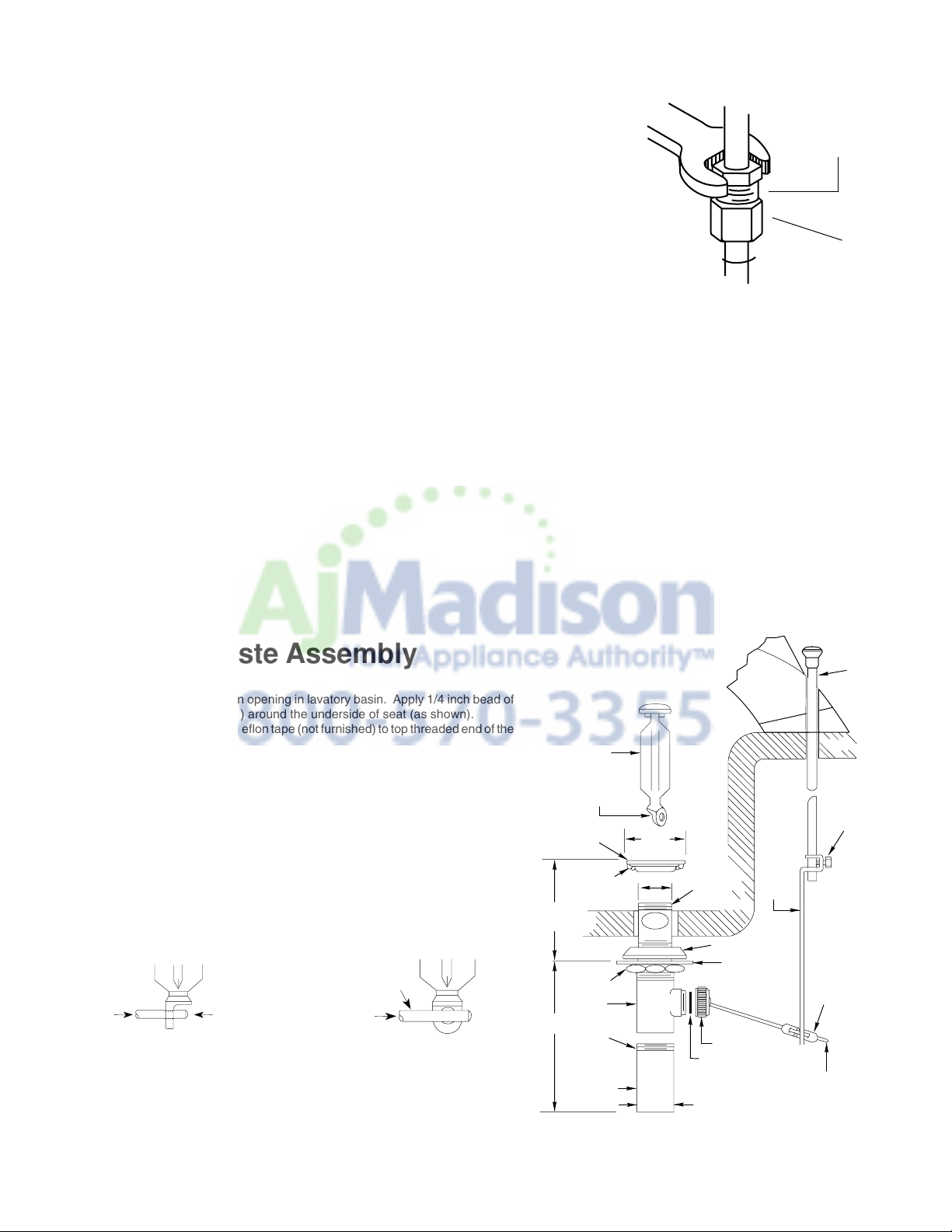

Installation
Be sure lavatory or mounting surface is clean and dry. Place a bead of plumber's putty
around the inside lip of the gasket, position gasket on deck. Assemble clamp bars,
spacers if needed, and mounting nuts to escutcheon studs. Tilt clamp bars back as
shown in illustration, then place faucet supplies and studs down through the deck.
WARNING: Hold the faucet connection nipples with a wrench when tightening to
prevent twisting and collapse of the tubing. See illustration.
TAILPIECE
ADAPTER
TIGHTEN TAILPIECE
NUT
HOLD WITH
WRENCH
➤
➤
➤

Disassembly
CAUTION: Turn OFF both hot and cold water supplies. Open handle to alleviate water pressure to insure that complete water shut-off has been accomplished.
Remove handle cap and handle screw. Lift handle assembly up, keep the cartridge stem in the closed position and tilt up and off. Remove clip retainer ring
and retainer clip. Slide off grooved sleeve and spacer.
Using the cartridge twisting tool (furnished with new Moen cartridge) and pliers turn the cartridge back and forth between 11 and 1 o'clock, then grasp the
cartridge stem and pull out the cartridge. If the cartridge is difficult to remove use a Moen cartridge puller.
Reassembly
CAUTION: Re-insert cartridge by pushing it all the way into the body and until the front of the ears on the cartridge shell are flush and aligned with the body,
up and down (see illustration).
Fully insert the cartridge until the top of the cartridge ears are level with the top of the faucet body. Position the cartridge ears up and down to allow insertion
of the retainer clip (see illustration on page 1). Replace the retainer clip (for lever handles replace spacer, grooved sleeve, retainer clip and clip retainer ring)
so that the legs straddle the cartridge ears and slide down into the bottom slot in the body. This prevents the cartridge from rotating and locks it in the body.
The notched flat on the stem must point UP when mounting knob or Concentrix handles, DOWN for lever handle models. Re-install handle parts. Tighten
handle screw securely. Press on handle cover.
To Eliminate Cross-Piping On Back-To-Back Installations, or to Correct
Reversed Rough-In Where Hot and Cold Positions are Reversed:
Position handle lever so that it points toward you (in "OFF" position). Remove handle cover, handle screw, handle assembly. Turn
valve stem around so that the notched flat is turned one-half turn or 180°. Re-install handle parts. Tighten handle screw securely and
replace handle cover. Always keep handle pointer "UP".
RETAINER CLIP
CARTRIDGE
HANDLE
SCREW
HANDLE
COVER
SPACER
GROOVED
SLEEVE HANDLE
ASSEMBLY
RETAINING
RING
NOT SHOWN:
ATTACHING HARDWARE

© Copyright, 1995
Moen Incorporated
Printed in U.S.A.
MT169A SEP 95
