Ersatzteilliste
Hydraulikhammer
EHB 10
Hagen

- 2 -
INSTRUCTIONS FOR USE
This parts manual describes the configuration of the part components of the product and is intended only to assist to
order spare parts for maintenance work
This manual contains no safety information for operating the product or maintenance work. Please observe the
safety instructions described in the relevant operation manual.
The illustrations shown in this manual is not appropriate for workshop instructions, so they should not be used for
assembling or disassembling the product. Please refer to the workshop manual for that purpose.
Use Everdigm genuine parts only.
Warranties do not cover damages that have been caused or aggravated by use of non-genuine parts.
For product warranty, please refer to the warranty conditions provided separately.
The illustrations in this manual show only the overall shapes and positions of the part components so they may not
be identical with the actual parts.
For the purpose of continued product improvement, some information in this manual could be changed without prior
notice, and might be differ from your product which was not covered by this publication.
If you found the information that is unclear or not corresponding with the actual product, contact Everdigm or
Everdigm distributor.
How to use this parts manual:
<Example>
EX-20 CYLINDER UNIT
ITEM
PART NO.
PART NAME
QTY
S
/N
REMARKS
+ X123-9001 Cylinder Unit 2
1 X123-1001 Cylinder Housing 1
2 X123-9002 Rod Cover Ass’y 1
3 X123-1002 -Rod Cover -1 ~199 [R X123-1002A]
X123-1002A -Rod Cover -1 200~
4 A456-2001 -Slide Seal -2 [K1]
4-1 A456-2002 --Seal Ring --1 [K1] [D]
4-2 A456-2003 --O-Ring --1 [K1] [D]
5 A456-2004 -Dust Wiper -1 [K1]
6 X123-1003 Rod 1
7 X124-1005 Piston 1









1. Model name: Identification name of the product
2. Title: Title name of the assembly shown in the page
2
1
3
4
5
6
7
8

- 3 -
3. Item: Key number which shows the referring number of the part in corresponding illustration.
For a revised part which replaces the old one with same item number, the item is not shown.
Item numbers are not always in sequence.
+..... Represent the title assembly containing the entire part in the illustration.
* with the same item number..... Represent selectable parts depending on product version.
4. Part No.: Identification number of the part or assembly.
The part number might be omitted when the part cannot be supplied separately.
5. Part Name: Part name of the part.
The parts without a prefix in front of the part name are independent component parts or
subassemblies belong to the title assembly in corresponding list.
Prefix ‘-‘…. The parts marked with the prefix ‘-‘ in front of the part name are component parts
belong to the subassembly shown above of the rows of these parts.
Prefix ‘--‘… The parts marked with the prefix ‘--‘ are component parts of the ‘-‘ marked
subassembly containing these parts.
6. Qty: Quantity used for one unit of their parent assembly containing the parts.
When the quantity of the title assembly is blank, refer to the page shown with ‘►’, but when it is
not blank, it represents the quantity used for one unit of the product.
For the parts with the prefix ‘-‘ or ‘--‘ in front of their part name, the quantity is expressed with that
prefix.
AR… As many as required (variable quantity depending on the product)
7. S/N: Serial number of the product which those parts are applied
Parts without serial no. indications are used in every product regardless of serial number.
8. Remarks: Supplementary comment. Refer to the following for the code within [ ].
A….. The parts with this code can be used interchangeably with each other.
R….. The part with this code is no longer manufactured as a result of a revision and replaced by
the new part whose part number follows this code.
K….. The part with this code is contained in the service kit whose item number follows this code.
D….. The part with this code cannot be supplied separately. The assembly part containing this
part should be ordered.
S….. Non-standard part which can be supplied by separate order
How to order parts:
Please note the full model name and serial number of your product. This code can be found on the nameplate of your
product. Compare the parts to order with the corresponding parts in the drawings in this parts manual and note the part
numbers to order.
When ordering parts, please specify detail part names as shown in the following example,
Model name of product: EX-20
Serial number: 135
Part No.: A123-4567
Part name: Pin
Quantity: 2
Purchaser’s name & address: . . . .

EHB10-Rev6/161212
- 4 -
TABLE OF CONTENTS
INSTRUCTIONS FOR USE ..................................................................................................................................... 2
EHB10 – Product Dimensions.................................................................................................................................. 6
EHB10 – Power Cell Ass’y....................................................................................................................................... 9
EHB10 – Cylinder Ass’y ......................................................................................................................................... 11
EHB10 – Cylinder Bush Ass’y ................................................................................................................................ 12
EHB10 – Front Head Ass’y .................................................................................................................................... 13
EHB10 – Seal Kit ................................................................................................................................................... 14
EHB10 – Tools (Chisels) ........................................................................................................................................ 15
EHB10 – Bracket Ass’y; BA ................................................................................................................................... 17
EHB10 – Bracket Ass’y; NA ................................................................................................................................... 19
EHB10 – Bracket Ass’y; NS ................................................................................................................................... 21
EHB10 – Mounting Adapter and Hoses ................................................................................................................. 22
EHB10 – Gas Charging Kit .................................................................................................................................... 23
EHB10 – Maintenance Tool Kit .............................................................................................................................. 25
Copyright © 2010 Everdigm Corp. All rights reserved.
This manual is copyrighted by Everdigm Corp. with all rights reserved in accordance with prevailing law. It is positively
prohibited to use or reproduce its contents in whole or in part without prior written permission.

EHB10-Rev6/161212
- 5 -

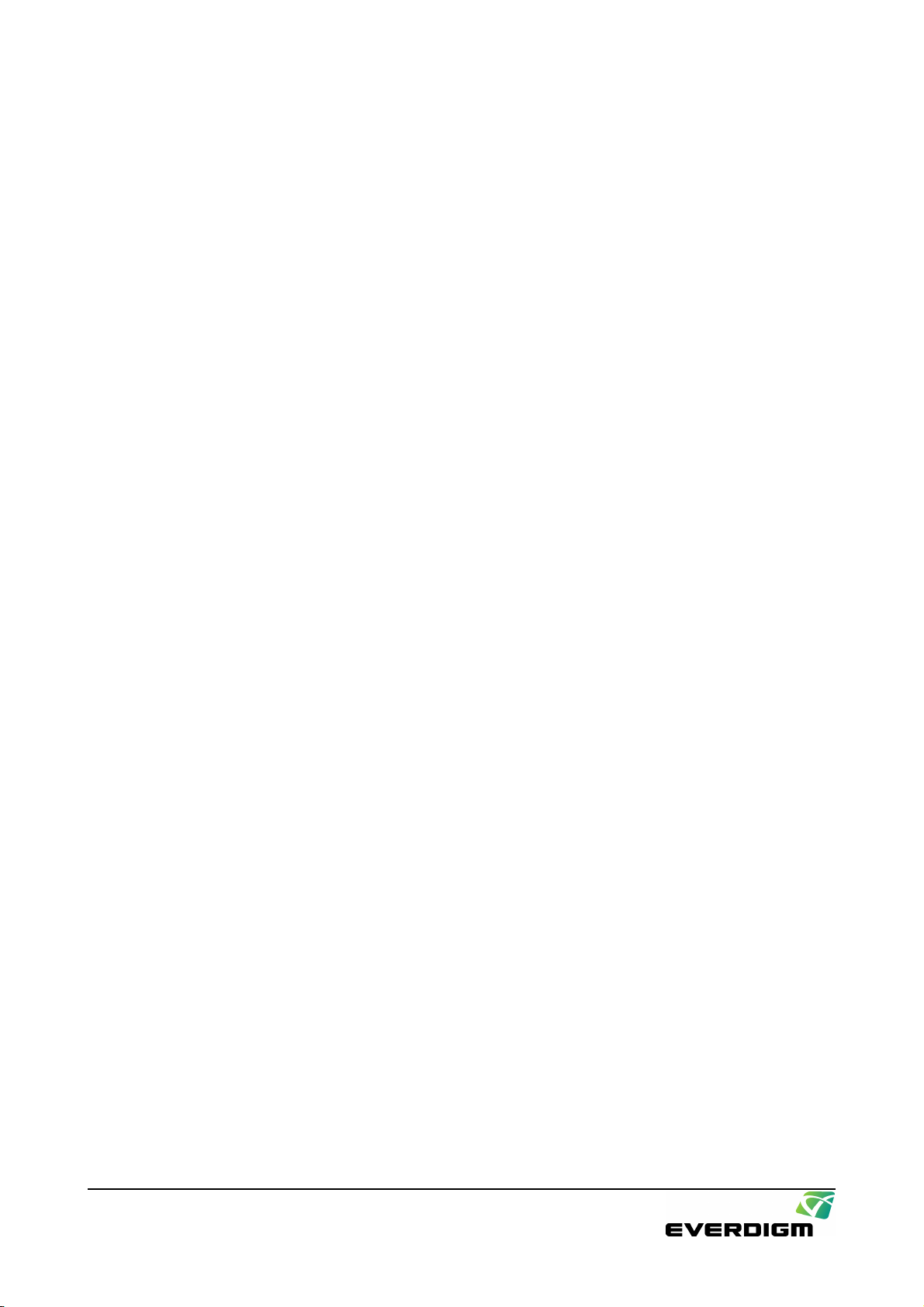

Blank Page

EHB10-Rev6/161212
- 6 -

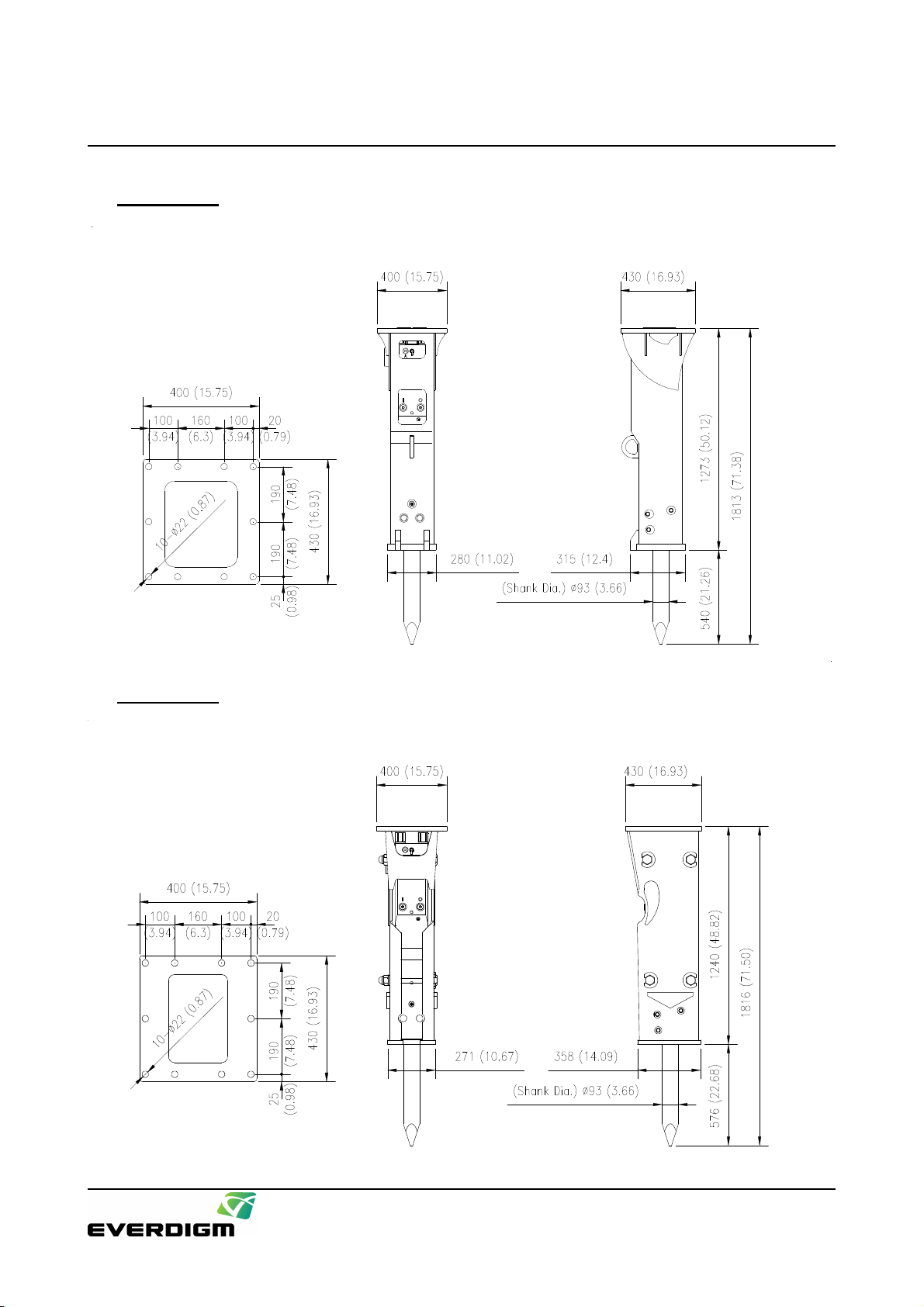

EHB10 Product Dimensions (1/2)
Unit: mm (inch)
EHB10-BA
EHB10-NA

EHB10-Rev6/161212
- 7 -

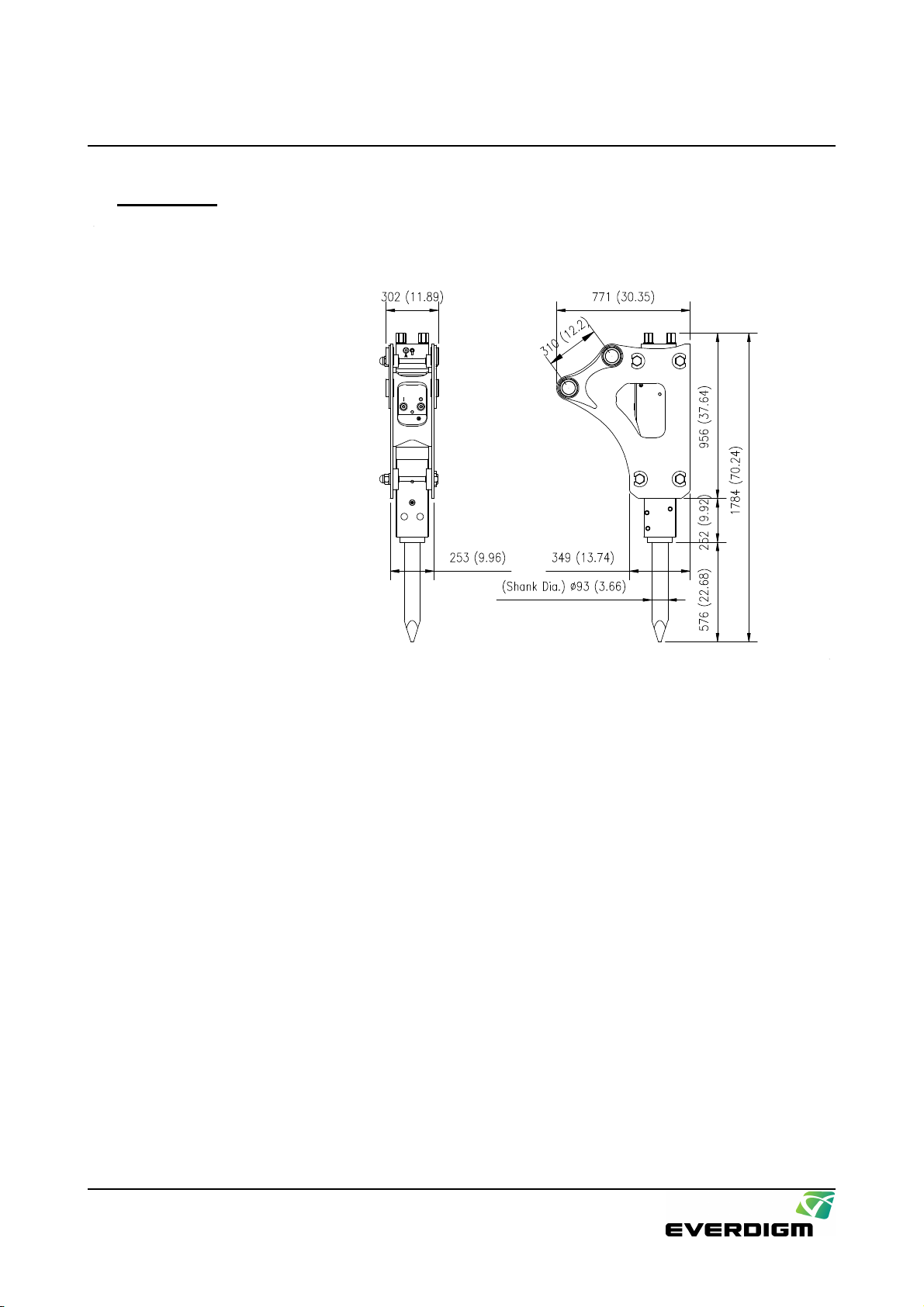

EHB10 Product Dimensions (2/2)
Unit: mm (inch)
EHB10-NS

EHB10-Rev6/161212
- 8 -
EHB10 Power Cell Ass’y
602
603
601
300
100
202
204
201
205
203
200
407
401
406
405
404
403
402
400
500
600

EHB10-Rev6/161212
- 9 -
EHB10 Power Cell Ass’y
ITEM
PART N
O.
PART NAME
QTY
S
/N
REMARKS
+ B100-9901 Power-cell Ass’y 1
100 B100-9801 Cylinder Ass’y 1
200 B060-9802 Valve Ass’y 1
201 B060-2001 -Valve -1
202 B060-2002 -Valve Bush -1
203 B060-2003 -Valve Plug -1
204 S8010501 -O-ring -1 [K4]
205 S8010351 -O-ring -1 [K4]
300 B060-9803 Cylinder Bush Ass’y 1
400 B090-9804 Back Head Ass’y 1
401 B090-4001 -Back Head -1 [R AB100-0006]
AB100-0006 -Back Head -1
402 S8011051 -O-ring -1 [K4]
403 A062-0041 -Minimess Coupling -1
404 A061-0034 -Plug -1
405 S8000111 -O-ring -1 [K4]
406 A061-0003 -Plug -1
407 S8000181 -O-ring -1 [K4]
500 B100-9805 Front Head Ass’y 1
600 B080-0604 Through Bolt Kit 4
601 B080-6004 -Through Bolt -1
602 B080-6001 -Back Head Nut -1
603 B080-6002 -Back Head Washer -1

EHB10-Rev6/161212
- 10 -
EHB10 Cylinder Ass’y
101
103 103-2
103-1
102
104
110
105
110
105
108
109
106
106
109
106
109
106
109
109
106
109
106

EHB10-Rev6/161212
- 11 -
EHB10 Cylinder Ass’y
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+ B100-9801 Cylinder Ass’y 1
101 A021-0001 Lock Pin 1
102 AA053-0008 U-Packing 1 [K2]
103 AA053-0007 Buffer Ring 1 [K2]
103-1 -Seal Ring -1 [K2] [D]
103-2 -Back-up Ring -1 [K2] [D] [for Option Seal Only]
104 AA054-0005 Dust Seal 1 [K2]
105 A061-0015 Plug 2 BSP 3/4
106 A061-0034 Plug 7 BSP 1/4
107 B100-1001 Cylinder 1
108 B100-1002 Piston 1
109 S8000111 O-ring 7 [K4]
110 S8000241 O-ring 2 [K4]

EHB10-Rev6/161212
- 12 -
EHB10 Cylinder Bush Ass’y
304
303
301
302
302
304
304
303
302
302
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+ B060-9803 Cylinder Bush Ass’y 1
301 B060-1003 Cylinder Bush 1
302 A056-0028 Step Seal 2 [K3]
302-1 -Seal Ring -1 [K3] [D]
302-2 -O-ring -1 [K3] [D]
303 A057-0009 Gas Seal 1 [K3]
304 S8011051 O-ring 2 [K3]

EHB10-Rev6/161212
- 13 -
EHB10 Front Head Ass’y
501
502
503
504
505
506
507 502
508
509
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+ B100-9805 Front Head Ass’y 1
501 A021-0001 Lock Pin 1
502 A031-0003 PU-Sleeve 3
503 B080-5010 Stop Pin 2
504 B090-5005 Chisel Pin 2
505 B100-5001 Front Head 1
506 B100-5002 Chisel Bush 1
507 B100-5003 Front Bush 1
508 B100-5004 Stop Pin 1
509 S6710052 Grease Nipple 1 BSPT 1/4

EHB10-Rev6/161212
- 14 -
EHB10 Seal Kit
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
K1 AB102-0002 Seal Kit 1 [K2+K3+K4]
K2 AB102-0003 Piston Lower Part Seal Kit 1
AA053-0008 -U-Packing -1
AA053-0007 -Buffer Ring -1
AA054-0005 -Dust Seal -1
K3 AB102-0004 Piston Upper Part Seal Kit 1
A056-0028 -Step Seal -2
A057-0009 -Gas Seal -1
S8011051 -O-ring -2 JIS G105-HsA90
K4 AB102-0005 Normal Seal Kit 1
S8000111 -O-ring -8 JIS P11-HsA90
S8000181 -O-ring -1 JIS P18-HsA90
S8000241 -O-ring -2 JIS P24-HsA90
S8010351 -O-ring -1 JIS G35-HsA90
S8010501 -O-ring -1 JIS G50-HsA90
S8011051 -O-ring -1 JIS G105-HsA90

EHB10-Rev6/161212
- 15 -

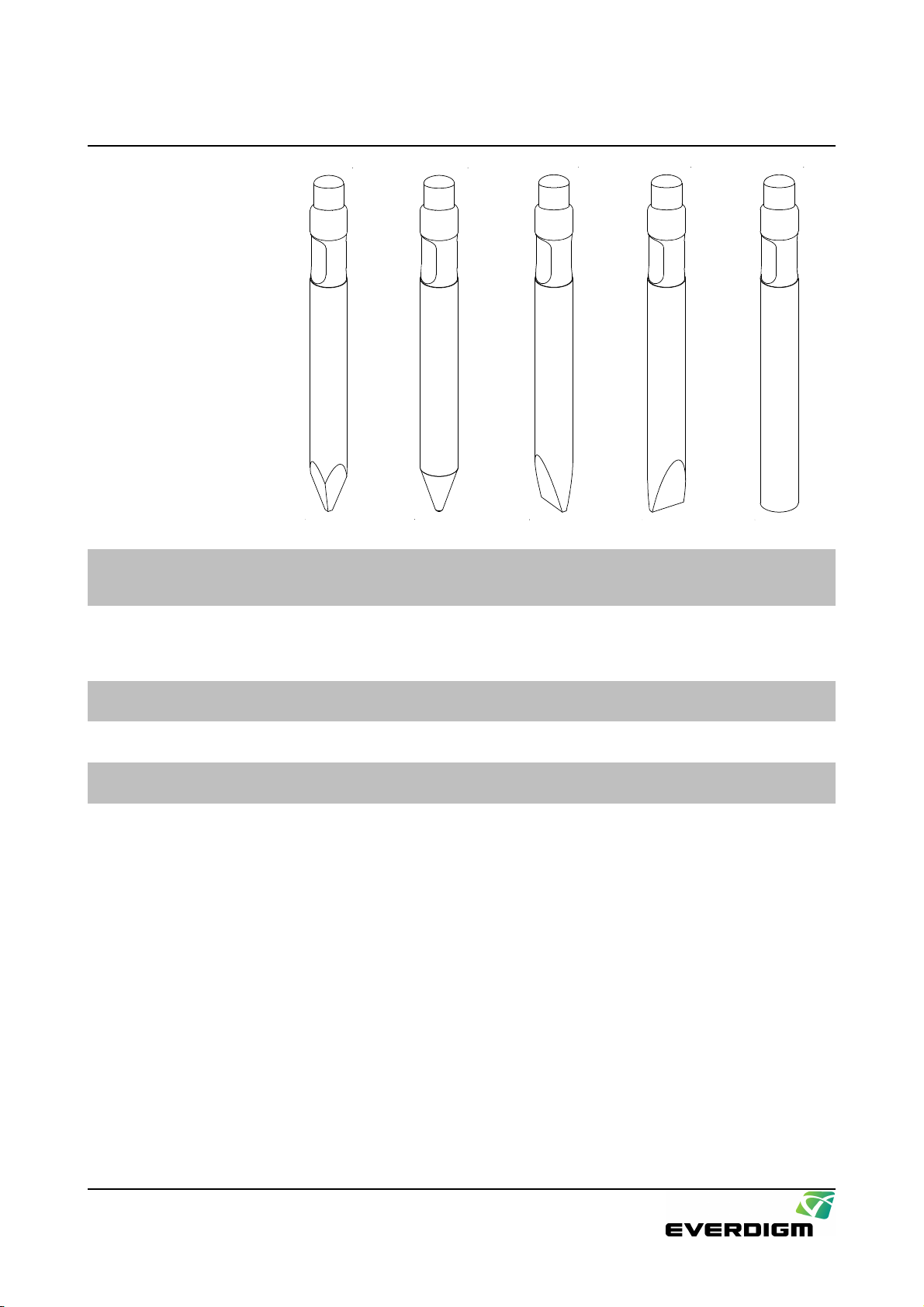

EHB10 Tools (Chisels)
TOOL SHAPE
TYPE OF TOOL
Moil Wedge
(Pyramid)
Moil Point
(Conical)
Flat Wedge
- Vertical
(Inline-cut)
Flat Wedge
-Horizontal
(Cross-cut)
Flat End
(Blunt)
PART NO.
B100-6001 B100-6002 B100-6003 B100-6004 B100-6005
TOOL DIAMETER
mm
(in.)
93
(3.66)
93
(3.66)
93
(3.66)
93
(3.66)
93
(3.66)
TOOL LENGTH
mm
(in.)
900
(35)
900
(35)
800
(31.5)
900
(35)
900
(35)
TOOL WEIGHT
kg
(lbs)
42
(93)
42
(93)
43
(95)
43
(95)
45
(99)

EHB10-Rev6/161212
- 16 -
EHB10 Bracket Ass’y; BA
1
2
3
4
5

EHB10-Rev6/161212
- 17 -
EHB10 Bracket Ass’y; BA
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+ B102-9402 Bracket Ass’y 1
1 B080-7055 Upper Damper 1
2 B102-7014 Bracket 1
3 B102-7028 Lower Damper 1
4 B040-7064 Wear Plate 8
5 B090-7027 Shim AR

EHB10-Rev6/161212
- 18 -
EHB10 Bracket Ass’y; NA
1
6
4
5
2
3

EHB10-Rev6/161212
- 19 -
EHB10 Bracket Ass’y; NA
ITEM
PART NO.
PART NAME
QTY
S/N
REMARKS
+ AB102-0043 Bracket Ass’y 1
1 AB102-0044 Bracket 1
2 B102-7037 Guide Block 2
3 B090-7043 Locate Block 2
4 B060-7192 Side Bolt 4
5 B082-7020 Side Bolt Washer 4
6 S4413641 Hex. Cap Nut 4

EHB10-Rev6/161212
- 20 -

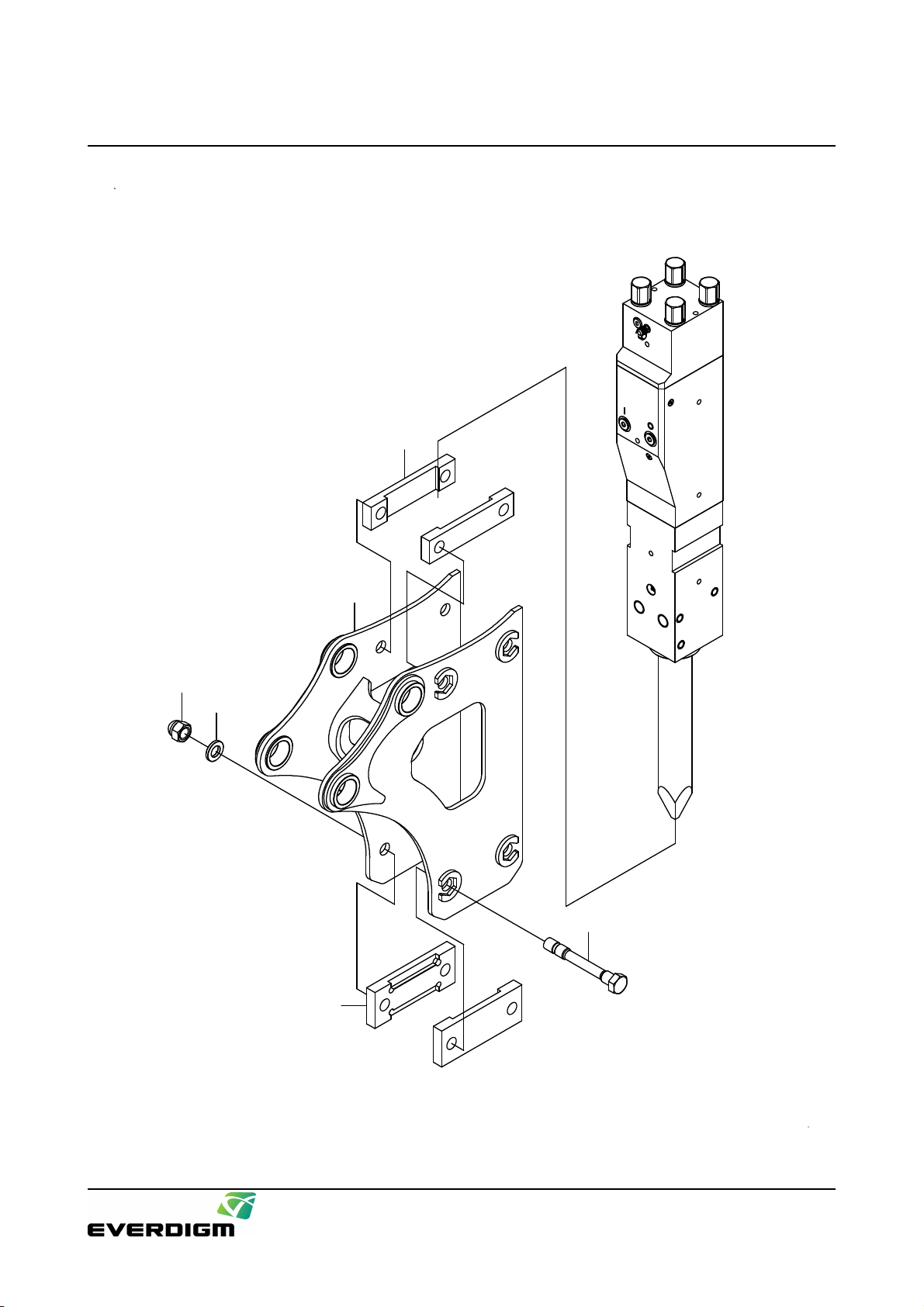

EHB10 Bracket Ass’y; NS
1
2
4
6
5
3
