Moffat MSF 620 User manual

Electric
Oven
MSF 620
Instruction
Booklet

2
You MUST read these warnings carefully before installing or using the oven. If you need
assistance, contact our Customer Care Department on 08705 950950
Important Safety Information
Installation
• This oven must be installed by qualified
personnel to the relevant British Standards.
• This oven is heavy. Take care when moving it.
• Removeallpackaging,bothinsideandoutside
the oven, before using the oven.
• Once you have removed all packaging from
the appliance, ensure that it is not damaged
and the electric cable is in perfect condition.
Otherwise, contact your dealer before
proceeding with the installation.
• Do not attempt to modify the oven in any way.
ChildSafety
• This oven is designed to be operated by
adults. Do not allow children to play near or with
the oven.
• Do not allow children to sit or climb on the drop
down door.
• This oven is not intended for use by children
or other persons whose physical, sensory or
mental capabilities or lack of experience and
knowledge prevents them from using the
appliance safely without supervision or
instruction by a responsible person to ensure
that they can use the appliance safely.
• The oven gets hot when it is in use. Children
should be kept away until it has cooled.
During Use
• This oven is intended for domestic cooking
only.Itisnotdesignedforcommercialorindustrial
purposes.
• The oven gets hot when it is in use and retains
heat for a long period after use. Care should be
taken to avoid touching heating elements inside
the oven.
• Always stand back from the oven when
opening the oven door during or immediately
after use to allow any build up of steam to
release.
• Never line any part of the oven with aluminium
foil.
• Do not allow heatproof cooking material,
e.g. roasting bags, to come into contact with
oven elements.
• Neverplaceplasticor any other material which
may melt in or on the oven.
• Do not place sealed cans or aerosols inside
the oven. They may explode if they are heated.
• Do not hang towels, dishcloths or clothes
from the oven or its handle.
• Do not use this oven if it is in contact with
water and never operate it with wet hands.
• Take great care when heating fats and oils as
they will ignite if they become too hot.
• Always use oven gloves to remove and
replace food in the oven.
• Ensure that all control knobs are in the OFF
position when not in use.
• Do not leave cookware containing foodstuffs,
e.g. fat or oil in or on the oven in case it is
inadvertently switched ON.
• Whenusingotherelectricalappliances,ensure
the cable does not come into contact with the
hot surfaces of the oven.
Maintenance and Cleaning
• Only clean this oven in accordance with the
instructions.
• The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could result in
a fire, especially in the grill pan.
• Always allow the oven to cool down and
switch off the electrical supply before carrying
out any cleaning or maintenance work.
• Never use steam or steam machines to clean
the appliance.
• Do not use harsh abrasive cleaners or
sharp metal scraper to clean the oven door
glass since they can scratch the surface,
which may result in shattering of the glass.

3
The symbol on the product or on its
packaging indicates that this product may not
be treated as household waste. Instead it shall
be handed over to the applicable collection
point for the recycling of electrical and
electronic equipment. By ensuring this product
is disposed of correctly, you will help prevent
potential negative consequences for the
environment and human health, which could
otherwise be caused by inappropriate waste
handling of this product. For more detailed
information about recycling of this product,
please contact your local city office, your
household waste disposal service or the shop
where you purchased the product.
For the User
Important Safety Information 2
Description of the Oven 4
Before the First Use 4
Controls 5
Electronic Programmer 7
Using the Oven 11
Hints and tips for using the Oven 12
Cooking tables 14
Cleaning the Oven 16
Something not Working 18
Service and Spare Parts 22
Guarantee Conditions 22
European Guarantee 23
Contents
For the Installer
Technical Data 19
Electrical Connection 20
Building In 21
Service
• This oven should only be repaired or serviced
by an authorised Service Engineer and only
genuine approved spare parts should be used.
EnvironmentalInformation
• After installation, please dispose of the
packaging with due regard to safety and the
environment.
• When disposing of an old appliance, make
it unusable, by cutting off the cable. Remove
any door catches, to prevent small children
being trapped inside.
The following symbols will be found in the
text to guide you throughout the Instructions:
Safety Instructions
Step by step instructions for an
operation
Hints and Tips
Environmental information
!
Guide to Use the instructions
Keep this instruction book for future
reference and ensure it is passed on
to any new owner.

4

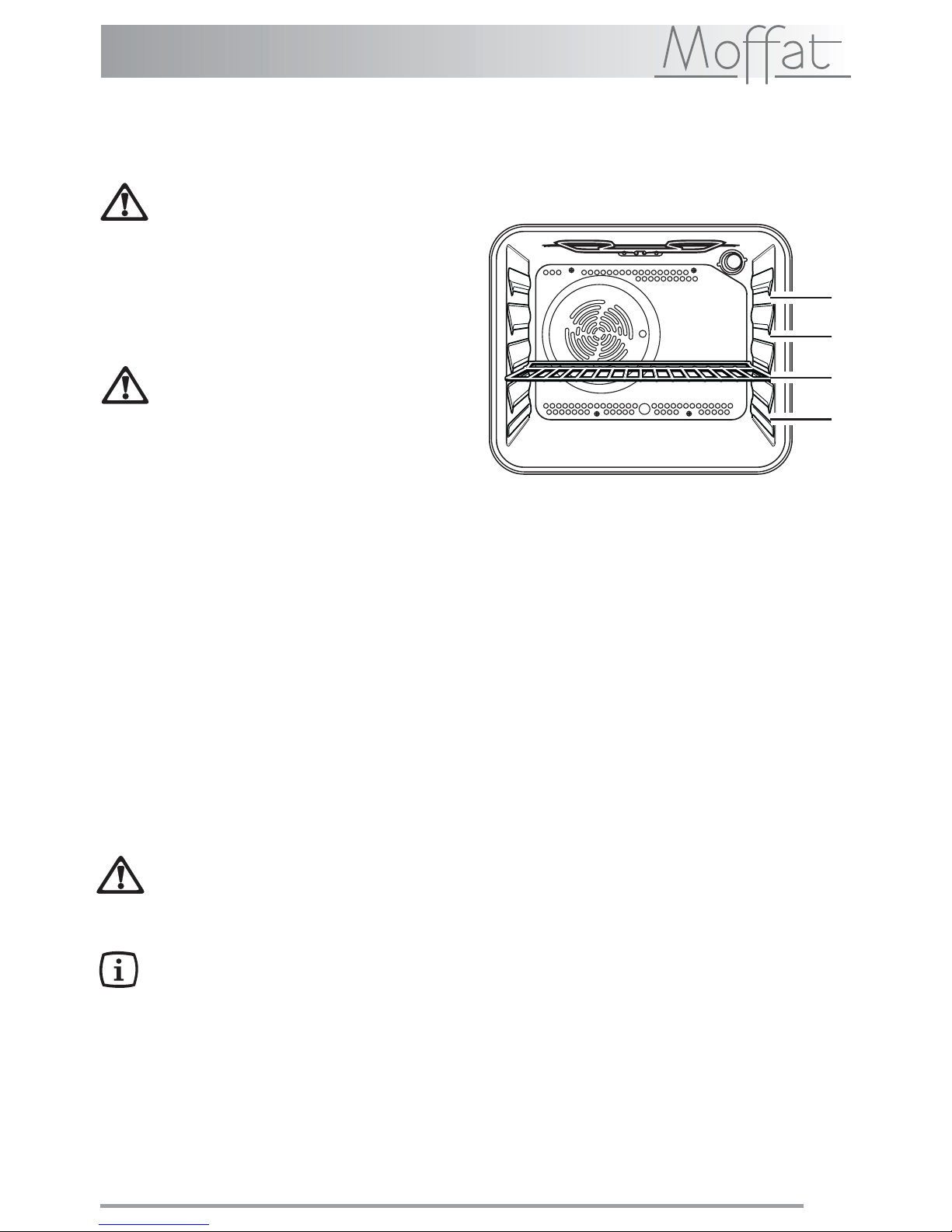

Description of the Oven
Remove all packaging, both inside
and outside the oven, before using
the appliance.
Before first use, the oven should be heated
without food. During this time, an unpleasant
odour may be emitted. This is quite normal.
The oven will work only if the time of day
has been set.
1. Set the time of day with the electronic
programmer (see chapter "Electronic
Programmer").
2. Switch the oven function control knob to fan
cooking function .
Before the First Use
1. Control Panel
2. Oven Function Control Knob
3. Electronic Programmer
4. Thermostat Control Knob
5. Thermostat Control Light
6. Grill
7. Oven Light
8. Oven Fan
9. Rating Plate
10. Oven Door
8
7
24
1
53
6
10
9
3. Set the thermostat control knob to MAX.
4. Open a window for ventilation.
5. Allowthe oven to run empty for approximately
45 minutes.
This procedure should be repeated with the
conventional cooking and grill cooking
functions for approximately 5-10 minutes.
Before cooking for the first time,
carefully wash the oven
accessories.

5
Oven Function Control Knob
0The oven is off.
Oven light - The oven light will be on
without any cooking function.
Conventional cooking - The heat
comes from both the top and bottom
element, ensuring even heating inside
the oven.
Top heating element - The heat comes
from the top element only (outer
section).
Bottom heating element - The heat
comes from the bottom of the oven only.
Inner Grill - The inner grill element can
be used for grilling small quantities.
Full Grill - The full grill element will be
on. Recommended for large quantities.
Thermal Grilling - This function offers
an alternative method of cooking food
items, normally associated with
conventional grilling. The grill element
and the oven fan operate alternatively,
circulating hot air around the food.
When using the thermal grill
cooking function, select a
maximum temperature of 200°C.
Fan cooking - This allows you to roast
or roast and bake simultaneously
using any shelf, without flavour
transference.
Defrost Setting - This setting is
intended to assist in thawing of frozen
food.
Ensure the thermostat control knob is
in the OFF position.
Controls

6
The Safety Thermostat
This oven is provided with a safety thermostat.
In case of malfunctioning of the main
thermostat, and consequent over-heating, the
safety device will stop the power supply to the
appliance. If this happens, call your local
Service Force Centre. Under no
circumstances should you attempt to repair
the appliance yourself.
The Cooling Fan
The cooling fan is designed to cool the walls
of the oven and the components of the oven
itself. The fan switches on automatically after
a few minutes of cooking. Warm air is blown
out through the aperture near the oven door
handle. When the oven is switched off, the
fan will remain on in order to cool the oven
and kitchen cabinets properly, after which it
switches off automatically.

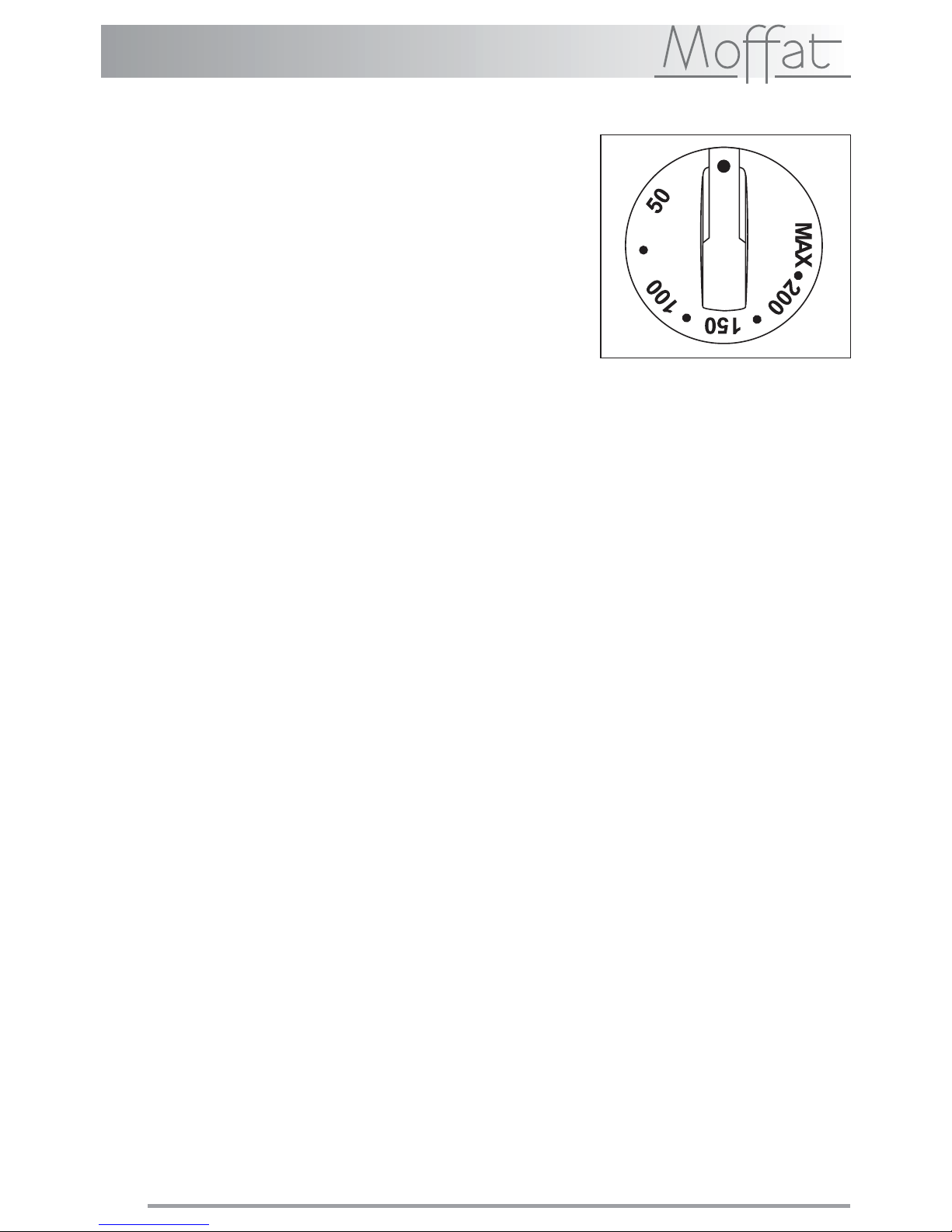

Thermostat Control Knob
Turn the thermostat control knob clockwise to
select temperatures between 50°C and 230°C
(MAX).
ThermostatControlLight
The thermostat control light will come on
when the thermostat control knob is turned.
The light will remain on until the correct tem-
perature is reached. It will then cycle on and
off to show the temperature is being
maintained.

7
Electronic Programmer
4
5
123
67
8
The oven will work only if the time of
day has been set. Moreover, the oven
can also be operated without any
programme.
Setting the time of day
When the power supply is switched on, or after
a power failure, the “Time of day” pilot lamp will
flash on the display.
To set the correct time of day:
1. press button “ ” or “ ”.
2. After the setting is carried out, wait for 5
seconds: the “Time of day” pilot lamp will
go out and the display will show the set
time. The appliance is ready for use.
To reset the correct time of day:
1. press button repeatedly to select the
“Time of day” function. The relevant pilot
lamp will start flashing. Then proceed as
described above.
The time of day can only be reset if no
automatic function (cook time or end of
cooking time) has been set.
“Cook Time” function
This function allows the oven to automatically
switch off at the end of a programmed cooking
duration time. Place food in the oven, select
a cooking function and adjust the cooking
temperature.
In the event of a power failure, all the
settings (time of day, programme
setting or programme in operation)
will be cancelled.
When the power is restored, the
numbers in the display will flash, and
the clock/timer has to be reset.

8
Press button repeatedly to select the “Cook
Time” function. The relevant pilot lamp will
start flashing. Then, proceed as follows:
To set the duration time:
1. press button “ ” or “ ”.
2. After the setting is carried out, wait for 5
seconds: the "Cook Time" pilot lamp will
come on and the display will revert to the
time of day.
3. When cooking time is over, the oven will
be switched off automatically and an
acoustic alarm will be heard, while the
pilot lamp will start flashing. Turn the oven
function and the thermostat control knob
to zero.
To switch off the acoustic alarm, press
any button. NOTE: when doing this
operation, the oven will be operated again,
therefore, remember to turn the oven
function and the thermostat control knob
to zero at the end of the cooking time.
To cancel the duration time:
1. Press button repeatedly to select the
“Cooking Duration” function. The relevant
pilot lamp will flash and the display will
show the remaining cooking time.
2. Press button “ ” until the display shows
“0:00”. After 5 seconds the pilot lamp will
go out and the display will revert to the
time of day.
“End Time” function
Thanks to this function, you can set the oven
to switch off automatically when a programmed
end of cooking time is over. Place food in the
oven, select a cooking function and adjust the
cooking temperature. Press button
repeatedly to select the “End Time” function.
The relevant pilot lamp will start flashing.
Then, proceed as follows:
To set the End Time:
1. press button “ ” or “ ”.
2. After the setting is carried out, wait for 5
seconds: the “End Time” pilot lamp will
come on and the display will revert to the
time of day.

9
3. When cooking time is over, the oven will
be switched off automatically and an
acoustic alarm will be heard, while the
pilot lamp will start flashing. Turn the oven
function and the thermostat control knob
to zero.
To switch off the acoustic alarm, press
any button. NOTE: when doing this
operation, the oven will be operated again,
therefore, remember to turn the oven
function and the thermostat control knob
to zero when cooking is over.
To cancel the End Time:
1. Press button repeatedly to select the
“End Time” function. The relevant pilot
lamp will flash and the display will show
the programmed End of cooking time.
2. Press button “ ” until the display shows
the current time of day. The programmer
will beep and the pilot lamp will go out.
“Cook Time” and “End Time”
combined
The functions “Cook Time” and “End Time”
can be used simultaneously to set the oven to
switch on and off automatically at a later time.
1. With the “Cook Time” function (carry out
the cooking duration setting as described
in the relevant chapter) set the duration
time. Then, press button : the display
will show the programmed setting.
2. With the “End Time” function (carry out the
End of cooking setting as described in
the relevant chapter) set the end of
cooking time.
The relevant pilot lamps will come on and
the display will show the time of day. The
oven will switch on and off according to
the set programmes.

10
“Countdown” function
The countdown alarm will sound at the end of
a timed period, but THE OVEN WILL REMAIN
ON, if it is in use.
To set the Countdown:
1. Press button repeatedly to select the
“Countdown” function. The relevant pilot
lamp will start flashing.
2. Then, press button “ ” or “ ” (maximum:
2 hours, 30 minutes).
3. After the setting is carried out, wait for 5
seconds: the “Countdown” pilot lamp will
come on.
4. At the end of the timed period, the pilot
lamp will start flashing and acoustic alarm
will be heard. To switch off the acoustic
alarm, press any button.
To cancel the Countdown:
1. Press button repeatedly to select the
“Countdown” function. The relevant pilot
lamp will flash and the display will show
the remaining time.
2. Press button “ ” until the display shows
“0:00”. After 5 seconds the pilot lamp will
go out and the display will revert to the
time of day.
How to switch off the display
1. Press two programmer push buttons
simoultaneously and keep them pressed
for about 5 seconds. The display will
switch off.
2. To switch on the display, press any button.
The display can be switched off only if
no other functions have been set.

11
Using the Oven
Always cook with the oven door closed.
Stand clear when opening the drop down
oven door. Do not allow it to fall open - support the
door using the door handle, until it is fully open.
The oven has four shelf levels, and is supplied
with two shelves. The shelf positions are counted
from the bottom of the oven as shown in the
diagram.
Attention! - Do not place cookware/objects
on the oven base and do not cover any
part of the oven with aluminium foil while cooking,
as this could cause a heat build-up which would
affect the baking results and damage the oven
enamel. Always place pans, heat-resisting pans
and aluminium trays on the shelf which has been
inserted in the shelf runners.
Condensation and steam
The oven is supplied with an exclusive system
which produces a natural circulation of air and
the constant recycling of steam. This system
makes it possible to cook in a steamy
environment and keep the dishes soft inside
and crusty outside. Moreover, the cooking time
and energy consumption are reduced to a
minimum. During cooking steam may be
produced which can be released when
opening the oven door. This is absolutely
normal.
However, always stand back from the
oven when opening the oven door
during cooking or at the end of it to allow any
build up of steam or heat to release.
When food is heated, it produces steam
in the same way as a boiling kettle does.
When steam comes in contact of the oven door
glass, it will condense and produce water
droplets. To reduce condensation, ensure the
oven is well heated before placing food in the
oven cavity. A short oven pre-heating (about 10
minutes) will then be necessary before
anycooking. We recommend you to wipe away
condensation after each use of the appliance.
Cookware
• Use any oven proof cookware which will
withstand temperatures of 230°C.
• Baking trays, oven dishes, etc. should not
be placed directly against the grid covering
the fan at the back of the oven, or placed on
the oven base.
• Do not use baking trays larger than 30 cm
x 35 cm (12 in x 14 in) as they will restrict the
circulation of heat and may affect perfor-
mance.
The effects of dishes on cooking
results
Dishes and tins vary in their thickness,
conductivity, colour, etc. which affects the way
they transmit heat to the food inside them.
AAluminium, earthenware, oven glassware
and bright shiny utensils reduce cooking
and base browning.
BEnamelled cast iron, anodized aluminium,
aluminium with non-stick interior and
coloured exterior and dark, heavy utensils
increase cooking and base browning.
4
3
2
1

12
Conventional cooking
Heat comes from the top and from the bottom,
therefore it is preferable to use the central
runners. If cooking requires more heat from
the top or from the bottom use the top or the
bottom runners.
Fan cooking
The food is cooked by means of preheated
air force blown evenly round the inside of
the oven by a fan set on the rear wall of the
oven itself.
Heat thus reaches all parts of the oven evenly
and fast and this means that you can
simultaneously cook different types of foods
positioned on the various oven shelves. Fan
cooking ensures rapid elimination of
moisture and the dryer oven environment
stops the different aromas and flavours from
being transmitted from one food to another.
The possibility of cooking on several shelf
heights means that you can cook several
different dishes at the same time and up to
three tins of biscuits and mini pizzas to be
eaten immediately or subsequently deep
frozen. Naturally the oven can also be used
for cooking on just one shelf. In this case
you should use the lowest set of runners so
that you can keep an eye on progress more
easily. In addition, the oven is particularly
recommended for sterilizing preserves,
cooking home-made fruit in syrup, and for
drying mushrooms or fruit.
If you wish to cook more than one dish
at the same time, we suggest that you
change the cooking levels of your
dishes during the last 5-10 minutes in order
to obtain a more uniform colour of your
dishes.
NOTE: Shelf positions are counted from
bottom of the oven.
Grilling
When grilling meat or fish, spread a little oil on
them and always place them on the oven grid.
The shelf level depends on the thinckness of
the food.
Always place the dripping pan at the lowest
level, with some water in it, to avoid smoke and
unpleasant smells.
Thermal grilling
When using this cooking function, select a
maximum temperature of 200°C.
The full grill element and the oven fan operate
alternately, circulating hot air around the food.
The need to check and turn food is reduced.
With the exception of toast and rare steaks,
you can thermal grill all the foods you would
normally cook under a conventional grill.
Defrosting
Theovenfanoperateswithoutheatandcirculates
the air, at room temperature, inside the oven.
Ensure the thermostat control knob is in the
OFF position.
Some hints
For baking cakes
Cakes require a moderate temperature
(normally between 150°C and 200°C). In
addition, the oven must be heated up
beforehand - for about 10 minutes.
The oven door should not be opened before at
least 3/4 of the set cooking time is up.
Normal short pastry dough should be cooked
in a mould or tin for 2/3 of total cooking time
required and then garnished as desired before
being cooked completely.
Hints and tips for using the Oven

13
Clearly, the remaining cooking time depends
on the type of garnish used (jam, fruit, etc.). Care
should be taken to ensure that any dough and
cake mixes are of the right consistency since an
unduly moist mix lengthens cooking time
unnecessarily. The raw dough or mix should
therefore be fairly difficult to detach from the
spoon or beater.
If three shelves are filled with cakes and tarts
simultaneously, it is advisable to slot in an
extra shelf between the two lower shelves.
For cooking meat and fish
Meat cooked in the oven should weigh at least
1 kg to prevent it from becoming too dry dur-
ing cooking. Very tender red meat to be
cooked rare, i.e. well cooked on the outside
but extremely juicy inside, requires
high-temperature cooking (200°C-230°C).
White meat, poultry and fish instead require
low-temperature cooking (150°C-175°C).
The ingredients for the accompanying sauce
or gravy should be put in the baking pan at
the very beginning only when cooking times
are short.
Otherwise they should be added during the
last half hour. A simple way of checking
whether meat is done or not is to press it
with a spoon; if the meat does not yield under
this pressure it means that it is done to a
turn. In the case of roast beef and fillet steaks,
the inside of which should remain fairly pink
in color, cooking times must be short.
The meat can be cooked in a baking pan or
else directly on the shelf - in this case a
dripping pan must obviously be placed
underneath the shelf to collect the juice.
Should you cook very fat food, place the meat
directly on the grill and the grill over the
dripping pan in order not to dirty the oven.
Once the meat is cooked, it is advisable to let
it rest for at least 15 minutes before carving
so that the juice does not seep out.
To prevent the formation of too much smoke
in the oven during roasting, it is a good idea
to pour a little water into the dripping pan
and—to prevent steam—to add a little bit
more during cooking if the original amount
dries up too much.
Before serving, the various courses can be
kept hot in the oven which should be turned
down to the minimum temperature.
Cooking times
Cooking times vary according to the type of
food to be cooked, its consistency, and
volume.We suggest that you take particular
note of your first cooking experiments with the
oven, since operating in the same conditions
for the same dishes you will of course obtain
similar results. Only experience will enable you
to make the appropriate changes to values
given on charts.

14
Cooking tables
4
3
2
1
4
3
2
1
CAKES
Whipped up kneading 2 170 2 (1 and 3)* 160 45 ~ 60 In cake mould
Shortbread dough 2 170 2 (1 and 3)* 160 20 ~ 30 In cake mould
Butter-milk cheese cake 1 160 2 150 60 ~ 80 In cake mould
Apple cake 1 180 2 (1 and 3)* 170 40 ~ 60 In cake mould
Strudel 2 175 2 150 60 ~ 80
Jam-tart 2 175 2 (1 and 3)* 160 30 ~ 40
Fruit cake 1 175 1 160 45 ~ 60 In bread pan
Sponge cake 1 175 2 (1 and 3)* 160 30 ~ 40 In cake mould
Christmas cake 1 170 1 160 40 ~ 60 In cake mould
Plum cake 1 170 1 160 50 ~ 60 In bread pan
Small cakes 2 175 2 (1 and 3)* 160 25 ~ 35 In baking tray
Biscuits 2 160 2 (1 and 3)* 150 20 ~ 30 In baking tray
Meringues 2 100 2 (1 and 3)* 100 90 ~ 120 In baking tray
Buns 2 190 2 (1 and 3)* 180 12 ~ 20 In baking tray
Pastry: Choux 2 200 2 (1 and 3)* 190 15 ~ 25 In baking tray
BREAD AND PIZZA
1000 White bread 1 190 2 180 40 ~ 60 1-2 pieces
500 Rye bread 1 190 1 180 30 ~ 45 In bread pan
500 Bread rolls 2 200 2 (1 and 3)* 175 20 ~ 35 6-8 rolls
250 Pizza 1 210 2 (1 and 3)* 190 15 ~ 30 in baking pan
FLANS
Pasta flan 2 200 2 (1 and 3)* 175 40 ~ 50 in mould
Vegetable flan 2 200 2 (1 and 3)* 175 45 ~ 60 in mould
Quiches 1 200 2 (1 and 3)* 180 35 ~ 45 in mould
Lasagne 2 180 2 160 45 ~ 60 in mould
Cannelloni 2 200 2 175 40 ~ 55 in mould
MEAT
1000 Beef 2 190 2 175 50 ~ 70 On grid
1200 Pork 2 180 2 175 100 ~ 130 On grid
1000 Veal 2 190 2 175 90 ~ 120 On grid
1500 English roast beef
1500 underdone 2 210 2 200 50 ~ 60 On grid
1500 done 2 210 2 200 60 ~ 70 On grid
1500 well done 2 210 2 200 70 ~ 80 On grid
2000 Shoulder of pork 2 180 2 170 120 ~ 150 With rind
1200 Shin of pork 2 180 2 160 100 ~ 120 2 pieces
1200 Lamb 2 190 2 175 110 ~ 130 Leg
1000 Chicken 2 190 2 175 60 ~ 80 Whole
4000 Turkey 2 180 2 160 210 ~ 240 Whole
1500 Duck 2 175 2 160 120 ~ 150 Whole
3000 Goose 2 175 2 160 150 ~ 200 Whole
1200 Rabbit 2 190 2 175 60 ~ 80 Cut in pieces
1500 Hare 2 190 2 175 150 ~ 200 Cut in pieces
800 Pheasant 2 190 2 175 90 ~ 120 Whole
Meat loaf 2 180 2 160 40 ~ 60 in bread pan
FISH
1200 Trout/Sea bream 2 190 2 (1 and 3)* 175 30 ~ 40 3-4 fishes
1500 Tuna fish/Salmon 2 190 2 (1 and 3)* 175 25 ~ 35 4-6 fillets
Conventional
Cooking
Weight (gr.)
TYPE OF DISH Level
Fan Cooking
NOTES
Cooking
time
minutes
temp.
°C
Level temp.
°C
Conventional and fan cooking
(*) If you need to cook more than one dish at the same time, we recommend you to place them on the
levels quoted between brackets.
Cooking times in the table do not include pre-heating. A short oven pre-heating (about 10
minutes) will then be necessary before any cooking.

15
Fillet steaks 4 800 3 max 12 ~ 15 12 ~ 14
Beef-steaks 4 600 3 max 10 ~ 12 6 ~ 8
Sausages 8 — 3 max 12 ~ 15 10 ~ 12
Pork chops 4 600 3 max 12 ~ 16 12 ~ 14
Chicken (cut in two) 2 1000 3 max 30 ~ 35 25 ~ 30
Kebabs 4 — 3 max 10 ~ 15 10 ~ 12
Chicken (breast) 4 400 3 max 12 ~ 15 12 ~ 14
Hamburger 6 600 3 max 10 ~ 15 8 ~ 10
Fish (fillets) 4 400 3 max 12 ~ 14 10 ~ 12
Sandwiches 4-6 — 3 max 5 ~ 7 —
Toast 4-6 — 3 max 2 ~ 4 2 ~ 3
Grilling -
Upper
side
°C
temp.
Pieces Weight
Quantity Cooking time
(minutes)
Lower
side
Grilling
TYPE OF DISH
Level
4
3
2
1
Thermal grilling
TYPE OF DISH Quantity Shelf Temp. Time in minutes
(gr.) level °C lower upper
side side
Rolled joints (turkey) 1000 3 200 30 ~ 40 20 ~ 30
Chicken (cut in two) 1000 3 200 25 ~ 30 20 ~ 30
Chicken legs — 3 200 15 ~ 20 15 ~ 18
Quail 500 3 200 25 ~ 30 20 ~ 25
Vegetable gratin — 3 200 20 ~ 25 —
St. Jacques shells — 3 200 15 ~ 20 —
Mackerel — 3 200 15 ~ 20 10 ~ 15
Fish slices 800 3 200 12 ~ 15 8 ~ 10
The oven temperatures are intended as a guide only. It may be necessary to increase
or decrease the temperatures to suit individual preferences and requirements.
Cooking times in the tables do not include pre-heating.
A short oven pre-heating (about 10 minutes) will then be necessary before any
cooking.
Select a maximum temperature of 200°C.
Grilling must be carried out with the oven door closed. The grill pan handle must
be removed from the pan during grilling.
Always use oven gloves to remove and replace the grill pan handle.
Ensure that you support the grill pan when removing it from the oven.

16
Cleaning the Oven
Before cleaning always allow the
cooling fan to cool the cooker down
before switching off at the electricity supply.
Never use steam or steam machines to
clean the appliance.
The oven should be kept clean at all times. A
build-up of fats or other foodstuffs could
result in a fire, especially in the grill pan.
Before using any cleaning materials on your
oven, check that they are suitable and that their
use is recommended by the manufacturer.
Cleaners that contain bleach and harsh
abrasives should NOT be used.
For external and internal cleaning, use a soft
cloth well wrung out in warm water to which a
little liquid detergent has been added.
To prevent damaging or weakening the door
glass panels avoid the use of the following:
household detergent and bleaches,
impregnated pads unsuitable for non-stick
saucepans, "Brillo/Ajax" pads or steel wool
pads, chemical oven pads or aerosols, rust
removers, bath/sink stain removers.
Should the inner door glass become heavily
soiled it is recommended that a cleaning
product such as Hob Brite is used.
DONOTclean the oven doorwhilethe
glass panels are warm. If this
precaution isnotobservedthe glasspanel
may shatter.
If the door glass panel becomes chipped or
has deep scratches, it must be replaced to
prevent the possibility of the panel shattering.
Contact your local Service Force Centre.

17
Cleaning the Oven Door
Before cleaning the oven door, we recommend
you to remove it from the oven.
Proceed as follows:
1.open the oven door completely;
2.find the hinges linking the door to the oven (Fig.
A);
3.unlock and turn the small levers located on the
two hinges (Fig. B);
4.handle the door by its left- and right-hand sides,
then slowly turn it towards the oven until it is half-
closed (Fig. C);
5.gently pull the oven door off its site (Fig. C);
6.place it on a steady plan;
Clean the oven door glass with warm soapy
water and a softh cloth only. Never use harsh
abrasives. Once the cleaning is carried out, refit
the oven door, following the procedure in reverse.
Models in stainless steel or aluminium:
We recommend to clean the oven door using
only a wet sponge and dry it up after cleaning
with a soft cloth. Never use steel wool, acids or
abrasive products as they can damage the oven
surface. Clean the oven control panel following
the same precautions.
DO NOT clean the oven door while the
glass panels are warm. If this precaution
is not observed the glass panel may shatter.
If the door glass panel becomes chipped or
has deep scratches, the glass will be weakened
and must be replaced to prevent the possibility
of the panel shattering. Contact your local Service
Centre who will be pleased to advise further.
Fig. A Fig. B Fig. C

18
Something not Working
If the appliance is not working correctly, please carry out the following checks, before
contacting your local Service Force Centre.
IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by
incorrect use or installation, a charge will be made even if the appliance is under guarantee.
Replacing The Oven Light
Disconnect the appliance.
If the oven bulb needs replacing, it must comply with the
following specifications:
Electric power: 15 W/25 W; Electric rate: 230 V (50 Hz);
Resistant to temperatures of 300°C; Connection type:
E14.
These bulbs are available from your local Service Force
Centre. To replace the faulty bulb:
1. Ensure the oven is disconnected from the electrical
supply.
2. Turn the glass cover counterclockwise.
3. Remove the faulty bulb and replace with the new
one.
4. Refit the glass cover and restore the electrical supply.
SYMPTOM
"The oven does not come on.
"The oven temperature light does not
come on.
"The oven light does not come on.
"It takes too much time to finish the dishes,
or they are cooked too fast.
"Steam and condensation settle on the
food and the oven cavity.
"The oven fan is noisy.
SOLUTION
#Check that both a cooking function and
temperature have been selected.
#Check the appliance is wired in properly, and
the socket switch or the switch from the mains
supply to the oven are ON.
#Check that the time of day has been set with
the electronic programmer.
#Select a temperature with the thermostat
control knob.
#Selectafunction with the oven functioncontrol
knob.
#Selectafunction with the oven functioncontrol
knob.
#Checkthelightbulb,andreplaceitifnecessary
(see paragraph "Replacing The Oven Light").
#The temperature may need adjusting.
#Refertothecontents of this booklet, especially
to the chapter “Using the Oven”.
#Leave dishes inside the oven no longer than
15-20 minutes after the cooking is completed.
#Check that shelves and bakeware are not
vibrating in contact with the oven back panel.

19
Technical Data
Heatingelementratings
Top element 800 W
Bottom element 1,000 W
Top+Bottom (total) 1,800 W
Inner Grill element 1,650 W
Full Grill element 2,450 W
Fan cooking element 2,000 W
Thermal Grilling 2,475 W
Oven Fan 25 W
Cooling Fan 25 W
Oven Light 25 W
Total Rating 2,525 W
Dimensionsof the oven cavity
Height 335 mm
Width 405 mm
Depth 400 mm
Oven capacity: 56 litres
Thisappliance
complies with the
followingE.E.C.
Directives:
• 73/23 - 90/683
(Low Voltage
Directives)
• 93/68 (General
Directive);
• 89/336
(Electromagnetical
Compatibility
Directive)
and subsequent
modifications.
Dimensionsofrecess
Height undertop: 593 mm; in coloumn 580 mm
Width 560 ÷ 570 mm
Depth 550 mm
This oven must be installed by
qualified personnel.
The oven must be installed
according to the instructions
supplied.
Moffat
MSF 620
A
0,79 kW/h
0,78 kW/h
56,0
43 min.
41 min.
1130 cm2

20
Electrical Connection
The oven is designed to be connected to 230 V
(50 Hz) electricity supply.
The oven has an easily accessible terminal
block which is marked as follows:
Letter L - Live terminal
Letter N - Neutral terminal
or E - Earth terminal
THIS OVEN MUST BE EARTHED
The cable used to connect the oven to the
electrical supply must comply to the
specifications given below.
It is necessary that you install a double pole
switch between the oven and the electricity
supply (mains), with a minimum gap of 3mm
between the switch contacts and of a type
suitable for the required load in compliance
with the current rules.
The switch must not break the yellow and
green earth cable at any point.
the yellow and green earth cable should be
2-3 cm longer than the other cables.
Important
After installation and connecting, the cable
must be placed so that it cannot at any point
reach a temperature of more than 60°C above
the ambient temperature.
Before the oven is connected, check that the
main fuse and the domestic installation can
support the load and that the power supply is
properly earthed.
The manufacturer declines any
responsibility should these safety
measures not be carried out.
Connection Min. size Cable / flex Fuse
via Cable/flex type
13 A socket 2.5 mm23 core 13 A
outlet butyl min.
13 A spur box insulated
Cooker 2.5 mm2PVC/PVC 13 A
Control twin and
Circuit earth
