MOGOBIKE MB-6000-UD User manual

User Manual
MB-6000-UD Rev. 1.03

Pg. 2
Table of Contents
I. The Controls
II. Unit Operations
A. Folding the Unit
B. Folding the Handlebars
C. Unlocking and Unfolding
D. Precautions and Starting
E. Power Assist Mode
III. Maintenance and Care
IV. Specifications

Pg. 3
Our Mission
Here at FTR Systems, we are committed to excellence in providing the
highest level of customer service. We believe that maintaining effective
policies, a positive attitude, and providing swift responses will result in a
valuable, long-term relationship between our company and the
customer.
To Our Customers
Thank you for purchasing the Mogobike! We hope that our product will
meet and exceed all of your expectations. As a valued customer, your
comments and opinions are very important to us. If you have any
questions, concerns or comments, we hope you will bring them to our
attention.
The Mogobike smart design uses a patented balanced-controlled dual
motor, making the Mogobike a perfect “last mile” solution to your
everyday commute.
The Mogobike was built for durability while also providing flexibility on
the go. Whether on a bus, train, boat or RV, the Mogobike folds into a
compact size for easy storage.
This user manual contains all essential information for the user to make
full use of the Mogobike. The manual includes descriptions of the
system functions and capabilities, and step-by-step startup and use.

Pg. 4
I. THE CONTROLS
Display Monitor
The Mogobike comes equipped with a backlight monitor for speed, trip
distance, clock, and battery life.
The distance counter located at the top right of the monitor acts as a
mileage/kilometer countdown, estimating how much distance is available
based on remaining battery life. After a rider's first run, the Mogobike
creates a baseline for the rider, as remaining distance depends on the
weight and riding style of the rider. The distance will be set accordingly on
the next run based on the previous baseline.
Battery indicator is expressed as a percentage at the top-left corner.
The Power Output Meter shows the amount of draw against the battery as
you are riding.
The Clutch Symbol will display when the vehicle is in a neutral state.
Adjusting Monitor Settings
The two buttons on the monitor are used to change what displays on the
monitor. A user can toggle between and reset the trip meter, clock, or
change from mileage to kilometers.
The left button is used to activate the settings mode for the monitor. Click
through on the right button to enter the various settings for adjusting the
display.
Change the clock
Hold down the left button to adjust the clock. Once activated, the blue
headlamp light on the display will light up. Click the right button to toggle
between a 24 or 12 hour clock. Hold down the left button to enter the
clock settings. Adjust the hour and minutes with the right button. When
the clock is adjusted to your preference, the monitor will reset
automatically with the updated settings after a brief pause.
Reset the trip meter
Toggle through display modes by pressing the right button. When the trip
meter displays on the monitor, hold down the left button to reset the
counter to zero.
Change to mileage or kilometers
Toggle through display modes by pressing the right button. When the
odometer displays on the monitor, hold down the left button to toggle
between mileage or kilometers.

Pg. 5
Vehicle Alert
I. THE CONTROLS
Error and Diagnostic Information
The Mogobike provides some error readings back to the rider in case the
bike encounters a problem.
If the Mogobike emits an error, the "Vehicle Alert" icon will display on the
monitor. In the case of an error, contact the Mogobike support
department.
If the overheating icon displays, this can result from a number of components,
such as motors, headlamp or control board. In many cases, it will typically be
the motors. The Mogobike comes with a built in shut off function, so that
when the vehicle overheats, it will shut down in order to protect itself from
incurring damage.
Note about driving styles. Erratic driving, such as quick starts and stops can
be a factor in overheating.
Left Hand Controls
Turn Signals
The Mogobike is a fully equipped street machine, with lights, turn signals
and brake lamp. Move the blinker control switch left or right to initiate the
turn signals. The unit will emit a clicking sound to indicate the blinker
signal is initiated. Slide it back to the middle (neutral) position to turn the
signal off.
Headlight
Turn Signal
Battery Life
Low Battery
Recharge
Horn
Headlight
The headlight meets
industry standards for
DOT regulations.
Speed
Mph / kmh
Distance Meter
Overheating
Power Output Meter
Clutch Symbol

Pg. 6
II. UNIT OPERATION

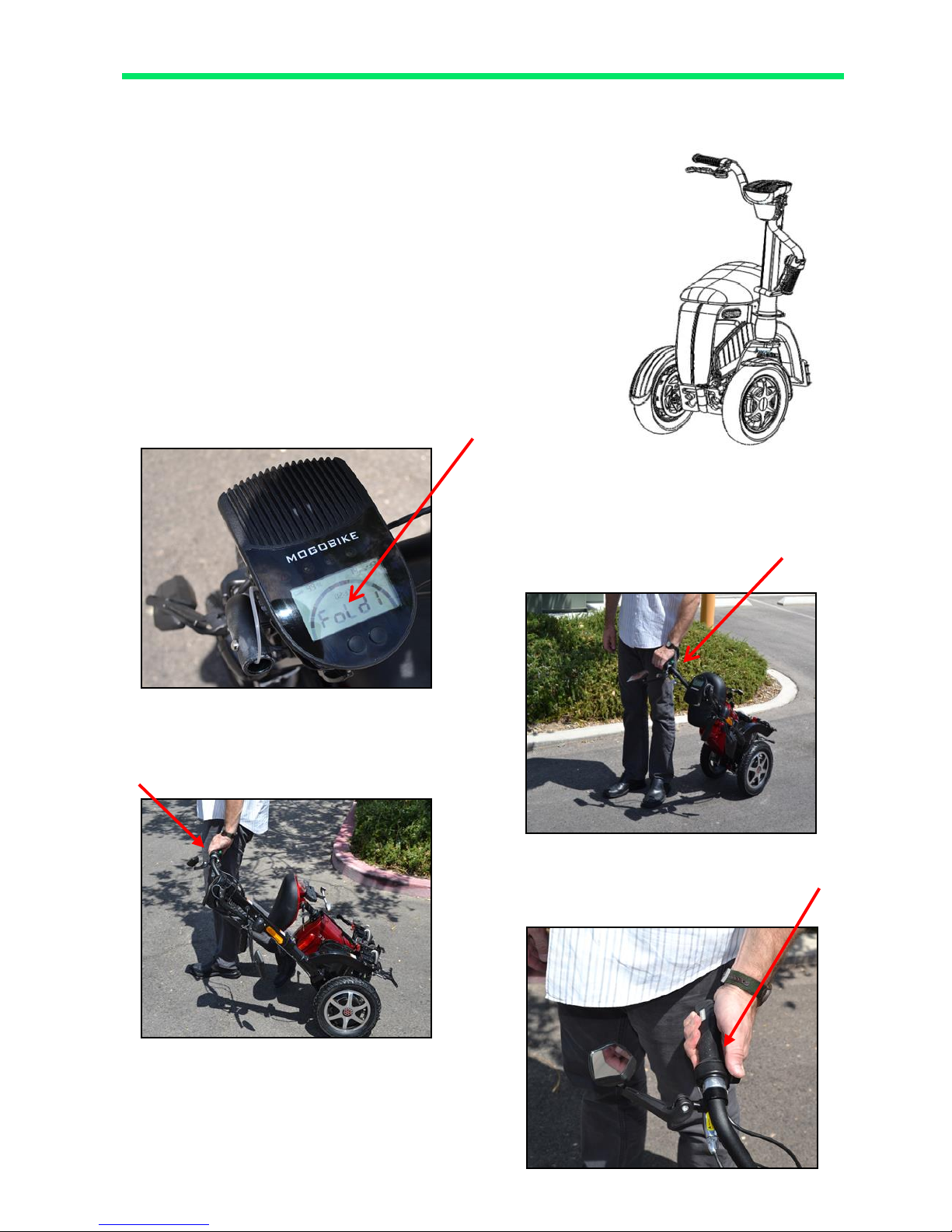

Folding the Mogobike
Folding the Mogobike is a quick and easy operation, but one that takes a
little practice in the beginning. To shorten the learning curve, this section
will walk users through folding their Mogobike.
Take notice of the position of the
locking hinges. There are three
hinges that run along the frame and
one on the steering column. These
hinges are made of tempered
stainless steel. The latch that runs
along the top of the hinge is fastened
by a hard plastic clip.
Position your thumb on the clip release Tab and push it away from the
latch, releasing the latch in the process.
II. UNIT OPERATION
Run down the length of the frame,
releasing the three hinges and rotating
the latches upwards to unlock the
hinges.
With the hinges now unlocked, you
will notice that the Mogobike can
easily pivot at each break point
(marked by arrows).
Rotate the foot pad next to you
upwards. The pad will stay in
place in a vertical position.

Pg. 7
II. UNIT OPERATION
To begin folding the unit, from the left side of the unit, position your hand
on the rear of the seat.
Pull the seat towards you and the two
rear hinges will pivot until they come
together as shown.
Rotate the opposite foot pad until it
rests in place in a vertical position.
To fold the front half of the bike,
reach over the scooter and grab
the steering column
See next section, “Folding the
Handlebars” on page 8.
Rotate the steering column towards
the inside of the battery box until it
aligns with the rear wheel.

Pg. 8
II. UNIT OPERATION
Folding the Handlebars

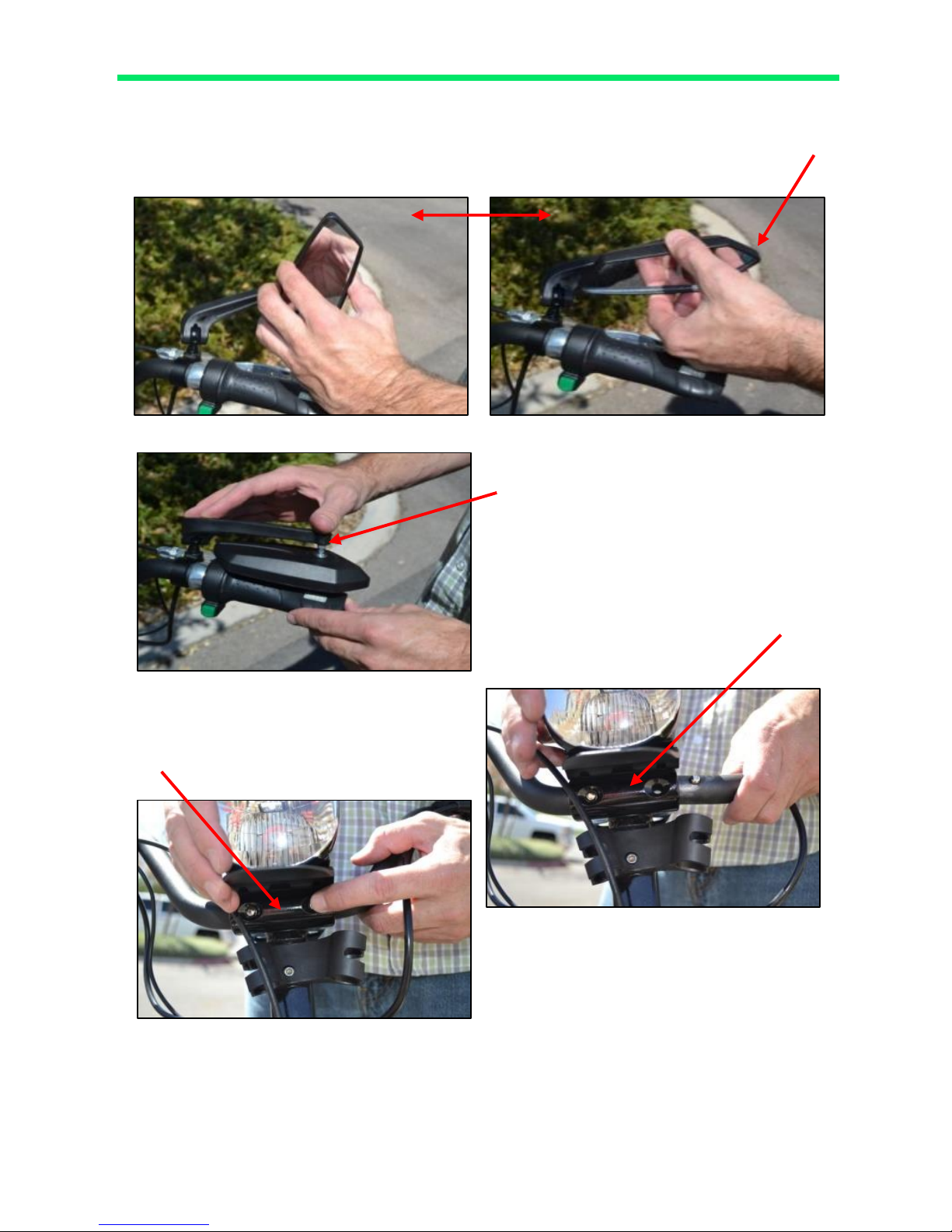

Rotate the mirrors 180 degrees until the narrow end of the mirror is pointing
towards the unit.
Note: for power assist, users will want to make sure that the right-hand,
throttle side of the handlebar remains in the riding position.
Both sides of the handlebar fit into the folding mount in different ways.
Push the mirror downwards and
fold it against the grip.
Release the handlebar pressure
lock to expose the handlebar push
pins.
Press the pushpin in until it seats
below the pushpin hole and
extract the handlebar.

Pg. 9
II. UNIT OPERATION

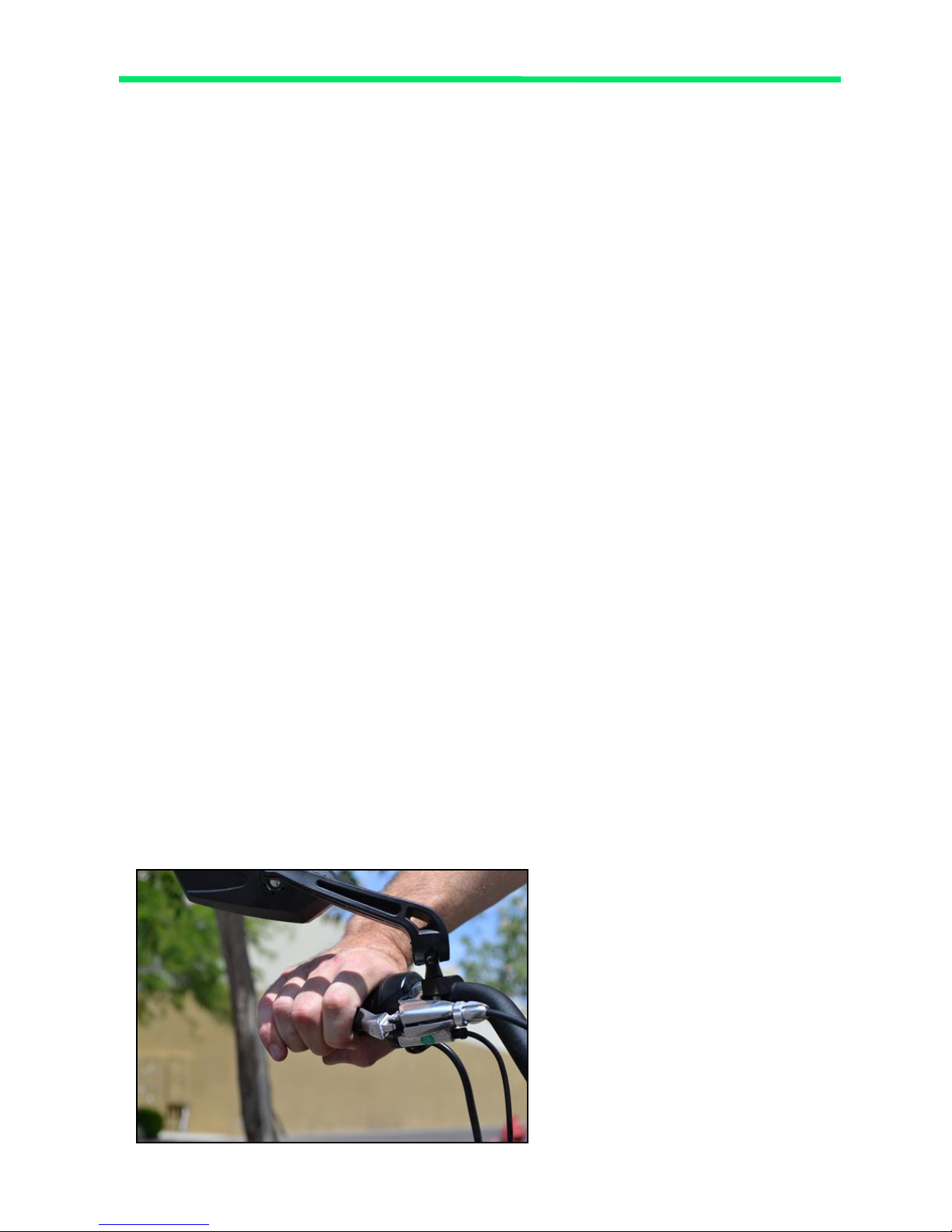

When securing the left, non-throttle side, clip the handlebar into place using
the small hex fastener bolt that runs through the handlebar.
.
For the throttle side clip, use the
push pin to secure the handlebar.
Position your thumb on the clip
to release tab.
Mogobike, completely folded and
ready for storage.
Push the clip release tab away from
the latch.
This will release the latch in the process.

Pg. 10
II. UNIT OPERATION
Unlocking and Unfolding

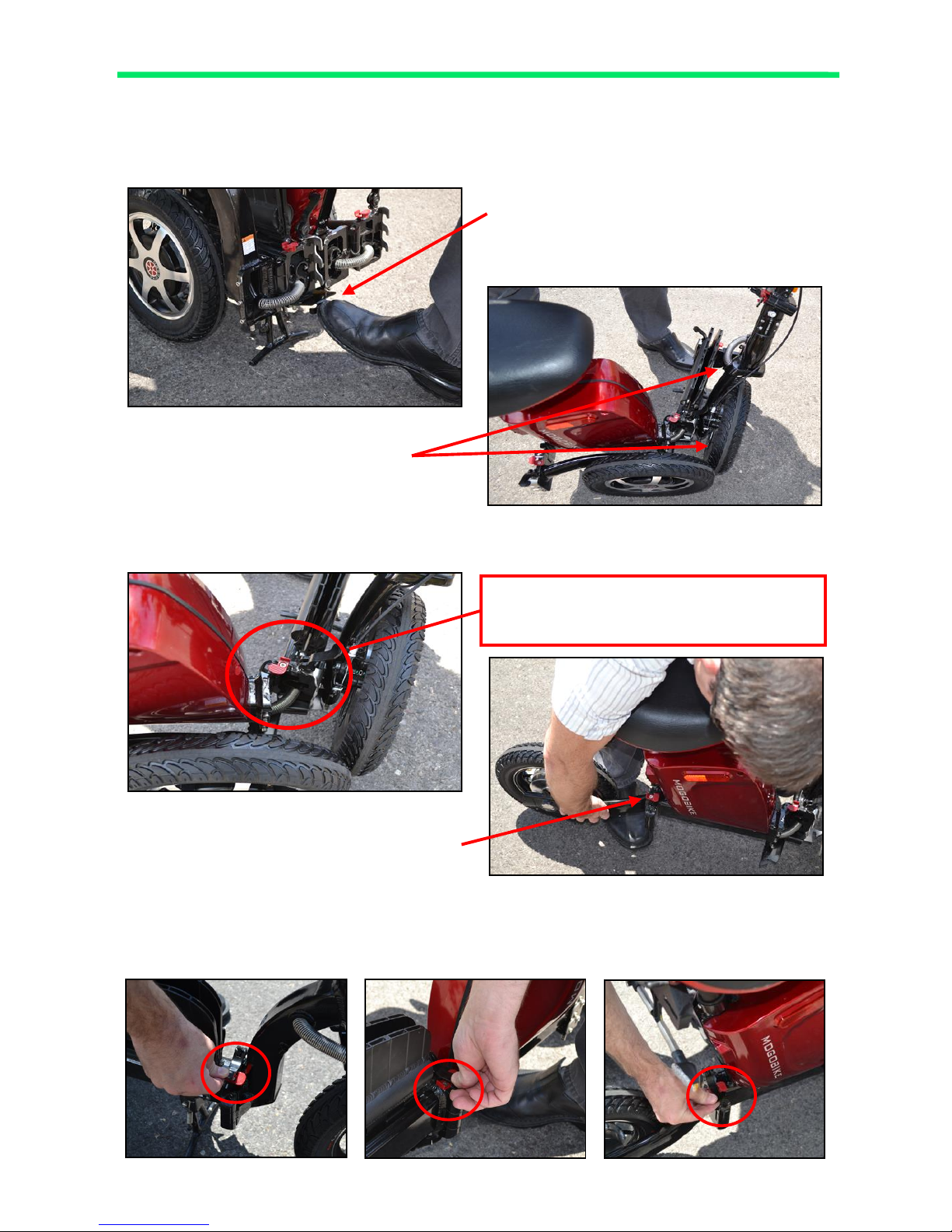

The Mogobike uses a unique hinge locking system to hold the unit together
when folded. To unlock and unfold the unit, begin at the rear of the unit.
With the toe of your shoe, depress
the front of the lock. This will
release the locking pin.
Rotate the front portion of the unit
towards the front of the bike as
shown in picture.
Bring the front and rear tires together as shown below. This disengages both
the middle and front locks, completely unlocking the unit as a result.
Move the rear swingarm to its
starting position and lock the hinge.
Finish unfolding the unit by locking the middle and front hinges as shown
below.
Front Middle Rear
Pressure is applied to the interior locks,
releasing both at the same time.

Pg. 11
II. UNIT OPERATION
Precautions
Run through a simple safety check prior to running the vehicle:
Check air pressure.
Check folding locks and make sure they are fastened securely.
Adjust seat height for the user.
Not intended for highway use.
Do not ride on sidewalks and areas intended for walking traffic only.
Wear a helmet and eye protection.
Make sure the battery is sufficiently charged.
Turning on the Mogobike
The ignition switch is located under the seat on the left-hand side. Turn
the key clockwise to turn the unit on.
Engaging the Motors —The Green Multi-Function Button
The Mogobike includes a safety feature. One of the problems with electric
vehicles is the lack of an audible cue that the vehicle is on.
The green multi-function button on the throttle bar acts as an initialization
switch that engages the motor.
When the Mogobike is first
turned on, the motors remain in
a neutral state. Press the green
button and the user has a five
second window to engage the
throttle. When the user comes
to a full stop or parks the
vehicle, the motors will return
to a neutral state after three
seconds.

Pg. 12
II. UNIT OPERATION
Setting the Cruise Control
Riders can set the cruise control when in transit. Simply press the green
multi-function button and the Mogobike will set the speed.
To disengage the cruise control, press the green button again, adjust the
throttle or apply the brake.
Throttle Control and Braking
Mogobike includes regenerative braking for added battery support.
Regenerative braking provides two benefits—it reverses the direction of
the motors and sends that energy back to the battery to increase battery
life, and offers a quick way to slow down.
When riding, simply release the throttle and the motors will quickly act to
slow the unit. When using the brake, use a smooth motion to apply the
front-brake's stopping power.
Power Assist Features
The user can move the Mogobike into interior spaces when it's
partially folded and still control the unit under power.
Power assist offers three speeds to adjust to a user’s pace or on
uneven terrain or inclines.
The walking pace of the Mogobike in power assist can be cycled
through by using the multi-function control button.
The user controls the amount of acceleration through use of the
throttle.
Note: the power assist function is not intended for riding. Do not sit or ride
on the unit when using power assist.
Initiating and Using Power Assist
The power assist function is initiated when the unit is partially folded. With
the lower portions of the frame locked, and the front and rear wheels in
tandem, engage the power assist function by following these steps.

Pg. 13
II. UNIT OPERATION
Power Assist Continued…
To begin, make sure that the unit is off and that the throttle-side
handlebar is in an upright position. Make sure both the
front and rear portions of the frame are locked before
continuing.
Hold down the green multi-function button and turn the
unit on. The Mogobike will display the prompt “Fold”
along with a number on the monitor. The unit is now in
power assist mode as indicated by the monitor. The
number indicates what speed level the unit is at
when initiated. In power assist, the Mogobike gives
the user three speed levels of walking pace.
Standing on the right side of the
unit at the throttle, grasp the
throttle grip and angle the bike
downwards like a piece of roller
luggage.
Give the Mogobike a light tug to
initiate power assist. Use the
throttle to control speed.
Cycle through the three levels of
speed by hitting the green multi-
function button.
The speed level will display on the
monitor. Cycle through to return to
the initial speed setting.

Pg. 14
III.MAINTENANCE AND CARE
Maintenance and Care
It is important to properly maintain your Mogobike to insure consistent,
long-lasting performance. Keep the unit clean of dirt and debris that
collects on the unit over time. Use a soft cloth to wipe down the frame
and plastics.
Charging the Unit and Battery Care
Only use the designated battery charger that comes with your unit.
Make sure all connections on the charger are properly connected
before plugging the charger into the Mogobike and/or wall socket. The
Mogobike charger plugs into a standard 120v wall socket.
A note about battery maintenance: consistent charging will help to
maintain and extend the life of your Lithium battery. For best results,
don't let the charge exceed less than 25 percent of a charge before
recharging and avoid completely discharging the battery if possible.
As a safety feature, the unit will not turn on once it is plugged in to the
charger.
Checking Tire Air Pressure
Maintaining recommended air pressure for the tires will provide better
and safer performance when using the Mogobike. Check the tire
pressure with a pressure gauge and add air as needed. Refer to the
specifications page in this manual for the proper PSI rating.

Pg. 15
III. MAINTENANCE AND CARE
Checking Fasteners
Perform regular checks on all the fasteners on the Mogobike. These
include any screws, nuts and bolts that might come loose over time.
Check the hinges and plastic locking clips. Evaluate the locking strength
of the latch in the clip and tighten if necessary.
Offseason Maintenance
Store the Mogobike in a dry place that is not subject to large amounts of
moisture or humidity.
Do not store the Mogobike outside during incidental weather.
The Mogobike uses electronic components that can incur damage if
exposed to these elements for long periods of time.
Keep the battery charged.
Checking the Brake
A proper functioning brake is essential when riding. Pull the brake lever
and push the vehicle forward.
Does the brake lever engage the pad against the brake disc? If there is
movement when the brake lever is engaged, the brake may need to be
adjusted.
See the Mogobike website for instructions about adjusting the brake.

Pg. 16
IV. SPECIFICATIONS
Expanded size 57″ L x 24″ W x 38″ H
Folded size 18″ L x 14″ W x 25″ H
Axial distance 44″
Wheel size 12″
Maximum speed 20 mph on flat surfaces at a 200 lb
load weight
Range 20 miles at a 200 lb load weight
Battery Li-ion 48V 10AH
Rated Motor Power 500W (x2)
Drive train Direct drive
Maximum Loading 250 lbs
Weight 50 lbs
Brake Mechanical Disc Brake (Front) and
Electronic Braking
Frame Aluminum alloy
Rim Aluminum alloy
Tire Pressure 40 psi
Certificate E-mark 2002/24/EC(EU) and
FMVSS (US)
VIN Number: __________________________

Pg. 17
NOTES

Pg. 18
NOTES

Pg. 19
NOTES

Pg. 20
Customer Support Contact Information
Office: [phone]
Email: [e-mail]
Web: www.mogobike.com
Address: 6402 Montessouri Street
Las Vegas, NV 89113
