CLIX LEG TRANSFER AND STORAGE CART

PARTS
ASSEMBLY
1
X4
X4
SCREW CAPS
SCREW NUTS
X1
X22
HORIZONTAL FRAME
VERTICAL FRAME
CASTERS
FRAME ANGLES
HANDLES
X1
X1
X1X2
DOUBLE RACK SINGLE RACK
X1
X4
X4
X4
ALLEN KEY FOR
M10 SCREWS FLAT KEY
ROUND CAP M10 SCREWS

3
2
Keep frame angle screws loose.
Adjust 4 frame angles to the vertical frame.
4
Tighten all screws.

CATALOG# AI056
www.mogogo-buffet.com
5
6
7
YOUR ALL DONE, WAY TO GO!
Add screw caps on
caster screws.

CLIX ROUND \ SQUARE TOP
TRANSFER AND STORAGE CART

PARTS
ASSEMBLY
1
X4
X4
SCREW CAPS
SCREW NUTS
X1X16 X4
X22
ROUND CAP M10 SCREWS
HORIZONTAL FRAME
VERTICAL FRAME
TRAY FRAME FOR TOPS
CASTERS
HANDLE
HANDLE SUPPORTS
X1
X1
X1
X2
X1
X4
ALLEN KEY FOR
M10 SCREWS FRAME ANGLES FLAT KEY

3
2
Keep frame angle screws loose.
Make sure the holes on the vertical frame are facing the correct side
according to the image. Adjust the 4 frame angles to the vertical frame.
4
Tighten all screws.

CATALOG# AI057
www.mogogo-buffet.com
5
7 8
6
9
GREAT JOB, YOUR GOOD TO GO!
Add screw caps on
caster screws.
Repeat step 5 for all
16 tray frames.

LARGE PLATE TRANSFER AND STORAGE CART

PARTS
ASSEMBLY
1
X4
X4
SCREW CAPS
SCREW NUTS
X1
X34
HORIZONTAL FRAME
VERTICAL FRAME
CASTERS
FRAME ANGLES
HANDLES
X1
X1
X1
X4
X4
X4
ALLEN KEY FOR
M10 SCREWS FLAT KEY
X3X2
HORIZONTAL SUPPORTER
(2 HOLES)
HORIZONTAL SUPPORTER
(4 HOLES)
X2X4
STRAPS VERTICAL SUPPORTER
ROUND CAP M10 SCREWS

3
2
6
5
4
Tighten all screws.
Keep frame angle screws loose.
Place 4 holes Horizontal Supporters above casters.
2 middle holes should face upwords.
Place 2 holes Horizontal Supporters.
Adjust 4 frame angles to the vertical frame.

CATALOG# AI058
www.mogogo-buffet.com
7
8
9
YOUR ALL DONE, WAY TO GO!
Add screw caps on
caster screws.
Tighten velcro
on straps.

SEGMENTS AND ADD-ONS
TRANSFER AND STORAGE CART

PARTS
ASSEMBLY
1
HORIZONTAL FRAME
VERTICAL FRAME
CASTERS
FRAME ANGLES
HANDLES
X1
X1
X1X1
LONG SEGMENT BASKET SHORT SEGMENT RACK
X1
X4
X4
X4
X1
ALLEN KEY FOR
M10 SCREWS
X1
ALLEN KEY FOR
M5 SCREWS
HANDLE SPACERS
X4
FLAT KEY
X4
M16 SCREW CAPS
X4
M16 PREVAILING TORQUE NUTS
X14
ROUND CAP M5 SCREWS
X16
ROUND CAP M10 SCREWS

3
2
Keep frame angle screws loose.
4
Attach long segment basket with three M5 screws.
Attach short segment rack with six M5 screws.

CATALOG# AI071
www.mogogo-buffet.com
5
6
8
7
YOUR ALL DONE, WAY TO GO!
Attach vertical frame to the frame angles.
Position frame angles as shown. screws should be kept loose.
* ATTENTION:
Place the vertical frame side
with 3 holes facing the
long segment basket.
Attach the long segment basket and the short segment rack to the
vertical frame with five M5 screws.

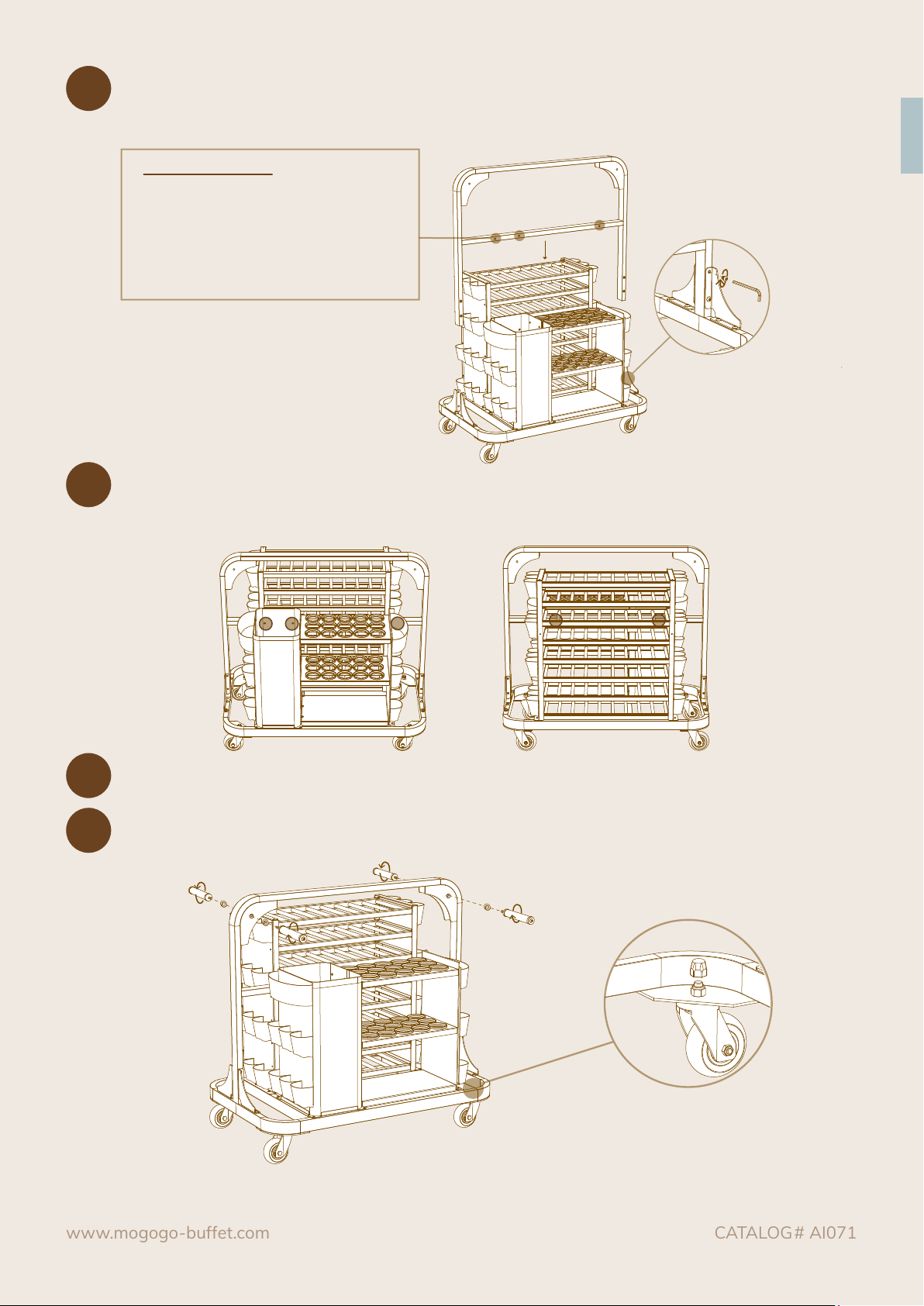

Add handle spacers between the frame and the handle.
Add screw caps
on caster screws.
Tighten all screws simultaneously (Sections 5 and 6).
