molex 207129 Series User manual

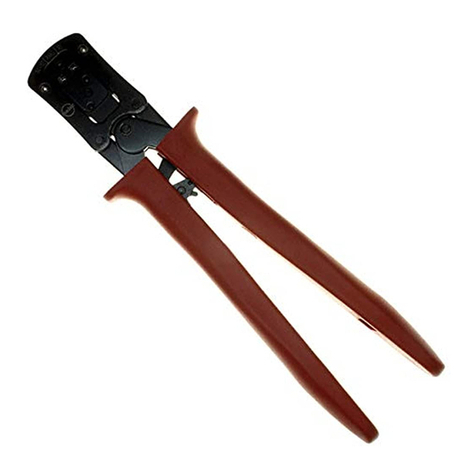

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 1 of 7
Revision: A Revision Date: 02-14-20
Application Tooling Specification
FEATURES
A full cycle ratcheting hand tool ensures complete crimps
Ergonomically designed soft handles
Precisely designed crimping profiles with simple contact positioning
Easy handling due to outstanding force ratio
Modular crimp head is removable and can be used in the Electric Crimp Machine (Order No.
63816-1500), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
Can also be used in the Battery Powered Tool Order No. 63816-0270 (110 V) or 63816-0280
(220 V), accompanied by Battery Powered Crimp Adapter (Order No. 63816-0600)
SCOPE
Products: CTX50 Small Grip Sealed Receptacle Crimp Terminals. 0.13mm² FLR2X CUSN wire.
Terminal
Series No.
Terminal Order No.
Wire
Insulation Diameter
Strip Length (Ref)
Wire Type
Wire Size
mm
In.
mm
In.
34905
34905-2448
34905-2450
FLR2X CUSN
0.13mm2
0.95-1.05
.037-.041
3.70
.146
34905-6448
34905-6450
DEFINITION OF TERMS
Order Number
200218-4300
Type 4A
BEND UP
ROLL
TWIST
WIRE
SEAM
INSULATION CRIMP
BEND
DOWN
BRUSH
STRIP LENGTH
BELL MOUTH
CUT-OFF
TAB
CONDUCTOR
CRIMP HEIGHT

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 2 of 7
Revision: A Revision Date: 02-14-20
CRIMP SPECIFICATION
After crimping, the crimp profiles should measure the following:
Terminal Series
No.
Bell Mouth
Conductor Brush
Crimp Bulge (Max)
mm
In.
mm
In.
mm
In.
34905
0.30-0.60
.012-.024
0.30-0.70
.012-.028
1.25
.049
Terminal Series
No.
Bend Up
Bend Down
Twist
Roll
Seam
Degree Max.
Degree Max.
34905
1
1
2
—
Seam shall not be open and no wire
allowed out of the crimping area
Terminal Series
No.
Wire
Conductor
Crimp Height
Crimp Width (Ref)
Wire Type
Wire Size
mm
In.
mm
In.
34905
FLR2X CUSN
0.13mm2
0.60-0.66
.024-.026
0.86-0.92
.034-.036
Terminal Series
No.
Wire
Insulation
Pull Force
Minimum
Profile
Crimp Height
Crimp Width (Ref)
Wire Type
Wire Size
mm
In.
mm
In.
N
Lb.
A
34905
FLR2X CUSN
0.13mm2
1.15-1.21
.045-.047
1.15-1.21
.045-.047
50
11.3
X
Terminal
Series No.
Conductor Anvil Flash
Conductor Grip Step
Insulation Grip Step
Wing Dissymmetry
Space Between Wing Tips
and Crimp Bottom
mm
In.
mm
In.
mm
In.
mm
In.
34905
0.10 Max
.004 Max
0.09-0.19
.004-.007
0.04-0.24
.002-.009
0.00-0.10
.000-.004
No Contact
Tool Qualification Notes
1. (Ref) means that the dimension provided is approximate because of the wide range of wires,
conductor stranding, insulation diameter and insulation hardness.
2. An occasional conductor crimp height measurement should be performed. It must lie between
the minimum and maximum crimp height specification.
3. Pull force should be measured with no influence from the insulation crimp. To ensure this, strip
the wire long enough so the terminal insulation grips do not contact the wire insulation.
Notes
1. This tool should only be used for the terminals and wire gauges specified on this sheet.
2. Variations in tools, terminals, wire stranding and insulation types may affect crimp height.
3. This tool is intended for metric conductor sizes. It may not give good insulation crimp support
for insulation sizes outside of the specified range.
4. Molex does not repair hand tools. See warranty on page 5. The replacement parts listed are the
only parts available for repair. If the handles or crimp tooling become damaged or worn, a new
tool must be purchased.
5. Conductor crimp height should be used as the final criterion for an acceptable crimp. Refer to
Molex Quality Crimping Handbook 63800-0029 for additional information on crimping and crimp
testing.
6. Molex does not certify crimp hand tools.
INSULATION
GRIP STEP
CONDUCTOR
GRIP STEP
WING
DISSYMMETRY
ANVIL FLASH
SPACE BETWEEN
WING TIPS AND
CRIMP BOTTOM

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 3 of 7
Revision: A Revision Date: 02-14-20
Figure 3
WIRE
TERMINAL
LOCATOR
INSULATION
PUNCH
INSULATION
ANVIL
WIRE STOP
BLADE
CONDUCTOR
ANVIL
CONDUCTOR
PUNCH
WIRE STOP BLADE
WIRE
INSULATION
PUNCH
Figure 2
TERMINAL
OPERATION
Open the tool by squeezing the handles together. At the end
of the closing stroke, the ratchet mechanism will release the
handles, and the hand tool will spring open.
1. With the hand tool in the open position, pivot the
terminal locator open by pulling up on the locator
knob, and lift the wire stop blade. See Figure 1.
2. Insert the terminal into the profile until the terminal is
fully seated and stops. Make sure the wire stop blade
is fully seated on the terminal behind the conductor
grip section.
3. Gently pivot the locator closed.
4. Bring down the wire stop blade.
5. Slide the pre-stripped wire into the terminal, making sure to aim the wire brush toward
the tip point on the wire stop blade. See Figure 2. Align the wire so that it is parallel and
sitting into the terminal. Maintain a light and constant pressure on the wire that is
seated in the terminal at all times. (Do not let go of the wire.) Be sure to hold the wire
and terminal in place until the terminal is fully crimped. See Figure 3.
6. Close the tool until the ratchet releases.
7. Lift the wire stop blade.
8. Carefully remove the crimped terminal.
Note: The tamper-proof ratchet action will not release the tool until it has been fully closed.
Note: To maintain good brush control and a consistent bell mouth, the crimping instructions must
be followed.
TERMINAL
SEATED IN
LOCATOR
SWING
LOCATOR
OPEN
Figure 1
HAND TOOL
OPEN
WIRE
STOP
BLADE

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 4 of 7
Revision: A Revision Date: 02-14-20

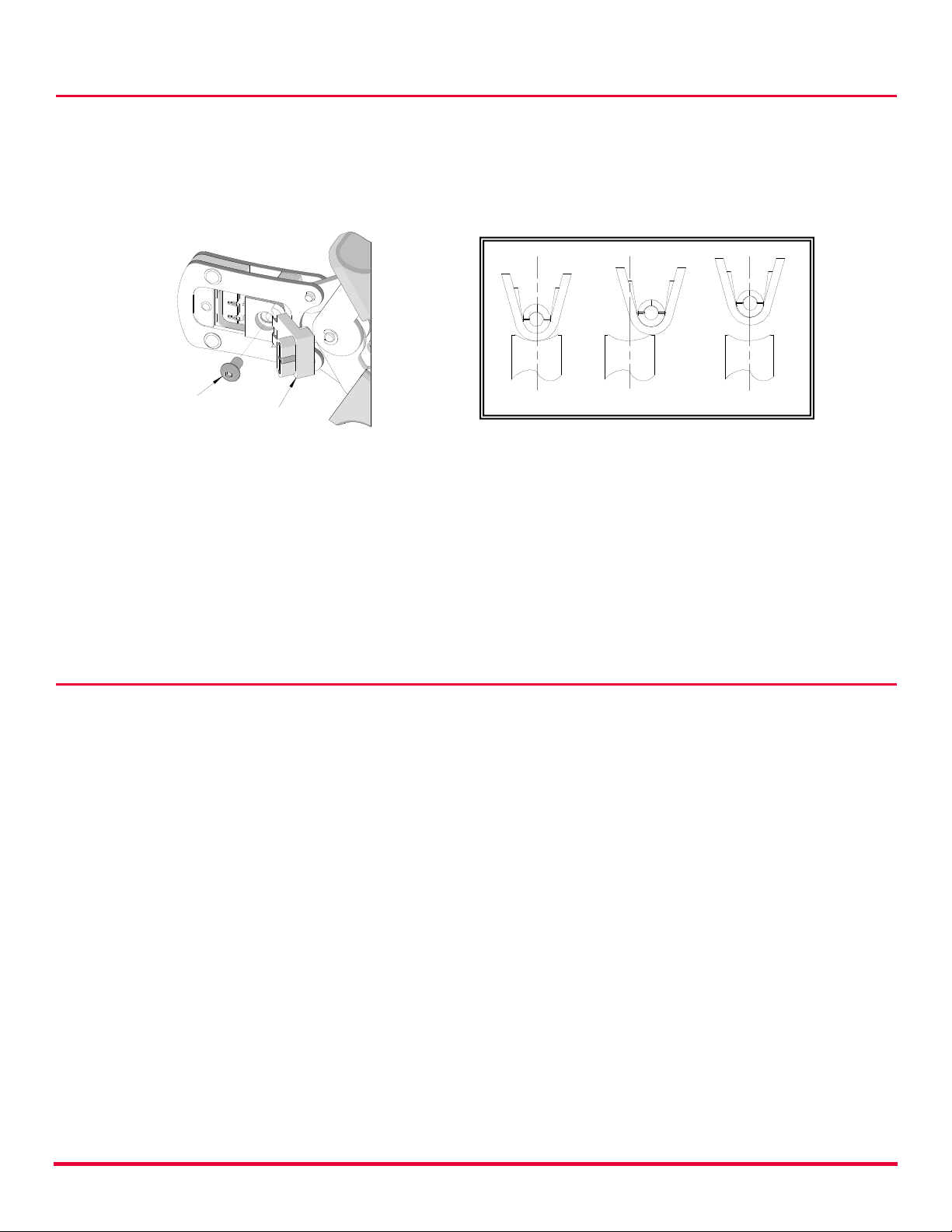

INCORRECT
Figure 5
CORRECT
INCORRECT
M4 BHCS
PIVOT
LOCATOR
Figure 4
TERMINAL LOCATOR REPLACEMENT
This section describes the procedure for changing locators:
Removal
1. With the tool in the open position, pivot the terminal locator outward.
2. Remove the M4 BHCS. See Figure 4.
Installation
1. Place the locator on the hand tool. Install the M4 BHCS. See Figure 4.
2. Tighten the screw just enough to hold the locator. Make sure the locator can still float freely
with hand pressure.
3. Fully insert the proper terminal into the correct profile slot until the terminal is completely
seated and stops. Then, gently pivot the locator closed.
4. With hand pressure, slowly slide the locator to the correct position. See Figure 5.
5. Gently pivot the locator open without disturbing the location.
6. Hold the locator firmly in place, and slowly tighten the M4 BHCS.
MAINTENANCE
It is recommended that each operator of the tool be made aware of and responsible for the
following maintenance steps:
1. Remove dust, moisture and other contaminants with a clean brush or a soft, lint-free cloth.
2. Do not use any abrasive materials that could damage the tool.
3. Make certain all pins, pivot points and bearing surfaces are protected with a thin coat of high-
quality machine oil. Do not oil excessively. The tool was engineered for durability, but like
any other equipment, it needs cleaning and lubrication for a maximum service life of trouble-
free crimping. Light oil (such as 30 weight automotive oil) used at the oil points every 5,000
crimps or 3 months will significantly enhance the tool life.
4. Wipe excess oil from the hand tool, particularly from the crimping area. Oil transferred from
the crimping area onto certain terminations may affect the electrical characteristics of an
application.
5. When the tool is not in use, keep the handles closed to prevent objects from becoming
lodged in the crimping dies, and store the tool in a clean, dry area.
Miscrimps or Jams
Should this tool ever become stuck or jammed in a partially closed position, Do Not force the
handles open or closed. The tool will open easily by lifting the ratchet release lever. See Figure 9.

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 5 of 7
Revision: A Revision Date: 02-14-20
Warranty
This tool is for electrical terminal crimping purposes only. This tool is made of the best quality
materials. All vital components are long-life tested. All tools are warranted to be free of
manufacturing defects for a period of 30 days. Should such a defect occur, Molex will repair or
exchange the tool free of charge. This repair or exchange will not be applicable to altered, misused
or damaged tools. This tool is designed for hand use only. Any clamping, fixturing or use of handle
extensions voids this warranty.
CAUTION: Repetitive use of this tool should be avoided.
CAUTIONS
1. Manually powered hand tools are intended for low-volume use or field repair. This tool is
NOT intended for production use. Repetitive use of this tool should be avoided.
2. Insulated rubber handles are not protection against electrical shock.
3. Wear eye protection at all times.
4. Use only the Molex terminals specified for crimping with this tool.
CAUTION: Molex crimp specifications are valid only when used with Molex terminals and
tooling.

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 6 of 7
Revision: A Revision Date: 02-14-20
APPLICATIONS FOR THE MODULAR CRIMP HEAD
WARNING: NEVER operate, service, install or adjust this modular crimp head without proper
instruction and without first reading and understanding the instructions in the proper manual
or specification sheet. See chart below for the correct manual or specification sheet.
WARNING: NEVER install tooling or service this tool while it is plugged into any power source.
Disconnect the power by unplugging, or turn off the actuator from its power source.
CAUTION: Keep fingers away from the crimping area when operating this tool. It may cause
severe injury.
CAUTION: Wear safety glasses when operating or servicing this tool.
The chart below shows all applications for this modular crimp head:
Tool Order No.
Tool Description
Adapter Order No.
Adapter Description
Figure No.
63816-0000
Hand Crimp Frame (Short)
—
—
6
63816-0050
Hand Crimp Frame (Long)
—
—
6
63816-0270
Battery Power Tool (110 V)
63816-0600
Battery Power Crimp Adapter
7
63816-0280
Battery Power Tool (220 V)
63816-0600
Battery Power Crimp Adapter
7
63816-1500
Electric Crimp Machine
63816-0600
Battery Power Crimp Adapter
8
Applications for the Modular Crimp Head
Hand Crimp Tool
Battery Powered Tool
Electric Crimp Machine
Figure 6
Figure 7
Figure 8
MODULAR
CRIMP
HEAD
LOCKING
PINS
HAND CRIMP
FRAME LONG
OR SHORT
MODULAR
CRIMP
HEAD
BATTERY
POWERED
CRIMP
ADAPTER
LOCKING
PINS
LOCKING
PINS
BATTERY
POWERED
TOOL
ELECTRIC
CRIMP
MACHINE
MODULAR
CRIMP HEAD
BATTERY
POWER CRIMP
ADAPTER

Hand Crimp Tool for CTX50 Small Grip Sealed Receptacle Crimp Terminals
Doc. No: 2002184300 Release Date: 02-14-20 UNCONTROLLED COPY Page 7 of 7
Revision: A Revision Date: 02-14-20
PARTS LIST
Item
Order Number
Description
Quantity
1
63816-0000
Hand Crimp Frame (Short)
1
2
200218-4375
Locator
1
3
63816-0001
Locking Pin
2
4
63600-0525
Handle Spring
1
5
63600-0520
Crimping Spring
2
Application Tooling Support
Phone: (402) 458-TOOL (8665)
E-Mail: [email protected]
Website: www.molex.com/applicationtooling
Molex is a registered trademark of Molex, LLC in the United States of America and may be registered in other countries; all other
trademarks listed herein belong to their respective owners.
1
4
3
5
2
HANDLE
SPRING
CRIMPING
SPRING (2)
Figure 9
RATCHET
RELEASE LEVER
LOCATOR
M4 X 8mm
LONG BHCS
