How does RO2S work?
This model applies Gyro (Gyroscopic) navigation technology, which is able
to program the cleaning path, clean and recharge automatically without
manual intervention. Mini-Cleanse works with vacuum sweeping. The
FreeMove revolutionary patented technology features anti stuck, low
failure that is capable of passing through narrow spaces and corners up
to 28cm. It is different from the traditional sweeper’s detection method
that only relies on the front mechanical beam to sense the collision of front
obstacles to electronic sensing technology. Mini-Cleanse, the whole body,
has a more comprehensive sensing range and higher sensitivity which
intelligently prevents the sweeper from being stuck and trapped.
Before Using
1. 2.4GHz Wi-Fi network is required.
2. Only use the original battery and power adapter of the product for
charging. Using other un-matched adapter may cause electric shock,
fire or product damage.
3. This appliance is not intended for use by person (including children)
with reduced physical sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
4. This appliance contains batteries that are non-replaceable.
5. Make sure the dust bin, dust bin filter, side brushes, etc. are properly
installed.
6. Do not use this product in wet or moist environment.
7. Collect the floor environment (e.g. remove all the fragile objects,
cords, clothing, loose cables, as well as making sure curtains and
drapes off the floor to avoid any possible accidents).
8. To avoid tripping, inform all the people in the house when this product
is in use.
9. Do not sit on top of this product or attach an object on the top of it.
Beware of children or pets while the product is in operation.
Introduction
10. Only use the product indoors, do not use it in outdoor.
11. Do not let this product get close to or clean cigarette or any
flammables.
12. Do not clean this product while recharging.
13. Do not over-bend the power cord or pressure the cord with heavy or
sharp objects.
14. Do not place this product where it is easy to drop off (e.g. tables,
chairs, stairs, etc.)
15. Turn OFF the power switch when the product is not in use for several
days.
16. Remove the plug from the socket outlet before maintenance.
Put away objects including wires, cloths and slippers, etc.
on the floor to improve the cleaning efficiency.
Before using the product on a rug with tasseled edges,
please fold the rug edges beneath.
Please do not stand in narrow spaces, such as hallways,
and make sure not to block the robot.
• Tidy up the area to be cleaned by
putting furniture, such as chairs,
in their proper place.
• It may be necessary to place a
physical barrier at the edge of a
drop to stop the unit from falling
over the edge.
2 3

1. Remove protective materials.
2. Connect the power cord to the charging dock.
3. Place the charging base against the wall. Then plug the power
adapter firmly into the power outlet. Ensure the power outlet is easily
accessible for disconnecting.
4. Open top cover, turn on the power switch (O=OFF, I=ON) .
Quick Start Guide
5. The charging indicator light will be ON in blue, indicating the charging
dock is connected to the power and charging 4-5hours.
Note:
• Ensure a space of above 0.5m on both sides of the charging base
and a space of above 1.5m on the front.
• If the power cord is placed on the ground, it may be dragged by
the vacuum robot and consequently the charging dock may be
powered off.
6. Installation of side brush
The side brushes place on the bottom, then push to lock in place. You
will hear a ‘dak’ sound when side brushed are installed properly.
1 4
4 5

8. Register
Register an account and log in using your mobile number or email
address. (Find Momax youtube channel support materials)
The Home page of all connected devices.
To set scenarios or conditions and respective actions of the
new smart device.
Profile management, FAQ, setting, etc.
7. Download ‘MOMAX Smart’ APP
Download “MOMAX Smart” from iOS App Store, Android Google
Play Store or other platforms. Enable Wi-Fi connection on your device.
Note: 2.4GHz Wi-Fi network is required.
6 7

Add Device
Confirm light blinks rapidly
Help
Enter Wi-Fi Password
Confirm Done
Device added successfully
9. Wi-Fi pairing
Press & hold the “
“ button on the vacuum robot for 3 secs until
you hear an indicator sound to start pairing the vacuum robot
to the App. You will see the “
“ button blinking in blue. Tap
“Confirmindicatorrapidlyblink”. Then, tap ‘Next’ to proceed.
10. Add Device
Tap “+”, then tap “MOMAX Smart Mini-Cleanse” to add device.
* Browse helpdesk.momaxsmart.com to watch the quick start tutorial.
11. Connect to the Internet Wi-Fi
Select a 2.4 GHz Wi-Fi network and enter the Wi-Fi Password. Then
tap ‘Confirm’ to start connecting.
12. Successfully connected
Once the connection is completed, you can edit the name. Tap ‘Done’
to confirm.
The app will automatically match the device. After the match is found,
you can edit the name of the device.
Tips: The device name should be identifiable and easy to pronounce (voice control).
8 9

Mode Mapping Record Cleaning Record
Auto O O
Random x O
Wall Follow x O
Spiral x x
Manual x x
Remote Control Page
After Wi-Fi connection, you will be prompted with the following page
which allows you to
• Turn ON & OFF or PAUSE cleaning
• Choose cleaning modes
• Choose manual cleaning: Manual control the direction to clean a
specific area. (When turning left or right, the robot will drive the direction
of rotation using a single wheel.)
• ‘Go back to base’: The vacuum robot will return to the recharging dock
• Edit the product name
On the settings page,
• Suction power: Low, Mid, High
• Seek Robot: You will hear a notice voice from the vacuum robot to help
you find its location.
• Timer: You can schedule the cleaning time so that the vacuum robot will
automatically do its jobs accordingly.
• Cleaning record: *Over 7mins and back to recharging dock (upload
Virtual Mapping record)
10 11

Smart Home Ecology System
Adding multiple devices in interactive smart mode.
Voice Control
This smart device supports voice control with Amazon Alexa, Google
Assistant and other China platform, etc. To connect with these platforms,
please refer to the App>More Services>Voice Service. Voice commands
of each platform may vary, please refer to the relevant user manual.
Turn on/off vacuum robot.
Set vacuum robot to auto/random/
wall follow/spiral mode.
12 13

Blue Normal operation
Blue/Pink (Flashes) Charging
Red Abnormal condition or low battery
Blue (blinking) Ready for WiFi pairing
Red (Flashes) or
glows a continuous Red Problem found
Infrared Anti-Collision Sensors
Start /Pause Button
& Indicator Light
Dust Bin
High Efficiency Filter
Top Cover
Power
Switch
Finger Notch
Button
Filter Net
Product Overview
Robot
Indicator Light
Top
Dust Bin
= ON
= OFF
14 15

Glowing A Solid Red
Cause of issue Error prompts Solutions
Driving wheel
malfunction
1 Beep sounds
3 times
Check driving wheel for
tangled hair or debris and
clean as described in
section 3 maintenance.
Side brush
malfunction
2 Beep sounds
3 times
Check side brushes for
tangled hair or debris
and clean as described in
section 3 maintenance.
Vacuum fan
not working
normally
3 Beep sounds
3 times
Vacuum fan does not work
normally. Remove the dirt
in the dust bin and clean
the vacuum inlet.
No dust bin 5 Beep sounds
3 times Please install the dust bin.
Universal Wheel
Side Brushes
Anti-Drop Sensors
Charging Contacts
Suction Port
Power Indicator
Light
Power Adapter
Port
Driving Wheels
Multi-function
Cleaning Tool
Infrared Signal
Emitter
Charging
Contacts
Bottom Alarm Sounds
Docking Station
16 17

Flashing Red
Cause of issue Error prompts Solutions
Floor sensor
alarms
2 Beep sounds
3 times
The robot is no longer in
contact with the floor.
Put it back onto the floor.
The robot is
suspended or
being stuck
3 Beep sounds
3 times
Place the robot on an even
surface, or remove the obstacles,
and restart the robot.
Low Battery 4 Beep sounds
3 times
Manually place the robot on the
charging dock to charge.
Charging
adapter not
working normally
5 Beep sounds
3 times
The charging voltage is
abnormal. Clean the charging
contacts of the docking station
and robot, and make sure
that you are using the original
adapter.
Charging error 6 Beep sounds
3 times
There is an error in charging.
Check if the power switch is
turned on.
1
2
3
4
Operating Instructions
1. Auto mode : The robot will switch between Routed Planning
cleaning modes automatically.
2. Random mode : The vacuum robot will travel to new areas.
(Recommended for carpet)
3. Wall follow mode : The robot will follow walls to clean corners and
edges.
4. Spiral mode : The vacuum robot will circle around to clean open
floor space (1.5m x 1.5m). It is designated to clean
heavily soiled area.
5. Manual mode : Control by manual.
6. Home : Back to recharging dock.
Alarm Sounds
18 19

Robot Part Maintenance
Frequency
Replacement
Frequency
Side brush Once every 2 weeks Every 3-6 months
High efficiency filter Once per week Every 3-6 months
Universal wheel
Anti-drop sensors
Infrared anti-collision
sensors
Docking station
contacts
Once per week /
Ensure the machine is unplugged before maintenance.
Maintenance
1. Cleaning Side Brushes
A. Check sides brushes to see whether they are damaged or any dust
stuck on the brushes
B. Clean the side brushes by tool or cloth.
C. Replace the side brushes if they are damaged. (Carefully pull brush
to remove)

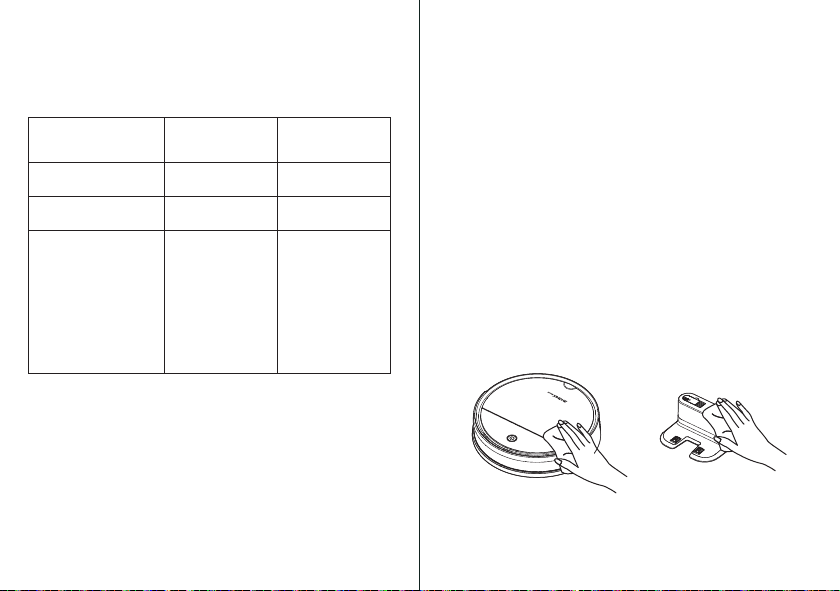

2. Cleaning Surface, Sensors And Charging Contacts
A. Use a lightly moistened soft cloth with glass cleanser to clean the
glass plate of the vacuum robot and neutral cleanser to clean the
recharging dock and the unit.
Note: Do not wash the vacuum robot directly.
B. Clean all sensors, including charging contacts on the dock with a
cleaning tool or a soft dry cloth monthly.
20 21

3. Cleaning Dust Bin & Filter
A. Empty the dust bin after use.
B. Press the finger notch button and pull out the dust bin.
C. Take out HEPA filter and sponge filter.
D. Empty the dust bin.
E. Wash dust bin and filters under tap water.
F. Install HEPA filter into the dust bin after it is dry, and then install it into
the host.
Note:
• After taking out the dust bin, check whether there is dust stuck in dust
passage and clean it.
• Rinse HEPA lter after 15-30 days use. It is recommended to replace the
HEPA filter after 6-8 months.
• After rinsing HEPA lter, dry them in a ventilated area and install them after
they are fully dry.
Problem Shooting
Problem Possible cause and solution
The robot does not work.
• In case of low battery, place the
vacuum robot on the recharging
dock, make sure to align the
charging contacts. The indicator
light of the vacuum robot will be
ON in blue with breathing effect,
indicating recharging is in progress.
• Operation temperature should not
lower than 0℃or higher than 50℃.
The robot cannot be
recharged.
• Please check whether the indicator
light of the recharging base is ON
• Make sure both ends of the power
adapter and the recharging dock
are in good contact.
• The robot is too far away from the
recharging dock, please put the
robot near the dock and make
another try.
Abnormal behavior • Shut down and restart the robot
Abnormal noise in use
• Main brush, side brush or wheel
may be twined by foreign objects,
please shut down the robot and
remove the foreign objects.
22 23

Problem Possible cause and solution
Cleaning ability declines
or dust falls out
• The dust bin may be full.
• The lter screen may be blocked.
• The main brush may be twined by
foreign object.
WiFi cannot be
connected
• Make sure to select 2.4Gz Wi-Fi
network.
• Ensure the indicator light of the
robot is blinking in blue before Wi-Fi
pairing.
Scheduled cleaning time
does not work
• The scheduled cleaning time will not
work if the battery level is less than
30%.
Model No. : RO2S
Vaccum Robot
Rated Voltage : 12.8V
Power : 15W
Dust Bin Capacity : 550ml
Suction Force : 340/530/630Pa ± 50Pa
Noise level : 63-70dB
Working time : 80-110 mins
Climbing angle : 8°
Obstacle crossing : 12mm
Effective area : 40-50m2
Battery Type : 1800mAh Li-Ion Battery
Wireless Wifi Frequency : 2.402GHz – 2.480GHz
Wireless Wifi Distance : 10m
Size : 280 X 280 X 80mm
Weight : 2kg ± 0.2kg
Charging Dock
Rated Output : 19V 0.6A
Cable Length : 1.5m ± 0.3m
Size : 175 X 135 X 79mm
Contains
1. Mini-Cleanse IoT Vacuum Robot
2. Recharging Dock
3. Side Brush (4 pcs)
4. H11 HEPA Filter
5. Instruction Manual And Warranty Card
Specification
24 25

Before using, please read this user manual carefully and keep it for future
reference.
1. 2.4GHz Wi-Fi network is required.
2. Only use the original battery and power adapter of the product for
charging. Using other un-matched adapter may cause electric shock,
fire or product damage.
3. This appliance is not intended for use by person (including children)
with reduced physical sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible
for their safety. Children should be supervised to ensure that they do
not play with the appliance.
4. This appliance contains batteries that are non-replaceable.
5. Make sure the dust bin, dust bin filter, side brushes, etc. are properly
installed.
6. Do not use this product in wet or moist environment.
7. Collect the floor environment (e.g. remove all the fragile objects,
cords, clothing, loose cables, as well as making sure curtains and
drapes off the floor to avoid any possible accidents).
8. To avoid tripping, inform all the people in the house when this product
is in use.
9. Do not sit on top of this product or attach an object on the top of it.
Beware of children or pets while the product is in operation.
10. Only use the product indoors, do not use it in outdoor.
11. Do not let this product get close to or clean cigarette or any
flammables.
12. Do not clean this product while recharging.
13. Do not over-bend the power cord or pressure the cord with heavy or
sharp objects.
14. Do not place this product where it is easy to drop off (e.g. tables,
chairs, stairs, etc.)
Warnings
15. Turn OFF the power switch when the product is not in use for several
days.
16. Remove the plug from the socket outlet before maintenance.
17. Before connecting the power supply, please check whether the
voltage of the product is consistent with the local power supply
voltage. Due to high rated power (2000W), an independent above
10A charging switch must be used.
18. Do not attempt to repair, disassemble or modify this machine.
19. Remove the dust from the power plug and insert it all the way. If the
power cord or plug is damaged or found defective, to avoid danger,
it must be replaced by a professional from the manufacturer or
maintenance department.
20. When an abnormality occurs (such as a burning smell, overheat,
etc.), turn off the machine and unplug the power cord.
21. Do not wash the machine with water.
22. Do not place in places where chemicals are used or where oil or
flammable gas may leak such as hospitals, factories, or laboratories.
23. Hold the plug when pulling out the power plug.
24. This product is only for domestic use
26 27

1. For any defect, in the judgment of our technician, caused under
normal use, we are responsible for repairing free of charge 12 months
commencing from the date of purchase at the discretion of our
company;
2. A valid warranty card and original purchase invoice must be presented
upon request of warranty service;
3. This warranty card shall not apply to the product if:
(a) It is consumable part(s), such as Filter, or;
(b) it has explicitly modified or repaired in any way by persons other
than technicians of this company, or;
(c) it has been damaged through misuse, malicious acts, negligence,
the inflow of any liquid, or;
(d) losses or damages are caused by force majeure or natural
disasters.
4. No alteration to this warranty card will be allowed;
5. The warranty terms and conditions are subject to change without prior
notice;
6. Please retain your proof of purchase for warranty service;
7. Please consult the dealer about the product compatibility with your
cell phone/ PDA before purchase. Product specifications are subject
to change without prior notice;
8. Please visit www.momax.net for the latest product information.
Warranty Conditions
Please reference Mobile Apps content: Before accepting the Agreement,
you are supposed to thoroughly read all the contents of the Agreement,
and fully understand its terms, especially restrictive clauses or exceptions
and Privacy Notice. Restrictive clauses or exceptions are bold or
highlighted in other forms to catch your attention. In case of any doubt
about the terms of the Agreement, please contact the relevant business
department of Tuya. You are not allowed to use the service before
you have read and accepted all the terms of the Agreement, relevant
agreements, and rules, etc. Once you select “agree and submit the
Agreement” (see registration page for detailed wordings) and complete
the registration procedure, or you use the service in any form, it will be
deemed that you have read and agreed with the restriction of the
Agreement and rules above. In case of any breach of the Agreement,
Tuya has the right to unilaterally restrict, suspend or terminate the service
for you, and has the right to investigate your relevant responsibilities.
1.Do not place the product as household waste;
2.Please dispose of discarded electronic products properly according to
local regulations;
3.MOMAX encourages you to participate in the electronic recycling
program.
Service Agreement of
Smart Mobile Application Platform
Disposal of Electronic Products
28 29

簡介
RO2S如何工作？
本產品採用了陀螺儀（Gyroscopic）導航技術，此技術能夠編程自動清潔
及返回底座充電的路徑，無需人手干預。Mini-Cleanse可吸塵掃地使用。
FreeMove專利技術具有防卡困、低故障率，能夠於闊度28cm的狹窄空間內
游刃有餘。它不同於傳統的掃地機器人偵測方法，僅依靠前部機械光束來
檢測電子傳感技術中前部障礙物的碰撞。Mini-Cleanse具有更全面的感應範
圍和更高的靈敏度，可以智能地防止掃地機被卡困。
使用之前
1. 需要2.4GHz Wi-Fi網絡。
2. 請使用產品的原裝電池和電源適配器進行充電。使用其他不匹配的適配
器可能會導致電擊、火災或產品損壞。
3. 本設備不適用於任何身體感覺或精神能力較弱或缺乏經驗和知識的人
（包括兒童）使用。為了他們的安全，除非得到有關清楚使用設備的負
責人監督或指導，方可使用。兒童應該受督導以確保他們不會胡亂使
用設備。
4. 本設備包含不可更換的電池。
5. 確保正確安裝垃圾箱，垃圾箱濾網、滾動刷、邊刷等。
6. 請勿在潮濕環境中使用本產品。
7. 先收集地面環境的物件（例如，清除所有易碎物件、電線、衣服、鬆散
的電線等，並確保窗簾離開地板，以免發生任何意外）。
8. 為避免絆倒，請在使用本產品前，通知屋內所有人員。
9. 請勿坐在本產品上或在上面放置物品。在產品運行期間要當心兒童或寵
物。
10. 僅在室內使用本產品，請勿在室外使用。
11. 請勿讓本產品靠近或清潔香煙或任何易燃物。
12. 請勿在充電時清潔本產品。
13. 請勿過度彎曲電源線或用重物或尖銳物品壓迫電源線。
14. 請勿將本產品放置在容易掉落的地方（例如桌子、椅子、樓梯等）。
15. 如不使用產品幾天至更長時間，請斷開電源連接。
16. 維護前，請斷開電源連接。
將家具（例如椅子）放在適當的位
置，整理要清潔的區域。
將地板上的物品移走包括電線、衣服和拖鞋等，以提高清
潔效率。
在帶有流蘇邊緣的地毯上使用產品之前，請先將地毯邊緣折
疊在下面。
請不要站在狹窄的空間（如走廊），並確保不要擋住掃地
機器人。
有需要可於邊緣位置擺放物理屏
障，以防止設備在邊緣掉落。
30 31

快速入門指南
1. 移取保護物料。
2. 將電源線連接到充電座。
3. 將充電基座靠在牆邊。然後將電源適配器牢固插入電源插座。請確
保電源插座是在易於拔出的位置。
4. 打開上蓋，開啟電源開關 (O=關閉, I=開啟)。
5. 充電指示燈將呈藍色亮起，表示充電座已連接電源並充電約4-5小
時。
1 4
注意：
• 確保充電底座兩側的空間大於0.5米，前方距離大於1.5米。
• 如果將電源線放在地面上，機器人經過時可能會將其拖拉，因而斷開
充電底座的電源。
6. 安裝邊刷
確保邊刷已安裝在底部位置，將邊刷向下推入可固定安裝。正確安裝
時，您會聽到“噠”一聲。
32 33

7. 下載“MOMAX Smart”應用程式
在iOS或Android或任何平台上搜索“MOMAX Smart”應用程式。在設
備上開用Wi-Fi連接。注意：需要2.4GHz Wi-Fi網絡。
8. 註冊
註冊一個帳戶，然後使用您的手機號碼或電子郵件地址登錄。
主頁顯示已連接的所有設備。
可設定智能設備特定條件下、執行指定操作。
個人資料管理，常見問題解答，設置等 。
34 35

Add Device
Confirm light blinks rapidly
Help
Enter Wi-Fi Password
Confirm Done
Device added successfully
9. WiFi 配網
按住“ ”鍵約3秒直到聽到“滴”一聲提示音後鬆開。“ ”指示
燈將閃爍藍色時，請在MOMAX Smart應用程式上點擊“確認指示燈快
閃”以繼續。
10. 添加設備
點擊“+”，然後點擊“MOMAX Smart Mini-Cleanse”添加設備。
*瀏覽 helpdesk.momaxsmart.com 觀看快速入門教程。
11. 連接到互聯網Wi-Fi
選擇一個2.4 GHz Wi-Fi網絡，然後輸入Wi-Fi密碼。 然後點擊“確認”開
始連接。
12. 成功連接
連接完成後。 您可以編輯名稱。 點按“完成”確認。應用程序將自動與
設備配對。配對後，您可以編輯設備的名稱。
提示：設備名稱應易於識別且易於發音（語音控制）。
36 37
