Momento M5 User manual

MD-5200 QUICK START GUIDE
Full HD Driving Image Recorder
www.momentocam.com

Before Using MOMENTO’s MD-5200
- Copyrightlaws prohibit this manual to be copied, modified or
translated without the written consent of MOMENTO.
- The contents in this manual can be changed or modified due to
technical errors orimprovements therefore we cannotguarantee
the manual’sprecise information.
- MOMENTO has the right to change or modify the product and
manual contents at anytime without prior notice forimprovements
or customization.
<CAUTION >
- MOMENTO isnot responsiblefordamages that can occur from using
unauthorized parts and accessories other than from the manufacturer.
- It isdangerous to operate thisdevice whiledriving.
- The device and the recorded videos are intended for personal use
and reference only.
- Based on the user’s setting and environment, please beinformed
that the device may NOT record videos of all accidents.
- Please test the Micro SD card for errors frequently and because itis
a consumableitem, it should be replaced periodically.
- Handle the device with care.
- Install the device where itdoesn't interfere the driver's vision.
- Check forlocal driving rules before installing the device (as it may be
different according to each region).
-Donot use wet handswhen operating thisdevice.
- Please use this device with the original parts provided from the
manufacturer.

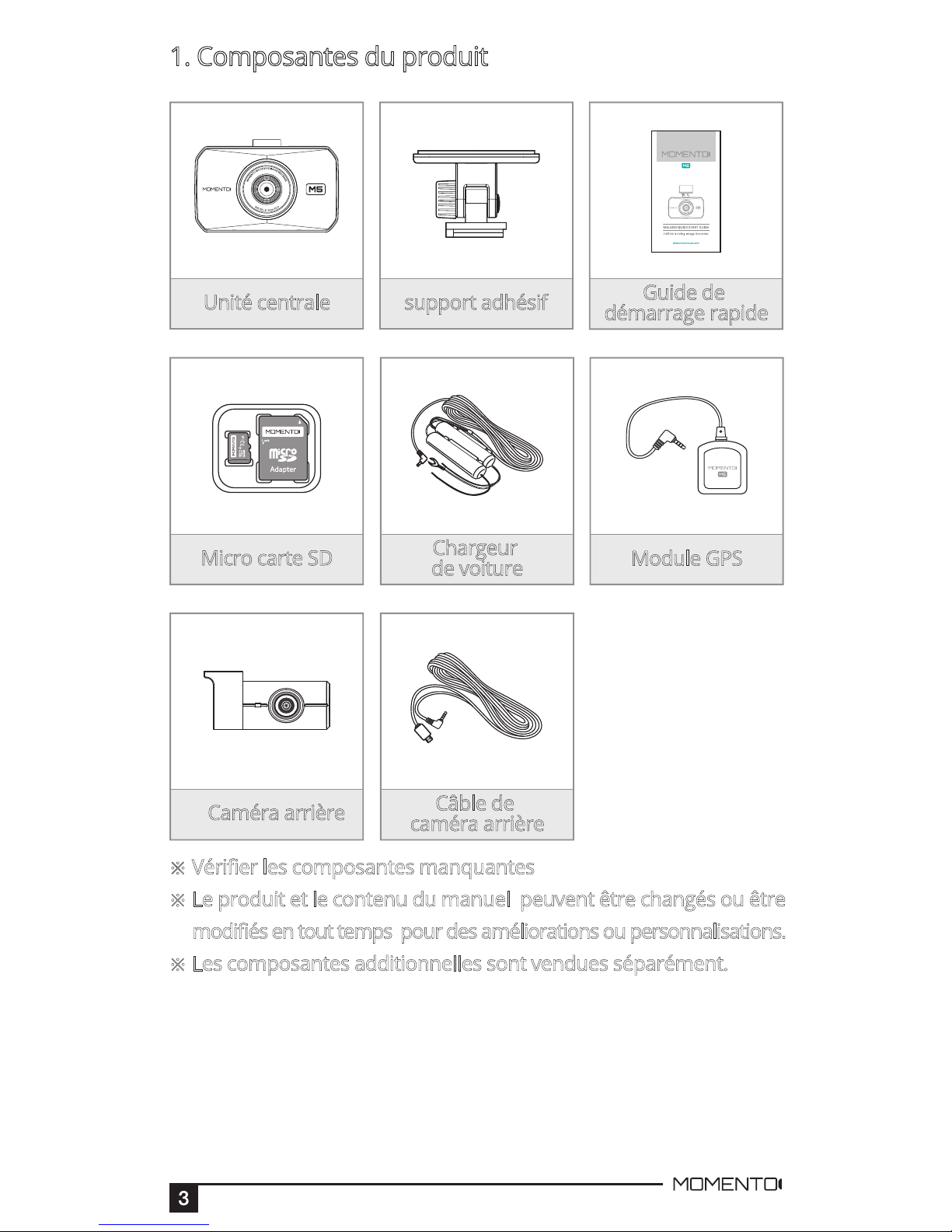

1. Package Components
※Check for any missing components.
※The product and manual contents can be changed or modified at
anytime withoutpriornotice for improvements or customization.
※Additional components are sold separately.
Windshield MountQuick Start
Guide
Main Unit
32GB
Micro SD Card Hardwire Cable
Rear CameraRear Camera
Cable
GPS Module

2. Product Overview
Rear camera port
GPS moduleport
Microphoneforvoice and audio recording
Power cableport
Installation mount
Reset button
Front camera forvideo recording
Indicates parking status and provides security effect
Notification for recording
Voice guidance
3.5” TFT LCD forliveview, playback, menu operation
Memory card slot
Press more than 3 secs : Power ON/OFF
Press less than 3 secs : Manual Record
DescriptionMark
④DC-IN
③MIC
②GPS Port
①R-CAM
⑤Mount
⑥RESET
⑦Camera Lens
⑩Speaker
⑬Power/ Manual
Record
⑨STATUS
⑧Front LED
⑪LCD
⑫Micro SD Card

< Caution >
- Please check if the Micro SD card isinserted correctly before connecting
to power.
- Make sure the installation area is clean.
- Disconnect the power cableif you are notusing the device foralong
period of time.
- Handle the device with care.
- Do not drop the product as it may notfunction properly.
- Please make sure that the device isused in the suggested operating
temperatures between -4°F ~ 140°F. (-20°C ~ 60°C)
- During extreme high temperatures orhotweathers, parking indoors
is suggested.

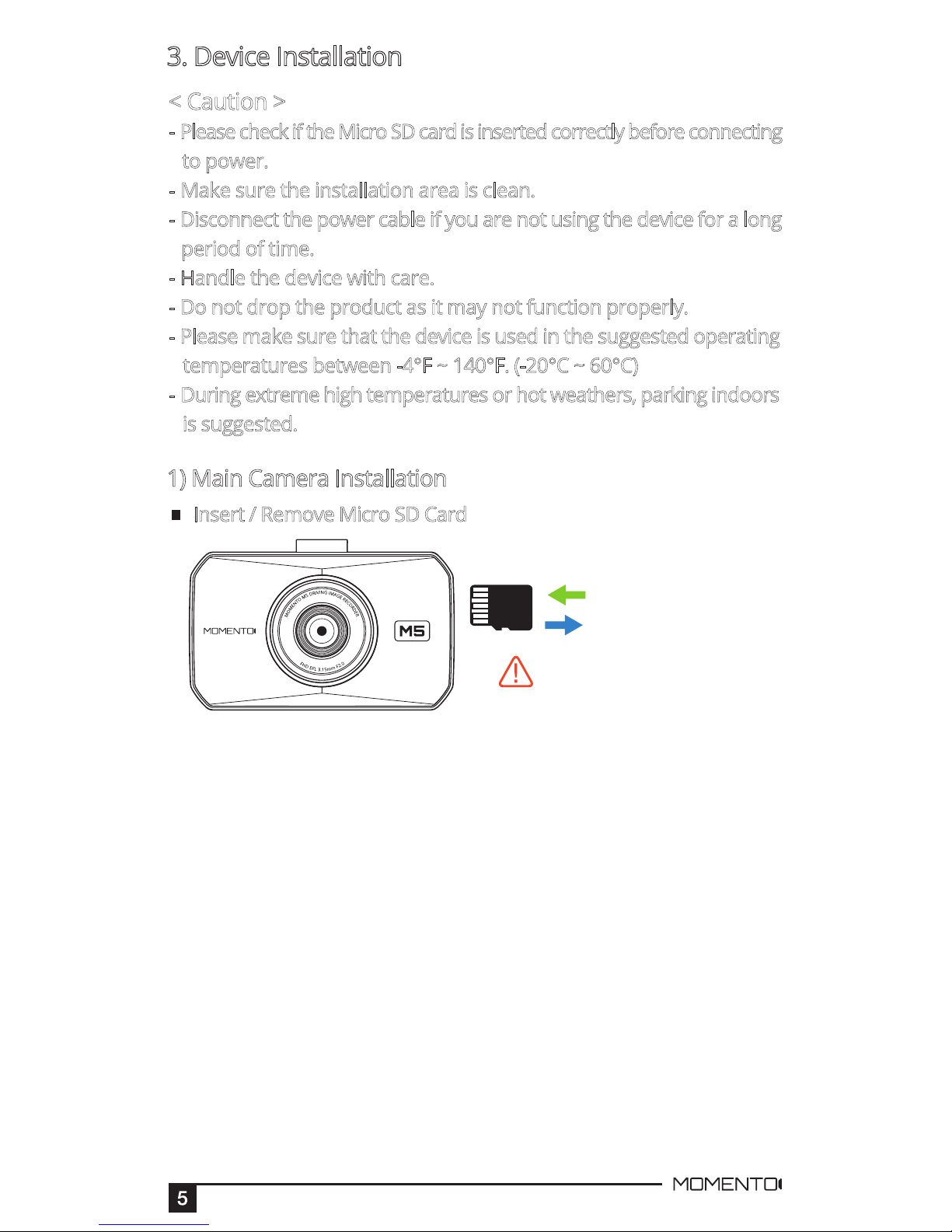

3. Device Installation
1) Main Camera Installation
Insert / RemoveMicro SD Card
Insert
Do not apply excessiveforce to
the Micro SD card or insert itin
the wrong direction.
Remove

3. Device Installation
1. Select and clean the area where the product will beinstalled.
2. Connect the camera and the mount.
3. Remove the double sided tape and attach the device.
4. Connect the rear camera and GPS cables first, then connect the
power cable.
※Before installation, make sure the engineisoff.
※Do notinstall the device that interferes with the driver’s vision.
※Make sure the installation area is cleaned.
Hardwire Cable
Rear Camera
Cable
GPS
Module
1) Main Camera Installation

3. Device Installation
1. Select and clean the area where the camera will beinstalled.
2. Remove the double sided tape and attach the device.
3. Connect the rear camera cable.
※ Make sure the installation area doesn’t interfere with the window’s
infrared signals.
※ Before installation, make sure the engine is turned off.
※ Make sure the installation area is clean.
※ Turn the main power off to use the rear camera’s mirror function.
1. Connect the external GPS module to the rightconnector on thecamera.
2. Organize the cableline across the car’s ceiling.
3. Remove the double sided tape and attach the module.
※Before installation, make sure the engineis turned off.
※Make sure the installation area is clean.

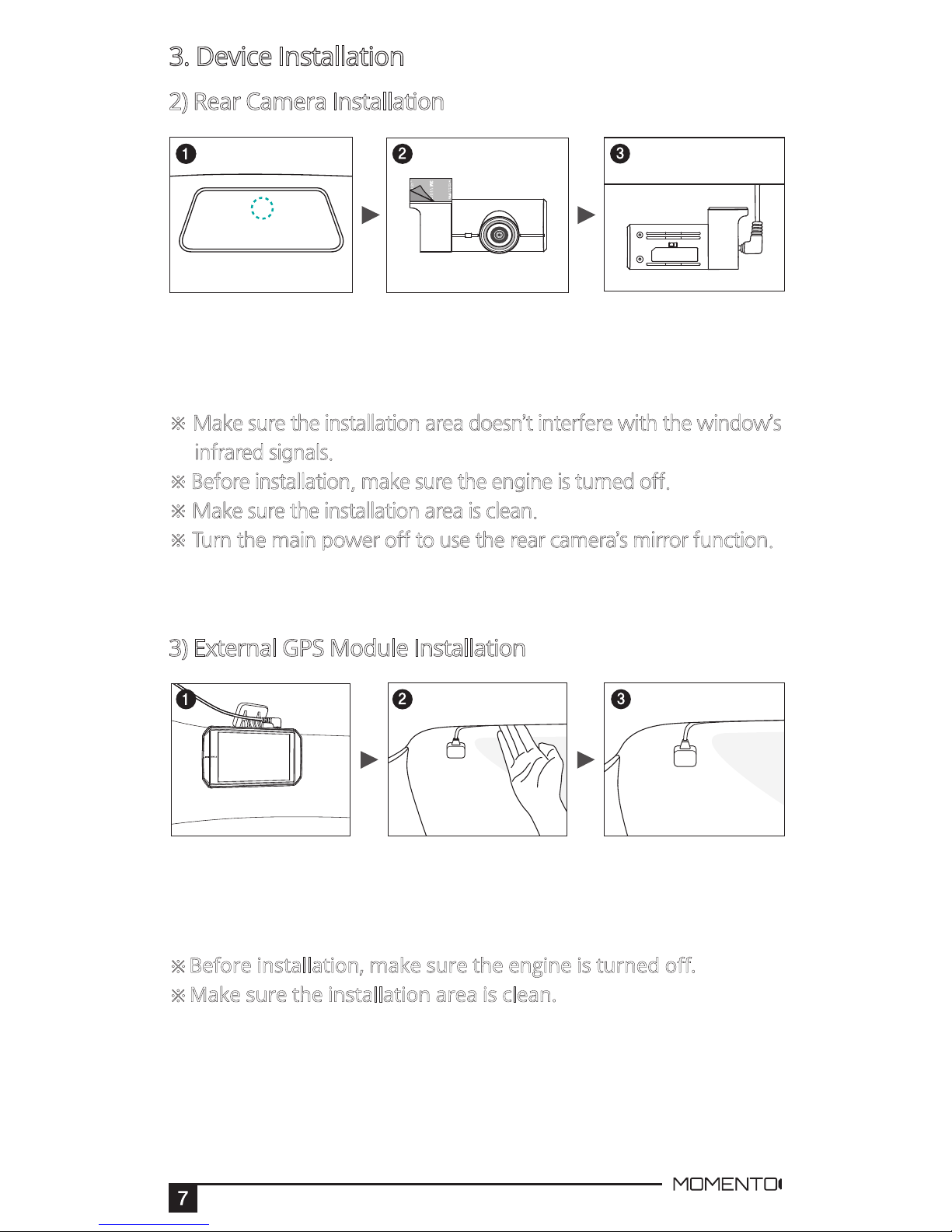

2) Rear Camera Installation
3) External GPS ModuleInstallation

4. Using Touch Screen - Live View
2016/11/27
MIC ON
Current Date and Time
①
②
③
④
Main Menu →System Settings →Time Settings
*Automatic setting if GPS is connected
GPS Status
Voice & Audio Record
Main Menu
Main menu →MIC ON/OFF
MIC ON :recording /MIC OFF : not recording
Main menu screen
GPS ON /OFF
※Touch the LCD to use front view / rear view / PIP features
(Rear camera needs to be connected for rear view feature to work)

4. Using Touch Screen - Main Menu
①
②
③
④
⑤
⑥
⑦
※Recording stops in Settings, ADAS, File List.
Settings
ADAS
File List
LCD Time Out
Volume
MIC
LIVE
Main menu settings
→System Settings / Dashcam Settings / F/W version
List of recorded files
LCD screen offsetting menu
→ 30sec / 1min /3min / clock / always on
Changes the volume level (5=loudest)
→ OFF / 1 /2 /3 /4 / 5
ADAS menu settings
→FVMA / FCW
Audio/voice record using the microphone
→ ON /OFF
Go to Liveview
SettingsADASFile List
LCD
Time outVolume MIC

4. Using Touch Screen - System Settings
①
②
Language
Language setting
→English / Francais
③
④
⑤
⑥
⑦
Time Settings
Touch Calibration
SD Card Format
Factory Reset
System’s time setting
*Automatic setting if GPS is connected
Resets touch screen
Micro SD Card Format
* Saved files will be deleted. Backup the files before formatting
Reset camera to factory settings (except for recorded files)
HOME
Move to Main menu screen
BACK
Back to previous screen
System Settings
Touch
Calibration SD Card FormatFactory Reset
Language
Dashcam Settings
Video Quality
Parked Storage
Priority
Parked Cam
Timer
Power save
Impact Front LED
Time
Settings

4. Using Touch Screen - Dashcam Settings
①
Video Quality
Select the recording video quality
→ Low /Normal /High
②
③
④
⑤
⑥
Impact
Front LED
Parked Storage Priority
Parked Cam Timer
Power Save
Enable/disable the LED on the main unit(in parking mode)
→ ON /OFF
Allocates storage capacity on memory card forpark recording modes
→OFF / 25%/50% (* OFF : notusing parking mode)
→ 6H /12H /24H /48H /OFF
Thisfeature senses incidents whiledriving and records them
*When an incident isdetected, driver will benotified with a tone alert
and incident recording will start.
→ OFF / 1 /2 /3 /4 / 5 / 6
If the vehicle’s battery fallsbelow the indicated value, the ignition will
not start
→ 11.7V / 11.9V / 12.0V / 12.1V / 12.2V
Dashcam Settings
Video Quality
Parked Storage
Priority
Parked Cam
Timer
Power save
Impact Front LED

4. Using Touch Screen - ADAS Settings
※ADAS features’ accuracy can be affected by the following conditions
: missing continuousoperation of wipers, heavy reflection from the window,
driving at night, through tunnels, heavy rain and snow, road and environmental
conditions
①
FVMA (Forward vehicle move alert)
If the front vehicle starts to move from a complete stop, “GO” message
is shown on the screen.
→ ON / OFF
*FVSA may not operate correctly if the distance between the front
car is more than 9ft(3m).
ADAS Settings
FVMA
Forward vehicle
move alert

5. File List Management
- Recorded files are saved in Micro SD card.
- Files are saved in the same sizes due to format free technology.
Continuous : 80MB / Parked, Motion, Incident, Manual :40MB
- Recorded files are saved in Micro SD card by date and hour.
FileName & Camera Channel
(1:front/2:front& rear)
38sec51sec 1min 16sec
37sec25sec19sec
Continuous
Incident-Continuous
Incident-Parking
Parking
Manual
TypeFront Camera Resolution
High Normal Low
Date Time
FileName Meaning Saved Folder
Continuous record Driving
Parking
Event
Manual
REC
Record during parking (Motion Detection)MOT
EVT
IMP
MAN
Incident during driving (Incident – Continuous)
Incident during parking (Incident – Parking)
Manual record
- Recording Time : Format Free Technology allows the file sizes to bepreset.
Recording time may vary based on the video quality. (refer below)

6. Product Spec
Description
Micro SD Card
16GB /32GB /64GB (FAT32 format)
Continuous Record,
Incident Record(driving,parked),
Motion Detection Record,
Manual Record
3.5” TFT LCD
MD-5200
104 x 65.5 x 30.25mm / 89g
4 x 2.6 x 1.2in /3.14oz
Embedded microphone, speaker
Up to 30fps(Front / Rear : 1080P)
3 AxisAcceleration Sensor
Supports external GPS port
Front / Rear : FHD (1920x1080P)
Front : 1/2.8” CMOS ColorImage Sensor
Rear : 1/3” CMOS Color Image Sensor
DC 12/24V
-20 ~ 60℃/ -4 ~ 140℉
0 ~ 50℃/ 32 ~ 122℉
Super Capacitor
Model
Size / Weight
Capacity
GPS
LCD
Resolution
Camera
Audio / Speaker
Frame Rate
Acceleration Sensor
Input Power Source
Auxiliary Power Unit
Operation and Storage
Temperature
Item
Recording Mode

MOMENTO provides a warranty to the original purchaser of anew Product against
defects in workmanship and materials foraperiod of two (2) years.
If aproduct covered by thiswarranty isdetermined to bedefectivewithin the warranty
period, MOMENTO will either replace or repair the product at its sole option and
discretion.
Products determined defective must be sent to an MOMENTO service center to obtain
warranty service.
Proof of purchase in the form of a receiptis required to show that Product iswithin the
warranty period and product must have original and legible serial number information.
To obtain warranty service, please register your system at momentocam.com/warranty.
ThisWarranty is subject to changewithout notice.
FOR COMPLETE AND UPDATED WARRANTY INFORMATION PLEASE VISIT
: momentocam.com/warranty
[e-mail]
888-820-3690
8. Limited Warranty on Parts & Labor
7. Troubleshoot
No Power Check if power cableisproperly connected.
Check if power isON.
Unplug the power cable and reconnect after 3 mins.
LCD display doesn’t turn on in parking mode.
LCD isON during continuous mode.
Check if MIC isON in main menu.
Check Parked Storage Priority isOFF in dashcam
settings menu.
Check if Volume isOFF in main menu.
Reset the feature in touch calibration menu.
Visit www.momentocam.com to download the latest
Momento Viewer.
Visit www.momentocam.com to download the latest
Momento Camera Firmware.
LCD Display doesn’t turn ON
Unable to record Audio/Voice
Unable to record during parking
Unable to hear Audio/Voice
How do I view recorded files?
How do I update the camera
firmware?
Touch Screen isnot working
Condition Description

FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions :
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occurin a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment offand on, the user
is encouraged to try to correct the interference by one or moreof the following
measures :
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION :
Any changes or modifications to the equipment not expressly approved by the
party responsible for compliance could void your authority to operate the equipment.

www.momentocam.com
MD-5200 Guide de démarrage rapide
Full HD Caméra d’enregistrement de l’image en conduite

Avant d’utiliser Momento MD-5200
- Des loisdelapropriété intellectuelleinterdissent la copie, la modification
ou la traduction de ce manuel sans lapermission écrite deMOMENTO.
- Le contenu de ce manuel pourrait être changé ou modifiédû àdes erreurs
techniques ou des améliorations, donc, nousne sommes pas en mesure
degarantir laprécision dudit manuel.
- MOMENTO aledroitde modifier ou changer leproduit et le contenu du
manuel en tout temps sans avertissement pour une amélioration ou
personnalisation.
<MISE EN GARDE >
- MOMENTO n’est pas responsablepour des dommages qui peuvent
découler del’usage depièces non autorisées et des accessoires autres
que ceux du manufacturier.
- Il est dangereux d’utiliser ce dispositif en conduisant.
- Ce dispositif et les vidéos enregistrés devraient être utilisés pour usage
personnel ou seulement comme référence.
- Basé sur les spécifications del’usager et l’environnement, soyez informé
que ce dispositif peut nepas enregistrer des vidéos pour tousles accidents.
- Veuillez vérifier les erreurs dela carte Micro SD régulièrement, étant donné
que c’est un produit consommable, il devrait être changé régulièrement.
- Manipuler ce dispositif avec soin.
- Installez ce produitoù il n’interfère pas avec lavision du conducteur.
- Vérifiez les règles locales de conduite, selon la région avant son installation
(elles peuvent varier selon la région).
- Assurez-vousdenepas avoir les mainshumides lorsquevous opérez
ce dispositif.
- Veuillez utiliser ce dispositif avec les pièces originales fournies par le
fabriquant.

1. Composantes du produit
※Vérifier les composantes manquantes
※Le produit et le contenu du manuel peuvent être changés ou être
modifiés en tout temps pour des améliorations ou personnalisations.
※Les composantes additionnelles sont vendues séparément.
support adhésif Guidede
démarrage rapide
Unité centrale
Micro carte SDChargeur
de voiture Module GPS
Caméra arrièreCâblede
caméra arrière

2. Survol sur leproduit
Port de caméra arrière
Port de module GPS
Microphonepourl’enregistrement devoix et d’audio
Port de câbled’alimentation
Montage du dispositif
Bouton pour réinitialiser
Indiquelestatutdu stationnementet pourvoiela sécurité
Notificationspourl’enregistrement
Guidevocale
3.5” TFT ACLpour visionnement en direct, jouer lavidéo,
opérer le menu
Fente pourla carte de mémoire
DescriptionParties
④DC-IN
③MIC
②GPS Port
①R-CAM
⑤Montage
⑥Réinitialiser
⑦Lentilles de
la caméra
⑩Haut-parleur
⑬Allumage/
enregistrement
manuel
⑨État
⑧DEL frontale
⑪ACL
⑫Micro carte SD
Caméra frontale pour enregistrement vidéo
poussez plusde3 secondes allume ou éteint,
moinsde3 secondes, enregistrement manuel
