Monessen Hearth DFS36NVC User manual

This is an unvented gas-fired
heater. It uses air (oxygen) from
the room in which it is installed.
Provisions for adequate combustion
and ventilation air must be provided.
Refer to page 10.
READ AND SAVE THESE INSTRUCTIONS
VENT-FREE FIREPLACE
SYSTEMS
INSTALLATION AND OPERATING
INSTRUCTIONS
MODELS:
DFS32NVC, DFS32PVC
DFS36NVC, DFS36PVC
DFS42NVC, DFS42PVC
WARNINGS
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or loss of life.
– Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
– WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use
any phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
WARNINGS

2 71D0532
CONTENTS
Important Safety Information ................................ 3
Product Features.....................................................5
Operation ..............................................................5
Specifications..........................................................7
Ignition Controls....................................................7
Pilot.......................................................................7
Thermal Generator................................................7
Getting Started.........................................................8
General Installation Information ............................9
Firebox Dimensions .............................................. 9
Codes..................................................................10
Adequate Combustion and Ventilation Air...........10
Removing Screen ............................................... 12
Installing Canopy ................................................ 12
Location of Fireplace ............................................13
Clearances and Height Requirements.................14
Fireplace Framing..................................................15
Connecting the Gas...............................................17
Checking Gas Pressure........................................18
Milli-Volt Control .................................................. 18
Electrical Wiring (Milli-Volt) ..................................19
Connecting Optional Wall Switch........................19
Connecting Remote Receiver.............................20
Checking System Operation ...............................20
Log Placement.......................................................21
Flame Appearance.................................................25
Checking the Burner Flame .................................26
Operating Instructions..........................................27
For Your Safety Read Before Lighting ................27
Milli-Volt Control Lighting Instructions ................. 28
Match Lighting Instructions .................................29
Cleaning and Servicing.........................................29
Blower and Other Optional Equipment ...............30
Illustrated Parts Breakdown.................................31
Logs ....................................................................31
Heater .................................................................32
Cabinet................................................................34
Troubleshooting ....................................................36
Trim Installation.....................................................38
Using Optional Outside Air Kit.............................40
Warranty.................................................Back Cover

71D0532 3
10. This unit complies with ANSI Z21.11.2 Unvented
Heaters.
11. Do not install the heaters in a bathroom or bedroom.
12. Correct installation of the ceramic fiber logs, proper
location of the heater, and annual cleaning are necessary
to avoid potential problems with sooting. Sooting,
resulting from improper installation or operation,
can settle on surfaces outside the fireplace. See log
placement instructions for proper installation.
13. Avoid any drafts that alter burner flame patterns. Do not
allow fans to blow directly into fireplace. Do not place
a blower inside burn area of firebox. Ceiling fans may
create drafts that alter burner flame patterns. Sooting
and improper burning will occur.
14. Caution: Candles, incense, oil lamps, etc. produce
combustion byproducts including soot. Vent-free
appliances will not filter or clean soot produced by
these types of products. In addition, the smoke and/or
aromatics (scents) may be reburnt in the vent-free
appliance which can produce odors. It is recommended
to minimize the use of candles, incense, etc. while the
vent-free appliance is in operation.
15. This is an unvented gas-fired heater. It uses air (oxygen)
from the room in which it is installed. Provisions
for adequate combustion and ventilation air must be
provided. See page 10.
16. Keep room area clear and free from combustible
materials, gasoline and other flammable vapors and
liquids.
INSTALLER
Please leave these instructions with the appliance. OWNER
Please retain these instructions for future reference .
IMPORTANT
Read these instructions carefully before installing or trying to operate this vent-free gas heater.
IMPORTANT SAFETY INFORMATION
1. Due to high temperatures, the appliance should
be located out of traffic and away from furniture
and draperies.
2. Children and adults should be alerted to the hazard
of high surface temperature and should stay away to
avoid burns or clothing ignition.
3. Young children should be carefully supervised when
they are in the same room with the appliance.
4. Do not place clothing or other flammable material
on or near the appliance.
5. Any safety screen or guard removed for servicing
an appliance, must be replaced prior to operating
the heater.
6. Installation and repair should be done by a qualified
service person.
7. To prevent malfunction and/or sooting, an unvented
gas heater should be cleaned before use and at least
annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding materials, etc. It is
imperative that control compartments, burners and
circulating air passageways be kept clean.
8. CARBON MONOXIDE POISONING: Early signs of
carbon monoxide poisoning are similar to the flu with
headaches, dizziness and/or nausea. If you have these
signs, obtain fresh air immediately. Have the heater
serviced as it may not be operating properly.
9. The installation must conform with local codes or, in
the absence of local codes, with the National Fuel Gas
Code, ANSI Z223.l/NFPA54. Continued on page 4
• Any change to this heater or its controls can be dangerous.
• Improper installation or use of the heater can cause serious injury or death from fire,
burns, explosion or carbon monoxide poisoning.
• Do not allow fans to blow directly into the fireplace. Avoid any drafts that alter
burner flame patterns.
• Do not use a blower insert, heat exchanger insert or other accessory, not approved
for use with this heater where applicable.
WARNING

4 71D0532
IMPORTANT SAFETY INFORMATION
THIS APPLIANCE MAY BE
INSTALLED IN AN AFTERMAR-
KET, PERMANENTLYLOCATED,
MANUFACTURED (MOBILE)
HOME, WHERE NOT PROHIB-
ITED BY LOCAL CODES.
THIS APPLIANCE IS ONLY FOR
USE WITH THE TYPE OF GAS
INDICATED ON THE RATING
PLATE. THIS APPLIANCE IS
NOT CONVERTIBLE FOR USE
WITH OTHER GASES.
Continued from page 3
17. Unvented gas heaters are a supplemental zone heater.
They are not intended to be the primary heating appli-
ance.
18. Unvented gas heaters emit moisture into the living
area. In most homes of average construction, this
does not pose a problem. In houses of extremely tight
construction, additional mechanical ventilation is
recommended.
19. During manufacturing, fabricating and shipping, various
components of this appliance are treated with certain
oils, films or bonding agents. These chemicals are not
harmful but may produce annoying smoke and smells
as they are burned off during the initial operation
of the appliance; possibly causing headaches or eye
or lung irritation. This is a normal and temporary
occurrence.
The initial break-in operation should last two to three
hours with the burner at the highest setting. Provide
maximum ventilation by opening windows or doors to
allow odors to dissipate. Any odors remaining after this
initial break-in period will be slight and will disappear
with continued use.
20. Input ratings are shown in BTU per hour and are for
elevations up to 2,000 feet. For elevations above 2,000
feet, input ratings should be reduced 4 percent for
each 1,000 feet above sea level. Refer to the National
Fuel Gas Code.
21. The appliance and its appliance main gas valve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
22. The appliance must be isolated from gas supply piping
system by closing its equipment shutoff valve during
any pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psig (3.5
kPa).
23. Do not use this room heater if any part has been under
water. Immediately call a qualified service technician
to inspect the room heater and to replace any part
of the control system and any gas control which has
been under water.
24. Never burn solid fuels in a fireplace where a unvented
room heater is installed.
25. Always have a fireplace screen in place when the
appliance is in operation and, unless other provisions
for combustion air are provided, the screen must have
an opening(s) for induction of combustion air.

71D0532 5
PRODUCT FEATURES

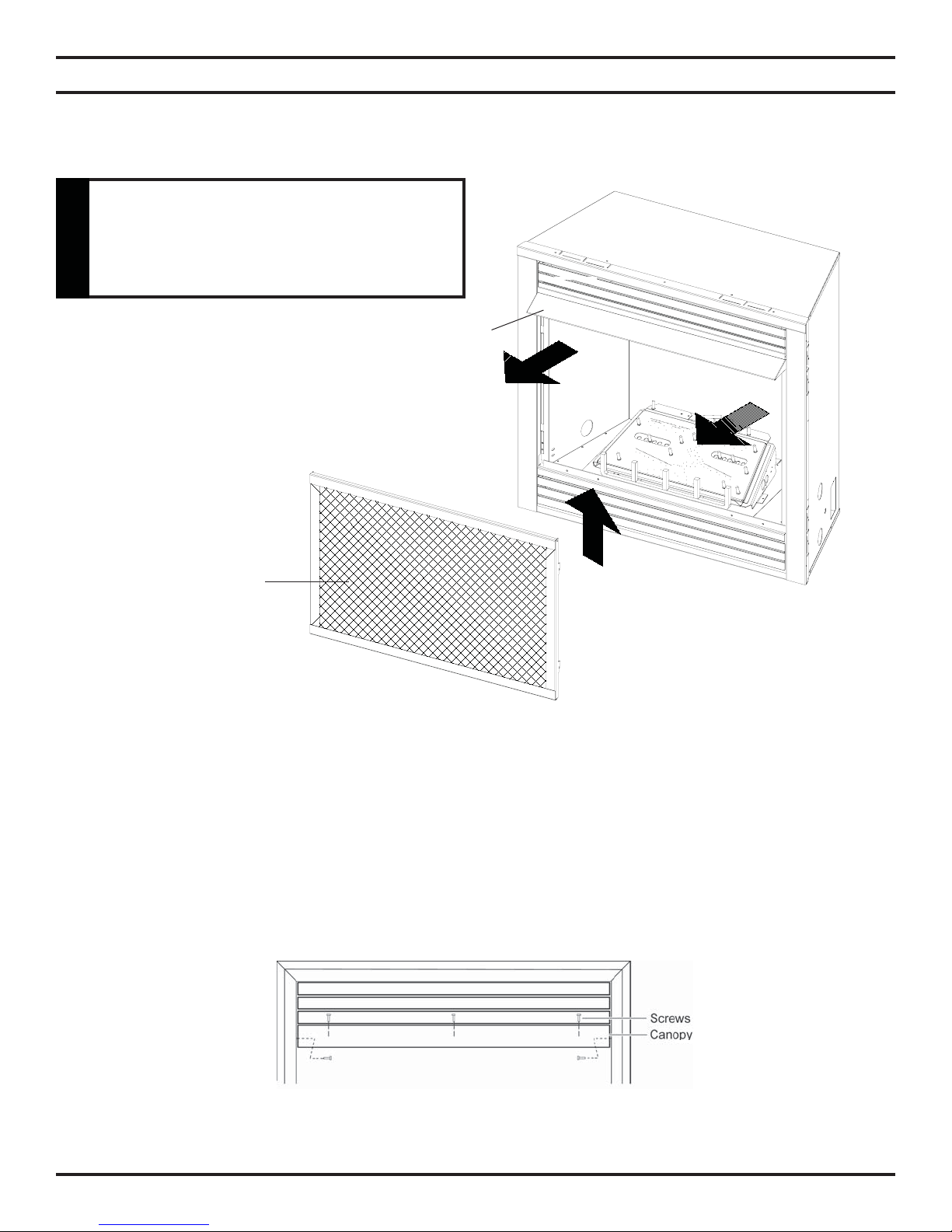

Figure 1 - Access to Controls
This vent-free fireplace must be mounted on the floor or on the optional fireplace hearth.
OPERATION
This unvented gas heater requires no outside venting and burns cleanly with high heating efficiency.
This zero-clearance unvented gas heater can be installed against (or recessed into) any wall that is accessible to
a gas line.
Screen
Control
Knobs
On/Off Switch
Piezo

6 71D0532
NATURAL GAS
Milli-Volt Pressure
Regulator Pressure Setting: 3.5" w.c.
Pilot Regulator: 3.5" w.c.
Gas Inlet Pressure: Max. 10 1/2" w. c.
Min. 5" w.c.
PRODUCT FEATURES
PROPANE/LPG
Note: An external regulator is required to reduce supply pressure to a maximum of 13" w.c.
Milli-Volt Pressure
Regulator Pressure Setting: 10" w.c.
Gas Inlet Pressure: Max. 13" w.c.
Min. 11" w.c.
Gas Rate
Model Number Control Max BTU/Hr Min BTU/Hr
DFS32NVC MILLI-VOLT 38,000 26,000
DFS36NVC MILLI-VOLT 38,000 26,000
DFS42NVC MILLI-VOLT 38,000 26,000
Gas Rate
Model Number Control Max BTU/Hr Min BTU/Hr
DFS32PVC MILLI-VOLT 34,000 26,000
DFS36PVC MILLI-VOLT 34,000 26,000
DFS42PVC MILLI-VOLT 34,000 26,000

71D0532 7
SPECIFICATIONS
IGNITION CONTROLS
Piezo ignitor allows ignition of the pilot without the use of matches or batteries.
Milli-Volt control has four (4) positions:
OFF - All gas to the gas logs is shut off at the valve.
IGN - Valve position to light/maintain a standing pilot.
ON - Valve position to turn ON/OFF log set with remote switch/thermostat.
LOW/HI - Variable position to control flame height (heat output). Both front and rear burners are in operation
to provide realistic glow and yellow flame.
PILOT
The gas log heater is fitted with a specially designed safety pilot light (ODS assembly) which senses the amount of oxygen
available in the room and shuts the gas log heater off if the oxygen level begins to drop below a satisfactory level. The pilot
can only be relit when adequate fresh air is available.
THERMAL GENERATOR
The milli-volt gas log pilot is fitted with a milli-volt generator to provide power for remote activation.

8 71D0532
MAKE SURE YOU HAVE RECEIVED ALL PARTS:
Check your packing list to verify that all listed parts have been received. You should have the following:
• Unvented gas log grate/burner assembly
• Installation/operating instructions
• Ceramic fiber logs
• Rock wool
• Plastic bag containing crushed volcanic rock
• Trim kit
• Canopy and five (5) mounting screws
The milli-volt controlled version of this heater is the only style designed to be operated with optional devices for ON/OFF
functions. The following options may be used with the milli-volt controlled heater. These options are not packaged with
the log set.
• Hand held remote with receiver
• Wall switch with 15' wire
• Wall thermostat with 15' wire
• Hand held thermostat remote with receiver
• Gloves are recommended when handling ceramic fiber logs to prevent skin irritation
from loose fibers. Logs are fragile — handle with care.
WARNING
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately inform the
dealer from whom you purchased the appliance. Do not attempt to install any part of the appliance unless you
have all parts in good condition.
WHAT YOU WILL NEED FOR INSTALLATION:
You must have the following items available before proceeding with installation:
• External regulator (for propane/LPG and 1/2 lb. natural gas systems only)
• Piping which complies with local codes
• Pipe wrench or appropriate size crescent wrench set
• Pipe sealant approved for use with propane/LPG (Resistant to sulfur compounds)
• Sediment trap
• Manual shutoff valve
• Tee joint.
• Phillips head screwdriver
GETTING STARTED

71D0532 9
L
J
K
5 7/16"
G
F
D
E
C
34 1/2"
H
A
B
I
1 1/4"
21 3/4"
6"
1 5/16"
2 1/2"
GENERAL INSTALLATION INFORMATION
In planning the installation for the fireplace it is necessary to determine where the unit is to be installed and whether optional
accessories are desired. Gas supply piping should also be planned. The following steps represent the normal sequence of
installation. Each installation is unique, however, and might require a different sequence.
1. Position fireplace in desired location. Refer to the “Loca-
tion of Fireplace” and “Clearances and Height Require-
ments,” and “Firebox Framing” sections found in this
manual. Note: Be sure all packing material has
been removed from underside of the unit.
2. Install canopy and logs per instructions found in
this manual. The canopy MUST be installed for safe
operation of the unit.
3. Field wire main power supply to units with fan kit.
Refer to the “Electrical Section” found in this manual.
(Electrical connections should only be performed by an
experienced, licensed certified tradesman).
4. Install optional ON/OFF kit on units with milli-volt
control. Refer to installation instructions included with
the kit and also refer to the “Electrical Wiring” section
found in this manual.
5. Plumb gas line. Refer to the “Connecting the Gas”
section found in this manual. (Gas connections should
only be performed by an experienced, licensed / certified
tradesman).
6. Complete finish wall material and/or surround.
Figure 2 - Firebox Dimensions with Screen and Log Sets
DFS32NVC DFS36NVC DFS42NVC
DFS32PVC DFS36PVC DFS42PVC
A 37" 41" 47"
B 32" 36" 42"
C 16" 18" 18"
D 29" 32" 38"
E 18⅝" 20⅝" 20⅝"
F 23⅜" 27⅜" 33⅜"
G13¼" 15¾" 15¾"
H18" 17⅝" 17⅝"
I 29⅞" 34" 40"
J7⅛" 9¾" 9¾"
K8" 8¼" 8¼"
L 2¾" 2¼" 2¼"
1 ¼"
5 7/16"
21 ¾"
2 ½"
1 5/16"
6"
34 ½"

10 71D0532
GENERAL INSTALLATION INFORMATION
CODES
Adhere to all local codes or, in their absence, the latest edition of THE NATIONAL FUEL GAS CODE ANSI Z223.1 or
NFPA54 which can be obtained from:
American National Standards Institute, Inc.
1430 Broadway
New York, NY 10018
or
National Fire Protection Association, Inc.
Batterymarch Park
Quincy, MA 02269
ADEQUATE COMBUSTION AND VENTILATION AIR
This heater shall not be installed in a confined space or unusually tight construction unless provisions are provided
for adequate combustion and ventilation air.
The National Fuel Gas Code, (ANSI Z223.1/NFPA54), defines a confined space as a space whose volume is less than 50
cubic feet per 1,000 BTU per hour (4.8 m3per kw) of the aggregate input rating of all appliances installed in that
space, and an unconfined space as a space whose volume is not less than 50 cubic feet per 1,000 BTU per hour (4.8
m3per kw) of the aggregate input rating of all appliances installed in that space. Rooms communicating directly
with the space in which the appliances are installed, through openings not furnished with doors, are considered a
part of the unconfined space.
UNUSUALLY TIGHT CONSTRUCTION IS DEFINED AS CONSTRUCTION WHERE:
a) walls and ceilings exposed to the outside atmosphere have a continuous water vapor retarder with a rating of 1 perm
(6 x 1011 kg per pa/sec-m2) or less with openings gasketed or sealed;
b) weather striping has been added on openable windows and doors, and
c) caulking or sealants are applied to areas such as joints around window and door frames, between sole plates
and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical, and gas
lines, and at other openings.
Do not install the heater:
• Where curtains, furniture, clothing, or other flammable objects are less than 42"
from the front of the heater.
• In high traffic areas.
• In windy or drafty areas.
WARNING

71D0532 11
W
H
WARNING
The following formula can be used to determine the maximum heater rating per the definition of unconfined space:
(L1+ L2) Ft x (W) Ft x (H) Ft
50
Consider two connecting rooms with an open area between, with the following dimensions:
L1= 151/2Ft., L2= 12 Ft., W = 12 Ft., H = 8 Ft.
(151/2 + 12) x (12) x (8)
50
If there were a door between the two rooms the calculation would be based only on the room with the heater.
(151/2) x (12) x (8)
50
GENERAL INSTALLATION INFORMATION
Figure 3 - Example of a Large Room with 1/2 Wall Divider
Counter
Fireplace
x 1000
x 1000 = 52800 BTU/Hr
x 1000 = 29760 BTU/Hr
If the area in which the heater may be operated is smaller than that defined as an
unconfined space or if the building is of unusually tight construction, provide adequate
combustion and ventilation air by one of the methods described in the National Fuel
Gas Code, ANSI Z223.1/NFPA54, Section 5.3 or applicable local codes.
WARNING
BTU/Hr =
BTU/Hr =
BTU/Hr =

12 71D0532
GENERAL INSTALLATION INFORMATION
REMOVING SCREEN
Remove fireplace screen frame panel by pushing screen frame panel up and out. See Figure 4.
Figure 5 - Canopy Installation
INSTALLING CANOPY
1. Remove the fireplace screen as described in the previous section.
2. Align the canopy with the holes in the top frame. See Figure 5.
3. Secure screws as shown. See Figure 5.
4. Install and tighten side screws. Make sure the canopy is level and secure. Install the fireplace screen.
Figure 4 - Removing Fireplace Screen Frame Panel
NOTE: Fireplace screen must be removed to access log box and to install canopy.
Canopy
Fireplace
Screen
Do not operate the unit without
the screen frame panel and canopy
installed.
WARNING

71D0532 13
LOCATION OF FIREPLACE
Carefully select the best location for installation of your unvented fireplace. The following factors should be taken
into consideration.
• Clearance to side wall, ceiling, woodwork and window or other combustibles. Refer to “Clearances and Height Require-
ments” section on page 14. Minimum clearances to combustibles must be maintained.
• Location must not be affected by drafts caused by kitchen exhaust fans, ceiling fans, return air registers for forced
air furnaces / air conditioners, windows or doors.
• Installation must provide adequate ventilation and combustion air.
• DO NOT INSTALL THIS MODEL IN A BEDROOM OR BATHROOM.
• Location should be out of high traffic areas and away from furniture and draperies due to heat from firebox.
• Never obstruct the front opening of the unvented fireplace or restrict the flow of combustion and ventilation air.
• Minimize modifications to existing construction. See Figure 6 below for location suggestions.
• Do not install in the vicinity where gasoline or other flammable liquids may be stored. The unvented firebox must be
kept clear and free from the combustible materials.

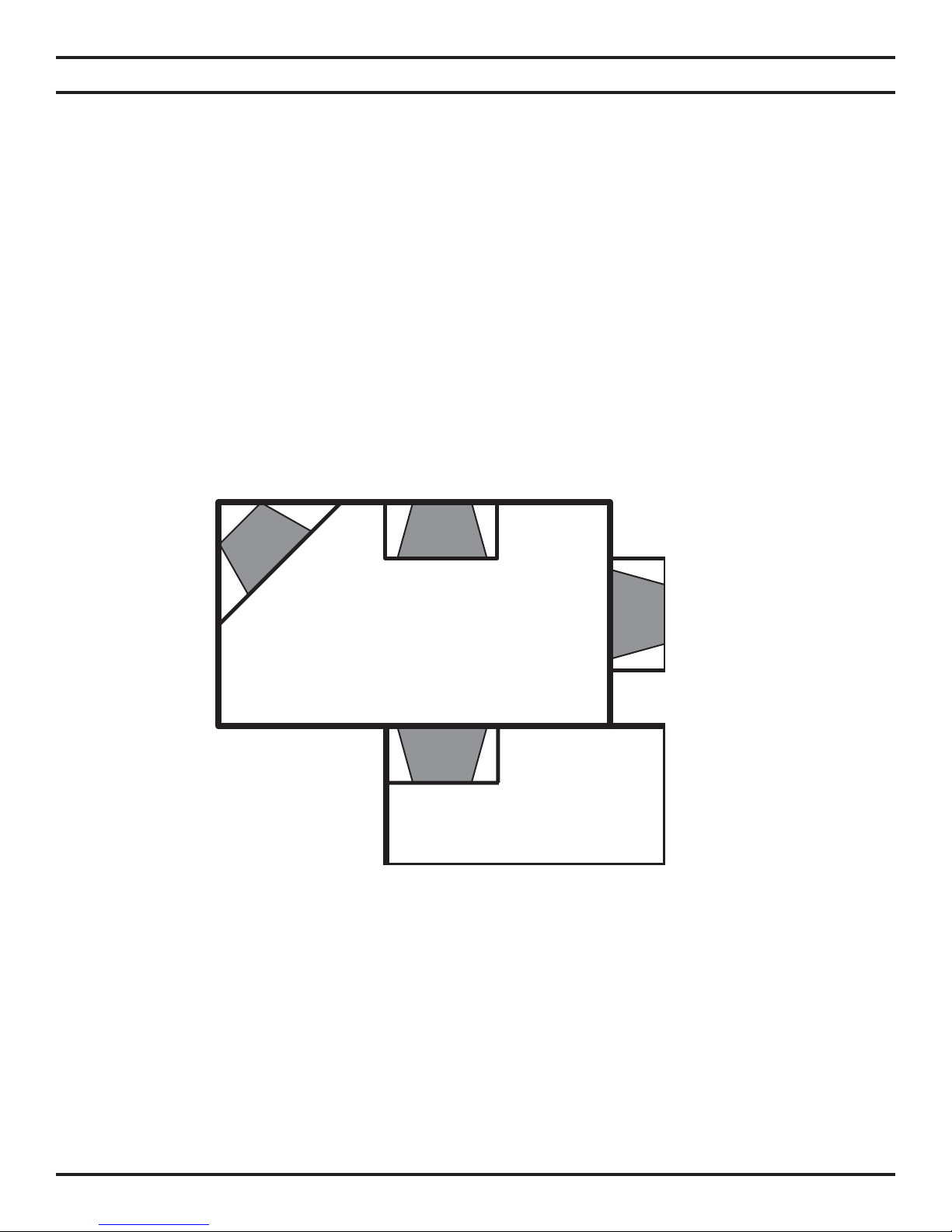

Figure 6 - Suggested Locations

14 71D0532
9"
Minimum
9"
Minimum
42" Minimum
12"
10"
8"
6"
21/2"
12"
16" 19"21"
23"
Combustible material
can contact top of
fireplace.
Non-combustible
material only if needed to
cover optional radiant top
panel above canopy.
CLEARANCES AND HEIGHT REQUIREMENTS
Sidewall and ceiling clearances: The clear-
ance from the inside of the appliance to any com-
bustible adjacent wall should no be less than 9".
See Figure 7.
Ceiling clearance: The ceiling must be at least
42" from the top of the firebox opening. See Figure
7.
Back wall clearance: The appliance may be
placed against a combustible back wall.
Floor clearance: The fireplace may not be
installed onto any combustible flooring material,
such as carpeting, vinyl or tile without the hearth
or a minimum 22 GA (0.030") metal or a minimum
1/2" wooden base covering the entire width and
depth of the base. Combustible material must be
installed at least one inch away from the front face
of the unit.

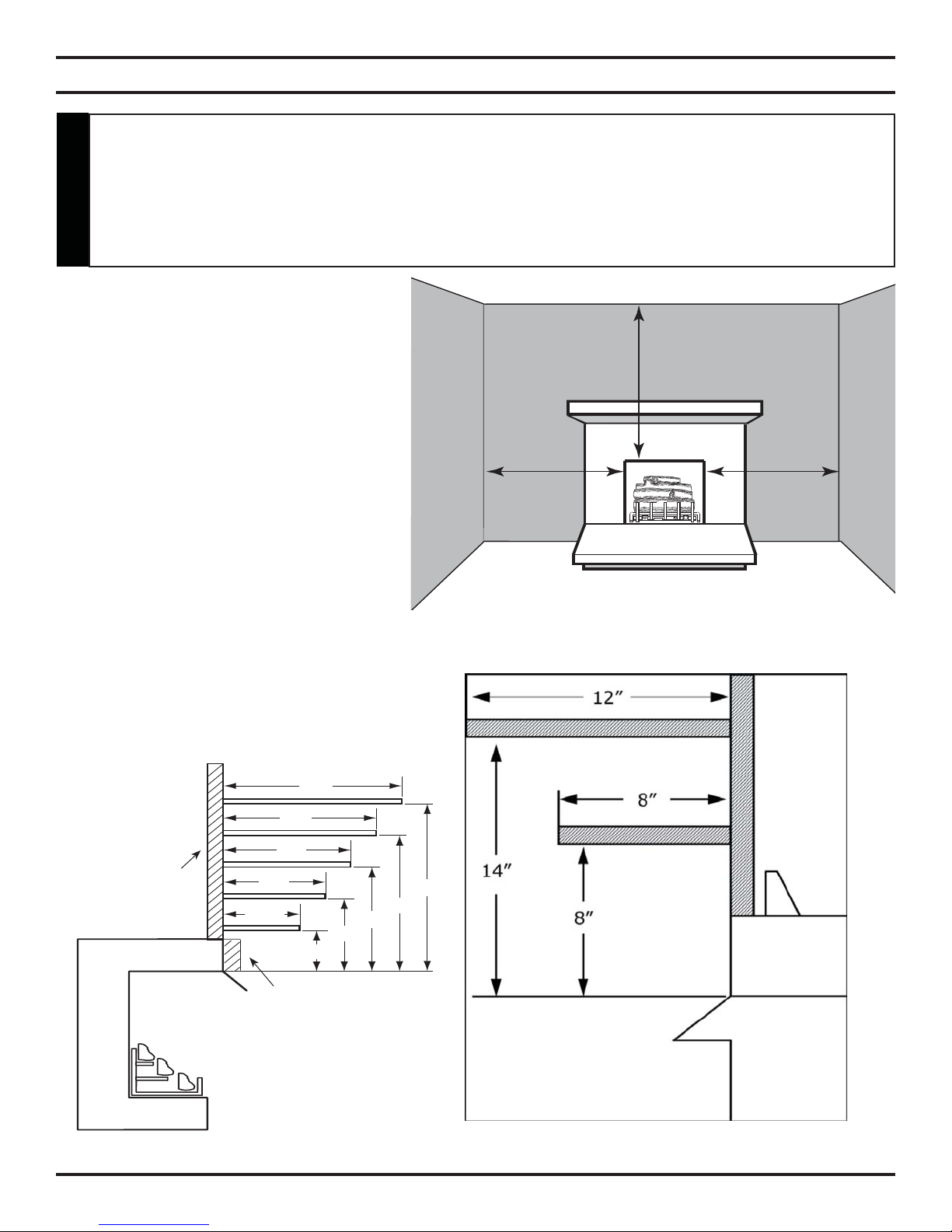

Mantel clearances: The canopy supplied with
the unit must be installed. If a combustible mantel
is installed. It must meet the clearance requirements
shown in Figure 8.
Figure 7 - Sidewall and Ceiling Clearances
WARNING
Figure 8A - Minimum Mantel Clearances Figure 8B - Mantel Heights
The dimensions shown in Figures 7 and 8 and defined in the fireplace manufacturer's
instructions are minimum clearances to maintain when installing this heater. Left and
right clearances are determined when facing the front of the heater.
Follow these instructions carefully to ensure safe installation. Failure to follow
instructions exactly can create a fire hazard.
For Wide Brass Canopy. See pg. 35

71D0532 15
H
D
G
F
A
C
E
1/2"or5/8"
C
A
G
C
G
A
FIREPLACE FRAMING
If unit is to be “built in,” fireplace framing can be built before or after the appliance is set in place. BE SURE THAT ALL
PACKING MATERIAL HAS BEEN REMOVED FROM THE UNDERSIDE OF THE UNIT PRIOR TO SETTING
THE FIREBOX IN PLACE. Construct fireplace framing following Figures 9 through 12. Refer to Figure 2 on page 9 for
fireplace dimensions. The framing headers may rest directly on top of the firebox.
The fireplace may be installed directly on a combustible floor or a raised platform of an appropriate height. Do not place
fireplace on carpeting, vinyl, tile or other soft floor coverings. It may, however, be placed on flat wood, plywood, particle
board or other hard surfaces. Be sure fireplace rests on a solid continuous floor or platform with appropriate framing for
support and so that no cold air can enter from under the firebox.
Anchor fireplace to the side framing members using optional nailing flange kit. See installation instructions included
with the kit.
B
A
Figure 9 - Corner Installation
Figure 10- Inside Chase Installation
Figure 12- Recessed Installation
Figure 11 - Stud Location
Unfinished/rough
framing surface
Unfinished/rough
framing surface
Unfinished/rough
framing surface
or
equivalent
clearance
for drywall/
finishing
5/8" or equivalent
clearance for
drywall/finishing
materials
DFS32NVC DFS36NVC DFS42NVC
DFS32PVC DFS36NVC DFS42NVC
A 37¼" 41¼" 47¼"
B 35" 35" 35"
C 29" 32" 38"
D 14⅞"16⅜" 19⅜"
E 61¾" 68⅞" 74⅞"
F 30⅞" 34½" 37½"
G 15½" 17½" 17½"
H 43¾" 48¾" 53"
WARNING
Optional bottom radiant panel
cannot be covered. Optional top
radiant panel can be covered as
shown in Figure 8.

16 71D0532
DFS32NVC DFS36NVC DFS42NVC
DFS32PVC DFS36PVC DFS42PVC
K37⅞" 41⅞" 47⅞"
J35⅞" 35⅞" 35⅞"
FIREPLACE FRAMING
K
J
1. Bend out the nailing flanges located on each side of the firebox.
2. Slide the firebox into prepared framing or position firebox in its final position and frame later.
3. Level the firebox by checking the top edge of the firebox. Shim if necessary.
4. Anchor firebox to the side framing members using 8d nails or other suitable fasteners. Refer to Figure 14.
5. The canopy must be installed for safe operation of the heater. Refer to page 12 for canopy installation details.
When finishing a custom cabinet, mantel, or other built-in enclosure,
the opening size to accommodate the fireplace with trim installed
is as follows:
WARNING
Figure 13 - Custom Cabinet
Figure 14 - Location of Nailing Flanges
Nail Sides
Through Nailing
Flanges
The fireplace must be installed giving
full consideration to the clearance and
height requirements identified in this
manual.
WARNING

71D0532 17
Pipe Coupling
To Heater
Valve
Gas Supply
Inlet

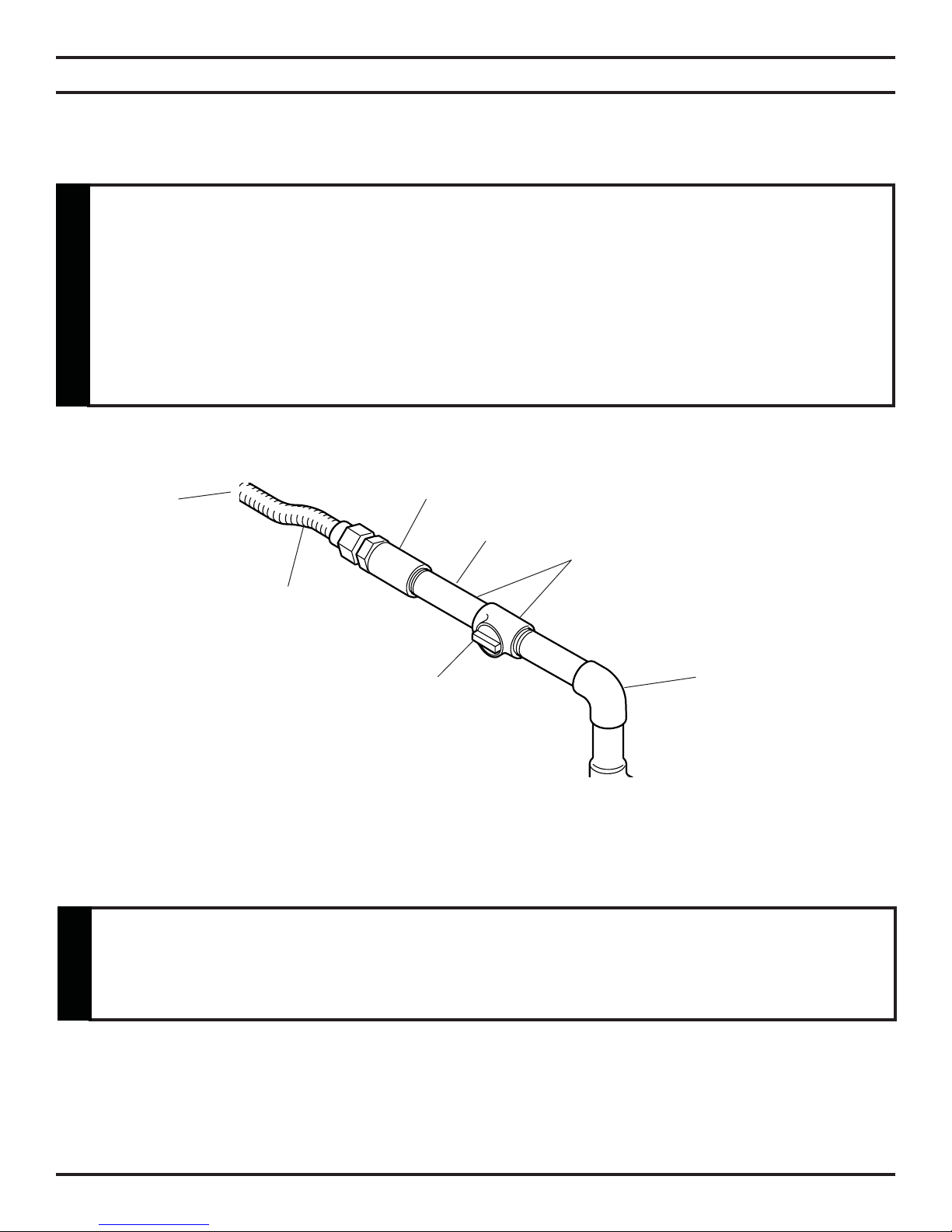

CONNECTING THE GAS
NOTICE: A qualified gas appliance installer must connect the heater to the gas supply. Consult all local
codes.
IMPORTANT: Hold heater valve firmly with a wrench to prevent movement when connecting to inlet pipe.
Manual Shutoff
Valve
Pipe
Stainless
Flexible Tube
Figure 15 - Gas Connection
Always use an external regulator for all propane/LPG heaters and high pressure one to two-pound systems
only, to reduce the supply tank pressure to a maximum of 13" w.c. This is in addition to the internal regulator in
the heater valve.
Locations that the Pressure
Tapping Point May Be Installed
CHECK GAS TYPE: The gas supply must be the same as stated on the heater’s rating
plate. If the gas supply is different, DO NOT INSTALL THE HEATER. Contact your dealer
for the correct model.
WARNING
Use new black iron or steel pipe. Internally tinned copper or copper tubing can be used
per National Fuel Code, section 2.6.3, providing gas meets hydrogen sulfide limits, and
where permitted by local codes. Gas piping system must be sized to provide minimum
inlet pressure (Listed on Data Plate) at the maximum flow rate (BTU/Hr). Undue pressure
loss will occur if the pipe is too small.
A manual shutoff valve must be installed upstream of the appliance. Union tee and
plugged 1/8" NPT pressure tapping point should be installed upstream of the appliance.
See Figure 15.
CAUTION

18 71D0532

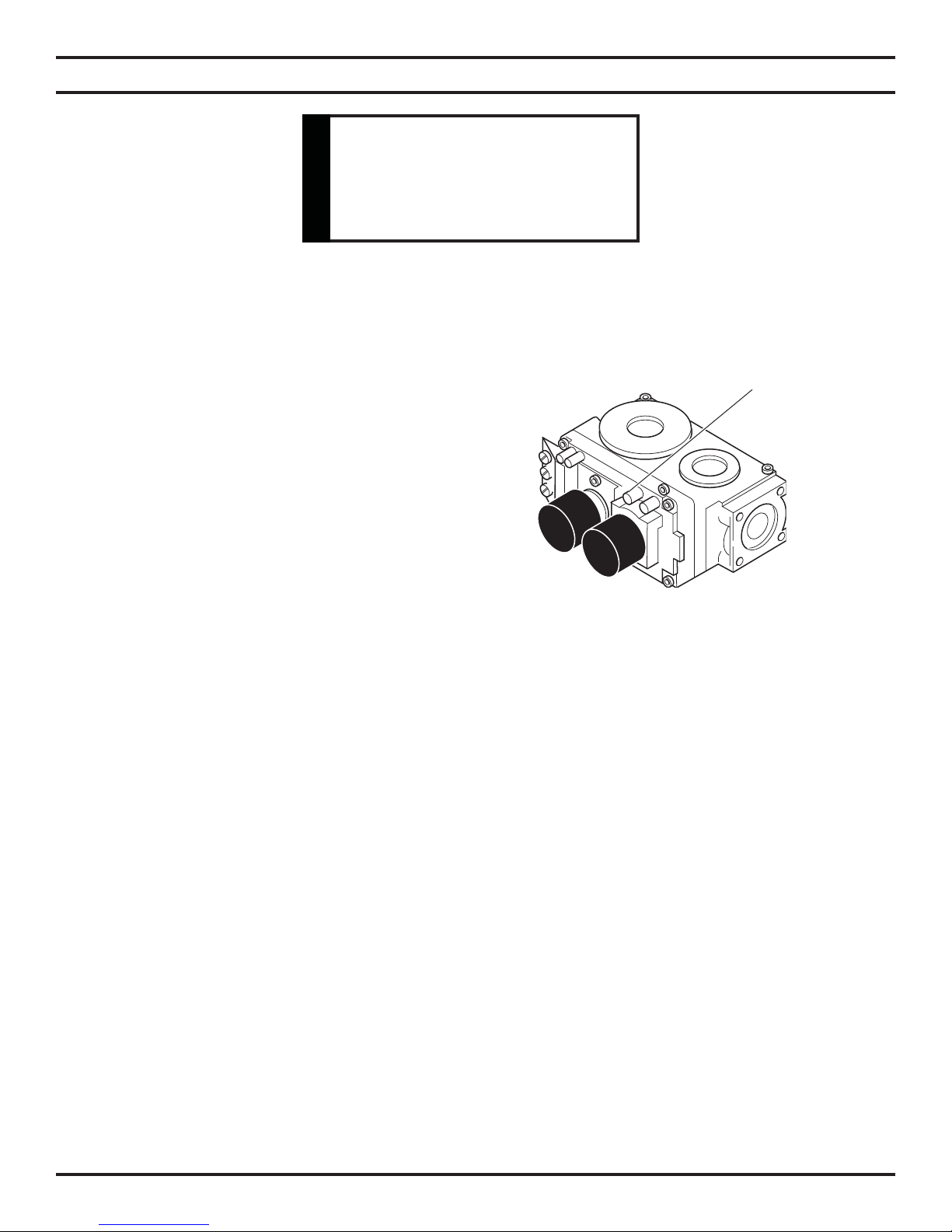

CHECKING GAS PRESSURE
MILLI-VOLT CONTROL (Figure 16)
The valve regulator controls the burner pressure which
should be checked at the pressure test point.
Turn captured screw counter clockwise two or three
turns and then place tubing to pressure gauge over
test point (Use test point “OUT” closest to control
knob). After taking pressure reading, be sure and turn
captured screw clockwise firmly to re-seal. Do not
over torque. Check for gas leaks.
Figure 16 - Pressure Test Point Location
Milli-Volt Control
When tightening up the joint to the valve, hold the valve securely to prevent movement.
Test all gas joints from the gas meter to the heater valve for leaks using a gas analyzer or soap and water solution after
completing connection. DO NOT USE AN OPEN FLAME.
Check the gas pressure with the appliance burning and the control set to HIGH.
Connecting directly to an
unregulated propane/LPGtank
can cause an explosion.
WARNING
Test Port “OUT”

71D0532 19

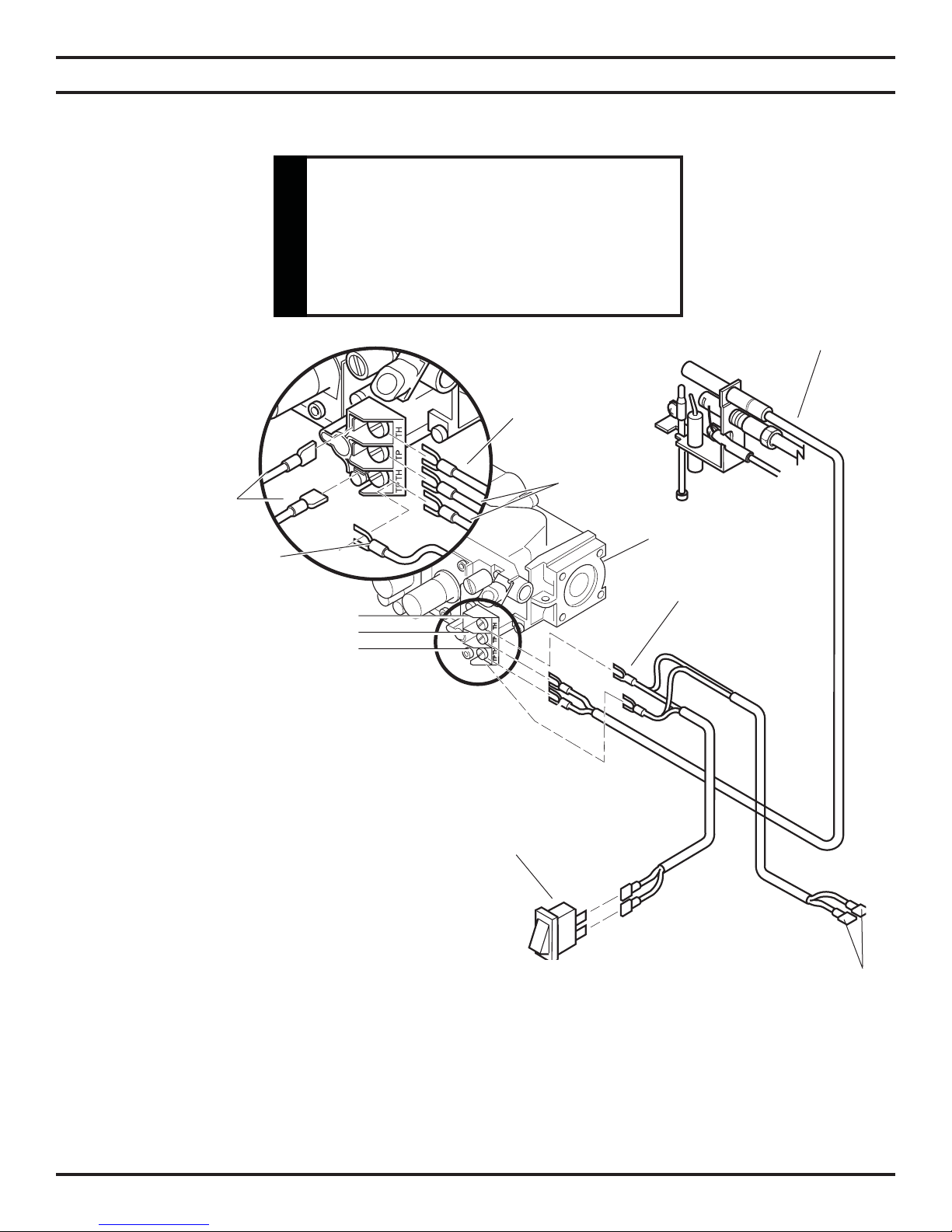

ELECTRICAL WIRING
The milli-volt valve is a self-powered combination gas control THAT DOES NOT REQUIRE 110 VAC TO
OPERATE.
CONNECTING OPTIONAL WALL SWITCH
1. Use 18 awg, two-wire cable, 15 feet maximum length.
2. At one end of the cable, connect both wires to the wall switch or thermostat. At the other end, connect one wire to
TP/TH and one wire to TH, or connect the wall switch/thermostat to the two male (0.25") terminals on the left side of
the unit. The color of the wires does not matter.
Figure 17 - Wiring Diagram
Optional Wall
Switch or Remote
Receiver
Switch
On/Off
Switch
On/Off
Switch
Wall
Switch
ODS
Pilot
Valve
TH = 3
TP = 1
TP/TH = 2
ODS
Pilot
Spade
Terminal
Label all wires prior to disconnection
when servicing controls. Wiring
errors can cause improper and
dangerous operation. Verify proper
operation after servicing.
WARNING

20 71D0532
ELECTRICAL WIRING
A. COMPLETE MILLI-VOLT SYSTEM CHECK
(“A” Reading - Thermostat contacts CLOSED - Control Knob “ON” - Main burner should turn ON)
a. If the reading is more than 100 milli-volts and the automatic valve still does not come on, replace the control.
b. If the closed circuit reading (“A” reading) is less than 100 millivolts, determine cause for low reading, proceed
to Section B below.
B. Thermopile Output Reading Check
(“B” Reading - Thermostat contacts OPEN - Main burner OFF)
1. Check gas pressure to the unit. If gas pressure is within minimum and maximum on data plate, then check pilot
voltage, 325 millivolts minimum. If the minimum milli-volt reading is not obtainable, replace pilot.
CONNECT SWITCH OR
CHECK TO METER THERMOSTAT METER
TEST TEST LEADS TO CONTACTS READING
TERMINALS SHOULD BE
A COMPLETE 2 & 3 CLOSED CLOSED
SYSTEM
B THERMOPILE 1 & 2 OPEN OPEN
OUTPUT
CHECKING SYSTEM OPERATION
The milli-volt system and individual
components may be checked with a milli-
volt meter having a 0-1000 mV range.
Conduct each check shown in chart below
by connection meter test leads to terminals
as indicated.
CONNECTING REMOTE RECEIVER
THESE INSTRUCTIONS SUPERCEDE THE SECTION
ENTITLED “HEARTH MOUNT” IN THE MILLI-VOLT
HAND-HELD REMOTE INSTRUCTIONS SUPPLIED
WITH THE REMOTE.
1. Remove cover on control panel to show opening for remote
receiver. See Figure 18.
2. Connect the remote connectors located in the unit.
3. Slide remote receiver in the opening of control panel. Use
two screws provided to attach remote receiver to the control
panel. See Figure 18.
4. Replace Cover.
NOTE:Do not place remote in combustion chamber. Figure 18 - Installing Remote Receiver
Remote
Receiver
Cover
