Monogram Advantium ZSB9131NSS User manual

INSTALLATION
INSTRUCTIONS
Advantium®Built-In Wall Oven 120V 30”
ENGLISH/ESPAÑOL
MONOGRAM.COM

231-7000079 Rev. 0
Safety Information
CONTENTS
Design Information
Models Available .............................................. 2
Product Dimensions and Clearances............... 3
Tools and Parts Required ................................ 3
Advance Planning ............................................ 3
Installation Preparation
Electrical Requirements ................................... 4
Preparing the Opening (Standard)................... 5
Preparing the Opening (Flush Mount).............. 9
Storage Drawer Preparation
Standard ........................................................ 11
Flush .............................................................. 11
Installation Instructions
Step 1, Remove Packaging and Parts........... 12
Step 2, Slide the Oven into the Cutout .......... 13
Step 3, Install Bottom Trim............................. 13
Step 4, Install Bottom Trim with Accessory
Drawer.......................................................... 13
Step 5, Install Mounting Screws..................... 14
Step 6, Finalize Installation ............................ 14
MODELS AVAILABLE
ZSB9131NSS – Stainless Steel
ZSB9132NSS – Stainless Steel
BEFORE YOU BEGIN
Read these instructions completely and
carefully.
IMPORTANT —Save these instructions
for local inspector’s use.
IMPORTANT —Observe all governing codes
and ordinances.
•Note to Installer —Be sure to leave these
instructions with the Consumer.
•Note to Consumer —Keep these instructions
with your Owner’s Manual for future reference.
•Skill Level — Installation of this appliance
requires basic mechanical and electrical skills.
•Completion Time —1 Hour.
• Proper installation is the responsibility
of the installer. Product failure due to improper
installation is not covered under the warranty.
See Owner’s Manual for warranty information.
IMPORTANT —Use this oven only for its
intended purpose. Never use the oven for
warming or heating a room. Prolonged use
of the oven without proper ventilation can be
hazardous.
CAUTION For personal safety, remove
house fuse or oven circuit
breaker before beginning installation to avoid
severe or fatal shock injury.
CAUTION For personal safety, the
mounting surface must be
capable of supporting the cabinet load, in addition
to the added weight of the oven and drawer, plus
additional oven loads.

31-7000079 Rev.0 3

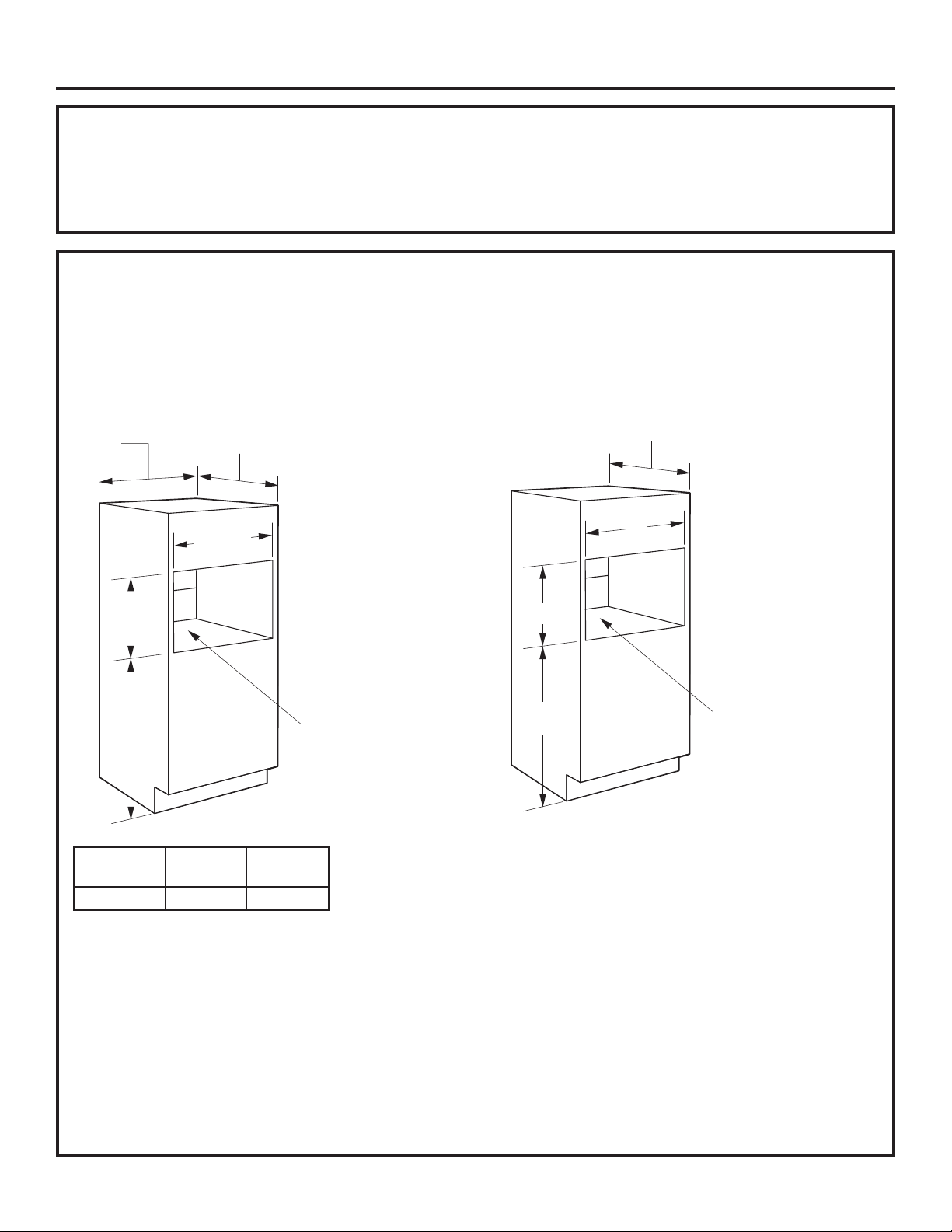

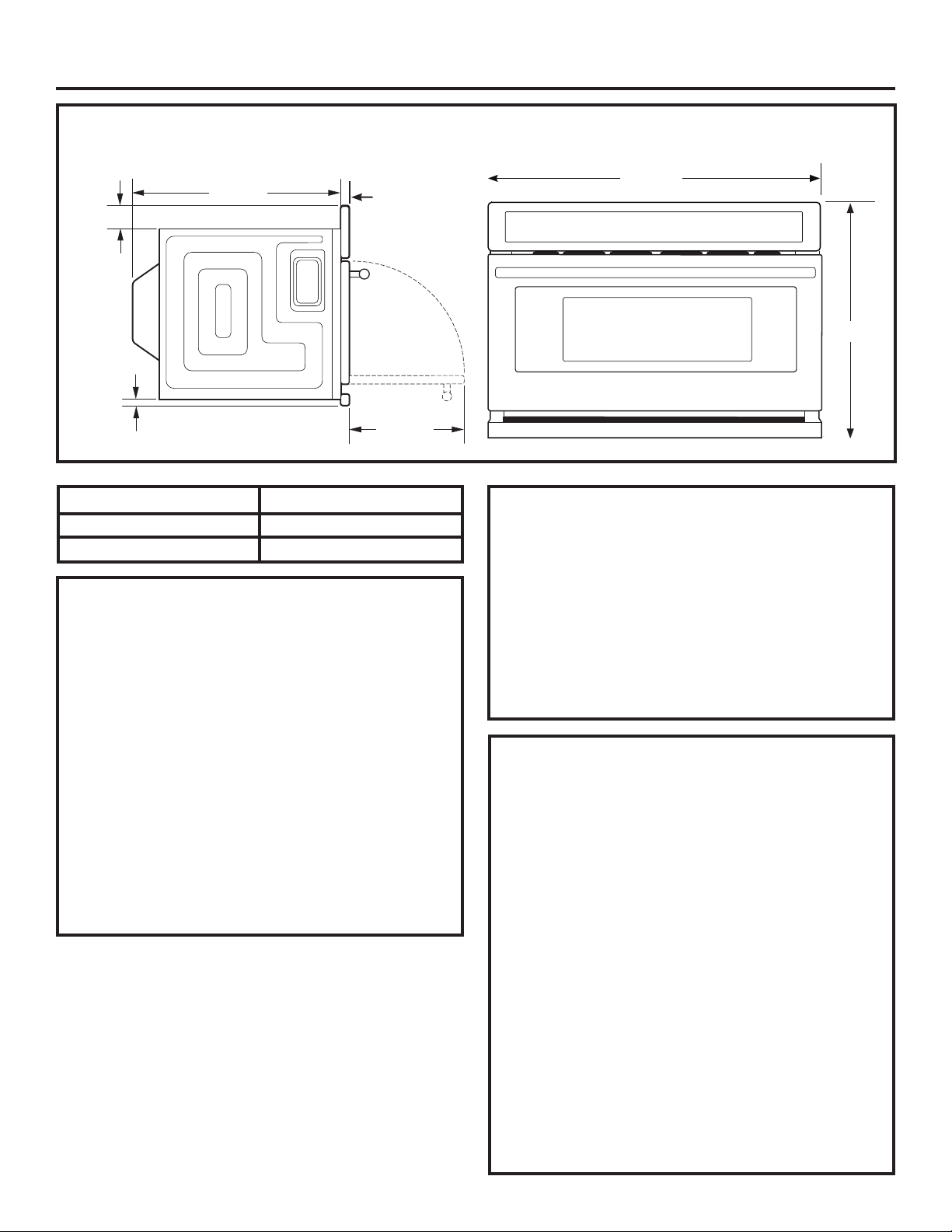

PRODUCT DIMENSIONS AND CLEARANCES
NOTE: Appearance will vary by model.
Design Information

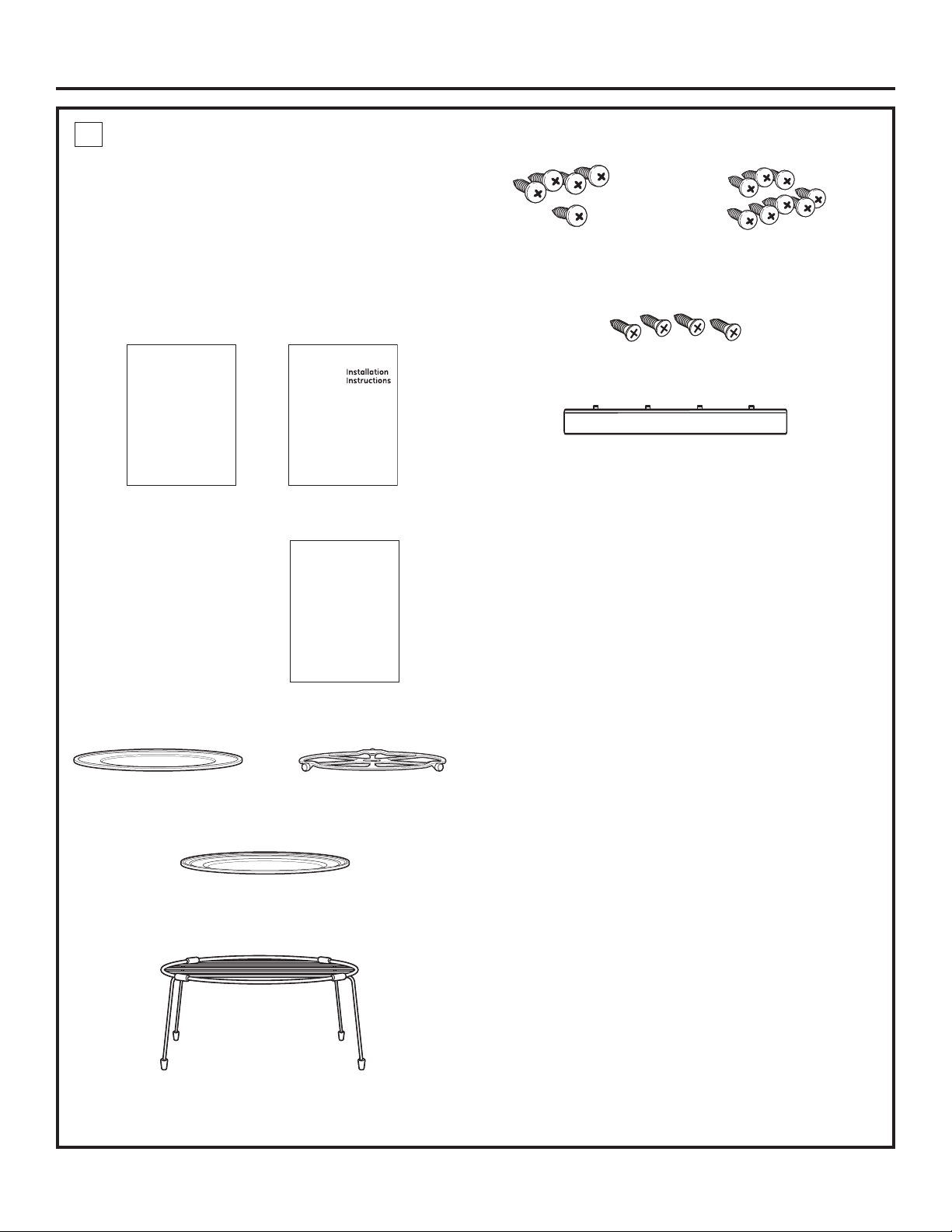

TOOLS AND PARTS REQUIRED
(NOT SUPPLIED)
• #2 Phillips screwdriver
• Hand-held drill
•High speed drill bit, 3/32Ǝdiameter
• 3/8Ǝslot-head screwdriver
• Level
• Saw
• 3/8Ǝmin. plywood for floor (if required)
• Wood screws or other hardware for installing runner
or shelf to support oven (if required)
• Safety glasses or goggles
ADVANCE PLANNING
7KHVHRYHQVPD\EHLQVWDOOHGGLUHFWO\LQWRDƎ
wide oven cabinet with standard installation.
• Cutout height dimensions are different for
installations with an accessory storage drawer.
Make sure to use the correct cutout when preparing
the opening.
• Allow for clearance to adjacent corners, walls,
drawers, etc.
• Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least 194ºF temperature rating.
The oven must be securely installed in a cabinet that
is firmly attached to the house structure. Weight on
the oven door could cause the oven to tip and result
in injury. Never allow anyone to climb, sit, stand or
hang on the oven door.
If installing the drawer accessory, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessory Storage Drawer
Assembly Instructions.
FLUSH MOUNT INSTALLATION
This installation method allows for the unit face to be
inline with the cabinet face.
IMPORTANT: HIGH SKILL LEVEL IN CARPENTRY
IS REQUIRED. Non-standard cabinetry may be
required.
Flush installation of the oven will lead to the exposure
of the cabinet face frame edges.
Side cleats may be visible and should be a finished
surface.
Model Door Depth
ZSB9131NSS 1-3/8”
ZSB9132NSS 1-7/16”
20-1/4”
29-3/4”
21-1/2Ǝ
1Ǝ
13 1/4Ǝ
2-1/4Ǝ
Door Depth
See table
below

431-7000079 Rev. 0
Installation Preparation
ELECTRICAL REQUIREMENTS
Single Advantium Built-In Oven Installation:
This product requires a 120-volt, 60 Hz, 15-amp
circuit and draws 1.8 kilowatts. This product must be
connected to a supply circuit of the proper voltage and
frequency.
• Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code for
this kilowatt rating.
• The power supply cord and plug should be brought
to a separate 15 or 20 ampere branch circuit single
grounded receptacle. The outlet box should be located
within reach of the 48” power cord.

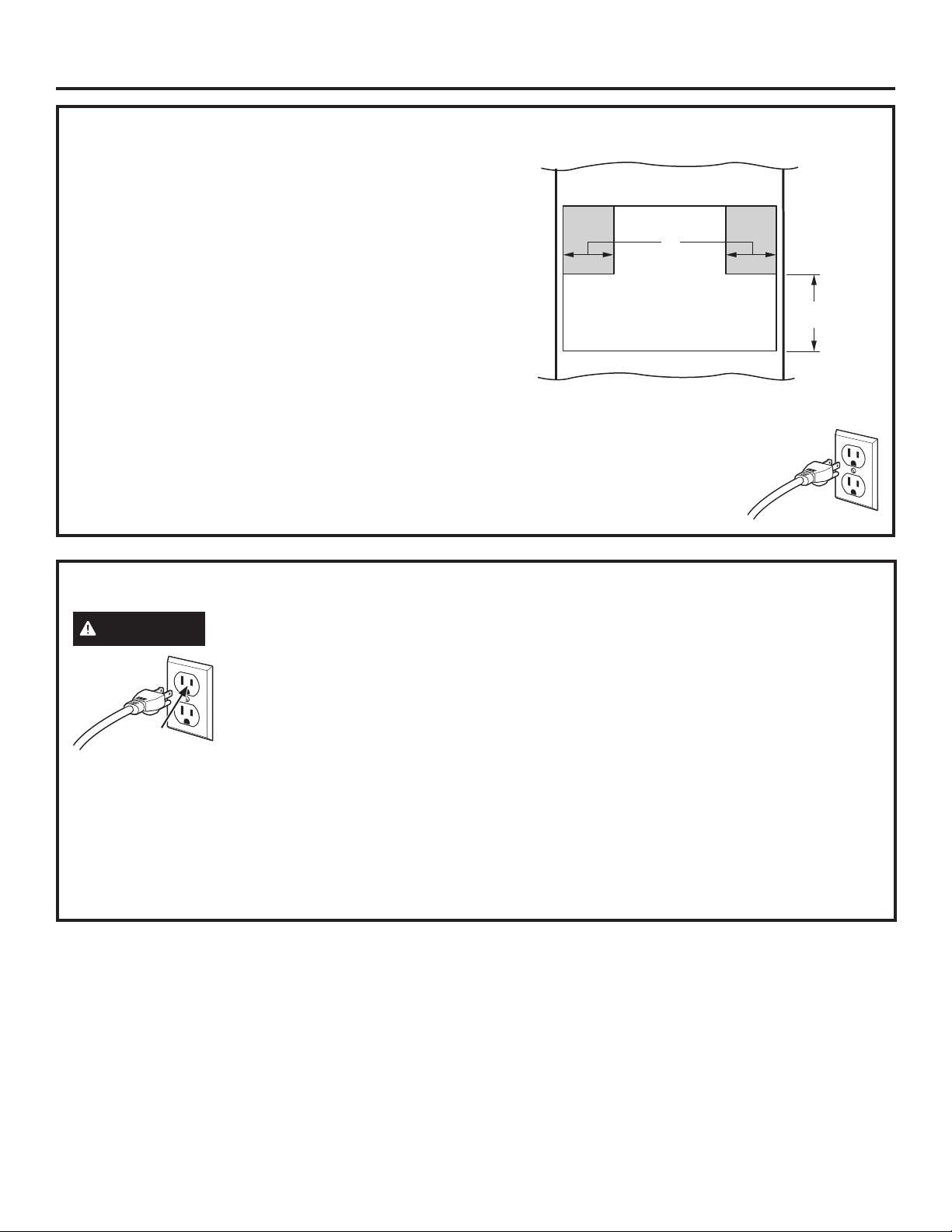

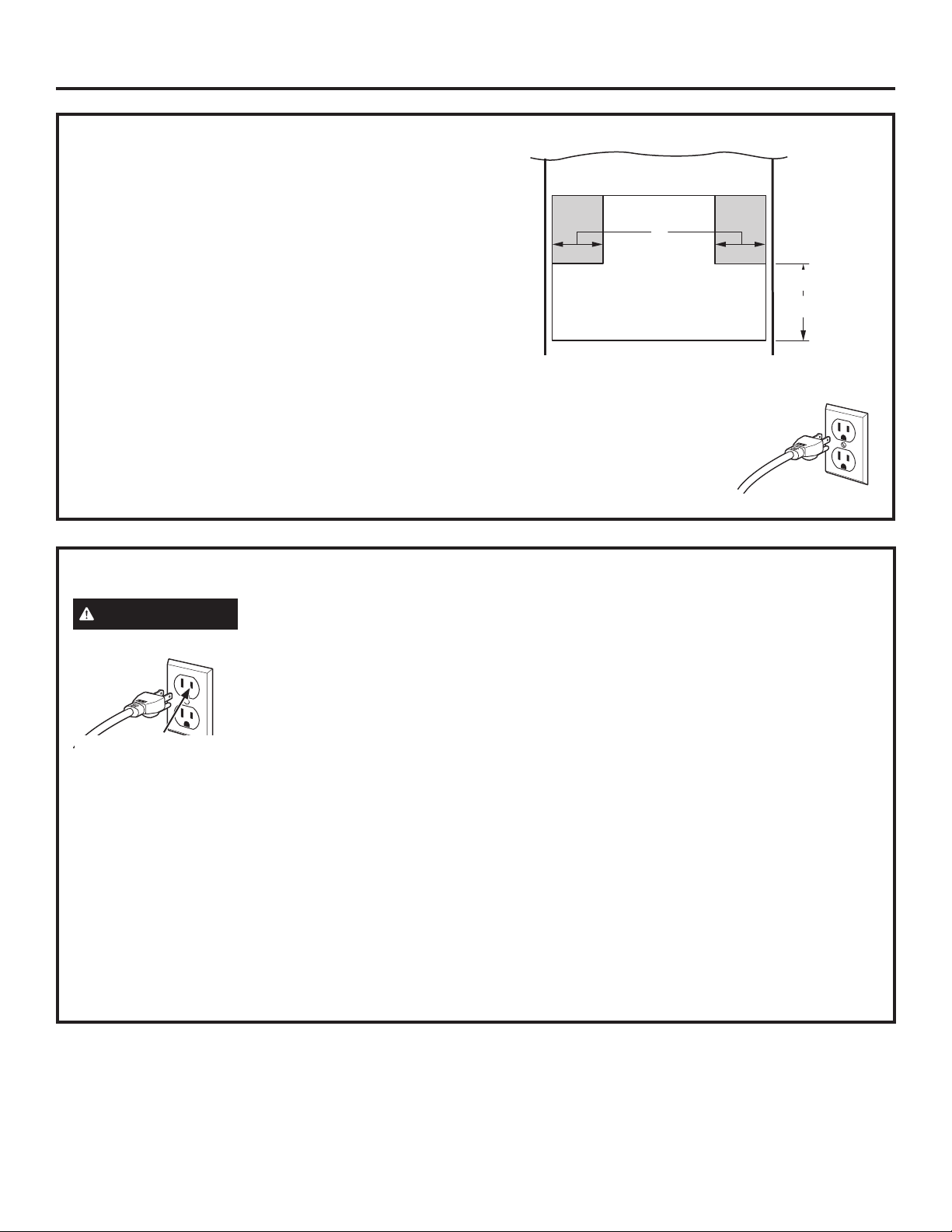

ELECTRICAL LOCATION
Locate outlet box in the shaded area
6”
9”
Install a recessed electrical outlet
in the back wall of the opening
within 6Ǝof either side and at least
9Ǝabove the cutout floor.
GROUNDING INSTRUCTIONS
WARNING Improper use of the grounding plug can result in a risk of electric shock.
This appliance must be grounded.
In the event of an electrical short
circuit, grounding reduces the risk
of electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
power cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or service technician if
the GROUNDING INSTRUCTIONS are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded.
If the outlet is a standard 2-prong wall outlet, it is your
personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
Do not under any circumstacnes cut or remove the third
(ground) prong from the power cord.
Do not use an extension cord. If the power cord is too
short, have a qualified electrician or service technician
install an outlet near the appliance.
For best operation, plug this appliance into its own
electrical outlet to prevent flickering of lights, blowing of
fuse or tripping of circuit breaker.
Ensure Proper ground
exists before use.

31-7000079 Rev.0 5
Standard Installation Preparation

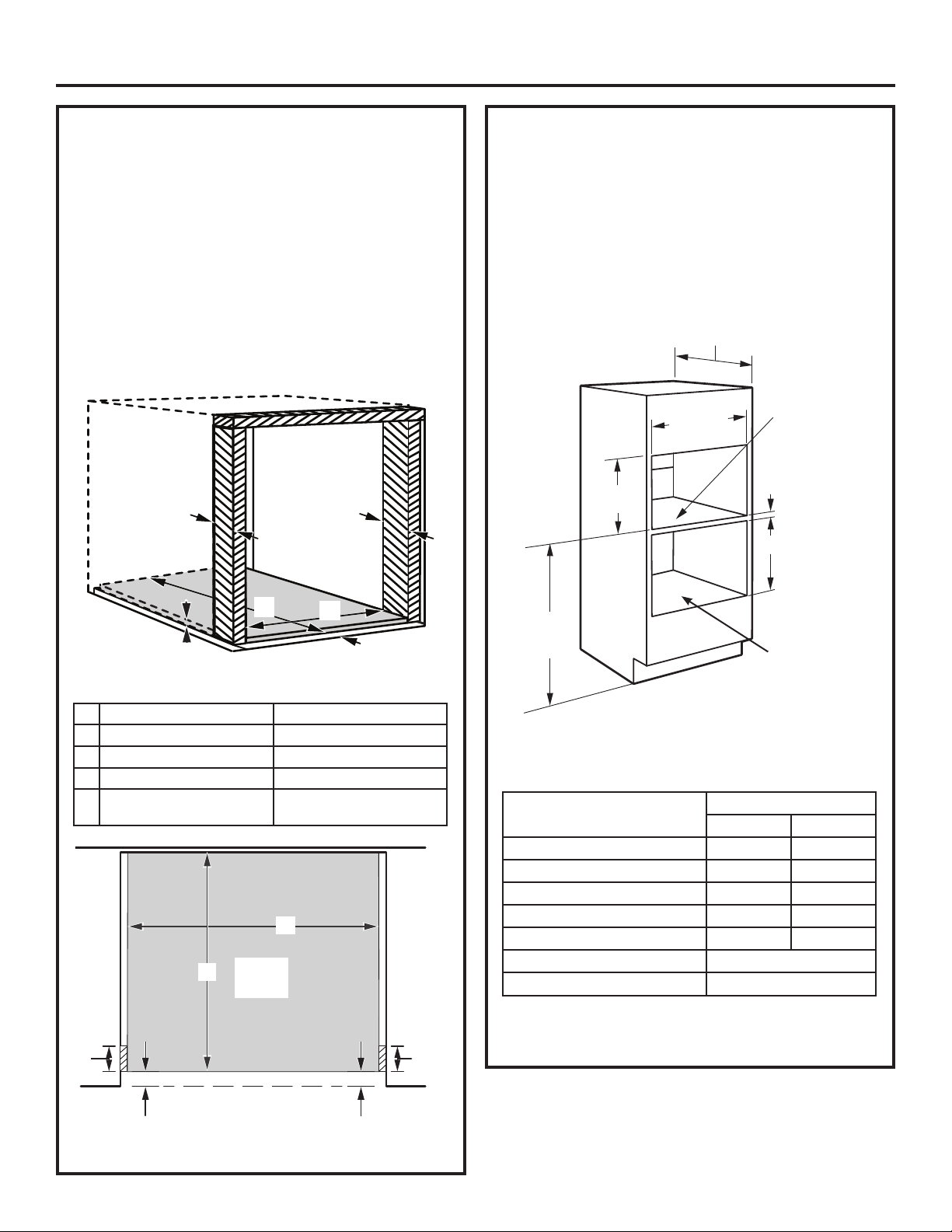

PREPARE THE OPENING
Advantium Built-In Oven can be installed in
combination with other Monogram Built-In appliances.
Always follow each product’s Installation Instructions
to complete the installation.
Single Advantium Built-In Oven Installation:
Order a 30” wide single oven cabinet or cut the
opening in a wall to the dimensions shown.
30” 23-1/2”
25-1/4”
17-1/2”
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must
be able to
support
weight of
oven and
contents.
36-3/4”
Min.
• Allow 1-7/8” clearance at the top
and 1-1/8” clearance on the bottom and allow 2-3/8”
clearance for each side of the opening.
• Oven overlaps will conceal cut edges on all sides of
the opening.
When installed over a single oven or a warming
drawer, allow at least 2” between the two openings.
This separation will provide clearance for bottom
overlap of the Advantium 120 and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
PREPARE THE OPENING (CONT.)
Installation over a Warming Drawer:
30” 23-1/2”
25-1/4”
17-1/2”
36-3/4”
Min.
2” Min.
(3” Recommended)
Per Warming
Drawer
Requirement
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four
sides. Must be
able to support
weight of oven
and contents.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.

631-7000079 Rev. 0
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven:
30” 23-1/2”
25-1/4”
17-1/2” 2” Min.
(3” Recommended)
45-1/4”
Min.
Construct
solid bottom
- Min. 3/8”
plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
Per Oven
Requirement
• If you are replacing an electric double oven with the
combined installation of an Advantium Built-In Oven
and a single oven, use the dimensions shown. The
middle rail separating the two openings may need to
be larger than the 2” minimum shown.
PREPARE THE OPENING (CONT.)
Installation over a Wall Oven and Warming
Drawer:

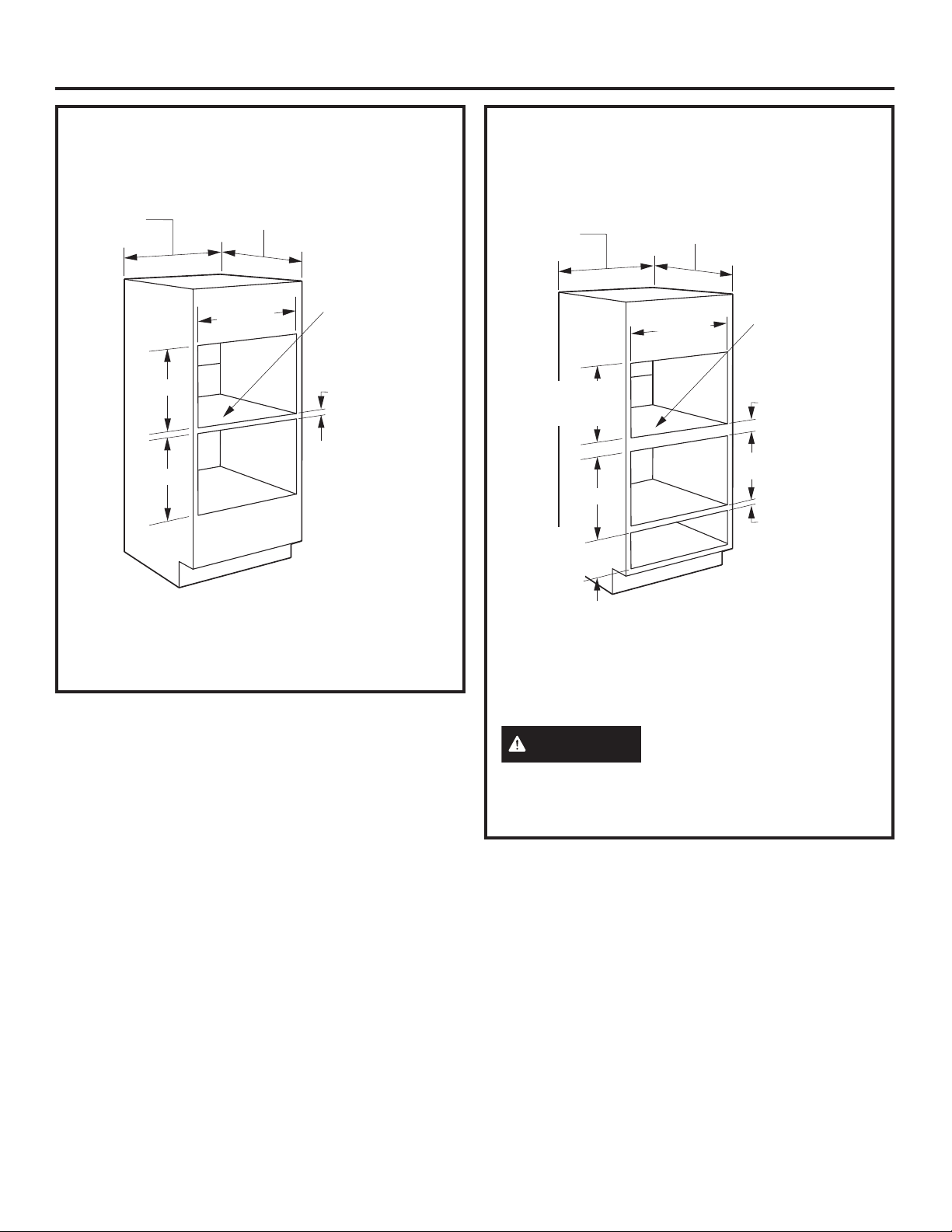

Construct
Solid Bottom
Min. 3/8”
Plywood
Supported
by
2x4 or 2x2
Runners all
Four Sides
30” 23-1/2”
25-1/4”
17-1/2”
2” Min.
Per Oven
Requirement
45-1/4”
Min.
Per warming drawer requirement
2” Min.
(3” recommended)
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location does not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.

31-7000079 Rev.0 7
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation over another Advantium Built-In
Oven:
30Ǝ23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ2 1/2ƎMin.
(3 1/2ƎRecommended)
17-1/2Ǝ
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
• If you are mounting a Monogram Built-In Advantium
Oven over another, use the dimensions shown. The
middle rail separating the two openings may need to
be larger than the 2Ǝminimum shown.
PREPARE THE OPENING (CONT.)
Installation under a Microwave Oven and over
a Warming Drawer:
30Ǝ23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
2ƎMin.
(3ƎRecommended)
Per Microwave
Oven Requirement 3.5ƎMin.
(4.5ƎRecommended)
Per Warming
Drawer
Requirement
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
NOTE: Additional clearances between the cutouts
may be required. Check to be sure the oven supports
above the Warming Drawer location do not obstruct
the required interior depth and height. See Warming
Drawer installation instructions for details.
CAUTION For personal safety, the
mounting surface must be capable of supporting the
cabinet load, in addition to the added weight of the
oven and drawer, plus additional oven loads.

831-7000079 Rev. 0
Standard Installation Preparation
PREPARE THE OPENING (CONT.)
Installation beside another Advantium Built-In
Oven:
• If you are mounting an Advantium Built-In Oven beside
another, use the dimensions shown. The middle rail
separating the two openings may need to be larger
than the 4-1/2Ǝminimum shown.
25-1/4Ǝ
17-1/2Ǝ
23-1/2Ǝ
17-1/2Ǝ
4-1/2ƎMin.
(5-1/2ƎRecommended)
25-1/4Ǝ

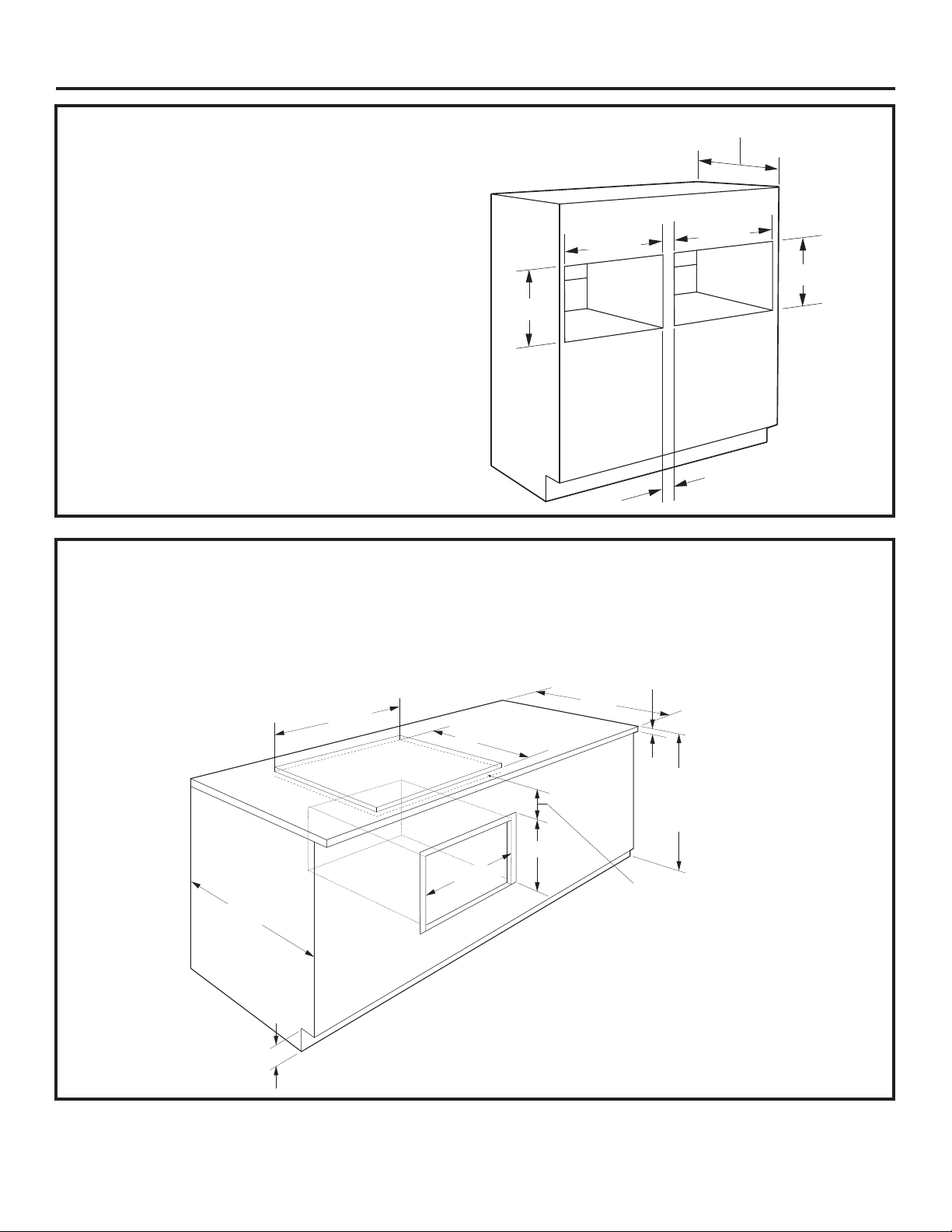

PREPARE THE OPENING (CONT.)
Installation under a 30Ǝor 36ƎCooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate, properly grounded
15-Amp, 120-Volt, 60Hz power supply. The cooktop requires a separate power supply. Use a 36Ǝor wider base
cabinet.
Cooktop
Cooktop
25Ǝ
1-1/2ƎMin.
4ƎHigh
Toekick
23-1/2Ǝ
25-1/4Ǝ
17-1/2Ǝ
36Ǝ
Countertop
Height
Cooktop height including depth
of electrical box on some
models. Refer to cooktop
installation instructions.
No minimum clearance required
between cooktop and oven.

31-7000079 Rev.0 9
Flush Mount Installation Preparation
PREPARE THE INTERIOR
Cut and install side cleats:
• Cut side wood cleats to height of cabinet opening
and approx. 2-1/2” in depth. Install, on each side,
Dim. E (see table below) from the front face of the
cabinet.
Cut and install bottom cleat:
• Cut bottom wood cleat to a height of 1-1/8”, a depth
of the cabinet minus Dim. E (see table below) and
a width of 25-1/4” to fit between side cleats. Install
onto the cabinet floor between the side cleats, push
it all the way back against cabinet wall and make
sure its front face aligns with the front faces of the
side cleats (Dim. E. see table below, gap from the
front cabinet face).
E
C
B
D
AA
A Side and top cleats depth 2-1/2” min.
B Bottom cleat height 1-1/8”
C Bottom cleat depth Cabinet depth minus Dim. E
D Bottom cleat width 25-1/4”
E All four cleats inset depth ZSB9131NSS: 1-3/8”
ZSB9132NSS: 1-7/16”
TOP
VIEW
Front Face of Cabinet
EE
A A
C
D
PREPARE THE OPENING
The Advantium Built-In Oven can be installed
in combination with other Monogram Built-In
ovens. Always follow each product’s Installation
Instructions to complete the installation.
Advantium Built-In Oven Installation:
Cut the opening in a cabinet to the dimensions
shown.
**20 1/2”
Construct
solid bottom
- Min. 3/8”
plywood
supported on
all four sides.
Must be able to
support weight
of oven and
contents.
36-3/4”
Min.
F *
23-1/2” min.
• The support must be level and rigidly mounted,
flush with the bottom edge of the cutout.
Approved Flush Installation Dimension F
1/8” Reveal 1/4” Reveal
Single Advantium 30” 30-1/4”
Over Warming Drawer 30” 30-1/4”
Over Oven 30” 30-1/4”
Over Oven and Warming Drawer 30” 30-1/4”
Over Advantium Built-In Oven 30” 30-1/4”
Double Advantium (side by side) See page 10
Under Cooktop or Countertop See page 10
** Top and bottom reveals are set to 1/8”.
2” min.
(3” recommended)
Per appliance
specs.
Oven or warming
drawer

10 31-7000079 Rev. 0
Flush Mount Installation Preparation
PREPARE THE OPENING
The Advantium Built-In Oven can be installed beside
another Advantium Built-In Oven in a side-by-side
combination.
Double Advantium Built-In Oven
Installation:
Cut the opening in a cabinet to the dimensions shown.
• Center divider acts as cleat for side of each respective
unit. Only one additional side cleat needed per oven
cutout.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Dimension 1/8” Reveal 1/4” Reveal
G 59-7/8” 60-1/4”
H 5-1/8” 5-1/4”
I 27-3/8” 27-1/2”
20 5/8”
Construct solid bottom
- Min. 3/8” plywood
supported on all four
sides. Must be able
to support weight of
oven and contents.
36-3/4”
Min.
I*
23-1/2” min.
I*
H*
G*
PREPARE THE OPENING
Installation under a 30Ǝor 36ƎCooktop or Countertop:
Gas or electric cooktops may be installed over this oven. See cooktop installation instructions for the cutout size.
See the label on top of the oven for approved cooktop models. This oven requires a separate from the cooktop,
properly grounded 15-Amp, 120-Volt, 60Hz power supply. Use a 36Ǝor wider base cabinet.
Cooktop
Cooktop
25Ǝ
1-1/2ƎMin.
4ƎHigh
Toekick
23-1/2Ǝ
J*
20-1/2”
36Ǝ
Countertop
Height
Cooktop height including
depth of electrical box
on some models. Refer
to cooktop installation
instructions.
No minimum clearance
required between cooktop
and oven.
*1/8” reveals on
sides and top
Dimension 1/8” Reveal 1/4” Reveal
J 30” 30-1/4”
*See table for desired reveals on sides.
Door Depth (See table below)
Model Door Depth
ZSB9131NSS 1-3/8”
ZSB9132NSS 1-7/16”

31-7000079 Rev.0 11
Installation Preparation
PREPARE THE OPENING (cont.)
The Advantium Built-In Oven can be installed in combination with other Monogram appliances. Always follow each
product’s Installation Instructions to complete the installation.
Single Advantium Built-In Oven Installation:
Order a 30Ǝwide single oven cabinet or cut the opening in a wall to the dimensions shown.
STANDARD MOUNT:
30Ǝ23-1/2Ǝ
25-1/4Ǝ
Min.
21Ǝ
36-3/4Ǝ
Min.
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
FLUSH MOUNT:
23-1/2Ǝ
K*
23 5/8Ǝ
36-3/4Ǝ
Min.
Construct
solid bottom - Min.
3/8” plywood
supported
on all four sides.
Must be able to
support weight
of oven and
contents.
• When installed over a storage drawer, make the
bottom cleat height 3/4”.
• Allow 2-3/8” clearance on the sides, 1-7/8” clearance
on the top and 1-1/8” clearance on the bottom of the
opening for all models.
• Oven overlaps will conceal cut edges on all sides of
the opening.
• When installed over a single oven or a warming
drawer, allow at least 2Ǝbetween the two openings.
This separation will provide clearance for bottom
overlap of the Advantium Built-In Oven and the other
appliance overlaps.
• The support must be level and rigidly mounted, flush
with the bottom edge of the cutout.
Preparation with an Accessory Storage Drawer
As needed, see the Standard Mount Installation Preparation OR Flush Mount Installation Preparation for
configuration details. Note the modified cutout height below.
Dimension 1/8”
Reveal 1/4” Reveal
K 30” 30-1/4”

12 31-7000079 Rev. 0
1
REMOVE THE PACKAGING AND PARTS
Installation Instructions
• Remove all packing material and tape.
• Locate parts package containing mounting
screws.
• Remove the oven from the carton. Do not lift unit
by handle or conduit. Two people are required to
lift this oven.
• Open the door and remove any packaging in
oven.
Owner’s
Manual
Owner’s Manual Installation
Instructions
Glass Tray
Metal Trays (2)
Turntable Ring
Bottom Trim
IMPORTANT:If installing the Advantium Built-In
Oven with an accessory storage drawer, read the
storage drawer assembly instructions to assemble
the products together before proceeding to Step 2.
5 Color-Matched Screws
(4 required, 1 extra)
Cooking Guide
Cooking
Guide
Rack
8 Brass Screws for the
Bottom Trim
(3 required, 5 extra)
Flat-Head Screws (4 extra)

31-7000079 Rev.0 13
Installation Instructions
2
SLIDE THE OVEN INTO THE
CUTOUT
CAUTION Two people are required to lift
the oven into the opening. Grasp the bottom at
front and rear. DO NOT USE THE HANDLE TO
LIFT THE OVEN. DAMAGE WILL OCCUR.
• Lift and hold the oven at the front of the opening.
Hold the oven at an angle and plug in the power
cord.
• Carefully, slide the oven into the cabinet part
way. Leave the oven a few inches forward of
the cabinet frame.
• Check to be sure the power cord is not trapped
under the oven or along the sides of the oven.
3
INSTALL BOTTOM TRIM
NOTE: If installing the Advantium Built-In Oven
with an accessory storage drawer, the bottom trim
is not required. Proceed to Step 5.
•Installation Below or Above 36Ǝ, align trim tabs
on the trim to slots in the bottom of the oven.
•Align bottom trim tabs to slots in the bottom of
the oven.
•Secure the bottom trim to the bottom of the
oven using 3 screws provided.

14 31-7000079 Rev. 0
Installation Instructions
4

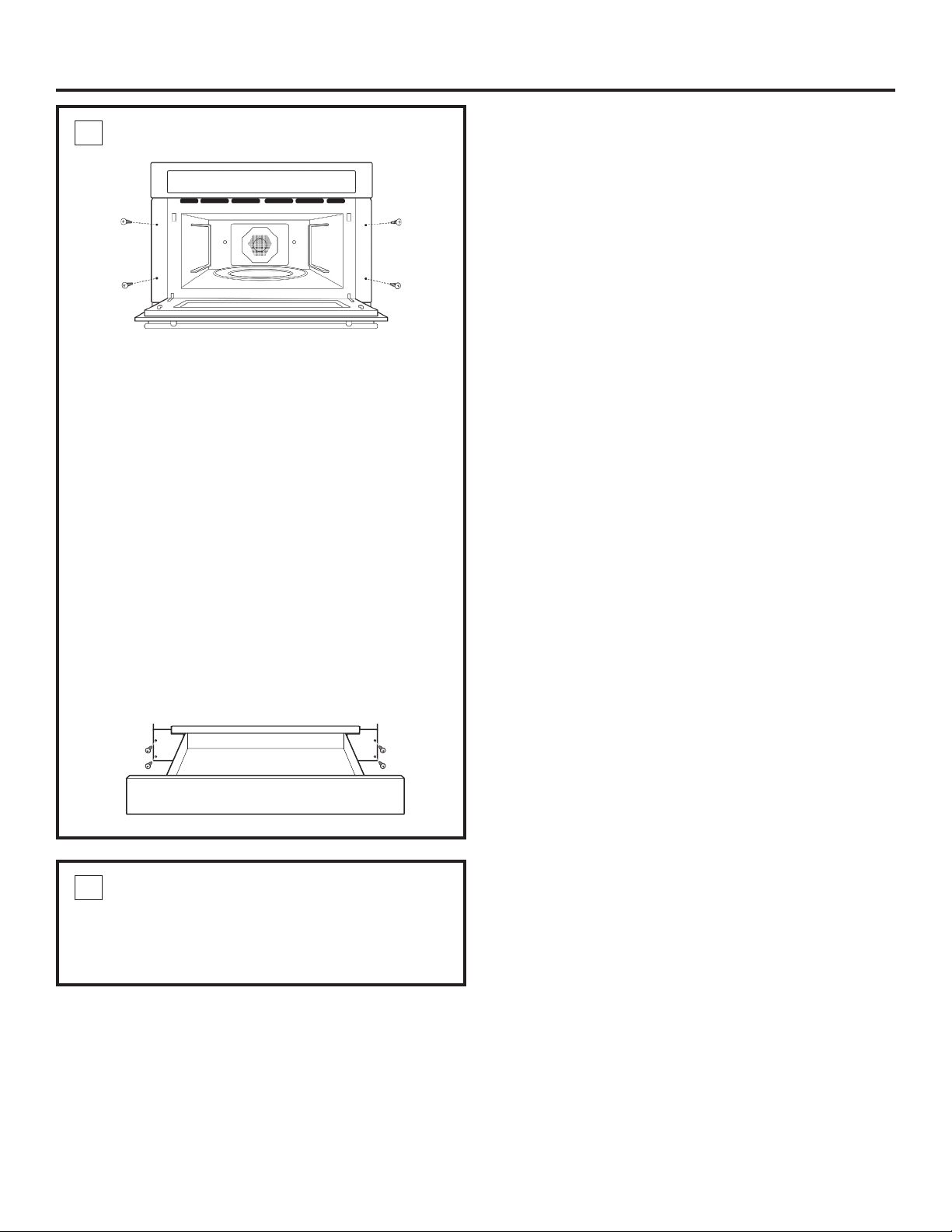

INSTALL MOUNTING SCREWS
•Slide the oven the remaining way into the
opening so that the side flanges and control
panel are against the cabinet frame. Make sure
that the oven is centered in the opening.
•Open the door, place a turntable tray in the oven
and make sure that the tray in the unit is level.
•Drill pilot holes through the side flanges.
•Drive the color-matched screws into the side
flanges. It is recommended that the screws
be hand tightened.
If installing oven with an accessory storage
drawer:
•Open the drawer.
•Drill pilot holes through the side flanges.
•Drive color-matched screws into the side flanges.
It is recommended that the screws be hand
tightened.
5FINALIZE INSTALLATION
•Turn power on at the source. The interior light should
come on when the door is opened.
•Refer to Owner’s Manual for operating instructions.

31-7000079 Rev.0 15
Notes

16 31-7000079 Rev. 0
31-7000079 Rev.0
08-19 GEA
Printed in China

INSTRUCCIONES
DE INSTALACIÓN
Horno Advantium® 120V 30”
ESPAÑOL
MONOGRAM.COM

231-7000079 Rev. 0
Información sobre Seguridad
ANTES DE COMENZAR
Lea estas instrucciones en su totalidad y
atentamente.
IMPORTANTE —Conserve estas instrucciones
para uso del inspector local.
IMPORTANTE —Cumpla con todos los códigos
y ordenanzas gubernamentales.
•Nota para el Instalador —Asegúrese de que
el Comprador conserve estas instrucciones.
•Nota para el Consumidor —Guarde estas
instrucciones con su Manual del Propietario para
referencia futura.
•Nivel de habilidad —La instalación de este
electrodoméstico requiere un nivel básico de
habilidades mecánicas y eléctricas.
•Tiempo de Compleción —1 Hora.
•
Es responsabilidad del instalador realizar una
instalación adecuada. Si se producen fallas en el
producto debido a una instalación inadecuada,
la garantía no cubrirá las mismas. Para obtener
información sobre la garantía, consulte el Manual
del Propietario.
NOTA: Sólo se aprueba la instalación de este horno
de acuerdo con los modelos específicos que aparecen
etiquetados en esta unidad.
IMPORTANTE —Use este electrodoméstico
sólo para su propósito original. Nunca use el
electrodoméstico para calentar o calefaccionar una
habitación. El uso prolongado del horno sin una
ventilación adecuada puede ser riesgoso.
PRECAUCIÓN Para su seguridad personal,
retire el fusible del hogar o el
disyuntor abierto antes de comenzar la instalación, a
fin de evitar lesiones graves o una descarga mortal.
PRECAUCIÓN Para su seguridad personal, la
superficie de instalación deberá
poder soportar la carga del gabinete, además del
peso agregado del horno y el cajón, sumado esto a
las cargas adicionales del horno.
MODELOS DISPONIBLES
ZSB9131NSS – Acero Inoxidable
ZSB9132NSS – Acero Inoxidable
CONTENIDOS
Información de Diseños
Modelos Disponibles................................................. 2
Dimensiones y Espacios de Despeje del Producto .. 3
Herramientas Necesarias.......................................... 3
Planificación Anticipada ............................................ 3
Preparación de la Instalación
Requisitos Eléctricos................................................. 4
Preparación de la Abertura (Estándar) ..................... 5
Preparación de la Abertura (Montaje al Ras) ........... 9
Preparación del Cajón de Almacenamiento
Estándar.................................................................. 11
Al ras.......................................................................11
Instrucciones de Instalación
Paso 1, Retire el Embalaje y las Piezas................. 12
Paso 2, Deslice el Horno por la Abertura ............... 13
Paso 3, Instale la Moldura Inferior.......................... 14
Paso 4, Instale la Moldura Inferior con el Cajón de
Accesorios............................................................... 14
Paso 5, Instale los Tornillos de Montaje................. 14
Paso 6, Finalice la Instalación ................................ 14

31-7000079 Rev.0 3
Información de Diseños
HERRAMIENTAS Y
PIEZAS REQUERIDAS (NO
SUMINISTRADAS)
• Destornillador Phillips nº 2
•Perforadora manual
•7DODGURGHDOWDYHORFLGDGGLiPHWURGHƎ
• 'HVWRUQLOODGRUFRQSXQWD3KLOOLSVGHƎ
• Nivel
• Sierra
• &RQWUDFKDSDGRSDUDSLVRGHXQPtQGHƎVLVH
requiere)
• Tornillos de madera y otras herramientas para
instalar el riel o el estante para sostener el horno
(si se requiere)
• Anteojos o gafas de seguridad
PLANIFICACIÓN ANTICIPADA
•Estos hornos pueden ser instalados directamente en
un gabinete para horno de 30” de ancho, utilizando la
instalación estándar.
•Las dimensiones de altura de la abertura son diferentes
para las instalaciones con un cajón de almacenamiento
de accesorios. Asegúrese de usar el recorte correcto al
preparar la abertura.
• Deje espacio en relación a las esquinas adyacentes,
paredes, cajones, etc.
• Las alacenas instaladas al lado de hornos de pared
deben tener una especificación de adhesión de
potencia de temperatura de por lo menos 194°F.
El horno debe ser instalado de forma segura en
un gabinete que esté adherido de manera firme a
la estructura de la casa. Cualquier peso sobre la
puerta del horno podrá hacer que éste se incline y
se produzcan lesiones. Nunca permita que nadie se
trepe, siente, pare ni cuelgue de la puerta del horno.
Si instalará el accesorio para cajones, el cajón deberá
ser ensamblado al horno antes de la instalación en el
gabinete. Consulte las Instrucciones de Ensamble
del Cajón de Almacenamiento de Accesorios.
INSTALACIÓN DEL MONTAJE AL
RAS (Monogram únicamente)
Este método de instalación permite que la cara de la
unidad quede alineada con la cara del gabinete.
IMPORTANTE: SE REQUIERE UN NIVEL DE
HABILIDAD ALTO EN CARPINTERÍA. Se podrán
adquirir gabinetes no estándares.
La instalación al ras del horno hará que se expongan
los extremos del marco de la cara del gabinete.
Los ristreles laterales podrán quedar visibles y
deberán poseer una superficie acabada.
DIMENSIONES Y ESPACIOS DE DESPEJE DEL PRODUCTO
NOTA: La apariencia variará según el modelo
Modelo Profundidad de la puerta
ZSB9131NSS 1-3/8”
ZSB9132NSS 1-7/16”
20-1/4”
29-3/4”
21-1/2Ǝ
1Ǝ
13 1/4Ǝ
2-1/4Ǝ
Profundidad
de la puerta
Vea la tabla
de abajo

431-7000079 Rev. 0
Preparación de la Instalación
REQUISITOS ELÉCTRICOS
Instalación Simple del Advantium horno
empotrado
Este producto requiere un circuito de 120 voltios, 60 Hz,
15 amperes y consume 1.8 kilowatts. Este producto se
debe conectar a un circuito con un suministro correcto de
voltaje y frecuencia.
• El tamaño del cable deberá ser conforme a los
requisitos del Código Eléctrico Nacional o del código
local obligatorio con relación a la cantidad de kilowatts.
• El cable y el enchufe de suministro de corriente se
deberán conectar al tomacorriente simple con conexión
a tierra de un disyuntor de entre 15 y 20 amperes. La
caja del tomacorriente deberá ser ubicada dentro del
alcance del cable de corriente de 48”. Instale un tomacorriente eléctrico
empotrado en la pared trasera de
la abertura, dentro de las 6” de
cualquiera de los lados y a por los
menos 9” sobre el piso del recorte.
Ubique la caja del tomacorriente en el
área sombreada.
6”
9”
INSTRUCCIONES DE CONEXIÓN A TIERRA
ADVERTENCIA El uso inadecuado del enchufe de conexión a tierra puede provocar riesgos de
descargas eléctricas.
Este electrodoméstico deberá
estar conectado a tierra. En caso
de que se produzca un
cortocircuito, la conexión a tierra
reduce el riesgo de descarga
eléctrica, brindando un cable de
salida de la corriente eléctrica.
Este electrodoméstico está equipado con un cable de
corriente que posee un cable de conexión a tierra con
un enchufe a tierra. El enchufe se deberá conectar en
un tomacorriente instalado y conectado a tierra de forma
adecuada.
Consulte a un electricista calificado o al personal del
servicio técnico en caso de que las INSTRUCCIONES
DE CONEXIÓN A TIERRA no se entiendan
completamente o si tiene dudas sobre si el
electrodoméstico está conectado a tierra de forma
apropiada.
En caso de contar con un tomacorriente de pared
estándar de 2 cables, es su responsabilidad y obligación
reemplazarlo por un tomacorriente de pared de 3 cables
correctamente conectado a tierra.
Bajo ninguna circunstancia corte o elimine el tercer
cable (tierra) del cable de corriente.
No use un prolongador. Si el cable de corriente es
demasiado corto, solicítele a un electricista o a personal
del servicio técnico calificado la instalación de un
tomacorriente cerca del electrodoméstico.
Para un mejor funcionamiento, conecte este
electrodoméstico en su tomacorriente eléctrico a fin de
evitar parpadeos de las luces, explosión del fusible o
desactivación del disyuntor.
Asegúrese de contar con
una conexión a tierra
adecuada antes de usar.
