monolith OL 289 User manual

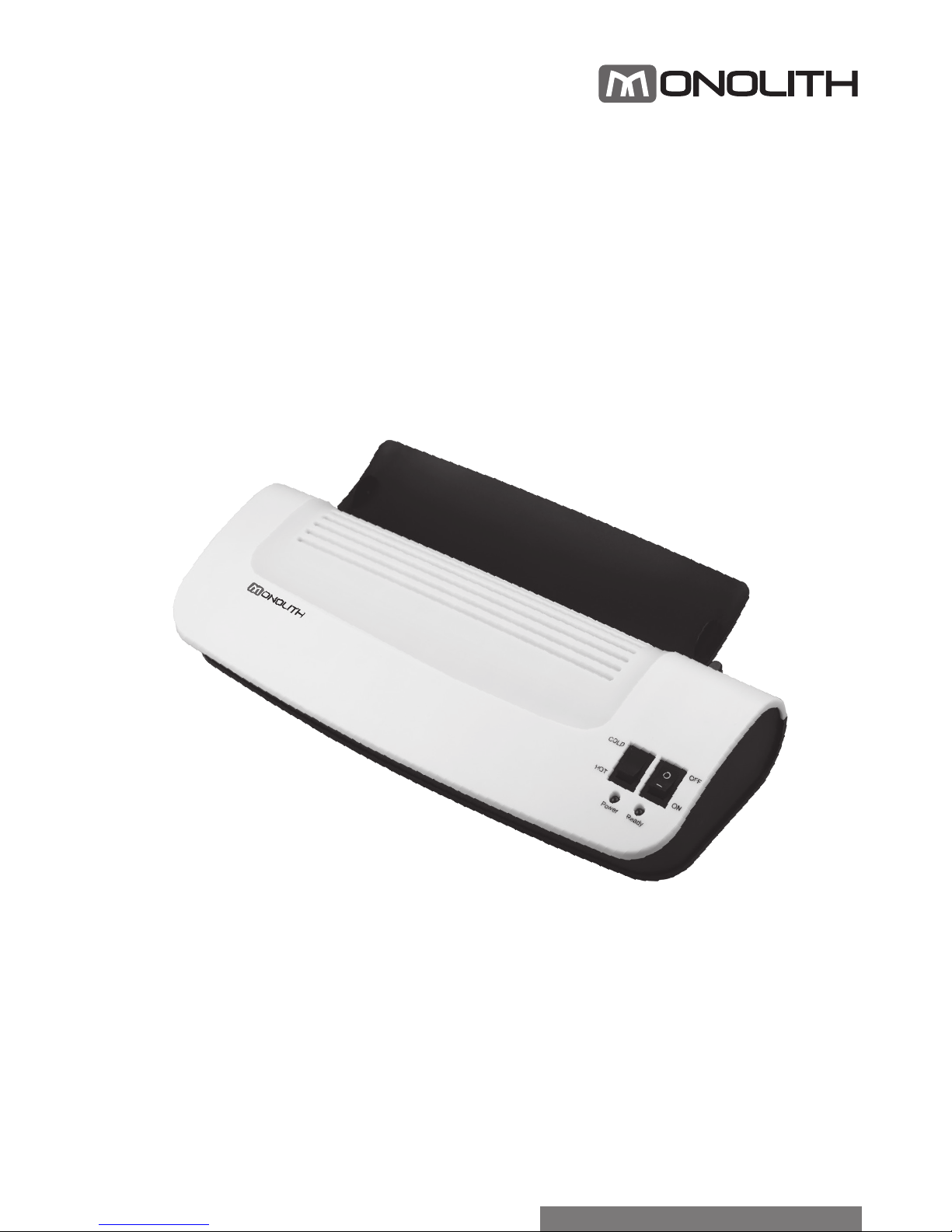

A4 Laminator
OL 289
User Manual
Before operating this unit, please read all instructions.

1. Description of machine components............................................................................. 3
2. Technical Specications....................................................................................................... 3
3. Outline of applications......................................................................................................... 4
4. ABS Anti-Blocking System................................................................................................... 4
5. General instructions about the laminator..................................................................... 4
6. Getting ready to laminate .................................................................................................. 5
7. General tips on laminating ................................................................................................ 5
8. How to laminate .................................................................................................................... 6
9. Cold laminating ...................................................................................................................... 6
10. Storage ...................................................................................................................................... 6
11. Disposal .................................................................................................................................... 6
12. Safety advice and maintenance........................................................................................ 7
13. Declaration of conformaty.................................................................................................. 8
14. Limited Product Warranty................................................................................................... 8
15. Warranty card .......................................................................................................................... 9
Contents
All safety notes and other important information have a grey background.
The machine is equipped with safety features.
However, always carefully read the safety instructions and only use the machine
in the manner described in this manual to avoid accidents which could cause
damage or injury.
Keep the manual safe so that it is available to read in the future.
If the machine is passed on, please pass on the manual too.
Items supplied / content of package:
A4 Laminator
About the safety notes
2
!

1. Description of machine components
2. Technical specications
Preheating time 80 micron / 125 micron approx. 3-4 min.
Operating speed 300 mm/min.
Laminating temperature approx. 115°C
Maximum lm width DIN A4
Film thickness 80 - 125 mic (200 mic cold lamination lm)
Weight 0.83 kg
Dismensions (B x T x H) 330 mm x 190 mm x 57 mm
Input Voltage AC 220 - 240 V / 50 Hz
Power consumption in the
rst minute / during operation 600 Watt / 60 Watt
1ON/OFF ip switch
2HOT/COLD ip switch
3Power light, red
4Standby indicator, green
5Film infeed slot
6Film output slot
7ABS (anti-blockage system)
8Pouch holder
3
7

3. Outline of applications
4.ABS Anti-Blocking System
Please read the manual before using the machine.
Please note: when using the machine, you may  nd it gives o a slight odor.
Please ensure there is sucient ventilation in the room, e.g. by opening a
window.
A laminator is not a toy. Keep it locked away from children!
Your laminator is equipped with an Anti-Blocking System. If the pouch was not inserted
straight or it becomes jammed in the machine, push the ABS switch 7toward the left. You
can then take the laminating pouch and its contents out of the machine and reinsert the
document in a new pouch into the  lm feed slot 5.
5. General instructions about the laminator
!
4
7

6So schneiden Sie mit dem Hebelschneider (Abb. 2)
6. Getting ready to laminate
1. Site the machine so that there is enough space to insert the laminating
pouches (in other words, not right in front of a wall or other objects).
2. Insert the plug into an earthed power socket (220-240 V = domestic power supply).
3. Switch the machine on using the ON/OFF-switch 1. The red power light 3will
come on.
4. Select either hot or cold lamination by ipping the HOT/COLD switch 2to the
desired position.
Note: Your laminator supports lamination of 80 mic and 125 mic lm without
mode-switching.
5. The green standby indicator 4light appears as soon as the machine has reached
the right temperature. The preheating time can vary depending on the ambient
temperature and air humidity.
7. General tips on laminating
After laminating
1. Set the ON/OFF switch 1to OFF.
2. Pull the mains plug from its socket.
3. Leave the machine to cool.
Cleaning the rollers
1. Switch on the machine.
2. Fold a sheet of A4 paper and insert this, folded edge  rst, into the pouch feed tray
5. Keep repeating this process until no more glue deposits cling to the paper.
Cleaning the machine
1. Always remove the mains plug from its socket before cleaning the machine.
2. Let the machine cool down.
3. Always clean the machine with a soft cloth. Use neutral cleansing agents,
never abrasives.
5

8. How to laminate
1. Please note! Only take one pouch per lamination, as pouches stick tightly
together. Place the document that you wish to laminate between the two sides
of the laminating pouch. Ensure that it lies  ush with the enclosed edge.
2. Insert the laminating pouch closed-edge-rst into the slot 5on the back of the
machine. The rollers will automatically pull the pouch in and transport it to the output
slot 6on the front of the machine. Don’t use force to pull out the samples. In the event
of jamming, see the ABS section.
3. Let the pouch cool for a bit, and then it’s ready.
4. If the laminating pouch has not adhered properly to the paper, repeat the process.
9. Cold laminating
Please note that only pouches intended speci cally for cold lamination may be used.
Originals with a treated surface, such as fax thermopaper or Polaroid pictures, and
papers with surfaces that may be altered through heat should only be laminated using
cold lamination. In these cases, set the temperature switch 2to position COLD. Slide
the foils, with the item to be laminated between them, into the feed slot 5.
Please note: After hot lamination, wait 20-30 minutes after  ipping the temperature
switch 6to COLD to allow the unit to cool down before you start cold laminating.
10. Storage
The best way to store the machine when not in use is in the original packaging. Keep the
machine in a dry location away from sources of heat.
11. Disposal
The product packaging is recyclable. Dispose of this with due regard for the environment.
When no longer serviceable, the machine should not be thrown away with the household
rubbish, but disposed of in line with legal requirements. This is in the interests of recycling
and protecting the environment. Ask your local authority waste department or your local
disposal company about suitable disposal options. Before disposal ensure that the machine
is rendered unusable. Disconnect the machine from the power supply and remove the
mains cable.
6

12. Safety advice and maintenance
10. Storage
11. Disposal
The device should only be connected to a properly installed 220-240 V power
point and has a protective conductor. This must be close to the equipment and
easily accessible, so that it can be detached from the mains if need be. Any adapter or exten-
sion cable must also have a protective conductor and be easily accessible so that it can be
detached from the mains if necessary.
Never insert any other objects other than laminating pouches that are intended for this
device, particularly metallic objects, into the pouch insertion slots.
Keep away from children.
Protect the device from moisture. The location of use must also be dry. Damp documents
should not be laminated. In the case of emergency, always pull the plug out from the mains.
The device is only designed to be used in the private sector.
The device generates heat when laminating. Strong sunshine or indoor heating can
exacerbate this situation and can cause the device to become faulty. In such cases, you
should also pull the plug out from the mains immediately.
The device has ventilation slots. These should not be covered up with other objects such as
magazines, cloths, etc.
After use, switch the device o , and then always pull the plug out from the mains.
The device automatically switches o if it overheats.
Only laminate at room temperatures (approx. 10–25°C).
The device should never be connected if the cable is damaged.
Plastic bags can present a danger. To avoid any danger of su ocation, keep the bag away
from babies and children.
Please clean this machine only with a damp cloth.
Meaning of the warning symbols
Caution! Read the instructions! ! Do not dispose
in the household
rubbish!
7
!
Importer : monolith GmbH • Maxstraße 16 • D-45127 Essen
www.monolith-support.com ©2016 • Made in China

14. Limited Product Warranty
8
The EU declaration of conformity can be requested from the
address at the following address:
monolith GmbH, Maxstraße 16, 45127 Essen, Germany
13. Declaration of conformity
WHAT THIS WARRANTY COVERS:
This limited warranty covers the original purchase of new product used for normal com-
mercial, personal or household use. monolith GmbH warrants its products will be free from
defects in materials and workmanship (normal wear and tear excepted), for two (2) years
from the date of purchase.
WHAT THIS WARRANTY DOES NOT COVER:
This warranty does not apply to damage caused by re, accident, negligence, misuse, im-
proper, cleaning or other circumstances not directly attributable to manufacturing defects.
LIMITATION OF DAMAGES:
monolith provides this limited warranty in lieu of all other warranties either express or
implied. Expressly excluded are all warranties of tness for a particular purpose or
merchantability. monolith‘s sole obligation and user‘s exclusive remedy under this
warranty shall be limited to the replacement at monolith‘s sole discretion and cost of
products or components. In no event shall monolith, its aliates, subsidiaries or parent
companies be responsible for consequential, special or incidental damages arising out of
a claim of defective product even if monolith has been advised of the possibility of such
damages.

Warranty card – Laminator OL 289
2 years
WARRANTY
Customer Service:
service hotline: [phone] (free), mon-fri 8:00-17:00 h
service fax number: 00 49 6151 1019 0 7911
Serviceadresse: Antalis UK Ltd, Tara Street Hilltop Industrial Estate Bardon,
Coalville Leicestershire LE67 1TW
e-mail: [email protected]
www.monolith-support.com
A4 Laminator OL 289
Please complete this warranty card and enclose it with the machine,
together with your proof of purchase!
Customer data:
Surname, rst name:
Street, number:
Postcode, town: Country:
Telephone number with international daillung code:
E-mail:
Description of fault:
Daten of purchase:
Date/signature:
Note:
When claiming on the warranty, the warranty card and the proof of purchase must be included
with the machine as well as a detailed description of the fault wherever possible. Warranty
cards sent separately afterwards will not be accepted.
