QOMOLANGMA®BRAND FULL-AUTO WIDE FORMAT
COLD LAMINATOR, WITH HEAT ASSISTED
USER’S MANUAL
FMJ-1400-WA-PLUS
FMJ-1600-WA-PLUS
Please read this manual carefully before operation

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 2 -
CONTENT
Features ................................................................................................................................. 3
I. Technical Parameter............................................................................................................ 4
II. Installation .......................................................................................................................... 5
2.1 installat ion precautions ................................................................................................ 5
2.2 The stand floor rack assembly ...................................................................................... 5
2.3 Machine assembly........................................................................................................6
III. Safety Instructions .............................................................................................................8
3.1. Warning Symbols ........................................................................................................8
3.2. Safety Parts ..................................................................................................................9
3.3. CAUTION.................................................................................................................... 10

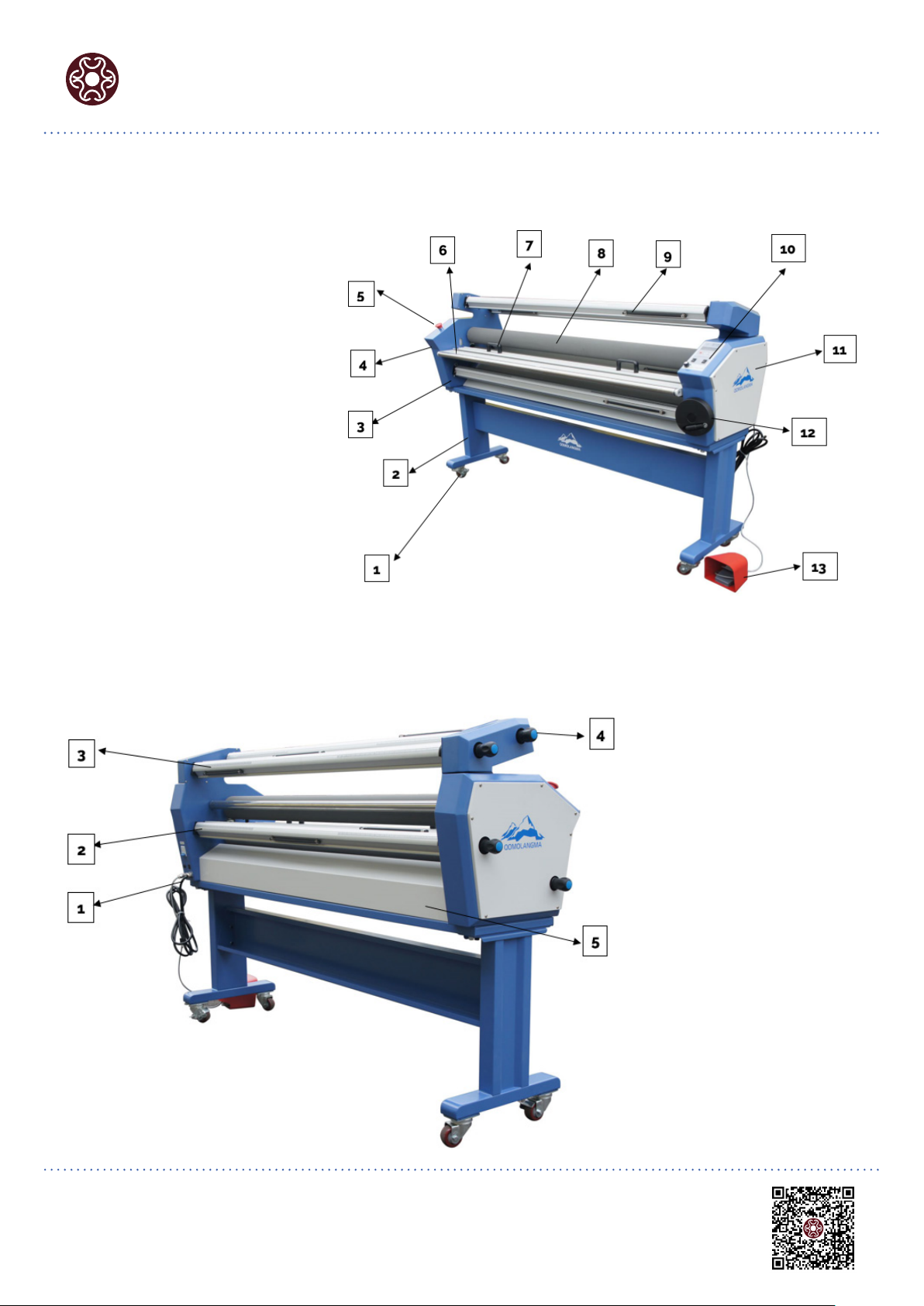

IV. Parts Identification ...........................................................................................................11
4.1 Front Views ..................................................................................................................11
4.2 Back Views ..................................................................................................................11

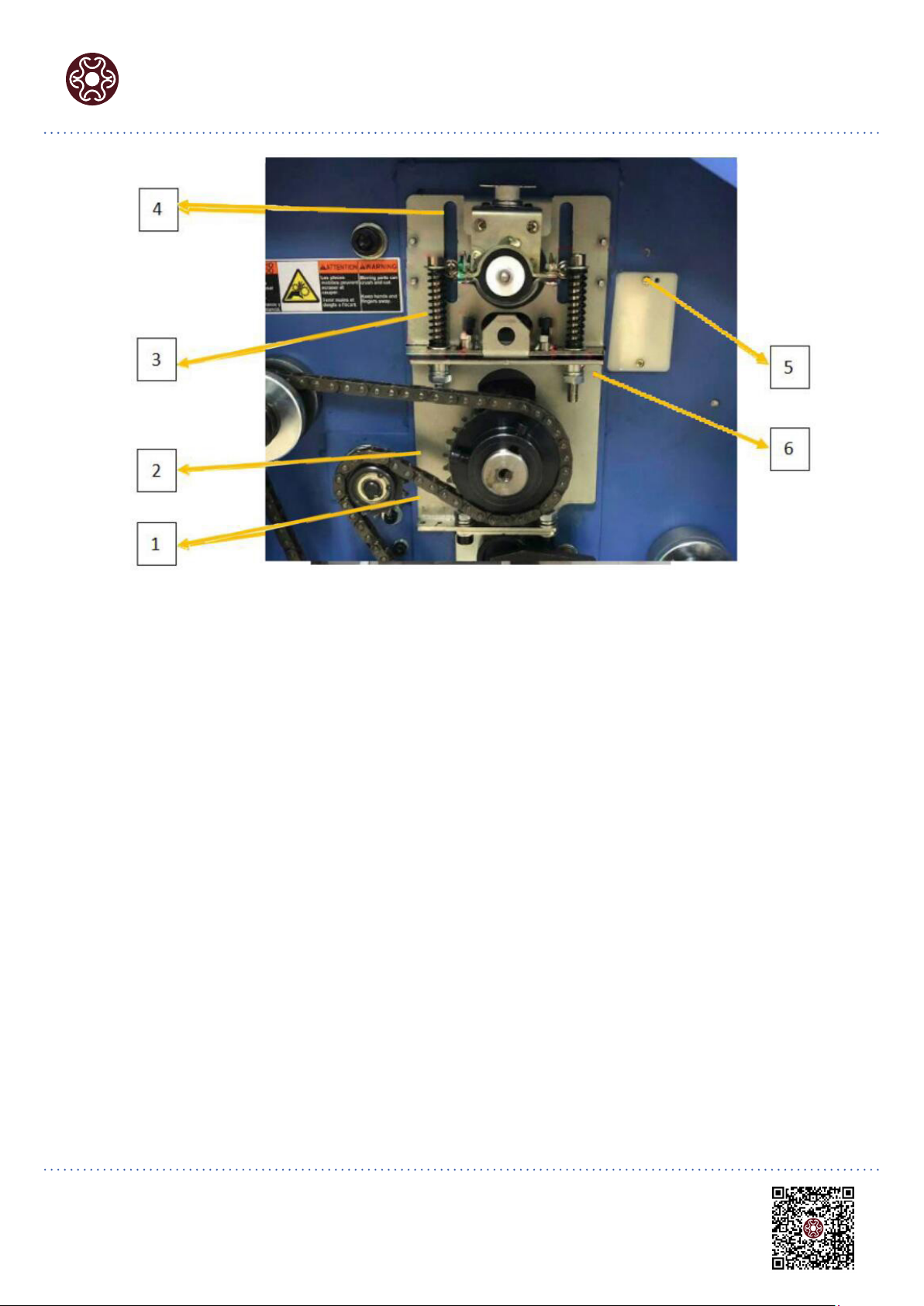

4.3 Annotation.................................................................................................................. 12
V. USAGE OF MACHINE......................................................................................................... 17
VI. Laminating Process ......................................................................................................... 22
6.1 Lamination Principles ................................................................................................. 22
6.2 Operation ................................................................................................................... 22
6.3 Notes for Operation.................................................................................................... 23
VII. Problems and Solutions ................................................................................................ 24
VIII. Maintenance ................................................................................................................. 25
8.1 Maintenance of rollers ................................................................................................ 25
8.2 Cleaning ..................................................................................................................... 27
8.3 Checking .................................................................................................................... 27
8.3.1 Visual Checking .................................................................................................. 27
8.3.2 Safety Parts Checking......................................................................................... 27
Warranty Card ...................................................................................................................... 28

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 3 -
THE IDEAL PARTNER FOR PHOTOGRAPHERS,
PRINTERS, AND SIGN-MAKERS!
Thank you very much for choosing our Qomolangma brand series laminator, Please read the
manual carefully, including the installation, operation and maintenance to ensure the best
output and the lifetime of the machine.
Smarter and people-oriented innovat ion in the design concept and details will give you
simple and relax lamination experience.
Lamination gives your materials a finished, professional look of quality that can really
drive business. By giving your materials a higher quality look, in gloss, satin or matte nish,
lamination services will improve your business image and help bring in more sales leads.
Remarks: Low temperature cold laminating, mainly used to solve the issue that cold
laminated images are hazy. Driven by electric, including oor stand and foot pedal switch.

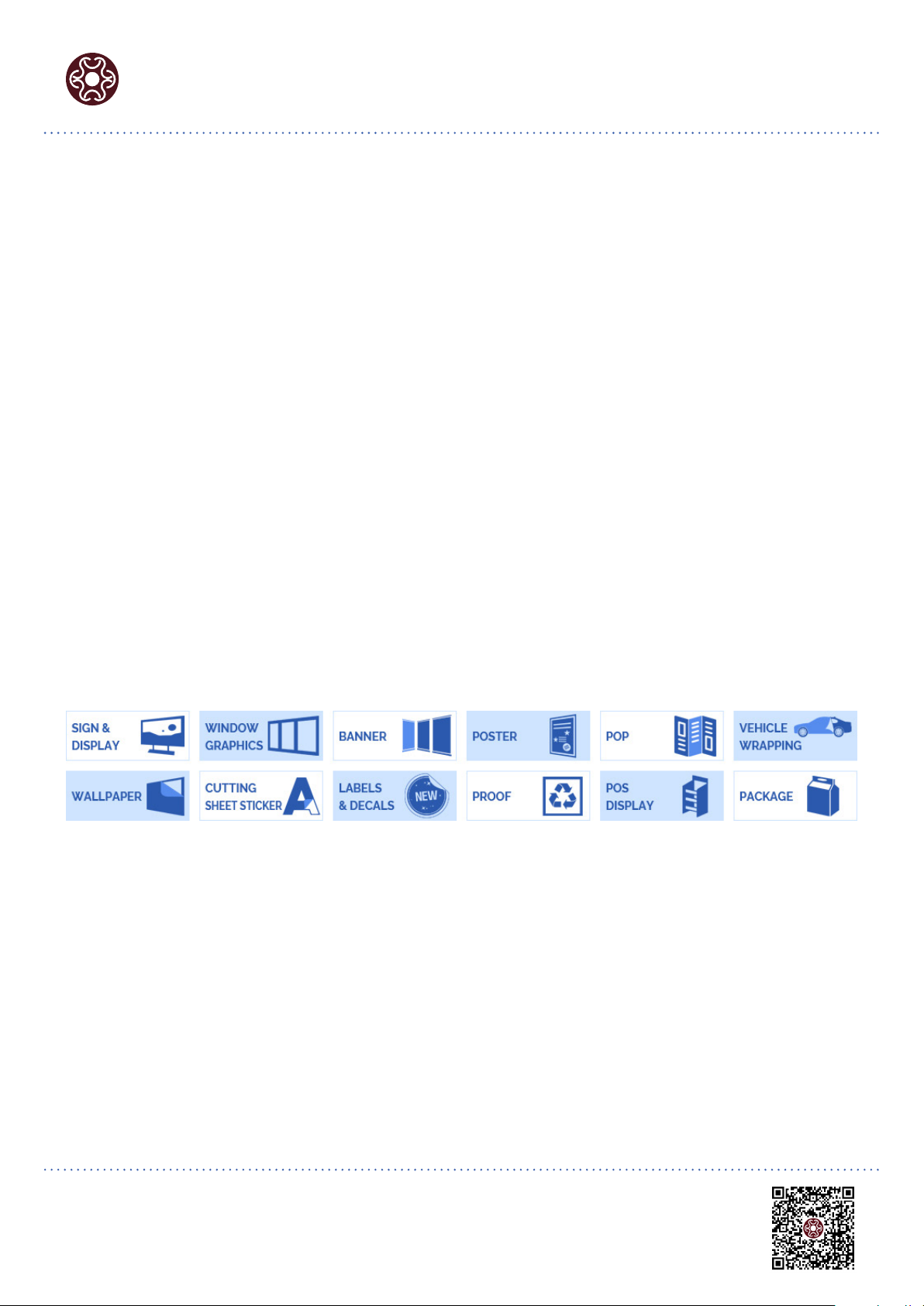

Applications:
Sign & display, window graphics, banner, poster, PoP, vehicle wrapping, wallpaper, cutting
sheet sticker, labels & decals, proof, POS display, package, sign board, flyer, document fi
nishing, oor graphics, rigid and  exible indoor displays, board and many more.
Advantages:
>QOMOlANGMA: USA registered
>Cost - e ective: very good quality, price and performance.
>Excellent results without air bubbles and defects.
>Hand crank and automatic motorized lift ing of the upper roller. These two systems are
more stable, meets the high - end needs , and has less issues versus pneumatic lift using
air pressure.
>Rubber roller: High quality rubber roller are more elastic and durable.
>High precision design: Cut by highly precise laser, the frame and bars ensure the unwind
Features

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 4 -
/ rewind shaft is parallel and prevents wrinkle and air-bubble when laminating.
>User friendly Control panel, it is easy to understand and operate.
>Mount images on panel, apply double-sided adhesive fi lms, application tape and
protective lms.
>Versatility in the materials used.
>Load and unload of rolls of materials in seconds.
>Photosensitive cells with automatic self-control of safety devices and emergency buttons.
I. Technical Parameter
Type
Shop Serials - For ""small shop"" professional use
A perfect t for entry level customer, who is looking for an aordable and
professional cold laminator for their projects.
Specication / Item Code FMJ-1400-WA-PLUS FMJ-1600-WA-PLUS FMJ-1600-WA-PLUS-H
Name Qomolangma Full-auto Wide Format Cold Laminator, with Heat Assisted
Lift Up System By hand
Functions Cold laminating, mounting, with heat assited Hot / cold laminating, mount ing
Max. Working Width 1400mm (55in) 1600mm (63in) 1600mm (63in)
Max. Working Speed 6m (19.685ft) / min
Max. Nip Opening 35mm (1.38in)
Roller Diameter 102mm (4in)
Top and Bottom Roller
Material Silicon rubber
Max. Heat ing Temperature 40°C (104°F) 120°C (248°F)
Drive Motor 90W
Power Consumption 1400W 2300W
Power Supply Options AC110V / 50-60Hz, 16A
AC230V / 50-60Hz, 8A
AC110V / 50-60Hz, 21A
AC230V / 50-60Hz, 11A
Forward / Reverse Yes
Foot Pedal Yes
Safety Sensor Yes
Auto Rewind Liner Pickup Yes
After Laminating Pickup Yes
Machine Size 1820 x 550 x1250mm
(71.65in x 21.65in x 49.2in)
2020 x 550 x 1250mm
(79.5in x 21.65in x 49.2in)
Net Weight 150kg (330lbs) 204kg (448.8lbs)

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 5 -
II. Installation
2.1 installation precautions
1. Before unpacking, carefully check if there is damage for the packing and machine during
transportation.
2. After unpacking, check if the service parts are correct as the packing list.
3. The installing place should be provided enough space for operating and free of dust, no
vapor, no corrosive gas, no combustible or explosive substance around. Keep the machine
away from wind blowing place, otherwise will affect the roller temperature which might
bring the laminating quality.
4. After installation, adjust each caster to reach level ground. The casters only be used on
even ground for short distance movement.
Notice: Please move carefully since it is heavy equipment.
2.2 The stand oor rack assembly
1) Take out the parts from the packing.
2) Assembling two legs and all shafts according to the picture.
3) Install the casters to the left and right leg. (wo caster w/ brake and two w/o brake were
installed in a diagonal).
1. Left and right leg 2. Two caster w/ brake, two w/o brake. 3. Top shaft.

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 6 -
2.3 Machine assembly
1) Take out the machine from crate, use 4 of M10 screw to connect the machine and shaft
followed the picture, be attention the shaft direction.
The four corners are fixed with M10 screws.
Notice: When moving, touch the bottom plate, don’t move the hand wheel, friction
wheel and other week position.
2) Working Table Installation (Refer to Pic).
A) Hold the middle part of the front table and place the front table in a diagonal posit ion,
with the front opening corresponding to the screw in front.

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 7 -
B) Place the front table gently down, and the gap behind it corresponds to the screw
behind.
C) Push an embolus of a bolt and lock the bolt of the front table.
3) Shaft assembly (Refer to 4.3).
4) Take o the red support ing parts on both end of roller ( Refer to A).
5) Connect the foot pedal and wiring as following illustration.
A: Air switch
B: Power code
C: Connection of foot pedal

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 8 -
6) Turn on the machine, roller is rotating. Make trial laminating if everything is well and check
the lamination result.
III. Safety Instructions
Read the safety instructions and familiarize yourself with the main structure, performance
and operation measures before start ing the machine. Training and examination is
recommended when condit ion requires. In the operation and maintenance, please be
aware of the warning symbols on the machine and proceed with caut ion to prevent hazards
and ensure safety.

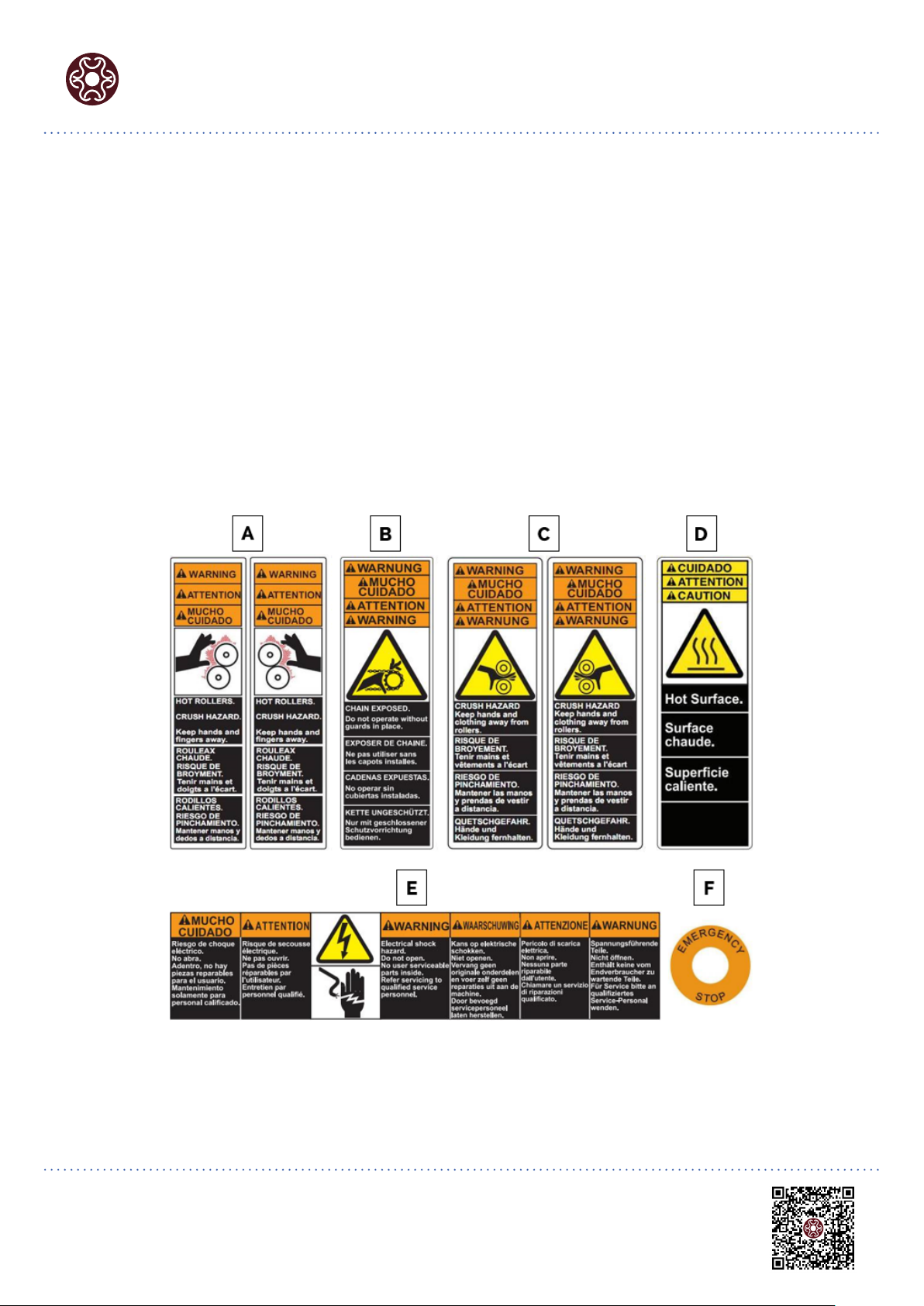

3.1. Warning Symbols
Please be aware of the warning symbols below to prevent possible hazards!
A. Hand Anti-hot：The surface of roller could scald your hand or finger, keep away from
heating roller.

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 9 -
B. Anti-chain Prick: Keep your hand away from chain and gear. Your long hair and clothing
would be caught in the rollers.
C. Anti-hand trapped: this safety notice means that your fingers and hands could be
trapped and crushed in the rollers, clothing and long hair could be caught in the rollers
and pull you into them.
D. Warming: Be attention of high temperature.
E. Anti-electric shock: This safety notice means it is high voltage, should be turned off
before adjustment.
F. EMERGENCY SWITCH: In case of emergency, press the red button to shut o the electric
3.2. Safety Parts

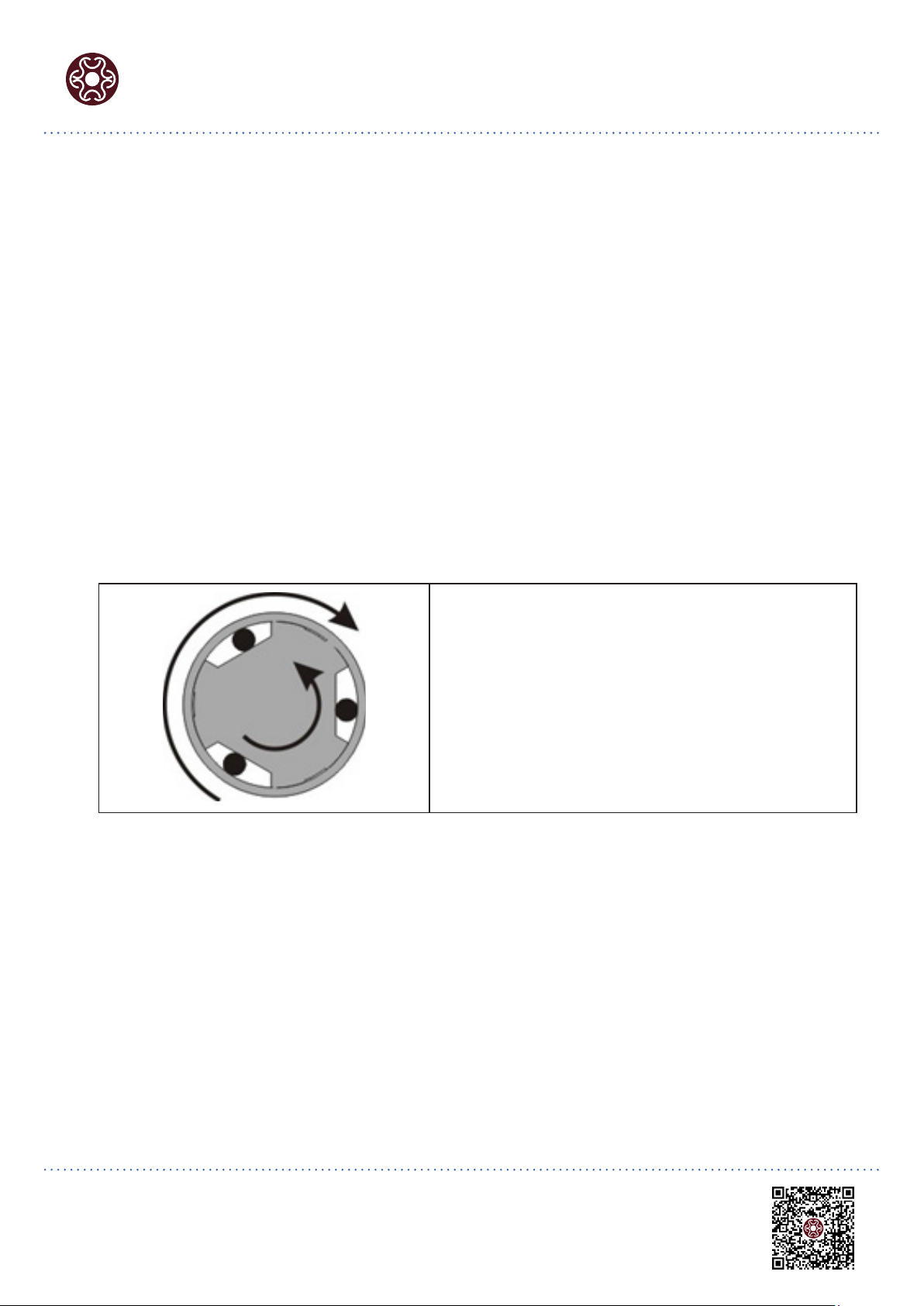

Emergency Stop Switch
The machine has one Emergency stop button.
When activated the power supply will be cut off
immediately. When turned clockwise, the button
will disengage automatically and the machine will
be restarted. The motor controller will be restarted
after turn on the power button on the control panel.
Press the Emergency button immediately when the
needed. Caution: Emergency button is one of the
essential safety parts. Please check its performance
regularly.
Note: Please press the switch immediately when you encounter an emergency in the
operation.

Sign-in-China.com
Online Wholesale for AD & Signage Products
Learn More >>
- 10 -

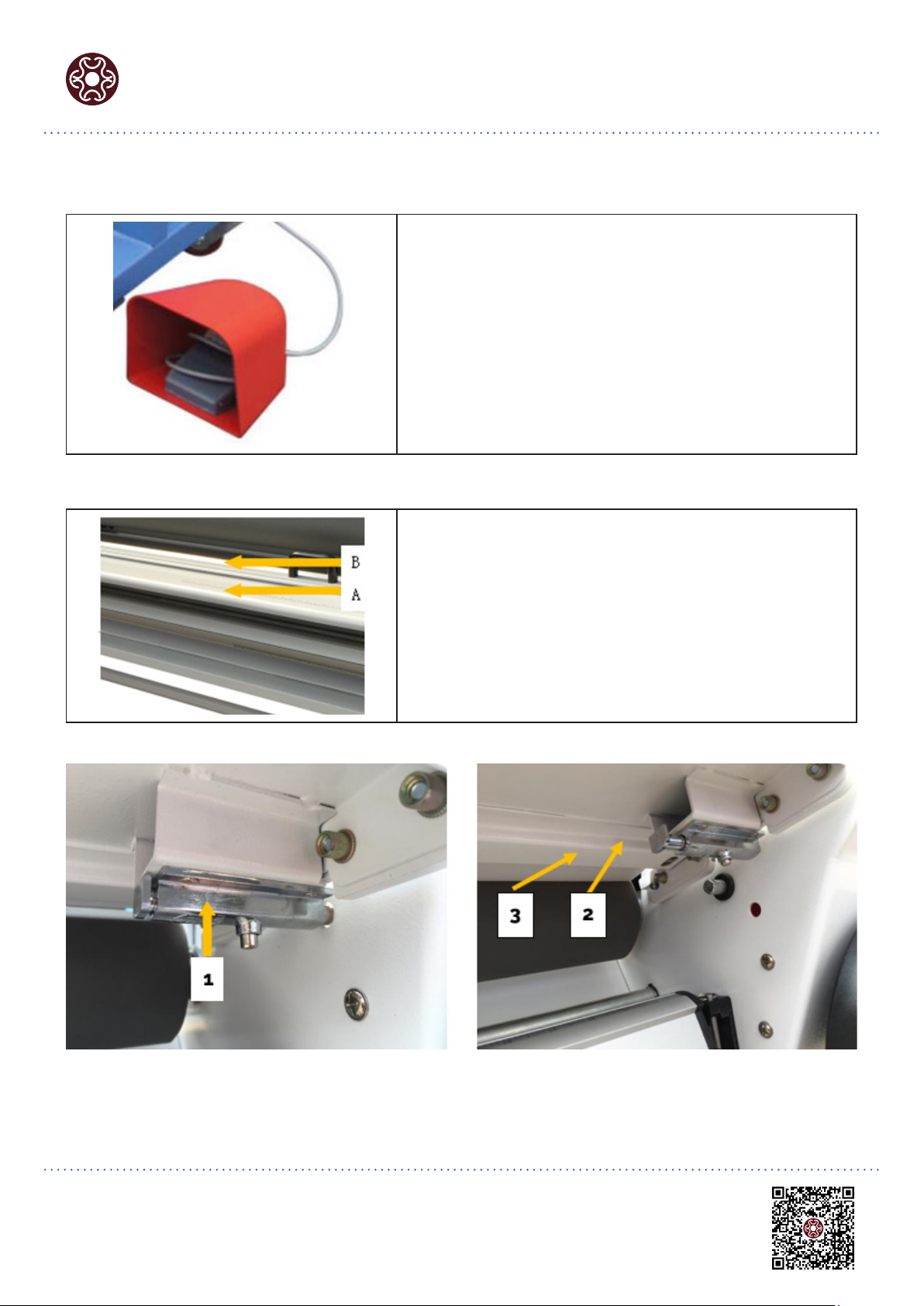

Photocell Safety Switch
The machine has an optical safety device at the
input side of the nip at the main rollers on the right
cabinet. When the signal is interrupted (e.g. by
foreign object or hand), the device will be activated
and the motor will stop so as to prevent hazards
caused by interruption of foreign objects.
When the motor controller is disabled by the opt ical
safety device, it will not be act ivated even the
interrupted objects are removed, unless the motor-
on button on the control panel is pressed.
Caution: The optical device is inact ivated when the pedal switch is pressed.
Optical safety device is one of the essent ial safety parts. Please check its optical sensit ivity
to ensure safe operation.
3.3. CAUTION
1) The mains supply must match the type indicated on the machine ident icat ion label (use
three-pole plug device. The earth pole may not be altered randomly).
2) Cut the power supply before opening the cabinet in maintenance to prevent electricity
shock or injury. Turn o the power supply after the operation.
3) Make sure the power supply cable and/or the extension cable is not blocking your way
around the machine, placing under any stu or driven across by any vehicles.
4) Install the the machine in a dry and well ventilated environment. Make sure the ground is
free of water or moisture. Keep the machine from any inammable and explosive objects.
5) Do not place any tool or other stu on the in-feed and out-feed table, such as: screwdriver,
screw, nail, nut, ect. They may fall into the rolling rollers and cause damage to the machine.
6) Do not wash the machine with water. This can damage the electrical circuits, cause
electrical shock or corrosion.
7) Cleaning by rotat ing the roller. To prevent from partial damage for the roller, don’t clean at
single point.
8) Check to see if the power supply cable and the foot pedal connect ion cable are broken
on a regular basis to avoid electric shock.
