HTUPS 3700
Home Theater Uninterruptible Power Supply PowerCenter
™
Owner’s Manual
®

TABLE OF CONTENTS
Page
Important Safety Instructions ....................................................................i
Proper Grounding and Instructions ............................................................... iv
A Note from The Head Monster ..................................................................1
Monster®HD Clean Power®Filtering...............................................................2
Monster Exclusive T2™Technology ................................................................3
Automatic Voltage Regulation ...................................................................4
Monster GreenPower™Outlet Management .........................................................4
Monster Countdown Technology .................................................................5
The Minds Behind Monster Power ................................................................6
Monster HTUPS 3700 Features ...................................................................7
Hookup and Operation Guide...................................................................12
Battery Connection and Replacement .........................................................14
Power Hookup ..........................................................................16
Coaxial Connections ......................................................................17
Phone Connections.......................................................................18
Network Connections .....................................................................19
Rack Mount Installation ...................................................................20
Storage Instructions ......................................................................21
Troubleshooting .............................................................................22
Specifications...............................................................................26
RS-232 Communications Protocol and Command Set .................................................29
Warranty Information .........................................................................47

i
IMPORTANT SAFETY INSTRUCTIONS
This manual contains important instructions for the HTUPS 3700 that should be followed.
Please read and observe the following safety points at all times.
CAUTION: When the On/Off switch is on, the Battery Power supplied outlets are powered by the battery,
even when the unit is not plugged in.
CAUTION: To reduce the risk of electric shock, use only indoors and in dry locations. Do not allow the device
to be exposed to moisture, rain, dust, excessive heat or direct sunlight.
CAUTION: Connect this device to a 3-prong grounded outlet. Make sure the circuit branch is protected and not
servicing equipment that requires heavy electricity.
CAUTION: Never plug the device into itself; this will short-circuit the unit.
CAUTION: This device may be damaged if connected to a motor-powered AC generator with voltage and frequency
output beyond nominal accepted ranges.
CAUTION: Risk of Electrical Shock! The battery circuit is not isolated from AC input. Hazardous voltage may exist
between the terminal and ground. Disconnect the power cord from the wall outlet before servicing the battery.
CAUTION: The output of this device is not sinusoidal when in UPS mode. Use with home theater equipment only.

ii
WARNING – The battery in this product contains chemicals, including lead, known to the State of California to
cause cancer and birth defects and other reproductive harm. Wash Hands after handling.
Important Note: Charge the internal battery for 4 hours before using this HTUPS 3700 for the first time, or if it has not
been plugged into an AC outlet for an extended period.
WARNING – Power Sources
Do not plug this HTUPS 3700 into a power outlet that differs from the source indicated for safe use on the HTUPS 3700.
If you don’t know the type of electrical power that is supplied to your home, consult your local power company
or a qualified electrician.
WARNING – Grounding and Polarization
A. Do not attempt to defeat the grounding feature by using a 3-to-2 prong adapter.
B. The Monster HTUPS 3700 requires a properly grounded outlet for safety and to protect connected equipment.
If you’re not sure if your home’s electrical wiring is properly grounded, have it checked by a qualified electrician.
C. Do not force the HTUPS 3700 plug into a power outlet that is not designed to accept a three-wire grounded-type
AC plug (a three-prong plug). This plug is designed to be inserted into a grounded-type outlet only. If this plug
doesn’t fit directly inside the outlet, do not attempt to force it into the outlet. Never attempt to dismantle the plug
in any way (or to alter the power cord). If you have questions about grounding, consult your local power company
or a qualified electrician.
CAUTION – Heat Ventilation
HTUPS 3700 requires a minimum of 1” clearance on all sides for adequate ventilation and heat dissipation.
WARNING – Medical Conditions/Life Support Applications
Use of the HTUPS 3700 in any life support application where failure of this equipment can reasonably be expected to
cause the failure of the life support equipment or to significantly affect its safety or effectiveness is NOT recommended.

iii
FCC REQUIREMENTS
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or
relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected •
Consult the dealer or an experienced radio/TV technician for help.
WARNING – Malfunction and Servicing
If, for any reason, this HTUPS 3700 is not operating properly, unplug the unit and consult the Warranty Information
section in this manual for important details, or contact your original retailer for repair and service information.
WARNING – Power Cord Safety
A. When routing the AC power cord, do not place it near areas with heavy foot traffic that would create a trip hazard
(e.g., hallways, doorways, and floors).
B. If the power cord’s protective jacket begins to rip or fray, exposing the internal wiring, shielding, etc., disconnect
it from the power source and discontinue use of the HTUPS 3700 immediately. See the Warranty Information section
in this manual for important details.
WARNING – De-Energizing The HTUPS 3700
To fully de-energize the HTUPS 3700, unplug the unit from the wall outlet, then turn the unit off.
CAUTION – Exposure to Heat
Do not expose the HTUPS 3700 to direct sunlight or place it near wall heaters, space heaters, or any enclosed space
prone to temperature increase.
CAUTION – Proper Cleaning
In general, the only cleaning necessary for this HTUPS 3700 is a light dusting. Unplug the component from the wall
before cleaning it. Do not use any type of liquid or aerosol cleaners.

iv
PROPER GROUNDING INSTRUCTIONS
WARNING – Proper Grounding
Monster PowerCenters require a properly grounded outlet for safety and to protect connected equipment. If you’re not
sure if your home’s electrical wiring is grounded, have it checked by a qualified electrician.
Important Note: Proper Power and Protection
To completely protect your equipment against power surges, every AC cable, coaxial cable, phone line and Ethernet line
in the system must be connected to an appropriate PowerCenter.
Important Note: Proper Protection and the Limited Connected Equipment Warranty
The $500,000 U.S. Limited Connected Equipment Warranty becomes invalid if any wire (AC, coax or phone) or audio
or video interconnect leading into the equipment comes from a component that is not properly protected by the
PowerCenter. See the warranty information section of this manual for important details.

1
A NOTE FROM THE HEAD MONSTER
THANK YOU for purchasing the Monster Power®Home Theater Uninterruptible Power Supply 3700. The
HTUPS 3700 is designed to maintain power to critical home theater components during power outages for
up to 4 hours* with an internal backup battery. This lets your DVR record scheduled shows, preserves home
theater settings, prevents data corruption on media servers, and prevents costly projector bulb damage.
The HTUPS 3700 also incorporates Monster’s patented HD Clean Power filters, which are specifically engineered
for today’s digital high definition components. This advanced technology reduces stress on delicate digital
circuitry, delivering improved performance and maximizing the lifespan of connected equipment.
Monster’s advanced surge protection technology features patented Tri-Mode that automatically disconnects equipment from
both live power lines (line and neutral) and sounds an alarm. Microprocessor-controlled T2 works with Tri-Mode circuitry to
automatically disconnect both the PowerCenter itself and your equipment from damaging surges and spikes.
The HTUPS 3700 also features automatic voltage regulation, which keeps the voltage going to your home theater within
a safe range.
To save you energy and money, the HTUPS 3700 includes Monster GreenPower™switched outlets that automatically shut
off when you’re not using the equipment connected to them. This stops energy waste caused by HDTVs, Blu-ray Disc™
players and other components in stand-by mode.
I’m sure you’ll enjoy the advanced protection, enhanced home theater performance, energy savings and backup power
reassurance the HTUPS 3700 provides.
Noel Lee,
The Head Monster
Noel Lee
*At 50 W consumption. Actual runtime depends on load, charge level, and battery condition.

2
PATENTED MONSTER HD CLEAN POWER®FILTERING
Your home’s electricity is full of noise and interference caused by all of your appliances and electronics: cell phones,
computers, even your lights, all contribute to the problem. This “dirty power” stresses the delicate digital circuitry inside
HDTVs and other home theater equipment, reducing their performance and potentially shortening their lives.
However, ordinary surge protectors can’t remove the effects of dirty power. The HTUPS 3700 features HD Clean Power
Stage 3 filtering that is precision-engineered to remove electrical noise and interference. This protects the delicate circuitry
inside your HDTV and other electronics from unnecessary wear. HD Clean Power maximizes your equipment’s lifespan and
ensures the best possible picture and sound performance.
To learn more about patented Monster Clean Power and the complete product family of PowerCenters, voltage stabilizers
and amplifiers, please visit MonsterPower.com.

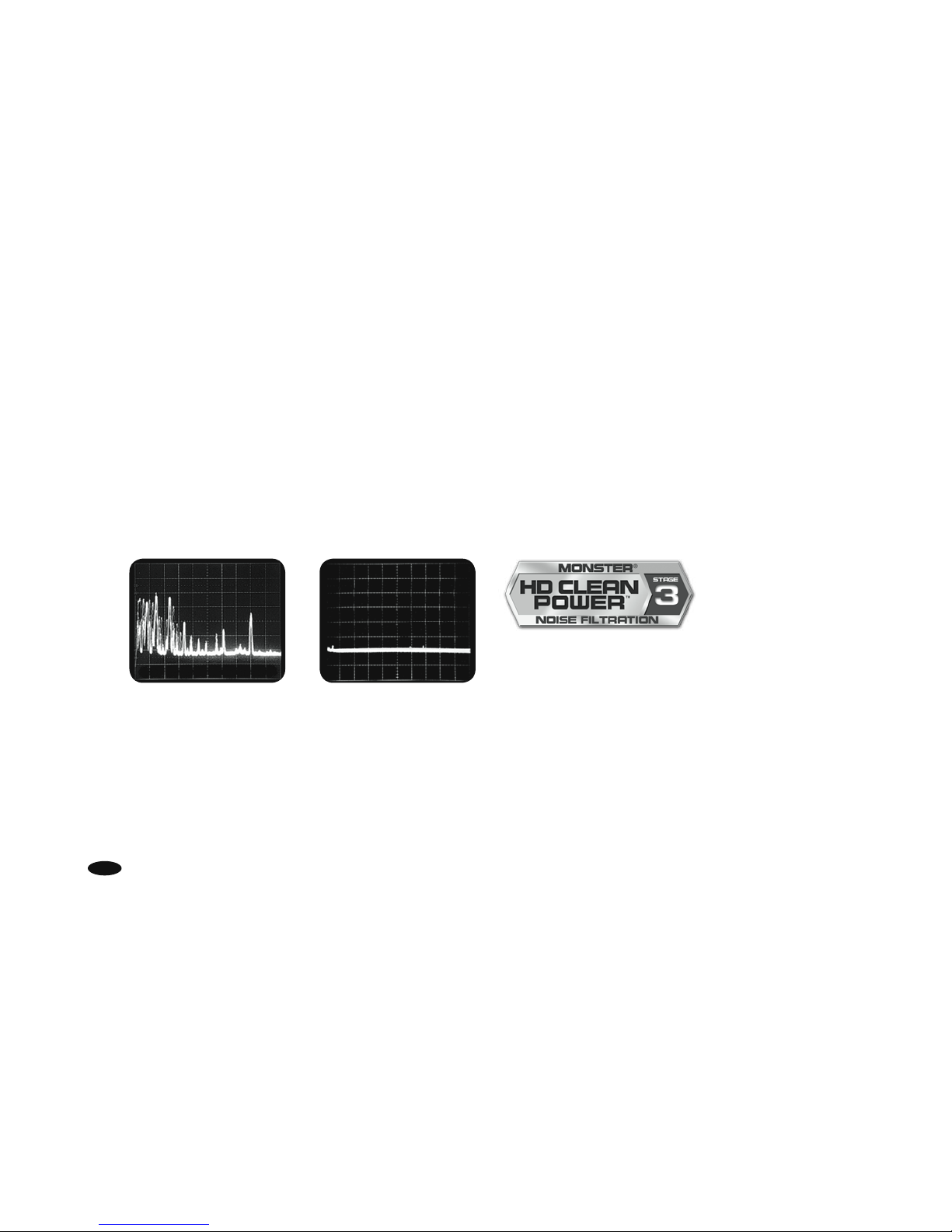

Actual spectrum analyzer
photo of AC power pollution
AC power line filtered
by Monster Clean Power®
™

3
PATENTED MONSTER T2™TECHNOLOGY
The Monster Power HTUPS 3700 features exclusive Monster T2 technology. T2 is an active electronic microprocessor-
controlled circuit that sits in front of the surge protection circuitry in select Monster Power products. T2 monitors the line,
neutral and ground lines and automatically disconnects the HTUPS 3700 from the AC power line when a long duration
low-voltage sag or high-voltage swell occurs (continuous voltage below 80Vrms or above 132Vrms).
Unlike ordinary power management devices, T2 will disconnect the HTUPS 3700 before the MOVs (Metal OxideVaristors)
and thermal fuses sense an overload condition and sacrifice themselves to protect your connected components. This will
extend the PowerCenter’s life, while providing the system protection you need.
™

4
MONSTER AUTOMATIC VOLTAGE REGULATION
Your home theater electronics are engineered to operate at 120 volts. But common power sags and swells can severely
affect the performance and life of your valuable audio and video equipment. When this occurs, Monster automatic voltage
regulation keeps the voltage going to your home theater within a safe range. This reduces wear on delicate circuitry,
extending the life of your home theater components.
MONSTER GREENPOWER™OUTLET MANAGEMENT
Monster GreenPower is a revolutionary new way to automatically eliminate energy waste and save money. Simply
plug your HDTV or AV receiver into the Monster GreenPower Control outlet. When it’s turned off or goes to sleep,
the Monster GreenPower outlets switch off, automatically eliminating energy wasted by your subwoofer, DVD player,
and more, when you’re not using them. When your HDTV or AV receiver switches back on, the GreenPower outlets
automatically power up again.
™
™

CLEAN POWER
ON
UNSWITCHED
ON
SWITCHED/
TIMED
ON
UPS/AVR
ON
PROTECTION
ON
GROUND
OK
WIRING
OK
ABNORMAL
VOLTAGE
ON/OFF
USB
AUX
CHARGER
USB
Home Theater Reference UPS
with Clean Power®Stage 3 Filtering
HTUPS 3700
B
A
T
T
E
R
Y
%
V
O
L
T
A
G
E
B
A
T
T
E
R
Y
C
H
E
C
K
D
I
M
M
E
R
O
V
E
R
L
O
A
D
UNSWITCHED
GREENPOWER CONTROL
ANALOG AUDIO FILTER
SWITCHED
HIGH CURRENT FILTER
TIMED
PLC COMPATIBLE
EXTERNAL BATTERY CONNECTOR
SNMP CARD
RS 232
GREENPOWER CONTROL
ON/OFF
IN OUT 1
NETWORK
OUT 2
IN OUT
IN OUT
IN OUT
IN OUT
DC REMOTE
Designed in U.S.A. Manufactured in China
IN OUT
PHONE
CABLE/ANT
SAT 1
SAT 2
120 V/12 AMP
BREAKER 12A
PRESS TO RESET
GROUND
GREENPOWER
STATUS
GREENPOWER CONTROLLED HIGH DEFINITION DIGITAL FILTER
BATTERY/AVR ENABLED OUTLETS BATTERY/AVR ENABLED OUTLETS
W
A
T
T
A
G
E
CABLE/SAT
MEDIA CENTER
DVR/ TIVO®
GAME CONSOLE
HDTV/ TV
ACCESSORY
RECEIVER
PROJECTOR
MAIN AMP
DVD/Blu-ray™
5
MONSTER COUNTDOWN TECHNOLOGY
The Monster HTUPS 3700 features a digital LED display that displays remaining battery power time in minutes. You can instantly
see how much time you have left to safely shut down your system, or how much time you can keep your system running.
When power to the HTUPS is cut, the LED screen automatically switches from displaying voltage to the Countdown timer,
which will begin counting backwards to zero. The Countdown start time will vary depending on how much battery capacity
you have, the initial battery charge level, and the power consumption of equipment connected to the UPS.
The Countdown timer actively measures current draw. As you turn on or off individual components in your system, the
Countdown timer will dynamically adjust to reflect the backup time left. The more power consumed, the less time available,
the less power being used, the more time available.
Backup Time Testing
You can test various system configurations to see how much backup time you’ll have when there’s a power outage. First,
fully charge the HTUPS 3700,* and plug all your equipment into the HTUPS 3700. Refer to the setup instructions on pages
9-10. Then unplug the HTUPS 3700 from the wall outlet so it’s running purely on battery power. The HTUPS 3700
Countdown timer will activate displaying backup time.
You may want to try testing with different components into the UPS outlets to gain more backup time.
*Charge the battery for at least 4 hours to reach full charge capacity.

6
Noel Lee – Noel Lee, The Head Monster,
is best known for popularizing the concept
of high performance audio cable 30 years
ago with his creation of Monster Cable.
Originally a laser-fusion design engineer
at Lawrence Livermore National Laboratory
and later a touring musician, Noel has
invented or co-invented over 250 U.S.
and international patents. Monster Power
is Noel’s realization of a long-nurtured
vision of making affordable power solutions
that deliver the best possible sound
and picture.
Tony DiChiro was one of the founders
of Kinergetics Research in 1971. Kinergetics
developed numerous patented technologies
that advanced the state of the art in audio
technology, and released highly acclaimed
home theater products. Kinergetics also
debuted the first high-end surround
sound processor with THX certification.
Tony currently heads up the R&D team
at Monster Cable where he continues
to develop advanced products with cutting
edge features.
Richard Marsh – Richard developed
Monster’s patented Clean Power®
circuitry, and is also responsible for
several other ground breaking designs
including the high-end audio balanced
circuit design, the MultiCap internal
bypass capacitor, and the Servo-DC
feedback concept in power amplifiers –
a concept that is used by virtually every
amplifier manufacturer today.
Demian Martin – Demian helped create
several innovative AC power solutions.
He was the co-founder of Spectral Audio
and was the chief designer of their many
pioneering designs for amplifiers, D/A
converters, and other high-end audio
designs. He now brings his expertise
to Monster Power’s elite research
and development team.
THE MINDS BEHIND MONSTER POWER

CLEAN POWER
ON
UNSWITCHED
ON
SWITCHED/
TIMED
ON
UPS/AVR
ON
PROTECTION
ON
GROUND
OK
WIRING
OK
ABNORMAL
VOLTAGE
ON/OFF
USB
AUX
CHARGER
USB
Home Theater Reference UPS
with Clean Power®Stage 3 Filtering
HTUPS 3700
B
A
T
T
E
R
Y
%
V
O
L
T
A
G
E
B
A
T
T
E
R
Y
C
H
E
C
K
D
I
M
M
E
R
O
V
E
R
L
O
A
D
UNSWITCHED
GREENPOWER CONTROL
ANALOG AUDIO FILTER
SWITCHED
HIGH CURRENT FILTER
TIMED
PLC COMPATIBLE
EXTERNAL BATTERY CONNECTOR
SNMP CARD
RS 232
GREENPOWER CONTROL
ON/OFF
IN OUT 1
NETWORK
OUT 2
IN OUT
IN OUT
IN OUT
IN OUT
DC REMOTE
Designed in U.S.A. Manufactured in China
IN OUT
PHONE
CABLE/ANT
SAT 1
SAT 2
120 V/12 AMP
BREAKER 12A
PRESS TO RESET
GROUND
GREENPOWER
STATUS
GREENPOWER CONTROLLED HIGH DEFINITION DIGITAL FILTER
BATTERY/AVR ENABLED OUTLETS BATTERY/AVR ENABLED OUTLETS
W
A
T
T
A
G
E
CABLE/SAT
MEDIA CENTER
DVR/ TIVO®
GAME CONSOLE
HDTV/ TV
ACCESSORY
RECEIVER
PROJECTOR
MAIN AMP
DVD/Blu-ray™
CLEAN POWER
ON
UNSWITCHED
ON
SWITCHED/
TIMED
ON
UPS/AVR
ON
PROTECTION
ON
GROUND
OK
WIRING
OK
ABNORMAL
VOLTAGE
ON/OFF
USB
AUX
CHARGER
USB
Home Theater Reference UPS
with Clean Power®Stage 3 Filtering
HTUPS 3700
B
A
T
T
E
R
Y
%
V
O
L
T
A
G
E
B
A
T
T
E
R
Y
C
H
E
C
K
D
I
M
M
E
R
O
V
E
R
L
O
A
D
UNSWITCHED
GREENPOWER CONTROL
ANALOG AUDIO FILTER
SWITCHED
HIGH CURRENT FILTER
TIMED
PLC COMPATIBLE
EXTERNAL BATTERY CONNECTOR
SNMP CARD
RS 232
GREENPOWER CONTROL
ON/OFF
IN OUT 1
NETWORK
OUT 2
IN OUT
IN OUT
IN OUT
IN OUT
DC REMOTE
Designed in U.S.A. Manufactured in China
IN OUT
PHONE
CABLE/ANT
SAT 1
SAT 2
120 V/12 AMP
BREAKER 12A
PRESS TO RESET
GROUND
GREENPOWER
STATUS
GREENPOWER CONTROLLED HIGH DEFINITION DIGITAL FILTER
BATTERY/AVR ENABLED OUTLETS BATTERY/AVR ENABLED OUTLETS
W
A
T
T
A
G
E
CABLE/SAT
MEDIA CENTER
DVR/ TIVO®
GAME CONSOLE
HDTV/ TV
ACCESSORY
RECEIVER
PROJECTOR
MAIN AMP
DVD/Blu-ray™
14 15 17
16
5 6 7
10 11
8
912
21 22 23 24
13
2018 19
26 27 28 29 30 32 33
25
31
1 2 43
7
MONSTER HTUPS 3700 FEATURES
FRONT VIEW
REAR VIEW

2
8
HTUPS 3700 FEATURES
FRONT
1. “Clean Power On” Indicator
2. “Unswitched On” Indicator
3. “Switched/Timed On” Indicator
4. “UPS/AVR On” Indicator
5. Battery % LED Bar
6. Alarm On/Off – GreenPower Status
7. Power On/Off
8. USB Charging Ports
9. “Protection On” Indicator
10. “Ground OK” Indicator
11. “Wiring OK” Indicator
12. “Abnormal Voltage” Indicator
13. Battery Check Indicator
14. Dimmer
15. Overload Indicator
16. Digital/Analog Display (Load Wattage, Output Voltage,
Battery Remaining Time)
17. Switched Digital AC Output
REAR
18. SMNP Card Port
19. GreenPower Switched HD Digital Outlets (with battery backup)
20. Switched Analog Outlet (with battery backup)
21. Timed High Current Outlet (PLC Compatible)
22. Monster GreenPower™Control On/Off Switch
23. CATV/Antenna Surge Supression
24. Resettable 12Amp Circuit Breaker
25. IEC Power Cord Connection
26. RS232 Port
27. External Battery Connection*
28. GreenPower Control HD Digital Outlets (Master)
29. Phone Line Surge Suppression
30. “DC” In/Out Control
31. Network/Ethernet Surge Suppression
32. Satellite Surge Suppression
33. Ground Terminal
*You can extend your HTUPS 3700 battery runtime up to 12 hours** with the addition of the Monster Home Theater Extended Battery Supply
HTBX3000. See your Monster retailer for details or go to MonsterCable.com.
**at 50W consumption. Actual runtime depends on load, charge level, and battery condition.

9
FRONT PANEL LED STATUS LIGHTS
LED Function Visual Status
CLEAN POWER ON Blue light flashes 16 times in 8 seconds when AC is plugged in
On indicates that Clean Power filtering is on.
PROTECTION ON Green light - On indicates that surge protection in On.
UNSWITCHED ON Green light - On indicates that unswitched outlets are On.
GROUND ON Green light - On indicates that HTUPS 3700 is properly grounded.
WIRING OK Green light - On indicates that wiring is correct.
UPS/AVR ON Green light - On indicates that battery backup and automatic voltage regulation are On.
ABNORMAL VOLTAGE Red light is on when input voltage range is out of range (> 90 Vac or <129Vac) and
flashes when in battery mode. Red light is off when input voltage range is normal.
SWITCHED/TIMED ON LED Indicates that switched/timed outlets are On or Off.
BATTERY CHECK LED When lit, it indicates the battery needs to be replaced.
OVERLOAD LED • AC Mode – An overload has occurred. Unplug or turn off one or more of the devices
plugged into the UPS/AVR outlets until the LED is off.
• DC Mode – Overload LED and continuous Alarm sounds for few seconds and iwillshut
down automatically. Reduce load and Press and hold ON/OFF button for 3 seconds
to turn Unit back on.
DIGITAL DISPLAY
ALPHANUMERIC LED
Displays Wattage, Output voltage, Battery Time Remaining, and GreenPower Status.
WIRING OK LED Indicates your home wiring is correct or not. If not lit, contact a qualified electrician
to check your home wiring.

10
BATTERY LED STATUS LIGHTS CON’T
In addition to the countdown meter, the HTUPS 3700 also features battery LED status lights. These lights indicate how much
battery power has been expended and how much is left.
BATTERY Capacity Bar 0% LED 25% LED 50% LED 75% LED 100% LED
100% Fully Charged Green On
75% Charging Green On Green Flashing Off
50% Charging Green On Green Flashing Off
25% Charging Orange On Orange Flashing Off
0% Charging Red Flashing Off

11
FRONT PANEL BUTTONS
In addition to the countdown meter, the HTUPS 3700 also features battery LED status lights. These lights indicate how much
battery power has been expended and how much is left.
Button Function
ALARM/GREENPOWER
STATUS BUTTON
Press and release to turn Off/On the alarm.
Press and hold for 3 seconds to see current GreenPower status.
POWER ON/OFF BUTTON • AC Mode – Press an release to turn switched/timed outlets On/Off.
Also turn on the DC out trigger.
• AC Mode – [Hard shutdown] To turn off all outlets including Unswitched
outlets, press and hold the On/Off button for 10 sec. To turn back on, press
On/Off for 1 second.
• UPS Mode - Press and release to turn the switched/timed outlet On/Off.
DC out trigger will not turn operate in UPS mode.
• UPS Mode – Turn Unit off completely by holding the On/Off button for
3 seconds. To turn back on, press On/Off for 1 second.
• UPS Mode Overload – Press and hold On/Off button 3 seconds to turn
On the Unit after reducing the load.
DIMMER BUTTON Press and hold to dim/brighten LED displays.

12
HOOKUP AND OPERATION INSTRUCTIONS
NOTE: The HTUPS 3700 must be plugged into a properly grounded, three-prong AC power outlet. In addition,
Monster recommends charging the batteries for at least four hours prior to using HTUPS 3700. To charge or recharge
the batteries, simply plug your HTUPS 3700 into an AC outlet.
Powering Your HTUPS 3700 and Connected Equipment
A) For safety reasons, the HTUPS 3700 ships with the battery disconnected. You must first manually connect the battery.
See p.10 for instructions.
B) Plug your AV equipment you would like to protect from power loss into the surge-protected, battery backup-supplied outlets.
C) Plug the HTUPS 3700 into a properly grounded AC outlet. Always keep the HTUPS 3700 plugged into a live outlet to
ensure the battery is charged.
The HTUPS 3700 will then perform a self-test function. The “Clean Power On” LED will flash 16 times in 8 seconds
and the unswitched outlet will be delayed 8 seconds to output power. The Clean Power On, Protection On,
Unswitched On, UPS/AVR, Ground OK, and Wiring OK LEDs will illuminate steadily. The voltage and wattage meters will
display input AC voltage level, and the battery runtime LED bar will display current battery capacity.
D) Turn on your HTUPS 3700 switched outlets by pressing the Power On button. The Clean Power On, Protection On,
Unswitched On, Ground OK, Switched/Timed On, Wiring OK and UPS/AVR On LEDs will illuminate steadily and the voltage
meter will display input AC voltage level and the battery runtime LED bar will display current battery capacity, confirming
that there is adequate power to the connected loads.
