Montage Asia TXL1G2-3 User manual

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 1 of 9
User manual
For the
Traxit 3 2G GPS Tracker
Model Name:TXL1G2-3
By
Montage Asia
November 28, 2012
Revision History
Revision Date Description
X1.00 11/28/12 Initial Release

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 2 of 9
Scope
This document is a user manual for the TXL1G2-3 tracking device.
Description
The TXL1G2-3 Tracker is a self contained, expandable, integrated commercial grade
vehicle tracking device that uses GPS satellite location in combination with a quad band
(Optional:850MHz & 1900MHz or 900MHz & 1800MHz) GSM/GPRS cellular radio
connection to report that location. TXL1G2-3 is optimized for reliability, cost and size.
However, it remains highly flexible and capable of addressing diverse and specialized
requirements through a novel expansion arrangement.
All antennas including the GPS patch and GSM antenna are internal to the device. Data
reporting can be initiated by a command center or by the tracker itself via GSM/GPRS,
SMS or UDP pathways.
The TXL1G2-3 is unique in that it is intrinsically expandable. A screw fastened
expansion door secures SIM card access.
The TXL1G2-3 has a embedded lithium battery, the battery has 60mAh capacity .
The TXL1G2-3 is based on chip level design. The application software executes on the
base level Central Processing Unit (CPU) under direct Operating System (OS) control.
This approach provides a much more reliable, lower power and faster response than
module/processor architectures. Unlike in common module/processor based designs; the
ION2.2 design allows direct operating system access by the application, thus mitigating
the need for a redundant external processor.
For added redundancy against system lockup, a physically separate, dedicated watchdog
chip oversees the TXL1G2-3 system operation. If the system does not maintain the
watchdog chip through programmed reporting, the system power is cycled and a new
satellite and cellular connection is established.
The ION2.2 Tracker can be provisioned for UDP and SMS data services for both
application command and data transactions within the 850 & 1900 or 900 & 1800 MHz
GSM bands. Network provisioning is done with standard SIM cards. For added
safeguard against network connection loss, a hardware ION2.2 endpoint reset and reboot
can be initiated by simply calling the provisioned phone number and allowing it to ring
three times.
Flexible I/O includes 2 bidirectional General Purpose Input Output (GPIO) ports. A
separate dedicated two wire UART port is provided for general use as well as
development and programming support. A high current relay drive is provided for starter
motor relay control or general purpose drive (current sink only).
The power input, ground and GPIO signals that are present on the main 7 pin external
vehicle connector are also available on the 7 pin internal expansion connector. On the
internal connector, there is also a unique battery supply pin that supports connection of a
rechargeable battery.

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 3 of 9
Over The Air (OTA) application firmware updates are supported through at TFTP
connection to a server. The entire image can be updated using one simple command.
All inputs are electrically hardened against overvoltage and over current conditions
present in automotive environments. This includes transient electrical noise and Electro
Static Discharge (ESD). The power input is further protected against over current with
an internal, self resetting fuse.
The TXL1G2-3 enclosure and its features are secured using M2 sized metal fasteners for
rugged mechanical performance. .
The TXL1G2-3 is physically disguised to appear to be a nondescript part of the cabling
system. It is a small black box with unremarkable features. Two LED status indicators
are provided to verify correct installation and initial operation. A unique power
management feature allows these LEDs to be extinguished once installation is verified to
be correct. This feature reduces power and further conceals the ION2.2 Tracker from
untrained parties wishing to defeat its operation.
The TXL1G2-3 Tracker uses a simple cabling arrangement and supports splicing into an
OBDII extension for power. Connection to the vehicle is made through a 3mm pitch
rectangular header connection common to the automotive market.
As with all GPS location devices, the ION should be installed in a vehicle such that it has
an unobstructed view of the sky during normal operation. Double sided foam tape can be
used to secure the surface not facing the sky if needed.
Physical Attributes
Figure 3 shows various views of the ION2.2 Tracker and its critical physical features.
For absolute locations of these features, the 3D CAD models should be referenced.

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 4 of 9
Figure 3
TXL1G2-3 Physical Attributes
AES/PC
Plastic
En
c
l
osu
r
e
LED
Indicators
Main
Connector
Units:
Inches
[mm]
Sidecar
Mounts
M2
Fasteners
(
4 PL
)
Expansion
Door
M2
Fastene
r
SIM
To
p
Front
Bottom Back
To
p
Bac
k

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 5 of 9
Interfaces
There are one connectors on the TXL1G2-3.The connector provides electrically hardened
signals interfaces for I/O and power. It is intended that this connector attach or be spliced
into the cable harness of a vehicle.
Signals
Interconnects are oriented as shown in Figure 4 looking into the front of the port.
Electrical properties are in the subsequent table. The connector is keyed and latched.
Pin 1 Pin 7
Figure 4
Main Connector

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 6 of 9
Main Signals
Pin
Number Name Description Properties
1 RLY
Relay drive, connect relay coil
between pin 6 and this pin
500mA, 16V tolerance open drain
MOSFEET, TVS overvoltage protected
2 GP1
Configurable as general input
or output
2.8V logic level, 16V tolerance,
equivalent circuit in NOTE
3 GP2
Configurable as general input
or output
2.8V logic level, 16V tolerance,
equivalent circuit in NOTE
4 TX1
General UART TX output,
also serves as debug serial out
2.8V logic level, 16V tolerance,
equivalent circuit in NOTE
5 RX1
General UART RX input, also
serves as debug serial in
2.8V logic level, 16V tolerance,
equivalent circuit in NOTE
6 VIN
Power input, connect to
positive side of battery power
500mA PTC inline self resetting fuse,
also clamped to GND through 16V
hold TVS diode
7 GND
System ground, connect to
negative of battery power Power and signal ground point
Pin
1.2kΩ
2.8V
GND
2.8V
50kΩ
To Circuit

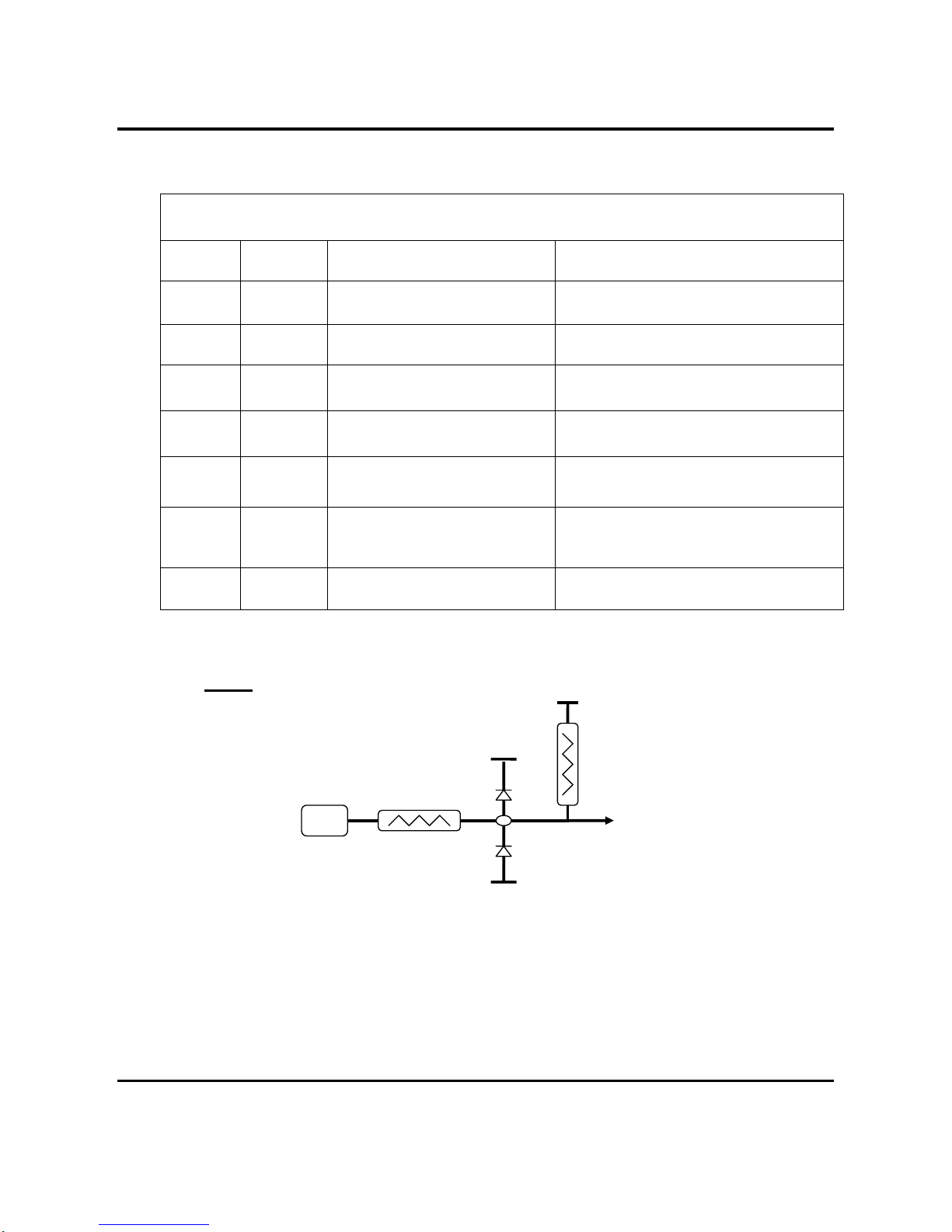

NOTE
Equivalent Circuit for pins 2 through 5

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 7 of 9
CE Regulations:
Caution
Risk of explosion if battery replaced aced by an incorrect type.
Dispose of used batteries according to the instructions.
Please make sure the temperature for device will not be higher than 55˚C
The device is tested for typical body worn operation. The minimum distance between the
user and/or any bystander and the radiating structure of the transmitter is 20cm.
Complies with the essential requirements of Article 3 of the R&TTE 1999/5/EC Directive,
if used for its intended use and that the following standards have been applied:
1. Health (Article 3.1(a) of the R&TTE Directive)
EN 62311: 2008
2. Safety (Article 3.1(a) of the R&TTE Directive)
Applied Standard(s):
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE Directive)
Applied Standard(s):
EN 301 489-1 V1.9.2/-3 V1.4.1/-7 V1.3.1
4. Radio frequency spectrum usage (Article 3.2 of the R&TTE Directive)
Applied Standard(s):
EN 301 511 V9.0.2
EN 300 440-1V1.6.1/ -2 V1.4.1
All the reports of the applied standards have the Positive Opinion of Notified Body:
PHONEIX TESTLAB, Königswinkel 10 D-32825 Blomberg, Germany
Identification mark: 0700 (Notified Body) CE
The technical documentation relevant to the above equipment will be held at:
Montage

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 8 of 9
FCC Regulations:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
This device has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiated radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user‘s authority to operate the equipment.
Cet appareil est conforme aux dispositions de la partie 15 des règles de la FCC et
des normes CNR d'Industrie Canada sur les appareils radio exempts de licence. Son
utilisation est assujettie aux deux conditions suivantes : (1) Cet appareil ne doit pas
causer d'interférence nuisible; et (2) cet appareil doit accepter toute interférence
reçue, y compris l'interférence qui pourrait causer un fonctionnement non désiré.
Cet équipement a été testé et jugé conforme aux limites d'un appareil numérique
de la Classe B, en vertu de la partie 15 des règles de la FCC et de la NMB-003
canadienne. Ces limites sont conçues pour fournir une protection raisonnable
contre l'interférence nuisible dans une installation résidentielle. Cet équipement
génère, utilise et peut émettre de l'énergie radiofréquence et, s'il n'est pas installé
et utilisé conformément aux instructions, peut causer une interférence nuisible
aux communications radio. Toutefois, il n'est pas garanti que l'interférence ne
se produira pas dans une installation particulière. Si cet équipement cause une
interférence nuisible à la réception radio ou de programmes de télévision, laquelle
peut être déterminée en éteignant et en allumant l'équipement, l'usager est
encouragé à essayer de corriger l'interférence par l'une ou plusieurs des mesures
suivantes :

Confidential Preliminary – Subject to Change
2012 China Mark, Ltd. T/A Montage Asia Page 9 of 9
• Réorientez ou relocalisez l'antenne de réception.
• Augmentez la séparation entre l'équipement et le receveur.
• Connectez l'équipement à une prise sur un circuit différent de celui auquel
de le receveur est connecté.
• Consultez le vendeur ou un technicien radio/de télévision pour obtenir de l'aide.
La FCC ou Industrie Canada peut vous obliger à arrêter d'utiliser votre appareil si
une telle interférence ne peut pas être éliminée.
TXL1G2-3 n'a pas approuvé les changements ou modifications apportés à cet appareil
par l'usager. Tous les changements ou modifications apportés peuvent entraîner la
révocation de l'autorisation d'utilisation de l'appareil.
4RF Exposure Information
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches)
during normal operation.
IC Notice
This device complies with Industry Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
4IC Exposure Information
This equipment complies with IC RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
