Montanari MGV34S User guide

9
REV:14_03_2021
MANUALS
MGV34RANGE
INSTALLATION, USE AND MAINTENANCE
GEARLESS
www.montanarigiulio.com

2

3
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
Thank you for choosing a Montanari product.
Since 1970, Montanari Group has been focused on
providing its customers with the best traction machines and
components for lifts and escalators.
We are proud to have you as a customer and user of the
Montanari traction machines, and we are confident that we
can work together for a long time.
Thanks again for your choice.
Massimo Montanari
CEO of Montanari Group

4
WARNING SYMBOLS USED IN THE MANUAL:
TIP
!
!
It indicates that safety measures must
be taken to avoid electric shock.
It indicates that safety measures must
be taken to prevent personal injury.
It indicates that safety measures
must be taken to prevent damage to
components.
It indicates that safety measures must
be taken to prevent burns due to
contact with hot/ overheated surface.
It indicates useful information before
and during the installation step.
It refers to specific parts of the
manual.
It refers to the proper product
disposal.
REV. DATE DESCRIPTION EDITED BY VERIFIED BY APPROVED BY
1 16/04/2019 First Redaction Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
2 04/06/2019 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
3 06/06/2019 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
4 02/08/2019 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
5 12/03/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
6 22/03/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
7 26/03/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
8 26/04/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
9 26/06/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
10 20/07/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
11 21/07/2020 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
12 17/01/2021 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
13 18/01/2021 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)
14 03/03/2021 Update Marketing Dept Technical Dept - Alberto Mantovani STEFANO BERTONI (DTE)

5
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
CONTENTS
1. GENERAL INFORMATION .....................................................................7
1.1 Introduction............................................................................................7
1.2 Copyright ...............................................................................................7
2. SAFETY...................................................................................................8
2.1 Intended use ..........................................................................................8
2.2 User’s obligations ...................................................................................8
2.3 Correct disposal ...................................................................................9
2.4 Specific hazards......................................................................................9
2.5 Legal References ....................................................................................9
3. IDENTIFICATION AND DATA ................................................................9
3.1 Identification plate .................................................................................9
3.2 Dimensions...........................................................................................12
3.3 Sound pressure.....................................................................................16
4. TRANSPORT AND STORAGE ..............................................................16
4.1 Handling...............................................................................................16
4.2 Storage.................................................................................................17
5. DESCRIPTION ......................................................................................18
5.1 General description..............................................................................18
5.2 Main components ...............................................................................18
5.3 Brake ....................................................................................................20
6. INSTALLATION.....................................................................................21
6.1 General installation information ...........................................................21
6.2 Installation surface................................................................................21
6.3 Installation procedure...........................................................................21
6.4 Electrical installation - Connections .....................................................23
7. CONNECTION OF THE BRAKE FOR RESCUE SYSTEM......................25
7.1 Connection of the cable to the brake levers........................................25
7.2 Connection of the cable to the hand release lever..............................26
7.3 Rescue System .....................................................................................27
7.4 Manual rescue system ..........................................................................27
7.5 Procedure:............................................................................................27

6
8. OPERATION .........................................................................................29
8.1 Connections .........................................................................................29
8.2 Additional components........................................................................29
8.3 General operation information.............................................................29
9. TROUBLESHOOTING, MAINTENANCE AND REPAIR ........................29
9.1 General information .............................................................................29
9.2 Traction/return sheave..........................................................................30
9.3 Replacement of components ...............................................................30
9.4 Problems, causes and solutions .........................................................30
9.5 Maintenance and repair .......................................................................31
9.5.1 General indications ...........................................................................31
9.5.2 Description of maintenance activities................................................31
10. SPARE PARTS .......................................................................................32
10.1 General information ...........................................................................32
10.2 How to order spare parts ...................................................................32
11. COMPLIANCE DECLARATION ............................................................33

7
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
1. GENERAL INFORMATION
1.1 Introduction
These operating instructions must always be available for consultation. No
liability is accepted for any malfunction due to installation not conforming to
specifications, except in cases approved by Montanari Giulio & C.
All persons involved in the installation, operation, maintenance and repair of the
unit must have read and understood the instructions.
No liability is accepted for damage, breakage or accident caused by failure to
follow the instructions.
To make technical improvements, Montanari reserves the right, if deemed
necessary, to modify the units and accessories, preserving their essential char-
acteristics and improving efficiency and safety, without notice.
1.2 Copyright
All rights to these operating instructions belong to Montanari Giulio & C. S.r.l.
The information in this manual may not be reproduced or used in an unauthor-
ized manner or made available to third parties without prior approval.
If you have any questions, please contact:
MONTANARI GROUP
HEADQUARTER - MONTANARI GIULIO & C. Srl
Via Bulgaria 39 - 41122 - Modena - Italia
Tel: [phone] - Fax: [phone]
www.montanarigiulio.com
[email protected]

8
2. SAFETY
2.1 Intended use
The MGV34 gearless machine is supplied ready for safe and reliable use. Any
modification by the user that may affect safety or reliability is prohibited; it is
also prohibited to tamper with devices or functions designed to prevent acci-
dental contact.
It can be used in systems with and without machine room (MR - MRL).
The Montanari MGV34 gearless machine must be used and operated
in strict compliance with the conditions set out in the supply contract.
!
Technical specifications considered: speed, cab capacity, cab weight, presence
or absence of compensation, roping at the time of order.
No liability is accepted for any malfunction due to installation not conforming to
specifications, except in cases approved by Montanari Giulio & C..
2.2 User’s obligations
The operator must ensure that all persons involved in installation, operation,
maintenance and repair have read and understood the supplied operating
instructions and have adapted to them in order to:
• Avoid damage to property or persons.
• Ensure safe and reliable operation of the unit.
• Avoid breakage and environmental damage due to misuse.
In particular:
• Always observe the relevant environmental and safety regulations when
transporting, assembling, installing, operating, maintaining and dismantling
the unit.
• The unit must only be used, maintained and repaired by authorized, prop-
erly trained and qualified personnel.
• The gearbox must not be cleaned using high-pressure cleaning equipment.
• All work must be carried out with care and with due attention to safety.
• Any work on the unit should only be carried out when it is not in operation.
• A warning must be placed on the main switch to clearly indicate that work
is in progress on the unit.
• No welding must be carried out on the unit.
• Do not use the unit as a grounding point for welding operations.
• If any changes are detected (e.g. overheating or unusual noise) during
operation, switch off immediately.
• Rotating components must be equipped with appropriate guards to pre-
vent contact.
• If the unit is intended for installation in plant or machinery, the manufacturer
of such plant or machinery must ensure that the standards, indications and
descriptions contained in these operating instructions are incorporated into its
own instructions.

9
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
N Norm Description
1 UNI 10147 Maintenance: Terminology.
2 EN 81-20 Safety rules for the construction and installation of lifts - Lifts for the transport of persons
and goods.
3 EN 81-50 Safety rules for the construction and installation of lifts - Examinations and tests.
4 EN 81-21 Safety rules for the construction and installation of lifts - Lifts for the transport of persons
and goods - Part 21: New passenger and goods passenger lifts in existing building.
3. IDENTIFICATION AND DATA
3.1 Identification plate
The data on the plate are:
• The information on the warning or identification plates must be complied
with. These plates must be kept clean and legible at all times. Missing plates
must be replaced.
• All spare parts can be obtained from Montanari Group.
2.3 Correct disposal
Respect the environment and dispose of the product according to the
regulations in force in the country of installation.
2.4 Specific hazards

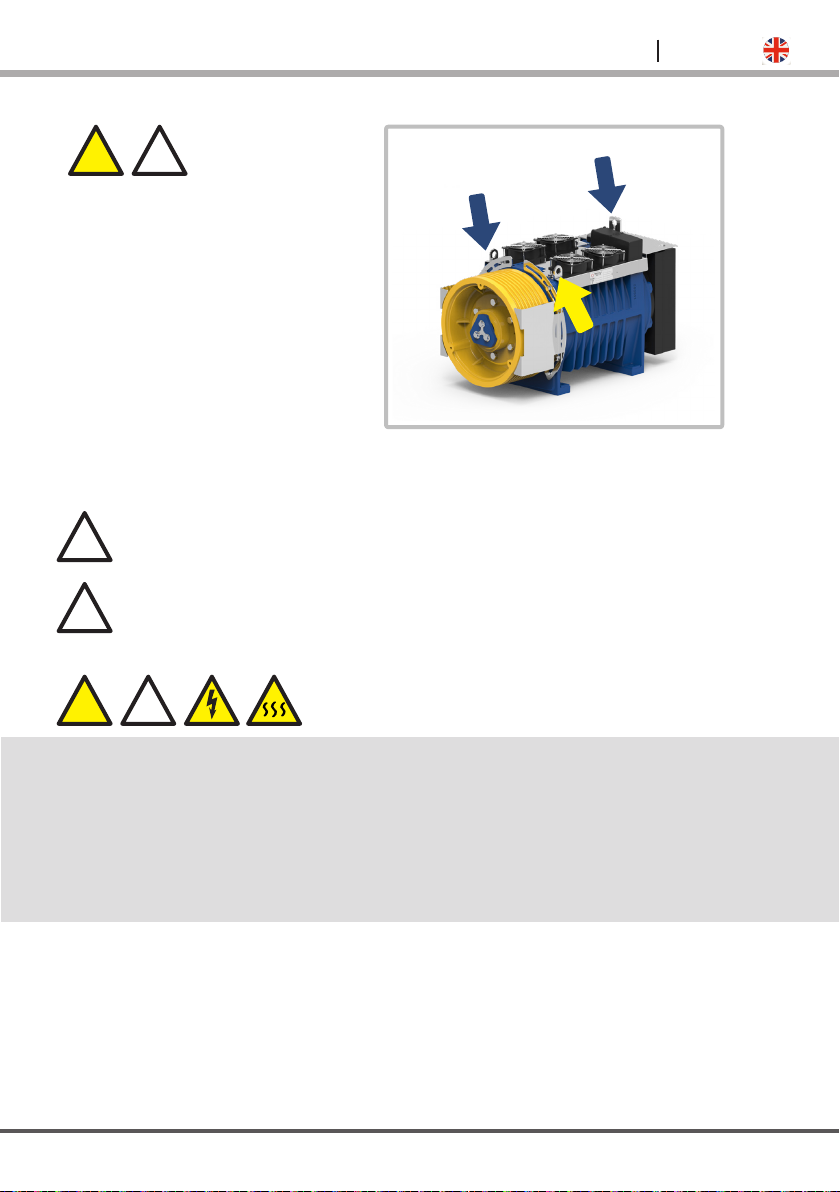

Depending on the conditions of use, the surface of the unit can become very
hot.
Fig. 1
Danger of burning!
!
Manufacturer
Manufacturer’s
address
Year of production
Serial number
Gearless
machine
code
Model
Speed
Rated
voltage
Frequency
Power rating
Cycle type
Rated torque
Motor
pole no.
Rated current
Weight
QR code to access
the relevant docu-
mentation.
2.5 Legal References Tab. 1

10
GEARLESS MACHINE TECHNICAL CHARACTERISTICS: MGV34S GEARLESS MACHINE TECHNICAL CHARACTERISTICS: MGV34M
MGV34M Type Pn
Speed Vn Cn In Cmax Imax EMF Poles F Rs Ls Static
Load IDuty
Cycle Weight
Code
machine kW [RPM] [V] [Nm] [A] [Nm] [A] [V∙s/
rad] [N°] [Hz] [Ω] [mH] [Kg] [kg∙m2] [Kg]
MGV34201803CO13 MGV34M 8,8 80 210 1050 43 1850 81 13 16 10,7 0,44 7,5 5000 2,4 180S/H 40% 539 MGV34202393CO13 MGV34M 13,2 120 210 1050 57 1850 105 10 16 16 0,275 4,4 5000 2,4 180S/H 40% 539 MGV34203803CO13 MGV34M 19,8 180 210 1050 85 1850 150 7 16 24 0,125 2,1 5000 2,4 180S/H 40% 539 MGV34202402CO13 MGV34M 26,4 240 210 1050 107 1850 204 5 16 32 0,08 1,3 5000 2,4 180S/H 40% 539 MGV34200483CO13 MGV34M 5,3 48 360 1050 18,5 1850 34 32 16 6,4 2,5 42 5000 2,4 180S/H 40% 539 MGV34200753CO13 MGV34M 8,3 75 360 1050 21 1850 43 26 16 10 1,6 26,5 5000 2,4 180S/H 40% 539 MGV34201203CO13 MGV34M 13,2 120 360 1050 30,5 1850 57 19 16 16 0,88 15 5000 2,4 180S/H 40% 539 MGV34201803CO13 MGV34M 19,8 180 360 1050 43 1850 81 13 16 24 0,44 7,5 5000 2,4 180S/H 40% 539 MGV34202393CO13 MGV34M 26,3 239 360 1050 57 1850 105 10 16 31,9 0,275 4,4 5000 2,4 180S/H 40% 539 MGV34203003CO13 MGV34M 33 300 360 1050 69 1850 120 8 16 40 0,19 3,2 5000 2,4 180S/H 40% 539 MGV34203803CO13 MGV34M 41,8 380 360 1050 85 1850 150 7 16 50,7 0,125 2,1 5000 2,4 180S/H 40% 539
MGV34S Type Pn
Speed Vn Cn In Cmax Imax EMF Poles F Rs Ls Static
Load IDuty
Cycle Weight
Code
machine kW [RPM] [V] [Nm] [A] [Nm] [A] [V∙s/
rad] [N°] [Hz] [Ω] [mH] [Kg] [kg∙m2] [Kg]
MGV34151203CJ00 MGV34S 4,3 48 210 850 28 1400 50 17 16 6,4 1 15,8 5000 1,35 180S/H 40% 472 MGV34152103CJ00 MGV34S 8,5 96 210 850 43 1400 73 11 16 12,8 0,46 7,3 5000 1,35 180S/H 40% 472 MGV34153003CJ00 MGV34S 14,2 160 210 850 58 1400 102 8 16 21,3 0,25 4 5000 1,35 180S/H 40% 472 MGV34152392CJ00 MGV34S 22,5 239 210 850 81 1400 140 6 16 31,9 0,13 2 5000 1,35 180S/H 40% 472 MGV34150603CJ00 MGV34S 5,3 60 360 850 17,5 1400 32 27 16 8 2,5 39 5000 1,35 180S/H 40% 472 MGV34150963CJ00 MGV34S 8,5 96 360 850 24 1400 43 20 16 12,8 1,4 22 5000 1,35 180S/H 40% 472 MGV34151203CJ00 MGV34S 10,7 120 360 850 28 1400 50 17 16 16 1 15,8 5000 1,35 180S/H 40% 472 MGV34152103CJ00 MGV34S 18,7 210 360 850 43 1400 73 11 16 28 0,46 7,3 5000 1,35 180S/H 40% 472 MGV34153003CJ00 MGV34S 26,7 300 360 850 58 1400 102 8 16 40 0,25 4 5000 1,35 180S/H 40% 472
Tab. 3 Tab. 2

11
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
GEARLESS MACHINE TECHNICAL CHARACTERISTICS: MGV34ML GEARLESS MACHINE TECHNICAL CHARACTERISTICS: MGV34L
MGV34ML Type Pn
Speed Vn Cn In Cmax Imax EMF Poles F Rs Ls Static
Load IDuty
Cycle Weight
Code
machine kW [RPM] [V] [Nm] [A] [Nm] [A] [V∙s/
rad] [N°] [Hz] [Ω] [mH] [Kg] [kg∙m2] [Kg]
MGV34311203CO11 MGV34ML 7,03 48 210 1400 40 2400 70 19 16 6,4 0,54 10 6500 2,7 180S/H 40% 623 MGV34311913CO11 MGV34ML 14,1 96 210 1400 58 2400 104 13 16 12,8 0,25 4,6 6500 2,7 180S/H 40% 623 MGV34312393CO11 MGV34ML 17,6 120 210 1400 72 2400 127 11 16 16 0,17 3 6500 2,7 180S/H 40% 623 MGV34313303CO11 MGV34ML 23,5 160 210 1400 96 2400 168 8 16 21,3 0,1 1,9 6500 2,7 180S/H 40% 623 MGV34312402CO11 MGV34ML 35,2 240 210 1400 136 2400 231 6 16 32 0,054 0,96 6500 2,7 180S/H 40% 623 MGV34310603CO11 MGV34ML 8,8 60 360 1400 23,5 2400 42 32 16 8 1,56 28 6500 2,7 180S/H 40% 623 MGV34310963CO11 MGV34ML 14,1 96 360 1400 36 2400 61 21 16 12,8 0,69 12 6500 2,7 180S/H 40% 623 MGV34311203CO11 MGV34ML 17,6 120 360 1400 40 2400 70 19 16 16 0,54 10 6500 2,7 180S/H 40% 623 MGV34311913CO11 MGV34ML 28,1 192 360 1400 58 2400 104 13 16 25,6 0,25 4,6 6500 2,7 180S/H 40% 623 MGV34312393CO11 MGV34ML 35 239 360 1400 72 2400 127 11 16 31,9 0,17 3 6500 2,7 180S/H 40% 623 MGV34313303CO11 MGV34ML 48,4 330 360 1400 96 2400 168 8 16 44 0,1 1,9 6500 2,7 180S/H 40% 623
MGV34L Type Pn
Speed Vn Cn In Cmax Imax EMF Poles F Rs Ls Static
Load IDuty
Cycle Weight
Code
machine kW [RPM] [V] [Nm] [A] [Nm] [A] [V∙s/
rad] [N°] [Hz] [Ω] [mH] [Kg] [kg∙m2] [Kg]
MGV343112036Q12 MGV34L 8,1 48 210 1620 47 2800 86 19 16 6,4 0,54 10 6500 2,7 180S/H 40% 677 MGV343119136Q12 MGV34L 14,4 85 210 1620 68 2800 124 13 16 11,3 0,25 4,6 6500 2,7 180S/H 40% 677 MGV343123936Q12 MGV34L 20,3 120 210 1620 85 2800 152 11 16 16 0,17 3 6500 2,7 180S/H 40% 677 MGV343130036Q12 MGV34L 27,1 160 210 1620 109 2800 196 8 16 21,3 0,1 1,9 6500 2,7 180S/H 40% 677 MGV343123026Q12 MGV34L 39 230 210 1620 157 2800 273 6 16 30,7 0,054 0,96 6500 2,7 180S/H 40% 677 MGV343104836Q12 MGV34L 8,1 48 360 1620 27,5 2800 51 31 16 6,4 1,56 28 6500 2,7 180S/H 40% 677 MGV343109636Q12 MGV34L 16,3 96 360 1620 42 2800 77 21 16 12,8 0,69 12 6500 2,7 180S/H 40% 677 MGV343112036Q12 MGV34L 20,3 120 360 1620 47 2800 86 19 16 16 0,54 10 6500 2,7 180S/H 40% 677 MGV343119136Q12 MGV34L 32,6 192 360 1620 68 2800 124 13 16 25,6 0,25 4,6 6500 2,7 180S/H 40% 677 MGV343123936Q12 MGV34L 40,5 239 360 1620 85 2800 152 11 16 31,9 0,17 3 6500 2,7 180S/H 40% 677 MGV343130036Q12 MGV34L 50,8 300 360 1620 109 2800 196 8 16 40 0,1 1,9 6500 2,7 180S/H 40% 677
Tab. 4
Tab. 5

12

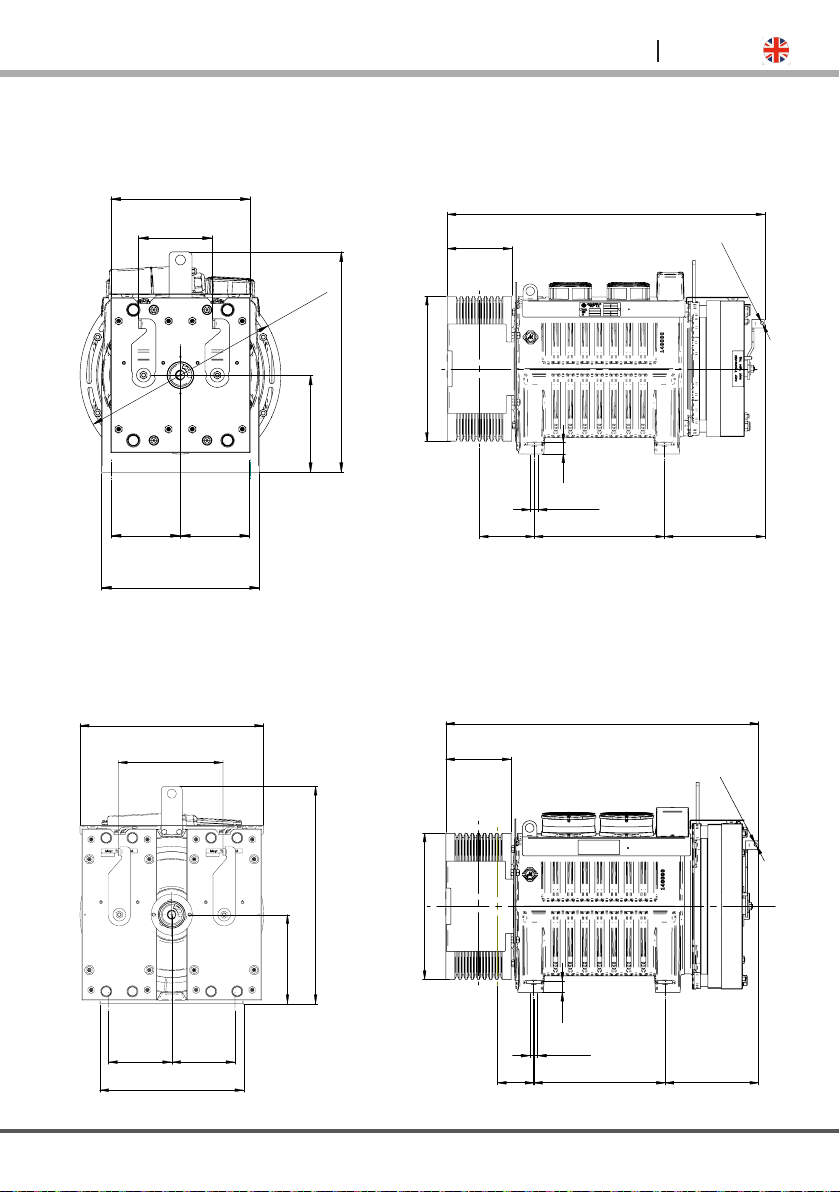

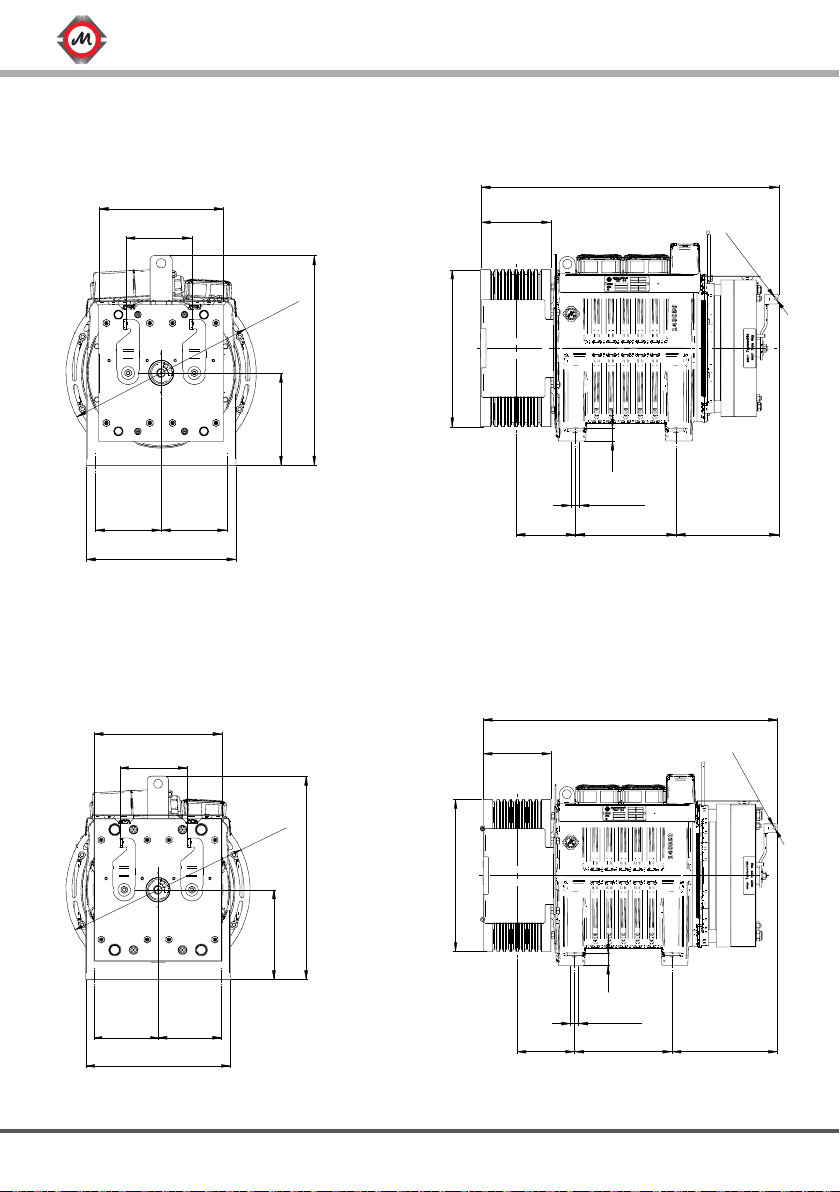

3.2 Dimensions
The technical drawing and the overall dimensions follow.
Tab. 6
BRAKE CHARACTERISTICS
Model Brake
model Power (Pn) Voltage (Vn) Current (In) Force (Cn) Certificate
[W] [V] [A] [Nm]
MGV34S RTW800 2 x 502 - 2 x 127 207VDC PEAK - 104VDC HOLD 2.4 - 1.2 2 x950 EU-BD 1014
MGV34M RTW1000 2 x 158 207VDC 2 x 0,76 2 x1200 EU-BD 1014
MGV34ML RTW1000 2 x 158 207VDC 2 x 0,76 2 x1200 EU-BD 1014
MGV34L RSR1500 2 x 165 207VDC 2 x 0,80 2 x1700 EU-BD 766
Tab. 7
MGV34S - Fig. 2
Pulley Ropes Dimensions
ØD F Ø min
max Pitch A
mm mm mm n° mm mm
240 130 6,5 6 - 10 12 167
320
180
83 - 10 17
153
400 10
480 12 3 - 9 20
520 145 13 3 - 7

13
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
Tab. 8
Tab. 9
Tab. 10
MGV34M - Fig. 3
Pulley Ropes Dimensions
ØD F Ø min
max Pitch A
mm mm mm n° mm mm
320
180
83 - 10 17
153
400 10
480 12 3 - 9 20
520 145 13 3 - 7
MGV34ML - Fig. 4
Pulley Ropes Dimensions
ØD F Ø min
max Pitch A
mm mm mm n° mm mm
320
180
83 - 10 17
153
400 10
480 12 3 - 9 20
520 145 13 3 - 7
MGV34L - Fig. 5
Pulley Ropes Dimensions
ØD F Ø min
max Pitch A
mm mm mm n° mm mm
320
180
83 - 10 17
153
400 10
480 12 3 - 9 20
520 145 13 3 - 7

14
Fig. 3
MGV34M
22Ø
259
F
782
Ø9
ØD
A280
32
180
169
385
238
340
540
169
Ø490
22Ø
259
F
766
ØD
264
Ø9
32
A
170
169 169
238
320
540
385
Ø490
Fig. 2
MGV34S

15
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
Fig. 4
MGV34ML
Fig. 5
MGV34L
22Ø
363
F
886
ØD
O
9
A
32
280
180
340
169
238
O
4
9
0
169
385
22Ø
363
ØD
F
864
O9
A
32
258
280
490
169 169
385
238
581

16
3.3 Sound pressure
MGV 34 RANGE / Sound pressure in dB(A)*
Version When operating With brake
S
≤48 ≤54
M
ML
L
Only use lifting systems and equipment with adequate lifting capacity
for handling. The entire packaging is designed to allow movement with
forklift and forklift truck.
!
4. TRANSPORT AND STORAGE
4.1 Handling
All gearless machines are packed in crates or cages.
Different types of packaging can be used, depending on the size and means
of transport. Unless otherwise specified, the packaging complies with the HPE
guidelines.
In some cases, the machines are mounted on wooden pallets to enable them
to be transported correctly on trucks. The packaging may not be stacked in any
way. It is recommended to check the conditions of the material when it is re-
ceived. In case of damage, do not proceed with the installation unless expressly
authorized by Montanari Giulio & C. Observe the symbols on the packaging to
prevent damage to property or personal injury. Here are the meanings of the
symbols that may appear on the packaging.
Keep dry Handle with care
Upper side Do not use hooks
Fragile Center of gravity
Keep away from
heat sources
Attachment point
Tab. 11

17
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
For lifting, anchor points (eyebolts)
are provided as shown in Fig. 6.
Use only the specified eyebolts to
handle the unit.
Fig. 6
! !
4.2 Storage
The gearless machine must be stored in the position of use on a wooden base
not subject to vibrations, in a covered and sheltered place.
If the unit is stored outdoors, it should be covered, taking care that no
moisture and/or other foreign matter can accumulate on it.
!
Supplies for special environmental conditions during transport (e.g.
by ship) and storage (climate, temperature, etc.) must be contractually
agreed.
!
• Check the correct operation of the motor and brake after installation.
• Repairs may only be carried out by the manufacturer or by authorised per-
sonnel.
• The machine can be red-hot.
• These machines must be connected to inverters.
• When the machine is rotating, both manually and mechanically, it can act as
a generator and produce high voltage.
• During configuration, the machine is powered by high voltage.
! !

18
5. DESCRIPTION
5.1 General description
The MGV34 series gearless machines are permanent magnet motors with dou-
ble brake system.
5.2 Main components
The unit consists of the main groups as shown in Fig. 7 - 8 - 9. For the versions
with 400 - 480 - 520 mm sheave, it is possible to install the kit for the manual
rescue system.
MGV34 S- M - ML - L are equipped with a PTC thermal probe inside the windings
to protect against overheating (winding temperature up to 130°C) and with a
thermo-contact for the activation of the fans. Refer to the electrical connections
for more details. - See Par. 6.4.
Lubrication
The gearless machine contains no oil and it is supplied with bearings
already lubricated throughout the life of the machine; no further lubri-
cation is required.
!
Flywheel for rescue
system (MR)
Brake
Standard
guards
Fig. 7
Cooling fans
Traction sheave
Fixing holes
Motor cable
outlet
Label
MGV34 with flywheel - MR
See detail Fig. 8

19
www.montanarigiulio.com
MGV34 S - M - ML - L ENGLISH
Standard
guards
Fig. 9
Cooling fans
Pulley
Fixing holes
Motor cable
outlet
Brake levers
MGV34 without flywheel - MRL
Brake guard
Brake detail
Encoder
Brake electromagnet
Movable surface/brake
Microswitch
brake
Connection bar
Guards
Fig. 8
Flywheel
MGV34: MR Kit for transformation into machine room version
Only for pulleys: 400 - 480 - 520 mm
Gear wheel
Safety contact
585
238
339
519
750Ø
Ø
567
913
The NC contact must be
connected to the safety
chain of the panel.

20
5.3 Brake
The gearless machine is supplied with a brake that conforms to the standards
indicated in paragraph 2.5.
The brake system is pre-calibrated by the manufacturer and no further adjustment
is required.
The brake system operates as follows:
• Not powered (electromagnet not powered): the brake disc is clamped by
the movable surfaces (yellow arrows on Fig. 10). In this condition the system
does not move.
• When the brake electromagnet is powered, it releases the brake disc
(yellow arrows in Fig. 11); now the motor is released.
!!

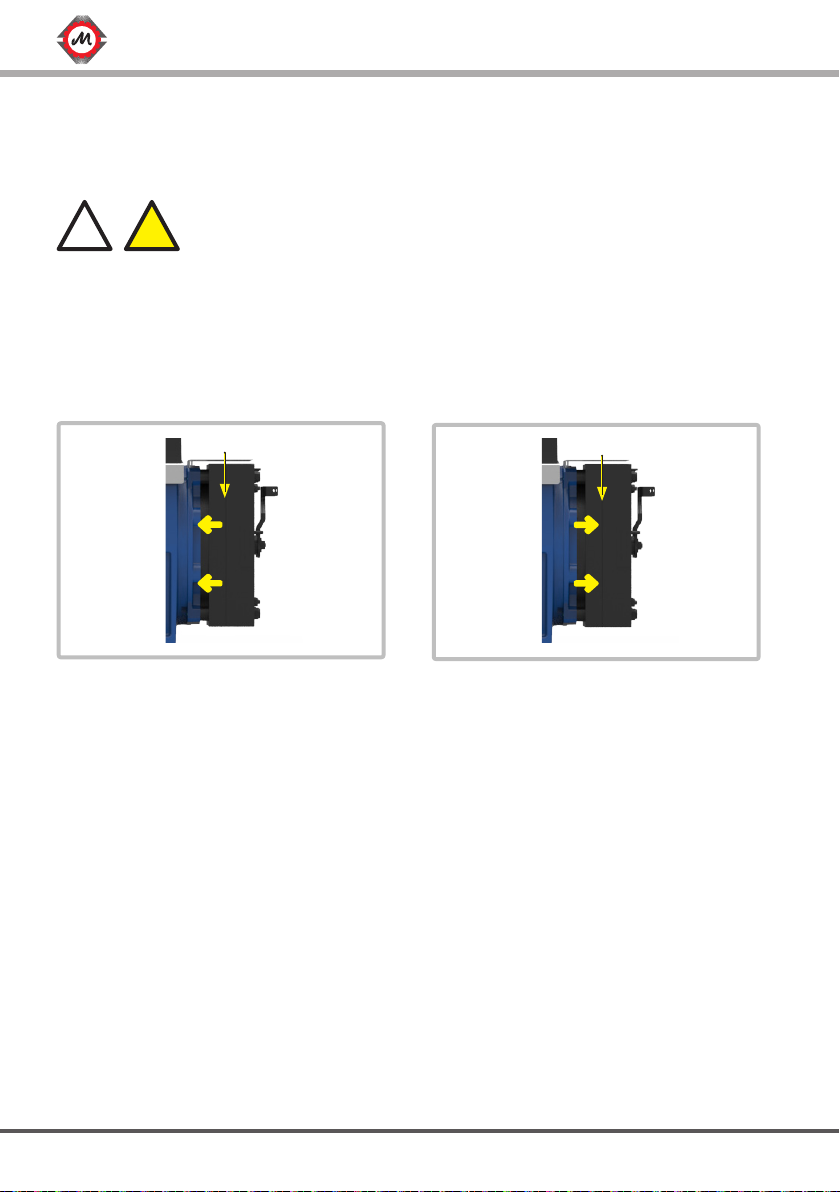

AIR GAP 0,5 mm AIR GAP 0 mm
Brake system not powered Brake system powered
Fig. 10 Fig. 11
