Montezuma M1624SC User manual

OWNER'S MANUAL
16" X 24"
SIDE CABINET
M1624SC
www.montezumastorage.com

2
LIFE ORGANIZED
Montezuma is committed to helping you succeed in both your work
and personal life by being organized, prepared and equipped with
the right tools, gear and home supplies at your finger tips.
We are here to ensure that your life is organized.
Thank you for your purchase of this Montezuma Side Cabinet.
ATTENTION
TO REDUCE THE RISK OF INJURY, THE USER MUST READ AND
UNDERSTAND THIS INSTRUCTION MANUAL BEFORE USING THIS
PRODUCT FOR THE FIRST TIME. SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE.
Fill in the following information and retain
this owner's manual for future reference:
MODEL(S):
DATE OF PURCHASE:
PLACE OF PURCHASE:
RECEIPT NO:

3
SPECIFICATIONS
MAXIMUM PRODUCT WEIGHT (INCLUDING CONTENTS): 450 lb (204 kg)
MAXIMUM DRAWER WEIGHT: 150 lb (68 kg)
MAXIMUM SHELF WEIGHT CAPACITY: 50 lb (23 kg)
POWER STRIP
MODEL: LTS-04C/CH-04F
SURGE PROTECTIVE DEVICES
RATING: 120 V AC 15 A 60 Hz 1875 W
USB: TOTAL 2.1 A – Check your device for compatibility
USB O/P: IT EQUIPMENT ONLY
VPR: 500-1000 V (L-N) TYPE 3 SPD
CONFORMS TO UL STD. NO 1363 AND ANSI/UL STD. NO. 1449
CERTIFIED TO CSA STD. C22.2 NO. 308&8
16" x 24" 1-DRAWER SIDE CABINET
M1624SC
OVERALL DIMENSIONS:
15-7/8" W x 24-5/8" D x 33-7/8" H
(40.3 cm W x 62.5 cm D x 85.9 cm H)
NET WEIGHT: 93 lb (42 kg)
INSIDE DRAWER DIMENSIONS:
REF DIMENSIONS QTY
A18-1/4" W x 11-3/4" D x 28-7/8" H
(46.5 cm W x 29.8 cm D x 73.4 cm H) 1
WE RECOMMEND USING THIS SIDE CABINET
WITH ANY MONTEZUMA 24" DEEP TOOL CABINET
A

4

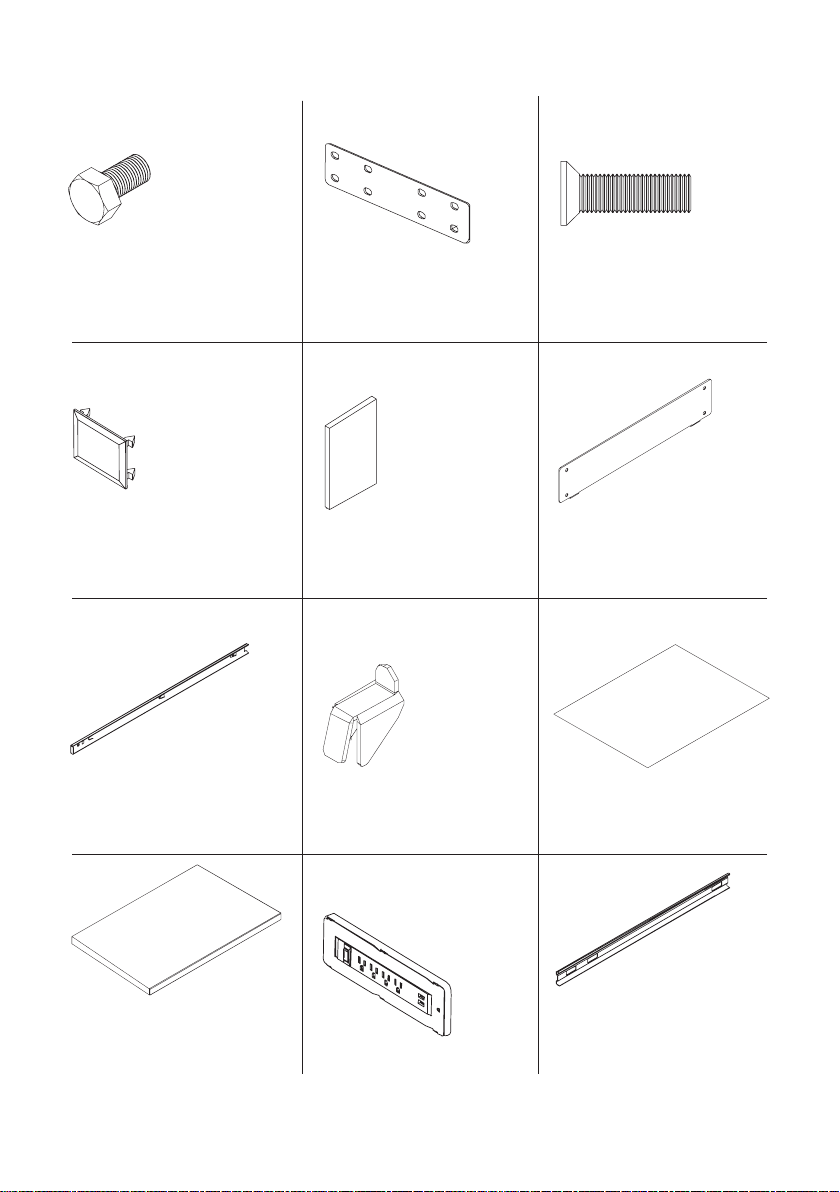

PARTS LIST
To order replacement parts, email [e-mail] or call 1-800-459-4409
(Monday–Friday, 8:00 am–4:30 pm, CST). Have the part number and quantity ready.
Replacement keys may be ordered using the code that appears on the face of the lock.
Not all parts are covered under warranty. Those parts not covered can be purchased.
REF DESCRIPTION PART NUMBER QTY
1M6 x 12 Hex Bolt 321051 4
2Connector 241999 1
3M6 x 20 Counter Sink Screw 320049 4
4End Cover 314047 4
5EVA Liner 600100 2
6Hanger 241998 1
7Right Slide 300381 1
8Shelf Support 203902 4
9Liner 552156 2
10 Shelf 241997 1
11 Power Strip 333059 1
12 Left Slide 300380 2
13 Lock and Key (1201–1204) 304166 1
14 Grommet 314027 1
2
3
1
4
7
8
11
9
13
10
5
12
14
6
x x x
The keys are
taped to the
inside of the
drawer.

Power Strip
For power management
1
M6 x 12 mm Hex Bolt
For attaching
the connector
EVA Liner
For attaching to the
bottom of the side cabinet
Shelf Support
For installing the shelf
Hanger
For hanging the side
cabinet on a tool cabinet
End Cover
Pre-installed on side panel
– remove when hanging
on a tool cabinet
Right Slide
Pre-installed
For installing drawer
Left Slide
Pre-installed
For installing drawer
M6 x 20 Counter
Sink Screw
For installing the hanger
Connector
For attaching the side
cabinet to a tool cabinet
4
2
4
14
1
2
41
Liner
For protecting your
drawer and shelf
2
Shelf
For placing at
desired height
1

6

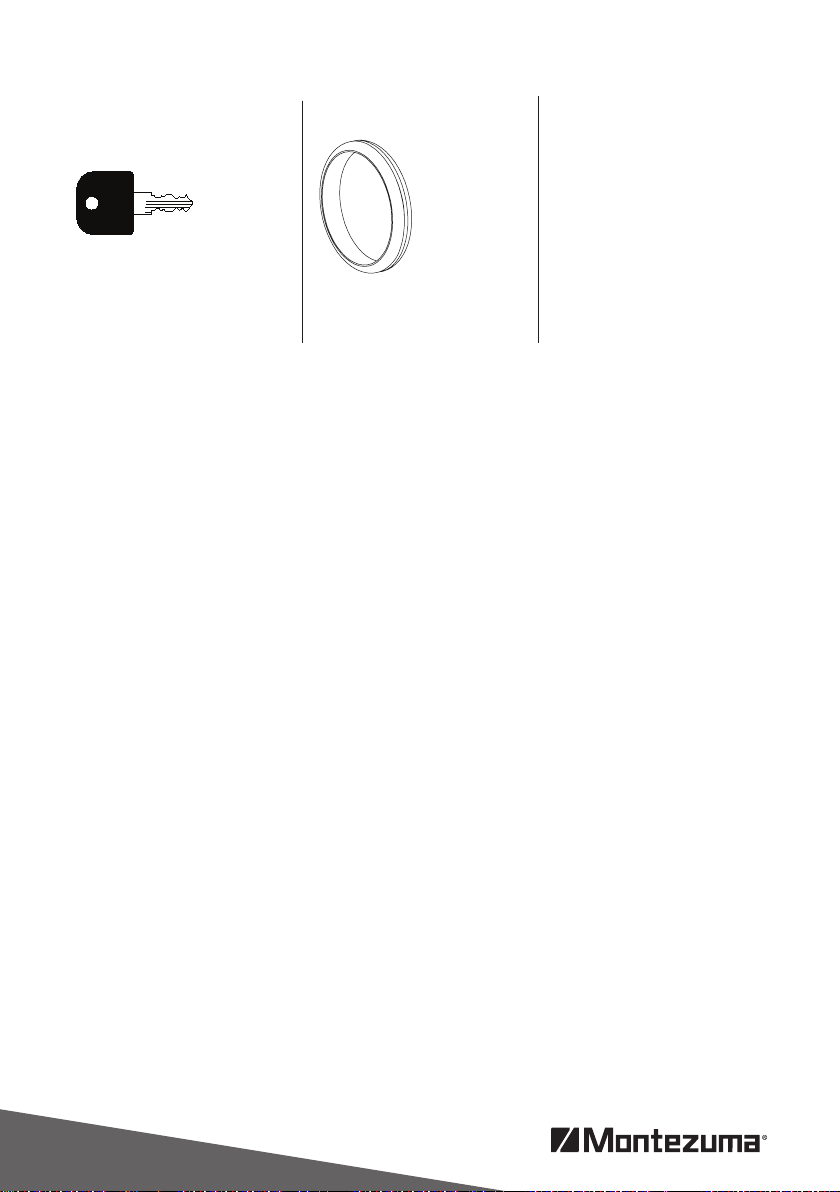

Grommet
For cord access
1
x x x
Lock and Key
For securing
your valuables
1

7

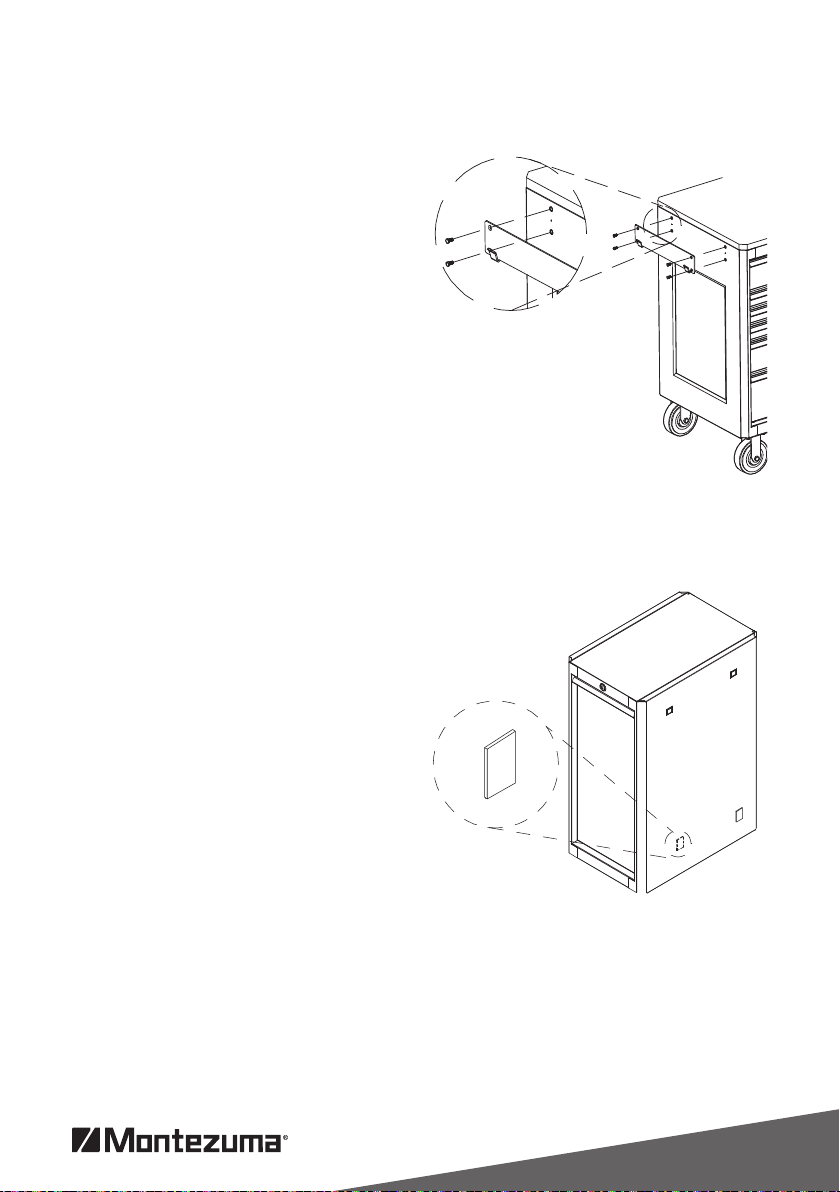

HANGER INSTALLATION
The hanger can be mounted on either side
of a tool cabinet. If necessary, remove the
side handles from the tool cabinet.
To install the hanger, position it over the
holes in the tool cabinet and attach using
four M6 x 20 counter sink screws. Tighten
securely.
EVA LINER INSTALLATION
Attach two EVA liners to the side cabinet in
the locations indicated.

8

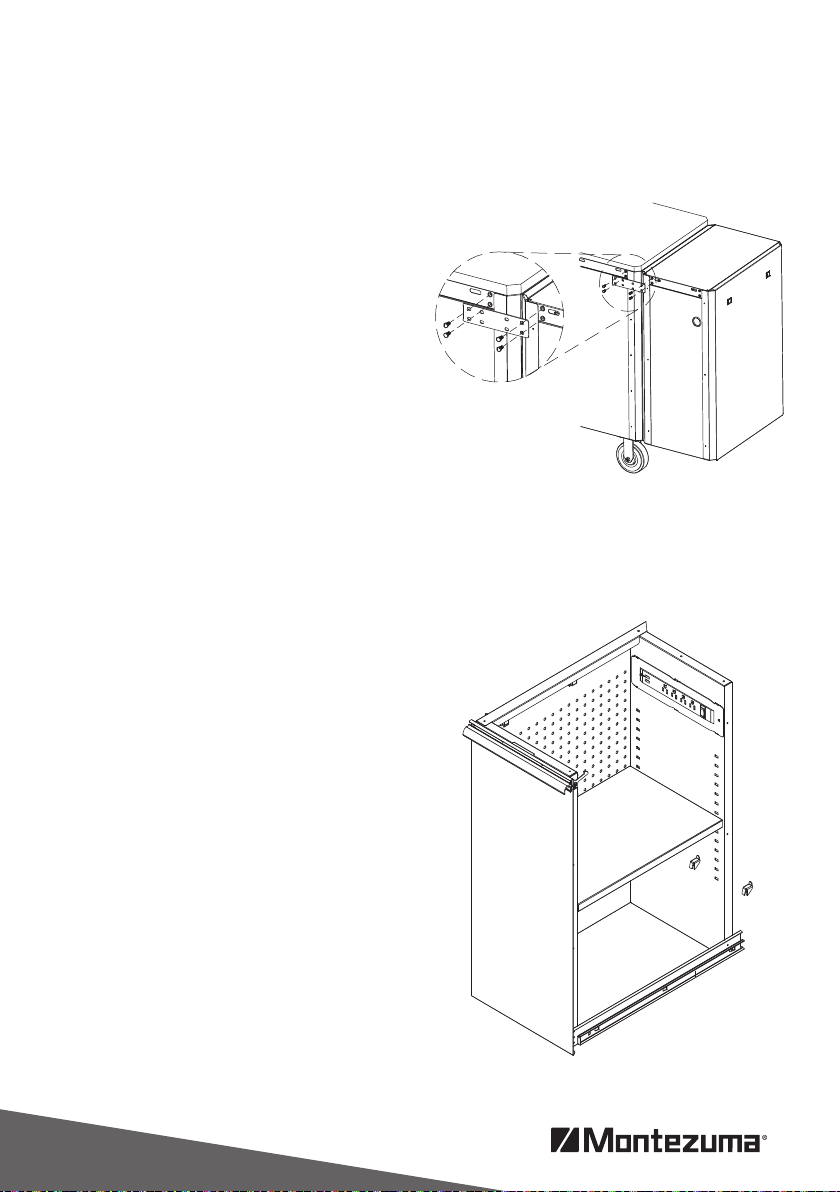

SIDE CABINET-
CABINET CONNECTION
Remove the end covers from the side panel
of the side cabinet. Hang the side cabinet
on your tool cabinet.
Position the connector on the back of the
side cabinet and tool cabinet. Attach to the
side cabinet using two M6 x 12 hex bolts
and to the tool cabinet with two M6 x 12 hex
bolts.
SHELF INSTALLATION
Insert four shelf supports inside the side
cabinet at the desired height.
Place the shelf on the shelf supports.

9
RAISE AND RELEASE
DRAWER FRONTS
These units are equipped with raise and
release drawer fronts. To open, lift up on the
drawer front while pulling towards you. To
close, shut the drawer firmly until the latch
engages.
If the drawer does not stay closed, the hook
may be bent, or it may be rubbing against
the drawer slides. To fix this problem, lightly
bend the hook until the drawer will engage
in the slide.
Lift
DRAWER REMOVAL
Pull the drawer out so that it’s almost fully extended. Push up on the black release lever
on one side, while pushing down on the black release lever on the other side. While
holding the levers in these positions, pull the drawer outward until it is released from the
drawer slide.
ONE SIDE – PUSH UP OTHER SIDE – PUSH DOWN
DRAWER REPLACEMENT
Extend the drawer slides from the unit. Insert the brackets on each side of the drawer
into the slots in the slides, being careful that they are properly positioned. Once properly
inserted, completely close the drawer to set the slides in position.

10
MAINTENANCE
Periodically clean the drawer fronts, trim, and other surfaces with mild detergent and water.
Lubricate the slides (twice a year) with a product like WD40 or other quality lubricant. This
is especially important in low temperatures, which can cause the bearing to become stiff.
Grease and oil can be removed with most standard cleaning fluids. For safety, use a
nonflammable cleaning fluid.
SAFETY
RISK OF ELECTRIC SHOCK. To reduce the risk of electric shock, use indoors in a
dry location only. Do not plug the power strip into another power strip. Not for use for a
permanent installation.
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Close and lock the drawer before moving this product. The drawer could come open and
make the product unstable and tip, which may cause personal injury or product damage.
DO NOT stand or lean on this product.
WEAR SAFETY GLASSES when removing or repositioning the slides. The tool could
slip, which may cause personal injury.
DO NOT mount this product on a truck bed or any other moving object. This may cause
personal injury or product damage, and will void the warranty.
Secure this product properly before moving it with a forklift.
Keep the product on level surfaces. The product could become unstable and tip if stored
or moved on an uneven surface, which may cause personal injury or product damage.

11
This product is warranted to be free from defects in materials
and workmanship for a period of five (5) years from the date
of original purchase.
If this product is defective, email [e-mail]
or call 1-800-459-4409 (Monday–Friday, 8:00 am–4:30 pm, CST). If the
product is defective, we will replace the defective part at no cost to you.
Please do not ship your product back to the store or to us
unless we send you written instructions for return.
In the event it becomes necessary for your product
to be returned, we will notify you how to proceed.
A copy of your original purchase receipt must accompany
the returned product.

M1624SC-01/19
Manufactured by:
QUALITY CRAFT
Surrey, BC, Canada V3S 5N4
[e-mail]
1-800-459-4409
(Monday to Friday, 8:00 am–4:30 pm, CST)
Made in China
www.montezumastorage.com
